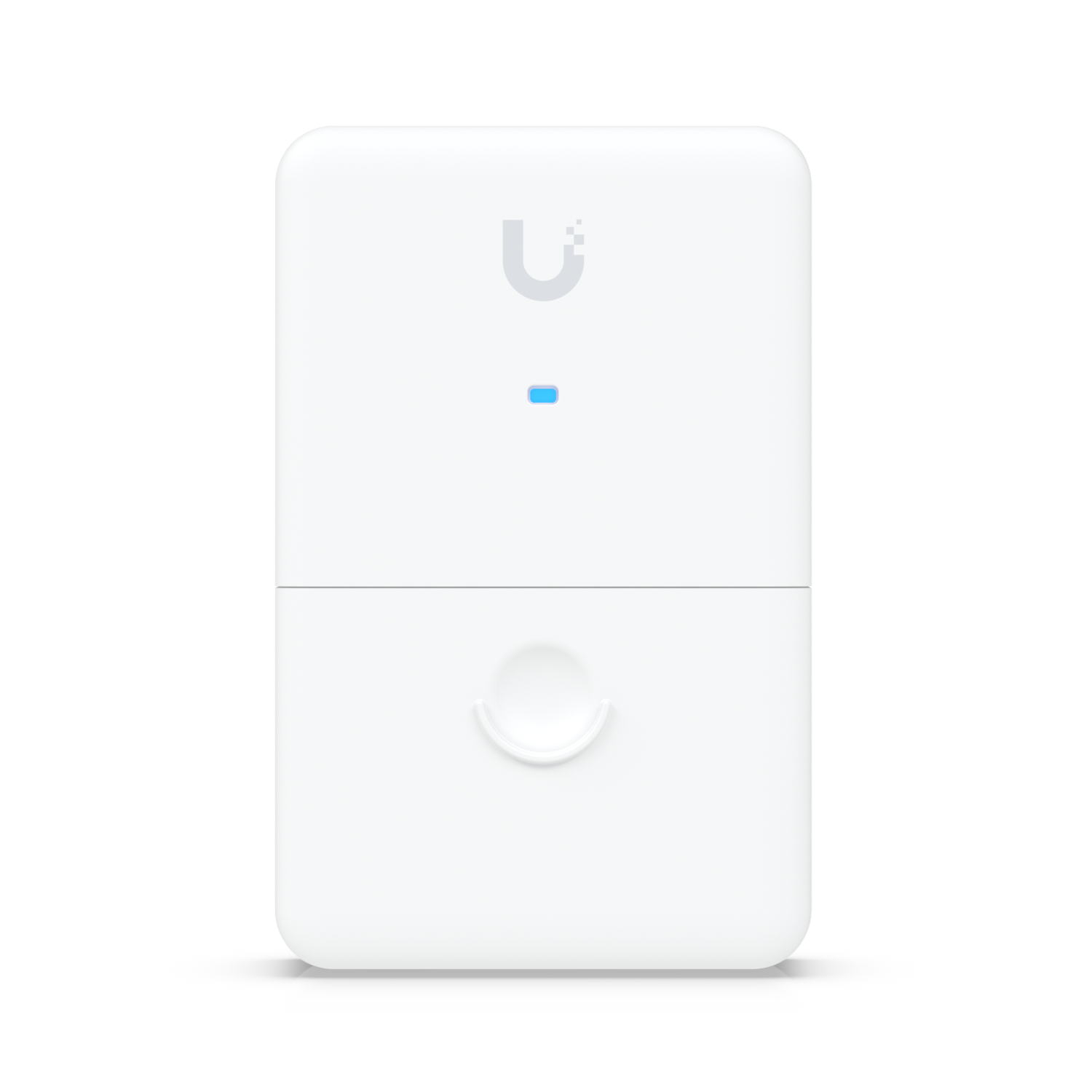

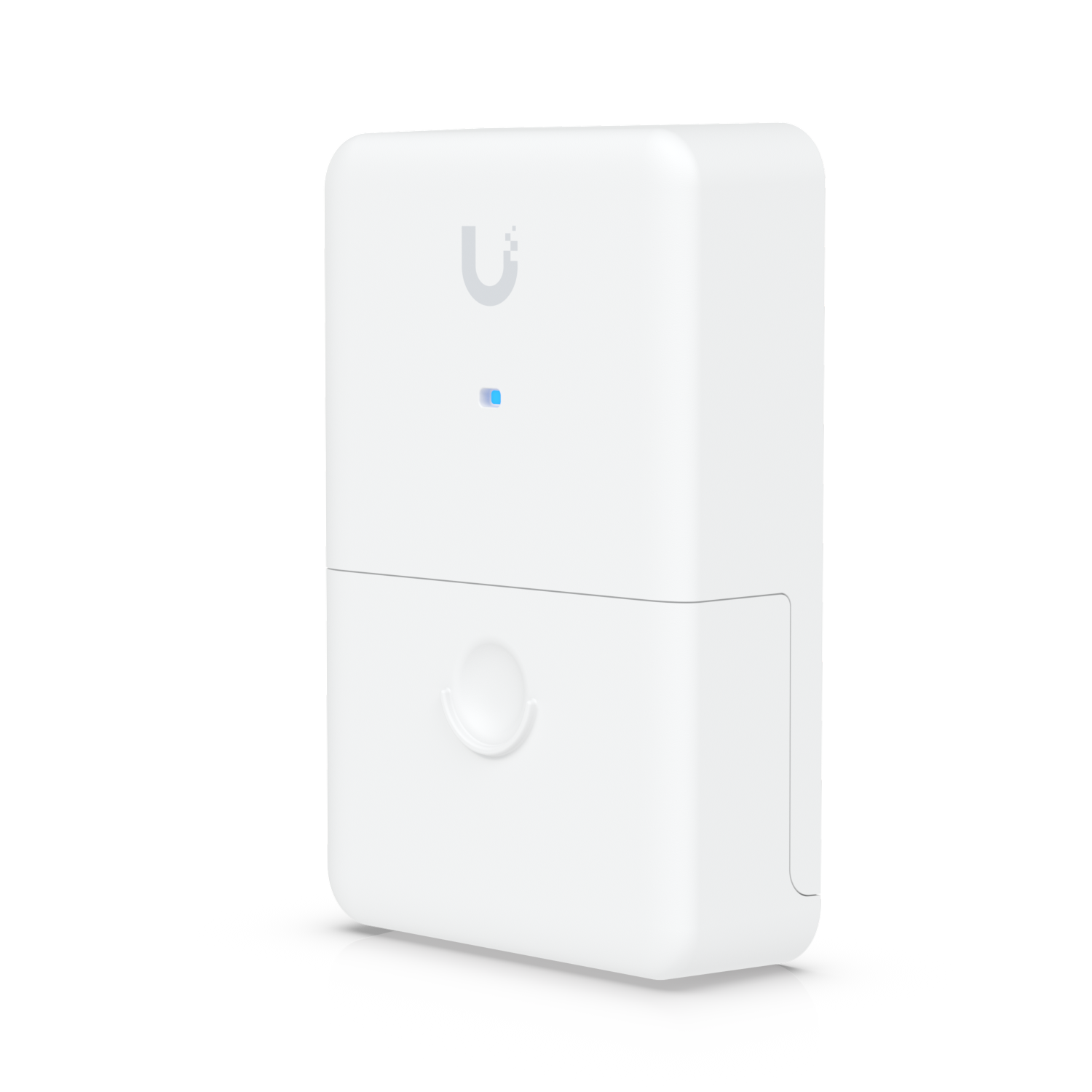

The Ubiquiti UISP Dual-Power Injector UACC-Dual-Power-Injector is a versatile PoE adapter that delivers up to 100W to power any two Wave models and provides 2.5 GbE connectivity.
(2) 2.5G GbE RJ45 ports with 48V passive PoE
Weatherproof enclosure

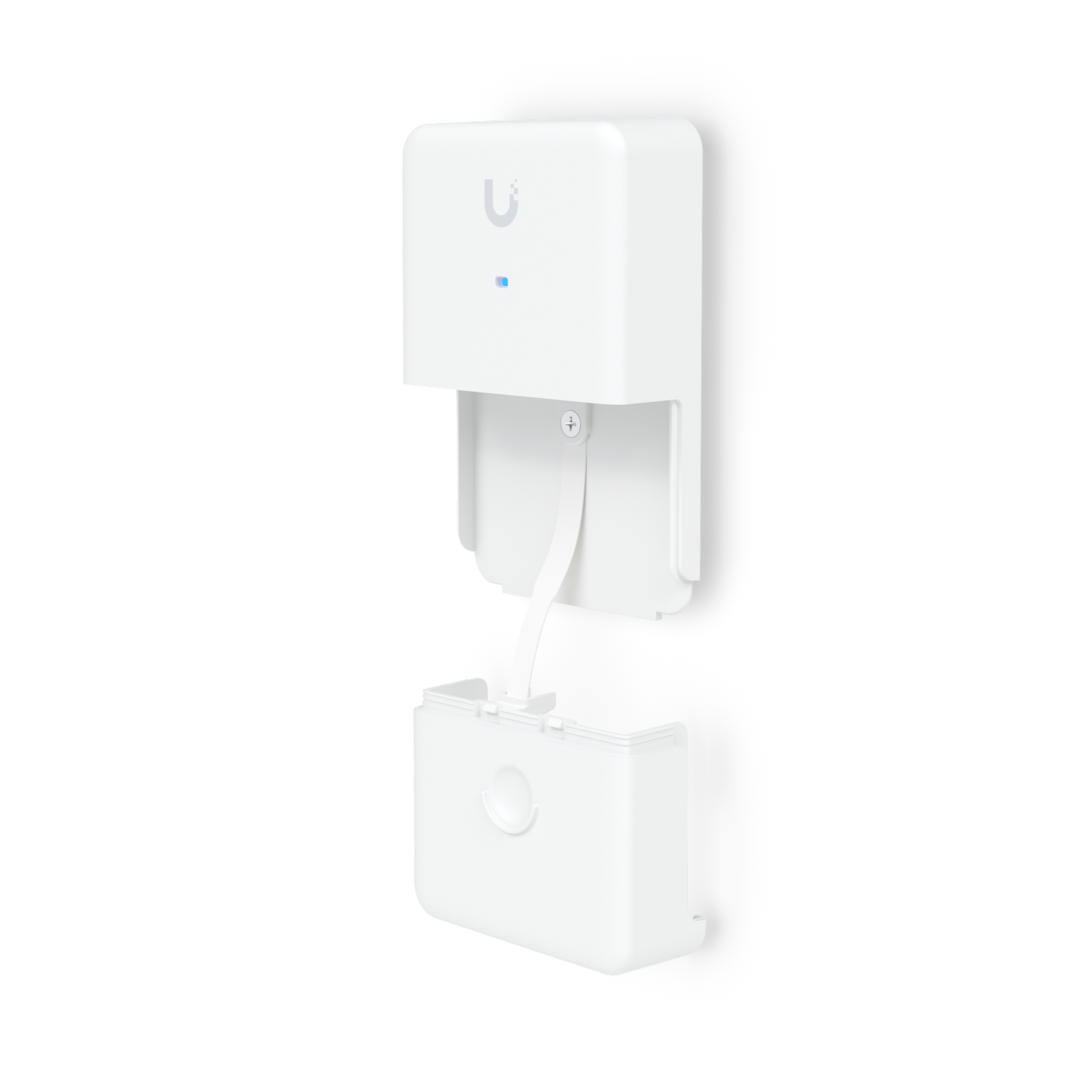

Pole or wall-mountable (kit included)
Supports all Wave models
Compatibility
Wave-AP
Wave-AP-Micro
Wave-Pico
Wave-Pro
Wave-LR
Wave-Nano
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 145.5 x 95.5 x 44 mm (5.7 x 3.8 x 1.7") |
| Weight | 280 g (9.9 oz) |
| Enclosure material | UV-stabilized polycarbonate |
| Wind survivability | Up to 200 km/h (125 mph) |
| Wind loading | 10.5 N at 200 km/h (2.4 lbf at 125 mph) |

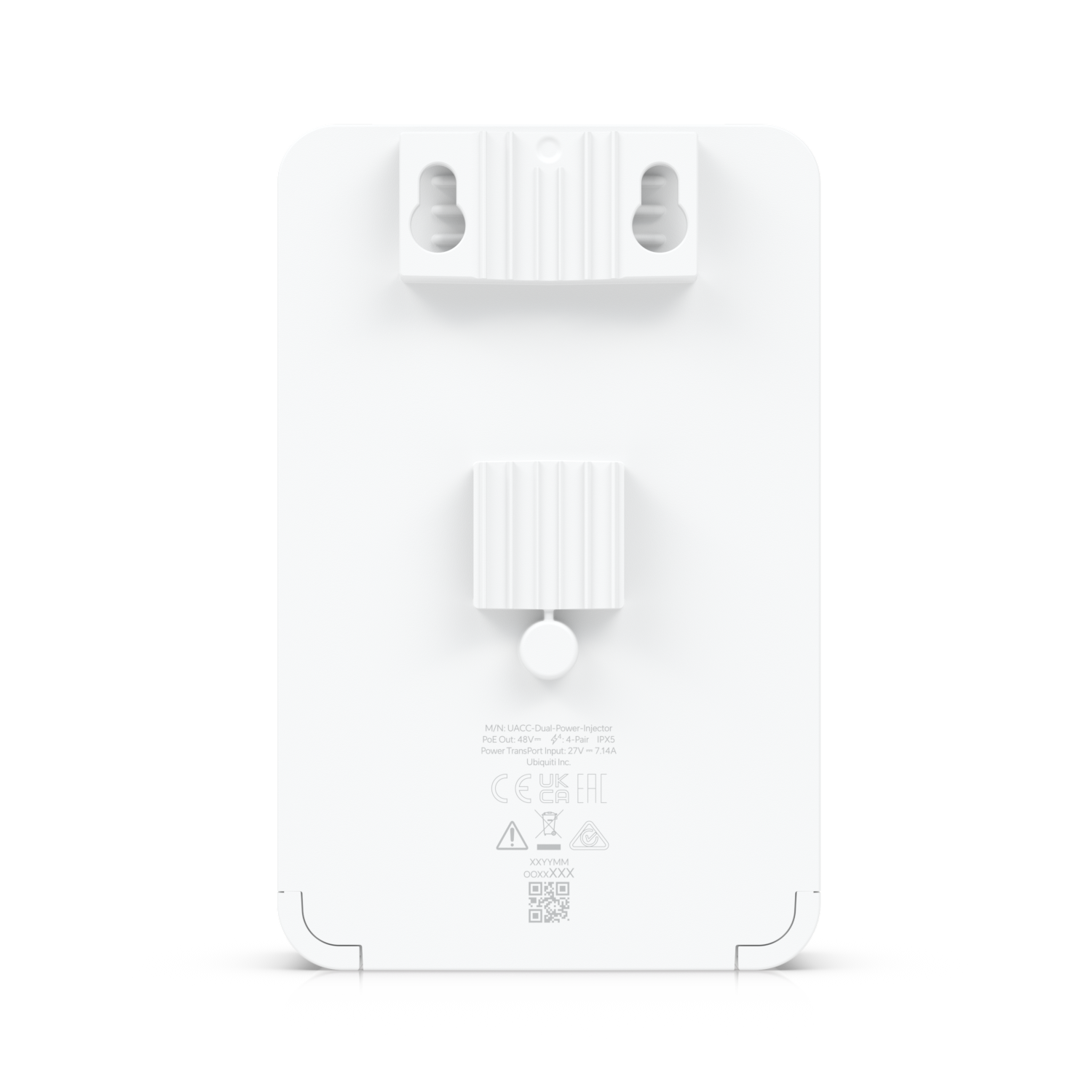

| Mounting | Pole mount: 35 to 60 mm (1.37 to 2.36") on pipe outer diameter Wall mount |
| Weatherproofing | IPX5 |
| Hardware | |

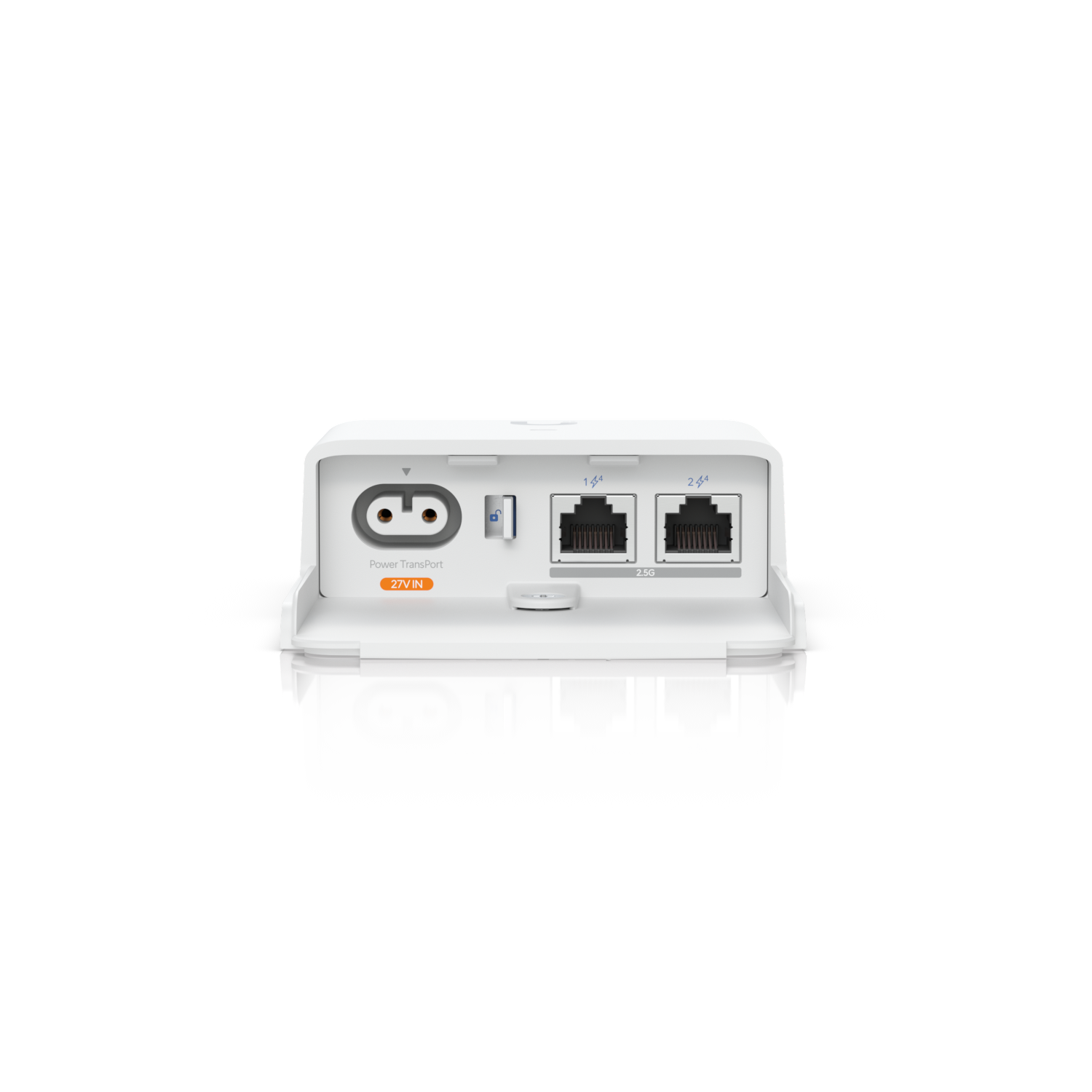

| Networking interface | (2) 2.5 GbE RJ45 ports |
| Power method | (1) Power TransPort DC input 27V DC, 4.44A |
| Power supply | 120W Power TransPort Adapter (not included) UISP Power UISP Power Pro |
| Output voltage | 48V DC |
| Max. output | Total 100W |
| LEDs | Blue: power On |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Compatibility | |
| Supported models | Wave AP Wave AP Micro Wave Long-Range Wave Nano Wave Pro Wave Pico |
