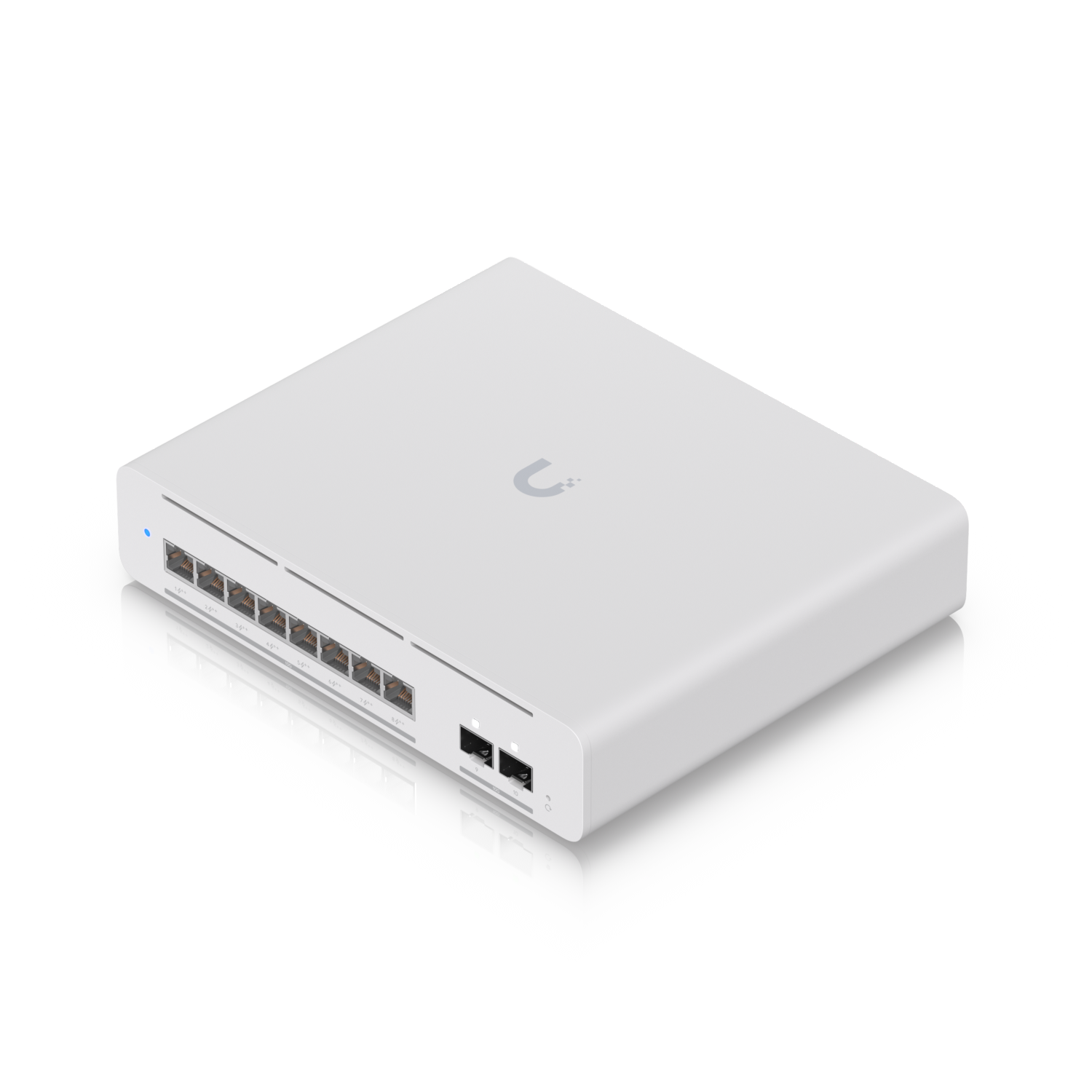

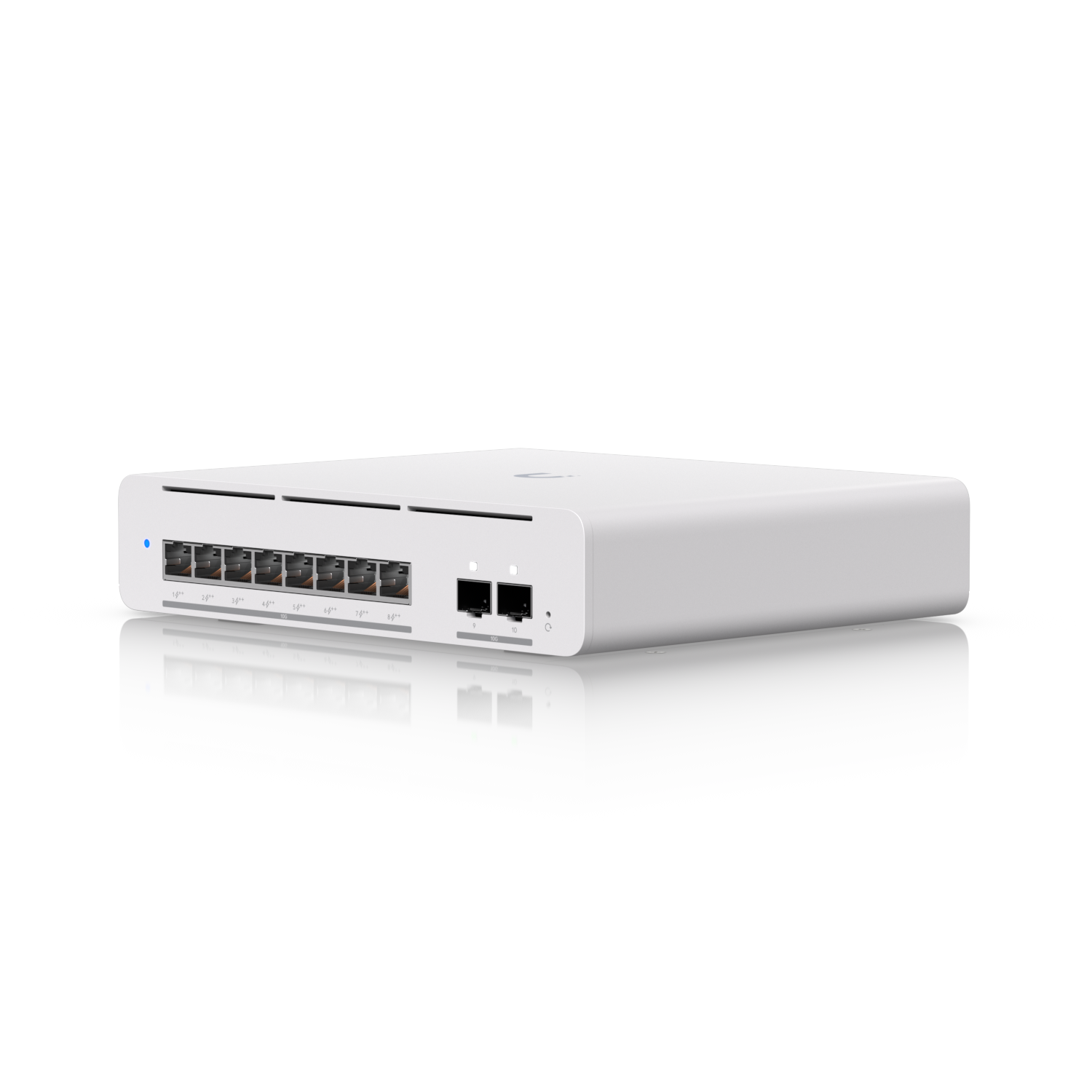

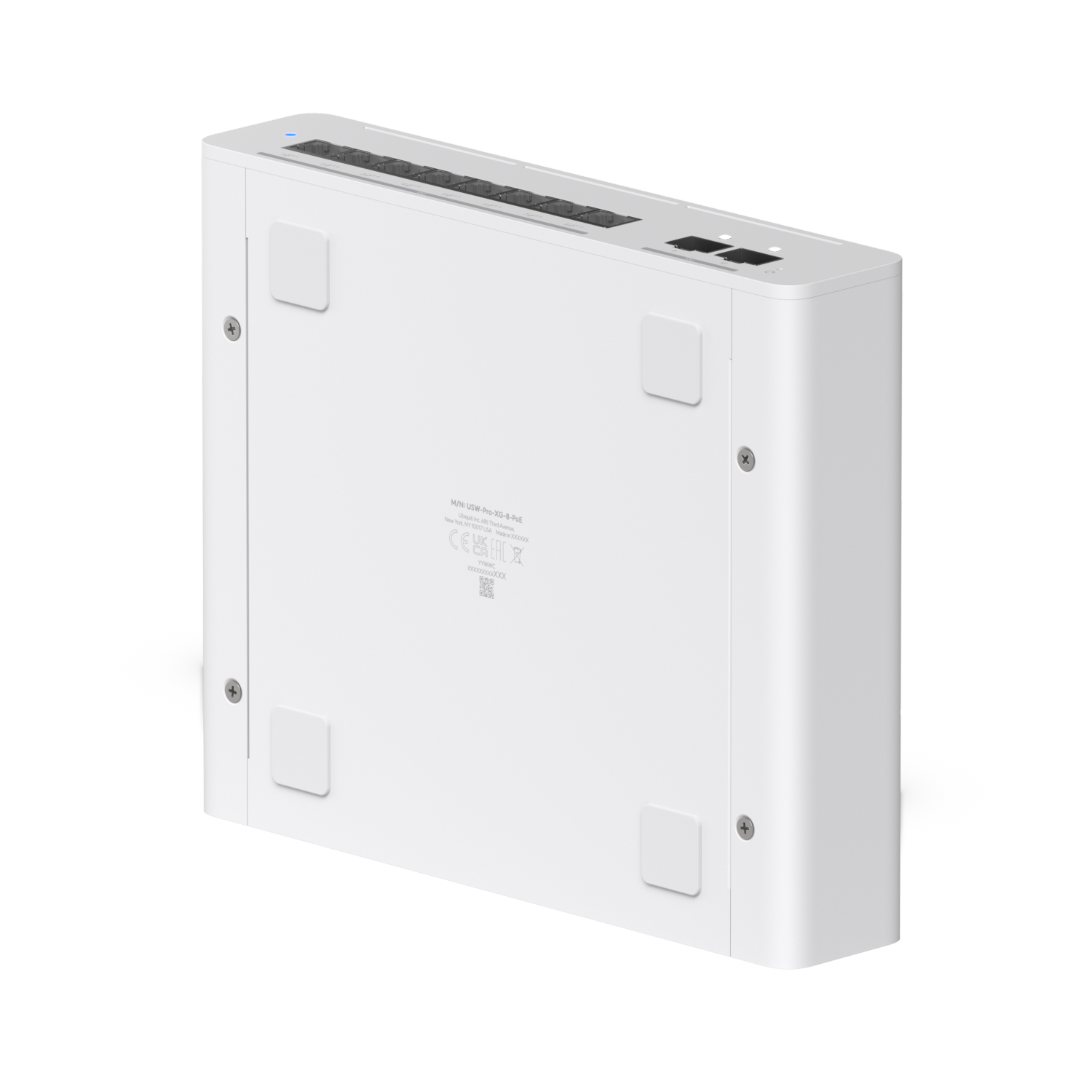

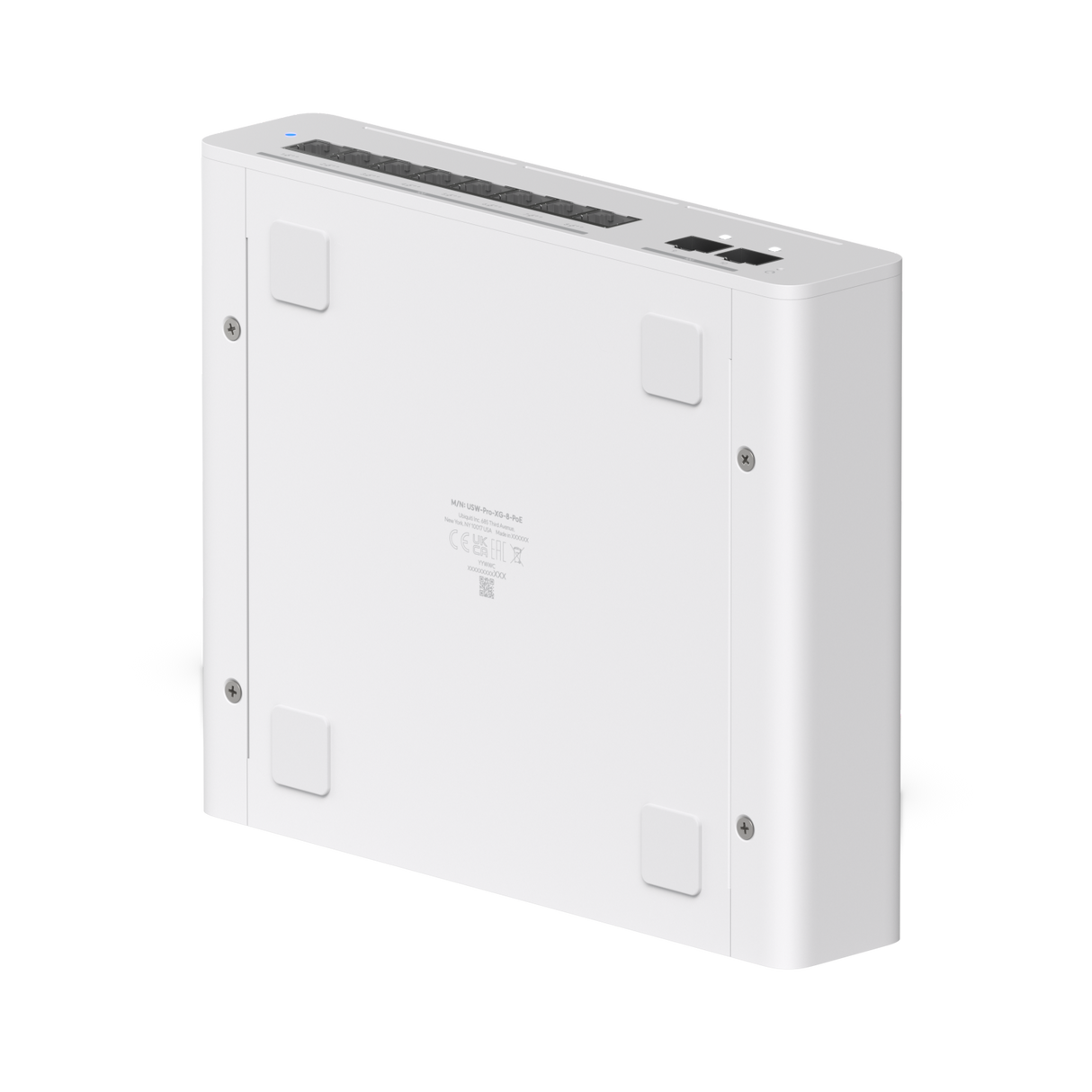

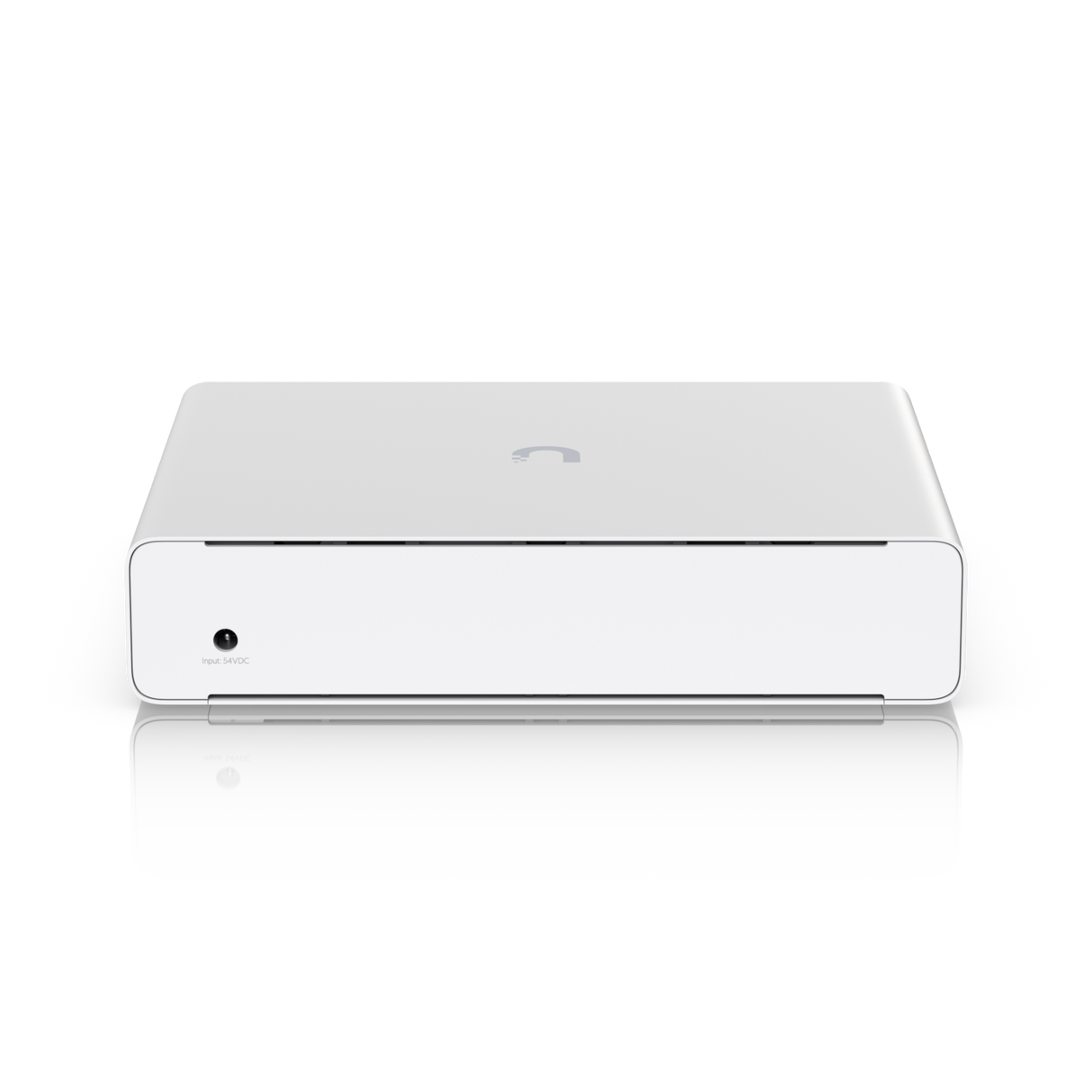

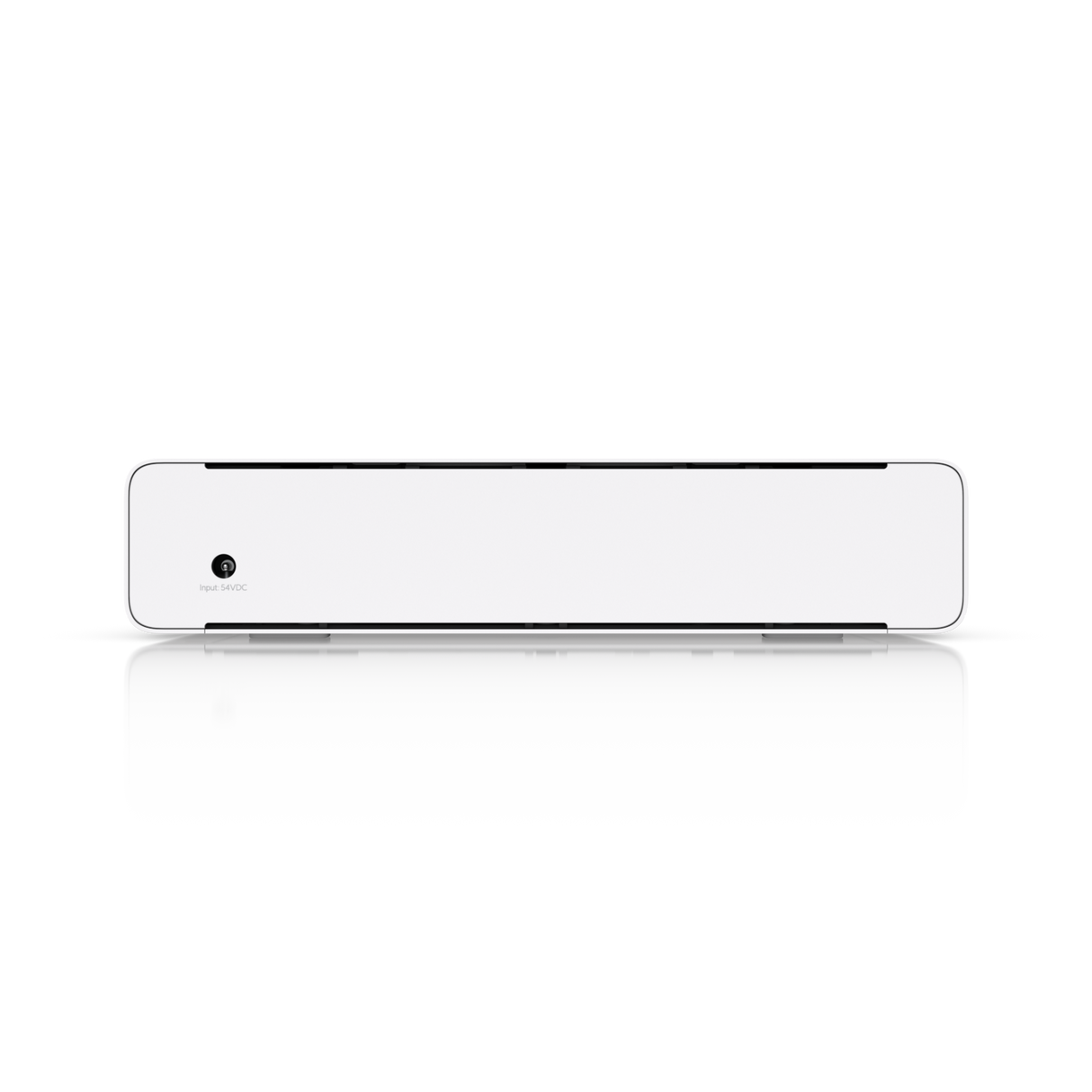

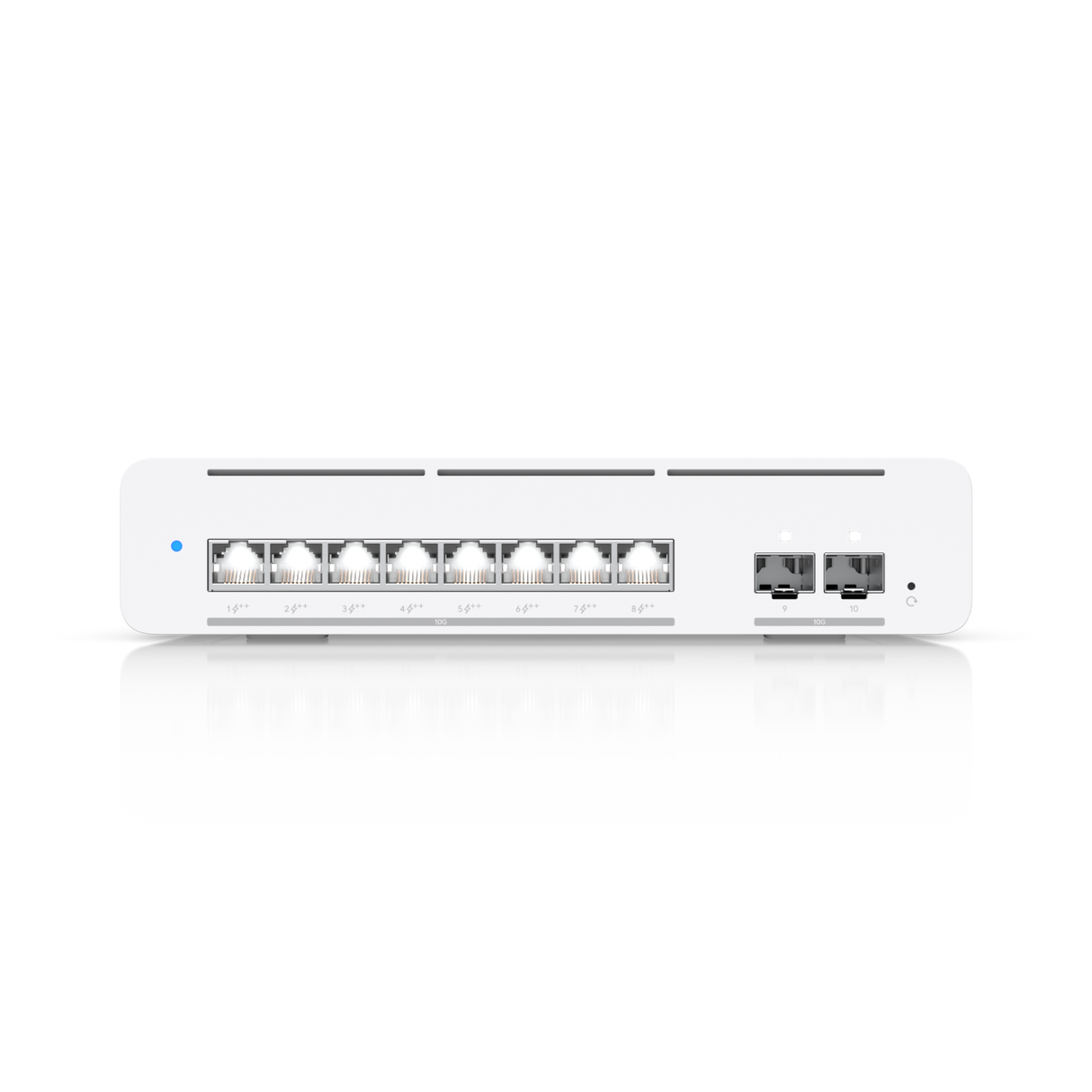

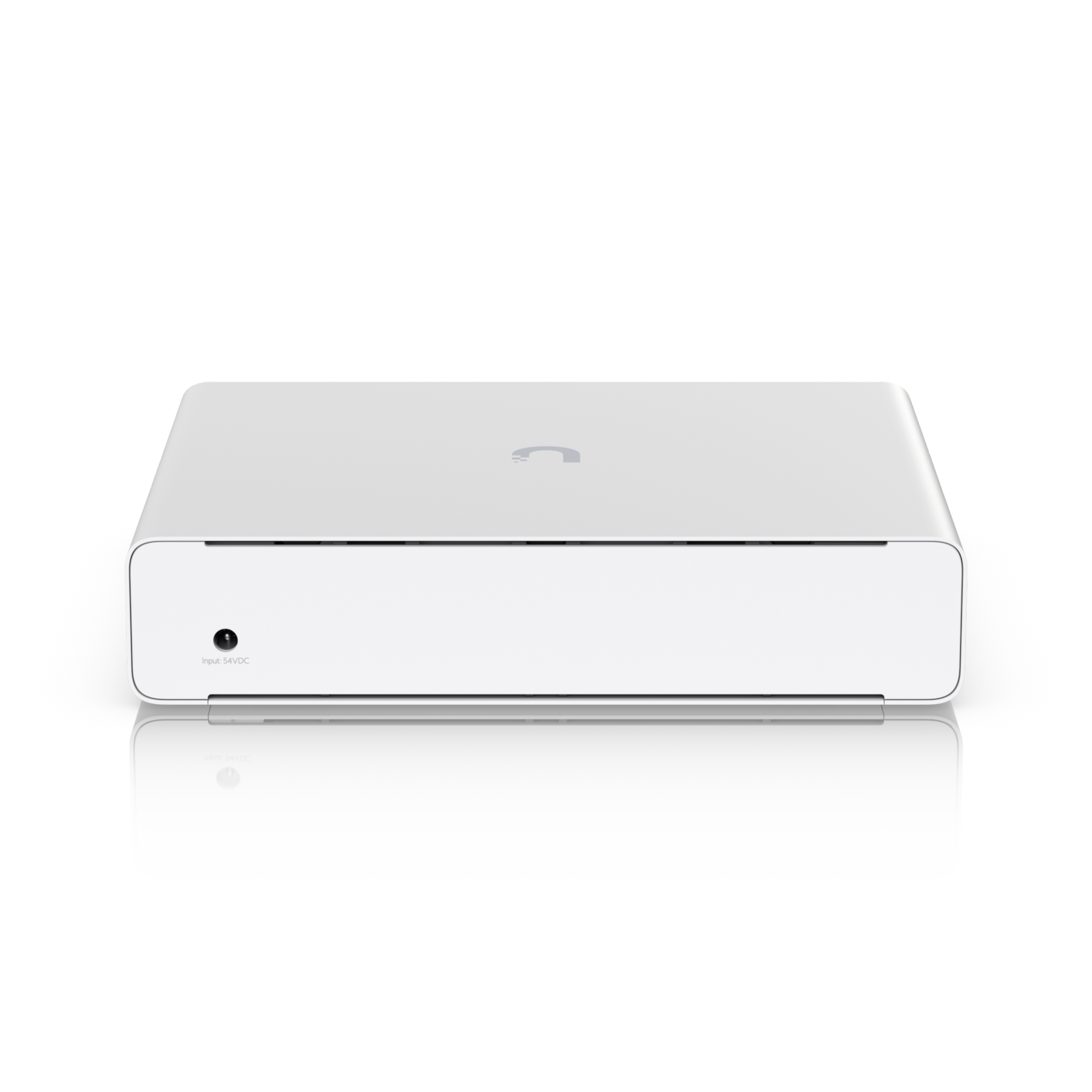

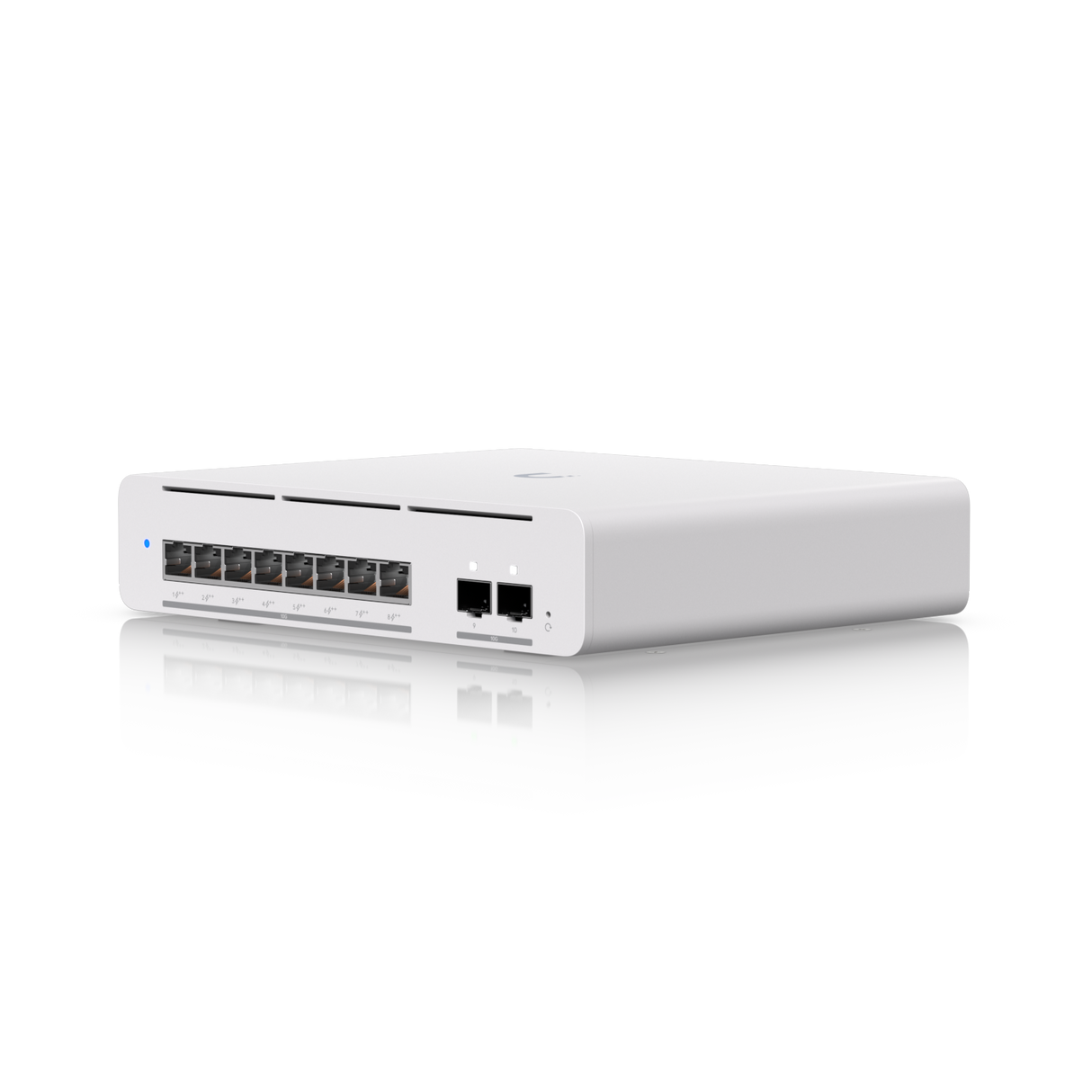

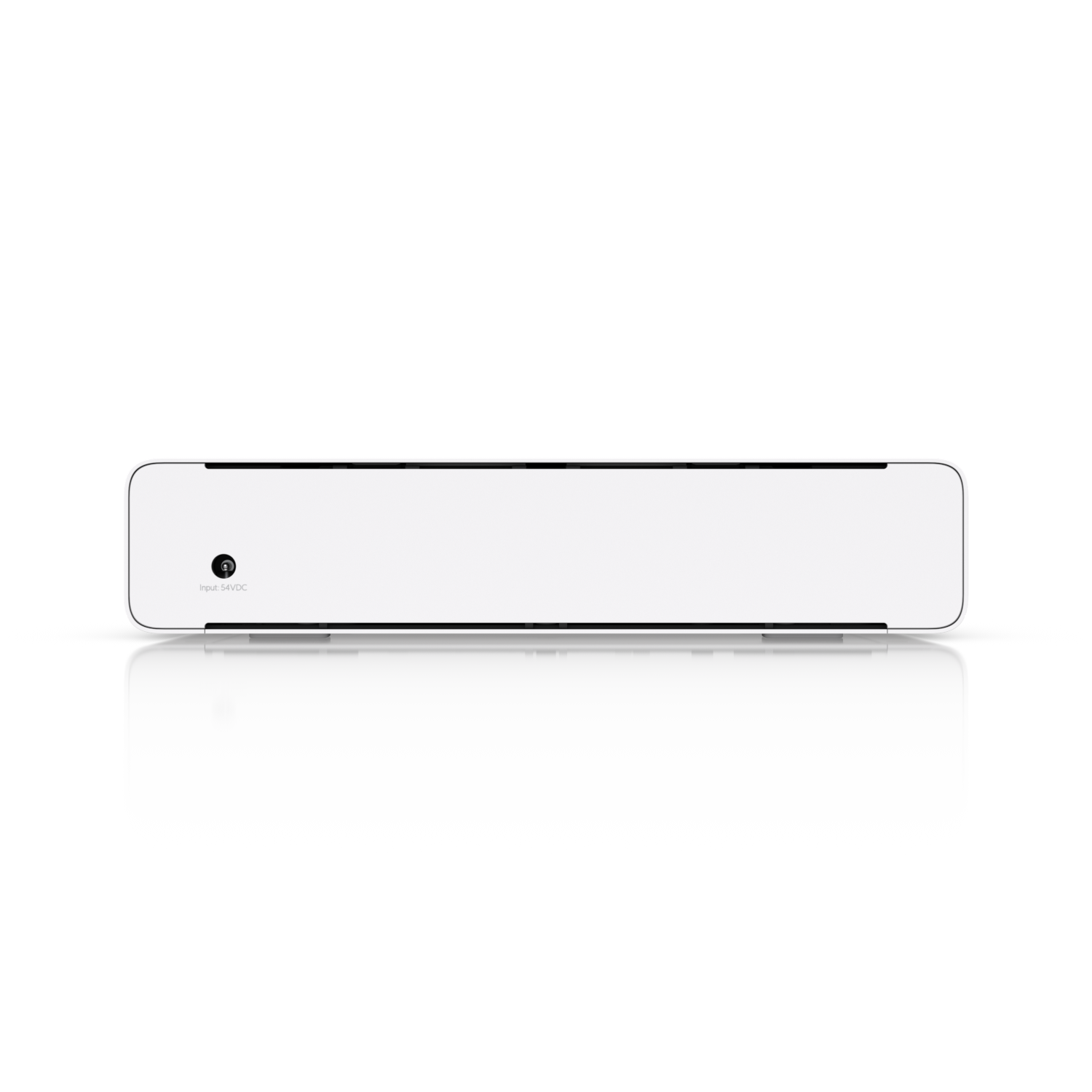

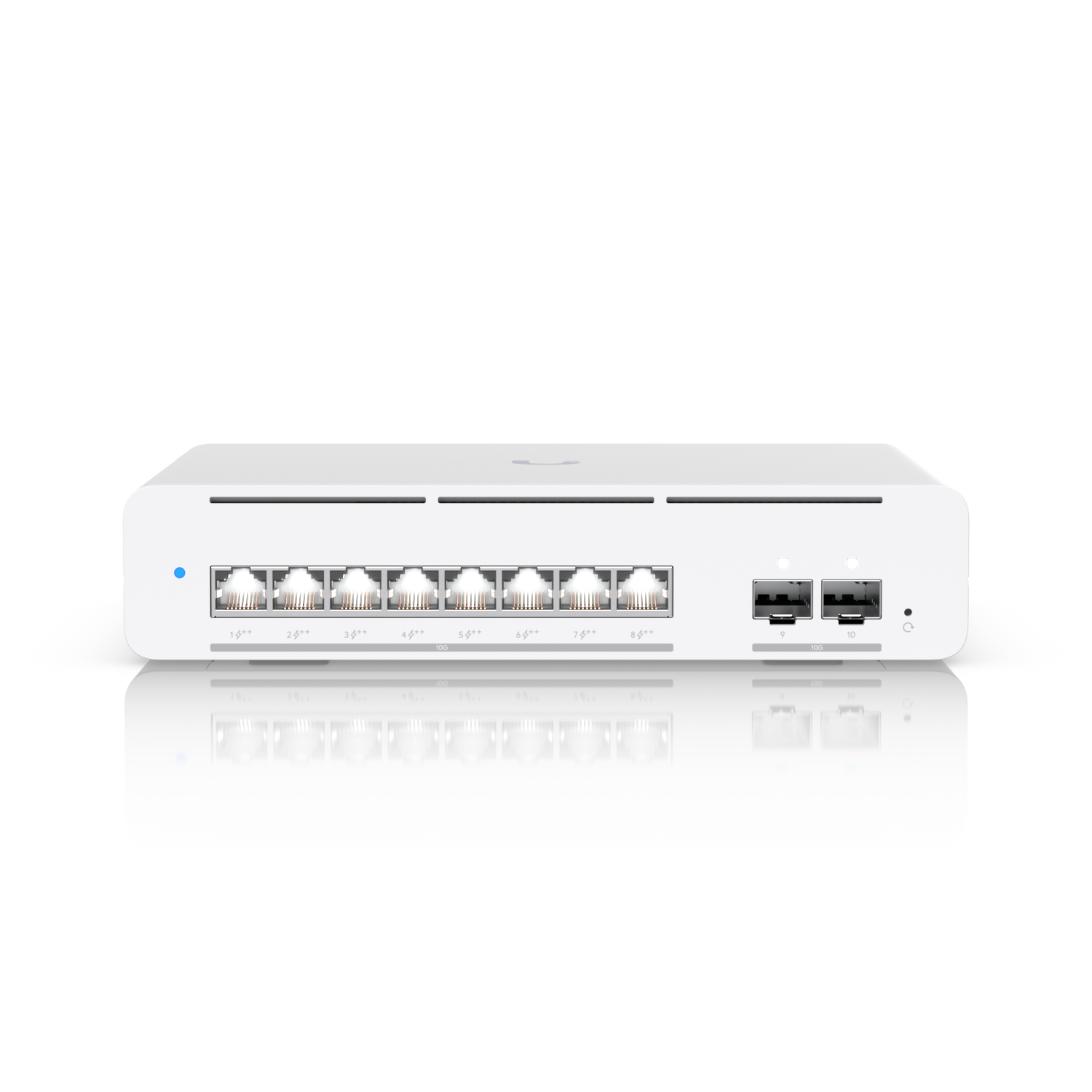

The Ubiquiti UniFi Pro XG 8 PoE USW-PRO-XG-8-POE is a compact desktop/wall-mountable, professional-grade 8-port, Layer 3 Etherlighting™ PoE++ switch with (8) 10 GbE and (2) 10G SFP+ ports.
Technical Specifications
| Category | Feature | Specification |
|---|---|---|
| Overview | Dimensions | 210.4 x 173.8 x 43.7 mm (8.28 x 6.84 x 1.7") |
| Port Layout – 10 GbE RJ45 | 8 (All PoE++) (10G/5G/2.5G/1G/100M) | |
| Port Layout – 10G SFP+ | 2 (10G/1G) | |
| Max. PoE Output | Up to PoE++ | |
| Total PoE Availability | 155W | |
| Layer 3 | ✓ | |
| Form Factor | Compact desktop, wall | |
| Etherlighting™ | ✓ | |
| Performance | Switching Capacity | 200 Gbps |
| Total Non-Blocking Throughput | 100 Gbps | |
| Forwarding Rate | 149 Mpps | |
| Supported VLANs | 1,000 | |
| MAC Address Table Size | 32,000 | |
| L3 Table – ARP Entries | 12,000 | |
| L3 Table – IPv4 Routes | 12,000 | |
| Packet Buffer Size | 2 MB | |
| Layer 3 Features | DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ | |
| Inter-VLAN Routing (Local Networks) | ✓ | |
| Static Routing (Local Networks) | ✓ | |
| Layer 2 Features | LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ | |
| QoS (DSCP) | ✓ | |
| Pro AV Profiles (Play, Dante, Q-SYS, etc.) |
