Ubiquiti  |  SKU: UVC-G4-DOORBELL

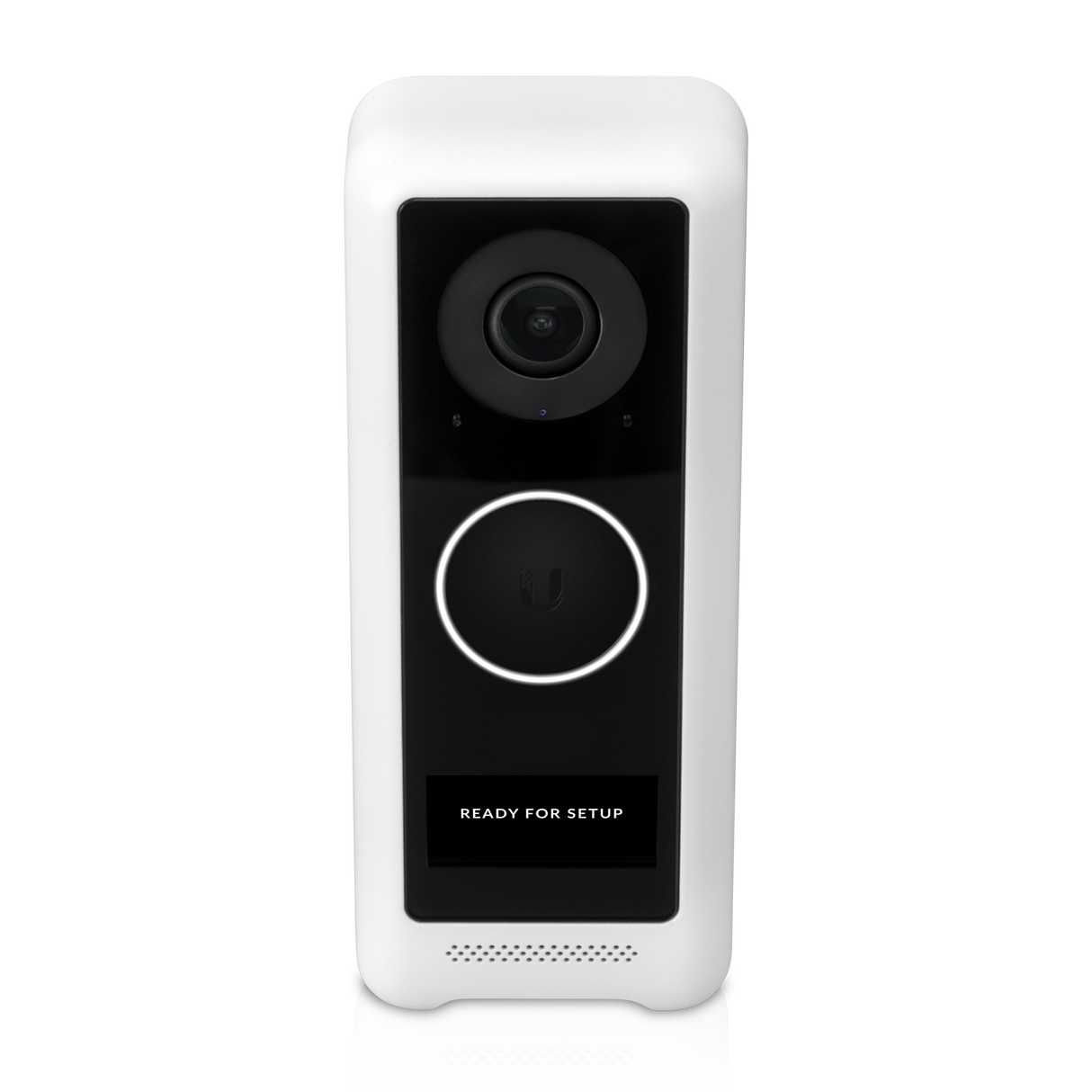

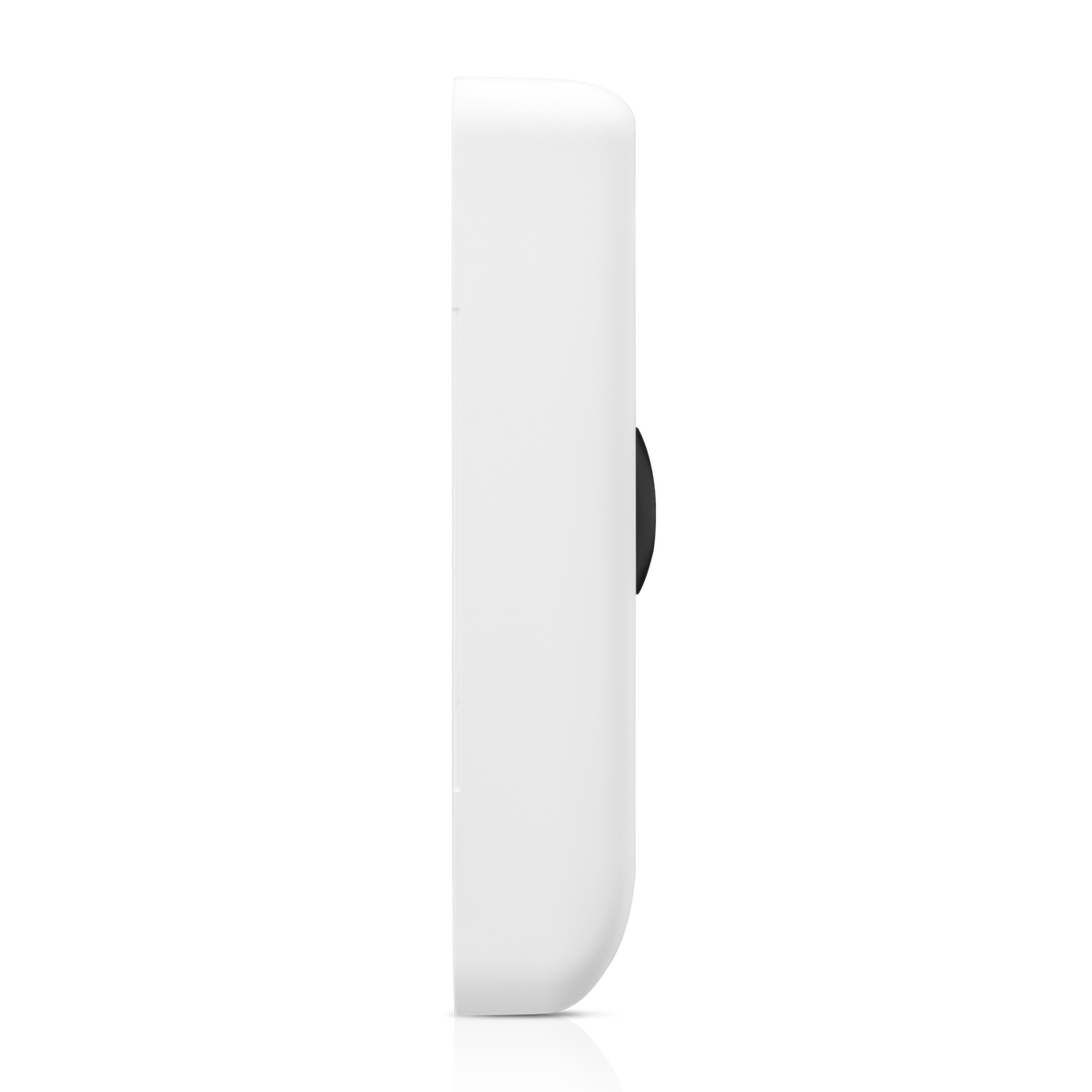

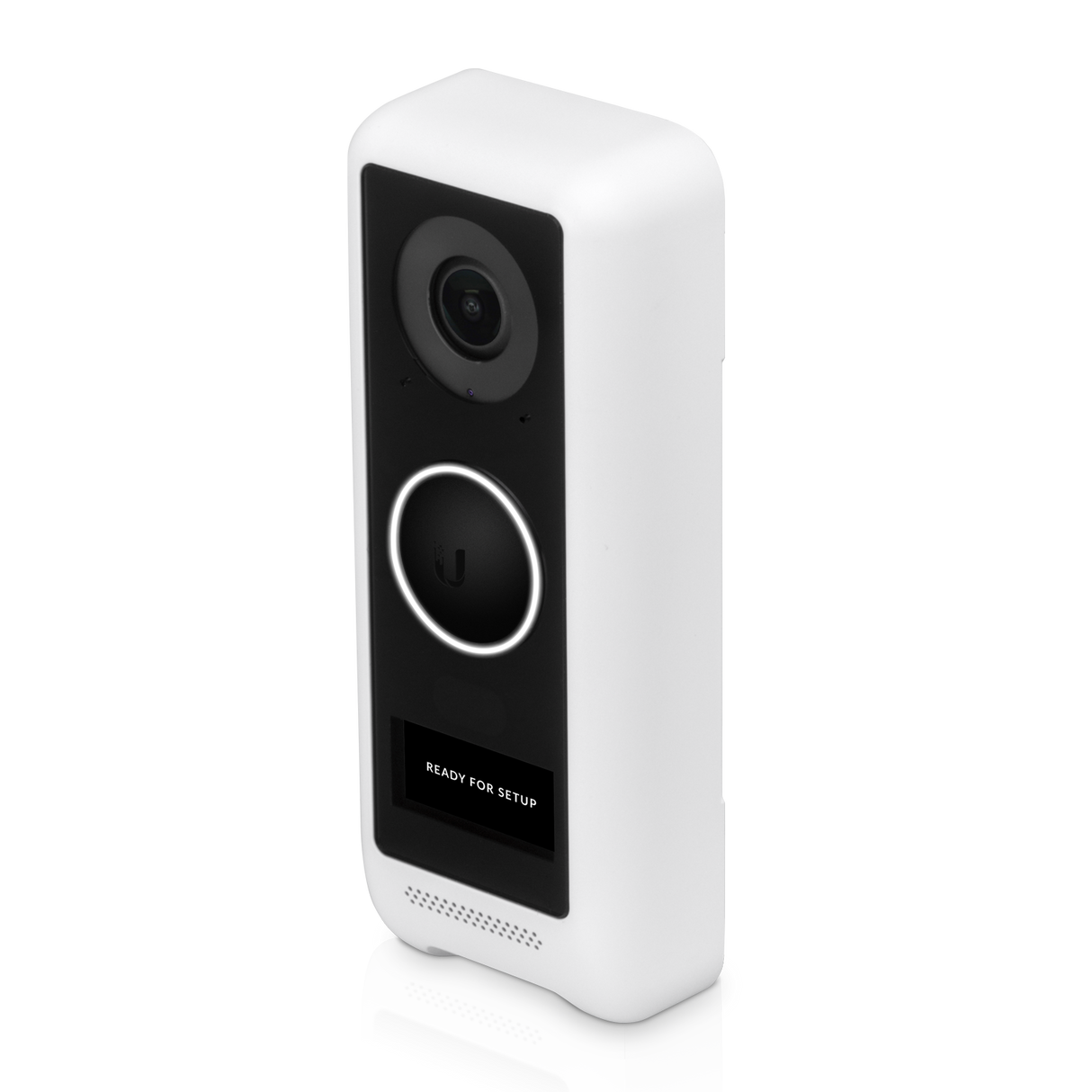

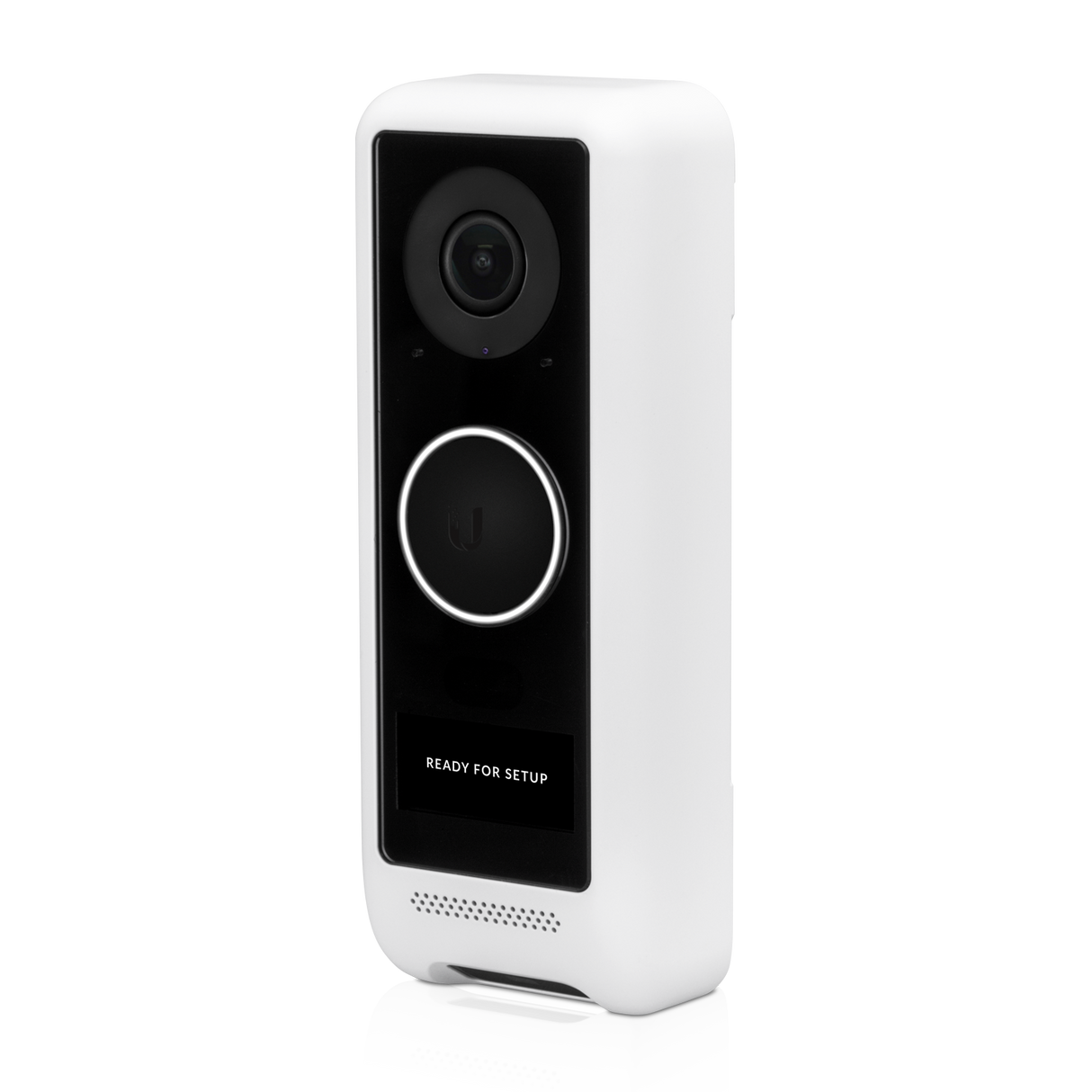

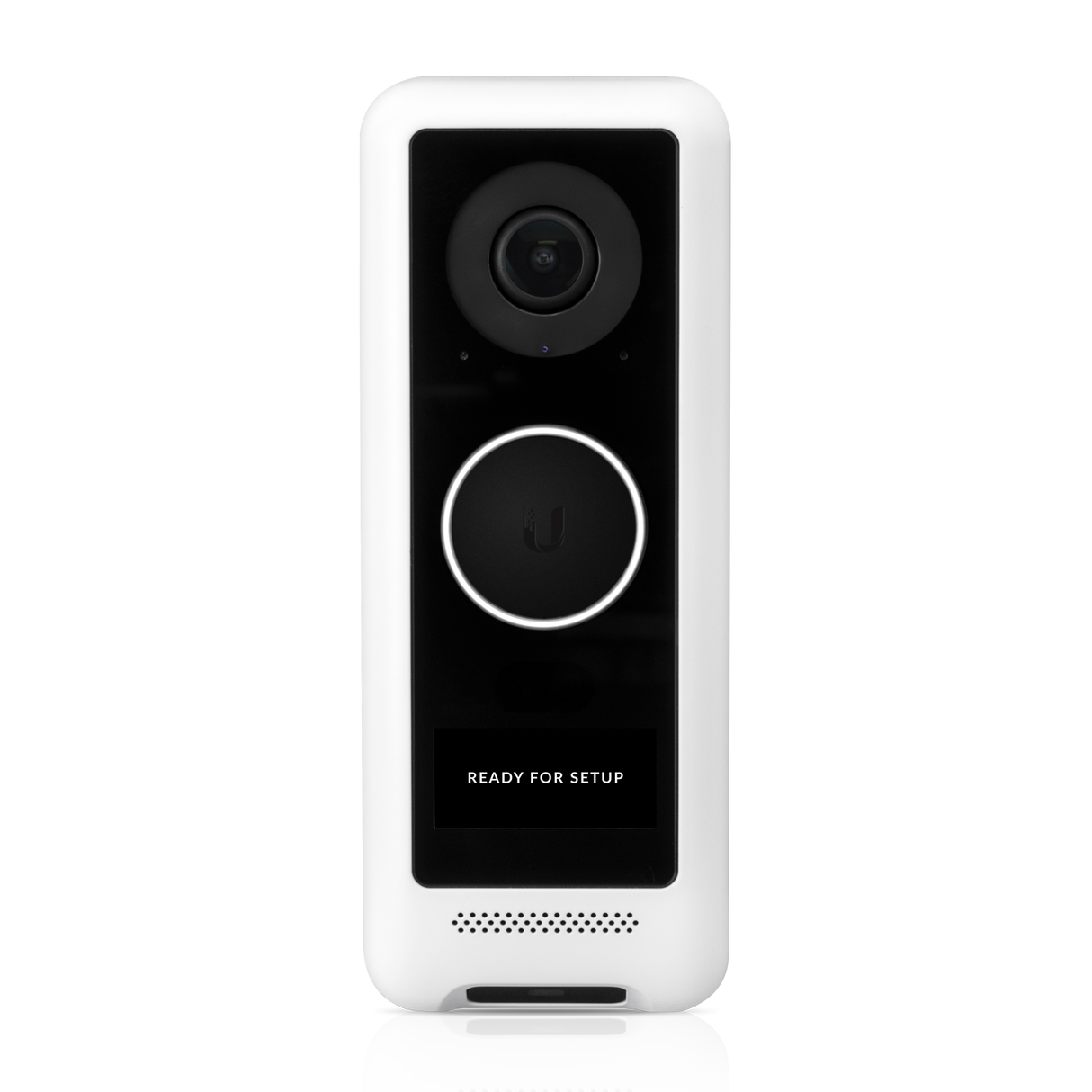

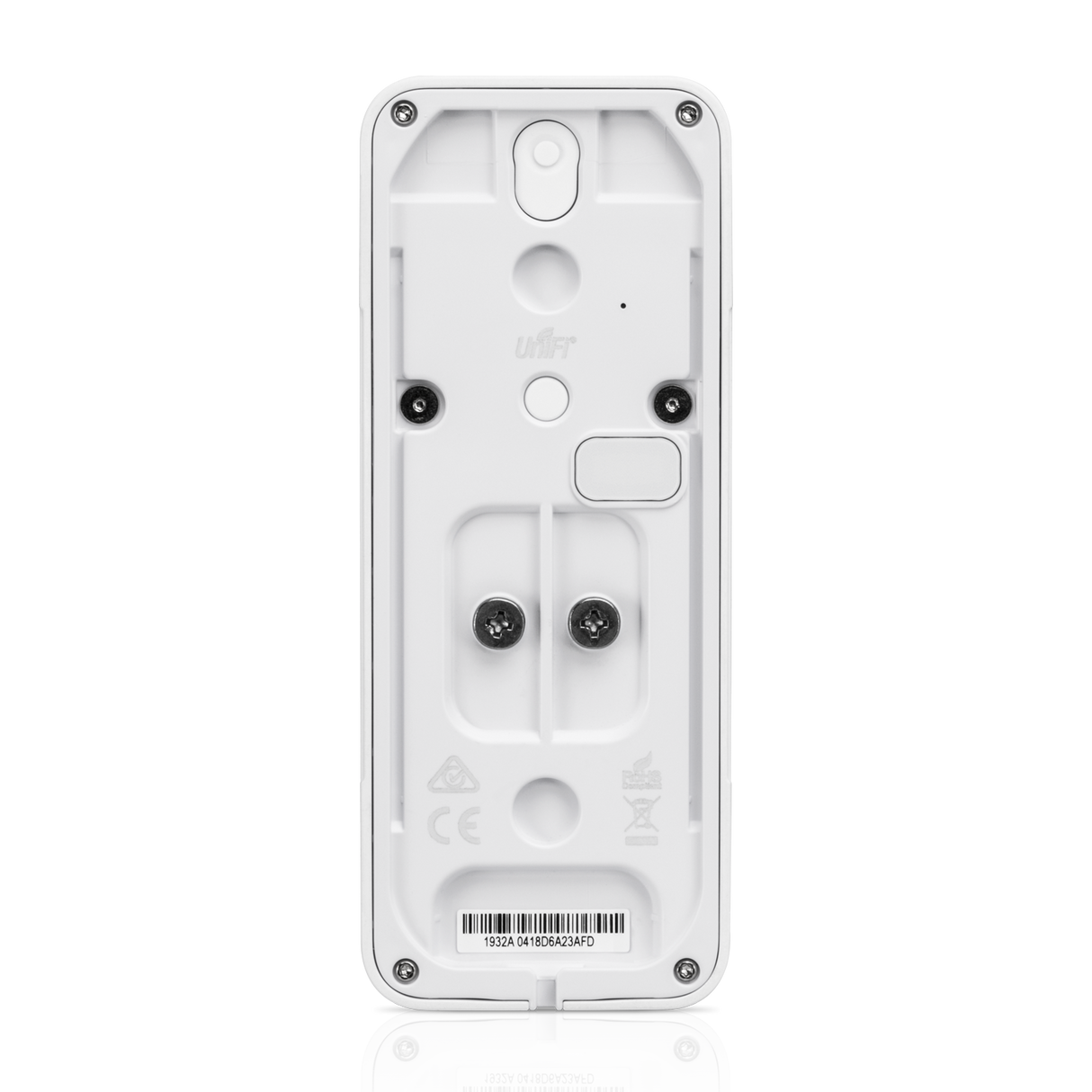

Ubiquiti UniFi Protect G4 Doorbell UVC-G4-DOORBELL

$219.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

Please contact us for availability.

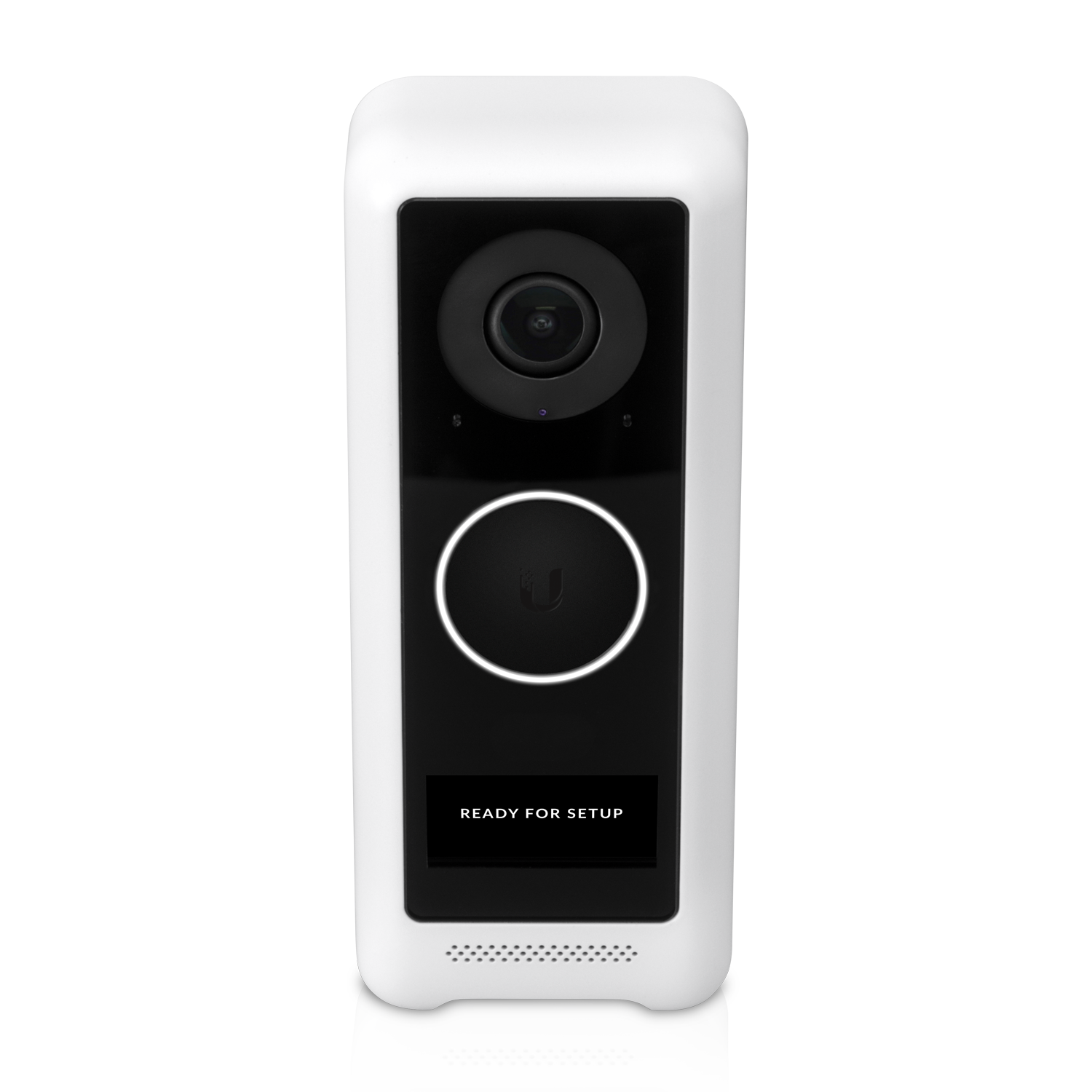

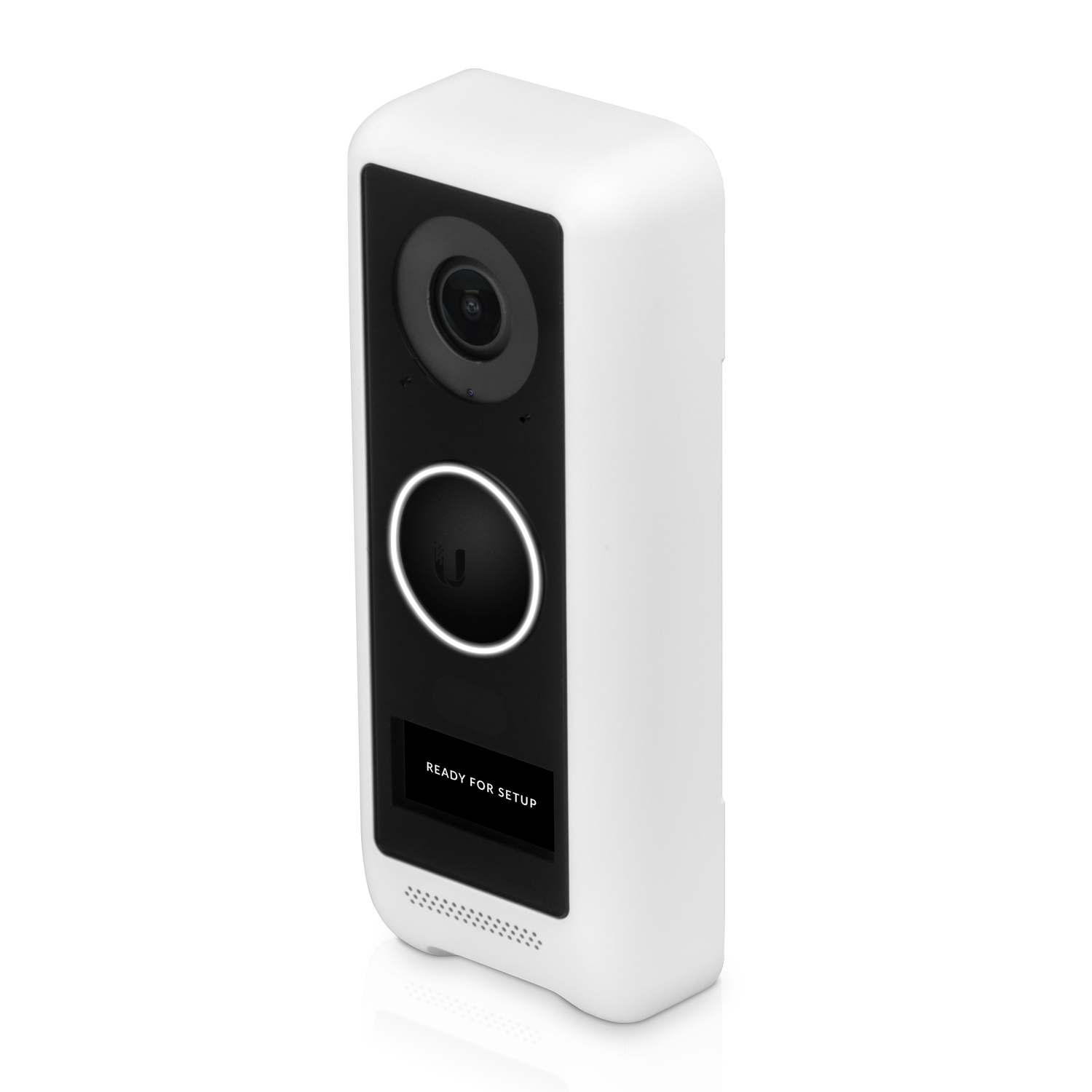

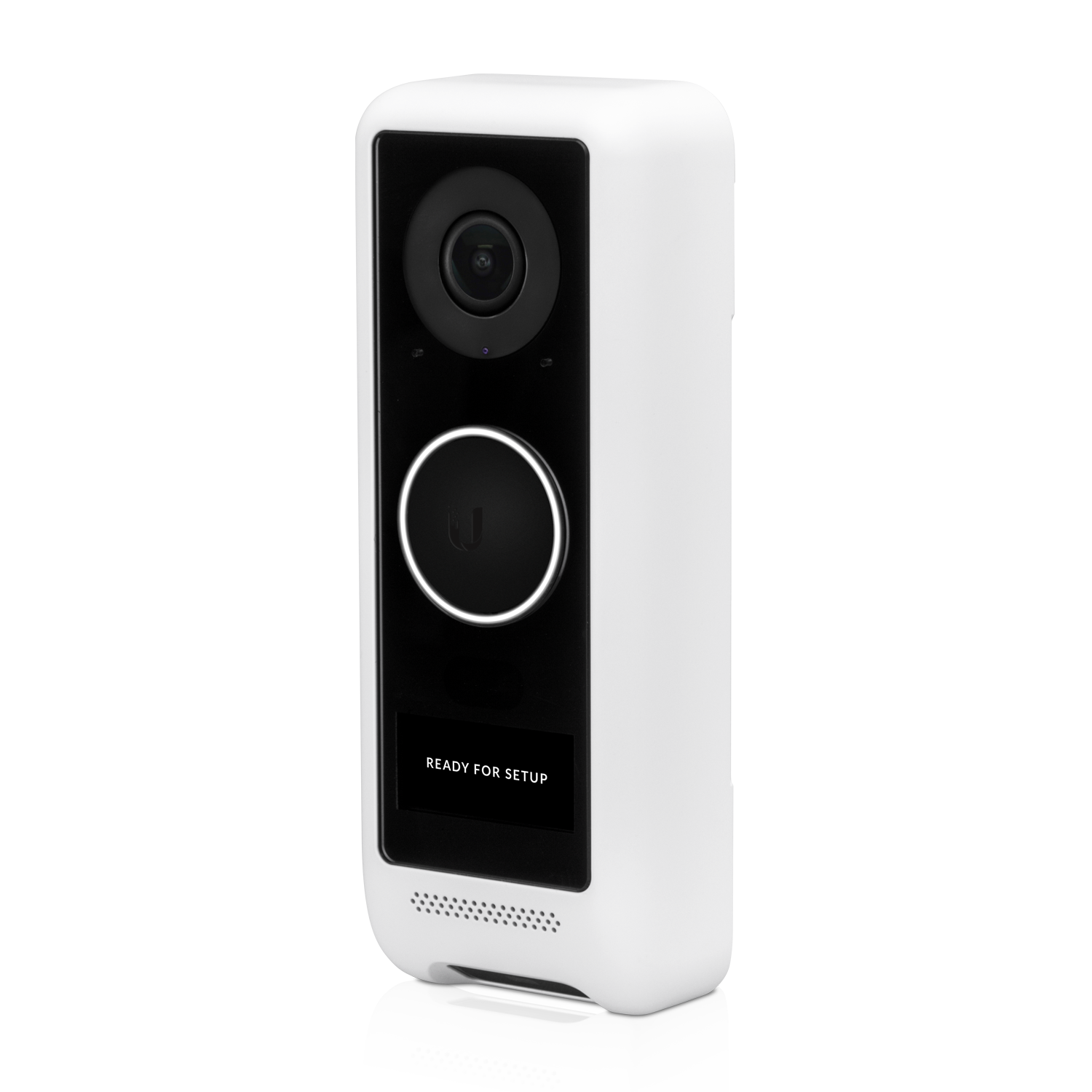

The Ubiquiti UniFi G4 Doorbell UVC-G4-Doorbell is a WiFi-connected doorbell with an integrated night vision camera and porch light.

HD (2MP) video resolution

6 m (20 ft) IR night vision

AI event detections

Wirelessly connected with UniFi WiFi Auto-Link*

Integrated 2-way audio

Weather-resistant (outdoor covered)

*Third-party WiFi configuration available during setup with the UniFi Protect mobile app.

Technical Specifications

Mechanical
Dimensions 118.3 x 46.8 x 25.8 mm (4.7 x 1.8 x 1")
Weight Without mount: 130 g (4.59 oz)
With flat wall mount: 178 g (6.28 oz)
With 20° wedge mount: 200 g (7.05 oz)
Enclosure material Polycarbonate
Mount materials Flat wall mount: aluminum alloy
20° wedge mount: polycarbonate
Weatherproofing IPX4
Optics
Sensor 5MP CMOS sensor
Lens Fixed focal length
View angle H: 138°, V: 114°, D: 155°
Night mode Built-in IR LED illumination and IR cut filter
Video
Resolution 2MP 1600 x 1200 (4:3)
Max. frame rate 30 FPS
System
Processor Quad-core Arm® Cortex®-A53 based chip
Networking interface 802.11a/b/g/n/ac WiFi
Bluetooth™ 4.2
Max. power consumption 12W
Power requirements 16—24V AC, 1.25A max., 50/60 Hz
Supported voltage range 16—24V AC
LED Link/activity
Buttons (1) Ring button
(1) Factory reset

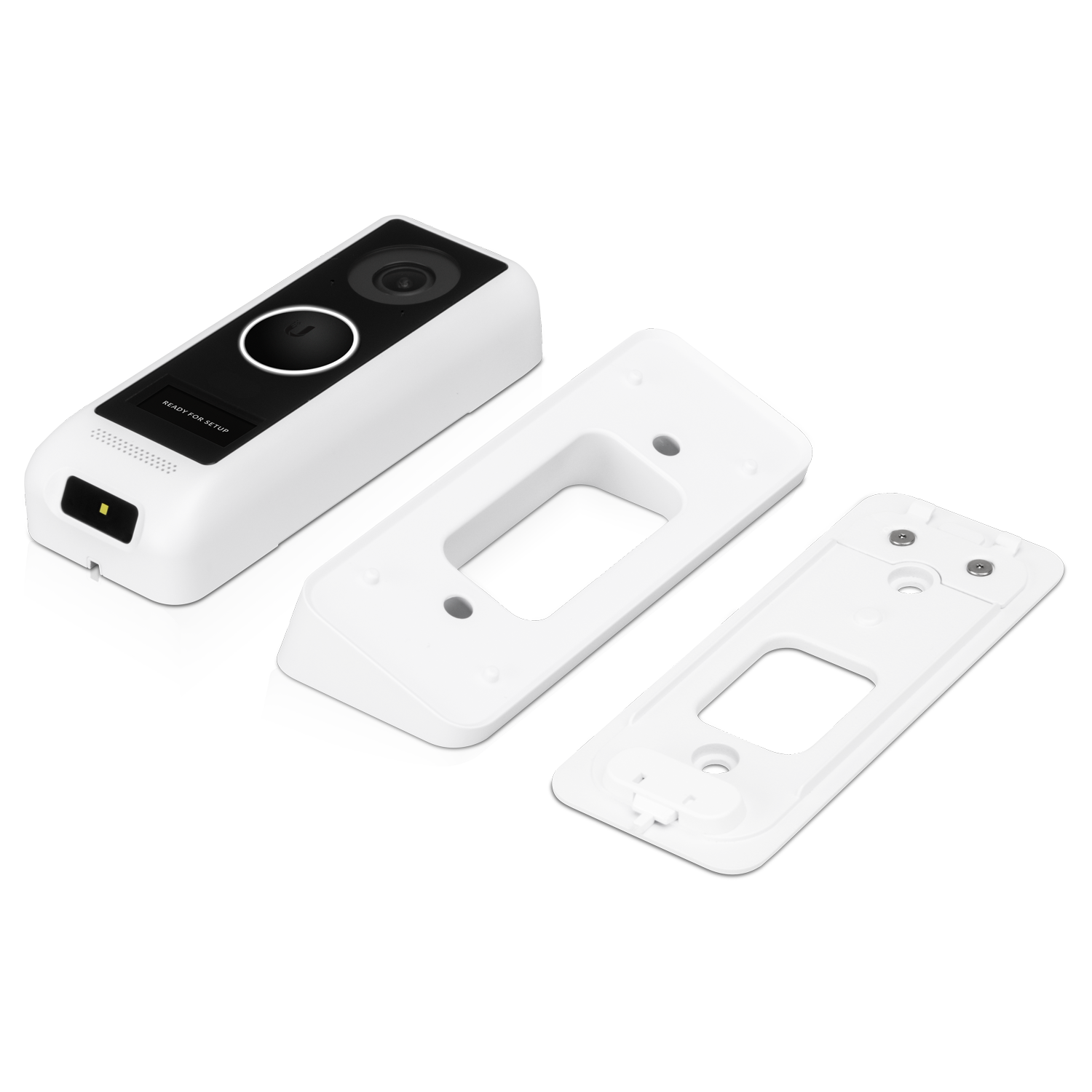

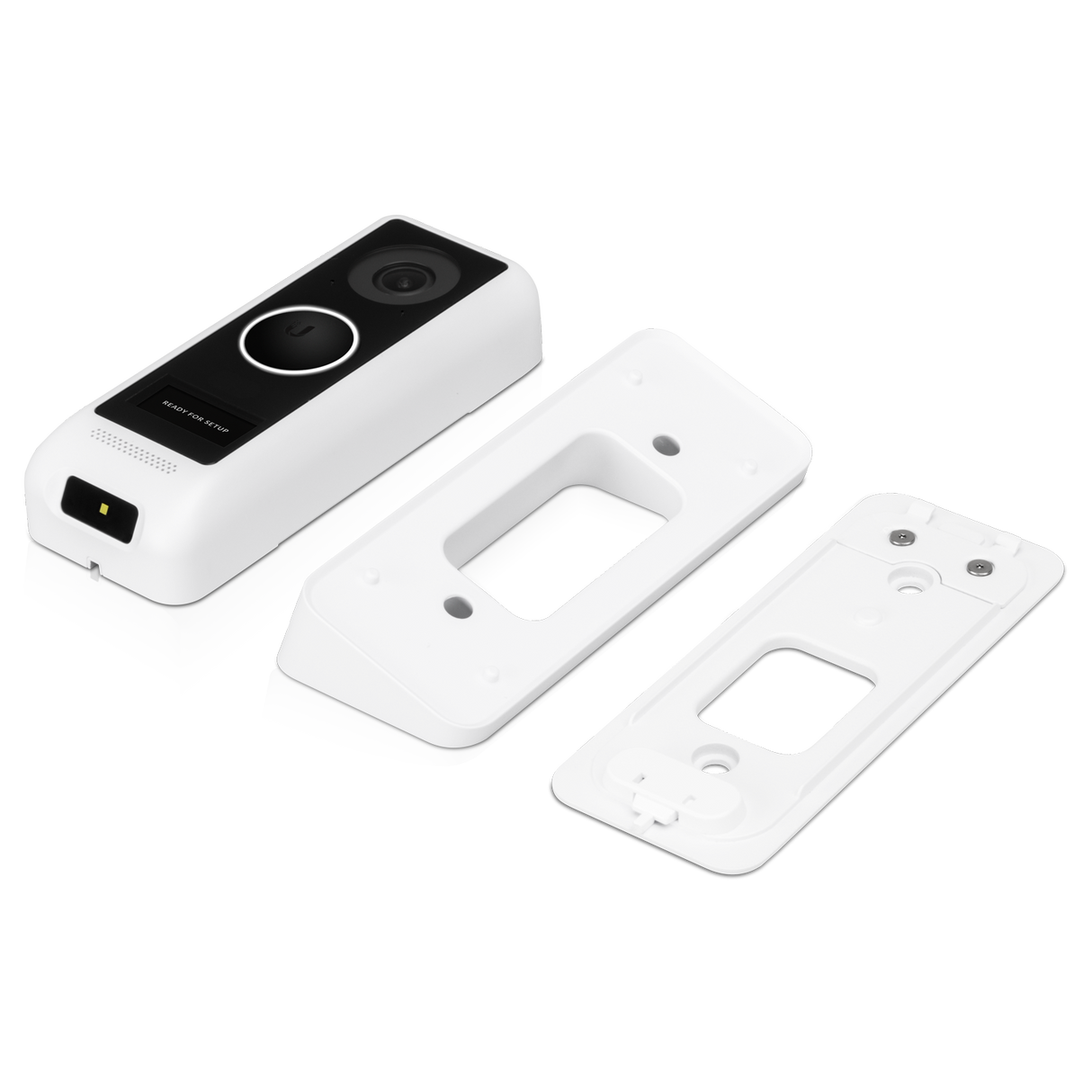

Mounting Flat wall, 20° wedge (Included)
Ambient operating temperature -10 to 40º C (14 to 104º F)
Ambient operating humidity 0 to 90% noncondensing
Certifications FCC, IC, CE
Audio
Microphone Yes (Can be disabled)
Speaker Yes
Software
Web application UniFi Protect
Mobile app UniFi Protect iOS™ and Android™
Compatible Mechanical Chimes
Manufacturer
Broan-NuTone
Broan-NuTone
Heath Zenith
Craftmade
Broan-NuTone
Newhouse Hardware		 Model
LA126WH
LA11WH
SL-2735
CTPW-RG
LA39WH
CHM3D
Compatible Digital Chimes
Manufacturer
Broan-NuTone
IQ AMERICA
IQ AMERICA		 Model
LA600WH
DW-2850
DW-2840
Transformer Specifications (EU Version)
Input rating (5, 6) 230V, 50/60Hz
Output rating (1, 4) 16V AC, 15VA
Ambient operating temperature -5 to 35 º C (23 to 95º F)
