Netgear  |  SKU: XSM4556-100NAS

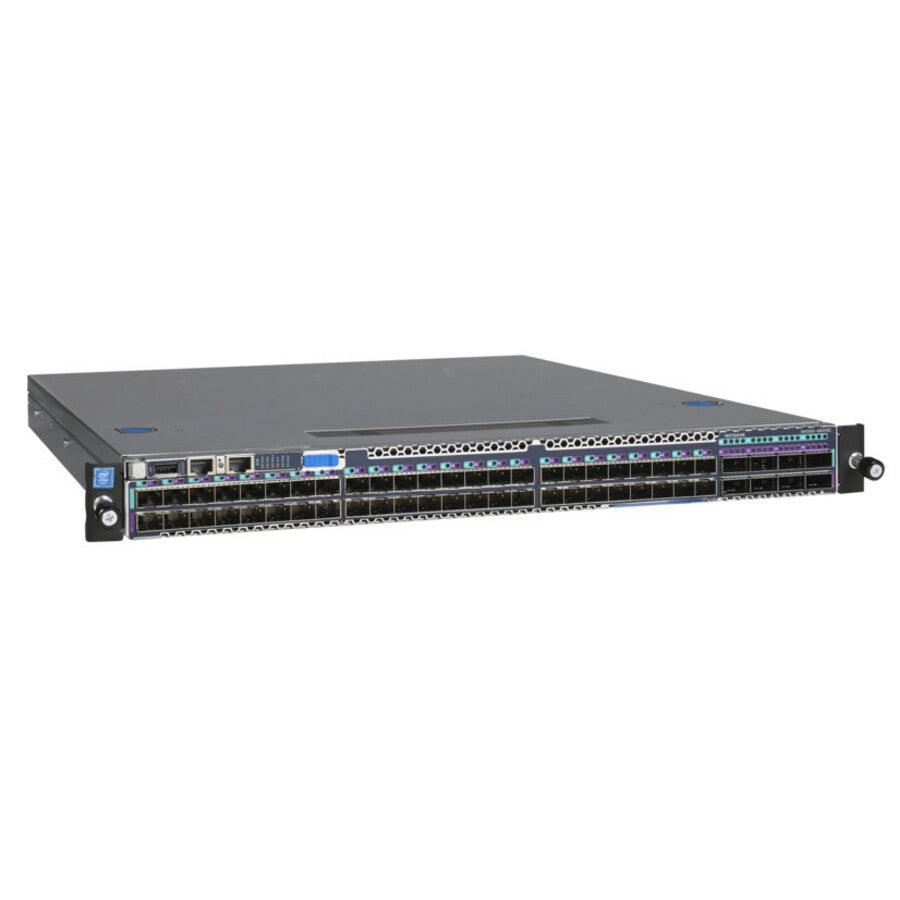

Netgear XSM4556 Ethernet Switch

$15,869.99

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

Part Number: XSM4556-100NAS

Please note, orders for this product are non-cancelable and non-refundable/returnable.

This product is Special Order and may have a lead-time of 3-5 business days or longer. Please Contact Us via our Contact page for questions about current lead-time or to confirm availability.

Product Overview

Manufacturer Warranty: Limited Lifetime

General Information

  • Manufacturer: Netgear, Inc
  • Manufacturer Part Number: XSM4556-100NAS
  • Manufacturer Website Address: www.netgear.com
  • Brand Name: Netgear
  • Product Series: M4500
  • Product Model: XSM4556
  • Product Name: XSM4556 Ethernet Switch

Product Description

The trend of moving matrix switching into the Ethernet network is accelerating and AV over IP already delivers capabilities far beyond that of a traditional matrix switch. Historically it has been simple to design AV over IP systems of up to 96 I/Os using a single switch and Layer-2 Multicast IGMP. However, larger installations required data center-class 100G Ethernet switches with more complex Layer-3 multicast routing techniques, adding complexity and cost to the Ethernet infrastructure. As networked AV systems become ever larger, a new class of switches has come to market. They combine the configurability of a matrix switch with the power and scalability of Ethernet to support hundreds of AV over IP endpoints, at a price point dramatically cheaper than comparable matrix switches. Introducing two new 100GE enabled switches for ProAV, the M4500 series. Removing the need for Layer-3 PIM routing, these new switches offer IGMP Plus and greatly simplify system architectures with the same well-known Layer-2 techniques across the entire AV over IP network. Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box.

Highlights

XSM4556 is a 10G to 100G solution

  • The M4500-32C offers 32-port QSFP28 preconfigured for 100G and can support 40G QSFP+ and 50G QSFP28 optics or DAC cables
  • The M4500-48XF8C offers 48-port SFP28 preconfigured for 10G with 8-port 100G QSFP28 uplinks, and the SFP28 ports can support 10G and 25G

XSM4556 is for Pro AV installations

  • Installers opting to use M4500 switches in their installation will find that it is already preconfigured out of the box
  • True AV and multicast Zero Touch network configuration: Connect AV-over-IP encoders and decoders, and power on the switch. It just works!

Intelligent IGMP Plus

  • IGMP Plus multicast allows for scalable Pro AV installations at Layer 2 without the PIM (Protocol Independent Multicast) complexity
  • IGMP Plus is default on VLAN 1 out of the box and can be configured on another VLAN for automatic IGMP across M4500 and M4300 switches on that VLAN

Higher availability

  • Meet the requirements of high performance, high availability, fast scale out, low latency performance, and continuous serviceability in sensible applications
  • The M4500 switches offer 1+1 power and 4+2 fan redundancy, an x86 Intel Atom® Processor C3558 with 8GB DDR3/ECC RAM and 128GB SSD storage

Industry standard management

  • The M4500 XSM4556 switches come with an industry standard command line interface (CLI), SSH, SNMP, sFlow, and MLAG
  • An out of band 1 Gigabit Ethernet port facilitates management, with simplified macro-commands for AV-over-IP configuration

Industry leading warranty

  • NETGEAR M4500 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
  • 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Product Type

Ethernet Switch

Interfaces/Ports

  • Total Number of Network Ports: 48
  • Modular: Yes
  • Port/Expansion Slot Details: 48 x 25 Gigabit Ethernet Expansion Slot
  • Port/Expansion Slot Details: 8 x 100 Gigabit Ethernet Uplink

Media & Performance

  • Media Type Supported: Optical Fiber
  • Ethernet Technology: 100 Gigabit Ethernet
  • Ethernet Technology: 25 Gigabit Ethernet
  • Network Technology: 1000Base-X
  • Network Technology: 25GBase-X

I/O Expansions

  • Number of Total Expansion Slots: 56
  • Expansion Slot Type: QSFP28
  • Expansion Slot Type: SFP28

Network & Communication

  • Layer Supported: 3

Management & Protocols

  • Manageable: Yes

Power Description

  • Power Source: Power Supply
  • Redundant Power Supply Supported: Yes

Physical Characteristics

  • Compatible Rack Unit: 1U
  • Form Factor: Rack-mountable
  • Form Factor: Rail-mountable
  • Height: 1.7"
  • Width: 17.3"
  • Depth: 20"
  • Weight (Approximate): 21.43 lb

Miscellaneous

  • Package Contents:
    • XSM4556 Ethernet Switch
    • 2 x Power Supplies and Six Fan Trays Already Installed
    • Power Cord(s)
    • Console Cable with One DB9 Female Connector and One RJ-45 Serial Connector
    • 2 x Mounting Ears and Screws For Rack Mounting (Front)
    • 1 x Set of Rail Kits For Rack Mounting (Back)
  • Environmentally Friendly: Yes
  • Environmental Certification: ErP
  • Environmental Certification: REACH
  • Environmental Certification: RoHS
  • Environmental Certification: WEEE
  • Country of Origin: China

Warranty

  • Limited Warranty: Lifetime
