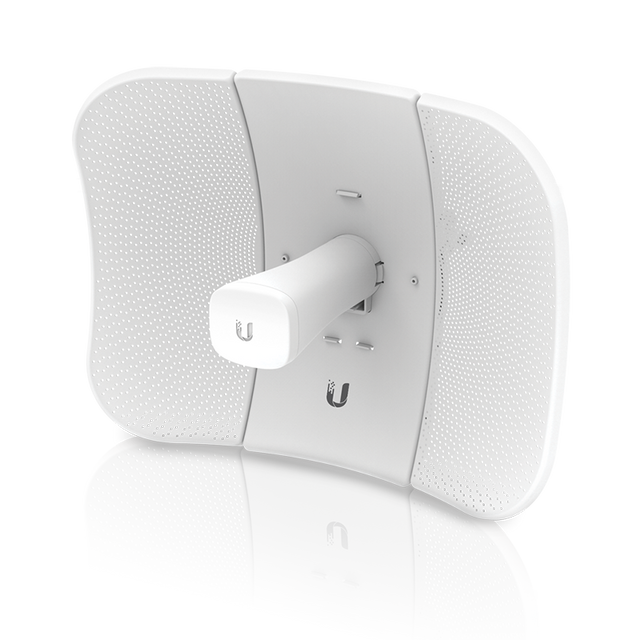

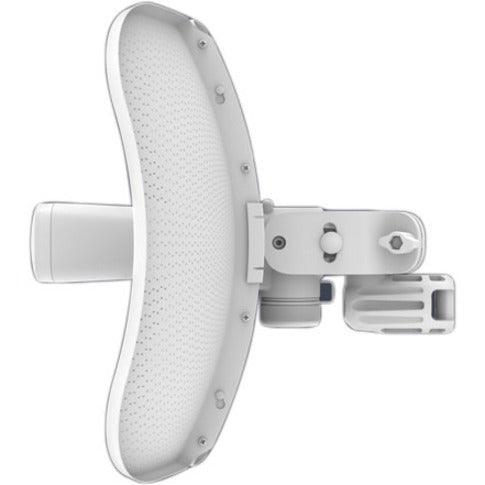

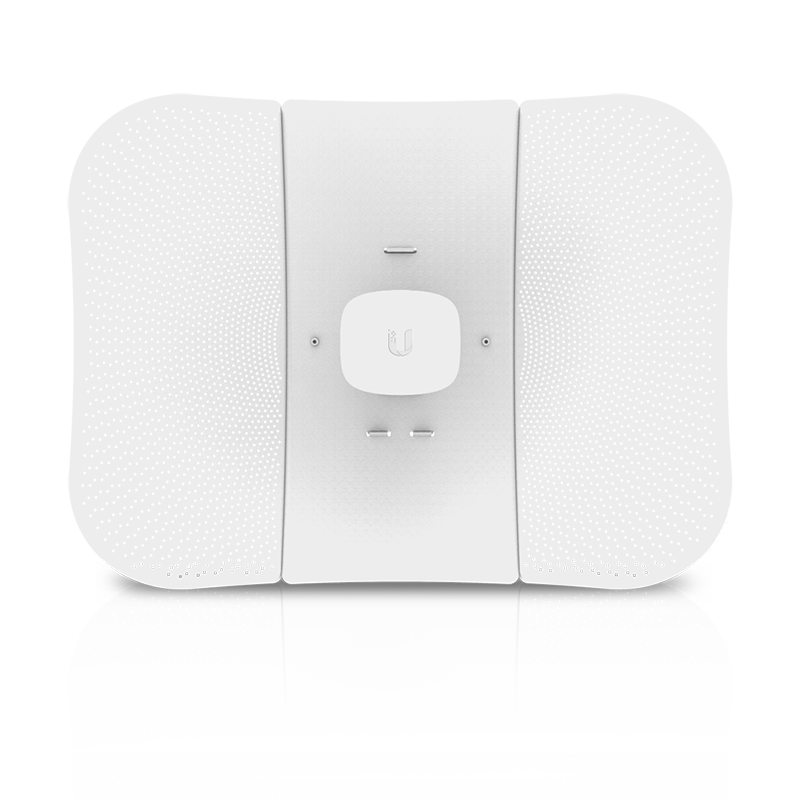

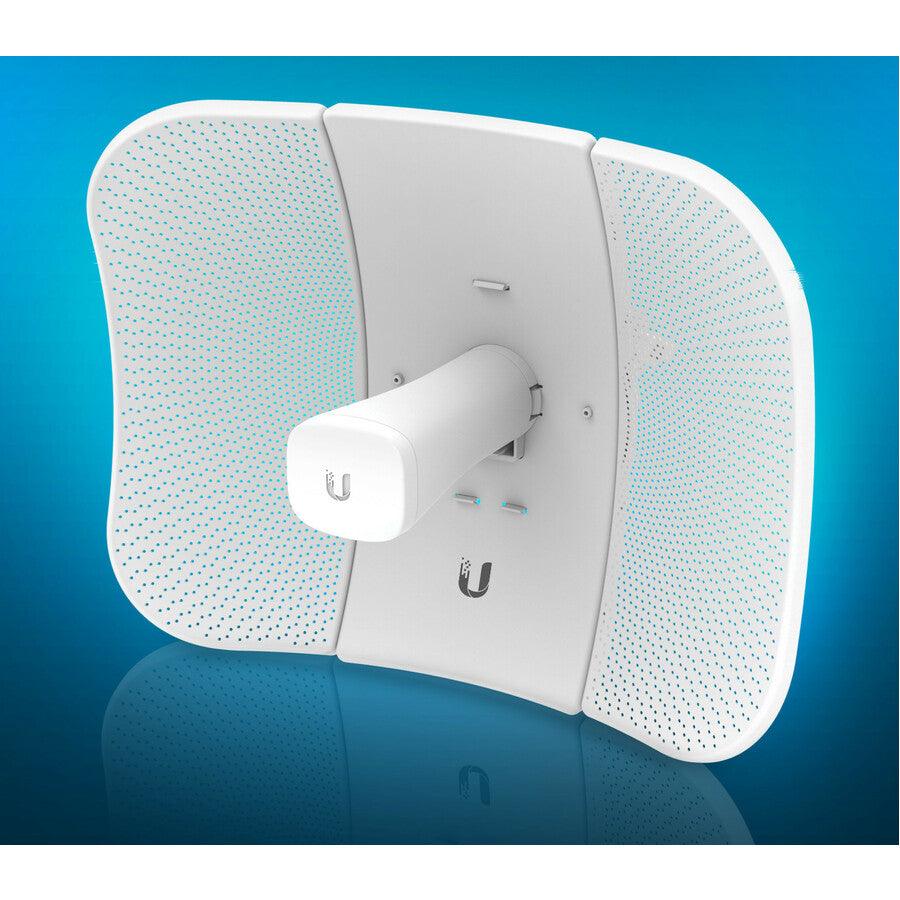

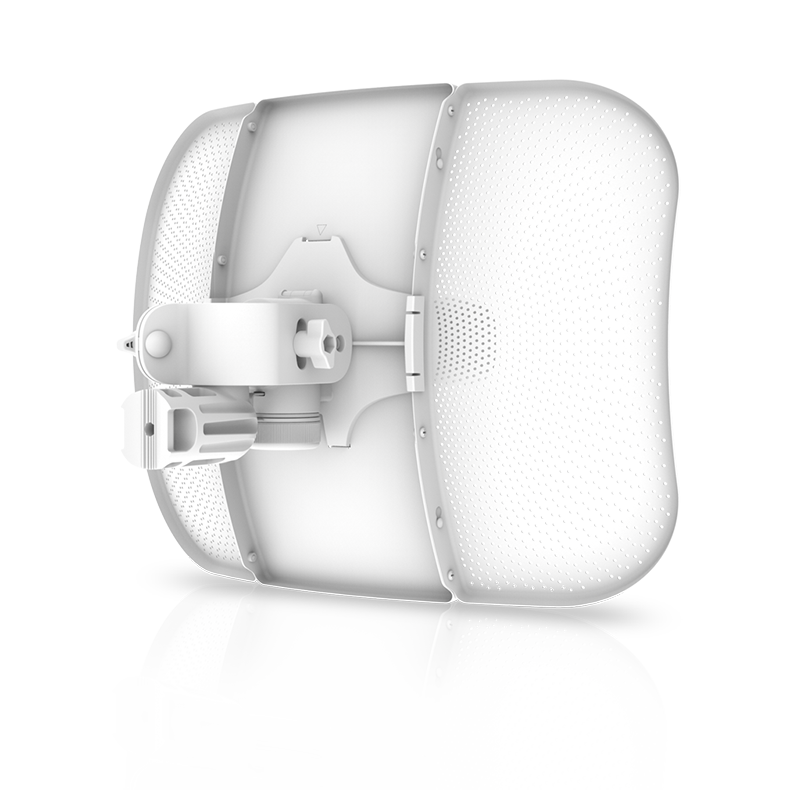

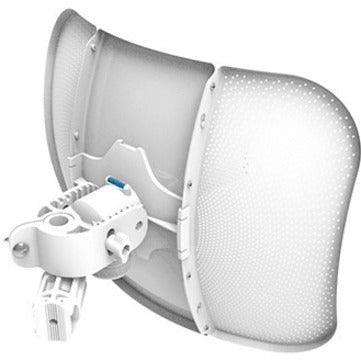

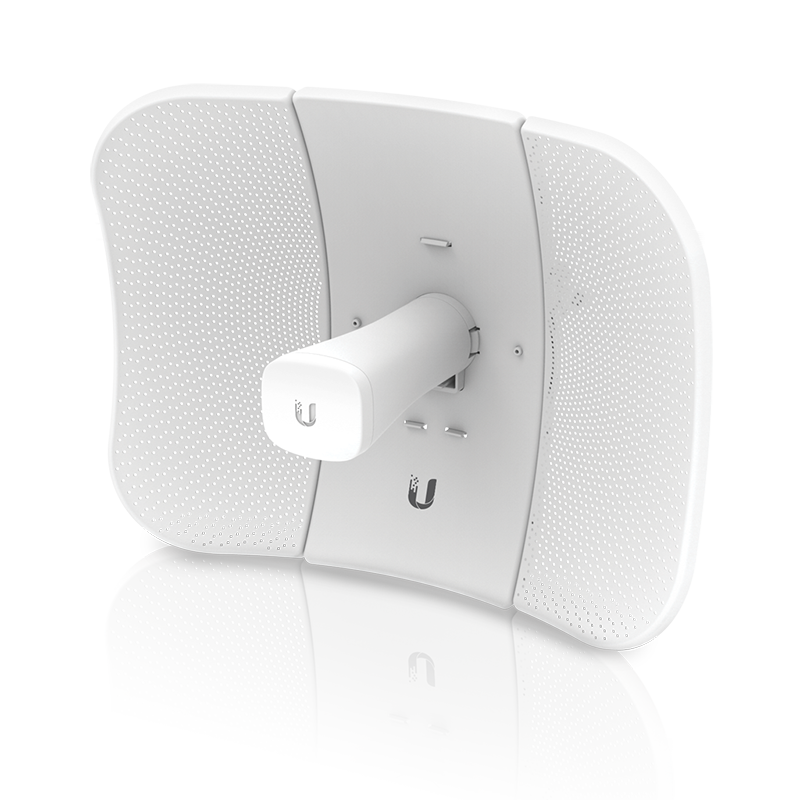

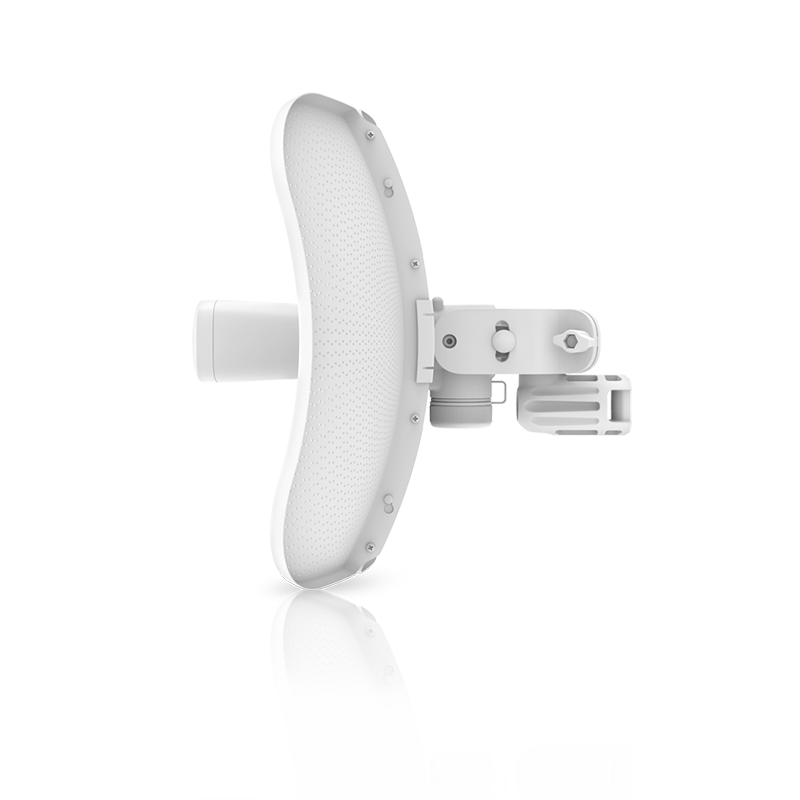

Ubiquiti LiteBeam AC Gen2 LBE-5AC-Gen2 IEEE 802.11ac 450 Mbit/s Wireless Bridge

In-Stock. Contact us for bulk pricing quotes.

The Ubiquiti UISP airMAX LiteBeam 5AC is a high performance 5GHz Wireless Bridge managed with the licensing-fee free UISP platform.

5 GHz 15+ km link range

450+ Mbps throughput

Easy to assemble

Product Overview

• UPC Code: 810354026294
• Manufacturer Warranty: 1 Year
• Case Qty: 8
• Country of Origin: CHINA

General Information

• Manufacturer: Ubiquiti Inc.
• Manufacturer Part Number: LBE-5AC-GEN2-US
• Manufacturer Website Address: www.ui.com
• Brand Name: Ubiquiti
• Product Line: LiteBeam AC Gen2
• Product Model: LBE-5AC-Gen2
• Product Name: LiteBeam AC Gen2 LBE-5AC-Gen2 Wireless Bridge

Marketing Information

2x2 MIMO airMAX® ac CPE
The LiteBeam® AC is an ultra-lightweight airMAX ac CPE device with incredible range and disruptive pricing.

Management Wi-Fi Radio
The LiteBeam® AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

Improved Mounting and Surge Protection
Featuring enhanced protection against ESD events, the LiteBeam® AC offers a more robust mount with separate azimuth and elevation adjustments.

Now with airOS®8 and airView®
airOS®8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.

High-Gain, Directional, 2x2 MIMO Antenna
The LiteBeam® AC provides 23 dBi of gain for long-distance connectivity and uses a directional antenna pattern for improved noise immunity.

Breakthrough Industrial Design
Featuring the freedom of three-axis alignment, the LiteBeam® AC fully assembles in seconds - no tools needed. Only a single wrench is required for pole-mounting.

Compact in Size, Light in Weight
A lightweight form factor contained within ultra-compact packaging, the LiteBeam® AC is ideal for shipping and logistics.

Product Type

Wireless Bridge

Technical Information

• Wireless LAN Standard: IEEE 802.11ac
• Frequency Band: 5 GHz
• Wireless Transmission Speed: 450 Mbit/s
• MIMO Technology: Yes
• Technical Specifications




  Mechanical
  Dimensions	358 x 271.95 x 272.5 mm (14.1 x 10.7 x 10.73")
  Weight	Without mount: 800 g (1.76 lb) With mount 980 g (2.16 lb)
  Wind survivability	200 km/h (125 mph)
  Wind loading	275 N at 200 km/h (61.8 lbf at 125 mph)
  Hardware
  Networking interface	(1) GbE RJ45 port
  Power method	Passive PoE (pairs 4, 5+; 7, 8 return)
  Power supply	24V, 0.3A Gigabit PoE adapter (Included)
  Max. power consumption	7W
  Max. power output	25 dBm
  Gain	23 dBi
  Operating temperature	-40 to 70° C (-40 to 158° F)
  Operating humidity	5 to 95% noncondensing
  Certifications	CE, FCC, IC
  Operating Frequency (MHz)
  Worldwide	5150-5875 MHz
  USA U-NII-1 U-NII-2A U-NII-2C U-NII-3	5150-5250 MHz 5250-5350 MHz 5240-5725 MHz 5725-5850 MHz
  Management Radio (MHz)
  Worldwide	2412 - 2472 MHz
  US/CA	2412 - 2462 MHz

Interfaces/Ports

• Ethernet Technology: Gigabit Ethernet
• Number of Network (RJ-45) Ports: 1
• PoE (RJ-45) Port: No
• PoE PD Port: Yes
• VGA: No
• HDMI: No
• USB: No
• Powerline: No
• Management Port: No

Physical Characteristics

• Form Factor: Pole-mountable
• Height: 10.7"
• Width: 10.7"
• Depth: 14.1"
• Weight (Approximate): 1.76 lb

Miscellaneous

• Package Contents:
  • LiteBeam AC Gen2 LBE-5AC-Gen2 Wireless Bridge
  • 24V, 0.3A Gigabit PoE Adapter
  • Pole-Mounting Kit
• Country of Origin: China

Warranty

• Limited Warranty: 1 Year
