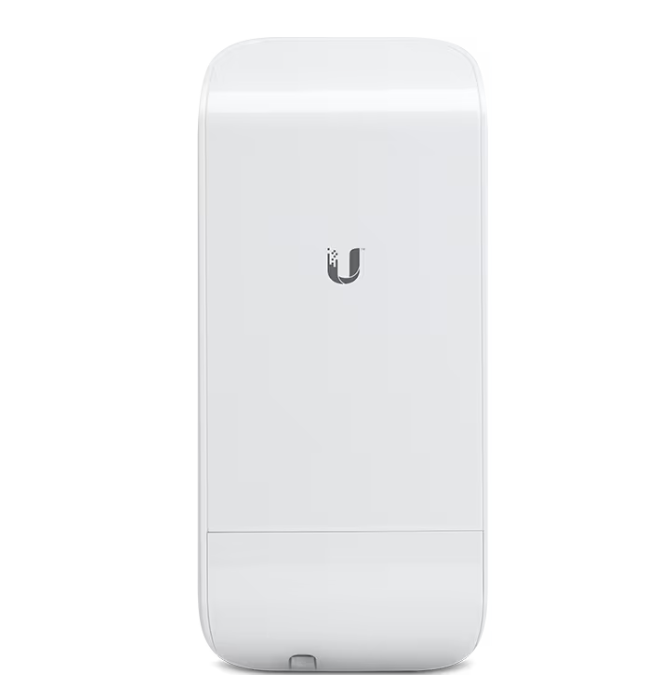

Ubiquiti NanoStation locoM2
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
In-Stock.
Part Number: LocoM2 (US Version).
Featuring a panel antenna and dual-polarity performance, the NanoStation®M is ideal for Point-to-MultiPoint (PtMP) applications requiring high-performance CPE devices with a sleek form factor.
Compact CPE Design
The NanoStation®M features the CPE design that expanded the global Wireless ISP industry.
Plug and Play Installation
The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.
Versatile Application Use
The NanoStation®M can be deployed for Point-to-Point (PtP) bridging, wireless connectivity to a video surveillance system, or use as an airMAX®CPE.
Dual Ethernet Connectivity
With software-enabled PoE output, the secondary Ethernet port can power an external device, such as a PoE security camera, for seamless IP video integration.
Powerful airOS® Features
Ubiquiti's versatile airOS® firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as wireless settings, bridge or routing configuration and system management services.
Advanced Software Technology
Ubiquiti's airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.
Window/Wall Mounting Kit
Use the NanoStation® Mount to quickly mount the NanoStationM on a window or wall. 180° vertical or horizontal adjustment allows for custom positioning.
Wall/Pole Mounting Kit
The Universal Arm Bracket is designed for convenient wall or pole mounting of the NanoStation®M. 90° tilt adjustment allows for easy positioning.
- NanoStation LocoM2 Wireless Bridge
- Pole-Mount Kit
Technical Specifications
LocoM2 Dimensions 161 x 31 x 80 mm (6.31 x 1.22 x 3.15") Weight 180 g (6.35 oz) Enclosure Outdoor UV Stabilized Plastic Mounting Pole-Mount (Kit Included) Networking Interface (1) 10/100 Ethernet Port Processor Specs Atheros MIPS 24Kc, 400 MHz Memory 32 MB SDRAM, 8 MB Flash Power Supply (PoE) 24V, 0.5A 24V, 0.5A Max. Power Consumption 5.5W 5.5W Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return) Operating Frequency 2412-2462 MHz Gain 8.5 dBi Frequency 2.4 GHz Cross-pol Isolation 20 dB Minimum Max. VSWR 1.4:1 Beamwidth 60° (H-pol) / 60° (V-pol) / 60° (Elevation) Polarization Dual Linear RoHS Compliance Yes Shock & Vibration ETSI300-019-1.4 Operating Temperature -30 to 75° C (-22 to 167° F) Operating Humidity 5 to 95% Noncondensing Certifications FCC, IC, CE
