Ubiquiti  |  SKU: E7-CAMPUS

Ubiquiti Networks E7-Campus Enterprise WiFi 7 Campus Access Point

$799.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

Contact us for B2B/installer pricing.

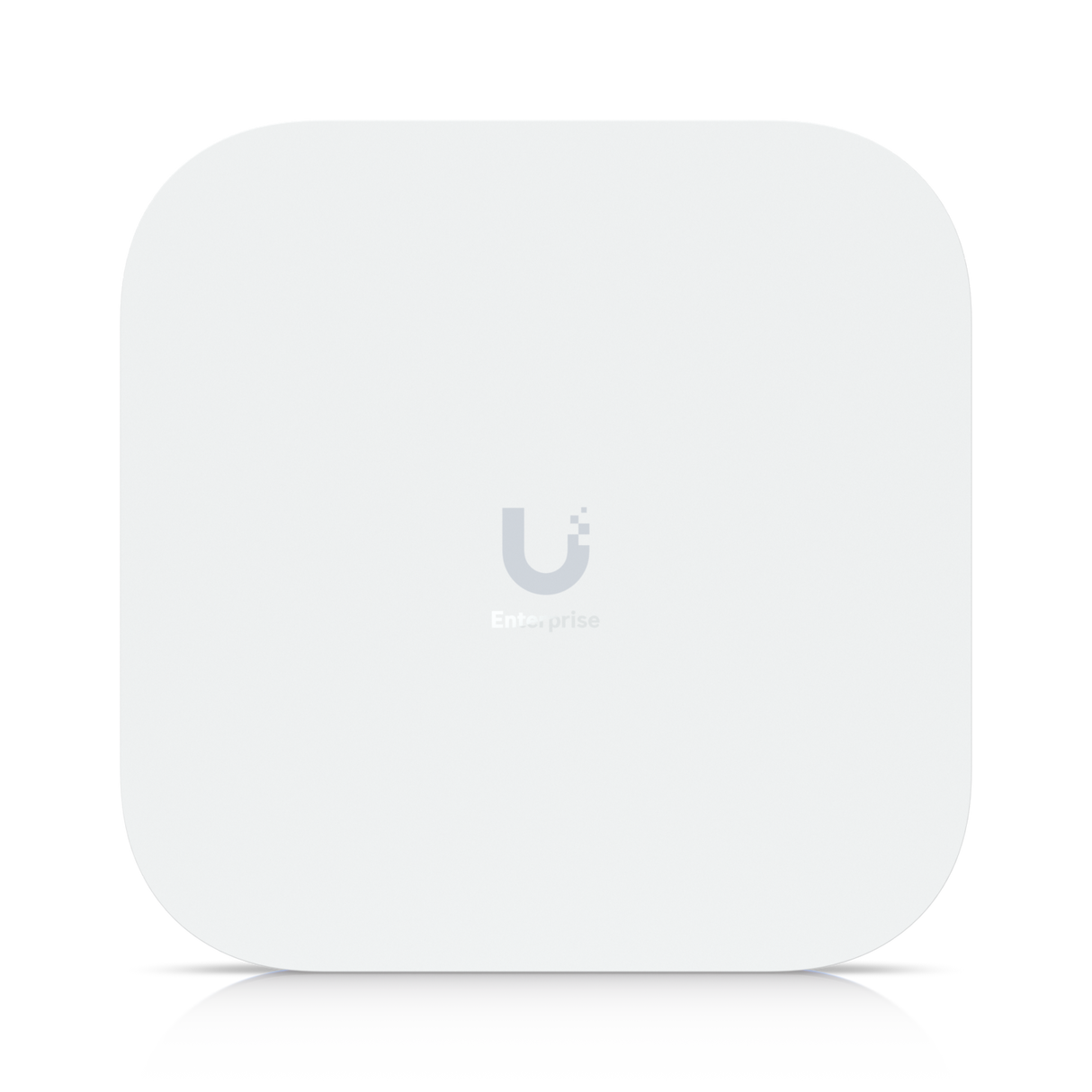

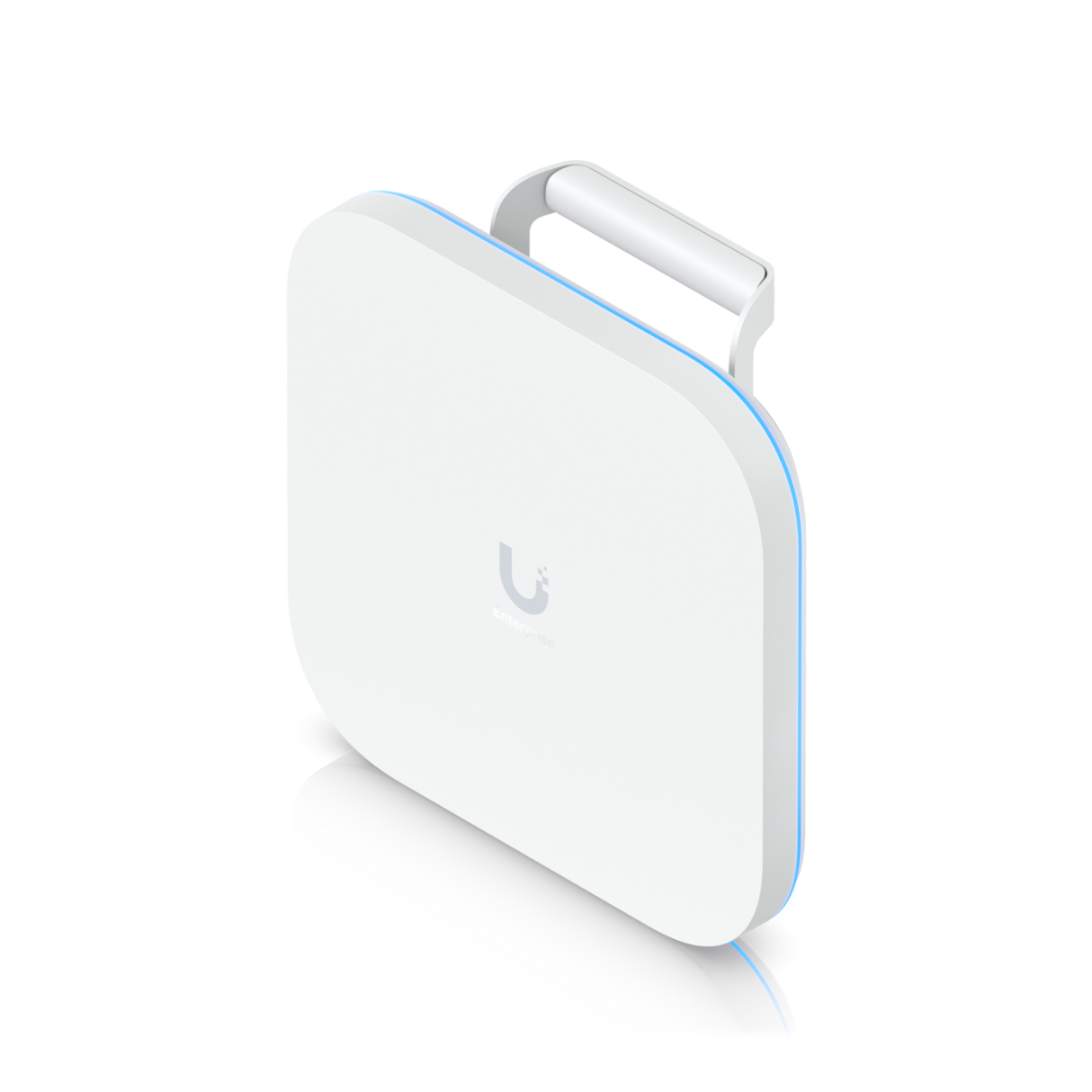

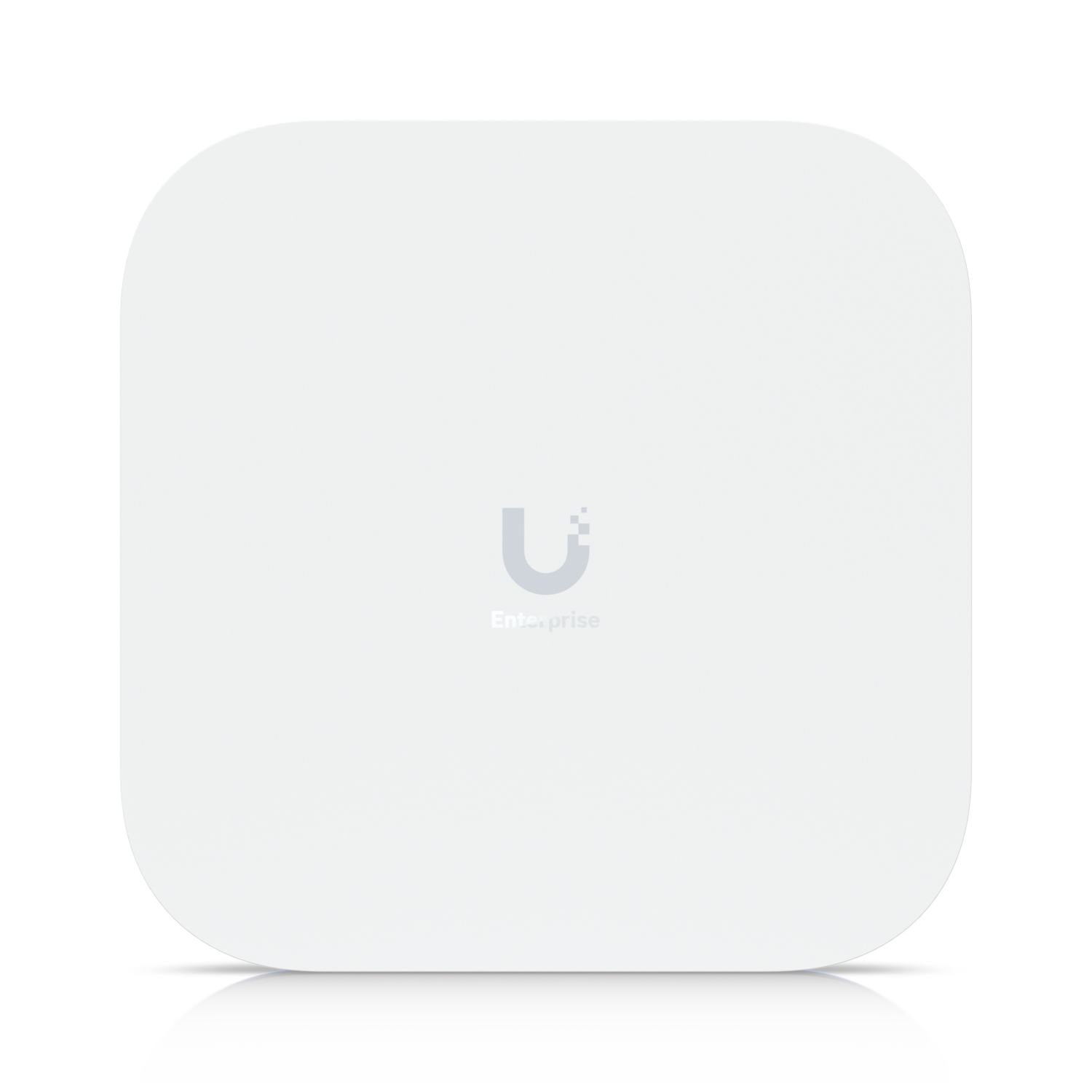

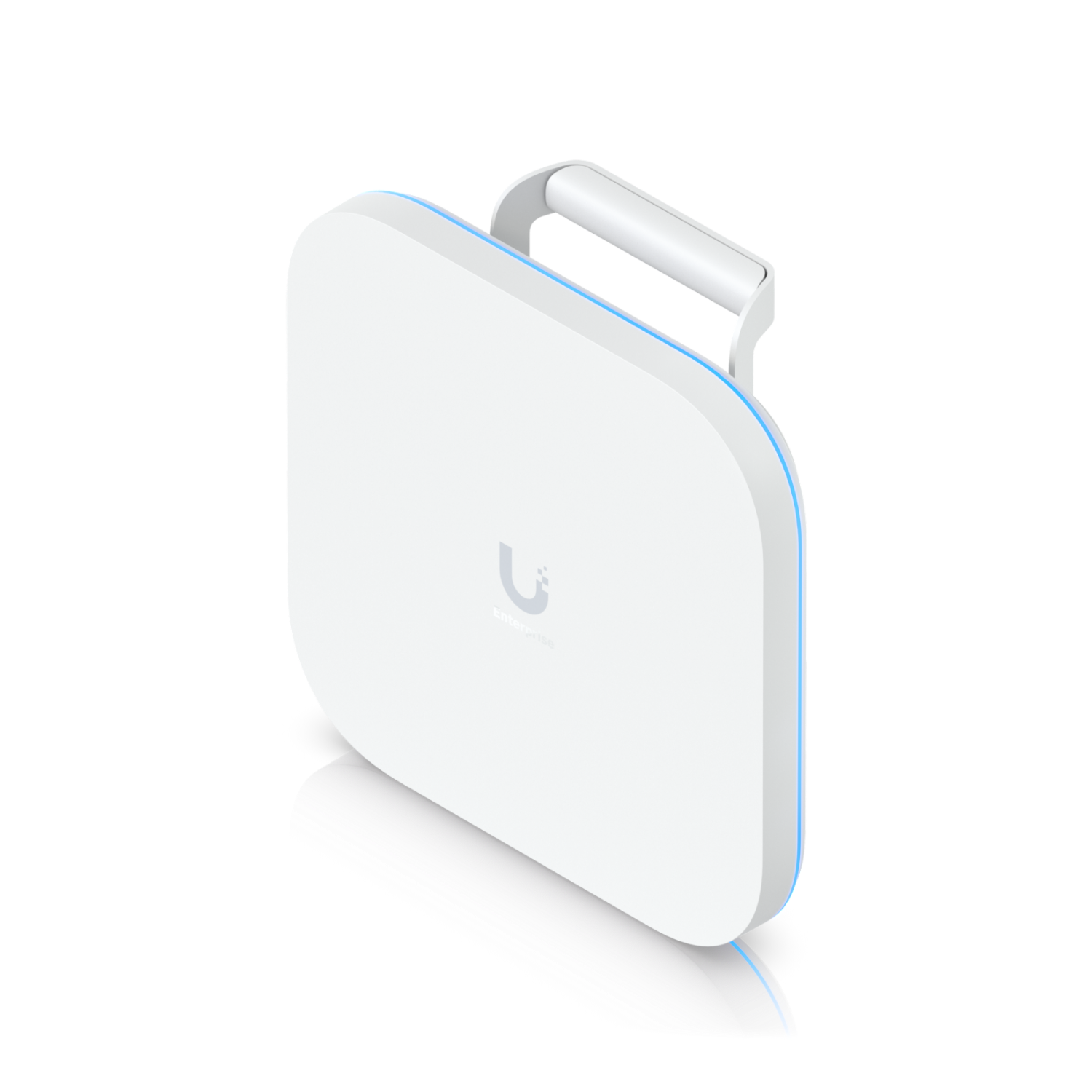

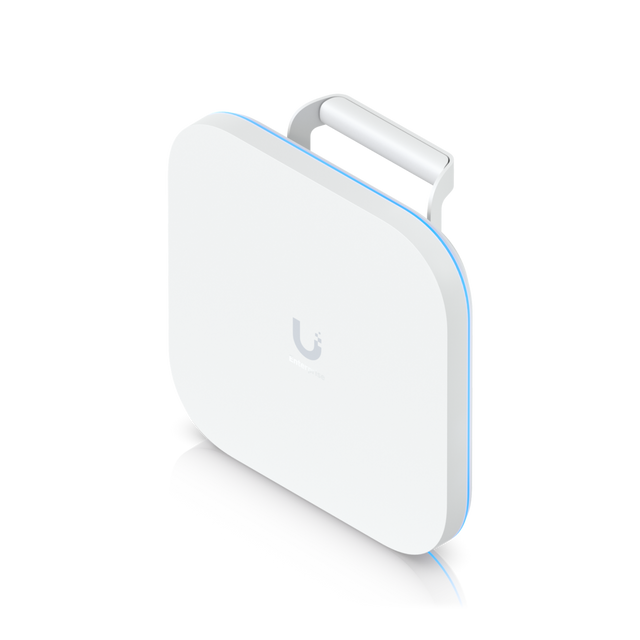

The Ubiquiti Networks Enterprise 7 Campus Access Point E7-Campus is a enterprise-grade indoor/outdoor access point with ‎10-stream‎ ‎‎WiFi 7 performance, PRISM active RF filtering technology, and integrated directional antennas.

WiFi 7 with 6 GHz support

10 spatial streams

Real-time spectral analysis for enhanced channel selection

High selectivity PRISM™ RF filtering technology

Dedicated spectral analyzer radio

Directional high gain antenna array

Long-range 6 GHz performance with AFC

465 m² (5,000 ft²) coverage

1,000+ connected devices

(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

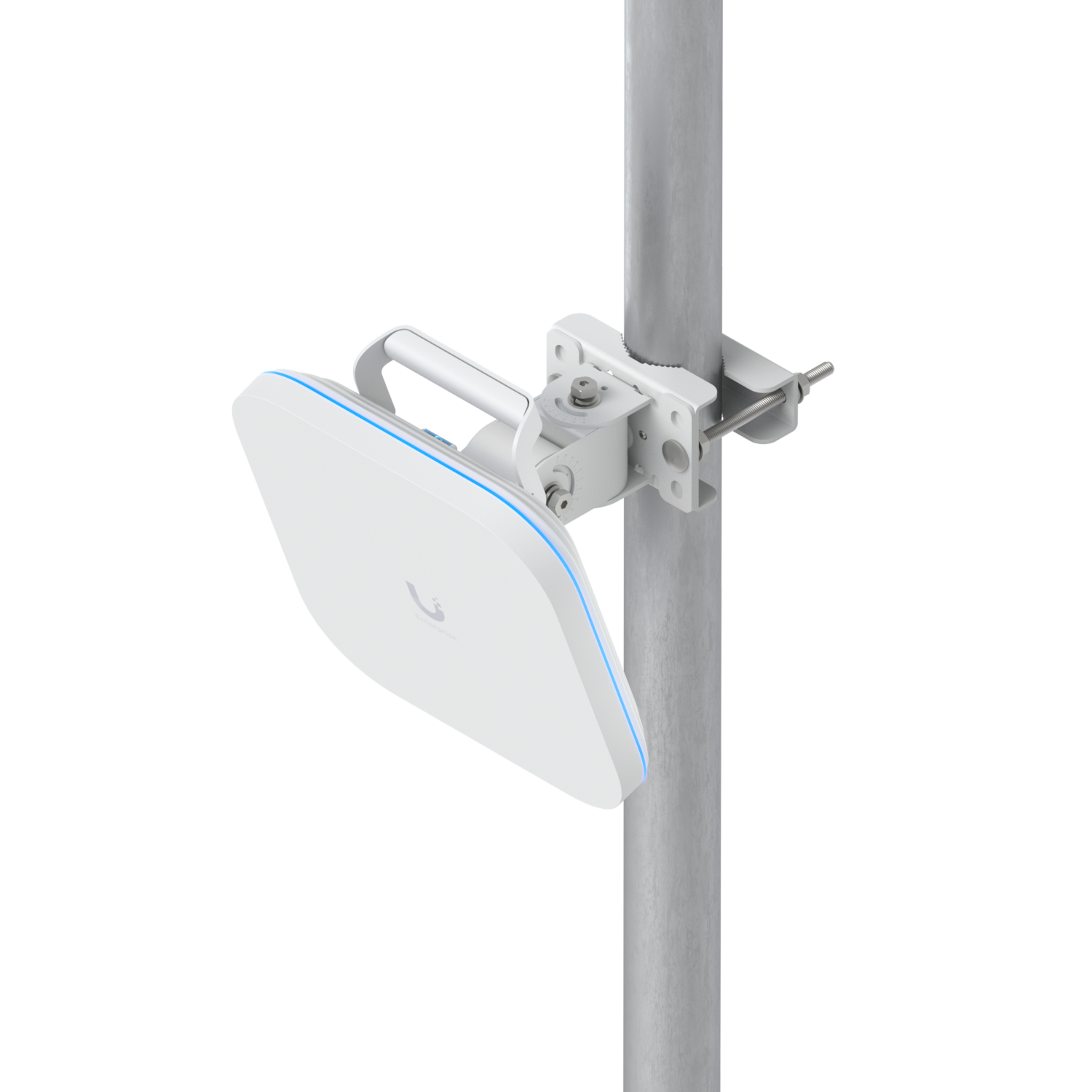

Versatile articulating wall/pole mount for precise position (included), VESA 100x100 compatibility

Powered using PoE++

Technical Specifications

Mechanical

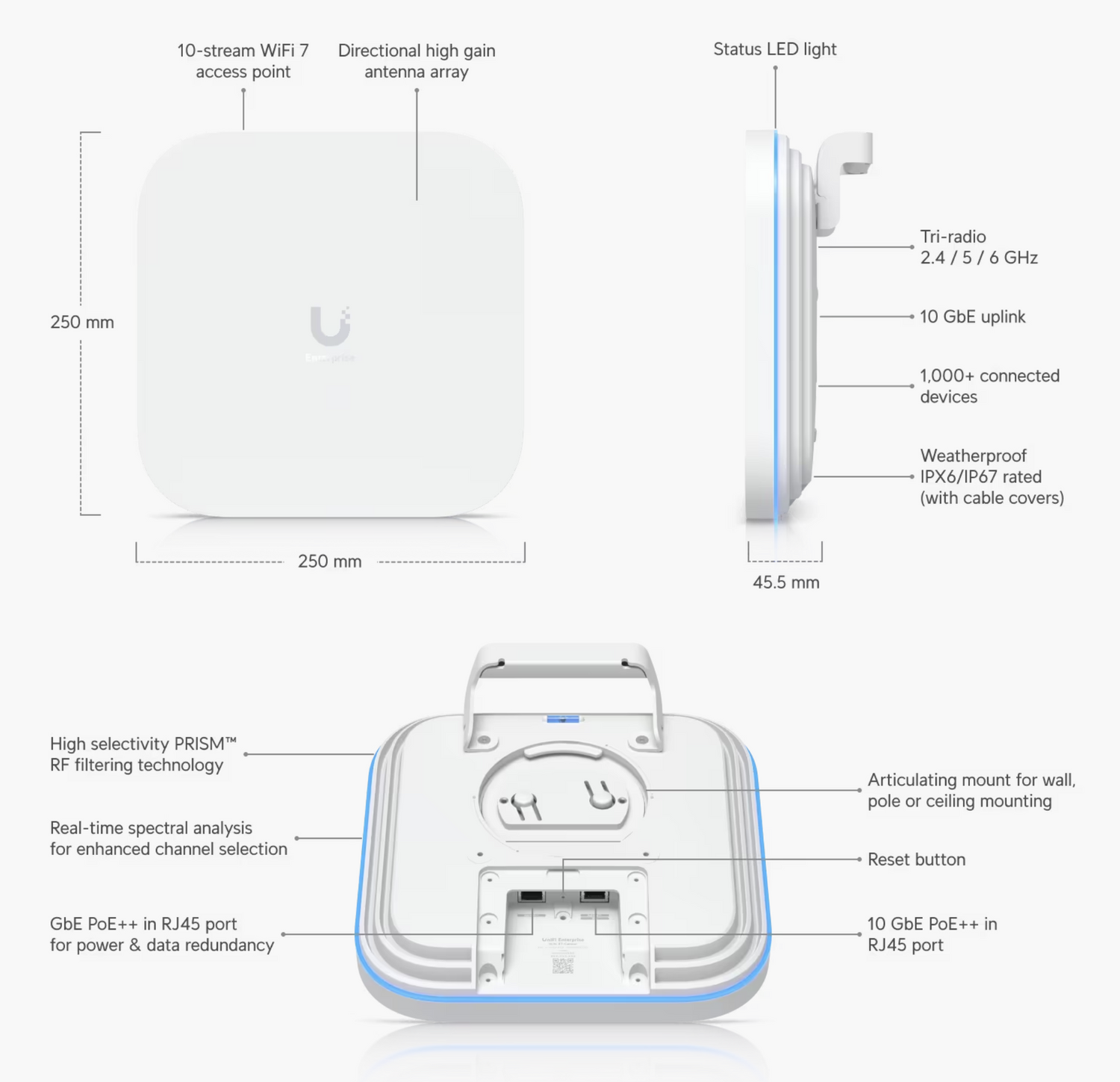

Dimensions

Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")
Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9")

Weight

Device: 2.2 kg (4.9 lb)
Articulating mount: 0.9 kg (2 lb)

Enclosure material

UV-stabilized polycarbonate, aluminum alloy

Mount material

Stainless steel, aluminum alloy

Pole mount diameter

1–2.5" (25–63.5 mm) on pipe outer diameter

Wind survivability

164.75 N at 200 km/h (37 lbf at 125 mph)

Weatherproofing

IPX6
IP67 with Waterproof Door Kit (Included)

Hardware

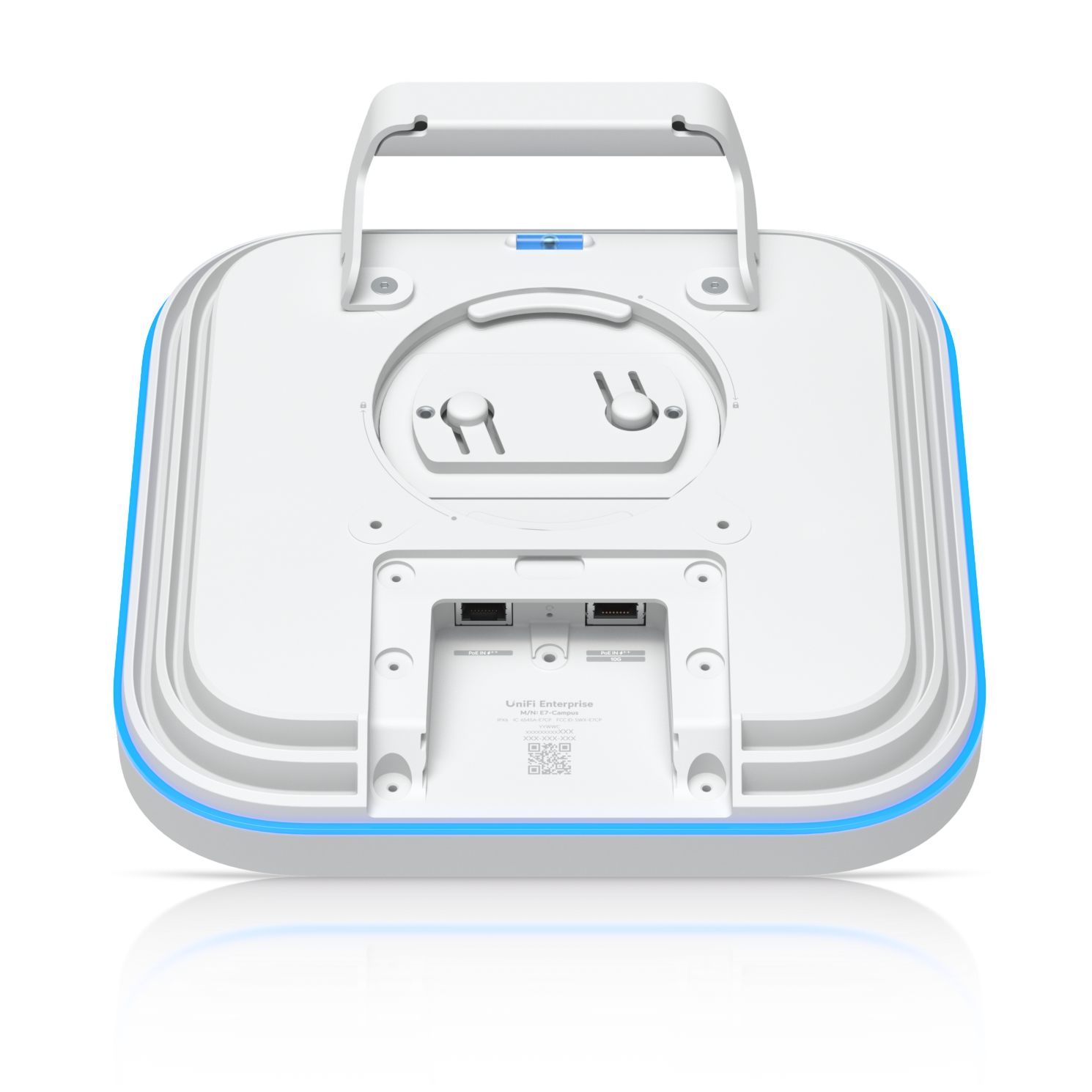

Networking interface

(1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port

Management interface

Ethernet

Power method

PoE++

Power supply

UniFi PoE switch

Supported voltage range

42.5—57V DC

Max. power consumption

44W

Max. TX power
2.4 GHz
5 GHz
6 GHz


23 dBm
30 dBm
30 dBm (36 dBm EIRP)*
*With 6 GHz Extended Range mode. Available in FCC/IC region only.

MIMO
2.4 GHz
5 GHz
6 GHz


2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)

Max. data rate
2.4 GHz
5 GHz
6 GHz


688 Mbps (BW40)
8.6 Gbps (BW240)
11.5 Gbps (BW320)

Antenna gain
2.4 GHz
5 GHz
6 GHz


9 dBi
12 dBi
12 dBi

Antenna beamwidth
2.4 GHz
5 GHz
6 GHz


90° x 80°
100° x 55°
90° x 50°

Antenna

Internal with directional patterns

LEDs

R/G/B

Button

Factory reset

Mounting

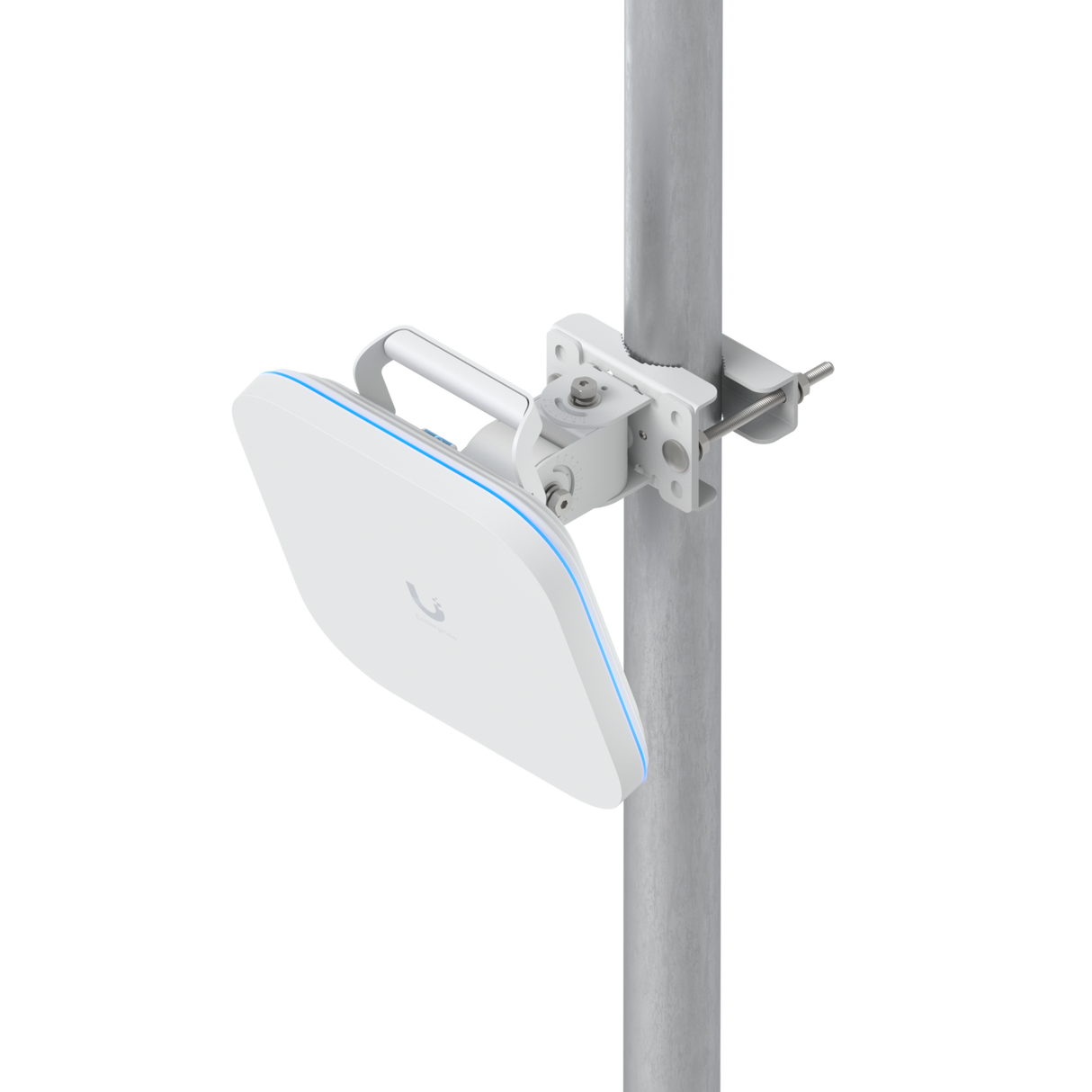

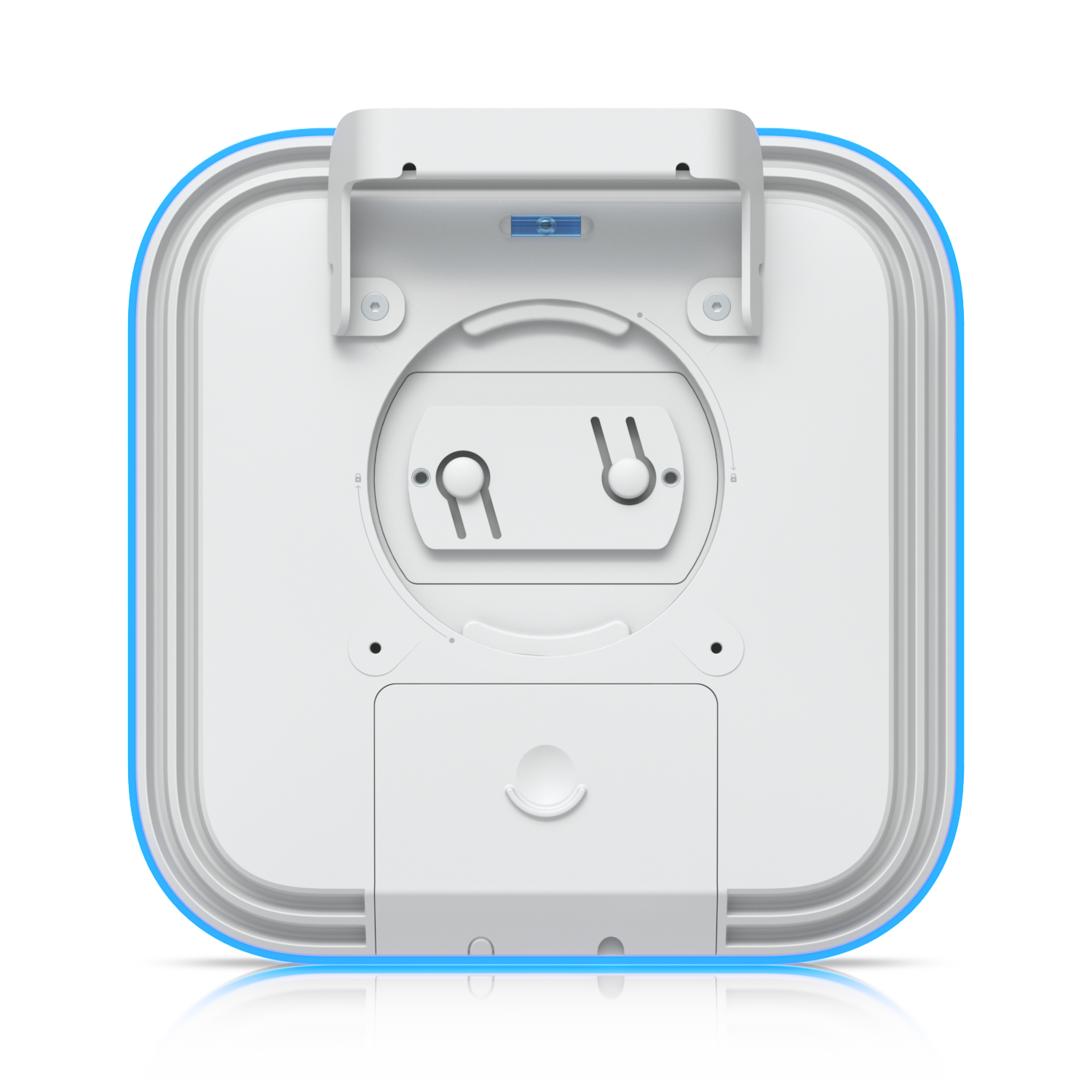

Articulating mount for wall, pole or ceiling mounting (Included)

Ambient operating temperature

-30 to 60° C (-22 to 140° F)

Ambient operating humidity

5 to 95% noncondensing

Certifications

FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

1,000+

Ubiquiti specific features

High selectivity PRISM™ RF filtering technology
Dedicated spectral analyzer radio

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)

802.11ac

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
