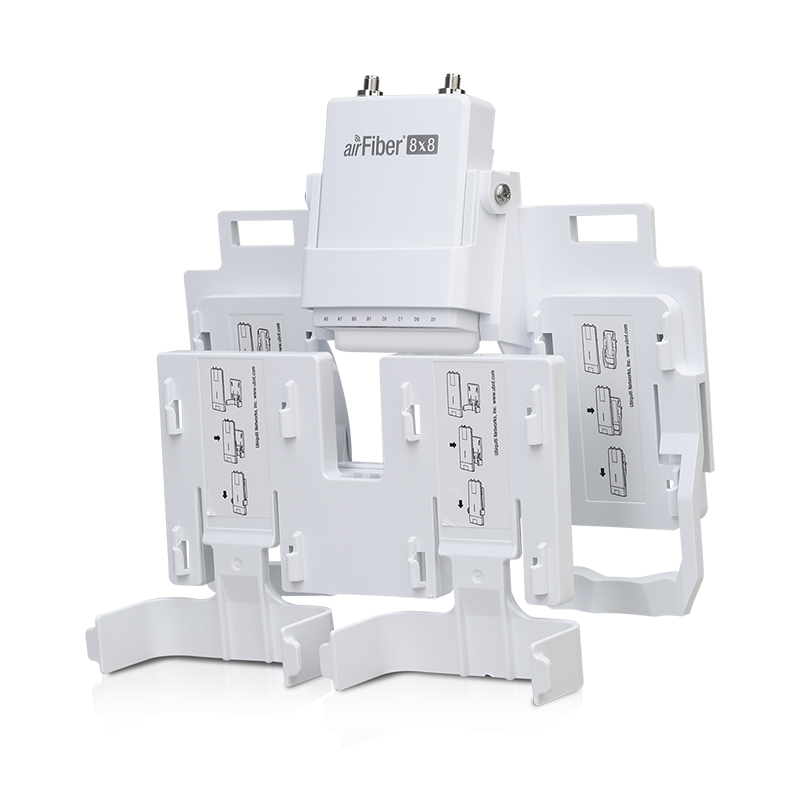

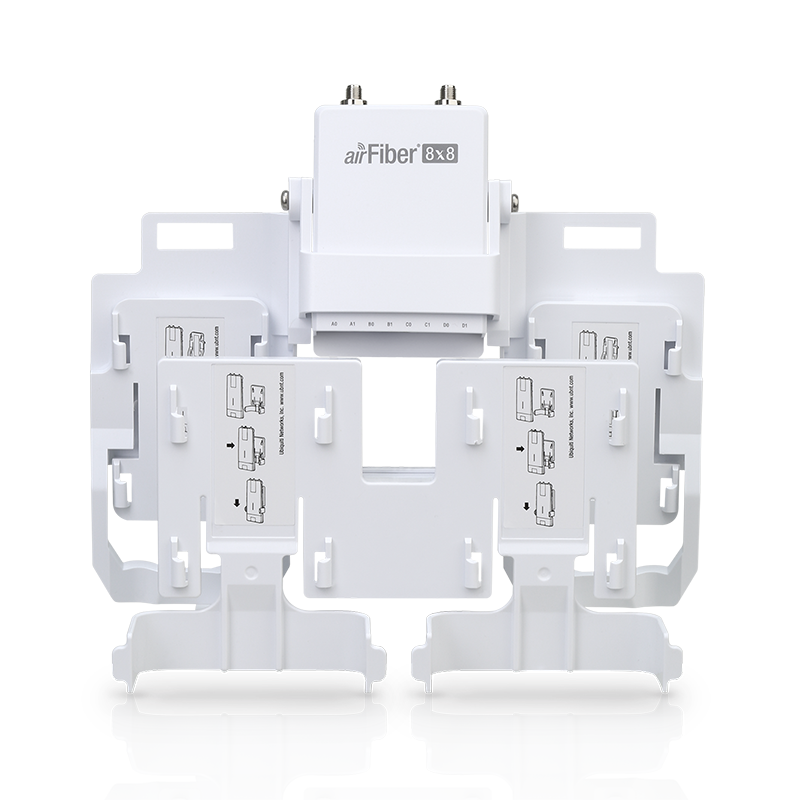

The Ubiquiti UISP airFiber 8x8 MIMO Multiplexer AF-MPx8 increases the amazing throughput of your airFiber link by up to 400% without the need of additional antennas.
Up to 8x8 MIMO backhaul technology
2+ Gbps aggregated throughput
Combine up to 4 airFiber X radios on 1 dish antenna
Compatible with airFiber X and RocketDish antennas
Technical Specifications
| Dimensions | 210.5 x 240.9 x 109 mm (8.3 x 9.5 x 4.3") |
| Weight | 450 g (1 lb) |
| RF connectors | (2) RP-SMA weatherproof (CH0, CH1) (8) RP-SMA weatherproof (A0, A1, B0, B1, C0, C1, D0, D1) |
| Cable loss 4.7 GHz 5 GHz |
7.9 dB 7.2 dB |
| Multiplex MIMO | (4) 2 x 2 |
| Mounting | airFiber X/Rocket mount compatible |
