Ubiquiti UISP airFiber X 2.4 GHz, 24 dBi, Slant 45 AF-2G24-S45
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.

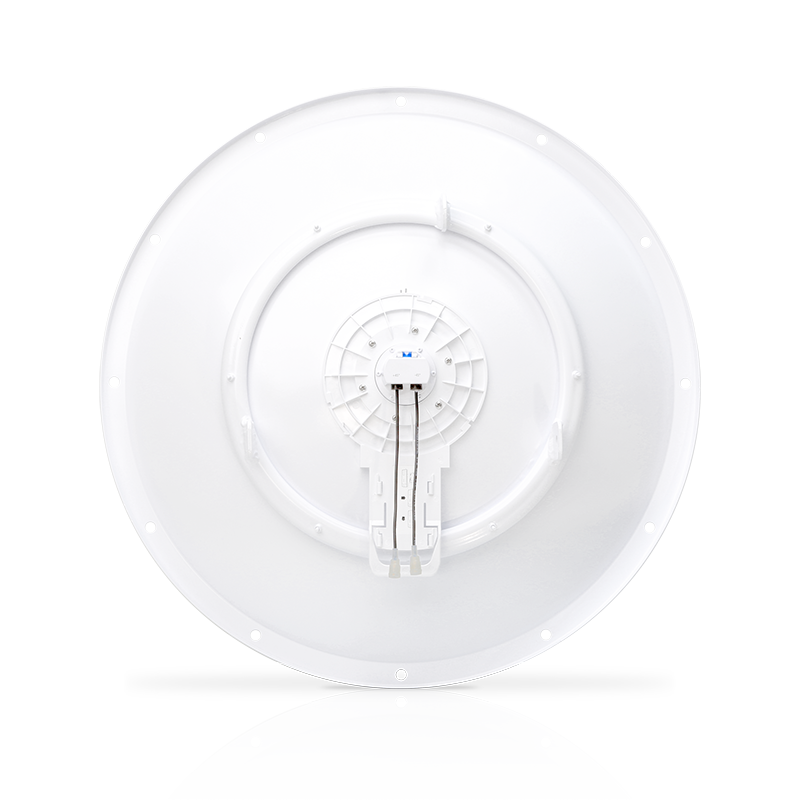

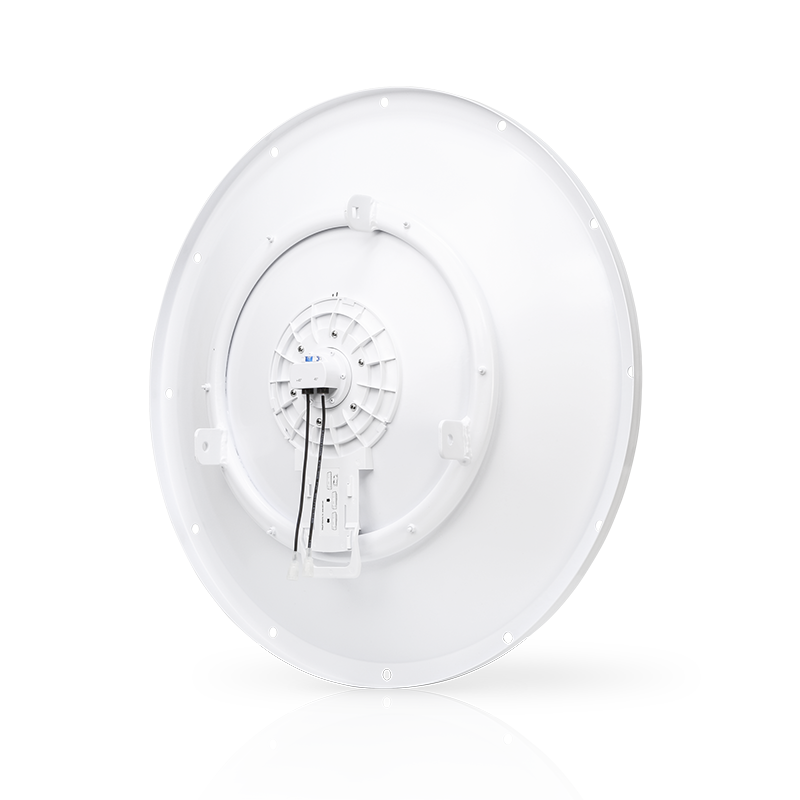

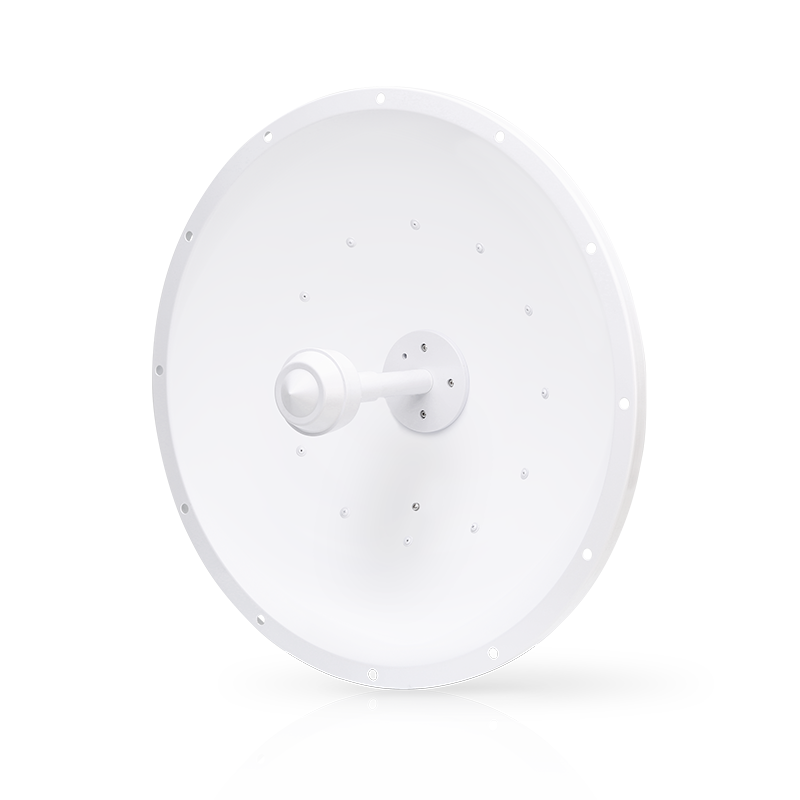

The Ubiquiti UISP airFiber X 2.4 GHz, 24 dBi, Slant 45 AF-2G24-S45 is a 2.4 GHz, 24 dBi antenna ideal for Point-to-Point (PtP) links.
2 x 2 dual-polarity performance
Robust mechanical design for outdoor application use
Secure pole-mounting
Compatible with airFiber 2X
Technical Specifications
| AF-2G24-S45 | |
|---|---|
| Dimensions | 650 x 650 x 295 mm (25.6 x 25.6 x 11.6") |
| Weight | 9.8 kg (21.61 lb) |
| Frequency | 2.3 - 2.7 GHz |
| Gain | 24 dBi |
| +45° Beamwidth | 6.6° (3 dB) |
| -45° Beamwidth | 6.8° (3 dB) |
| Front-to-Back Ratio | 28 dB |
| Max. VSWR | 1.6:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 787 N @ 200 km/h (177 lbf @ 125 mph) |
| Polarization | Dual Linear |
| Cross-Pol Isolation | 35 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Jumpers Included |
