Ubiquiti UISP airMAX 2.4 GHz, 13 dBi, Omni AMO-2G13
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.

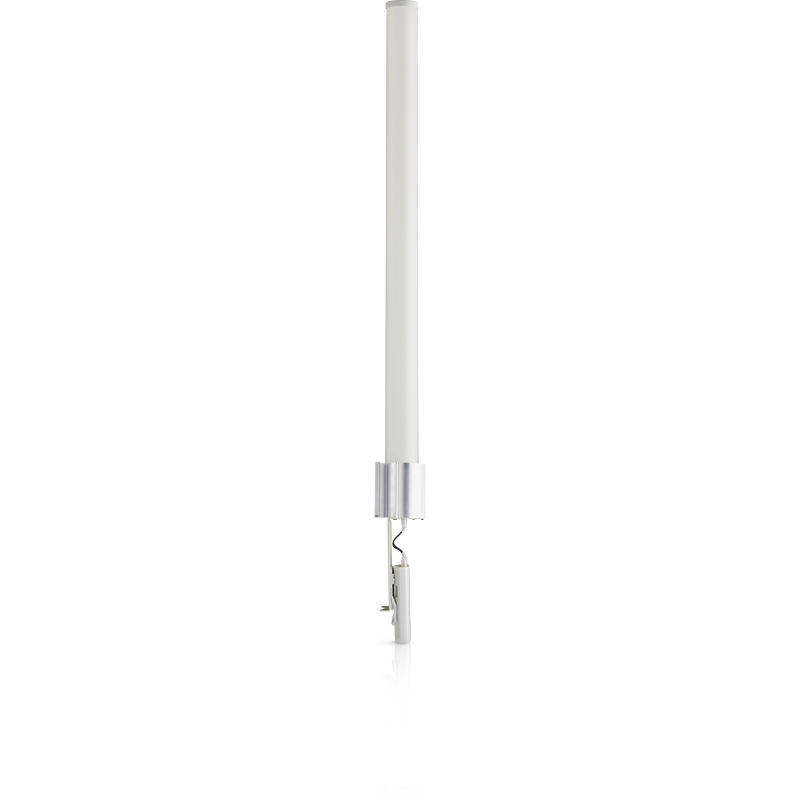

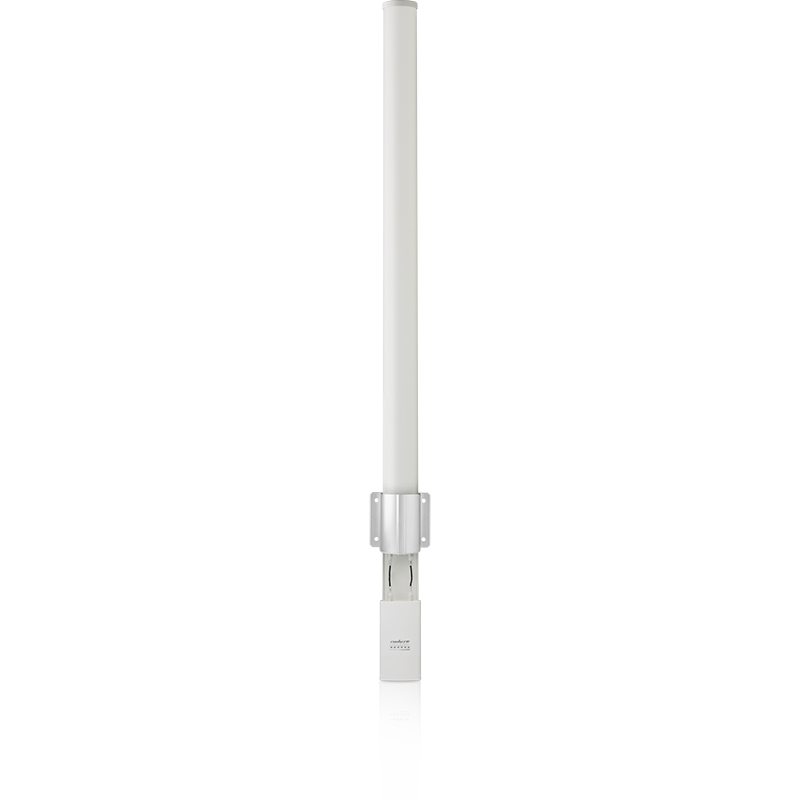

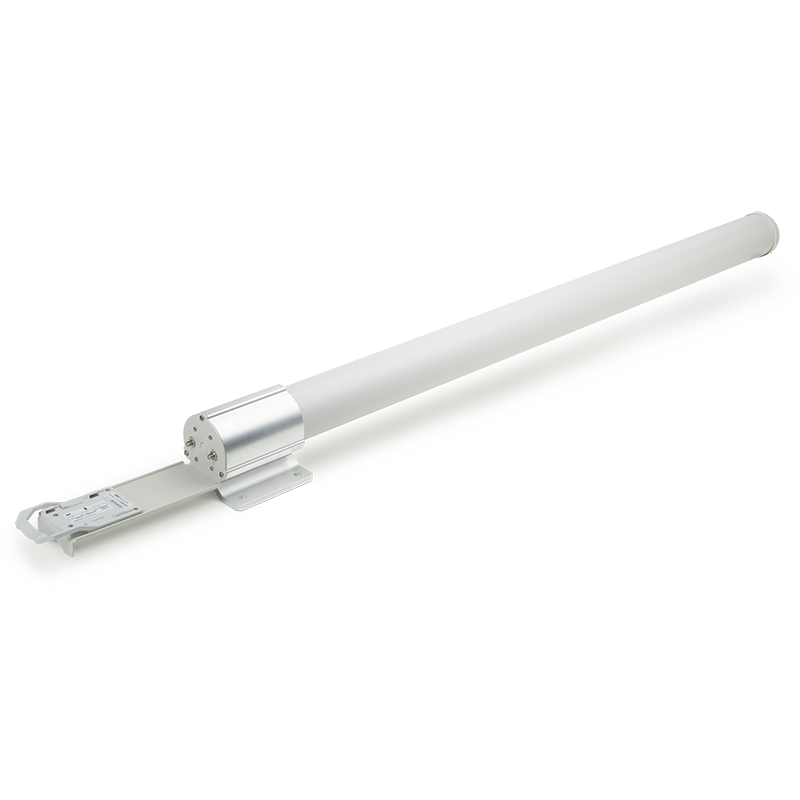

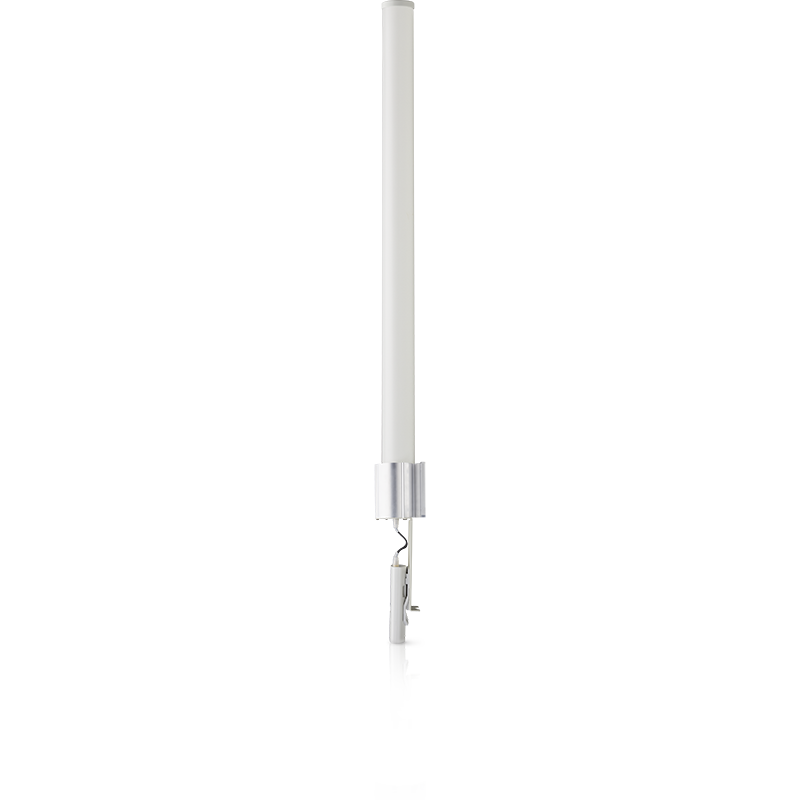

The Ubiquiti UISP airMAX 2.4 GHz, 13 dBi, Omni AMO-2G13 is a 2.4 GHz, 13 dBi carrier-class 2x2 MIMO omnidirectional antenna designed to seamlessly integrate with Rocket radios.
2x2 dual-polarity MIMO
360° coverage
Easy to assemble
Compatible with RocketPrism
Technical Specifications
| AMO-2G13 | |
|---|---|
| Dimensions | 1390 x 122 x 105 mm (54.2 x 4.8 x 4.1") |
| Weight | 2.4 kg (5.3 lb) |
| Frequency Range | 2.35 - 2.55 GHz |
| Gain | 13 dBi |
| Elevation Beamwidth | 7° |
| Max. VSWR | 1.7:1 |
| Downtilt | 2° |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 71.2 N @ 160 km/h (16 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 25 dB min. |
| ETSI Specification | EN 302 326 DN2 E |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
