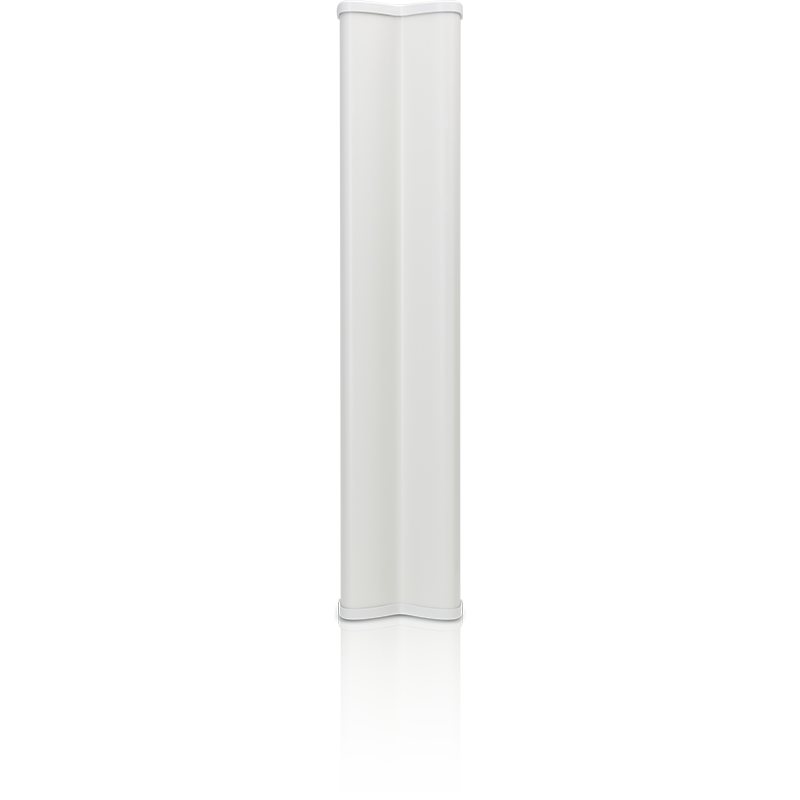

Ubiquiti UISP airMAX 2.4 GHz, 15 dBi, 120º Sector AM-2G15-120
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
The Ubiquiti UISP airMAX 2.4 GHz, 15 dBi, 120º Sector AM-2G15-120 is a 2.4 GHz, 120º, 15 dBi antenna for sector coverage in Point-to-MultiPoint (PtMP) networks.
2x2 dual-polarity performance
Robust mechanical design for outdoor application use
Compatible with Rocket Prism 2AC
Technical Specifications
| AM-2G15-120 | |
|---|---|
| Dimensions | 700 x 145 x 93 mm (27.6 x 5.7 3.7") |
| Weight | 4 kg (8.8 lb) |
| Frequency Range | 2.3 - 2.7 GHz |
| Gain | 15.0 - 16.0 dBi |
| HPOL Beamwidth | 123° (6 dB) |
| VPOL Beamwidth | 118° (6 dB) |
| Electrical Beamwidth | 9° |
| Electrical Downtilt | 4° |
| Max. VSWR | 1.5:1 |
| Wind Survivability | 200 km/h (125 mph) |
| Wind Loading | 107 N @ 160 km/h (24 lbf @ 100 mph) |
| Polarization | Dual-Linear |
| Cross-pol Isolation | 28 dB Min. |
| ETSI Specification | EN 302 326 DN2 |
| Mounting | Universal Pole Mount, RocketM Bracket, and Weatherproof RF Jumpers Included |
