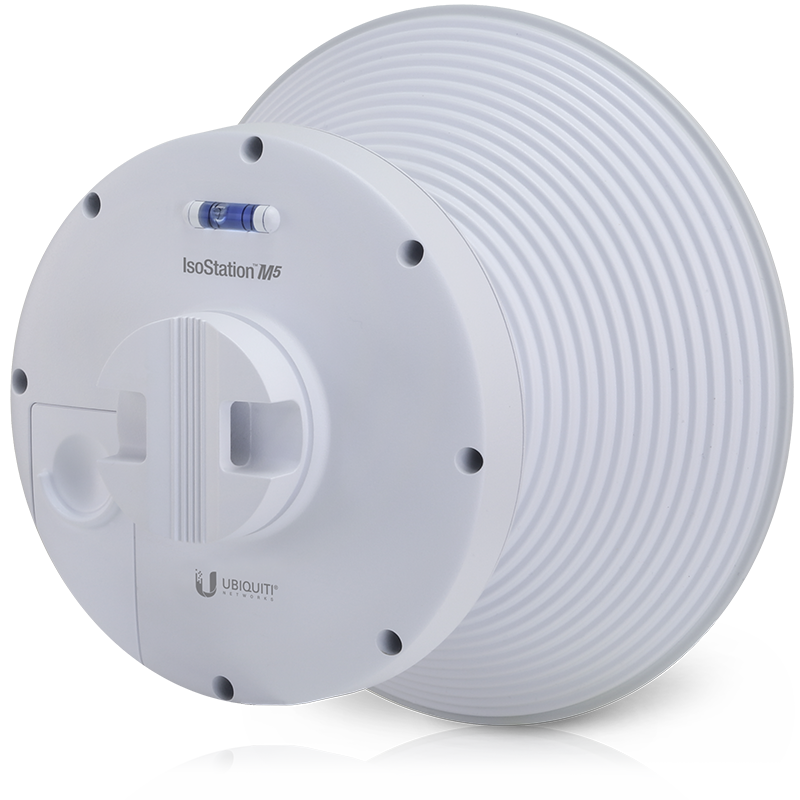

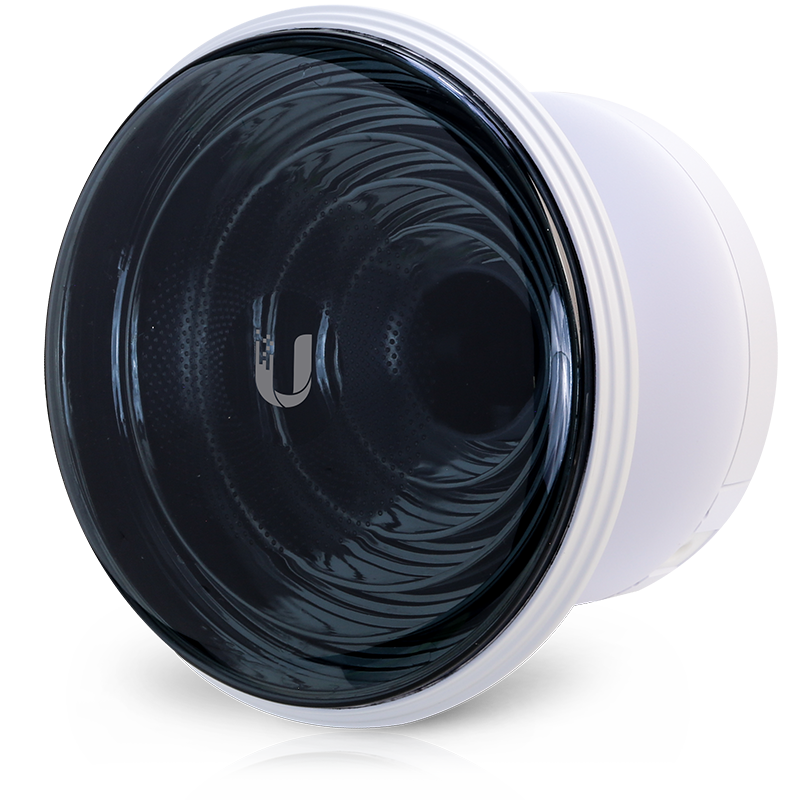

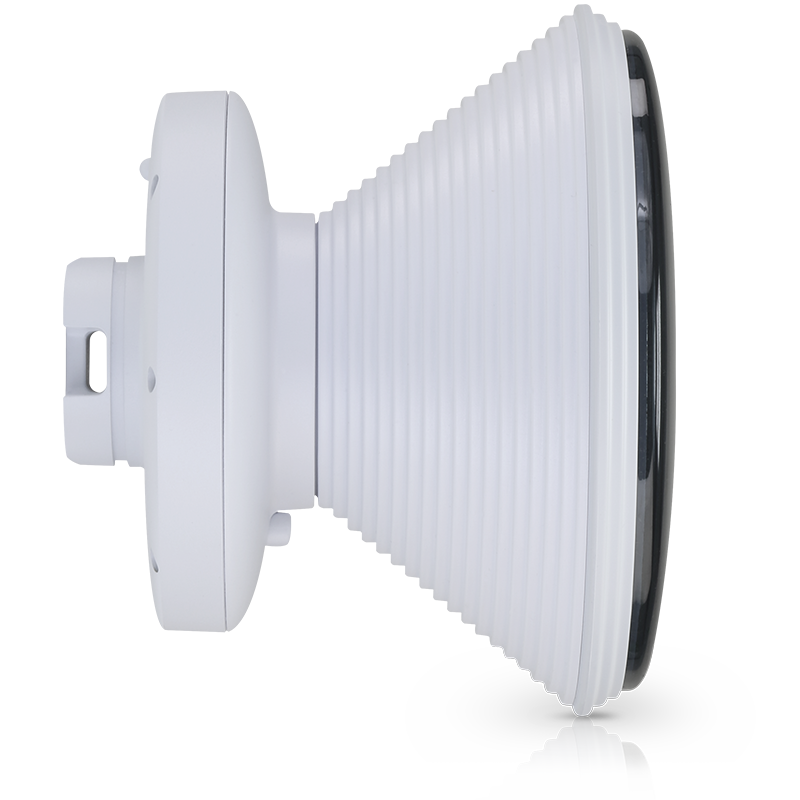

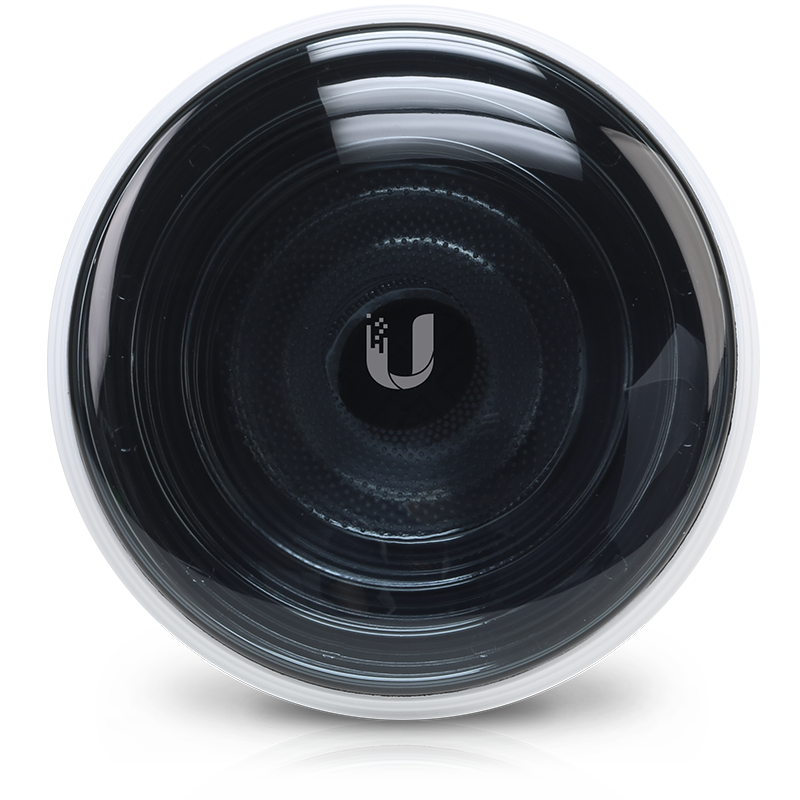

The Ubiquiti UISP airMAX IsoStation M5 IS-M5 is the ideal solution as a CPE in crowded RF environments such as urban areas.
5 GHz frequency band
Isolation antenna design rejects RF noise
Easy mounting
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | With horn: 174 x 174 x 150 mm (6.9 x 6.9 x 5.9") Without horn 131 x 131 x 65 mm (5.2 x 5.2 x 2.6") |
| Weight | With horn: 726 g (1.6 lb) 408 g (0.90 lb) |
| Wind loading | 36N @ 200 km/h (8.09lbf @ 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Mounting | Pole-mount (Kit oncluded) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported Voltage Range | 22–27V DC |
| Max. power consumption | 6.5W |
| Operating temperature | -40 to 70 C (-40 to 158 F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 14 dBi |
| Beamwidth | 45° (Default Horn) |
| Operating frequency | Worldwide: 5150-5875 MHz USA: U-NII-1: 5150-5250 MHz, U-NII-3: 5725-5850 MHz |
