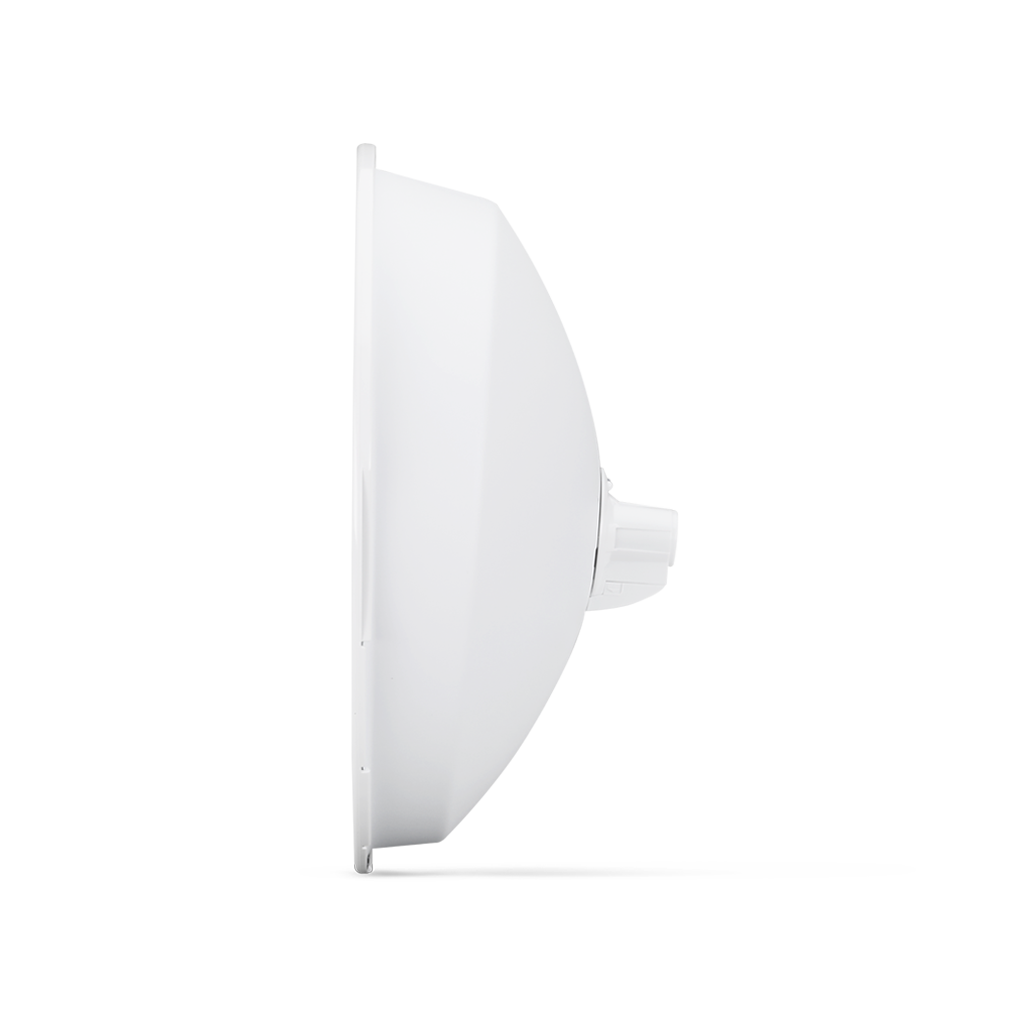

The Ubiquiti UISP airMAX PowerBeam 5AC ISO PBE-5AC-ISO-Gen2 is a 5 GHz WiFi bridge with a 450+ Mbps real TCP/IP throughput rate and enhanced surge protection.
5 GHz, 15+ km link range
450+ Mbps throughput
Isolation antenna design rejects RF noise
Dedicated spectral analysis radio
Dedicated WiFi management radio
Note. This product should be purchased in pairs in order to form links.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 420 x 420 x 230 mm (16.5 x 16.5 x 9.1") |
| Weight | 2.2 kg (4.9 lbs) |
| Enclosure material | UV-stabilized plastic, powder-coated SPCC |
| Mounting | Pole mount kit (Included) |
| Wind loading | 380 N at 200 km/h (85.4 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20—27V DC |
| Max. power consumption | 8.5W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | Power, Ethernet, (4) signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C (-40 to 158° F) |
| Ambient operating humidity | 5 - 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS |
| System | |
| Gain | 25 dBi |
| Channel sizes PtP Mode PtMP Mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 MHz |
| USA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| USA | 2412 - 2462 MHz |
