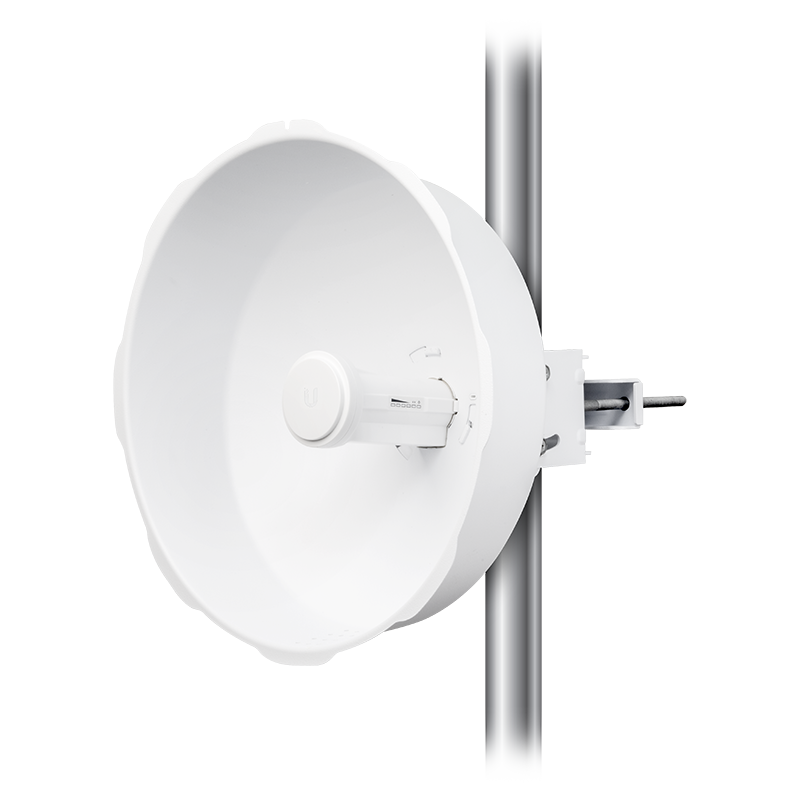

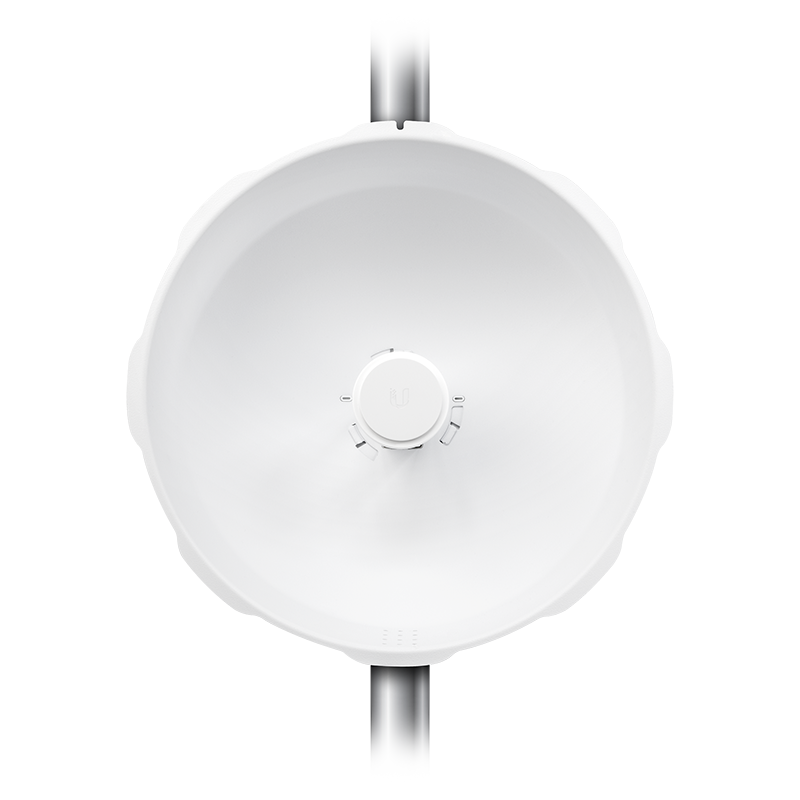

The Ubiquiti UISP airMAX PowerBeam M5 300 ISO PBE-M5-300-ISO is a 5 GHz, 22 dBi bridge with 300 mm RF isolated reflector and 150+ Mbps throughput.
5 GHz, 20+ km link range
150+ Mbps throughput
Isolation antenna design rejects RF noise
Improved mounting
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 364 x 364 x 276 mm (14.3 x 14.3 x 10.9") |
| Weight | 2.6 kg (5.6 lb) |
| Enclosure material | Outdoor UV-stabilized plastic |
| Mounting | Pole-mount kit (Included) |
| Hardware | |
| Networking interface | (1) 10/100 Ethernet port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Max. power consumption | 6W |
| Supported voltage range | 20-27V DC |
| ESD/EMP protection | Air: ± 24 kV, Contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN, signal strength |
| Salt fog test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Operating temperature | -40 to 70° C (-40 to 158° F) |
| Operating humidity | 5 to 95% Non-Condensing |
| Certifications | FCC, IC, CE, RoHS |
| System | |
| Operating frequency | Worldwide: 5170 - 5875 MHz US: 5725 - 5850 MHz |
| Gain | 22 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual linear |
