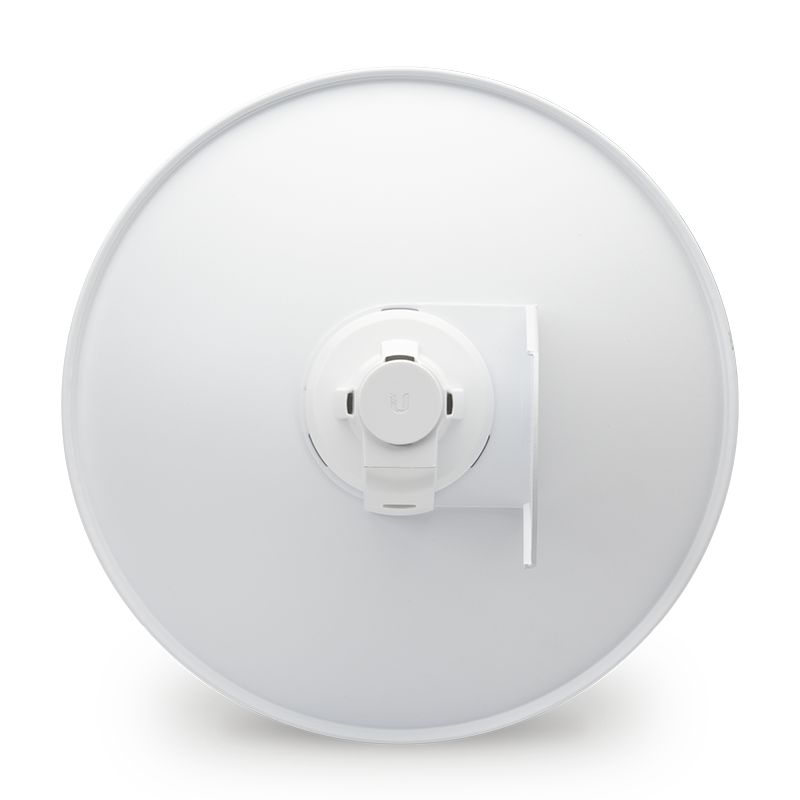

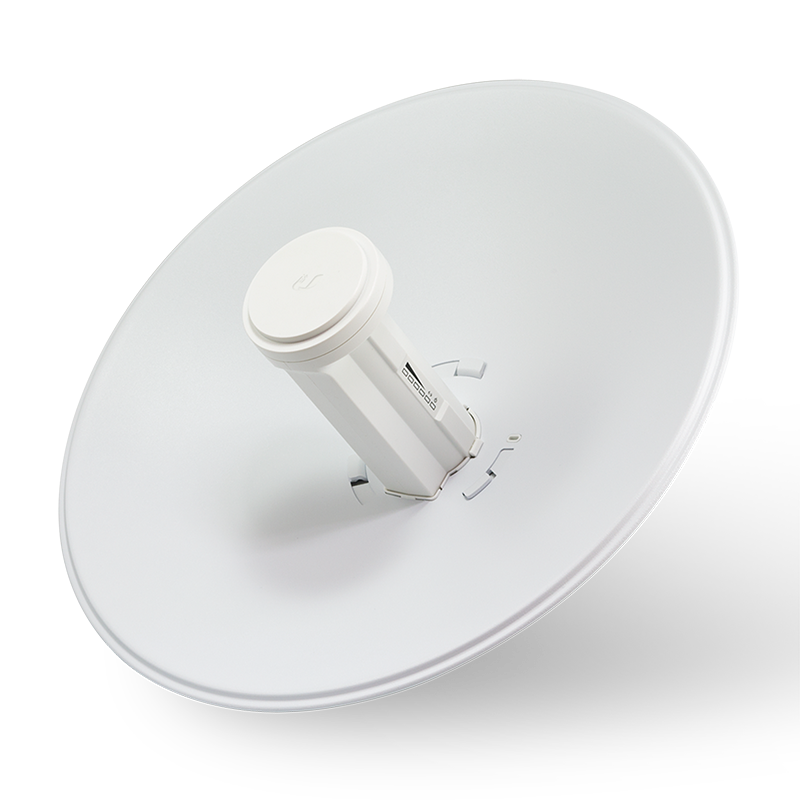

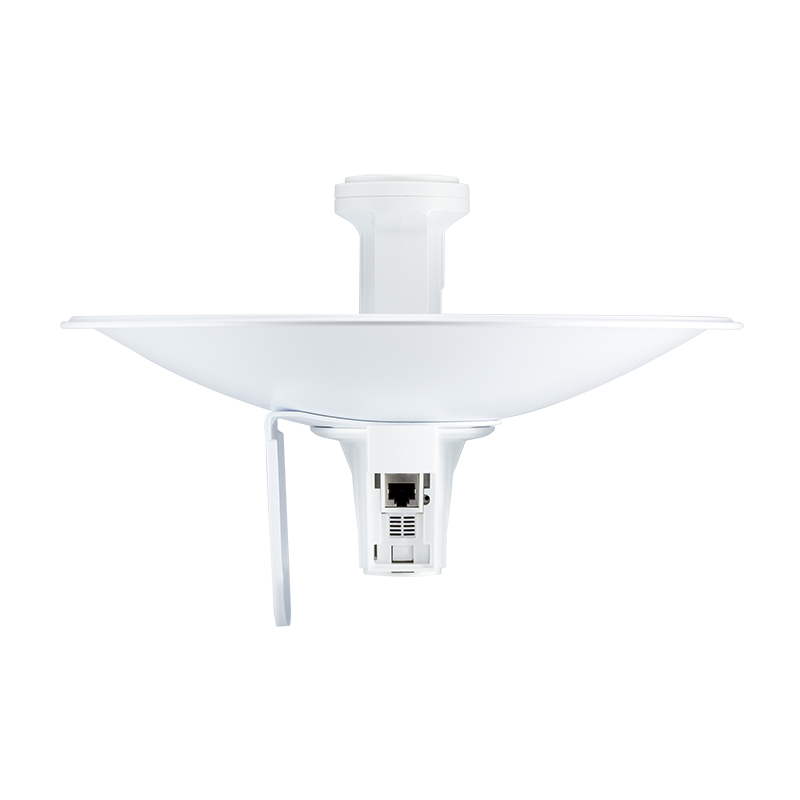

The Ubiquiti UISP airMAX PowerBeam M5 300 PBE-M5-300 is a 5 GHz, 22 dBi bridge with 150+ Mbps throughput.
5 GHz, 3+ km link range
150+ Mbps throughput
Improved mounting
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 325 x 325 x 256 mm (12.8 x 12.8 x 10.1") |
| Weight | 1.2 kg (2.65 lb) |
| Enclosure material | UV-stabilized plastic |
| Mounting | Pole mount kit (Included) |
| Wind survivability | 200 km/h (125 mph) |
| Wind loading | 200.2 N @ 200 km/h (45 lbf @ 125 mph) |
| Hardware | |
| Networking interface | (1) 10/100 MbE port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 6W |
| ESD/EMP protection | Air/contact: ± 24 kV |
| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal strength LEDs | Software-adjustable to correspond to custom RSSI levels |
| RoHS compliance | Yes |
| Salt fog test | IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5 |
| Vibration test | IEC 68-2-6 |
| Temperature shock test | IEC 68-2-14 |
| UV test | IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4 |
| Wind-driven rain test | ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5 |
| Ambient operating temperature | -40 to 70° C(-40 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| System | |
| Gain | 22 dBi |
| Channel sizes | 5/8/10/20/30/40 MHz |
| Max. VSWR | 1.5:1 |
| Polarization | Dual linear |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 MHz |
| US/CA U-NII-1 U-NII-2A U-NII-2C U-NII-3 |
5150 - 5250 MHz 5250 - 5350 MHz 5470 - 5725 MHz 5725 - 5850 MHz |
