The Ubiquiti UISP airMAX Rocket Prism 2AC R2AC-PRISM is a full-band 2.4 GHz Point-to-Point (PtP) and Point-to-MultiPoint (PtMP) basestation. Provides up to 330+ Mbps data throughput.
2.4 GHz airPrism active RF filtering technology
150+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio
Integrated GPS sync
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure material | Die-cast aluminum |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 0.5A gigabit PoE adapter (Included) |
| Supported voltage range | 20–27V DC |
| Max. power consumption | 9.5W |

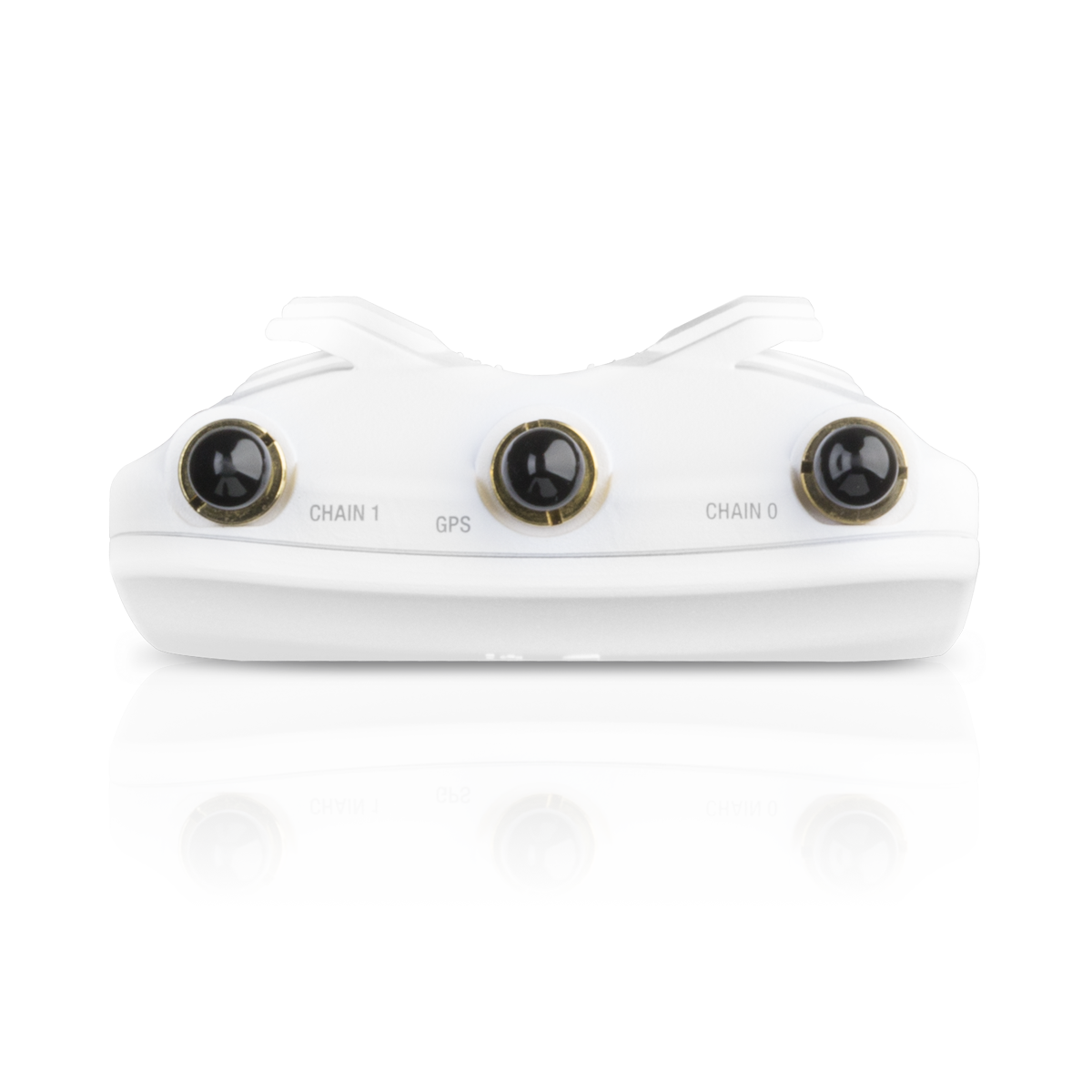

| RF connectors | (2) RP-SMA (waterproof) (1) GPS (waterproof) |
| LEDs | Power, LAN, (4) signal strength |
| ESD/EMP Protection | Air/contact ± 24kVt |
| Shock and vibrations | ETSI300-019-1.4 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 2412 - 2472 MHz |
| US/CA | 2412 - 2462 MHz |
| Management Radio (MHz) | |
| Worldwide | 5150 - 5250 MHz |
| US/CA | U-NII-3: 5725 - 5850 MHz |
