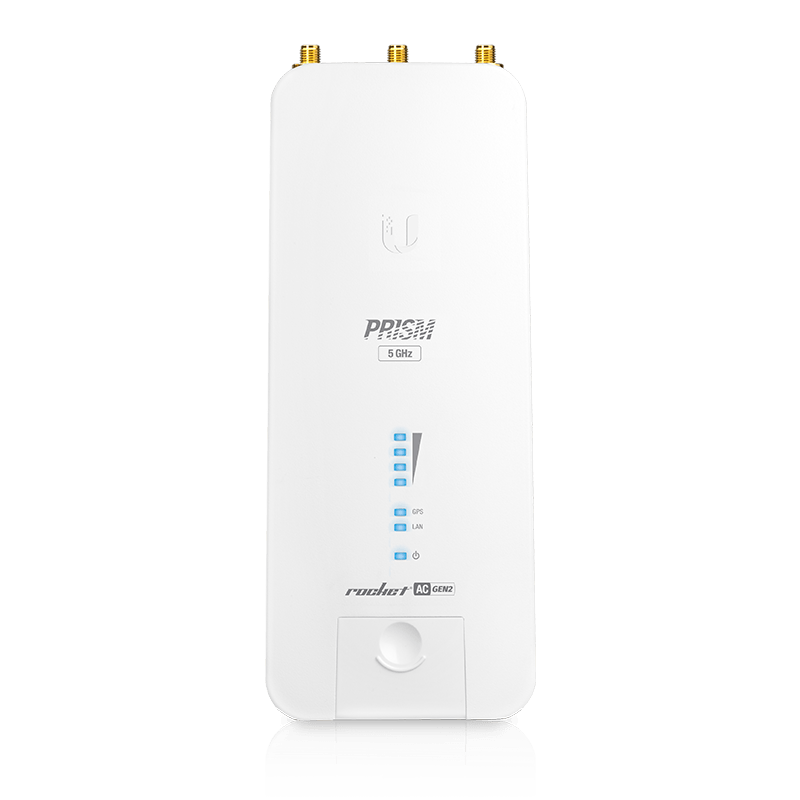

The Ubiquiti UISP airMAX Rocket Prism 5AC RP-5AC-Gen2 is a high-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
5 GHz airPrism active RF filtering technology
450+ Mbps throughput
50+ client capacity
Dedicated spectral analysis radio
Integrated GPS sync
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.1 oz) |
| Enclosure material | Die-cast aluminum |

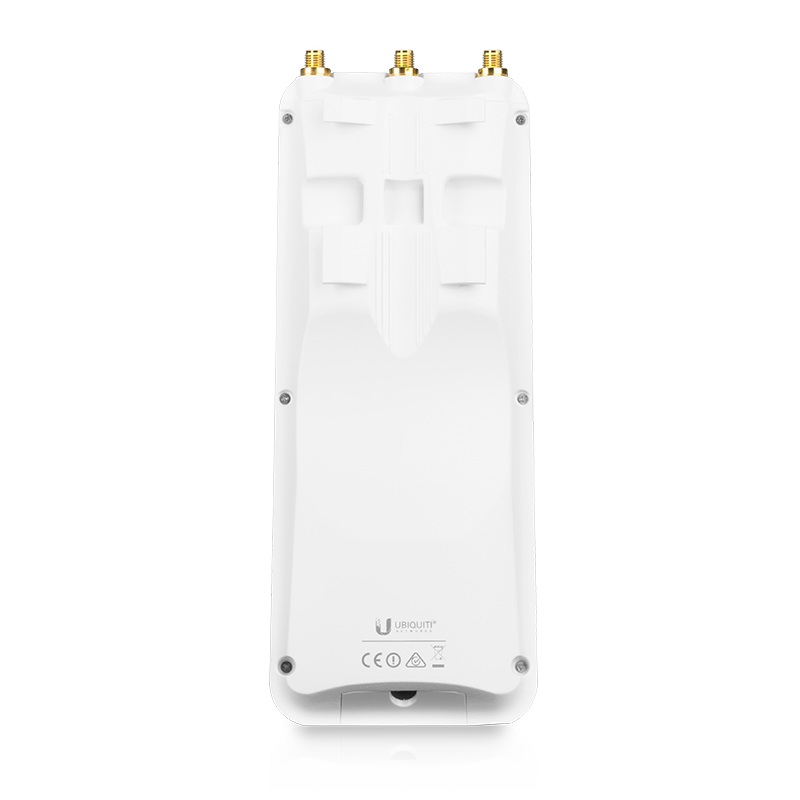

| Mounting | Pole mounting (Kit included) |
| Wind loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| RF connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—27V DC |
| Max. power consumption | 9.5W |

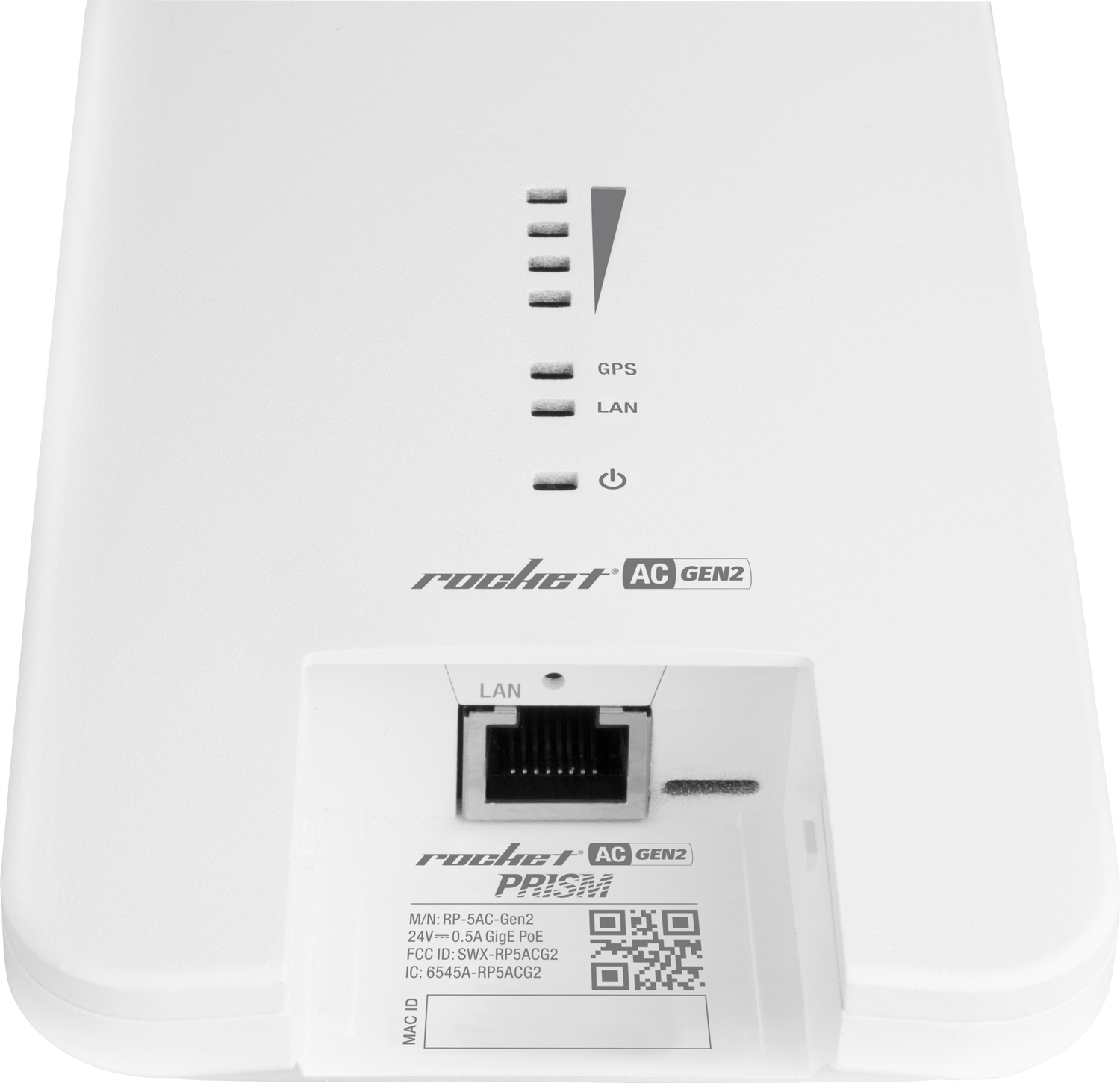

| LEDs | (4) Signal strength: software-adjustable to correspond to custom RSSI levels GPS, LAN, power |
| Shock and vibrations | ETSI300-019-1.4 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS |
| Software | |
| Modes | Access Point, station |
| Channel sizes PtP mode PtMP mode |
10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Services | Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing |
| Utilities | airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
| Distance adjustment | Dynamic Ack and Ackless mode |
| Power adjustment | Software adjustable UI or CLI |
| Security |
WPA2 AES only |
| QoS |
Supports packet level classification WMM and user customer level: High/Medium/Low |
| Statistical reporting |
Up time, packet errors, data rates, wireless distance, Ethernet link rate |
| Ubiquiti specific features |
30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode |
| Operating Frequency (MHz) | |
| Worldwide | 5150–5875 MHz |
| USA U-NII-1: U-NII-2A: U-NII-2C: U-NII-3 |
5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412–2472 MHz |
| USA | 2412–2462 MHz |
