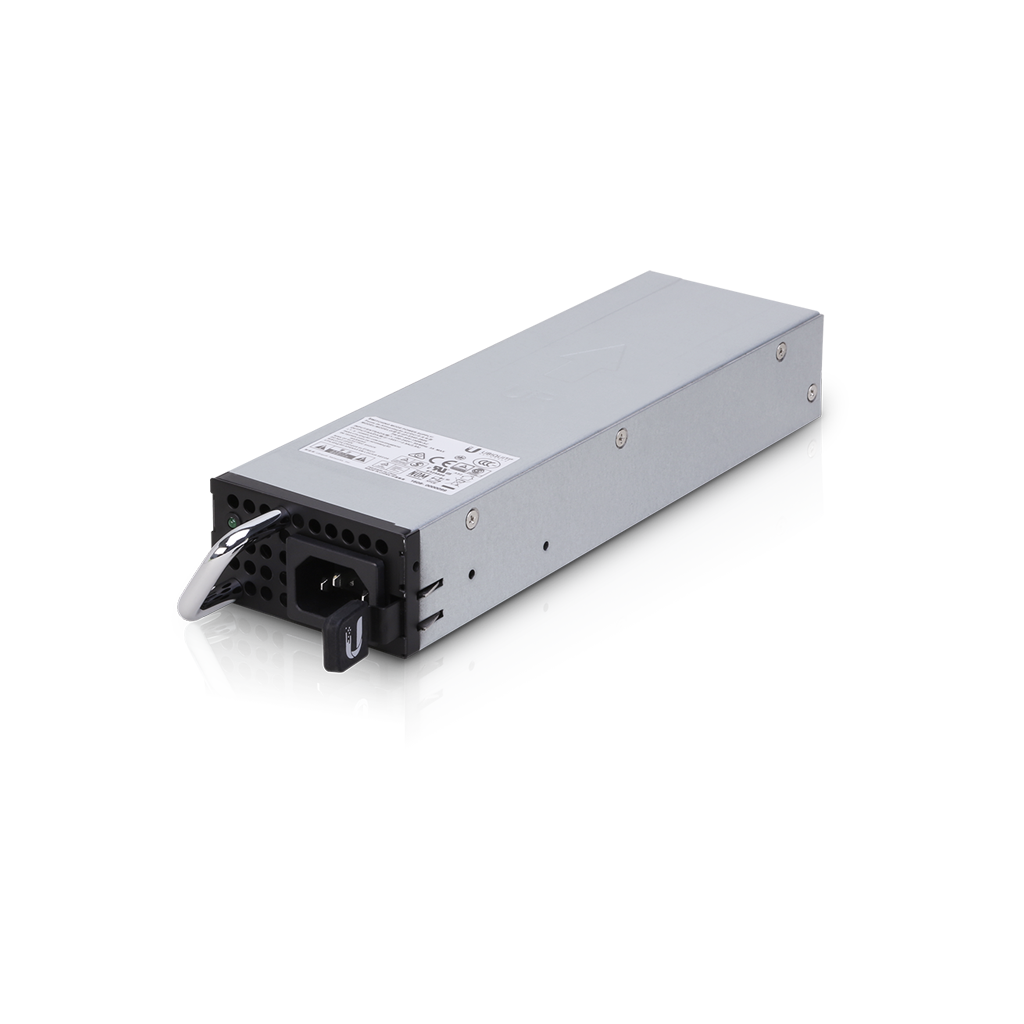

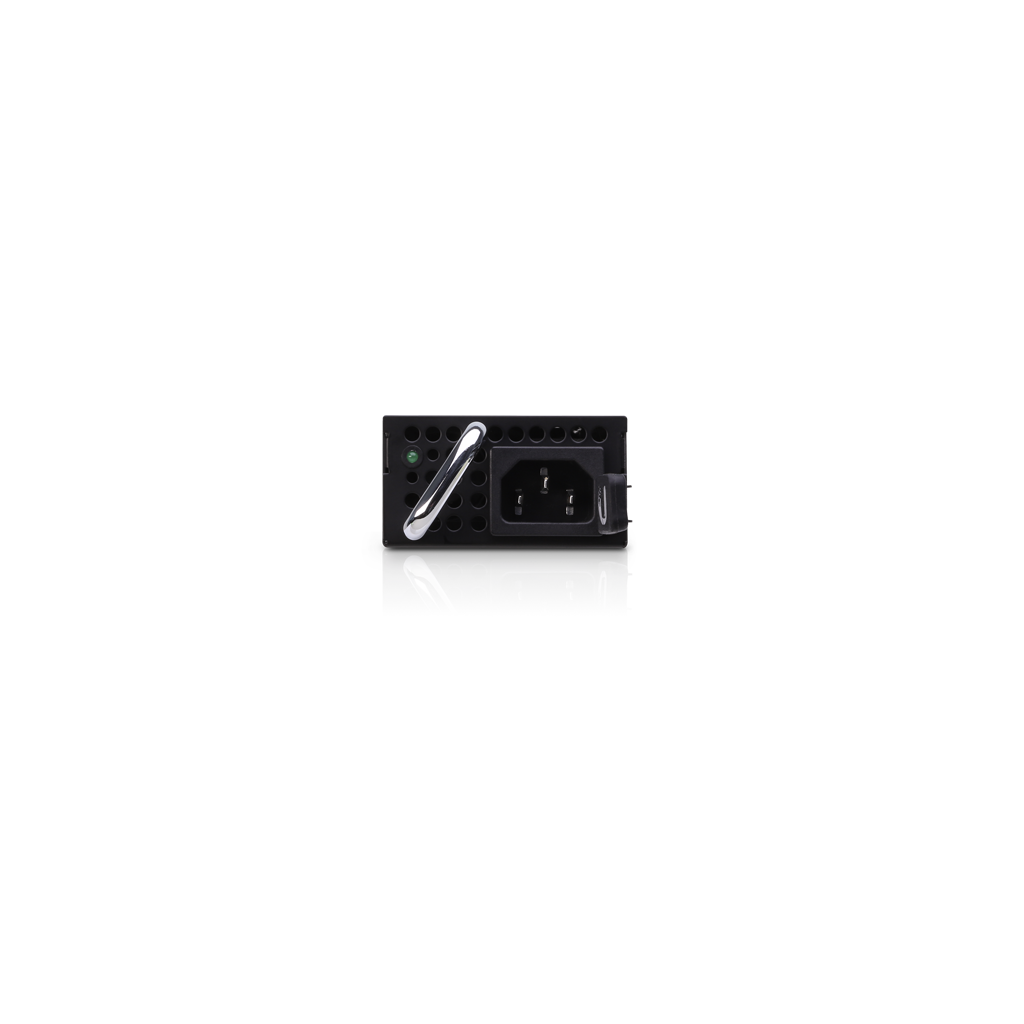

The Ubiquiti UISP EdgePower Module (150W) EP-54V-150W-AC is a PSU module designed for use with the EdgePower EP-Supply (54V 150W model)
54V, 150W max. power output
Increase total power output up to 300W
Technical Specifications
| EP-54V-150W-AC | |
|---|---|
| Power method | AC/DC 150W for 110-240V AC input, DC terminal block for 54V output |
| Power supply | AC/DC 150W for 110-240V AC input |
| Voltage range | AC/DC for 110-240V AC input, 54V output |
| LED | System On/Off |
| ESD/EMP protection | Air ± 8kV; contact ± 6kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |

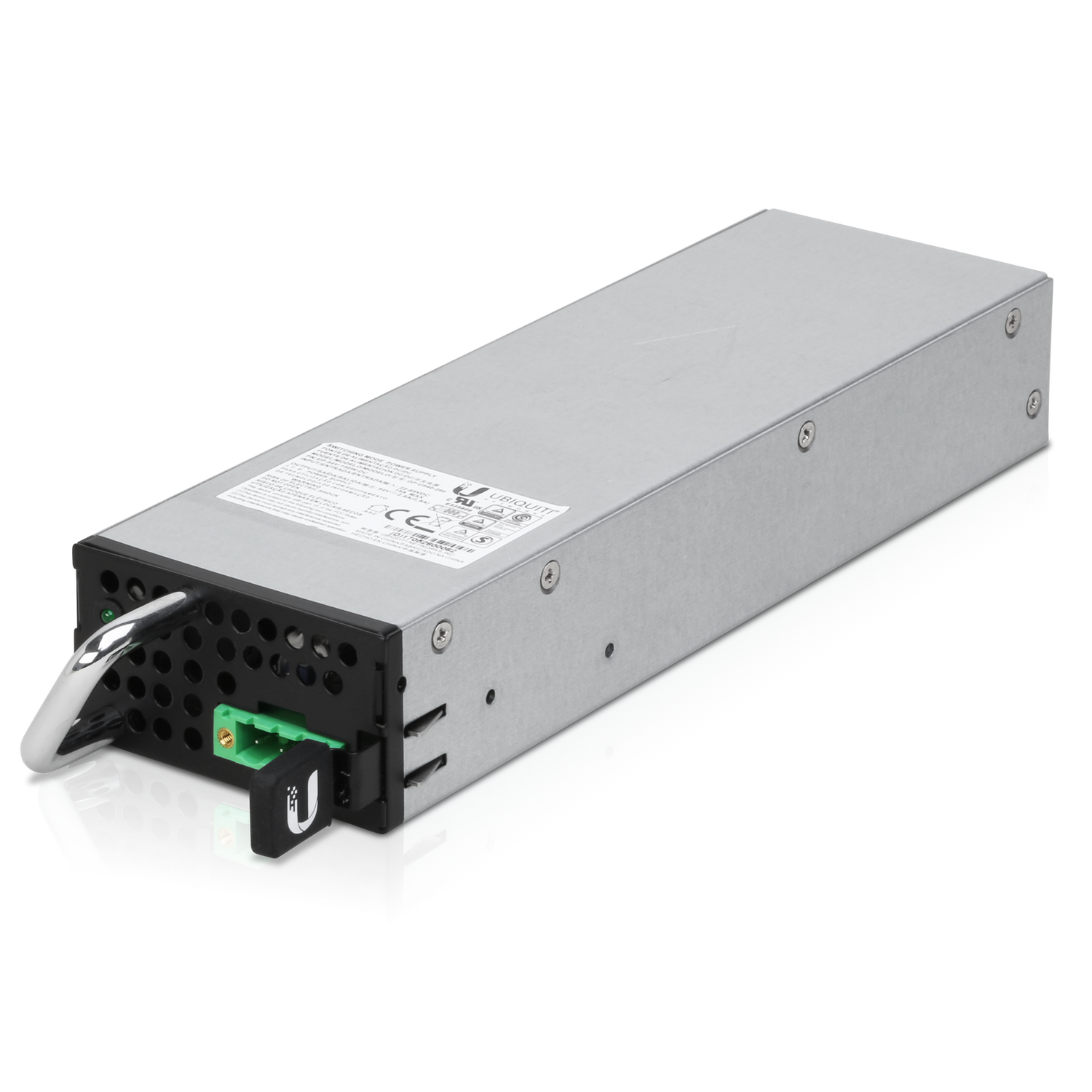

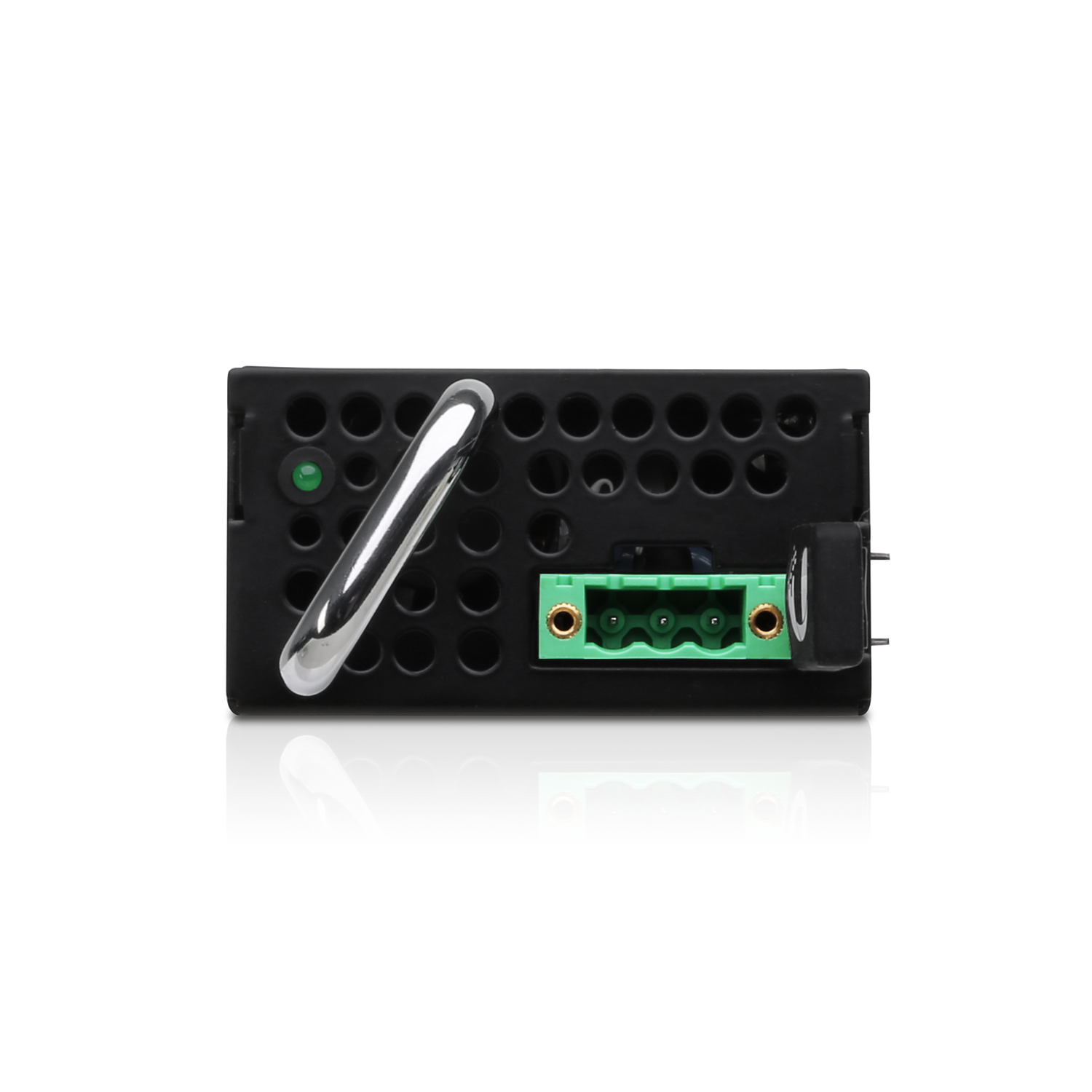

| EP-54V-150W-DC | |
| Power method | DC/DC 150W for 22–60V input, DC terminal block for 54V output |
| Power supply | DC/DC 150W for 22–60V input |
| Voltage range | DC/DC for 22–60V input, 54V output |
| Battery type | 2/3/4 series lead acid battery |
| Maximum charging voltage 2 series 3 series 4 series |
26.8–27.5V 40.2–41.2V 53.6–55V |
| Discharge protection voltage 2 series 3 series 4 series |
21.5V 32V 43V |
| Charging current 2 series 3 series 4 series |
0.3A 0.3A 0.2A |
| LED | System On/Off |
| ESD/EMP protection | Air ± 8kV; contact ± 6kV |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
