Ubiquiti UISP EdgeSwitch 10X ES-10X
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.

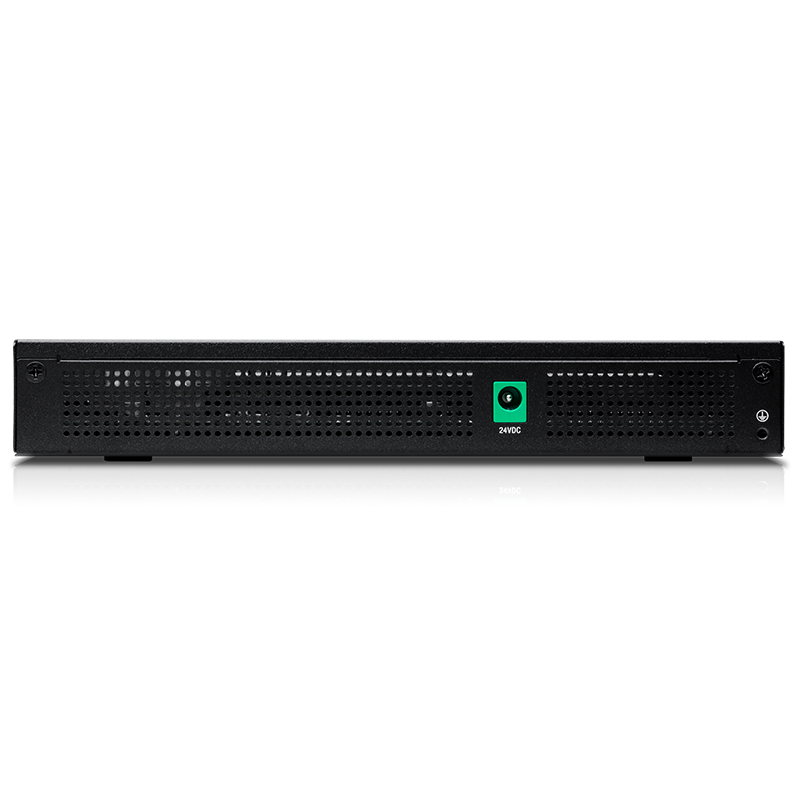

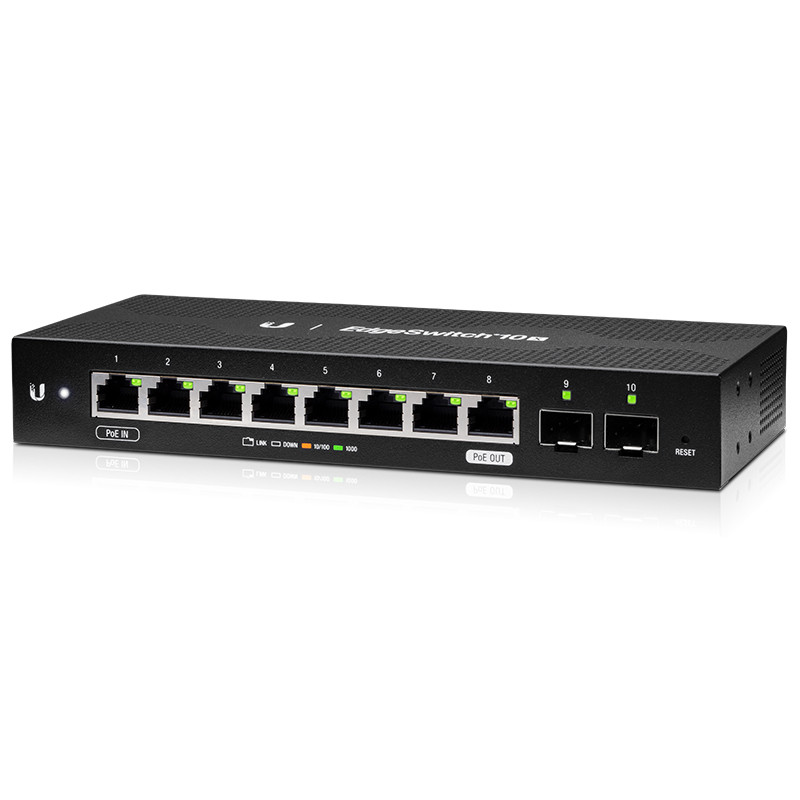

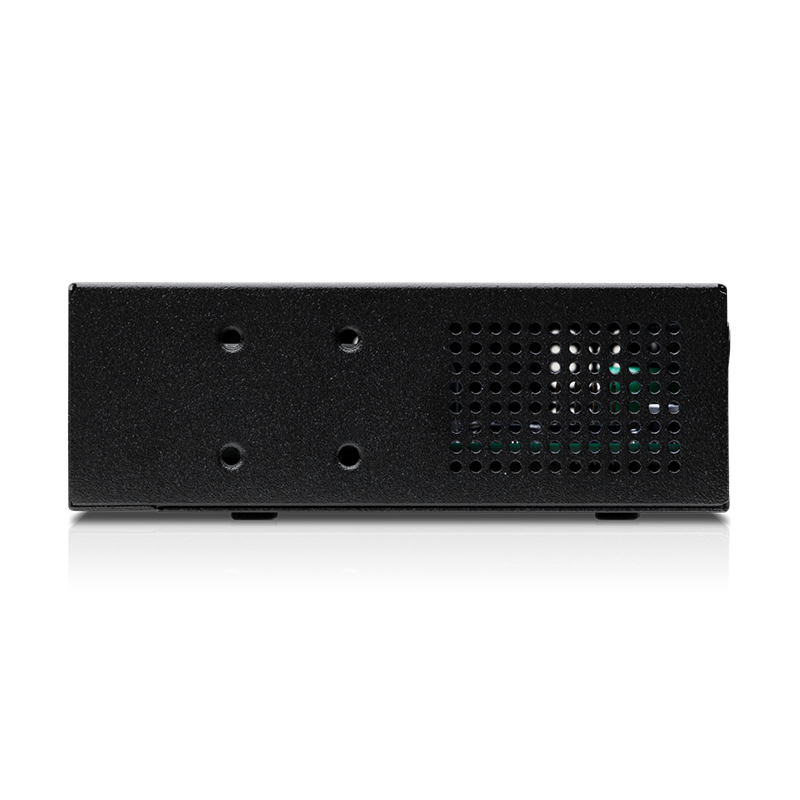

The Ubiquiti UISP EdgeSwitch 10X ES-10X is a cost-effective WISP switch with (8) Gigabit RJ45 ports, (2) SFP ports, and PoE passthrough support.
(8) GbE RJ45 ports
(2) 1G SFP ports
24V passive PoE passthrough
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 207 x 31.1 x 90 mm (8.2 x 1.2 x 3.5") |
| Weight | 500 g (1.1 lb) |
| Hardware | |
| Networking interface | (8) 10/100/1000 Mbps RJ45 ports (2) 1 Gbps SFP ports |
| Management interface | Ethernet In-Band |
| PoE interface | 24V DC passive PoE (Pins 4, 5+; 7, 8-) |
| Total non-blocking throughput | 10 Gbps |
| Switching capacity | 20 Gbps |
| Forwarding rate | 14.88 Mpps |
| Power method | 24V DC, 1A power adapter (Included) 24V passive PoE |
| Supported voltage range | 9–30V DC |
| Max. passive PoE wattage per port | 15W |
| 24V passive PoE voltage range | 24V |
| Max. power consumption |
8W (Excluding PoE output) |
| LEDs | System: status RJ45 ports: link/speed/activity SFP ports: link/activity |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -10 to 50° C (14 to 122° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
