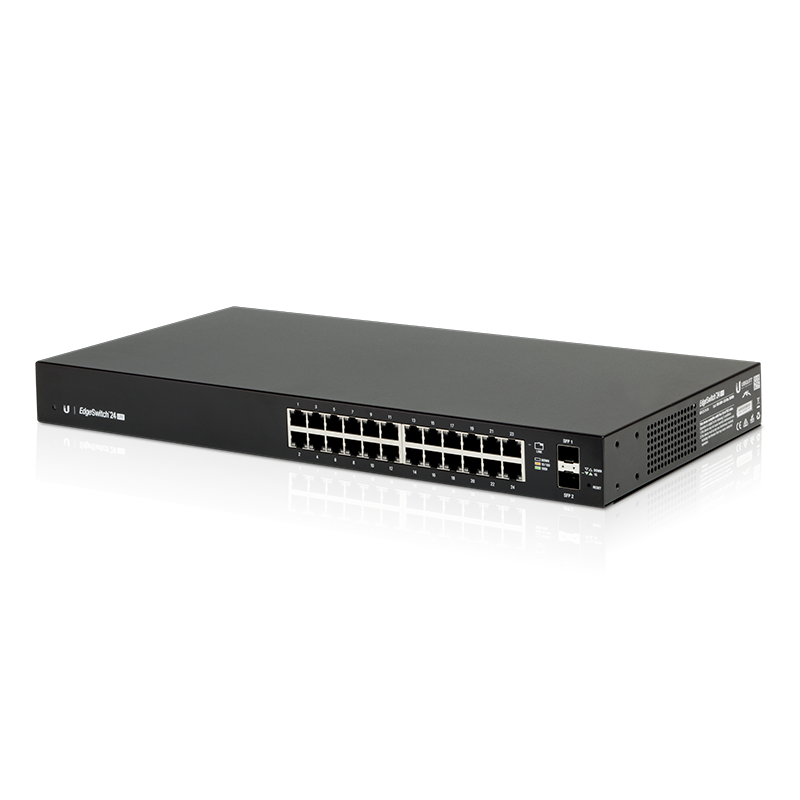

The Ubiquiti UISP EdgeSwitch 24 Lite ES-24-Lite is a Layer 2/3 switch with (24) Gigabit RJ45 ports, (2) SFP ports, and a 25W power supply.
(24) GbE RJ45 ports
(2) SFP ports
Wall or rack-mountable
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 443 x 43 x 221 mm (17.4 x 1.7 x 8.7") |
| Weight | Without rack-mount brackets: 2.5 kg (5.5 lb) With rack-mount brackets: 2.6 kg (5.7 lb) |
| Hardware | |
| Networking interface | (24) 10/100/1000 Mbps RJ45 Ethernet ports (2) 1/10 Gbps SFP+ Ethernet ports |
| Management interface | (1) RJ45 serial port, Ethernet In/Out-Band |
| Total non-blocking throughput | 26 Gbps |
| Switching capacity | 52 Gbps |
| Forwarding rate | 38.69 Mpps |
| Power method | (24) 10/100/1000 Mbps RJ45 Ethernet ports (2) 1/10 Gbps SFP+ Ethernet ports |
| Power supply | AC/DC, internal, 25W |
| Max. power consumption | 25W |
| LEDs | RJ45 ports: speed/link/activity SFP ports: speed/link/activity |
| Rackmount | Yes, 1U high |
| ESD/EMP protection | Air/contact: ±24 kV |
| Shock and vibration | ETSI300-019-1.4 Standard |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
