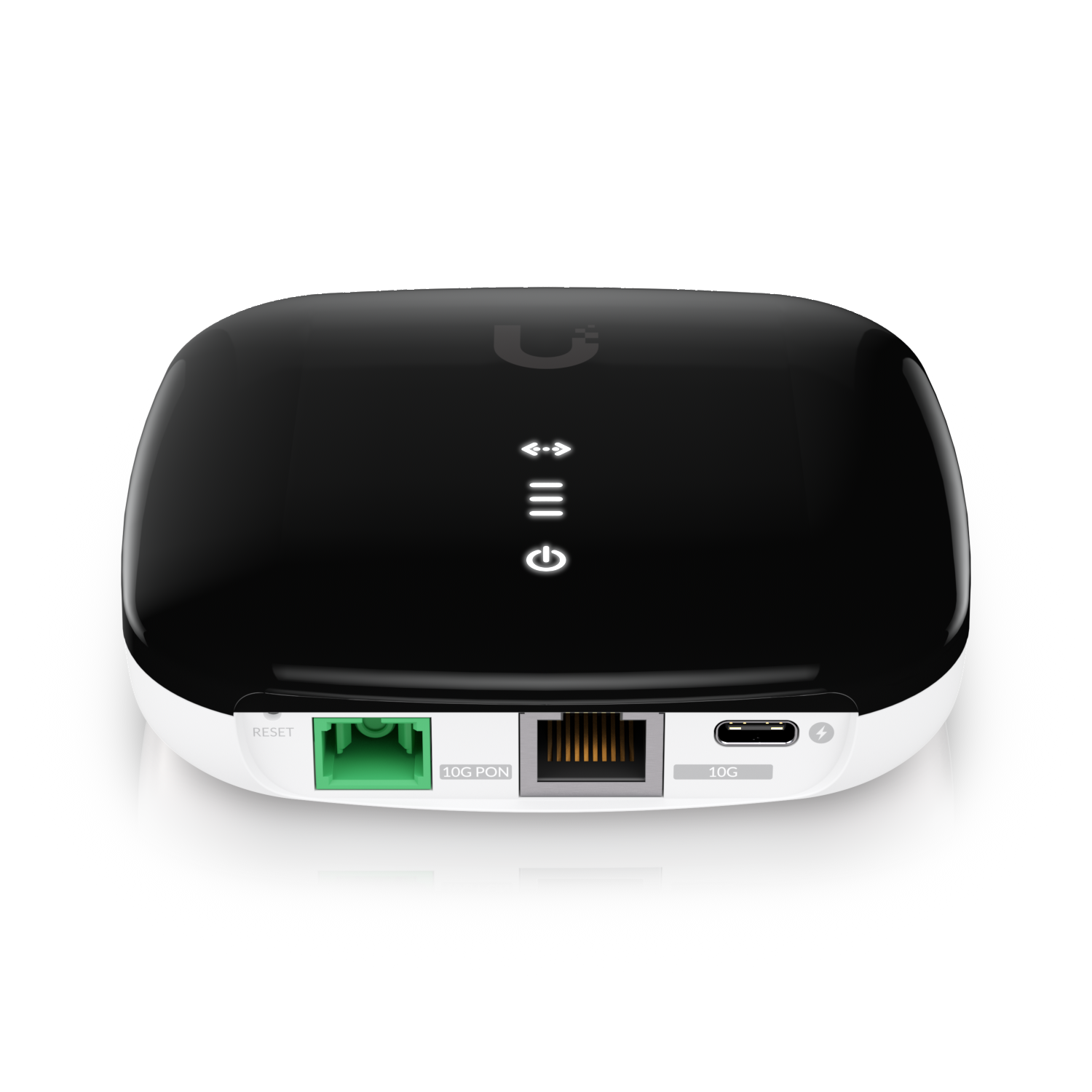

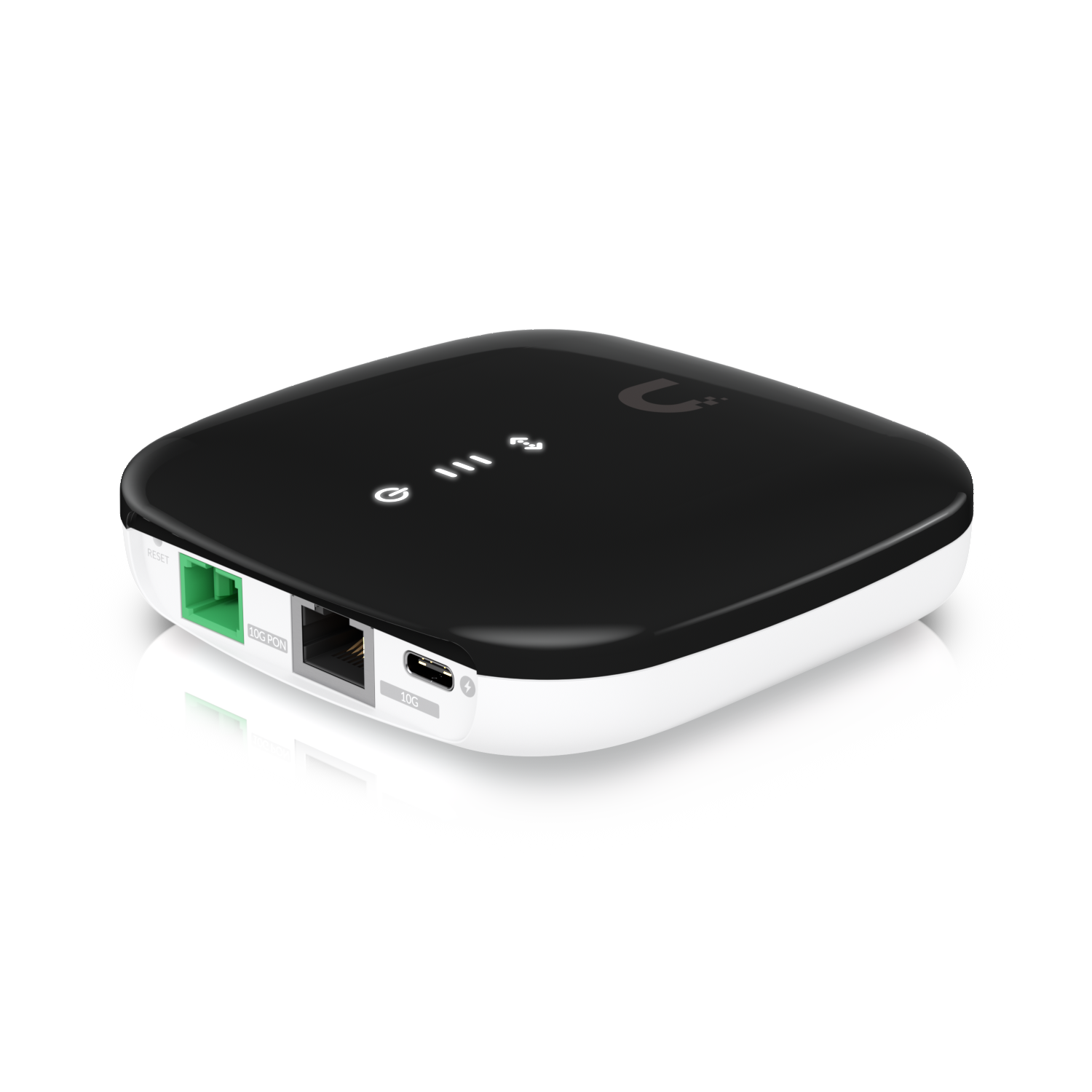

The Ubiquiti UISP Fiber XGS UISP-FIBER-XGS is an optical network unit that can deliver 10 Gbps uplink/downlink speeds over distances up to 20 km.

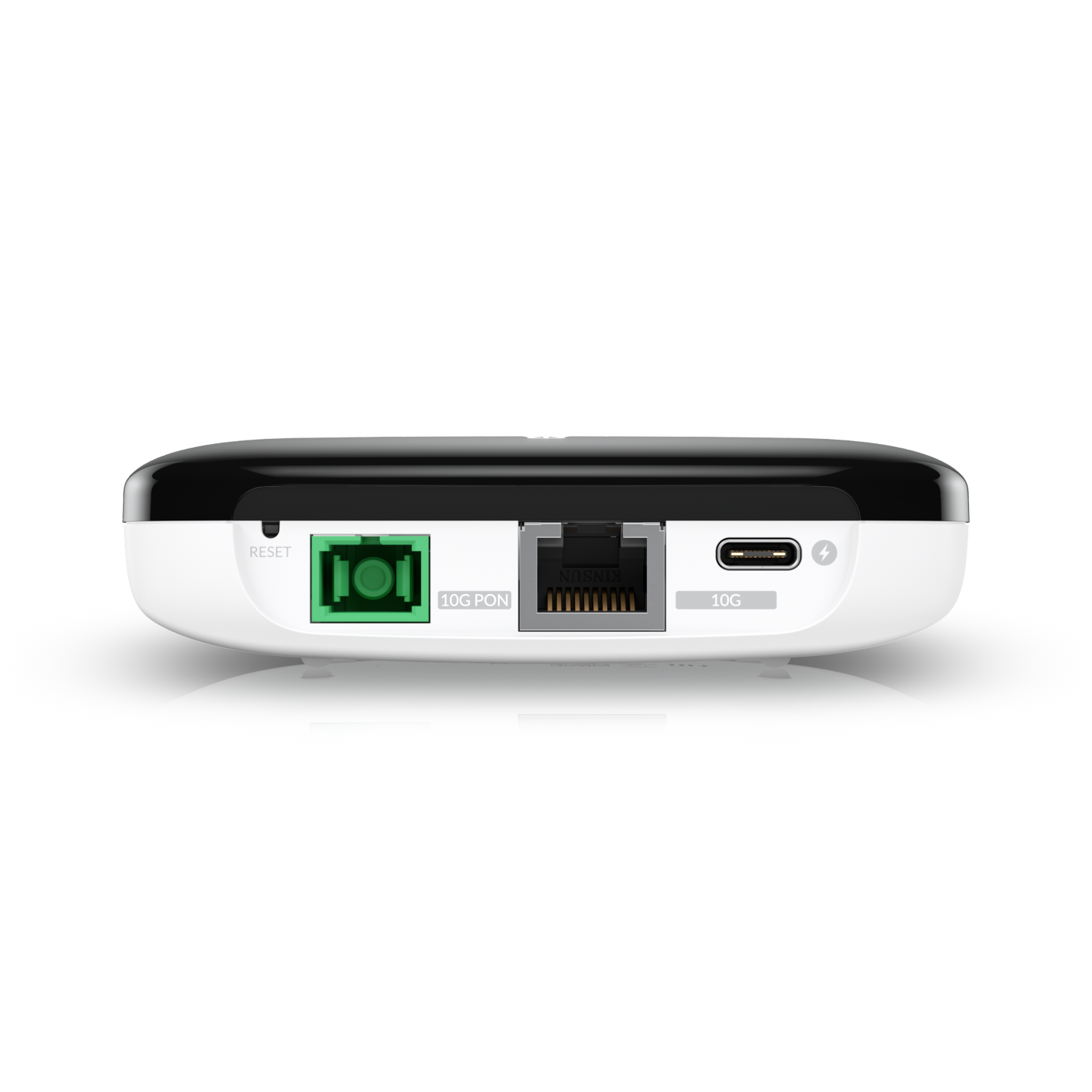

(1) XGS-PON port
(1) 10GbE RJ45 LAN port
Note: This device is only compatible with the Fiber XGS OLT. It cannot be used with third-party OLTs.
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 100 x 100 x 27 mm (3.9 x 3.9 x 1.1") |
| Weight | 220 g (0.49 lb) |
| Enclosure material | UV-stabilized polycarbonate |
| Hardware | |
| Networking interface | (1) SC/APC, ITU-G.9807 XGSPON WAN port (1) 100/1,000/2,500/5,000/10,000 MbE RJ45 LAN ports |
| Management interface | Ethernet in-band PON |
| Memory | 256 MB DDR |
| Onboard flash storage | 32 MB NOR |
| Max. power consumption | 8W |
| Power method | USB-C 5V DC, 3A |
| Power supply | 5V DC, 3A power adapter |
| Supported voltage range | 5V DC power adapter |
| Total non-blocking line rate | Downstream: 9.95 Gbit/s Upstream: 9.95 Gbit/s |
| Normal TX range of optical module | 4 to 9dBm |
| Normal RX range of optical module | -9 to -26dBm |
| Button | (1) Factory reset |
| Ambient operating temperature | -15 to 45° C (5 to 113° F) |
| Ambient operating humidity | 10 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| Fiber | |
| Operating wavelength | TX: 1,270nm RX: 1,577nm |
| Line code | Scrambled NRZ |
| Physical reach | 20 km |

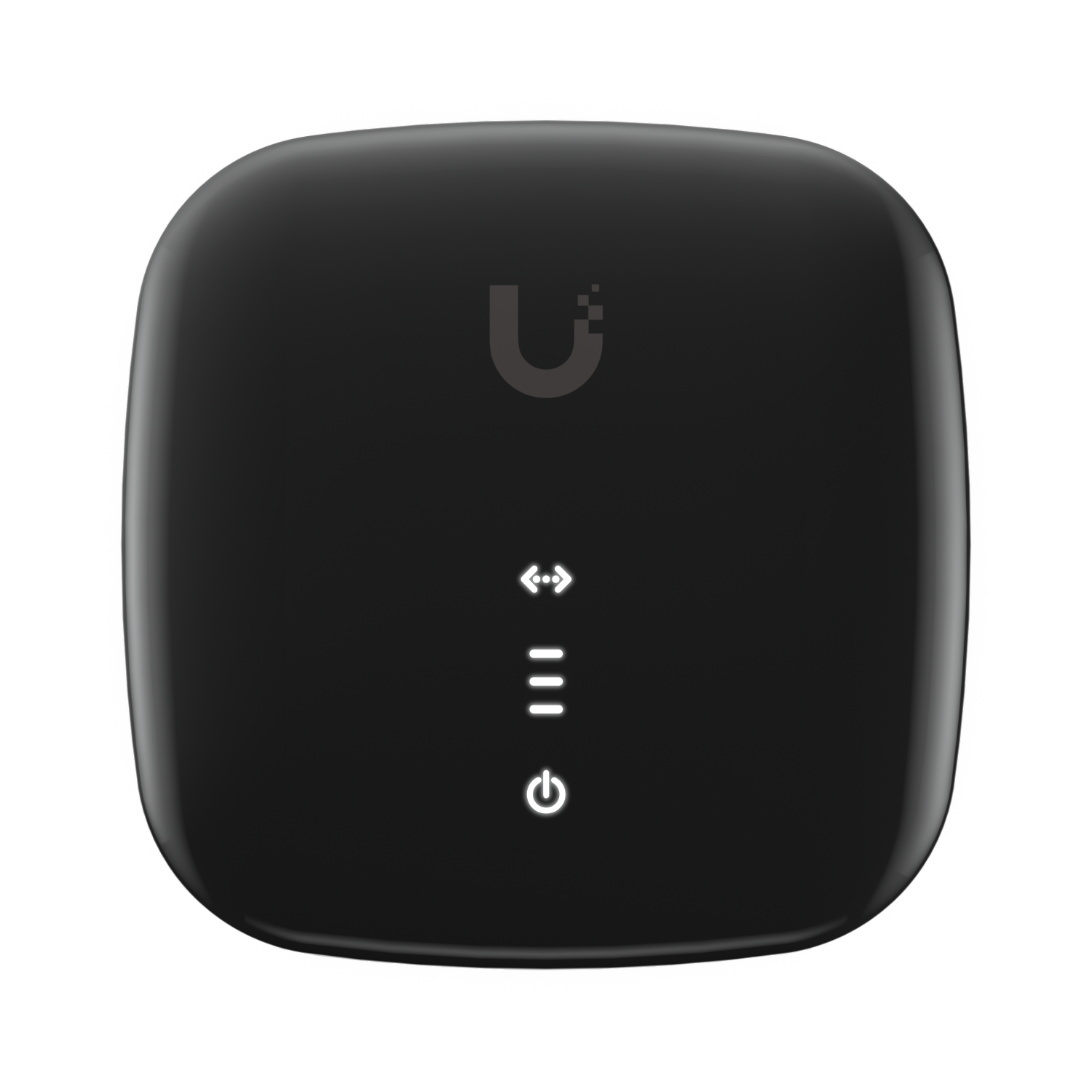

| LEDs | |
| Power | White: ON |
| Ethernet | Steady white: link up Blinking white: activity OFF: link down |
| PON status | (3) signal LEDs All-OFF: bootup 1x orange: signal too low (< -27 dbm) 1x white: signal low (>= -27 dbm) 2x white: signal good (>= -24 dbm) 3x white: signal strong (>= -12 dbm) 1x orange + 2x white: signal too strong (>= -9 dbm) 3x orange: no signal LEDs alternate between orange + white + orange and a signal strength indicator: no authority |
| Software | |
| Management application | UISP: Version 1.5.7 and later |
