Ubiquiti  |  SKU: LTU-LR

Ubiquiti UISP LTU Long-Range LTU-LR

$129.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

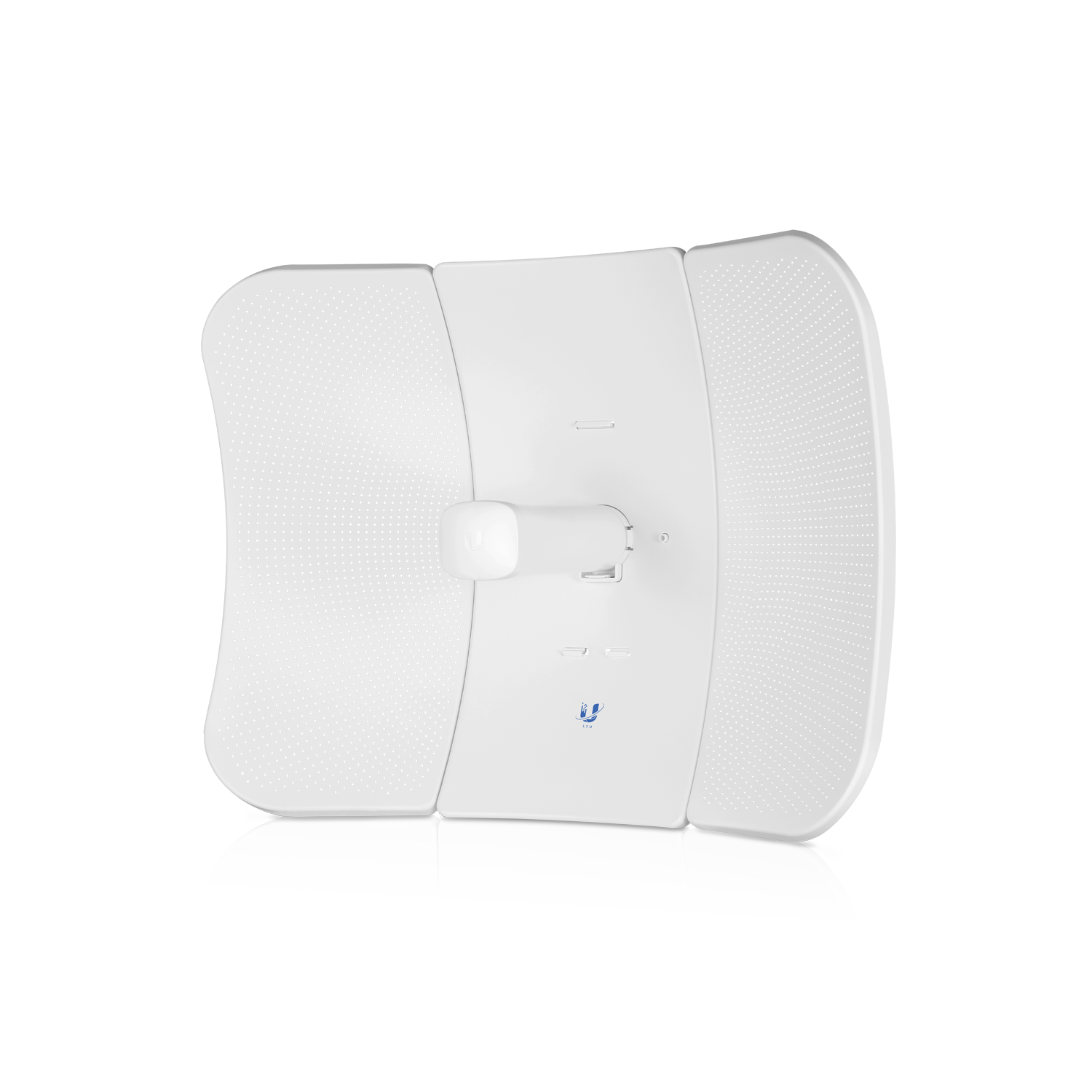

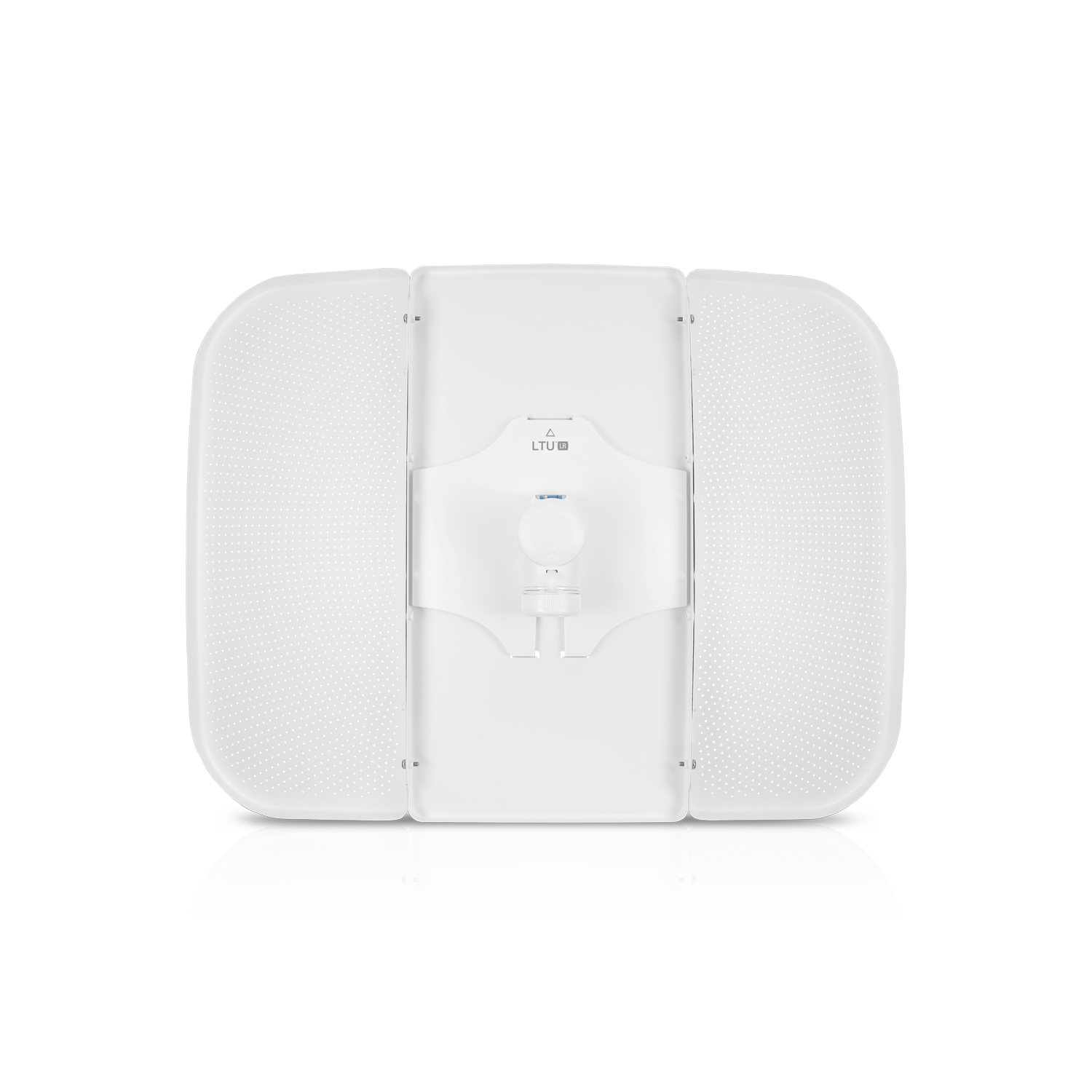

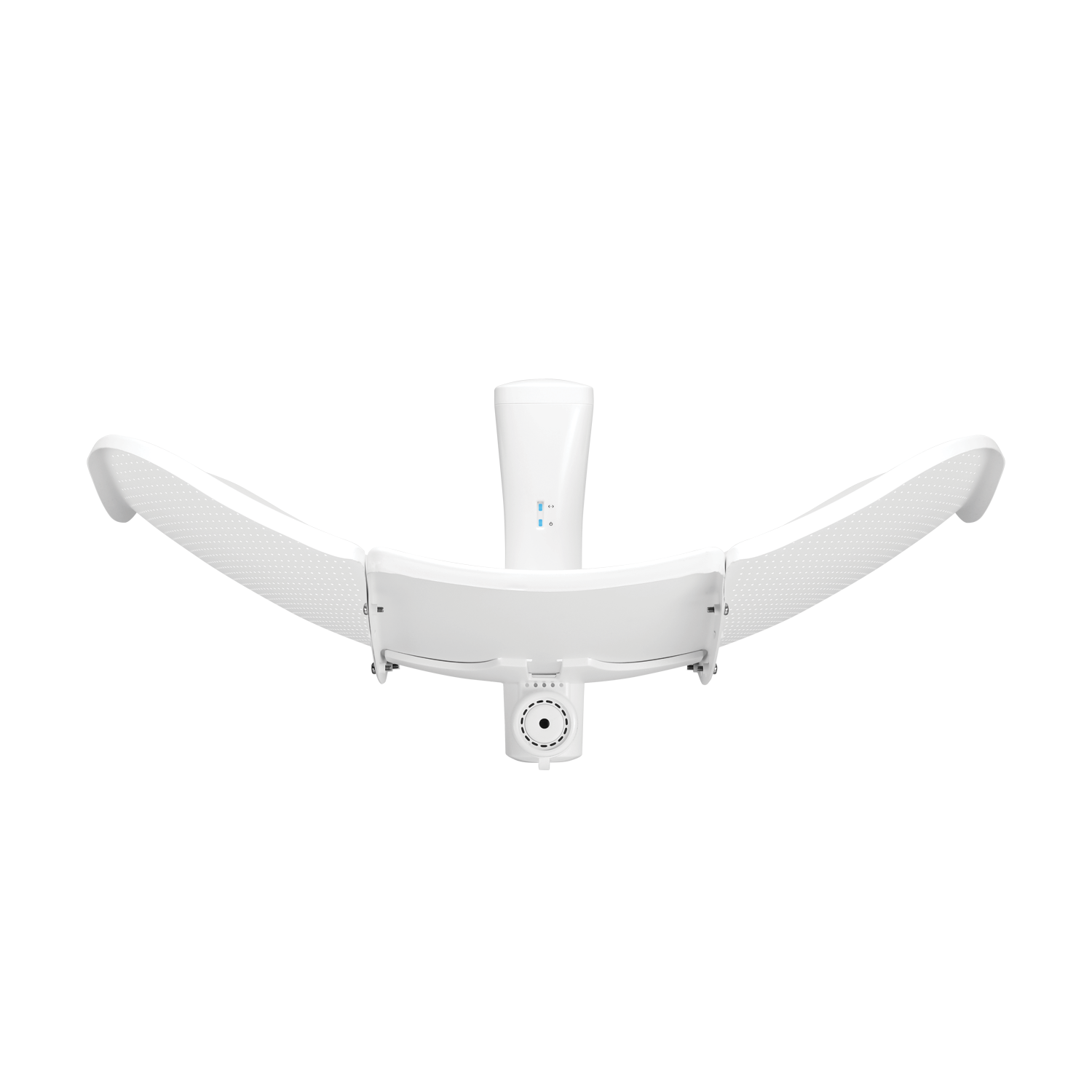

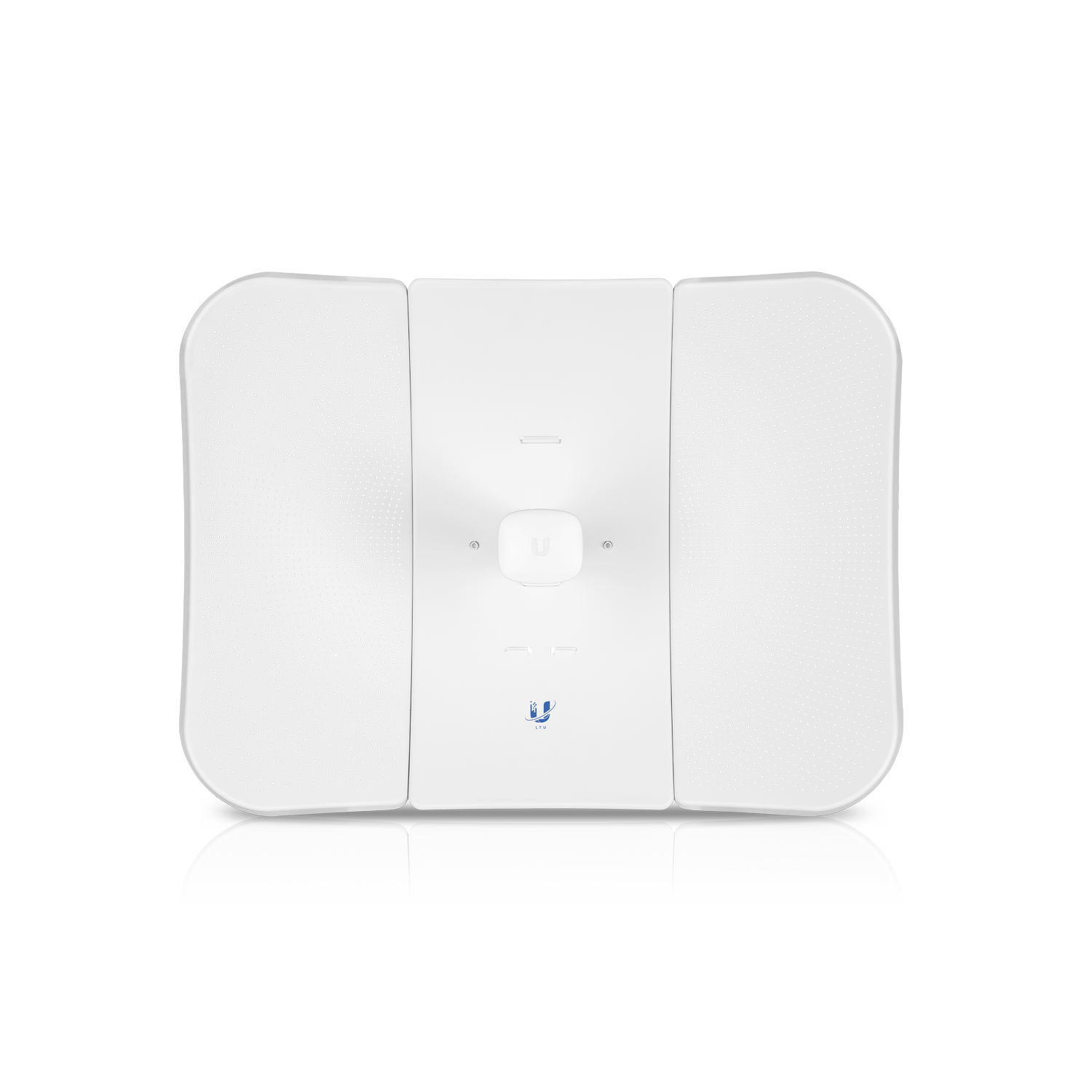

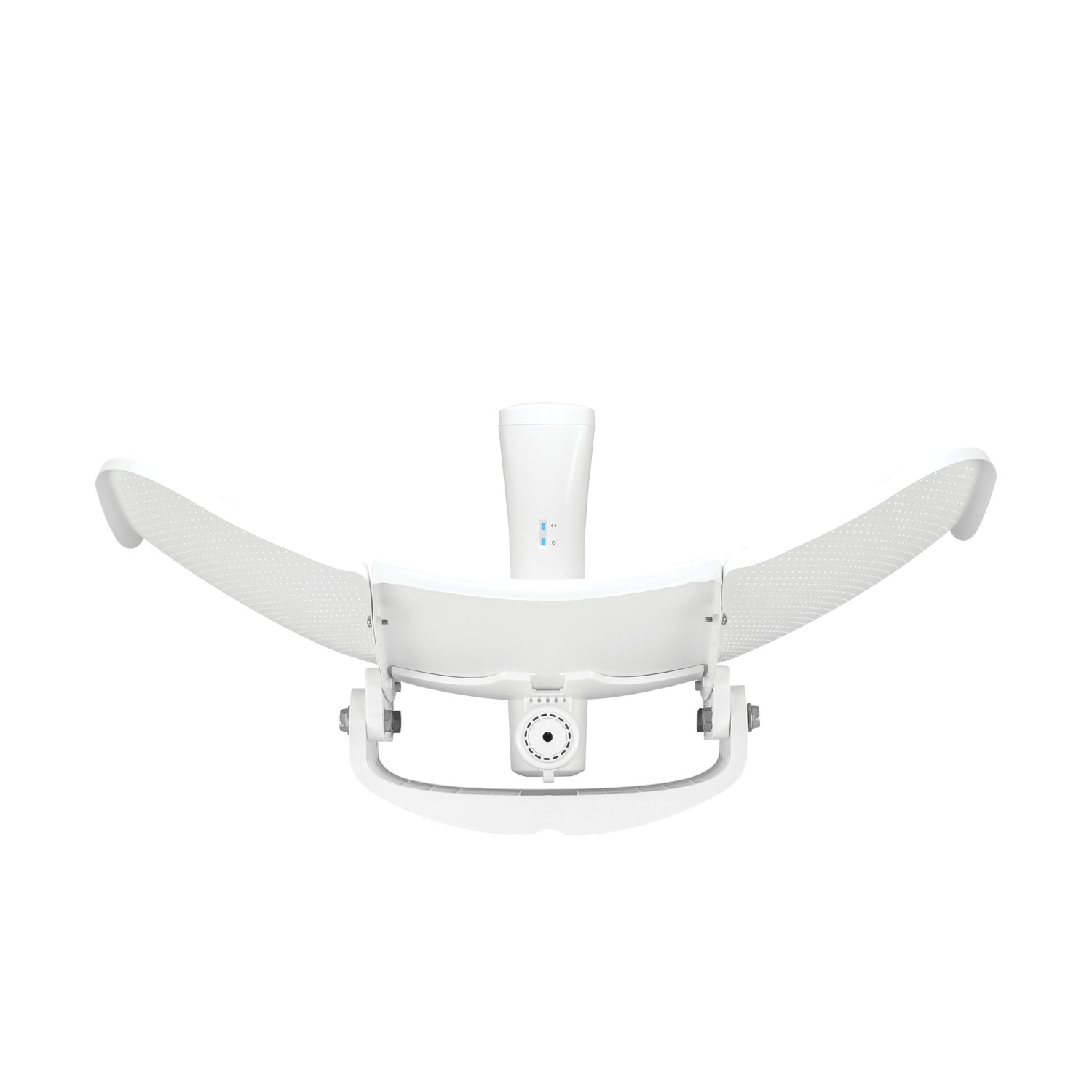

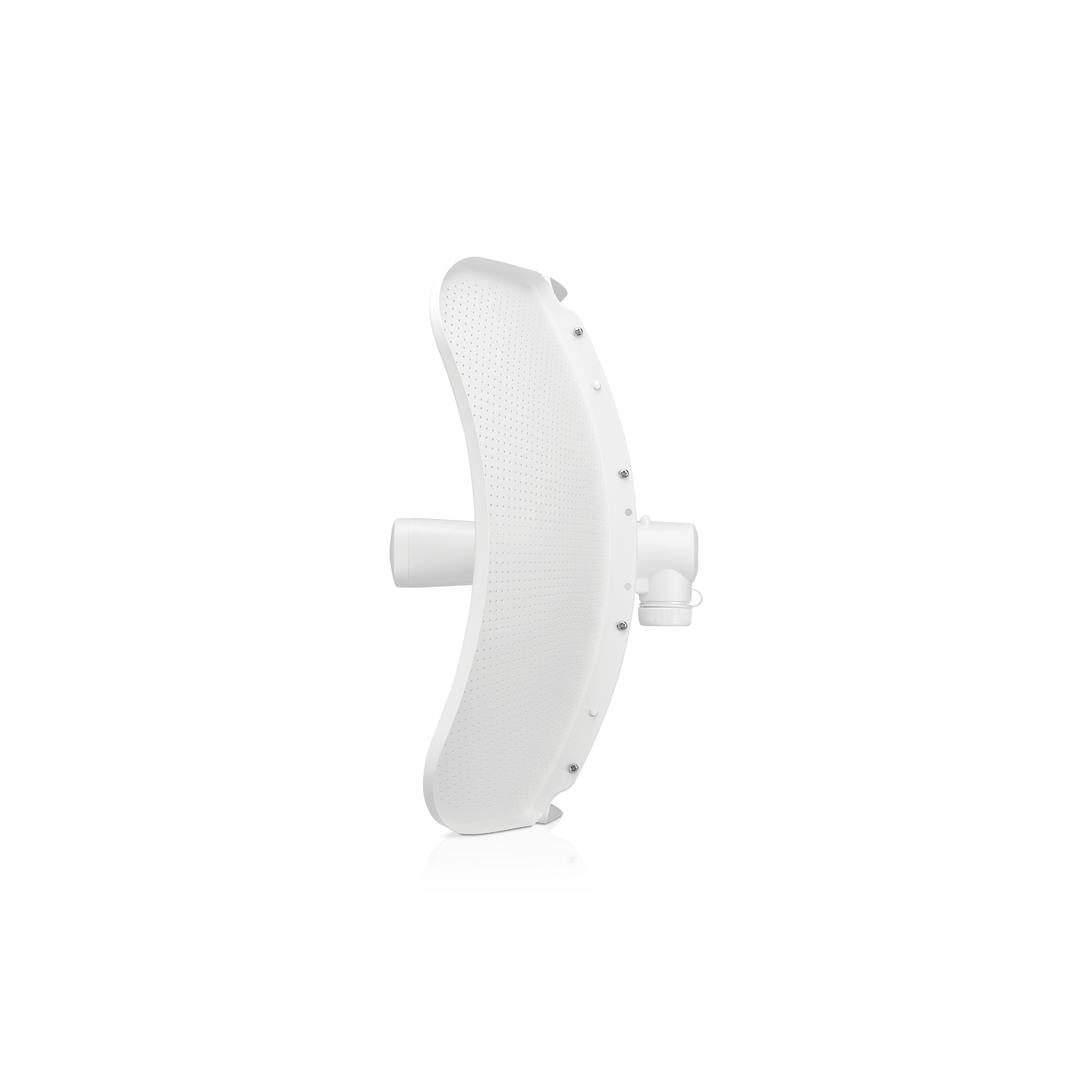

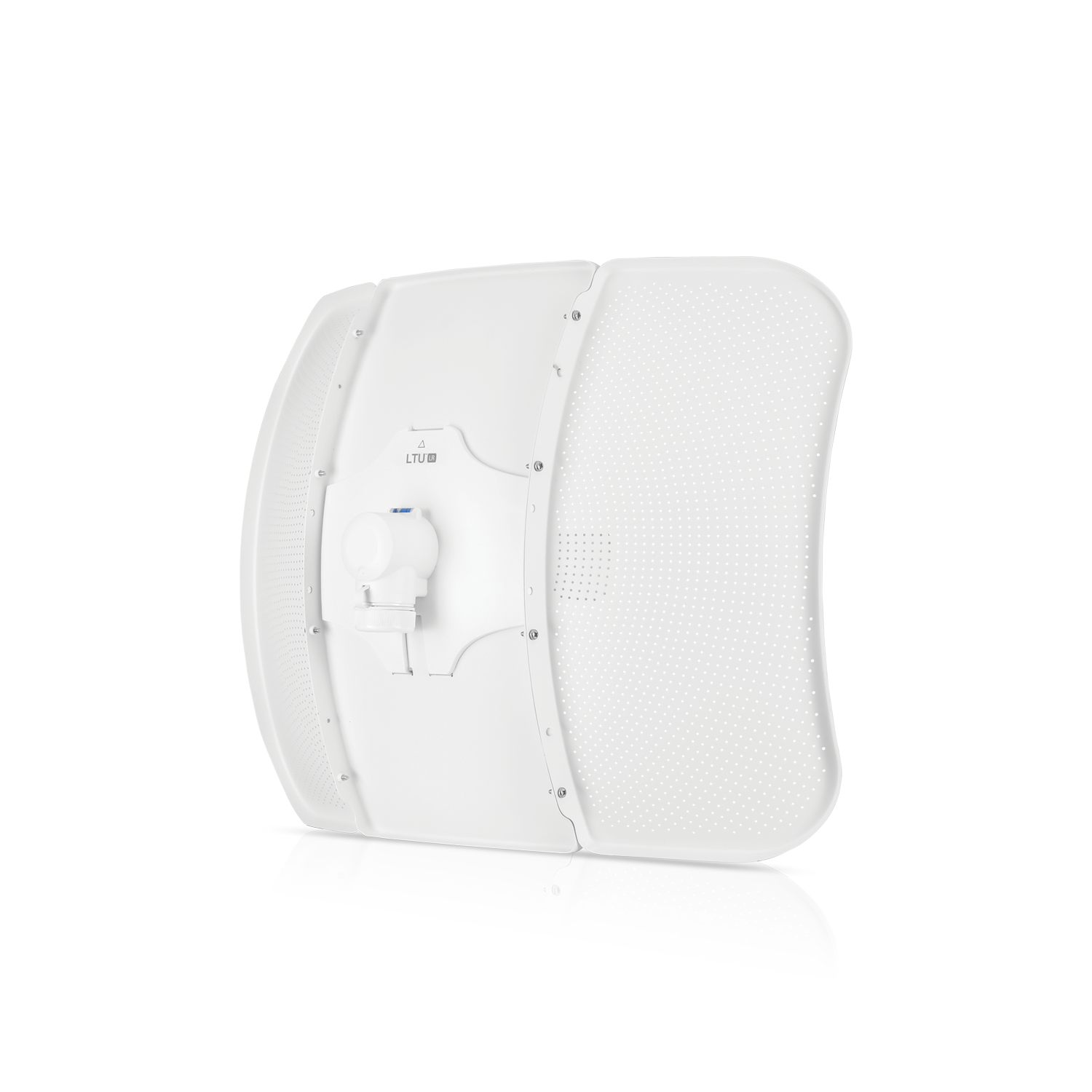

The Ubiquiti UISP LTU Long-Range LTU-LR is a 5 GHz PtMP LTU Long-Range Client, functions in a PtMP environment with the LTU-Rocket as the BaseStation.

5 GHz, 30+ km link range

900+ Mbps throughput*

Dedicated spectral analysis radio

Easy to assemble

Note. Compatible with LTU devices only.

*FW version 2.3.0 and later.

Technical Specifications

Mechanical
Dimensions 512.5 x 385.75 x 258.3 mm (20.2 x 15.2 x 10.2")
Weight Without mount: 1.4 kg (3 lb)
With mount: 1.7 kg (3.8 lb)
Enclosure material UV-stabilized polycarbonate

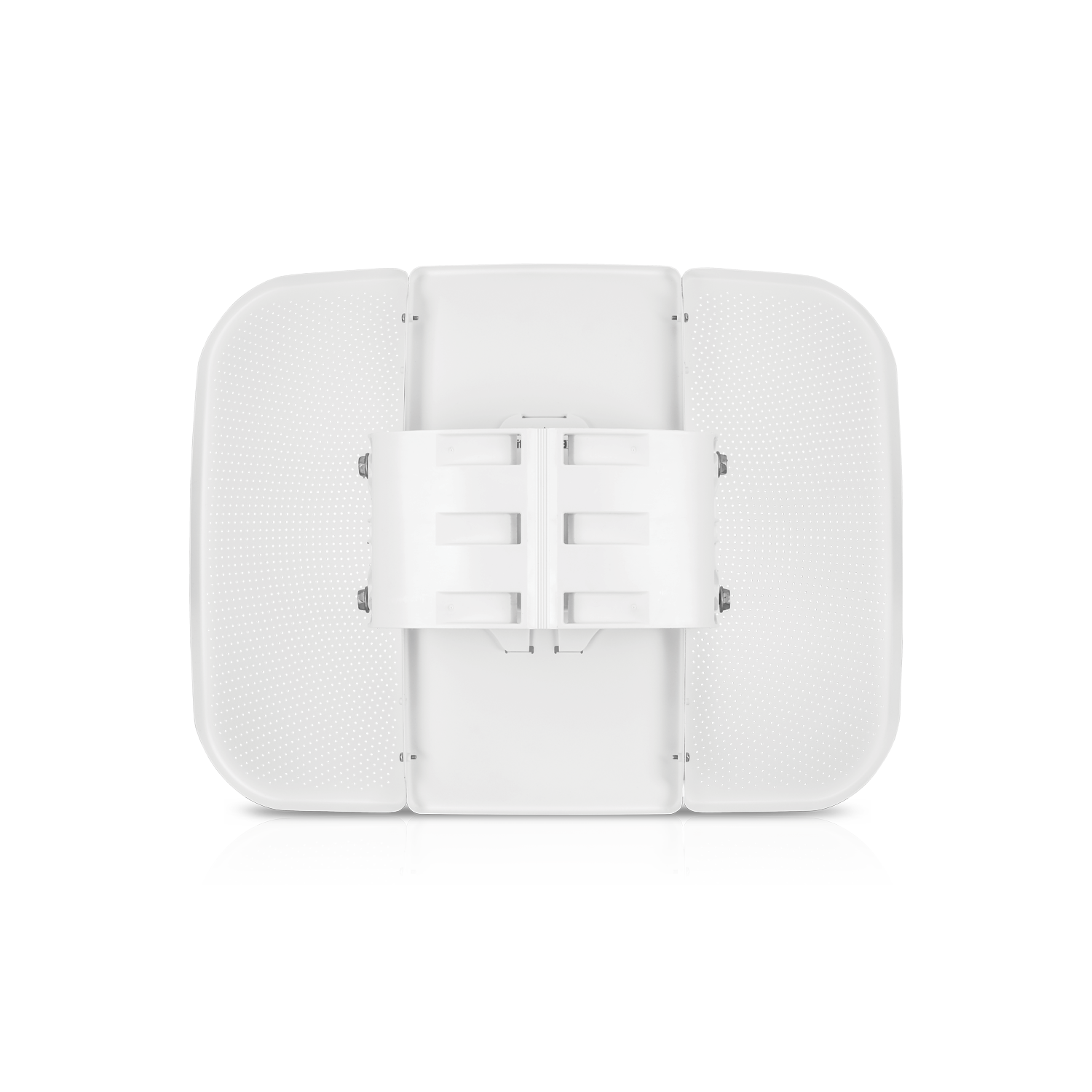

Mounting Pole mount (Kit included)
Wind loading 550 N at 200 km/h (123.6 lbf at 125 mph)
Wind survivability 200 km/h (125 mph)
Weatherproofing IPX6
Hardware
Networking interface (1) GbE RJ45 port
Power method Passive PoE 2-pair (4, 5+; 7, 8-)
Power supply 24V, 0.5A gigabit PoE adapter (Included)
Supported voltage range 22—27V DC
Max. power consumption 8.5W
ESD/EMP protection Air/contact: ± 24kV
Ambient operating temperature -40 to 60° C (-40 to 140° F)
Ambient operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
Software
Modes PtMP CPE, PtP*
*1.5.1 and later 1.5.x series firmware.
Services SNMP, SSH, dynamic DNS, webserver, remote log, ping watchdog
Utilities airView®, speed test, alignment, discovery, ping, traceroute, cable test, constellation
Auto distance adjustment Yes
Auto power adjustment Yes
Network Bridge/Router* mode
*Router mode is available in PtMP CPE mode only.
Security Yes
Statical reporting Yes
Management interface Bluetooth management for easy setup over UISP App
WEB UI
Minimum software requirements Any modern web browser
iOS™ or Android™ based smartphone
System
Maximum throughput 900+ Mbps*
*FW version 2.3.0 and later.
Encryption WPA2-PSK (AES)
Uplink/downlink ratio 25/75, 33/67, 50/50
RF
Operating frequency*
US/CA
U-NII-1
U-NII-2A
U-NII-2C
U-NII-3

Worldwide


5150 - 5250 MHz
5250 - 5350 MHz
5470 - 5725 MHz
5725 - 5850 MHz

4800 - 6200 MHz
*Depends on regulatory region.
Management Radio
Worldwide

2400 - 2483.5 MHz
Max. conducted TX power 22 dBm (per chain)
Channel bandwidth 10/20/30/40/50/60/80/100 MHz*
*FW version 2.3.0 and later.
Antenna gain 26 dBi
