Ubiquiti  |  SKU: UISP-Horn

Ubiquiti UISP UISP Horn UISP-Horn

$179.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

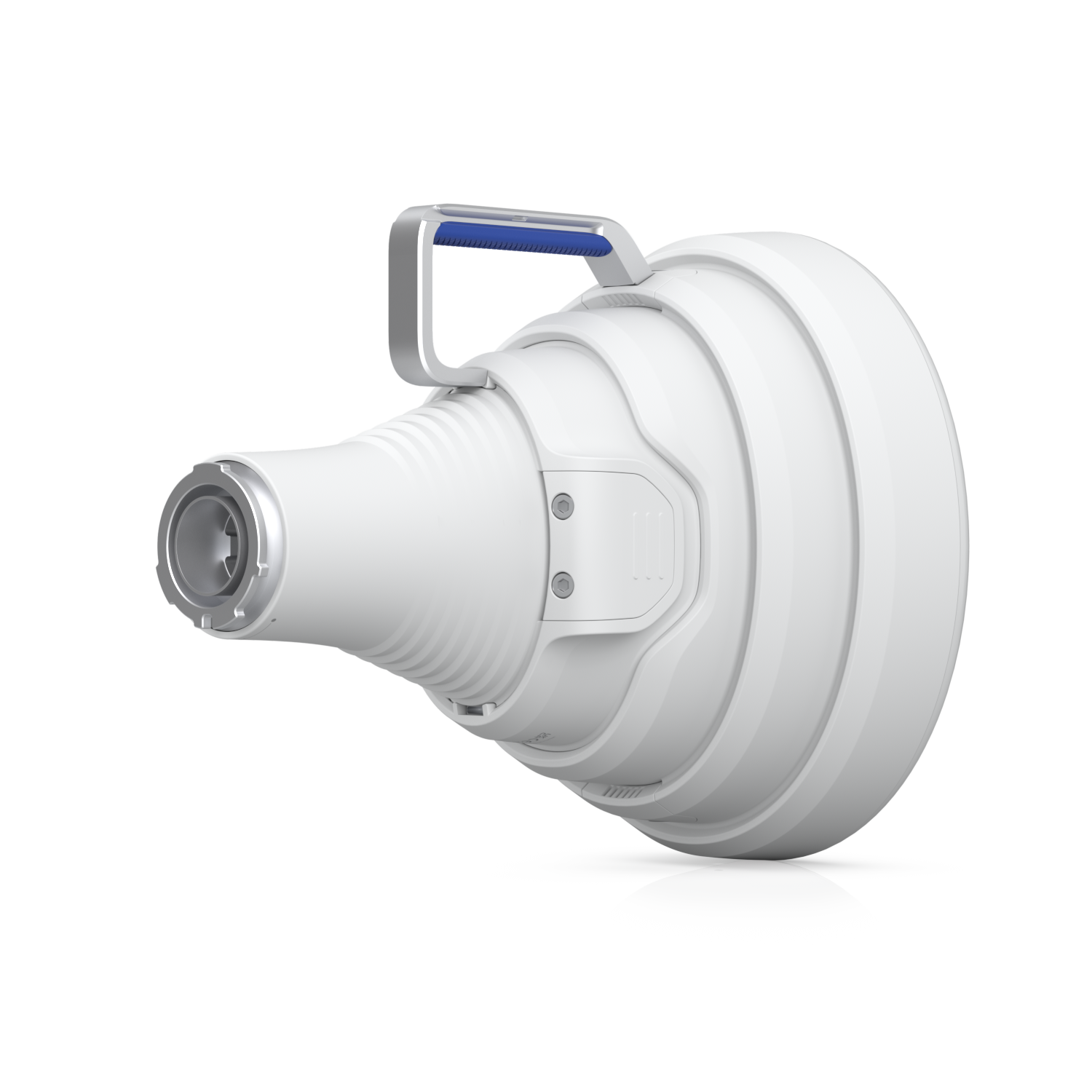

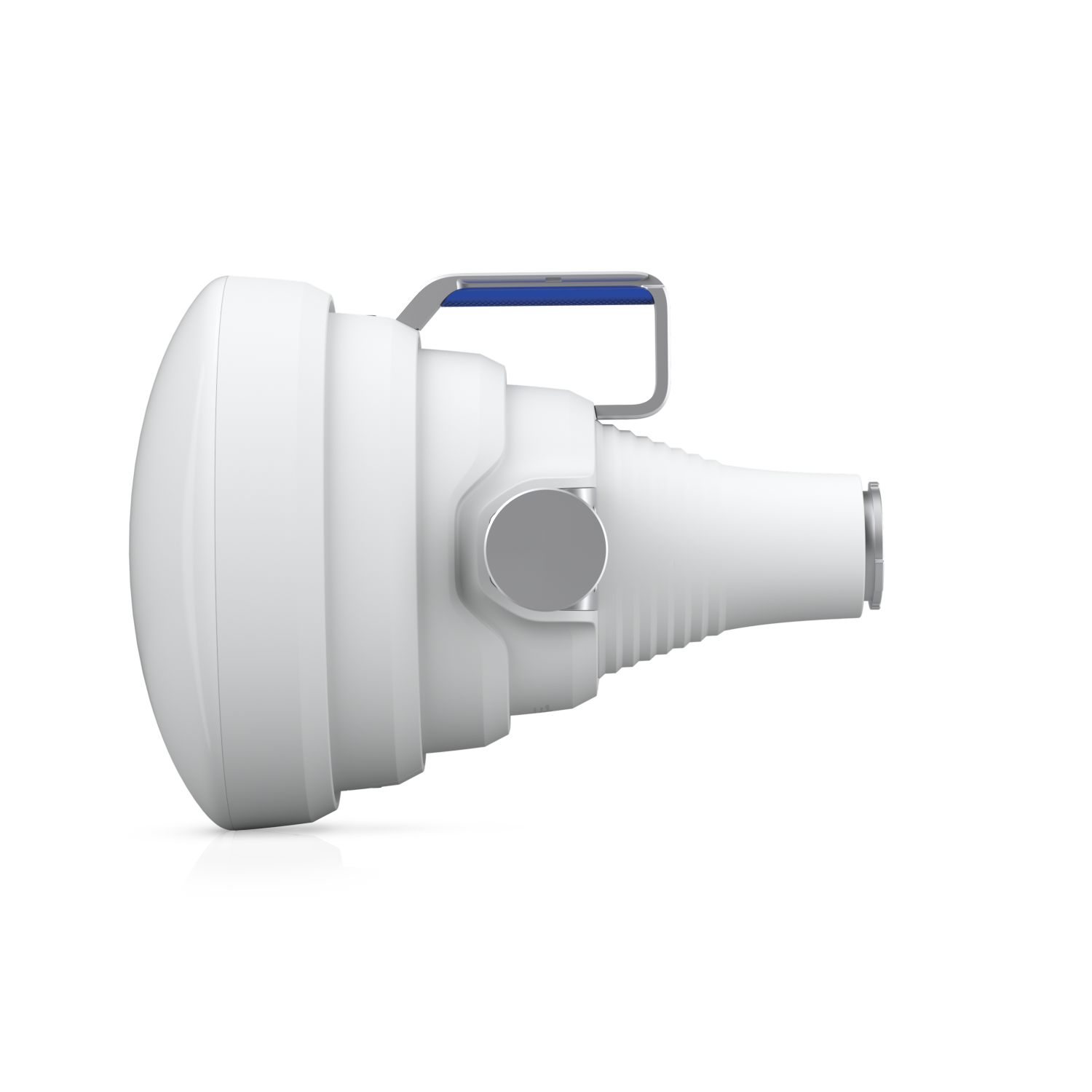

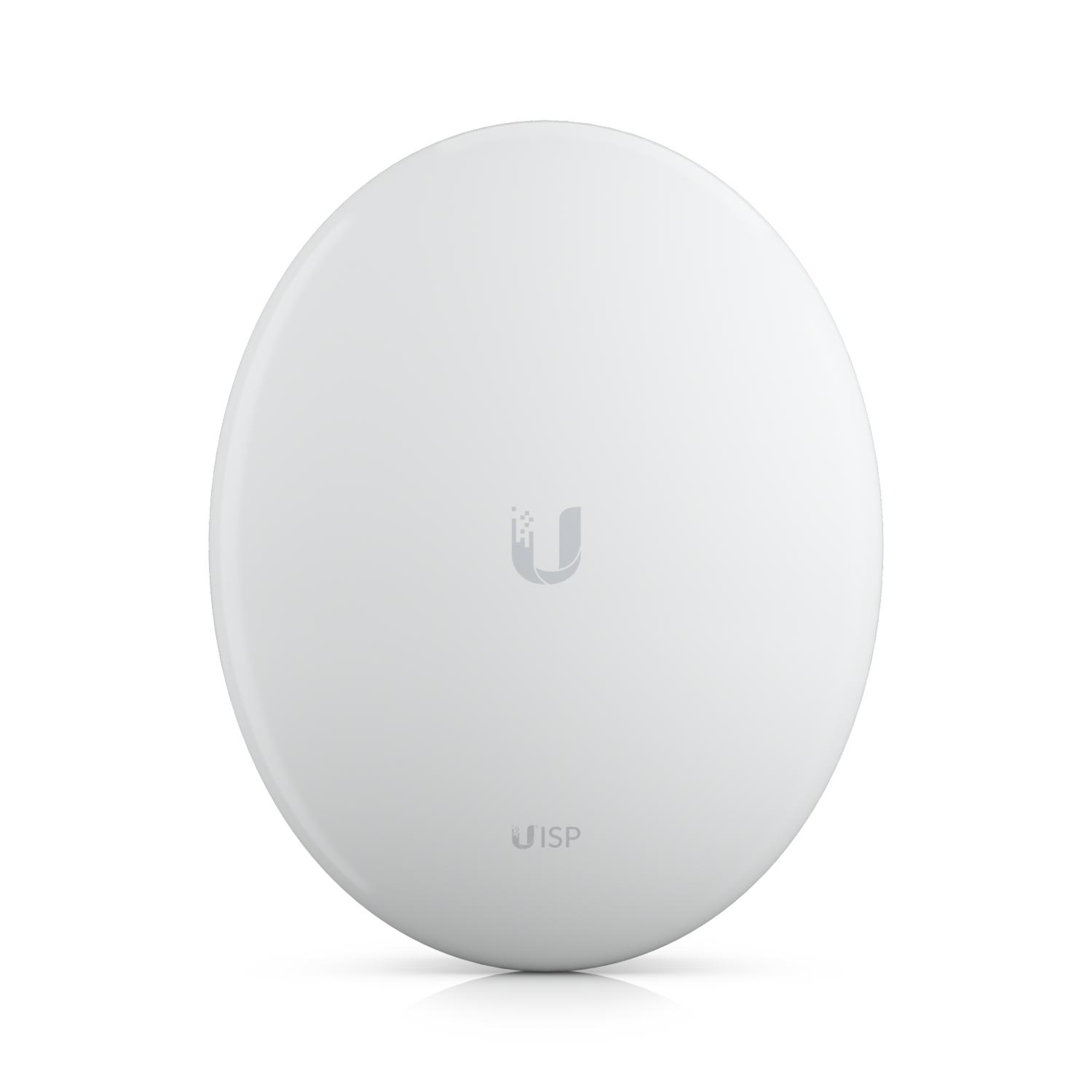

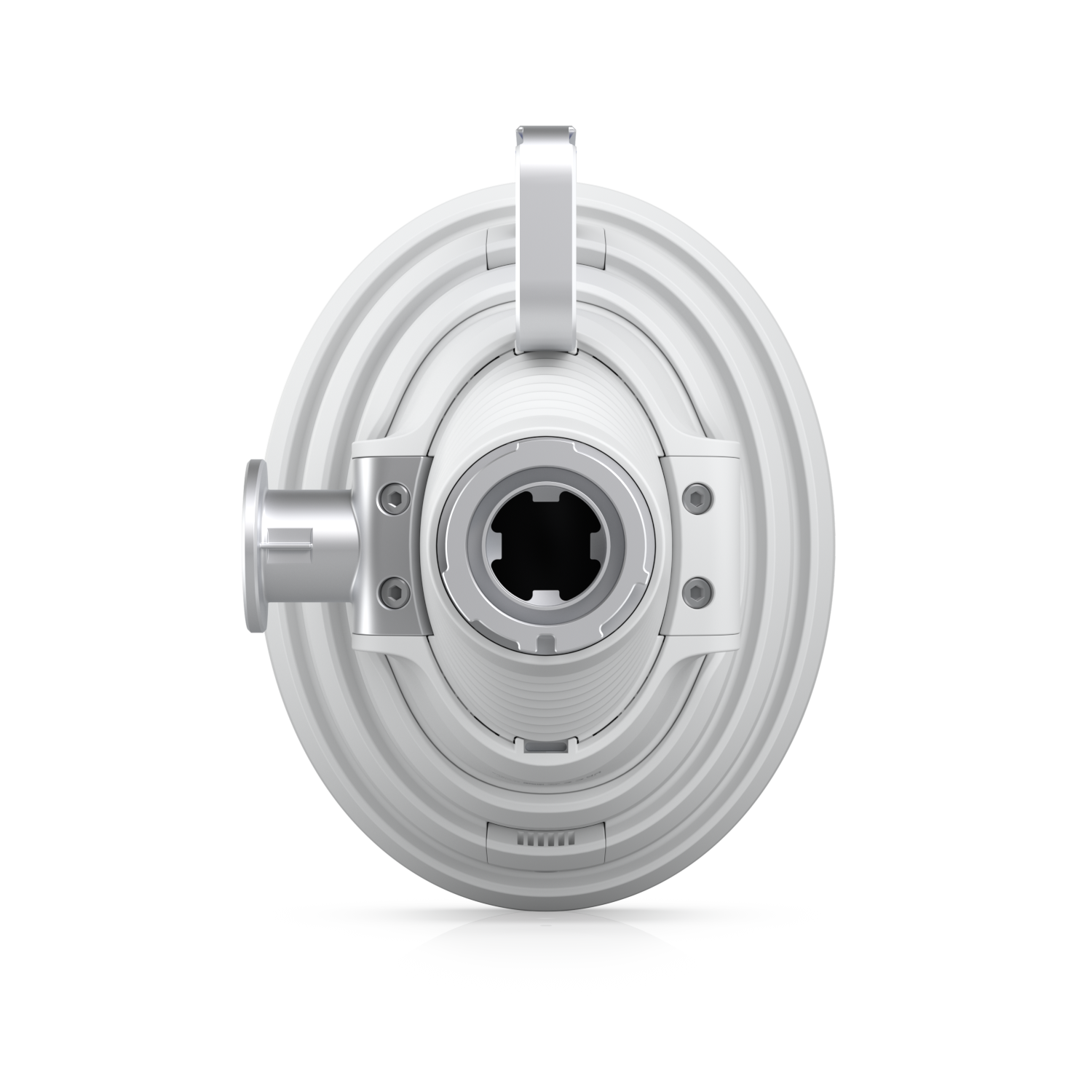

The Ubiquiti UISP UISP Horn UISP-Horn is a high-isolation, point-to-multipoint (PtMP) horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

High-isolation 30° horn antenna that covers a wide operating frequency range (5.15 - 6.875 GHz)

15+ km PtMP link range

Die-cast, UV-stabilized polycarbonate enclosure for enhanced durability and weatherproofing

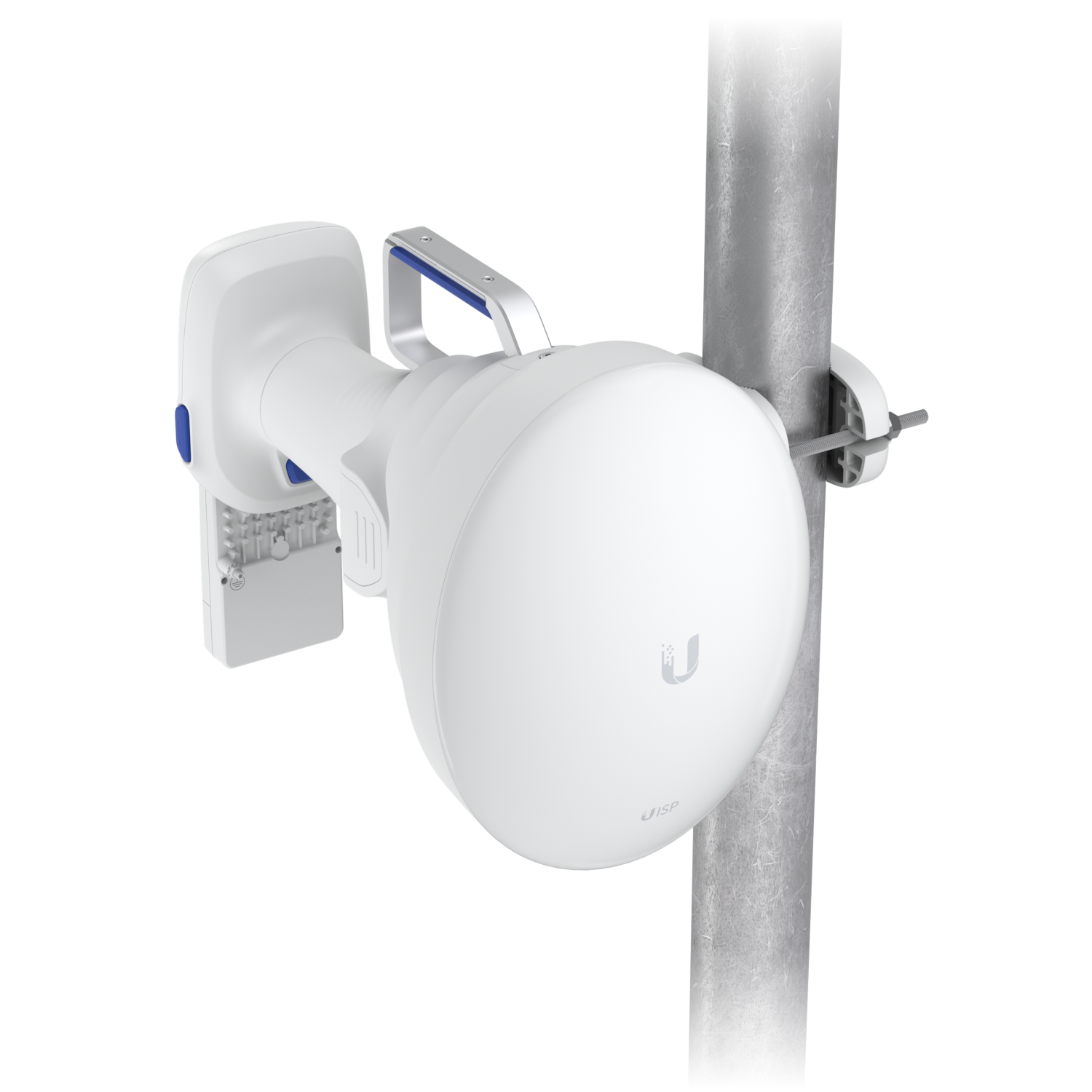

Pole-mountable antenna with a metal carrying handle

Compatible with AF 5XHD, RP 5AC, LTU Rocket

Technical Specifications

Mechanical
Dimensions 282 x 224 x 380 mm (11.1 x 8.8 x 15")
Weight Device: 3.06 kg (6.75 lb)
Mount: 925 g (2.04 lb)
Enclosure materials UV stabilized polycarbonate, aluminum alloy
Wind survivability Up to 200 km/h (124 mph)
Wind loading 90 N at 200 km/h
Mounting Alignment mounting kit (included)
Mechanical adjustment: ±20° elevation, ±25° azimuth
Pole compatibility: Ø25 to 70 mm (Ø1 to 3")
Weatherproofing IPX6
Hardware
Frequency range 5.15 to 6.875 GHz
Gain 19.5 dBi
Beamwidth Azimuth: 30° (6 dB)
Elevation: 25° (6 dB)
Electrical downtilt
Maximum VSWR 2:1
Polarization Dual-linear
Cross-pol isolation 20 dB
Front-to-back ratio Typical: 45 to 50 dB
Min.: 40 dB
