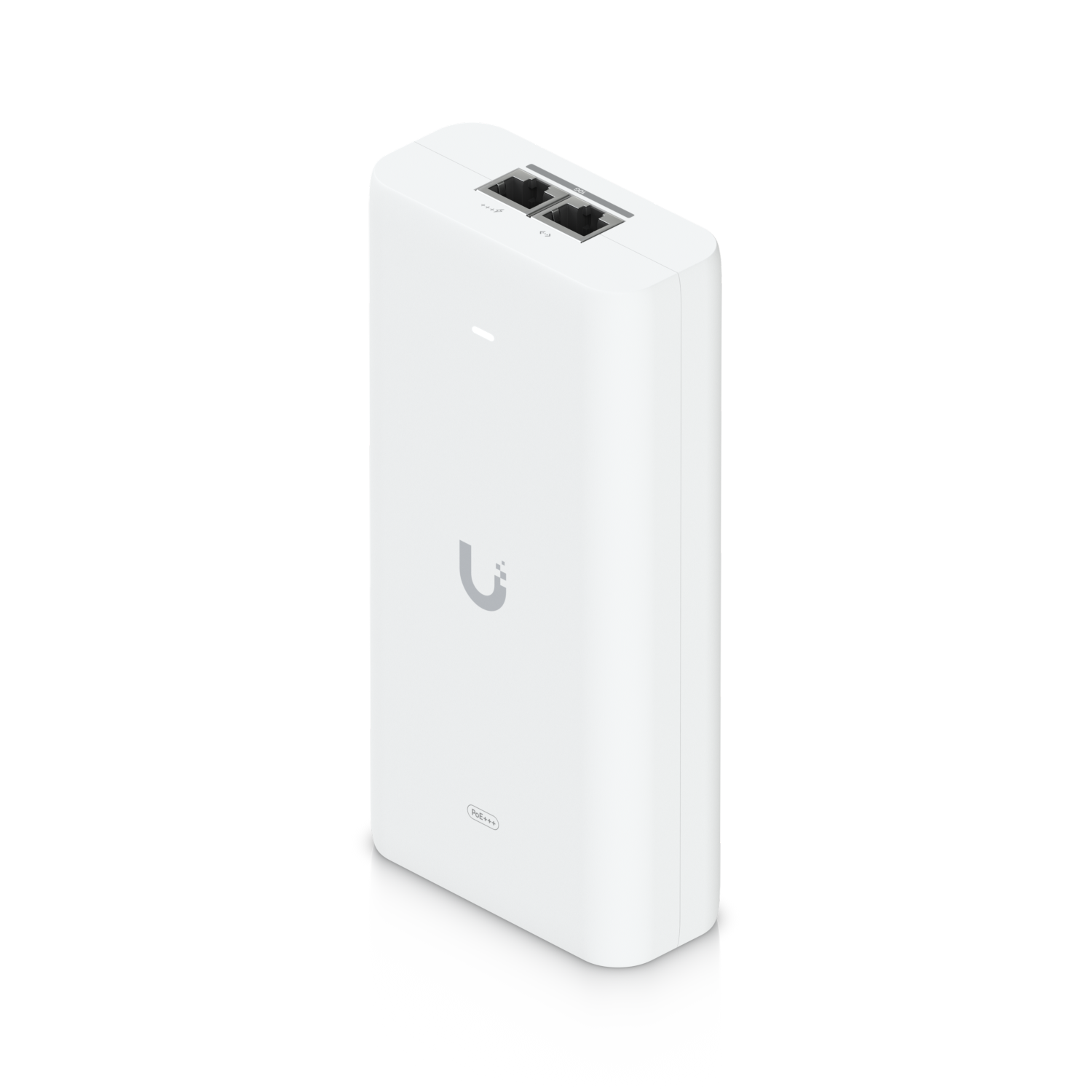

Ubiquiti UniFi 10G PoE+++ Adapter (90W) UACC-POE+++-10G
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
Please contact us for availability.

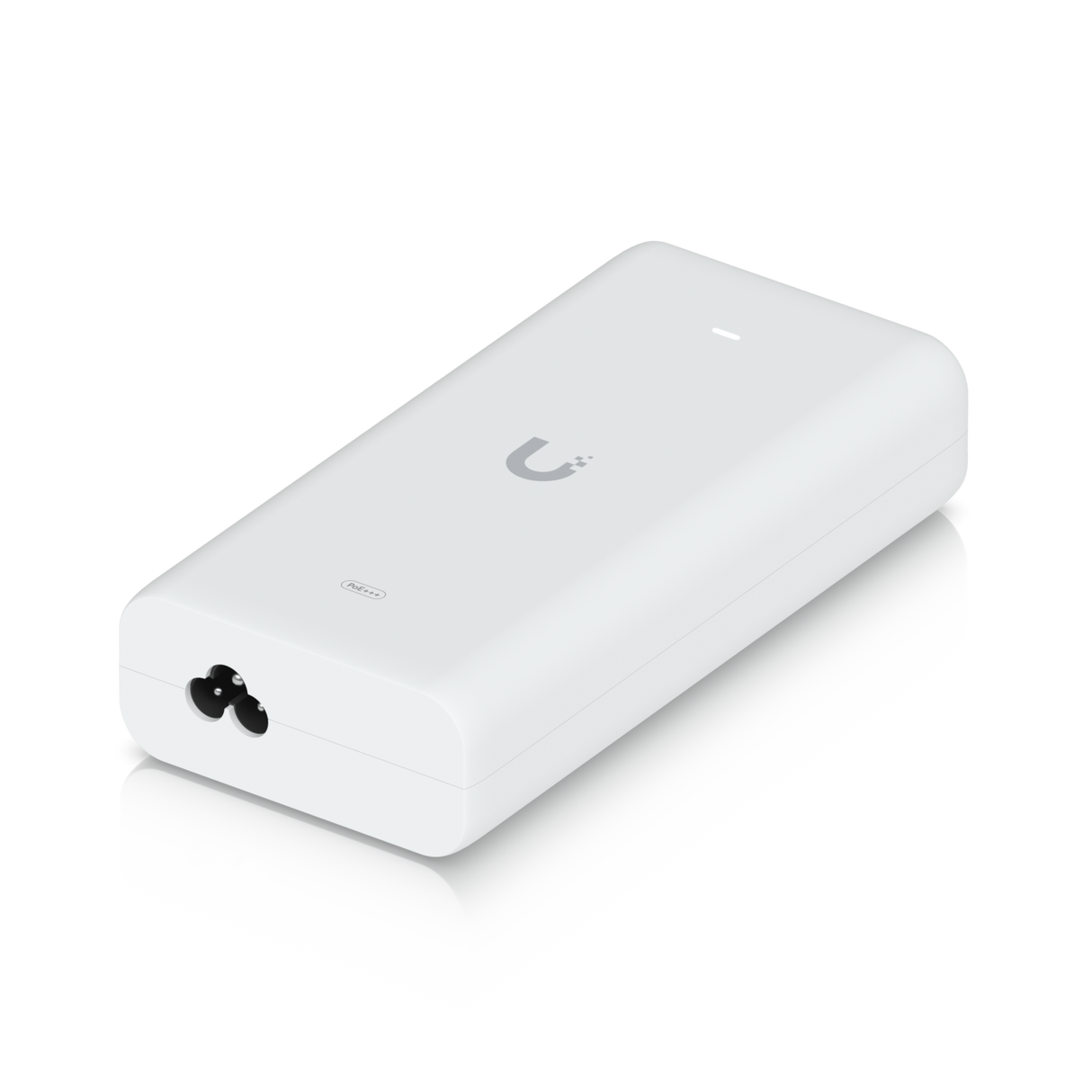

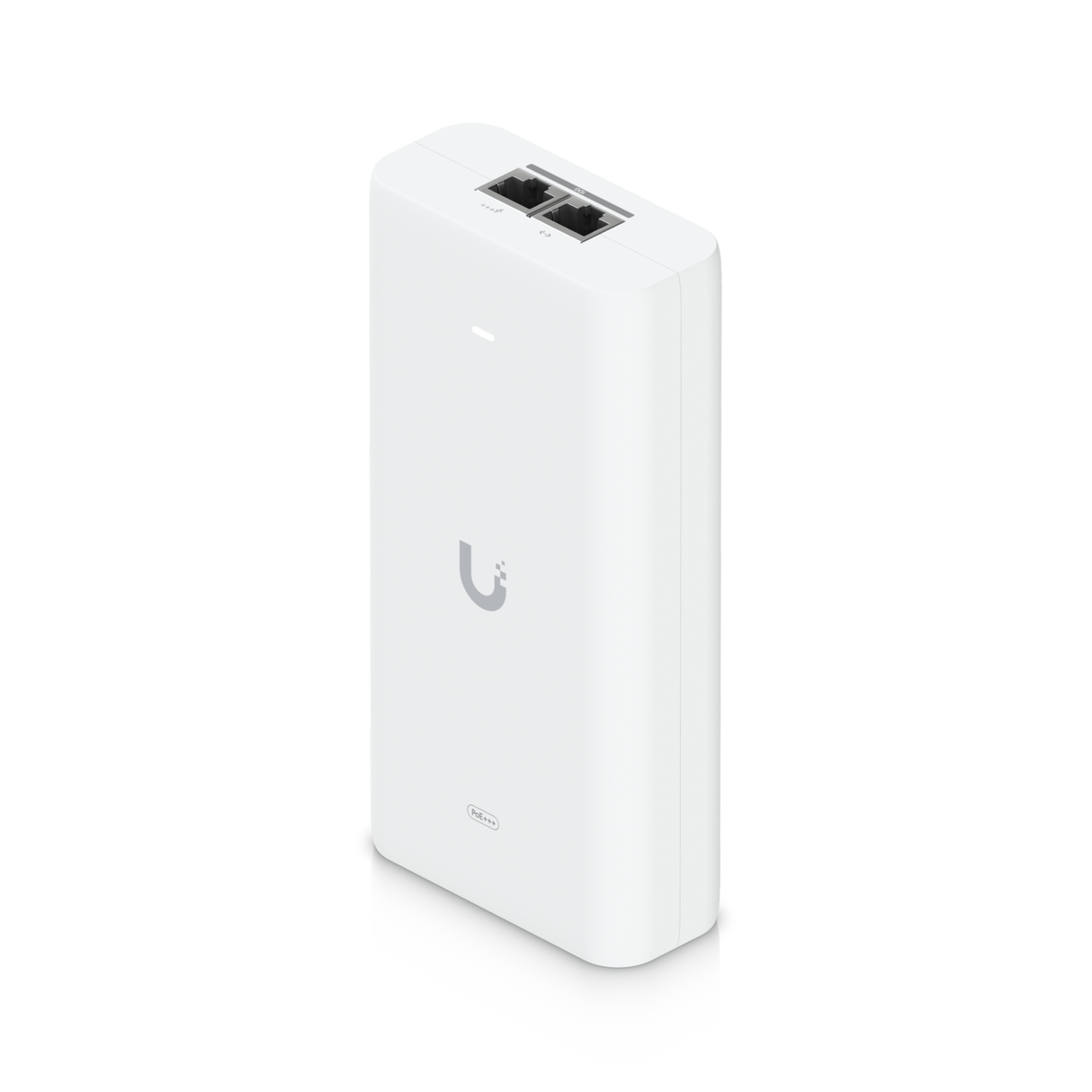

The Ubiquiti UniFi 10G PoE+++ Adapter (90W) UACC-POE+++-10G is an adapter that can power UniFi PoE+++ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 90W of PoE+++
Surge, peak pulse, and overcurrent protection

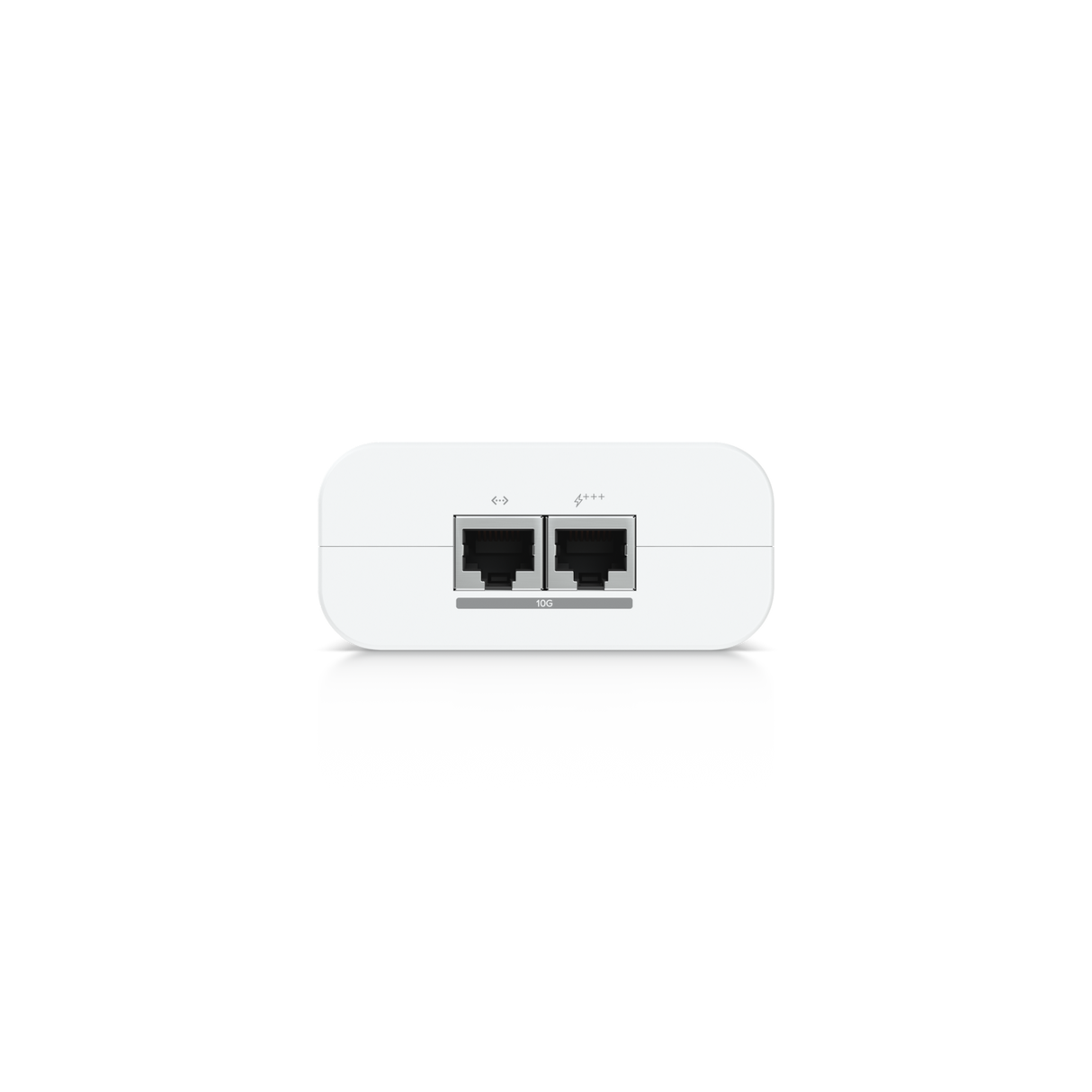

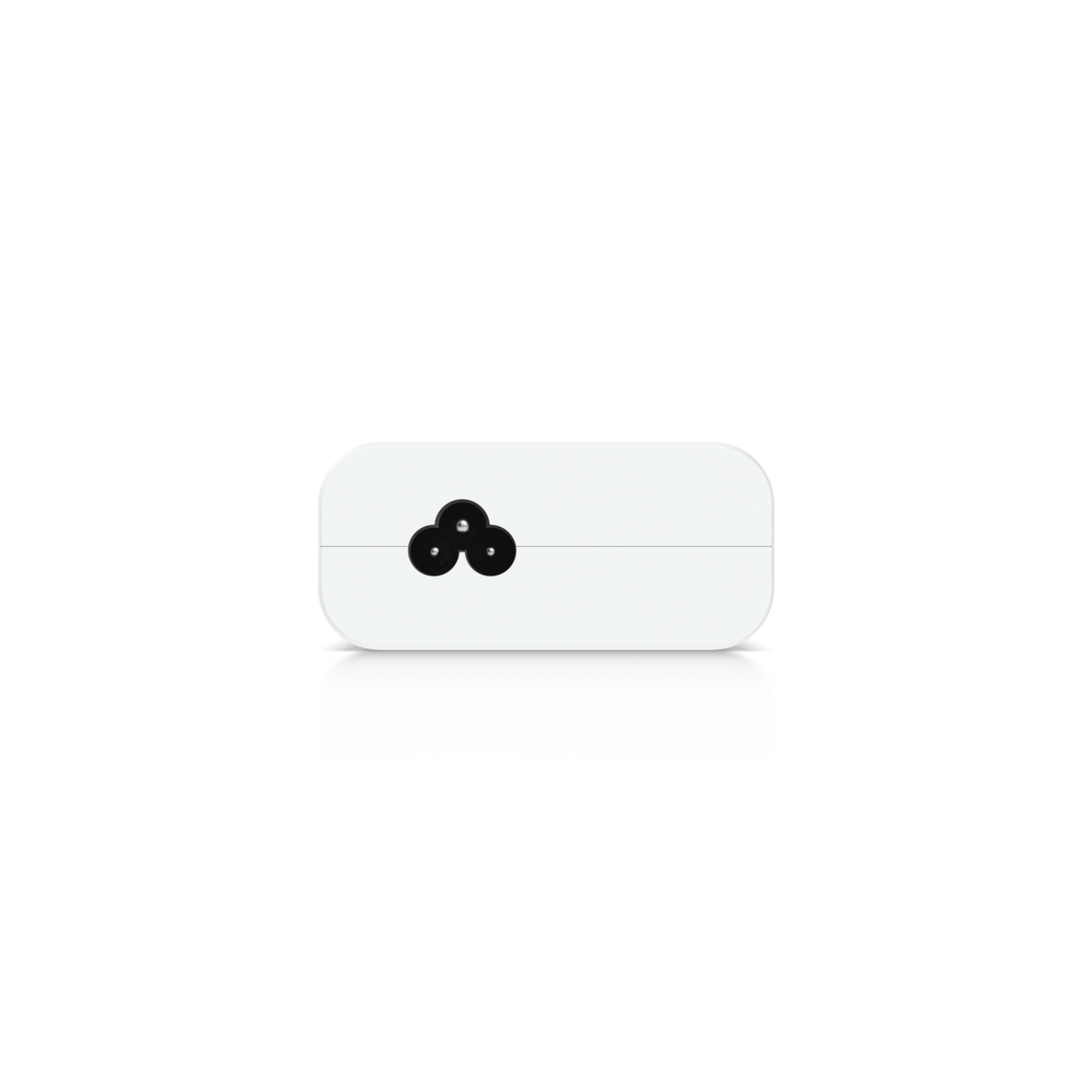

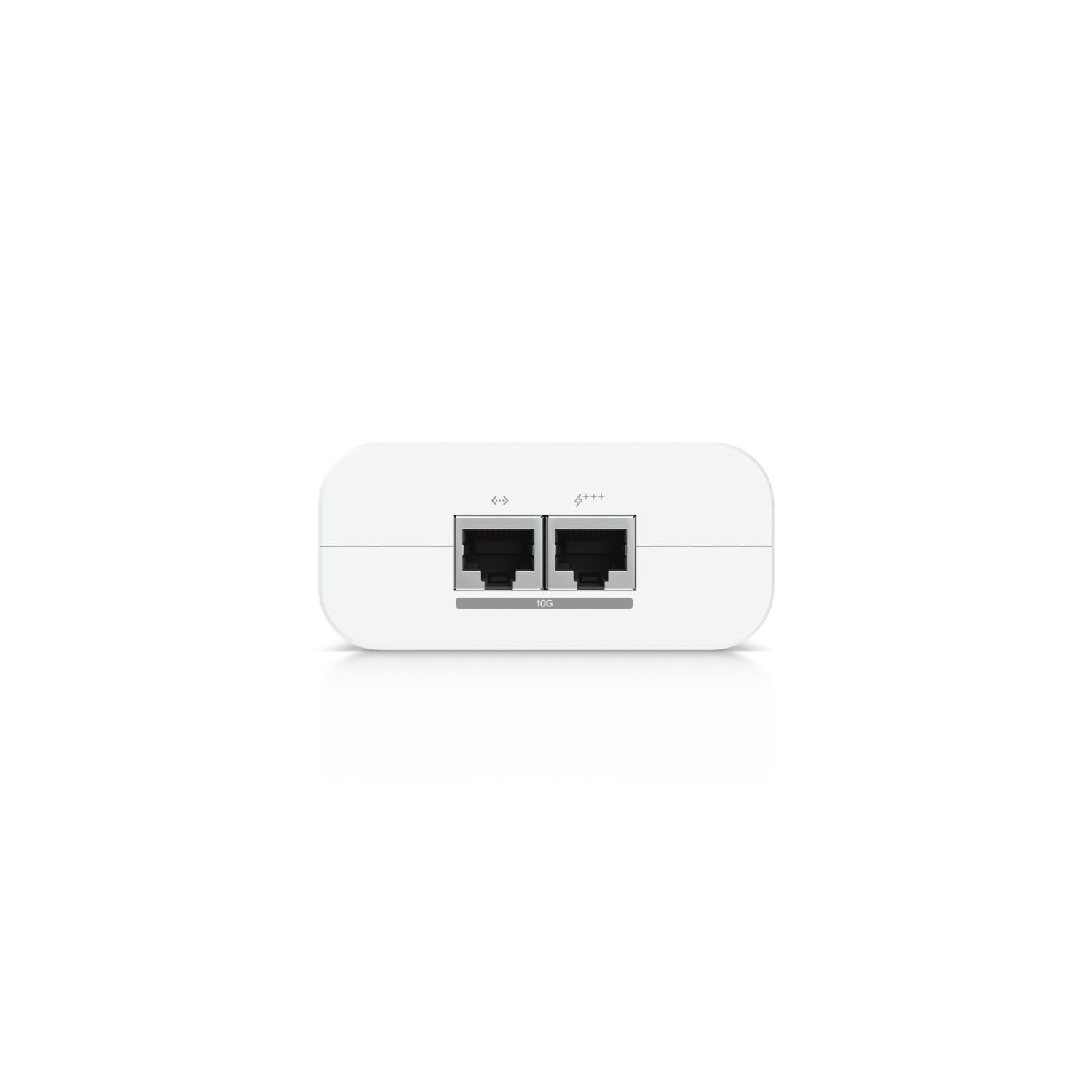

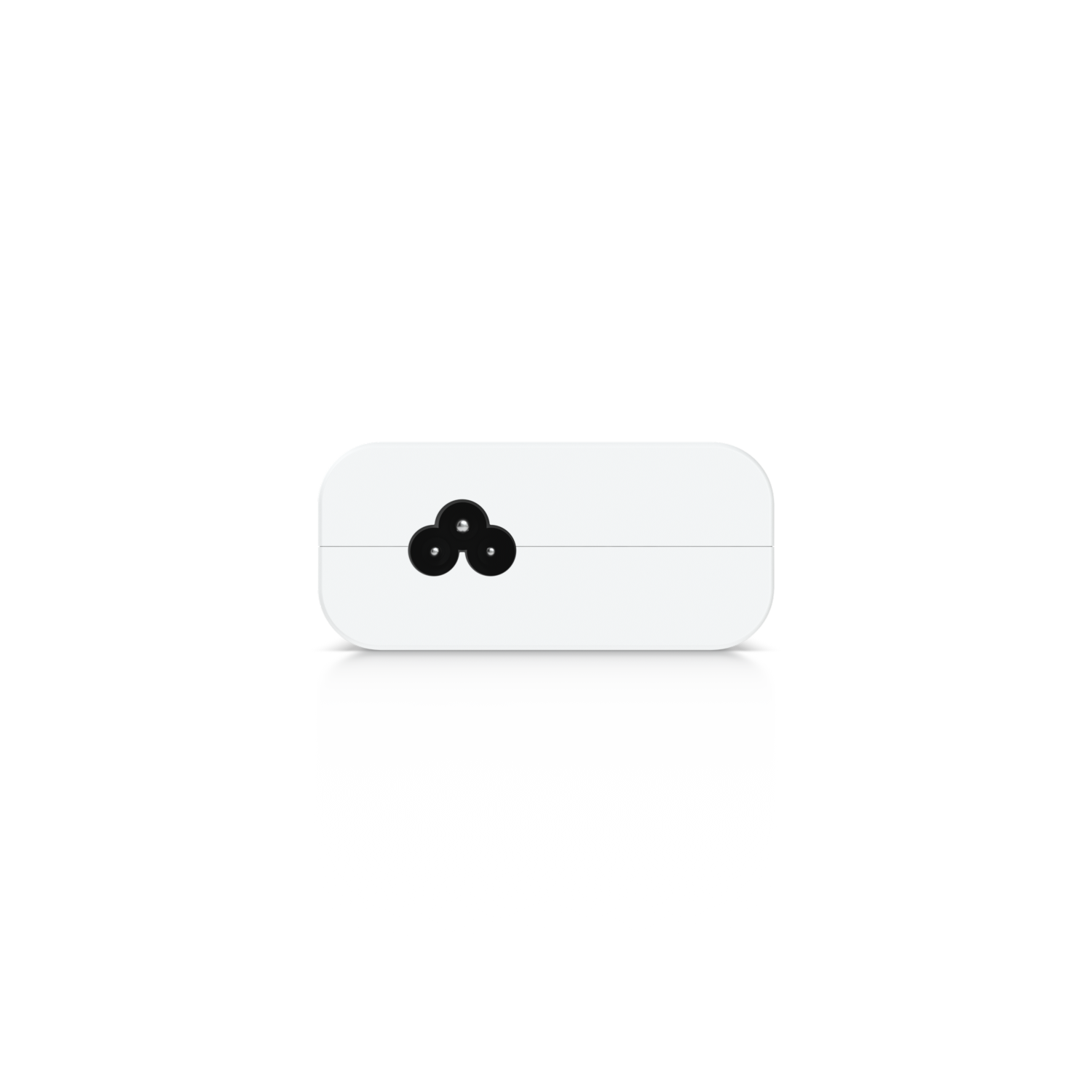

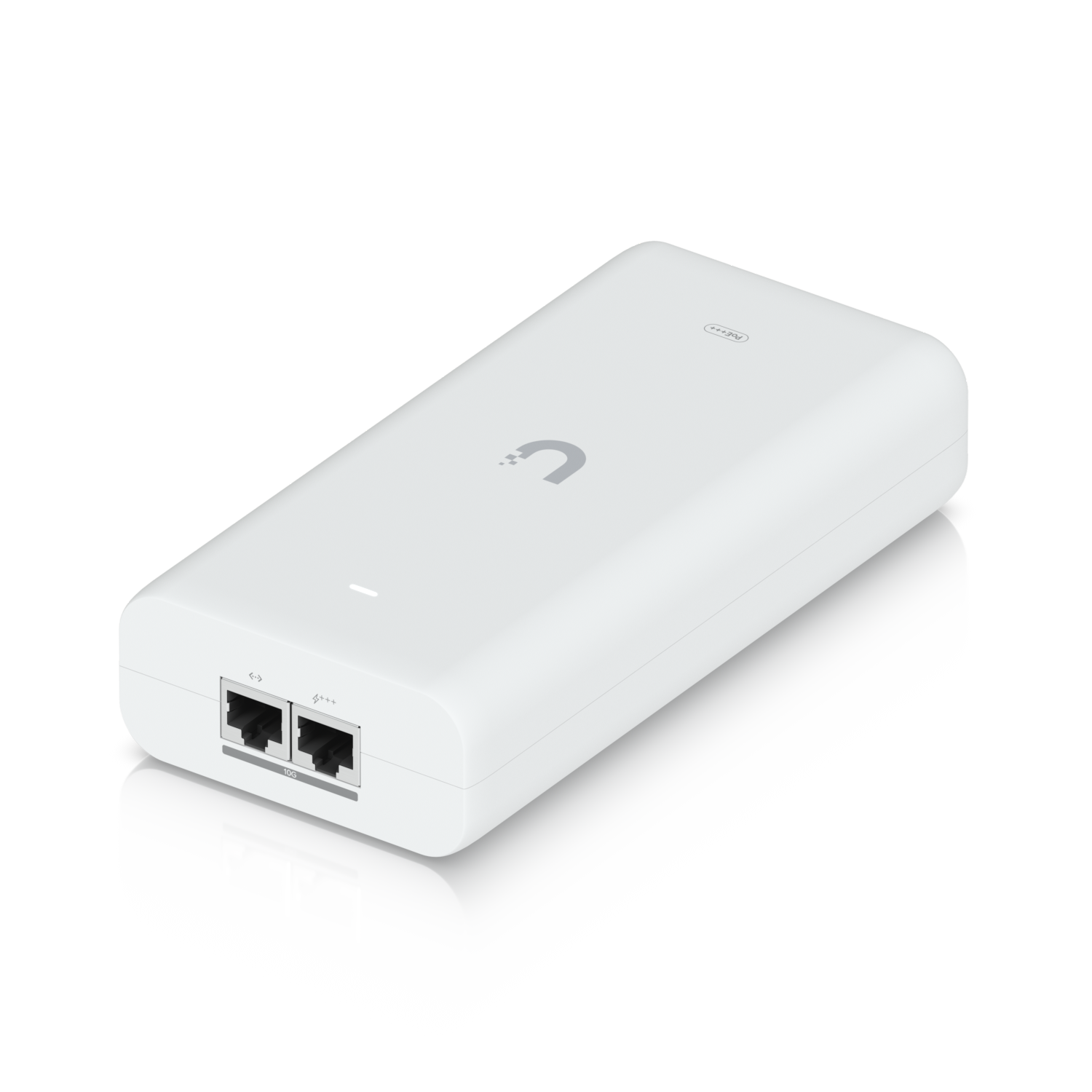

Contains RJ45 data input, AC cable with earth ground, and PoE+++ output

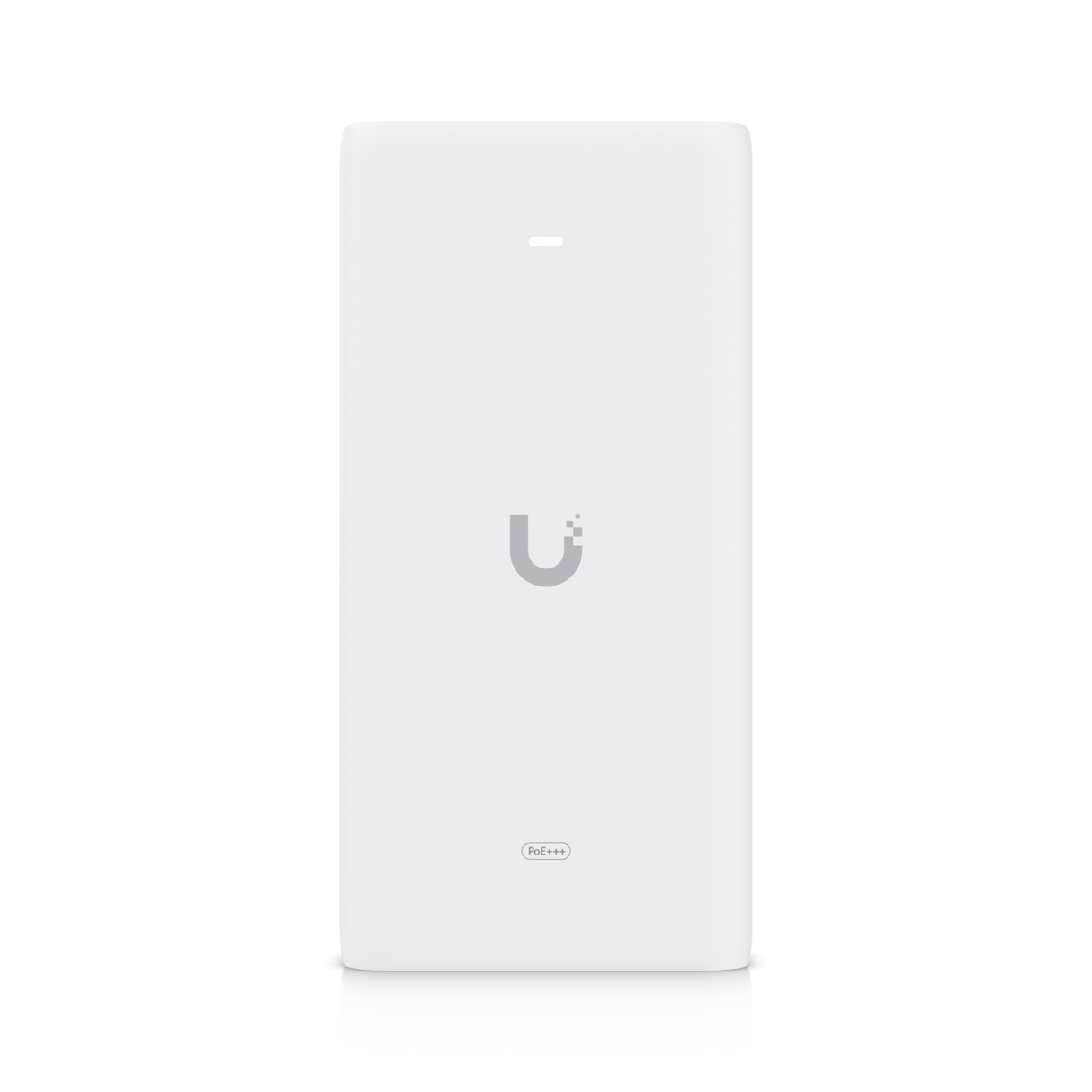

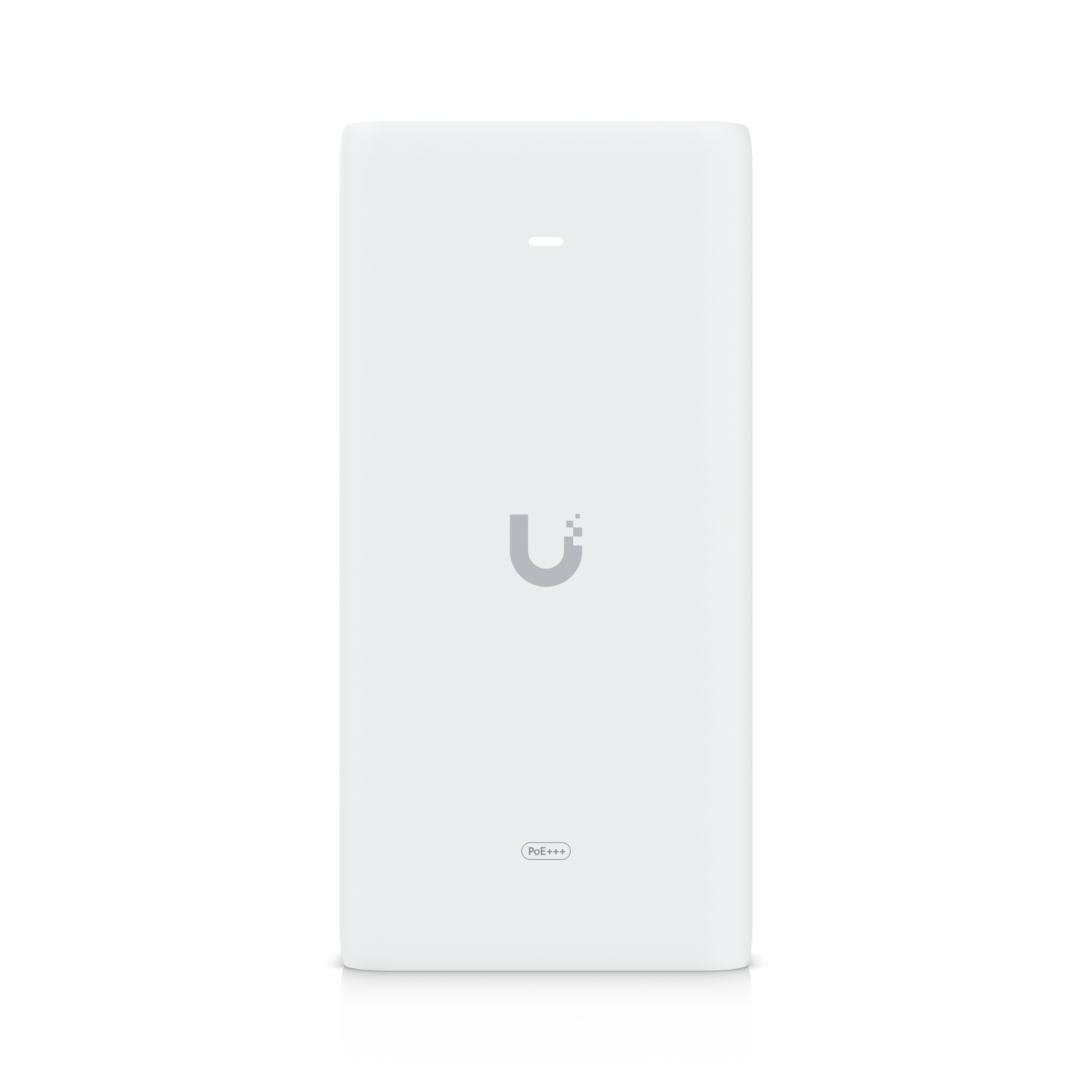

LED indicator for status monitoring

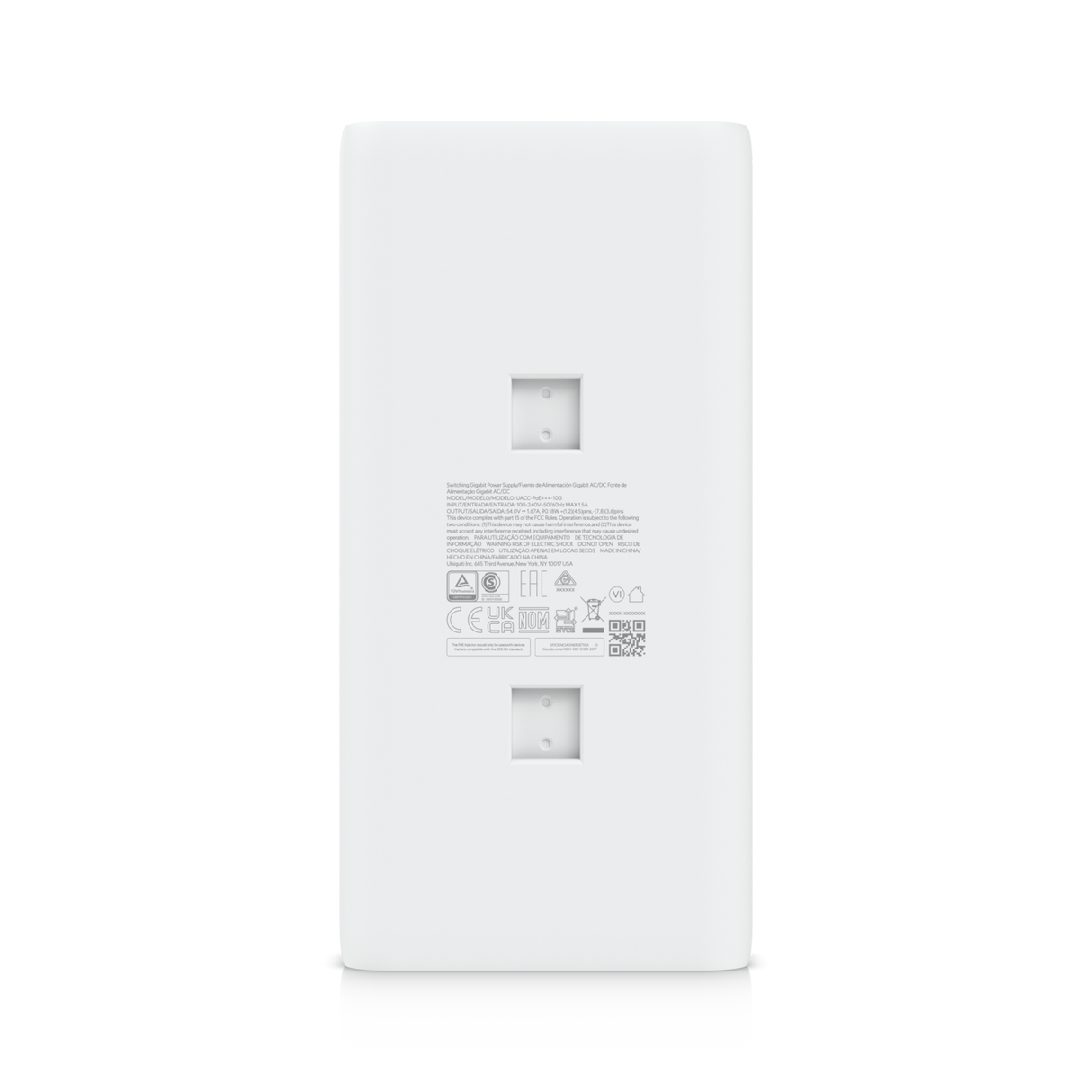

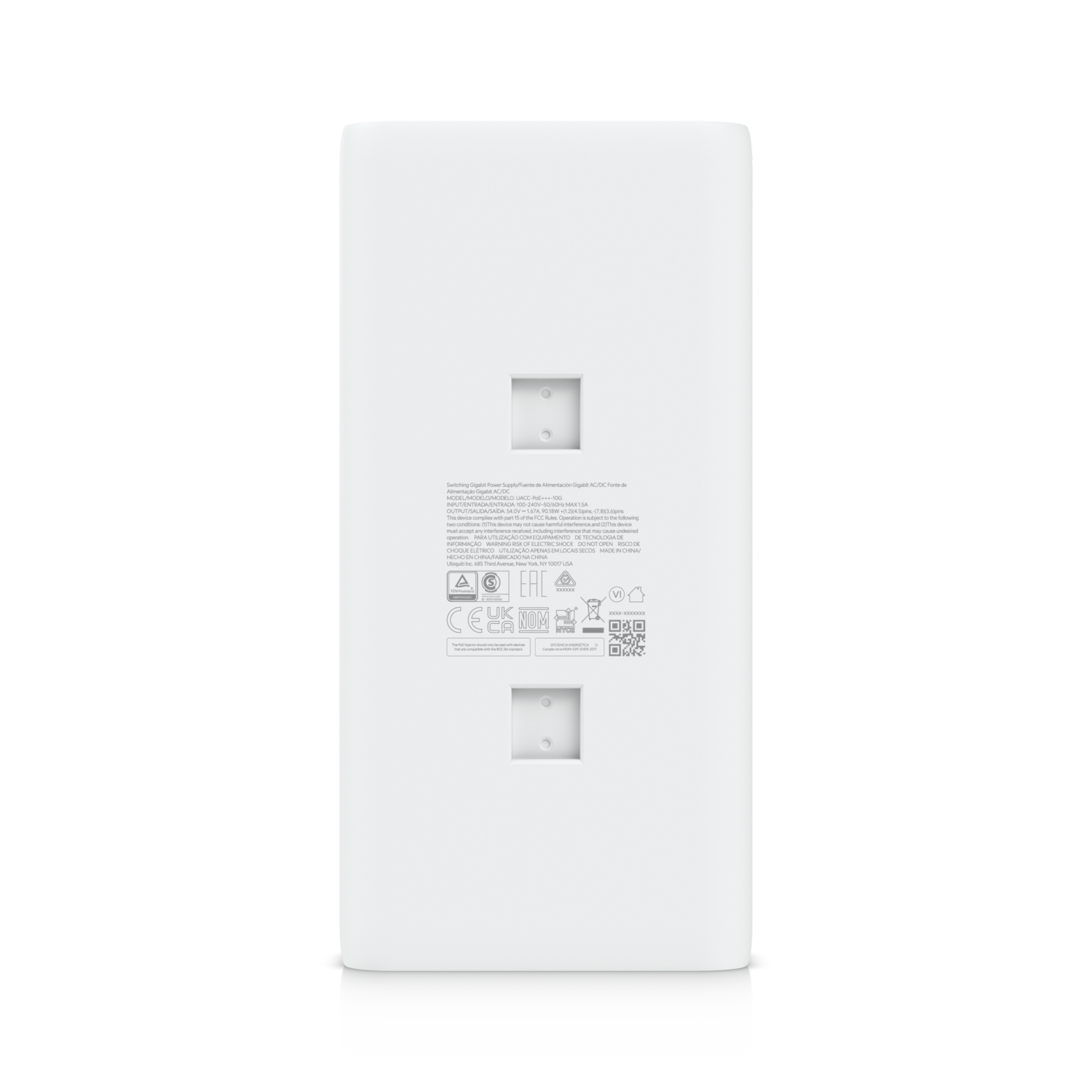

Supports wall mount, DIN rail and floating mount*
*DIN rail and floating mount sold separately
Compatibility: USW-Flex-2.5G-8-PoE
Technical Specifications
| Category | Specification |
|---|---|
| Overview | |
| Dimensions | 164.5 x 71 x 42 mm (6.5 x 2.8 x 1.7") |
| Weight | 372 g (13.1 oz) |
| Enclosure Material | — |
| Weatherproofing | Indoor only |
| Electrical Specifications | |
| Output Voltage | 54V DC @ 1.67A |
| Rated Voltage | 100–240V AC at 50/60Hz |
| Input Current | 1.5A Max. |
| Inrush Current | <120A peak @ 230V AC |
| Efficiency | >88% |
| Switching Frequency | 65 kHz |
| Output Ripple | 1% Max. |
| Line Regulation | ≤ 2% |
| Load Regulation | ≤ 5% |
| Max. PoE+ Wattage per Port | 90W |
| Connectivity | |
| Gigabit LAN Port | ✓ |
| 4-pair Powering | Pins 1, 2, 4, 5 (+) and 3, 6, 7, 8 (-) |
| Data In / PoE | RJ45 shielded socket |
| Protection | |
| Clamping Protection | 11V (data), 60V (power) |
| Max. Surge Discharge | 1500A (8/20 µs) power |
| Peak Pulse Current | 36A (10/1000 µs) data |
| Response Time | <1 ns |
| Shunt Capacitance | <5 pF (data) |
| Surge Protection | Differential and common mode |
| Environmental | |
| Ambient Storage Temperature | -30 to 70°C (-22 to 158°F) |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| Compliance | |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
