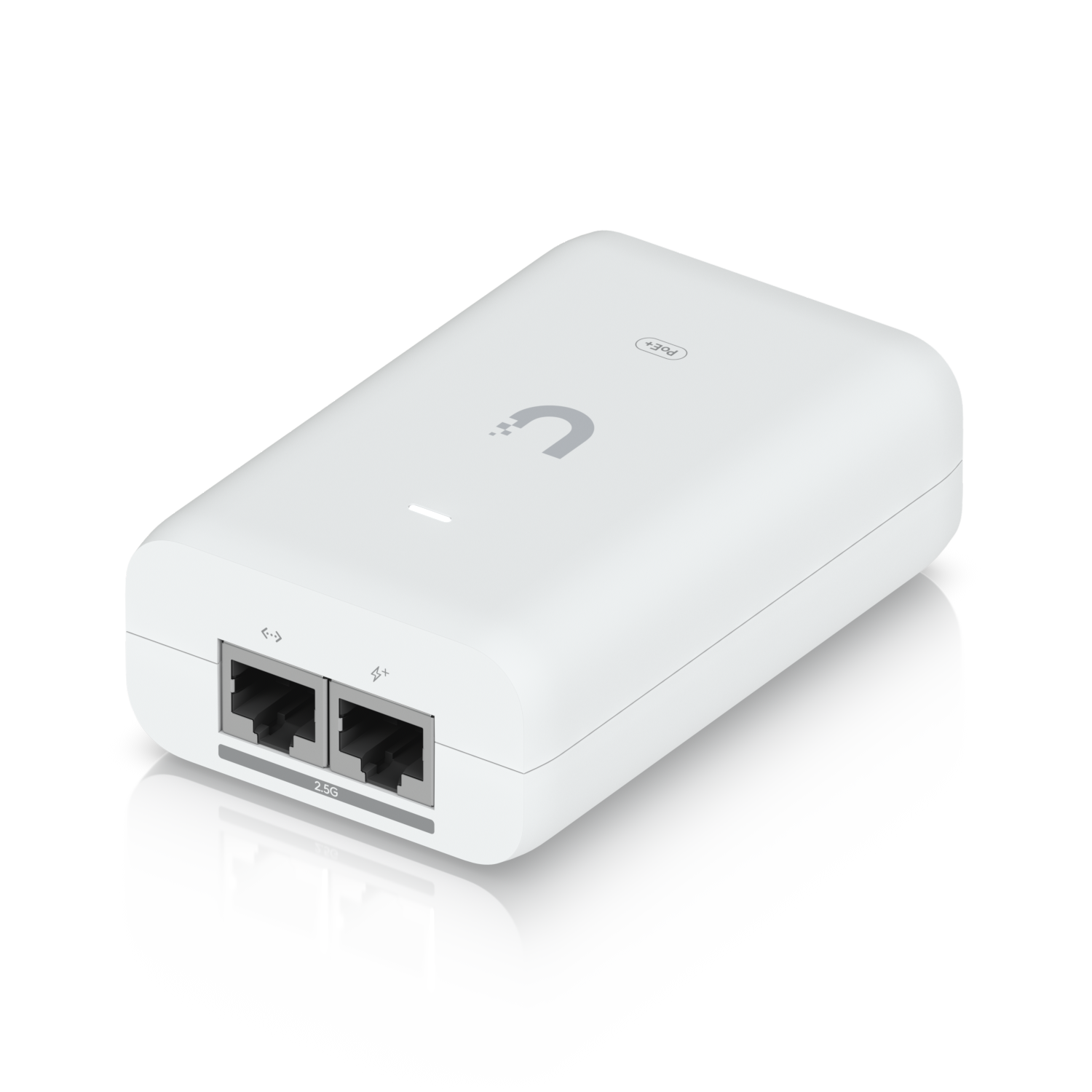

The Ubiquiti UniFi 2.5G PoE+ Adapter (30W) UACC-PoE+-2.5G is an adapter that can power UniFi PoE+ devices, reduce dependency on PoE switch power, and provide a Multi-Gigabit LAN connection.
Delivers up to 30W of PoE+
Surge, peak pulse, and overcurrent protection

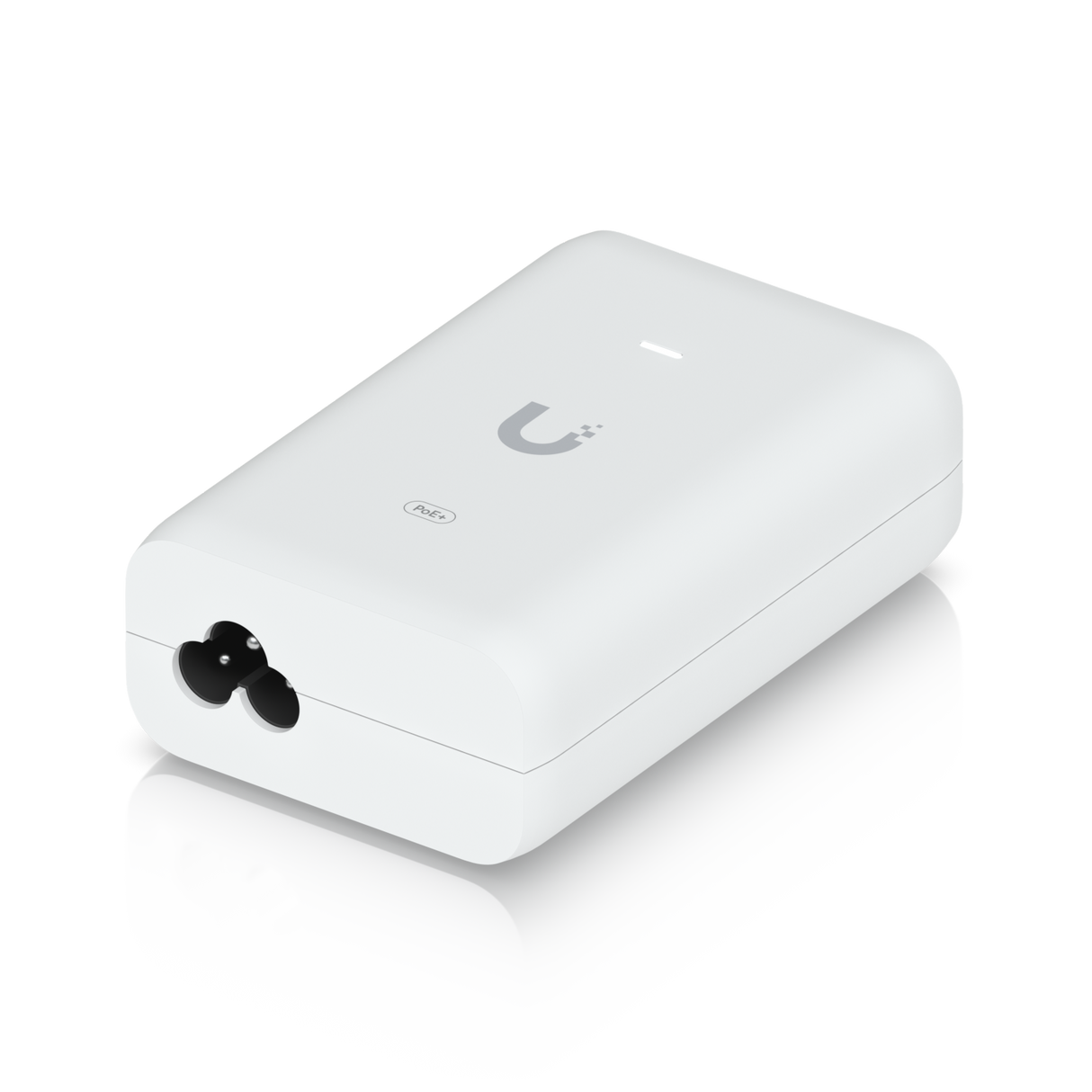

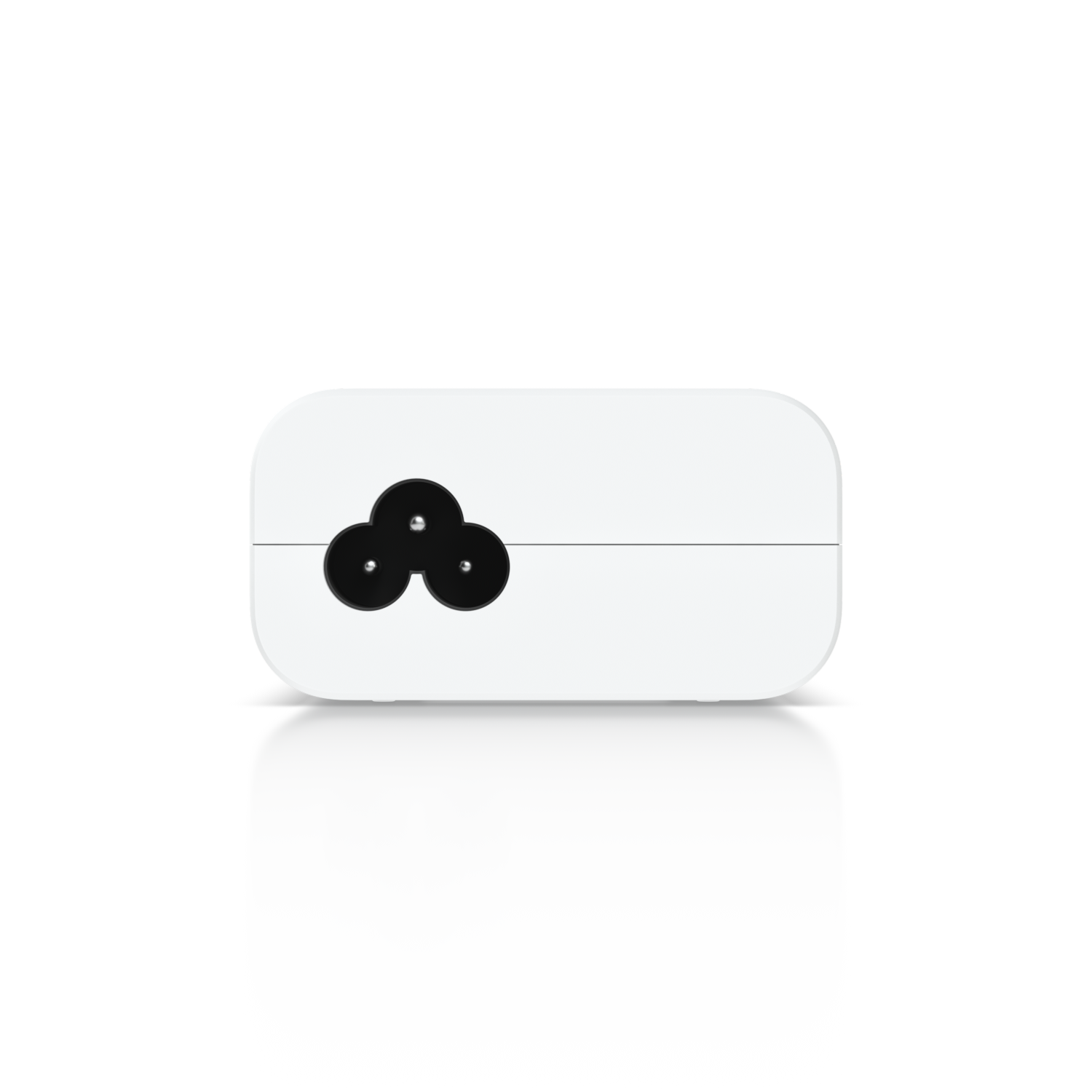

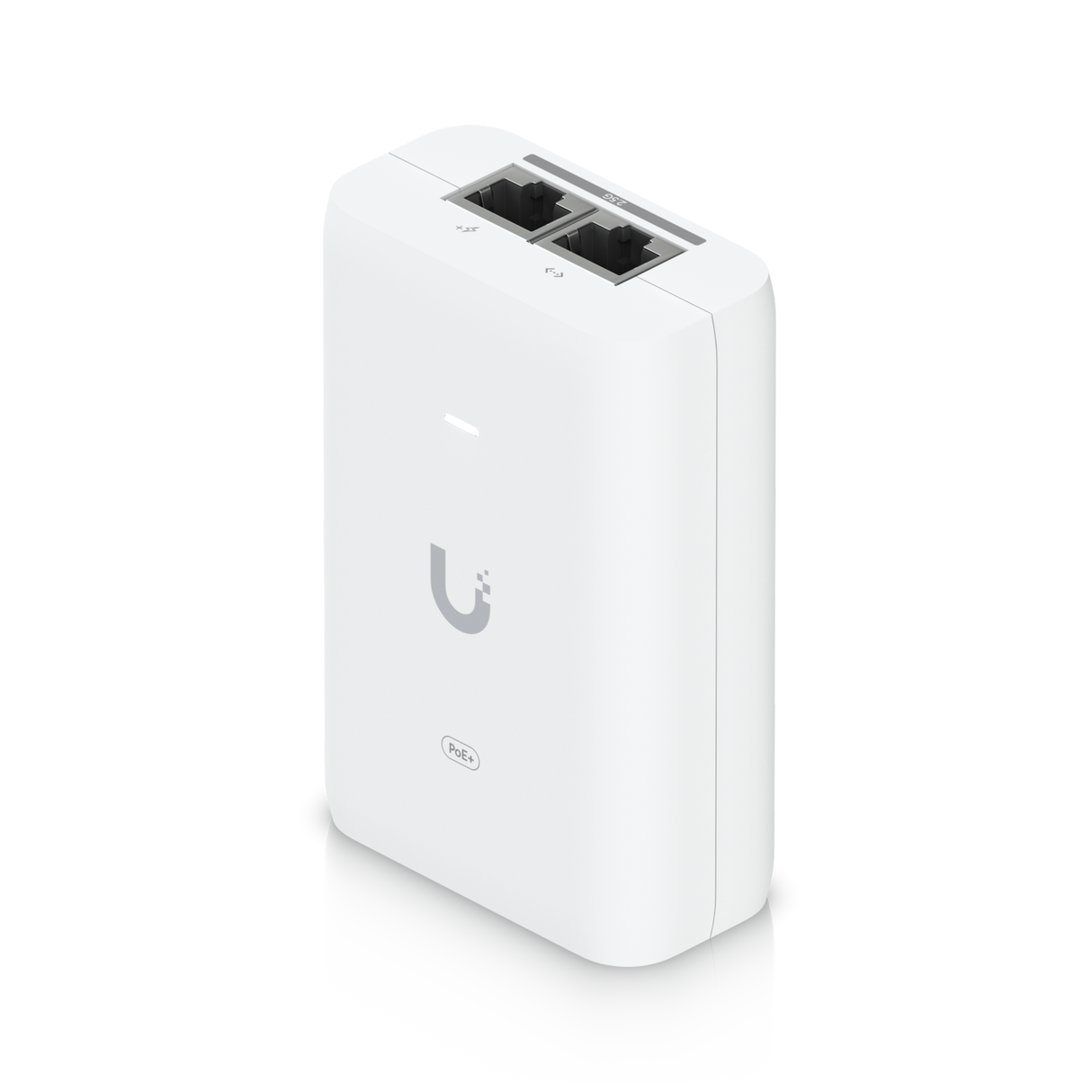

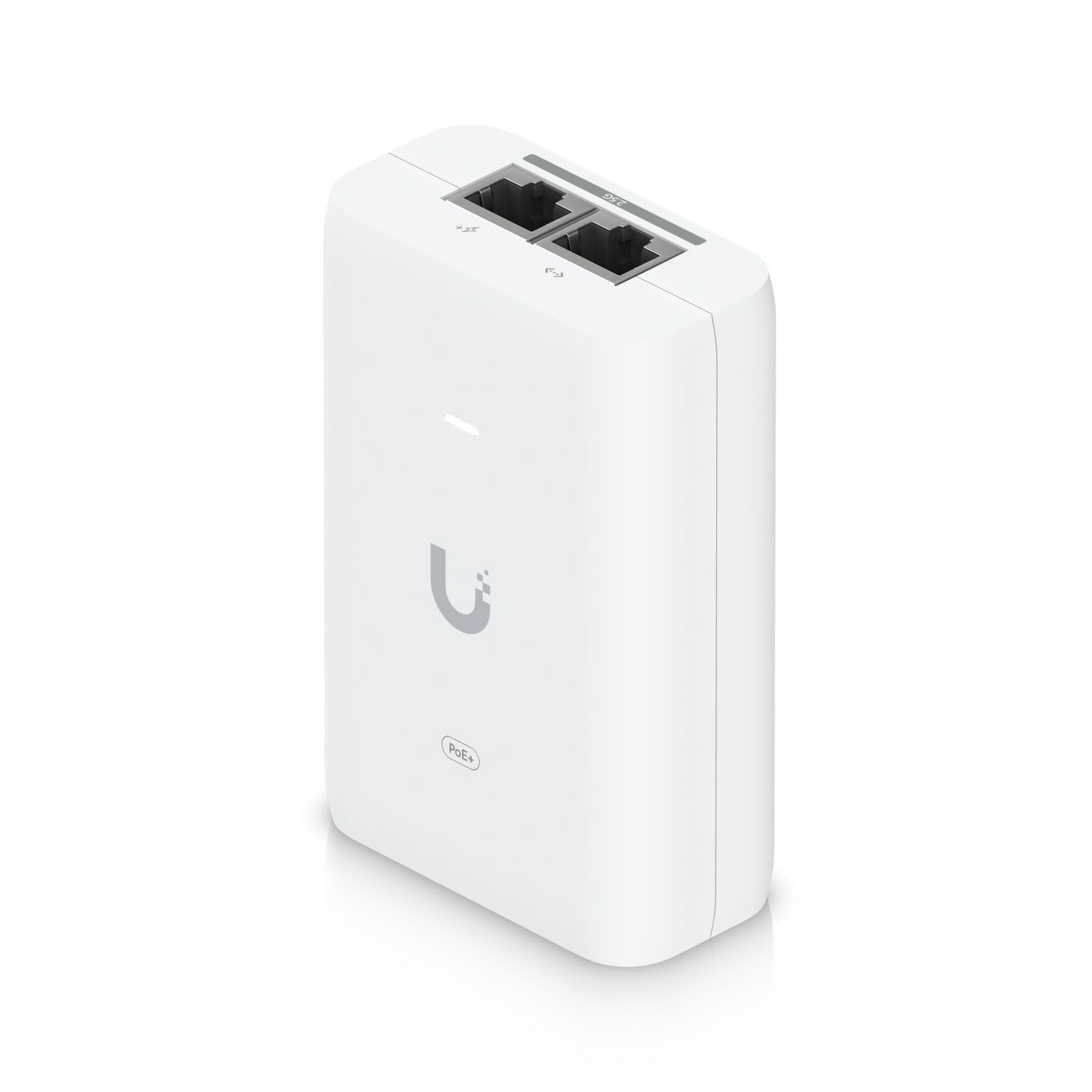

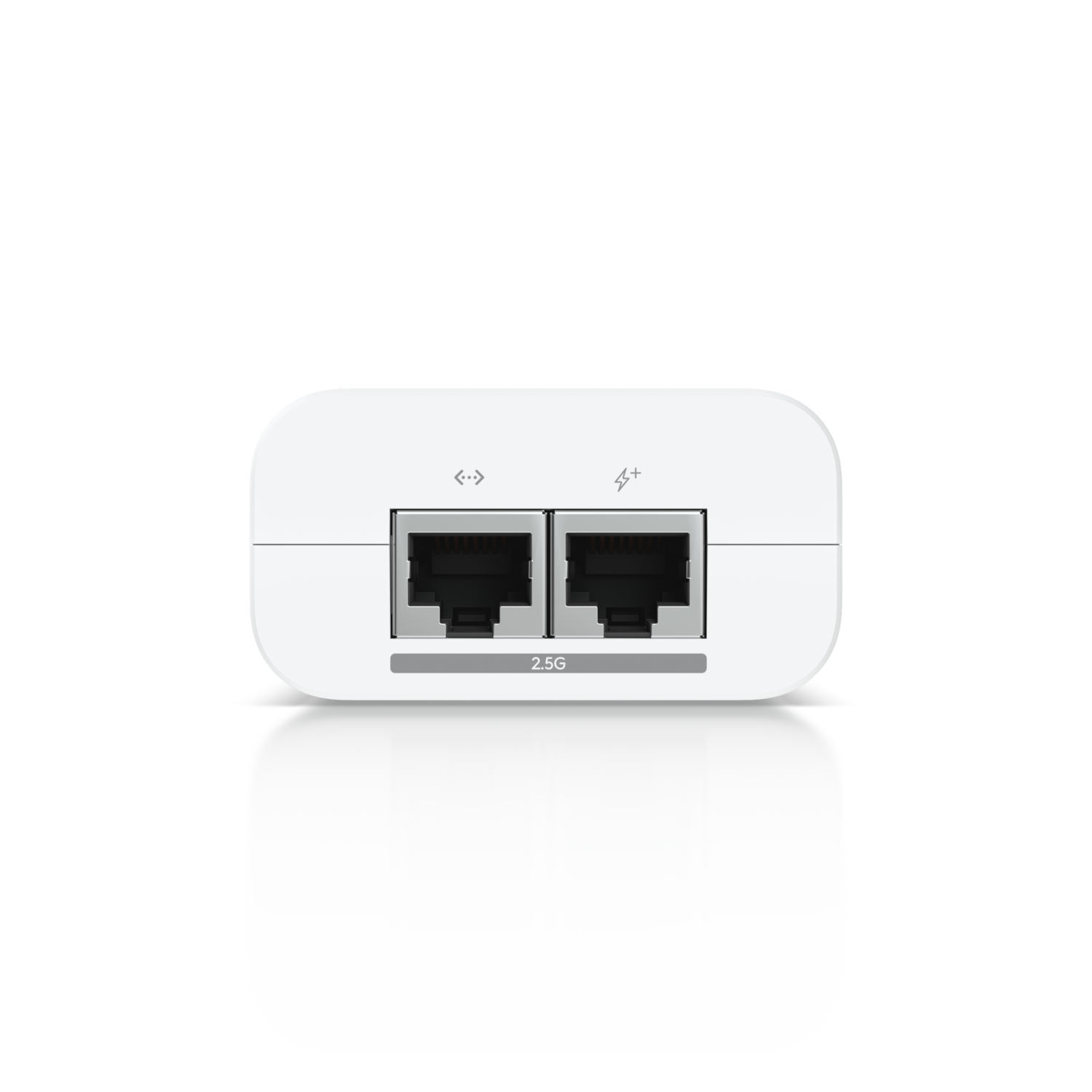

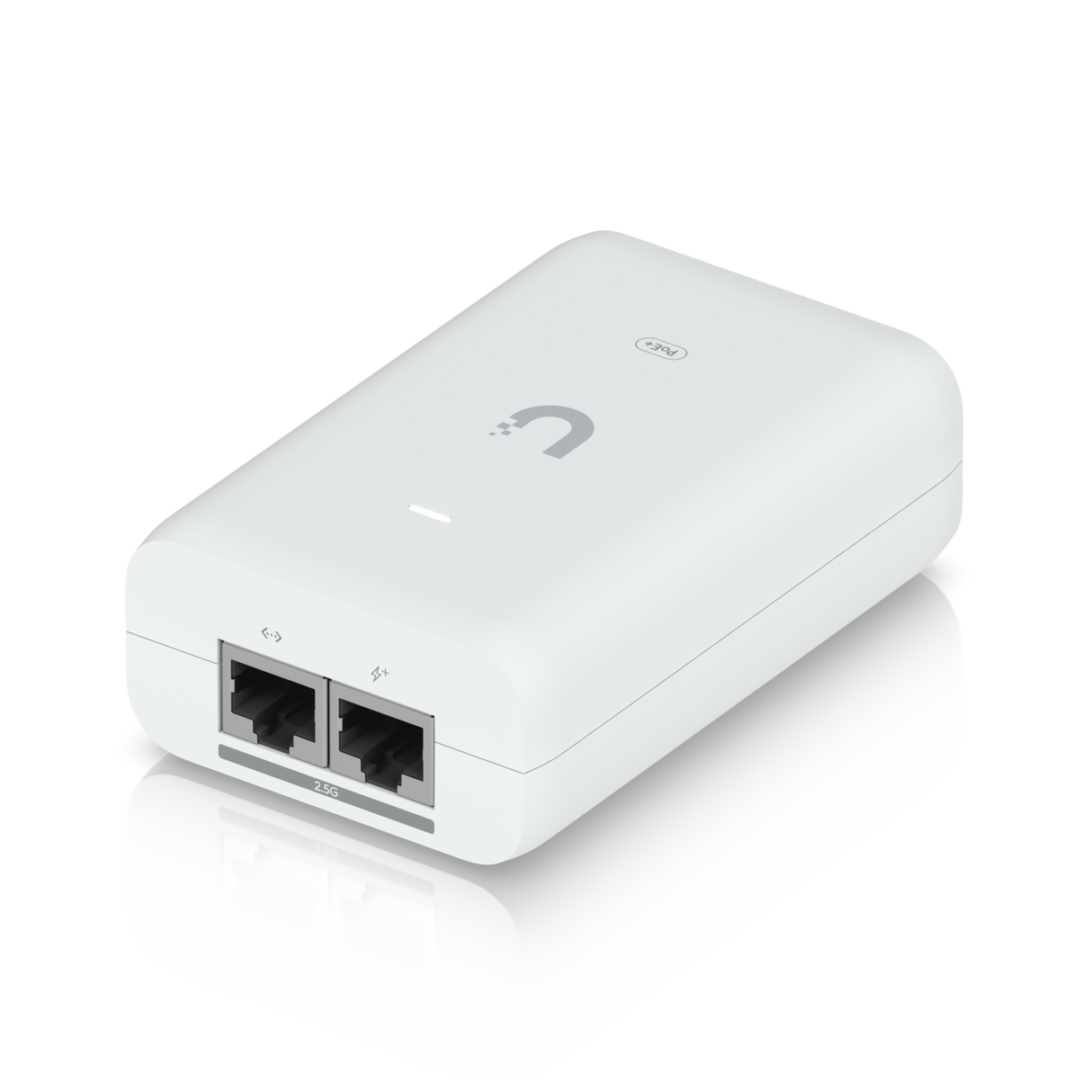

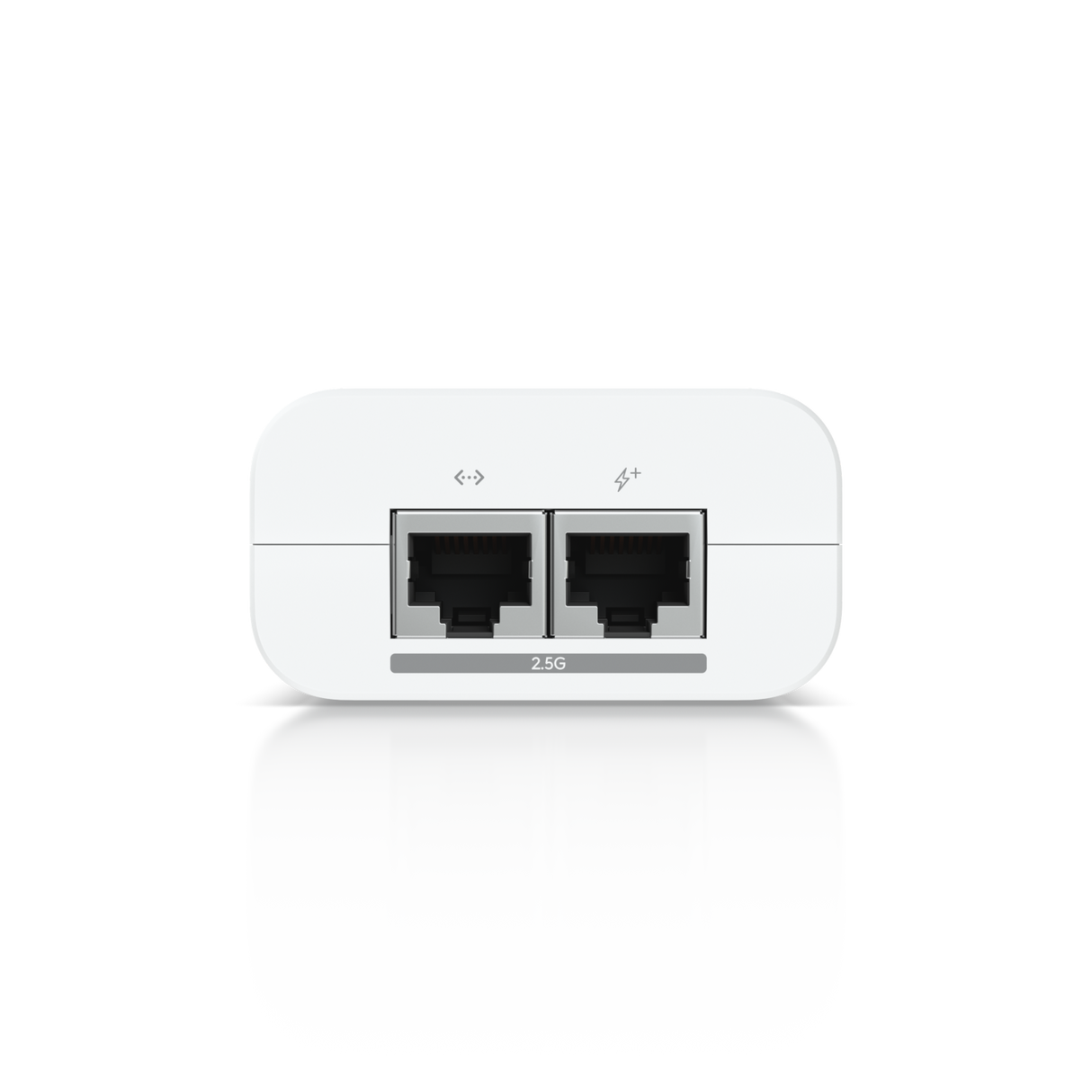

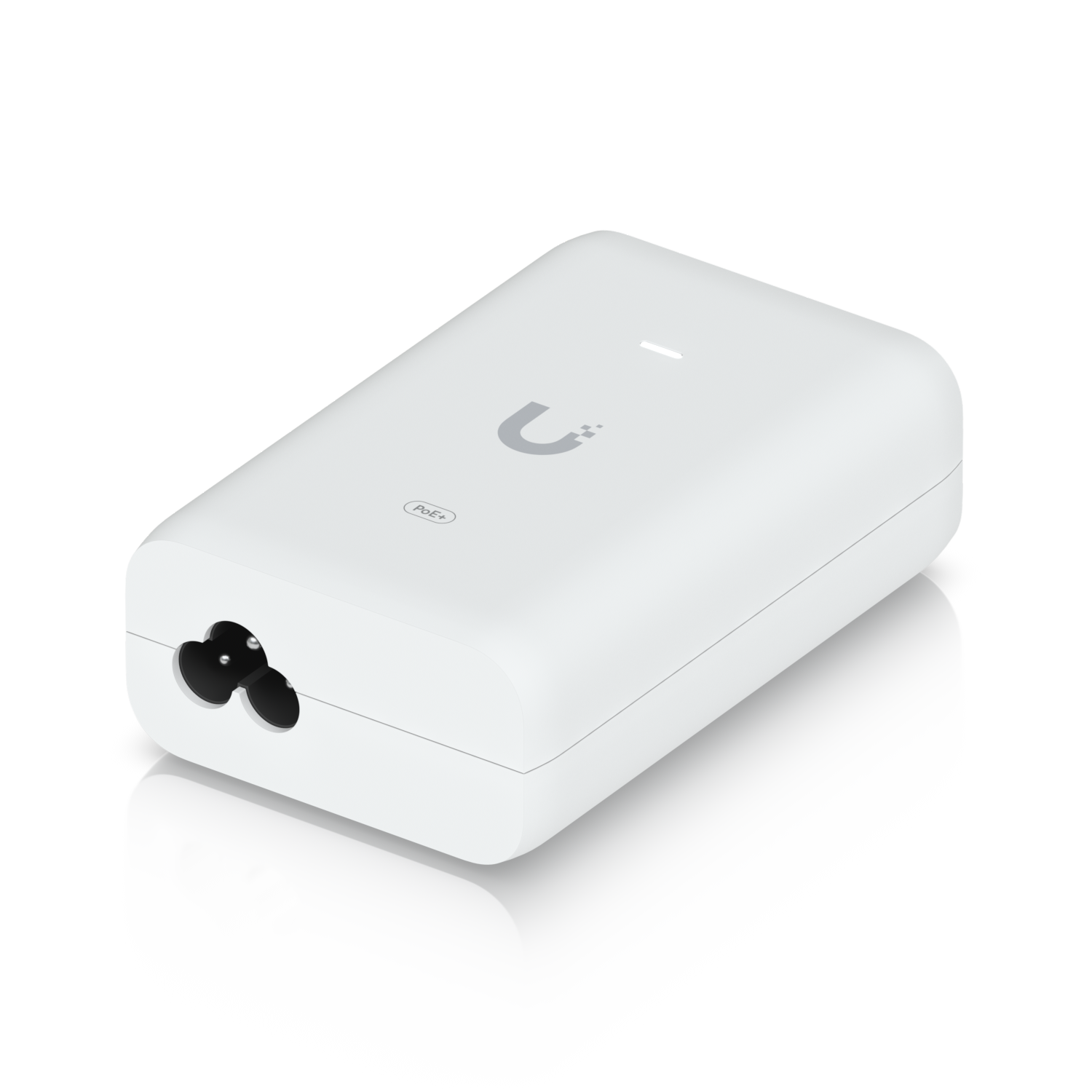

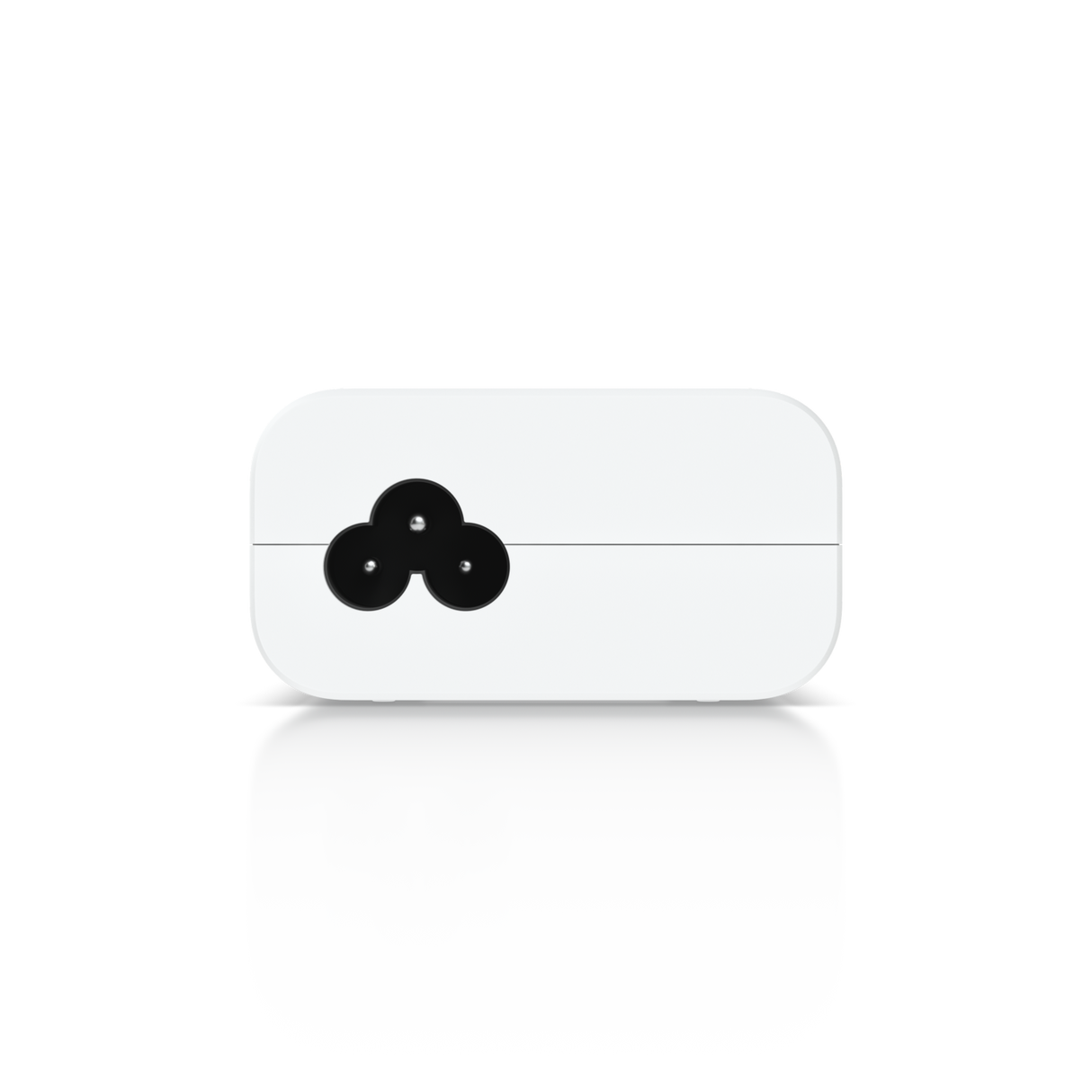

Contains RJ45 data input, AC cable with earth ground, and PoE+ output

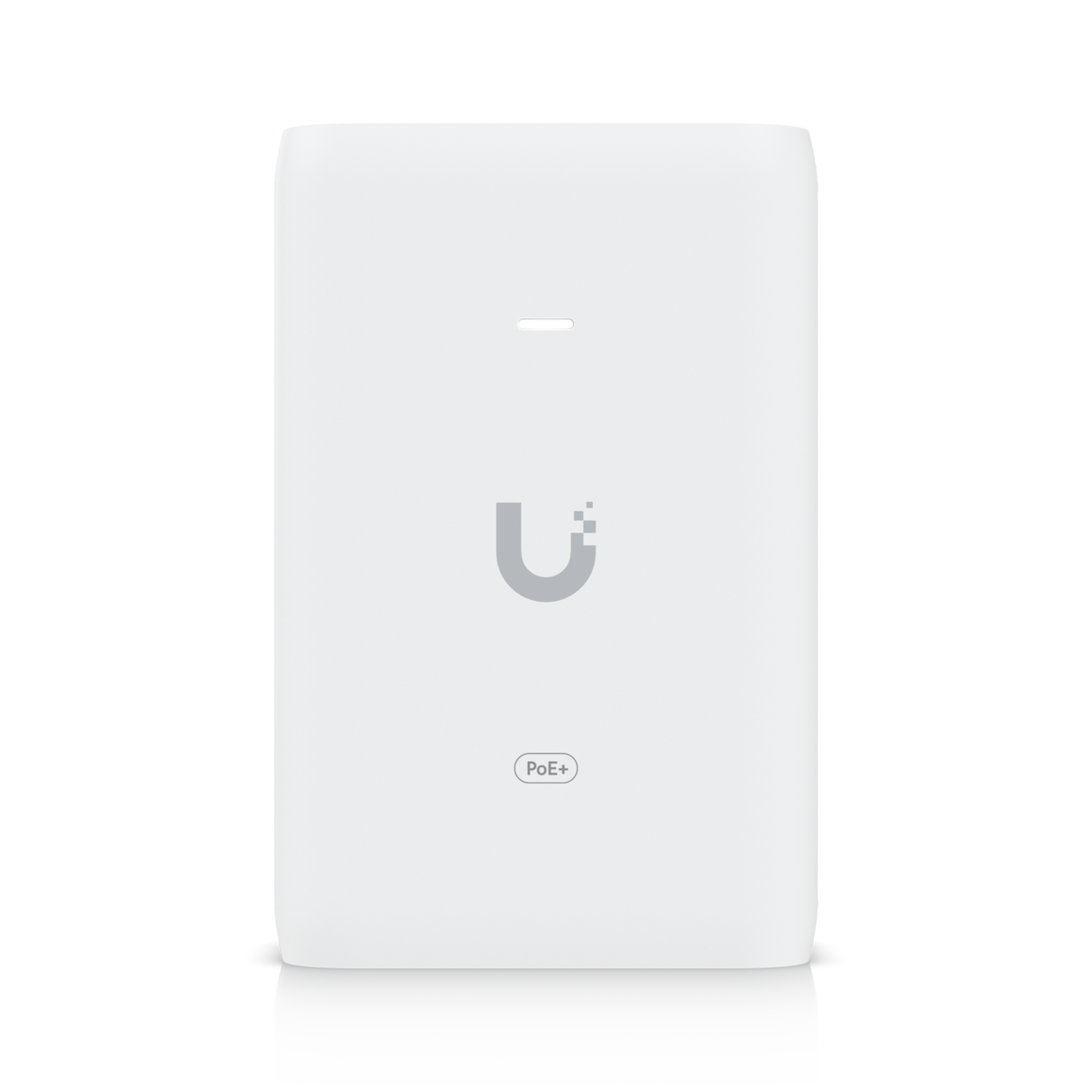

LED indicator for status monitoring
Compatibility
U7-Pro
U7-Outdoor
U7-Pro-Max
U7-Pro-Wall
U7-Pro-Outdoor
U7-IW
U7-Lite
U6-Enterprise-IW
U6-Enterprise
Technical Specifications
| Dimensions | 93 x 62 x 35 mm (3.7 x 2.4 x 1.4") |
| Weight | 156 g (5.5 oz) |
| Output voltage | 48V DC @ 0.65A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes, up to 2.5 GbE |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 0.75A max. |
| Inrush current | <150A peak @ 230V AC |
| Efficiency | >87% |
| Output ripple | 1% max. |
| Switching frequency | 65 kHz max. |
| Line regulation | ≤ 1% |
| Load regulation | ≤ 3% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |
| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |

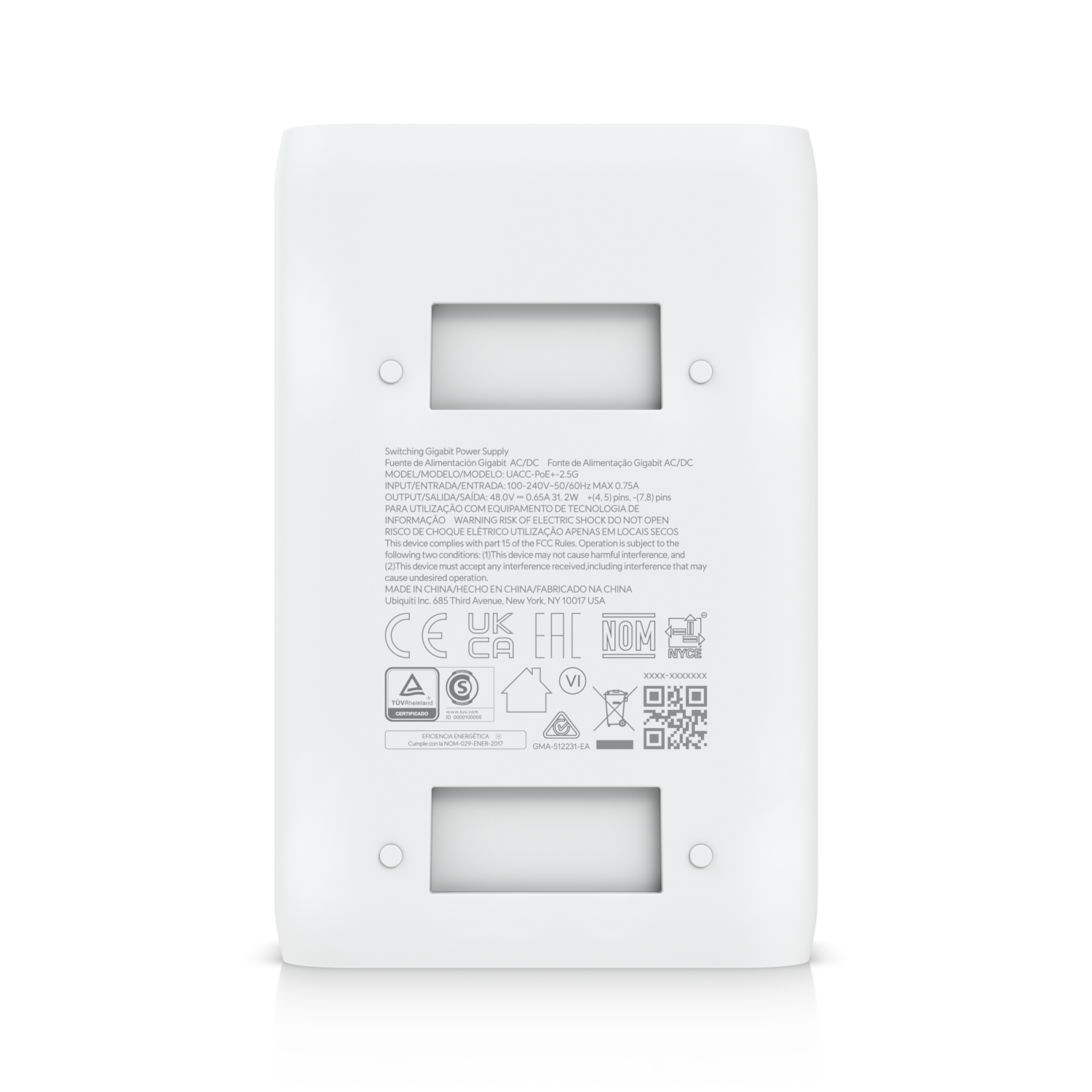

| Certifications | CE, FCC, IC, UL, UKCA, KC, CCC, RoHS |
