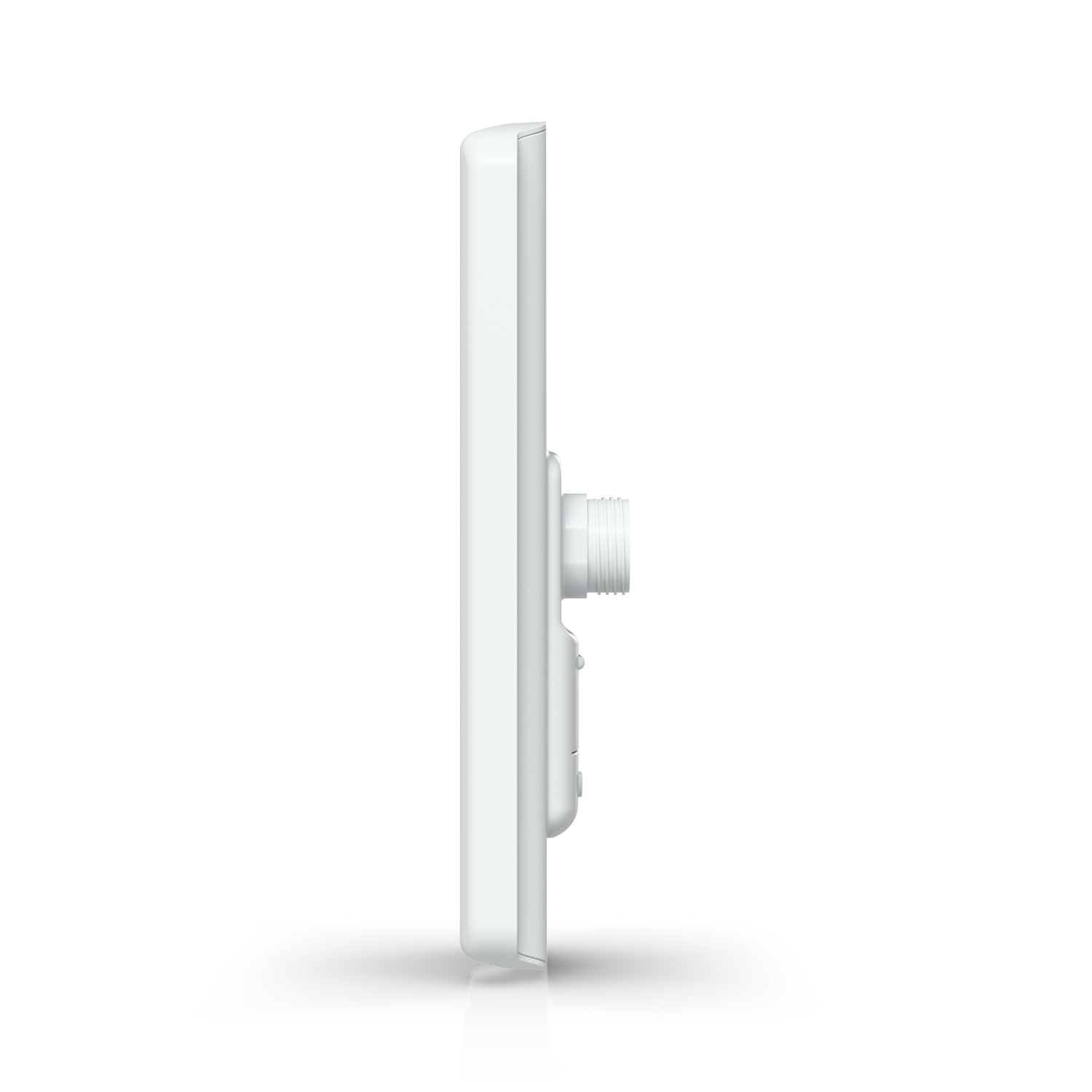

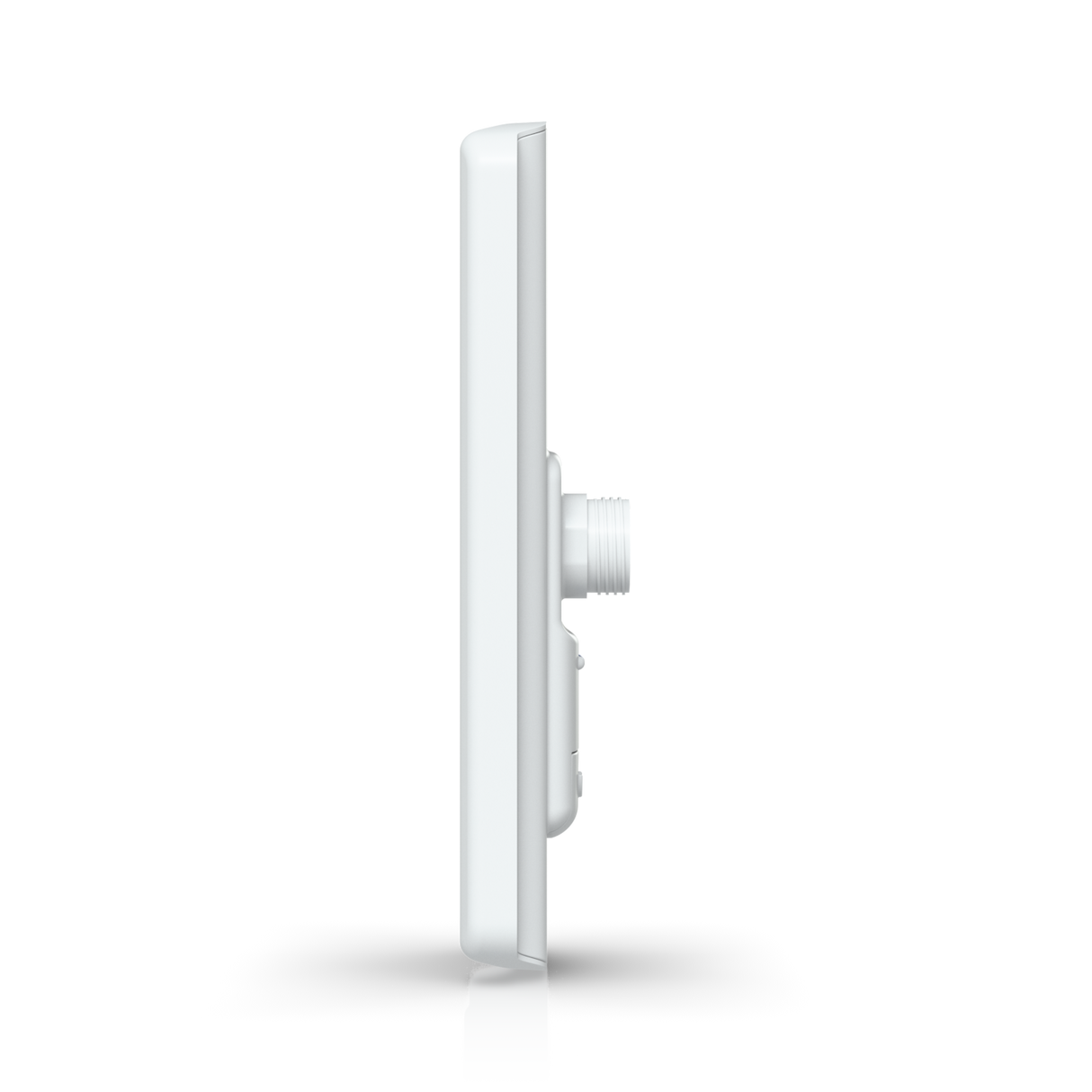

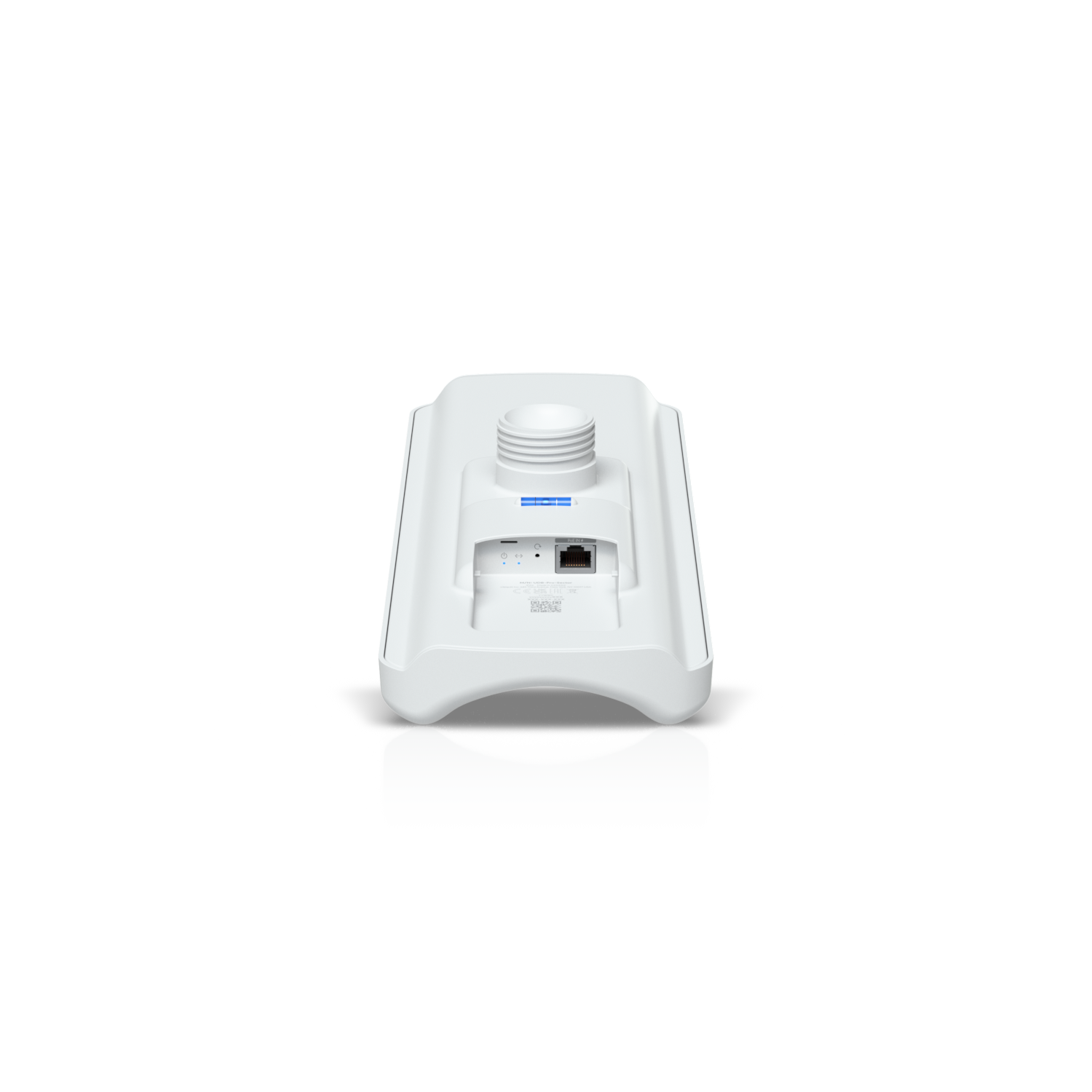

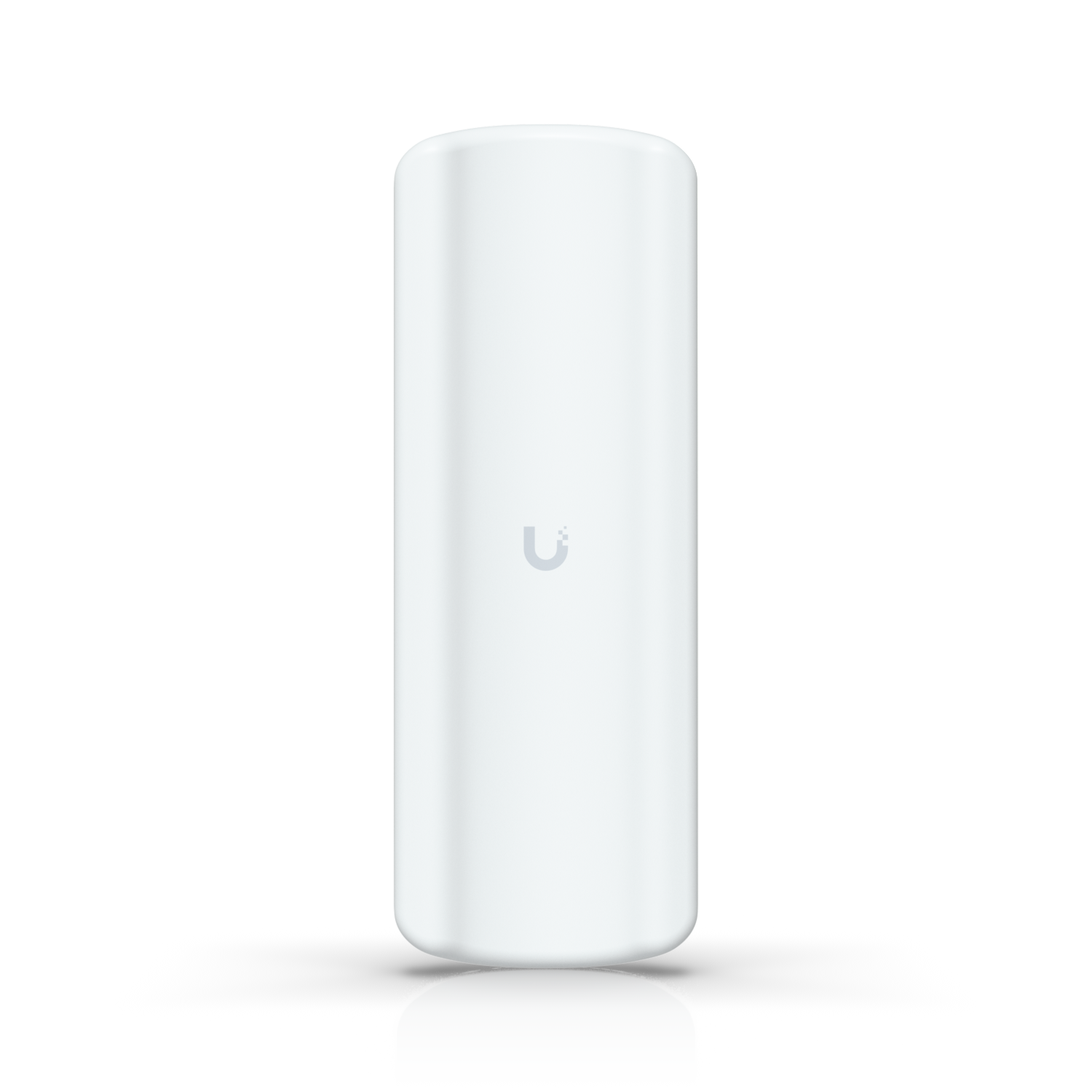

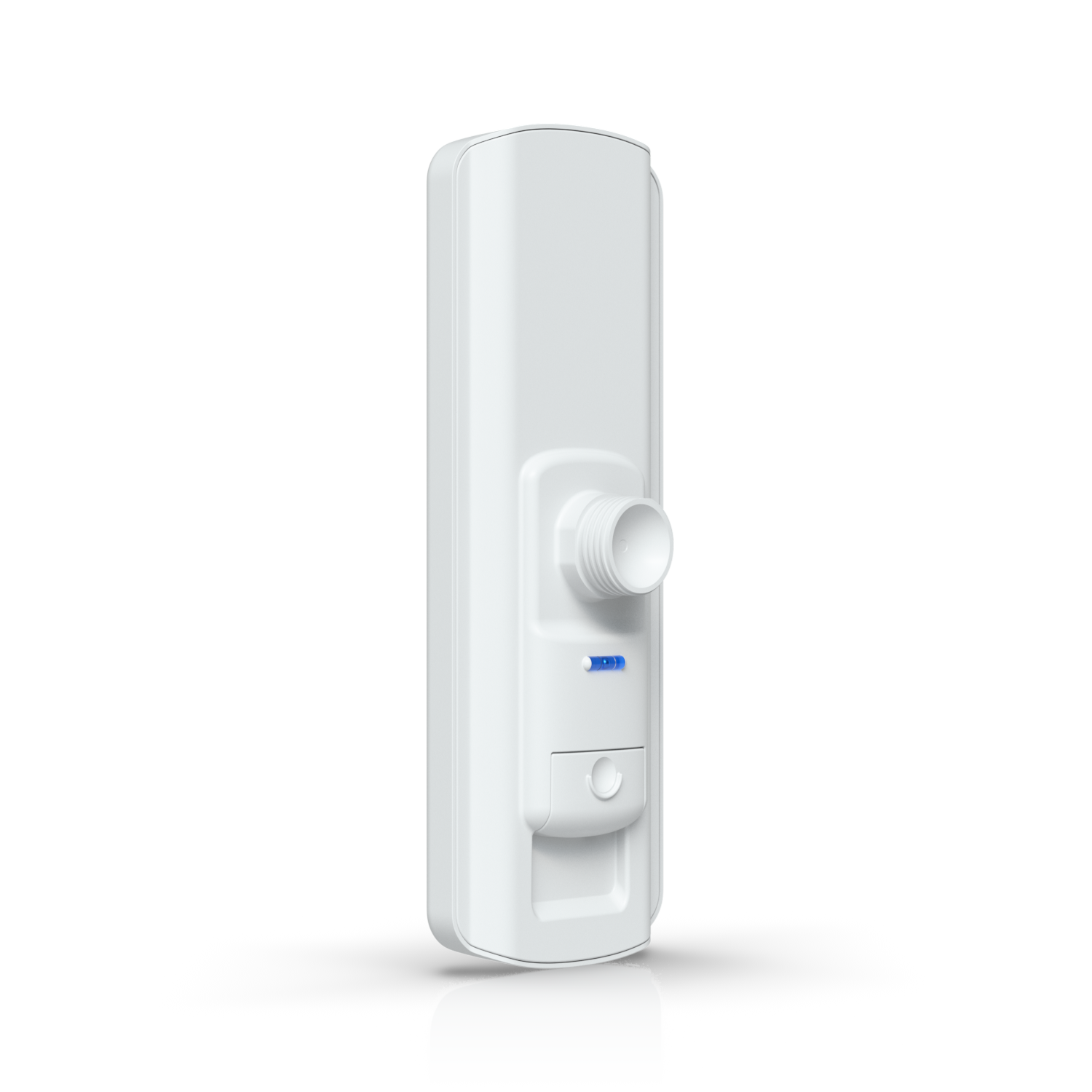

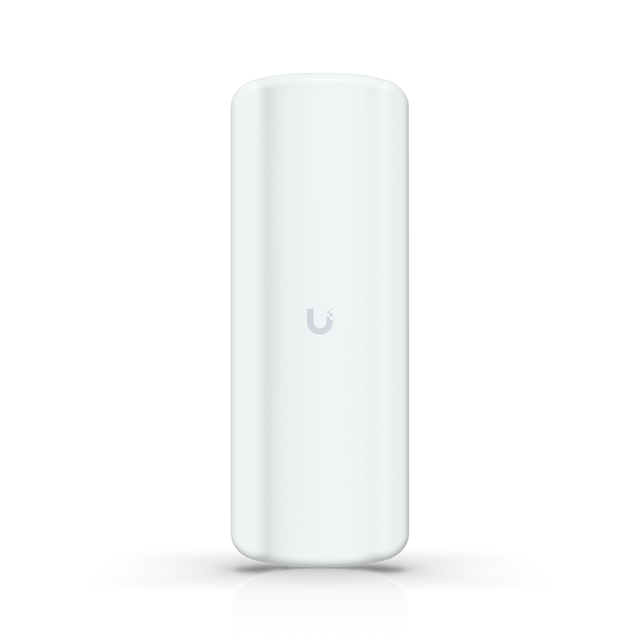

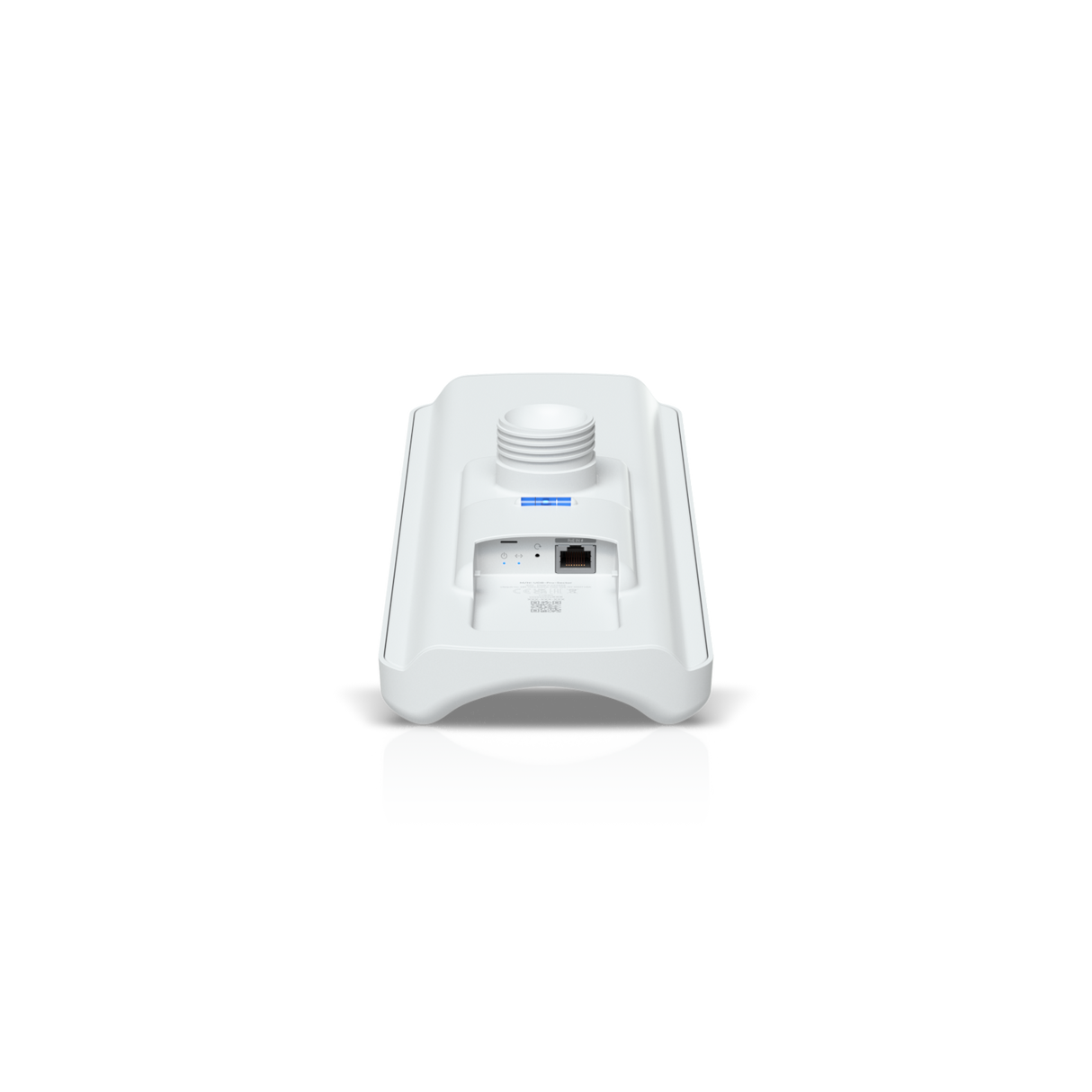

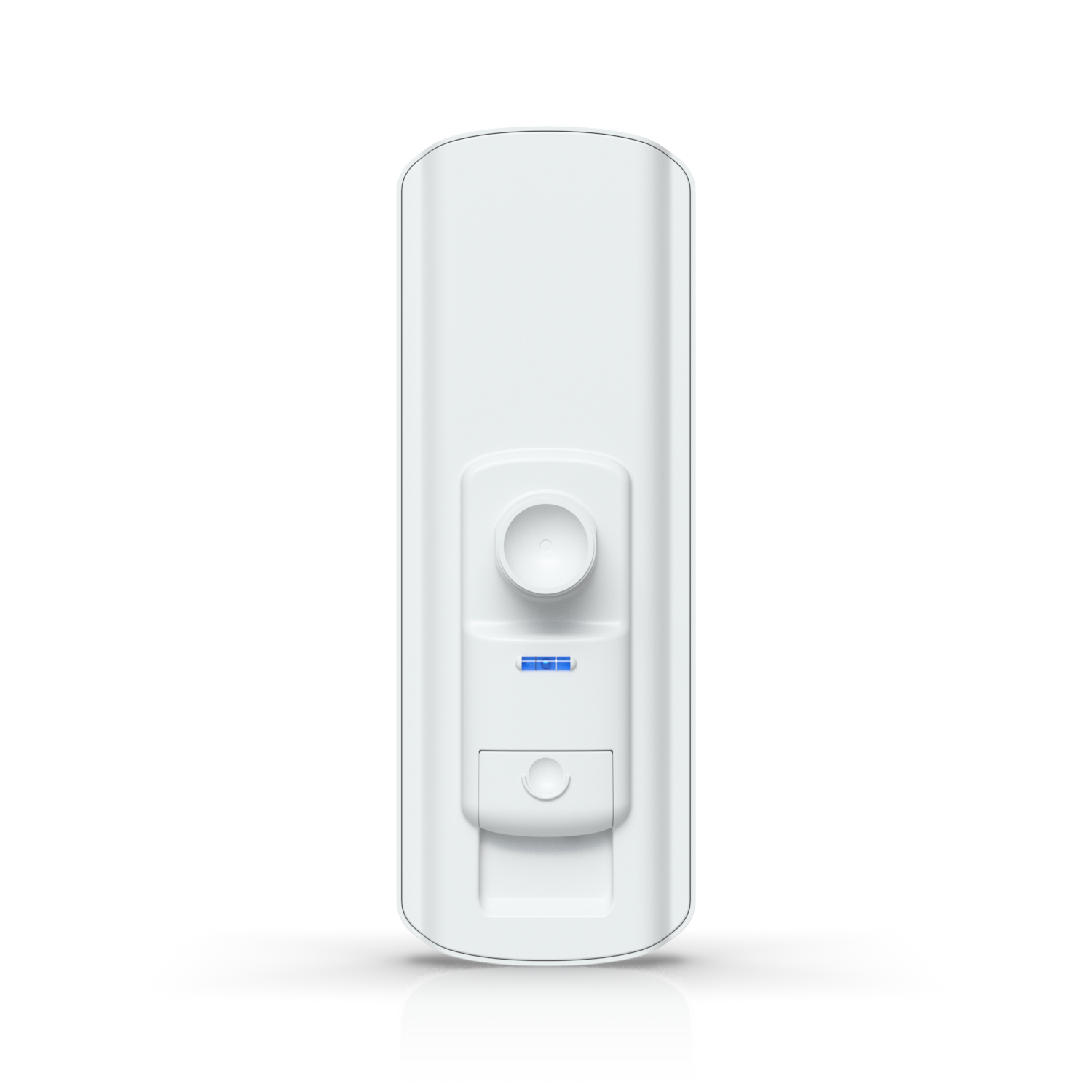

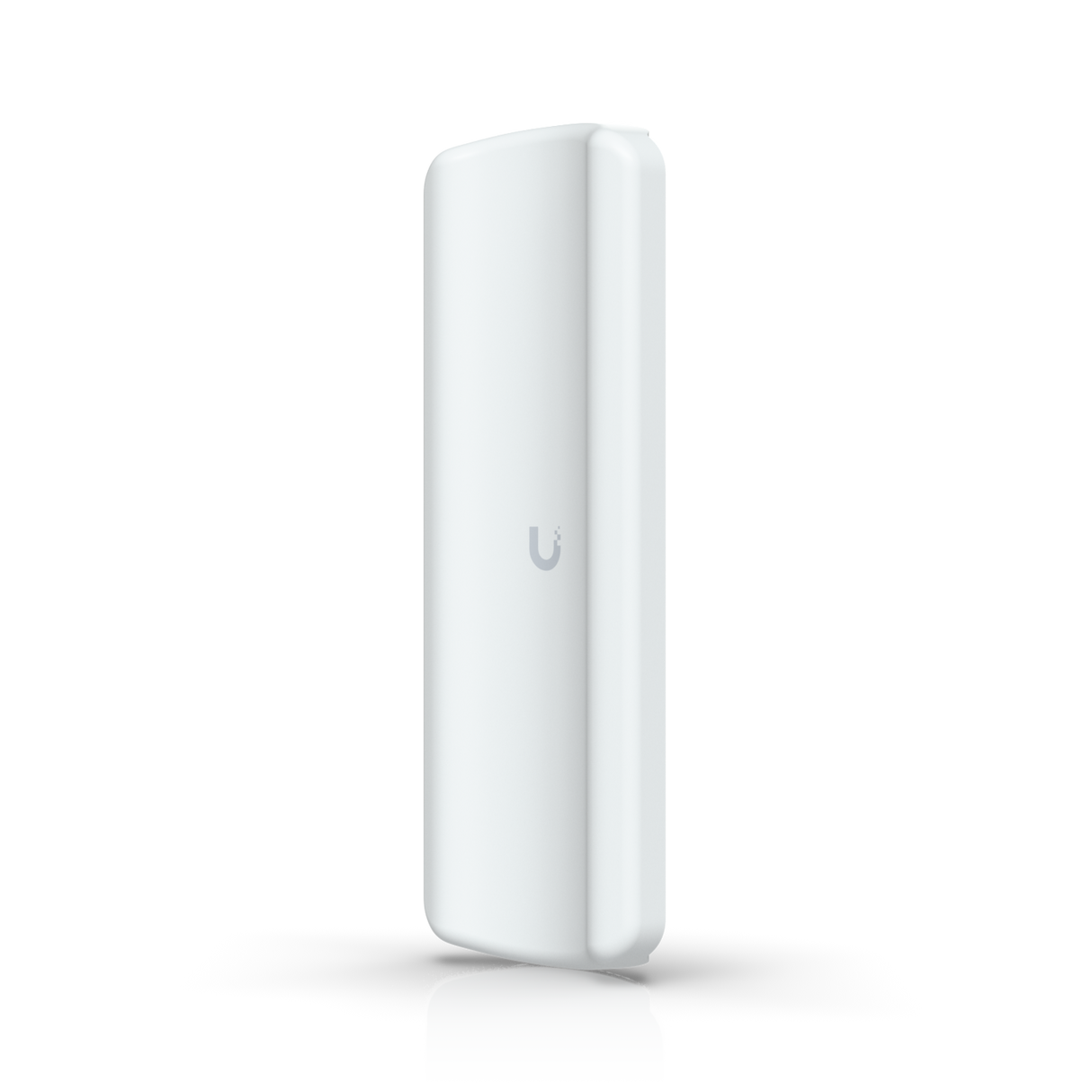

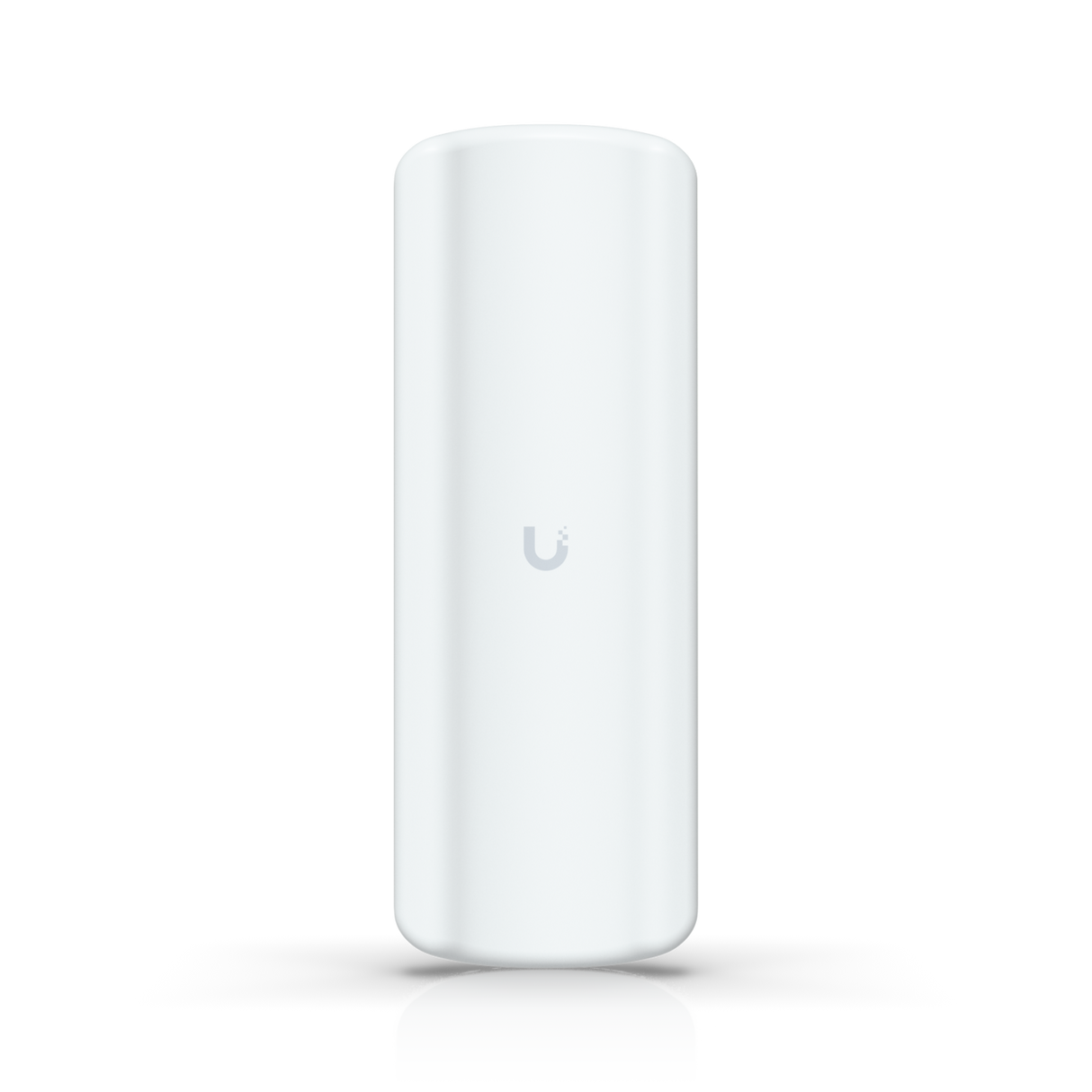

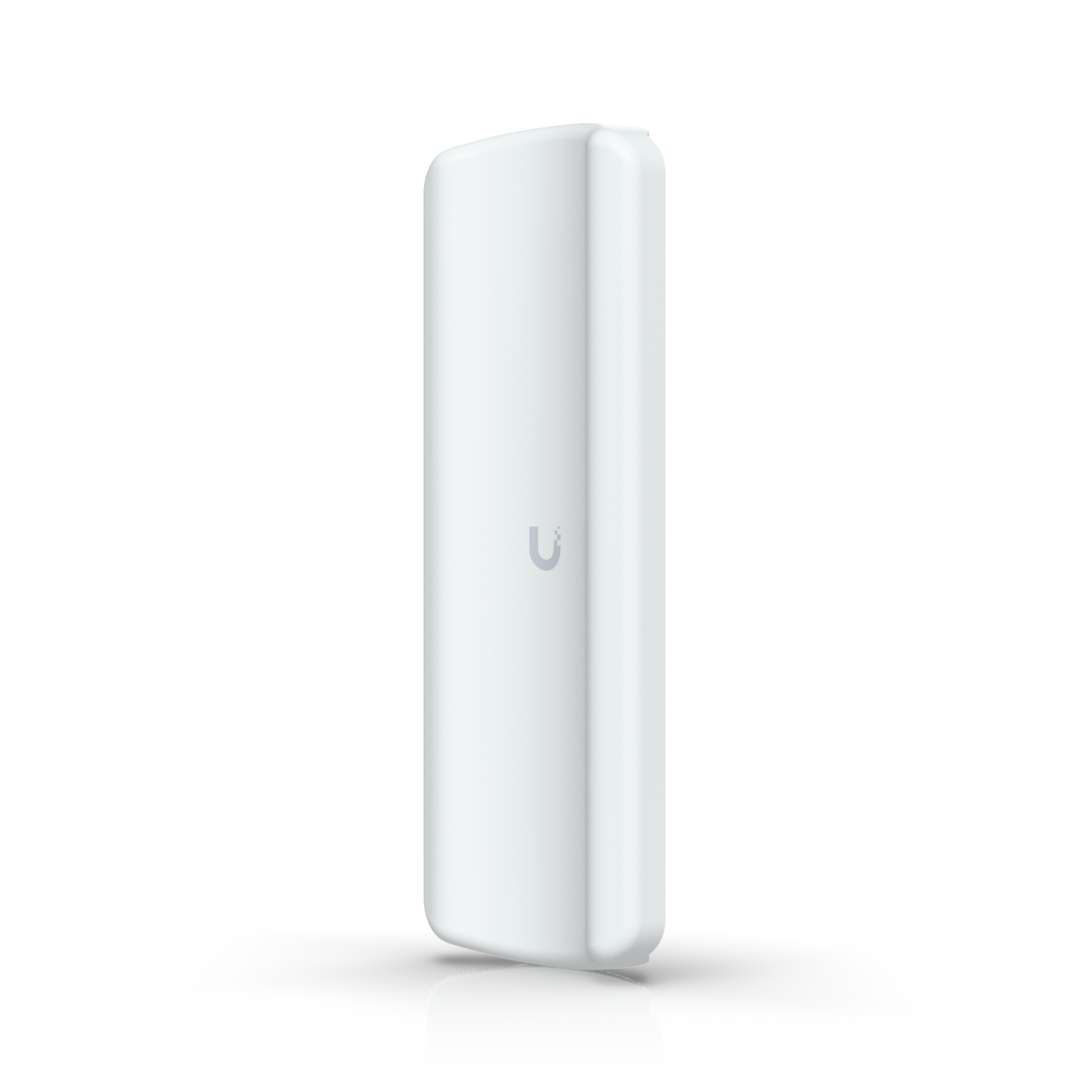

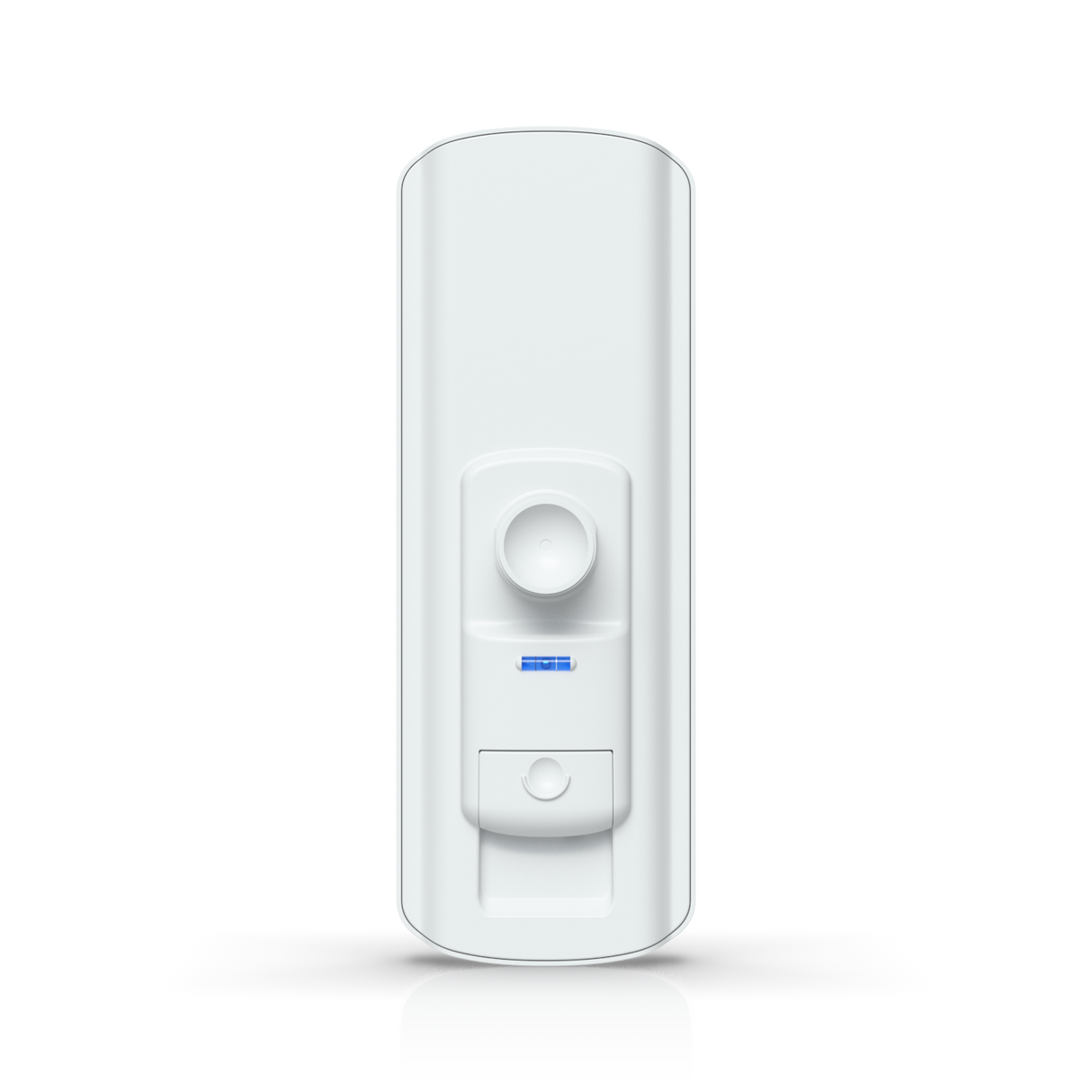

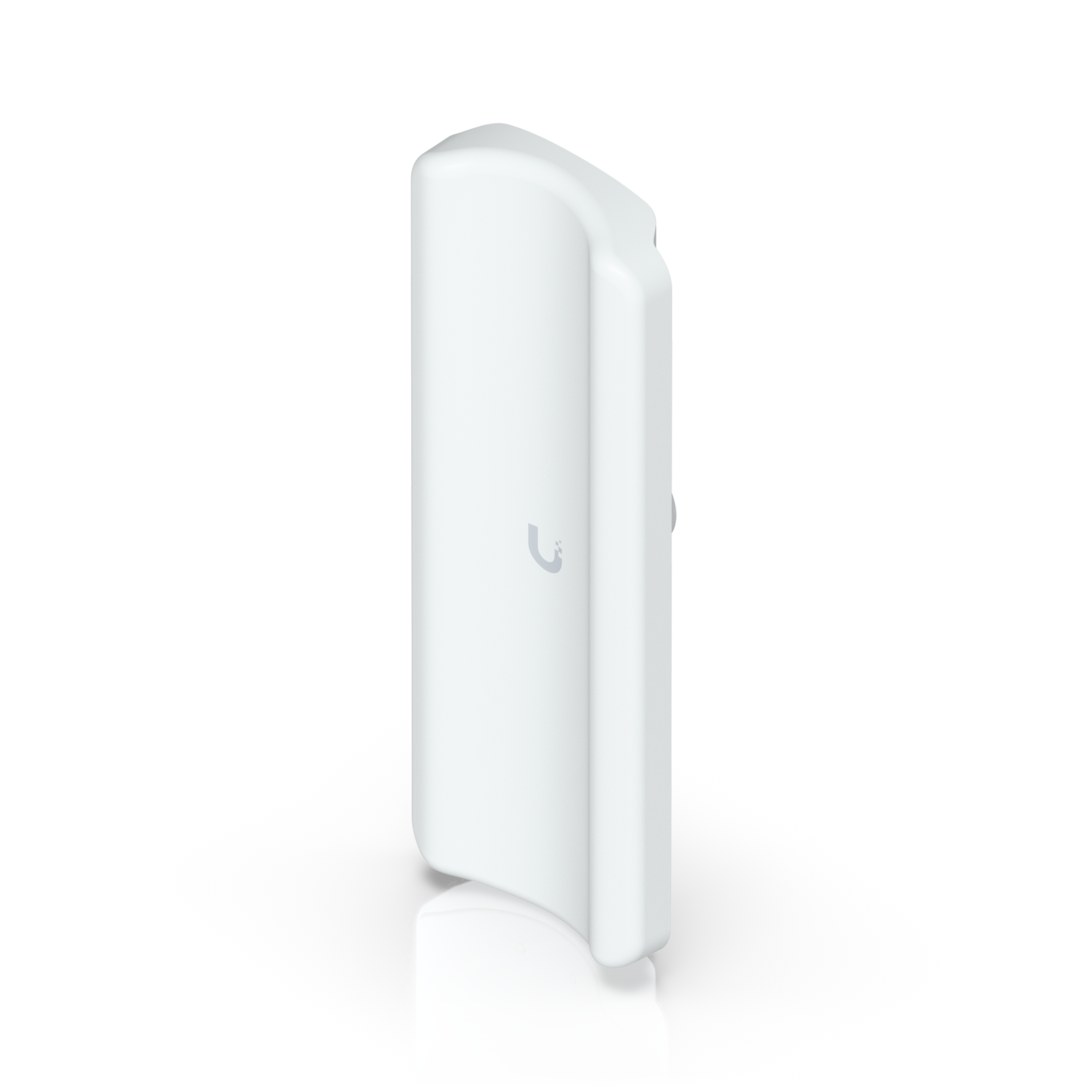

The Ubiquiti UniFi Device Bridge Pro Sector UDB-PRO-SECTOR is a 5 GHz point-to-multipoint access point that wirelessly bridges 40+ Device Bridge Pro clients at 5+ km distances.
Technical Specifications
| Category | Feature | Specification |
|---|---|---|
| Overview | Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8”) |
| WiFi Standard | WiFi 5 | |
| Spatial Streams | 2 | |
| Coverage Area | 5 km (3.1 mi) | |
| Mounting Locations | Pole | |
| Weatherproofing | IPX6 | |
| Power Method | PoE | |
| Performance | MIMO – 5 GHz | 2 x 2 |
| Max. Data Rate – 5 GHz | 400 Mbps (BW40) | |
| Antenna Gain – 5 GHz | 17 dBi | |
| Max. TX Power – 5 GHz | 25 dBm | |
| Max. Conducted TX Power | 25 dBm (Combined) | |
| Supported Data Rates – 802.11ac | 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) | |
| Supported Data Rates – 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| Supported Data Rates – 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| Wireless Security | WPA2 AES (Always On) | |
| Hardware | Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5–57V DC | |
| Networking Interface | (1) GbE RJ45 port | |
| Antennas | Internal | |
| Management | Ethernet, WiFi | |
| Wind Loading | 128.2N at 200 km/h | |
| Weight | 782 g (1.7 lb) device only835 g (1.8 lb) with mount | |
| Mount Material | UV-stabilized polycarbonate, stainless steel | |
| Enclosure Material | UV-stabilized polycarbonate | |
| Pole Mount Diameter | 0.9—2.4" (24—60 mm) | |
| Button | (1) Factory-reset | |
| LEDs | System, Power, Ethernet | |
| Channel Bandwidth | 20/40 MHz | |
| Certifications | CE, FCC, IC | |
| NDAA Compliant | ✓ | |
| Operating Frequency – US/CA | U-NII-1: 5150–5250 MHzU-NII-2A: 5250–5350 MHzU-NII-2C: 5470–5725 MHzU-NII-3: 5725–5850 MHz | |
| Operating Frequency – Worldwide | 5150–5875 MHz | |
| Ambient Operating Temperature | -40 to 60° C (-40 to 140° F) | |
| Ambient Operating Humidity | 5 to 95% noncondensing |
