Ubiquiti  |  SKU: UACC-Cable-DoorLockRelay-2P

Ubiquiti UniFi Door Lock Relay Cable UACC-Cable-DoorLockRelay-2P

$159.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

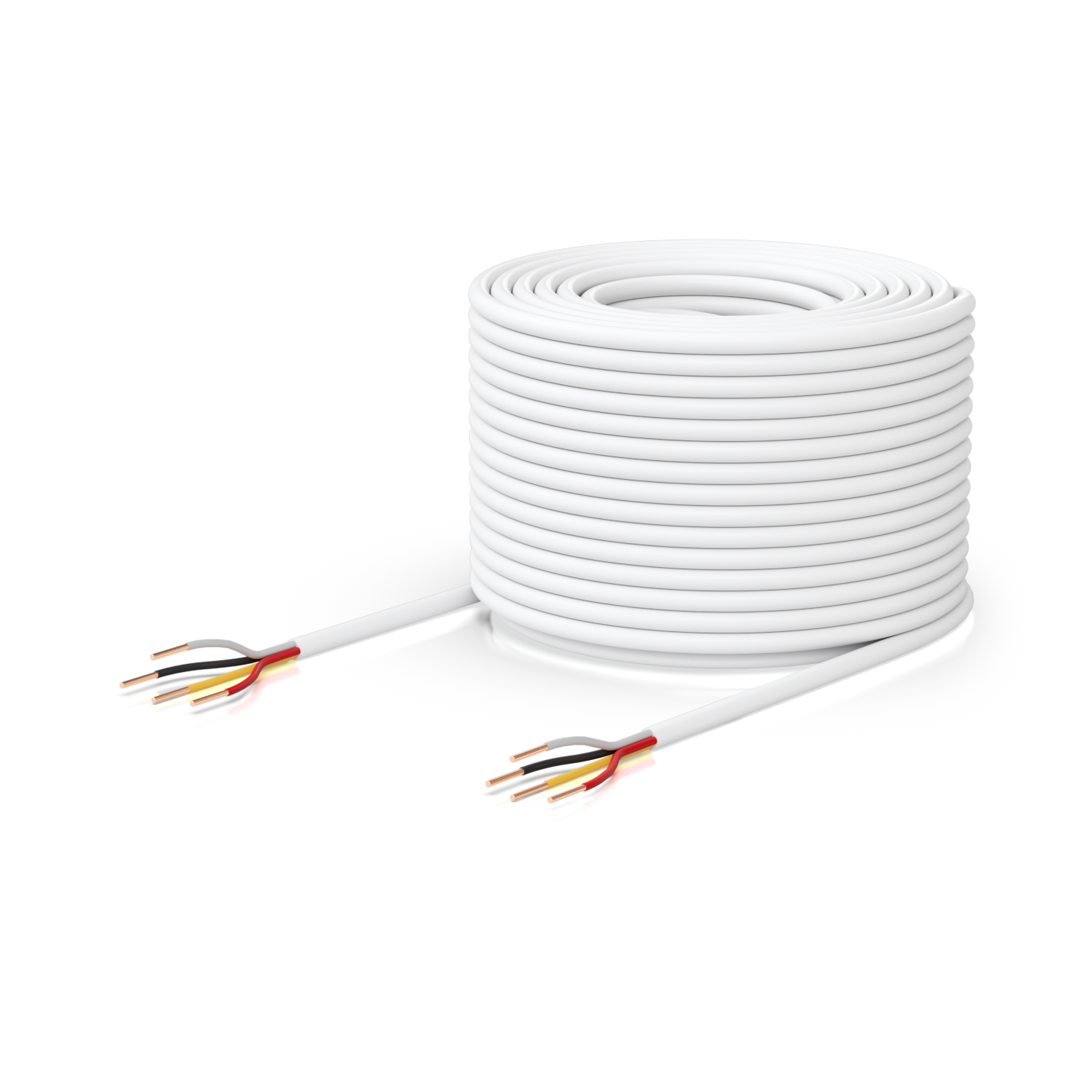

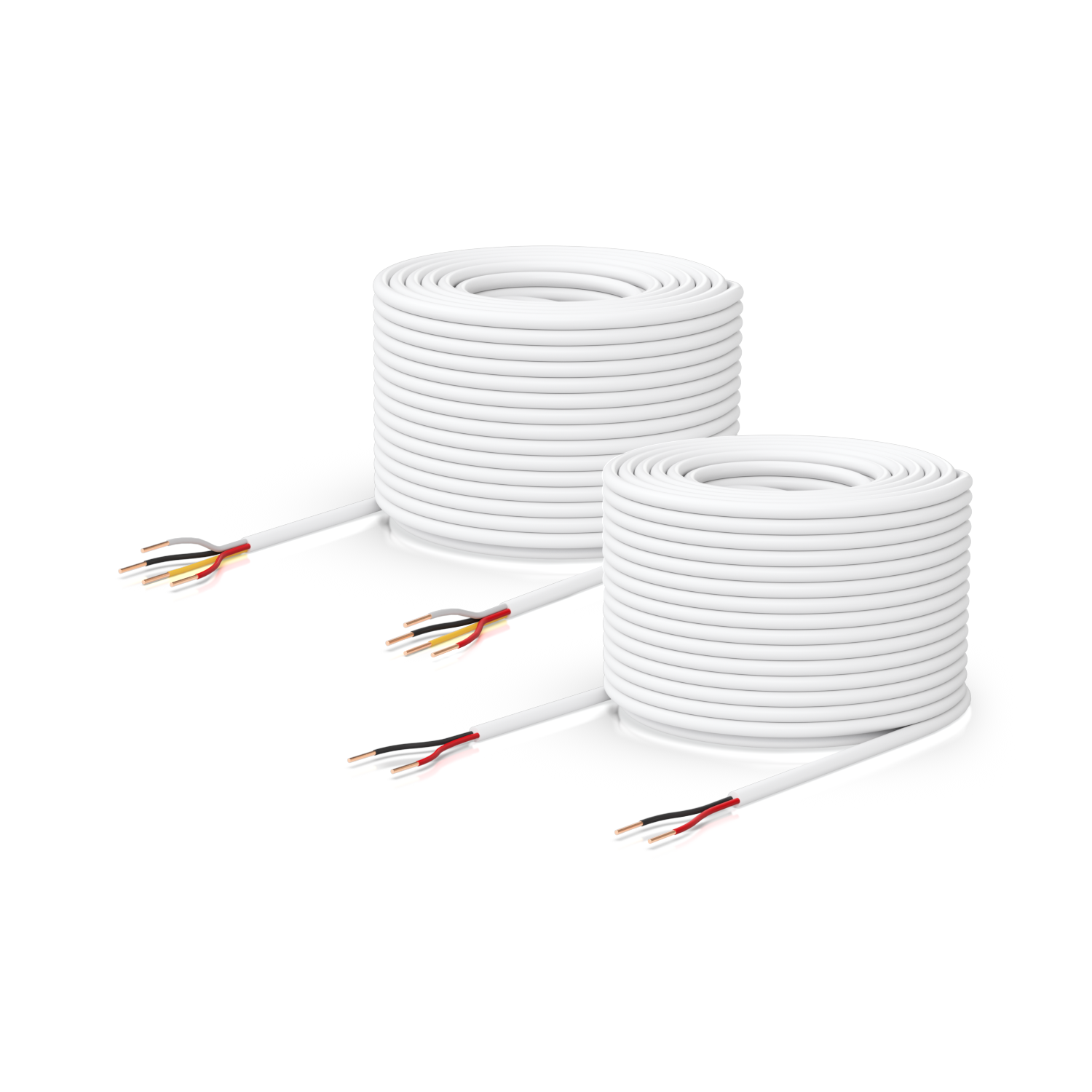

The Ubiquiti UniFi Door Lock Relay Cable UACC-Cable-DoorLockRelay-2P is a 500-foot (152.4 m) spool of one or two-pair, low-voltage cable.

1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub

2-Pair Relay Cable: Connects an electric/magnetic lock and door position sensor to an Access Hub

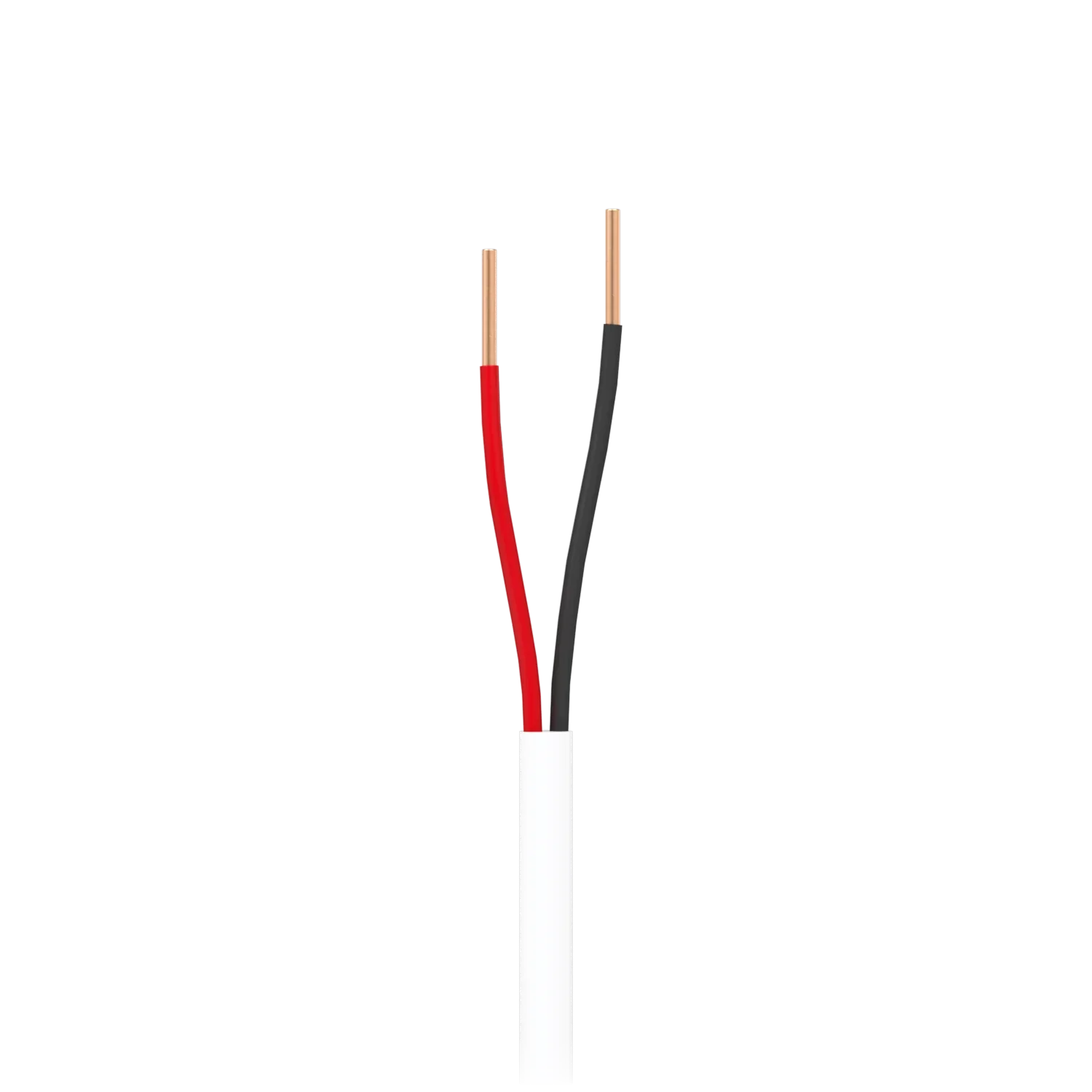

1-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock

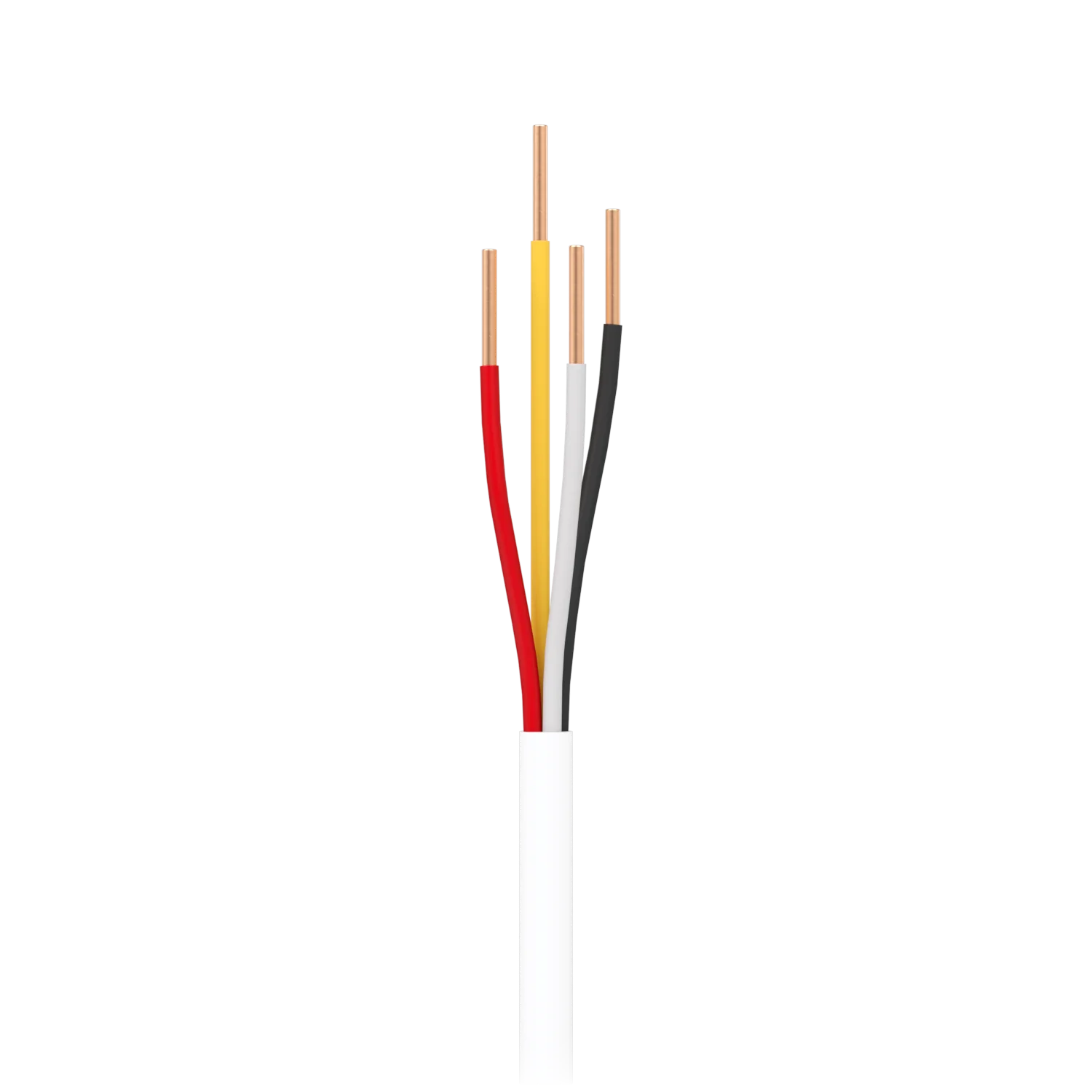

2-Pair Relay Cable:
— (2) 18 AWG conductors for an electric/magnetic lock
— (2) 22 AWG conductors for a door position sensor

Cable length 152.4 m

Plenum-rated

Compatibility
UA-Lock-Magnetic
UA-G2-SK-Pro
UA-Lock-Electric
UA-G2-SK
EAH-8
UA-Hub-Door

Technical Specifications

Mechanical
Weight UACC-Cable-DoorLockRelay-2P: 5.6 kg kg (12.3 lb)
UACC-Cable-DoorLockRelay-1P: 4.58 kg (10.1 lb)
Cable length 152.4 m (500 ft)
Jacket OD UACC-Cable-DoorLockRelay-2P: 4.5 mm (0.18")
UACC-Cable-DoorLockRelay-1P: 4.2 mm (0.17")
Jacket material Thermoplastic elastomer (TPE)
Jacket color White
Conductor wire gauge UACC-Cable-DoorLockRelay-2P: 18/22 AWG
UACC-Cable-DoorLockRelay-1P: 18 AWG
Insulation material Semi-rigid polyvinyl chloride (SR-PVC)
Insulation color UACC-Cable-DoorLockRelay-2P: black/red (18AWG), amber/white (22AWG)
UACC-Cable-DoorLockRelay-1P: black/red (18AWG)
Number of conductors UACC-Cable-DoorLockRelay-2P: 4
UACC-Cable-DoorLockRelay-1P: 2
Conductor material Solid bare copper
Max. pull tension UACC-Cable-DoorLockRelay-2P: 24.2 kgf
UACC-Cable-DoorLockRelay-1P: 16.4 kgf
Min. bend radius UACC-Cable-DoorLockRelay-2P: 56 mm (2.2")
UACC-Cable-DoorLockRelay-1P: 33 mm (1.3")
Conductor DCR UACC-Cable-DoorLockRelay-2P: 23.2 ohm/km (18AWG), 59.4 ohm/km (22AWG)
UACC-Cable-DoorLockRelay-1P: 23.2 ohm/km (18AWG)
Voltage 36V DC
Flame rating VW-1
Current rating 18AWG: 2A for 500 ft length
22AWG: 1A for 500 ft length
Storage temperature -45 to 65° C (-40 to 149° F)
Ambient operating temperature -45 to 65° C (-40 to 149° F)
