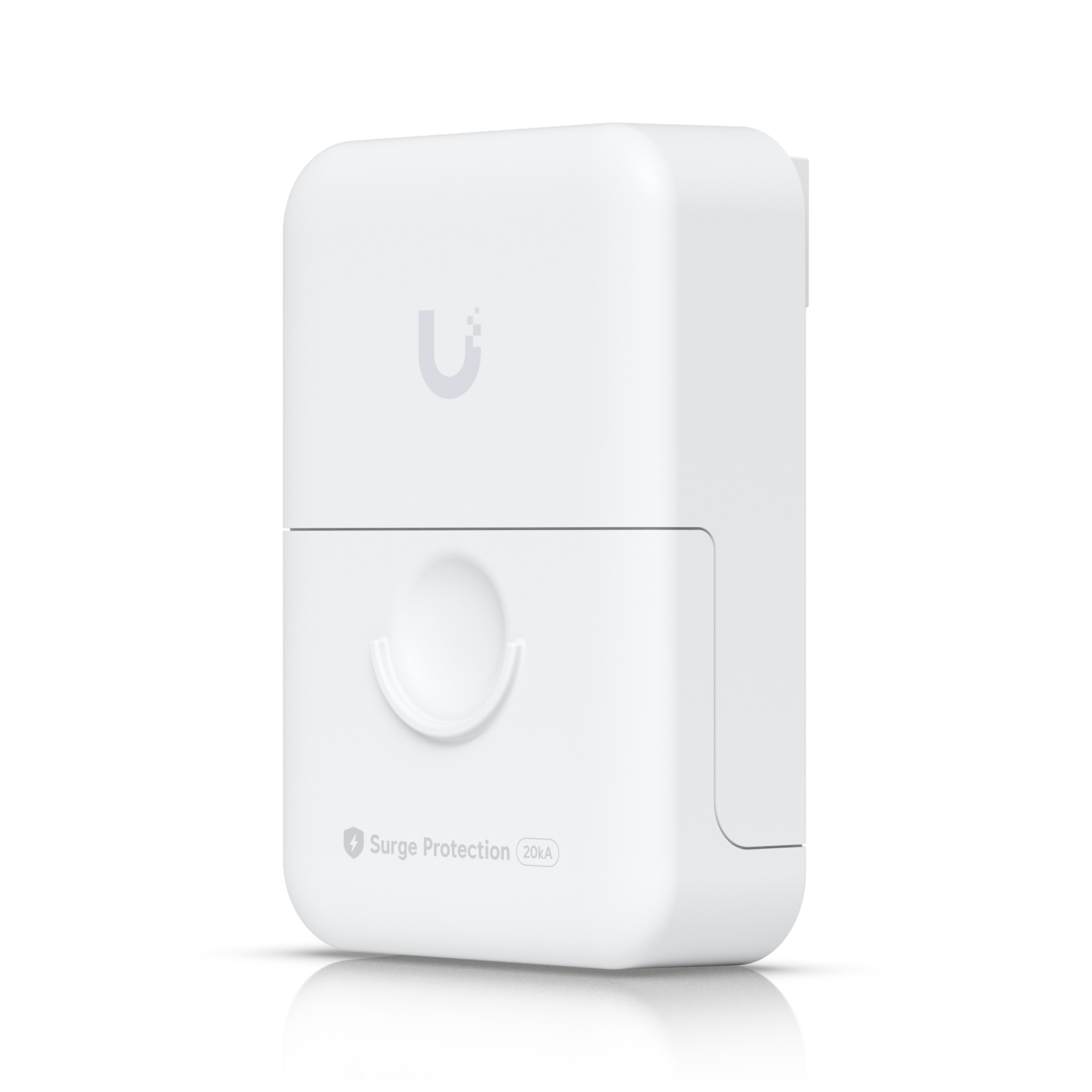

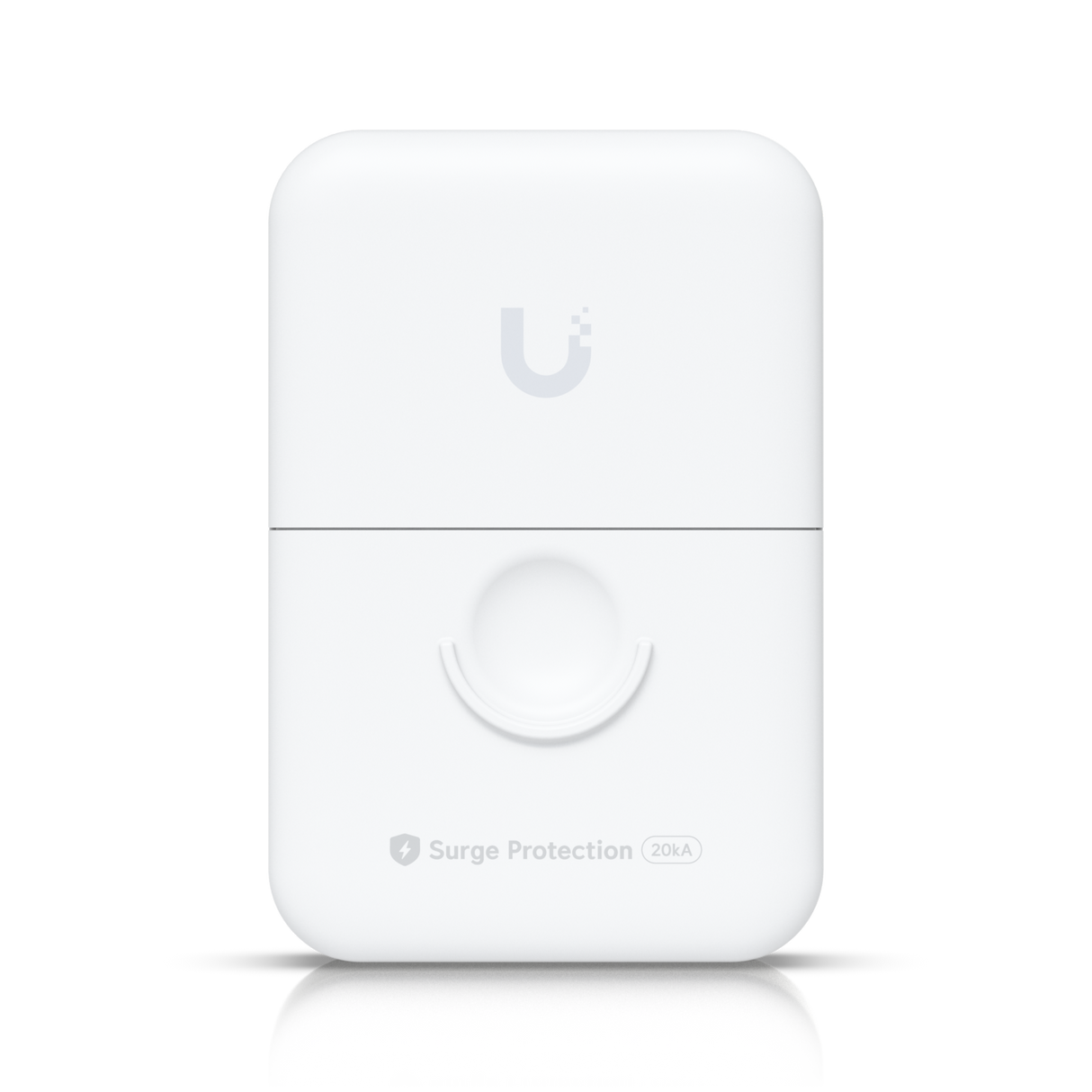

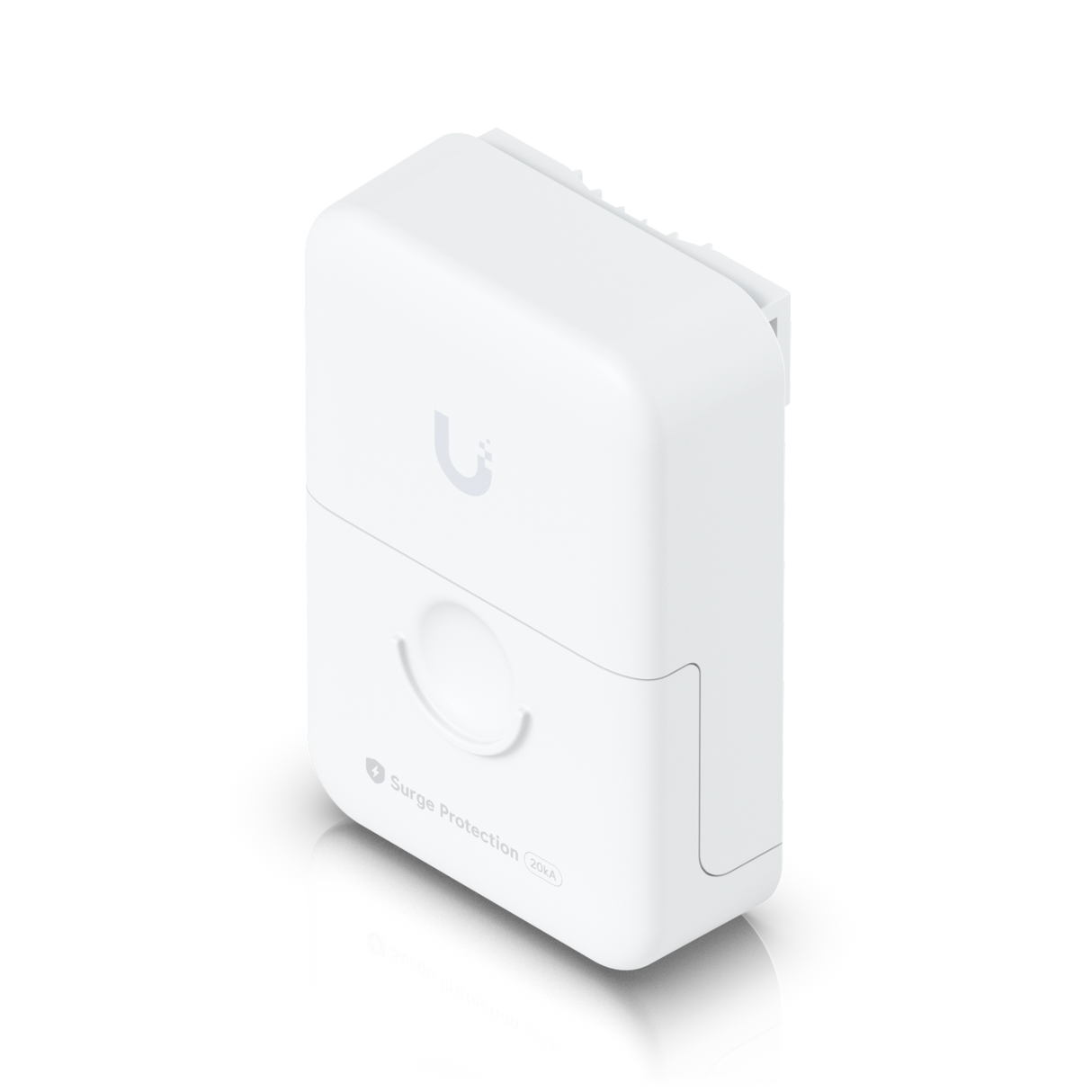

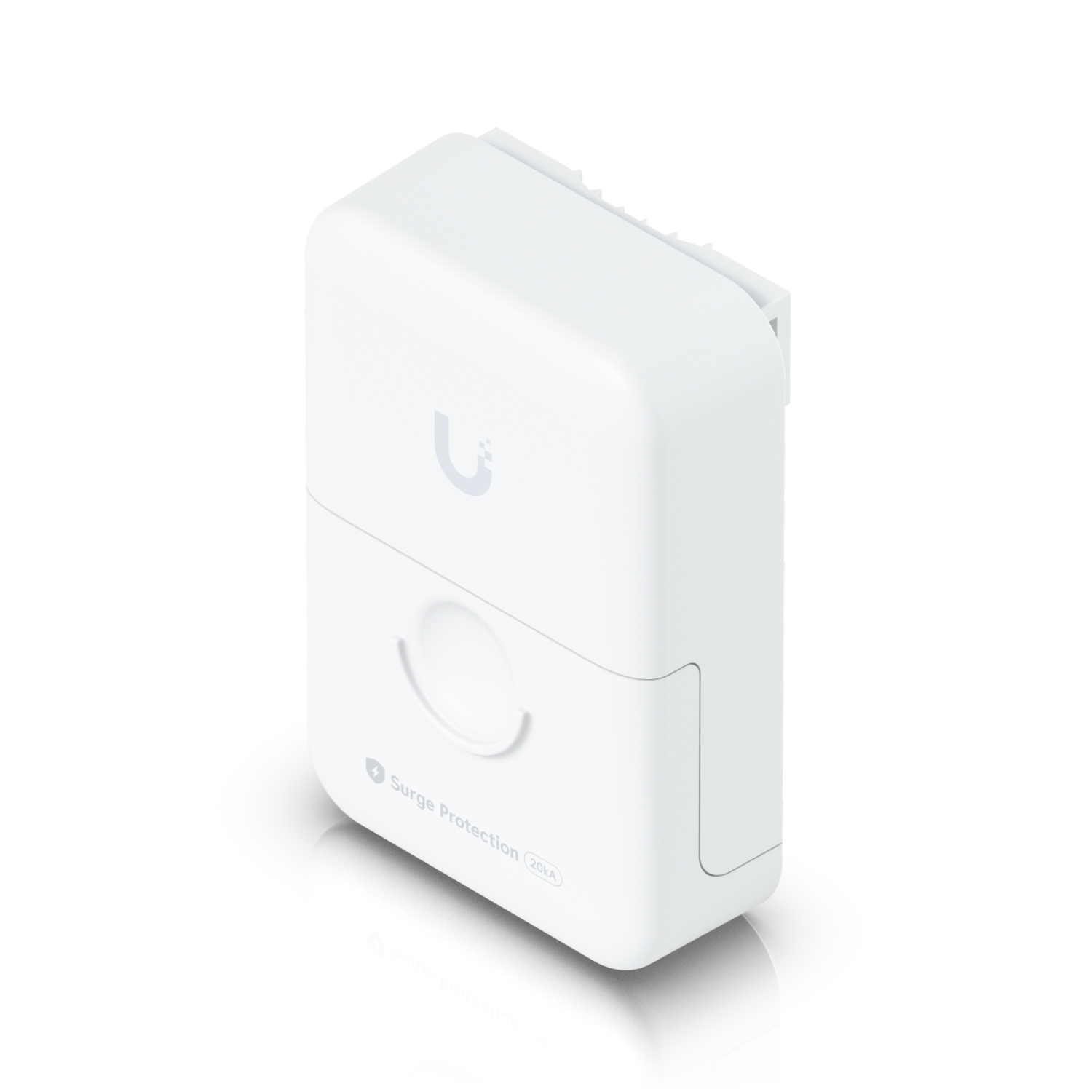

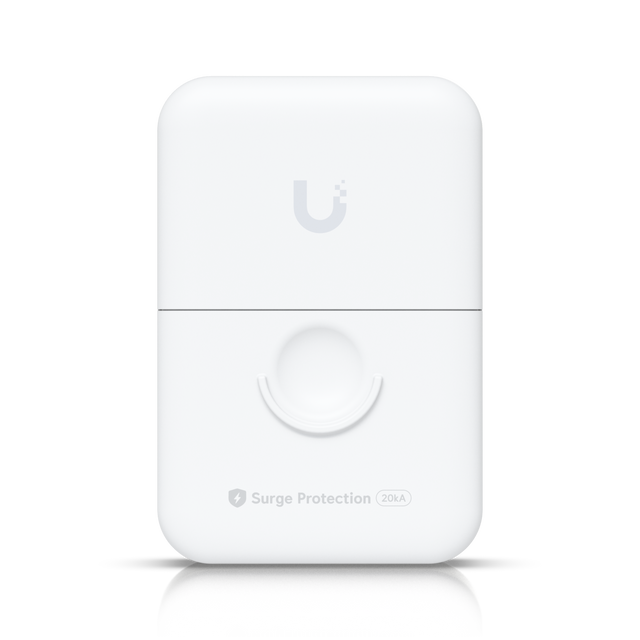

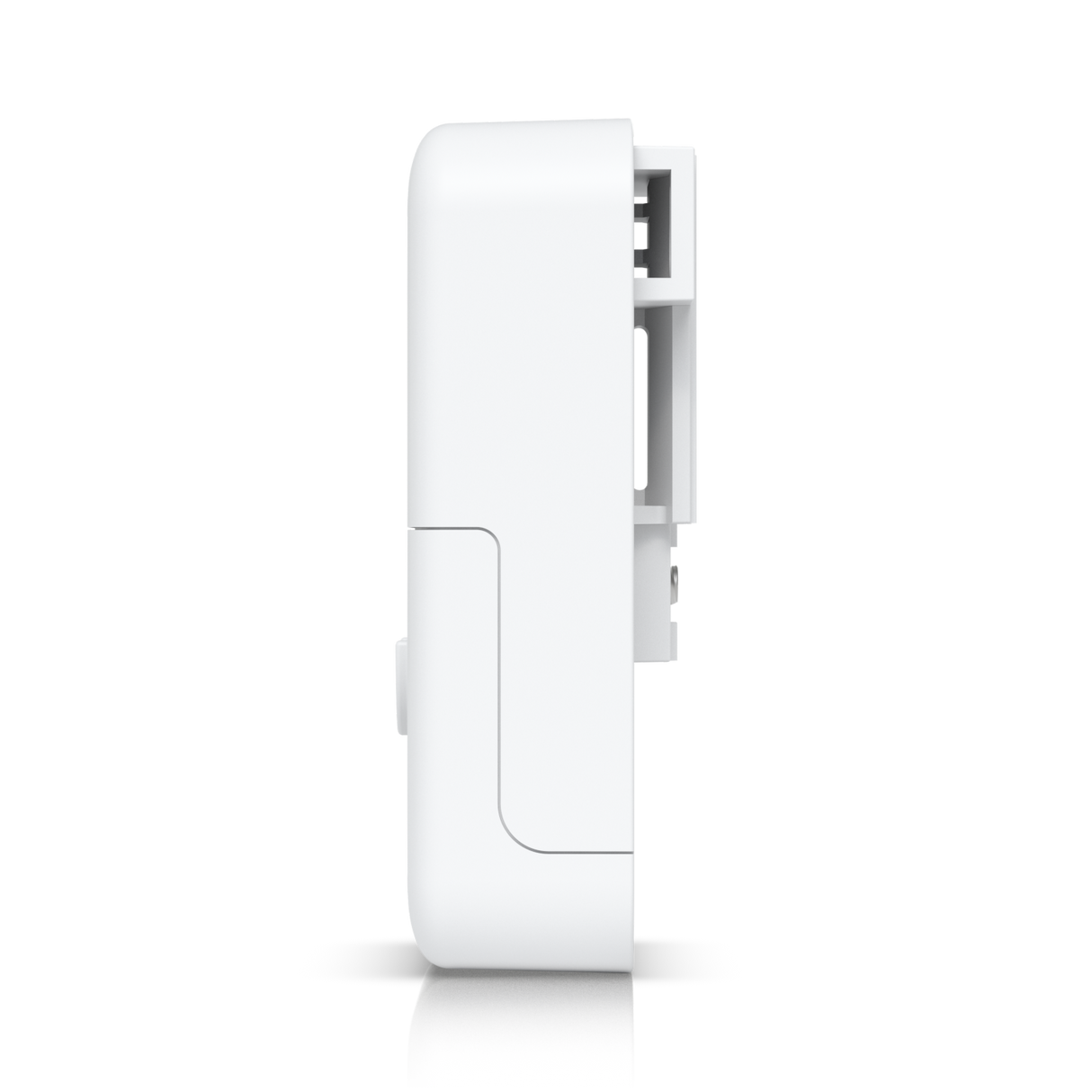

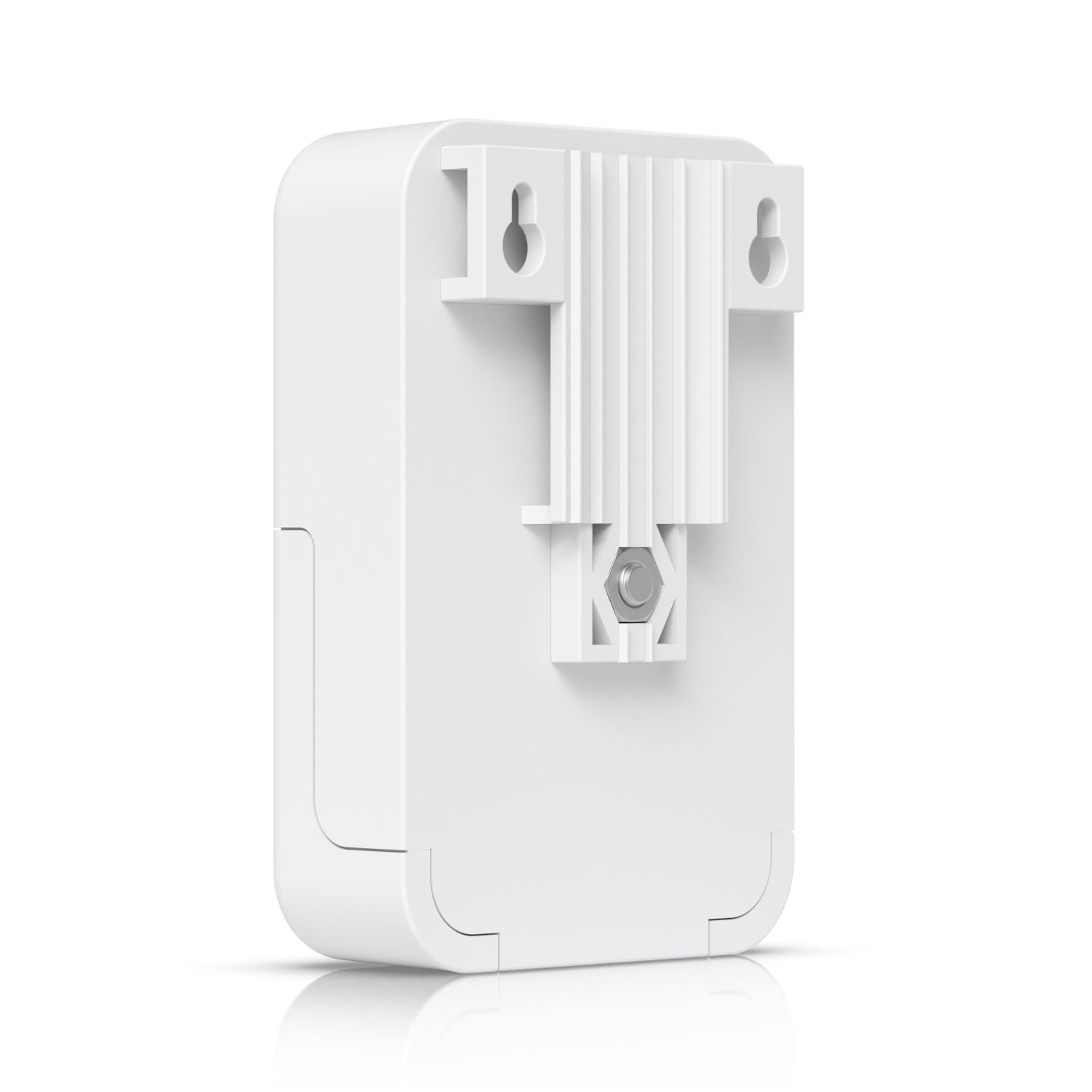

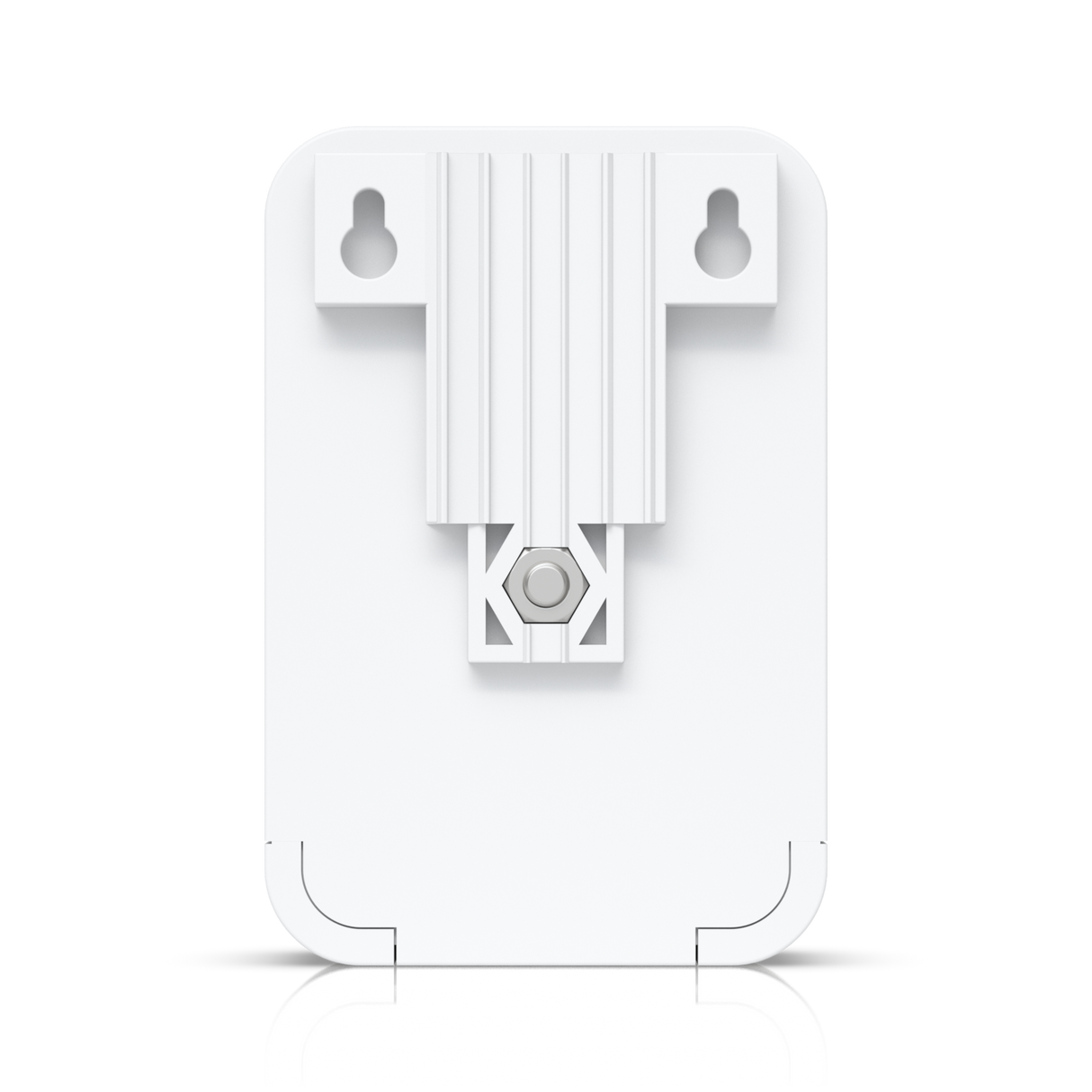

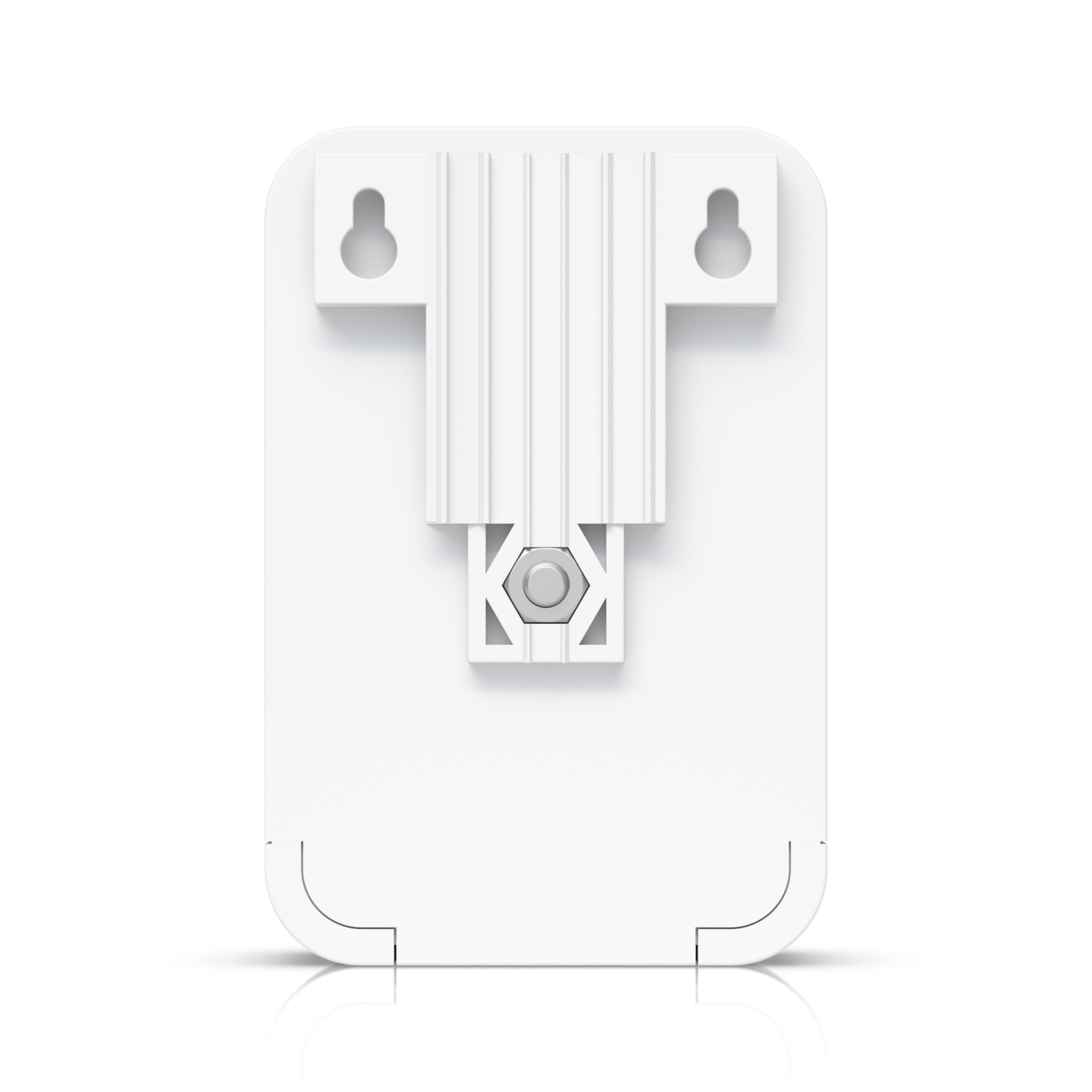

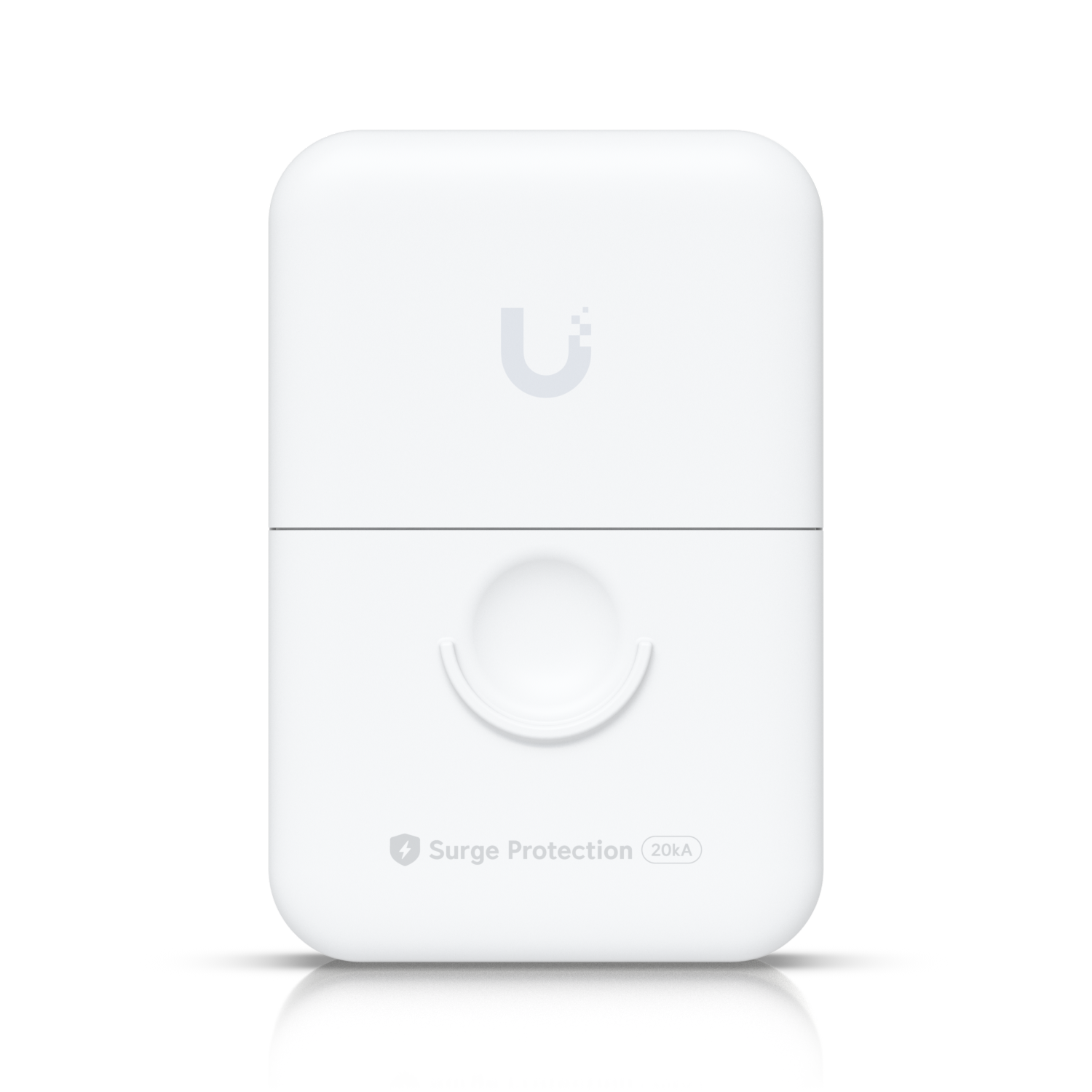

The Ubiquiti UniFi Ethernet Surge Protection Outdoor UACC-ETH-SP-PRO is an ESD surge protection device for outdoor high-speed networks.
Protects outdoor Ethernet devices, up to 20kA discharge current.

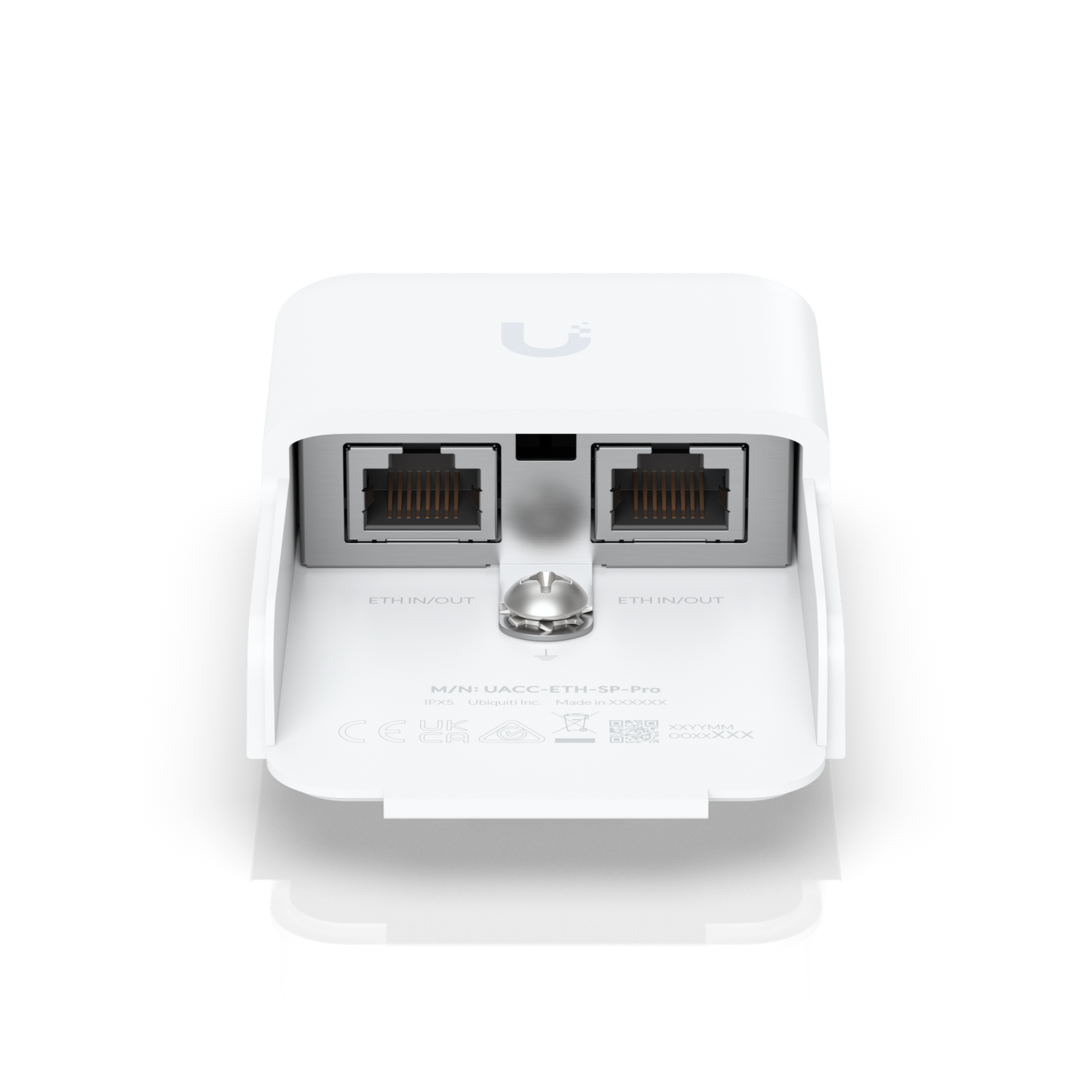

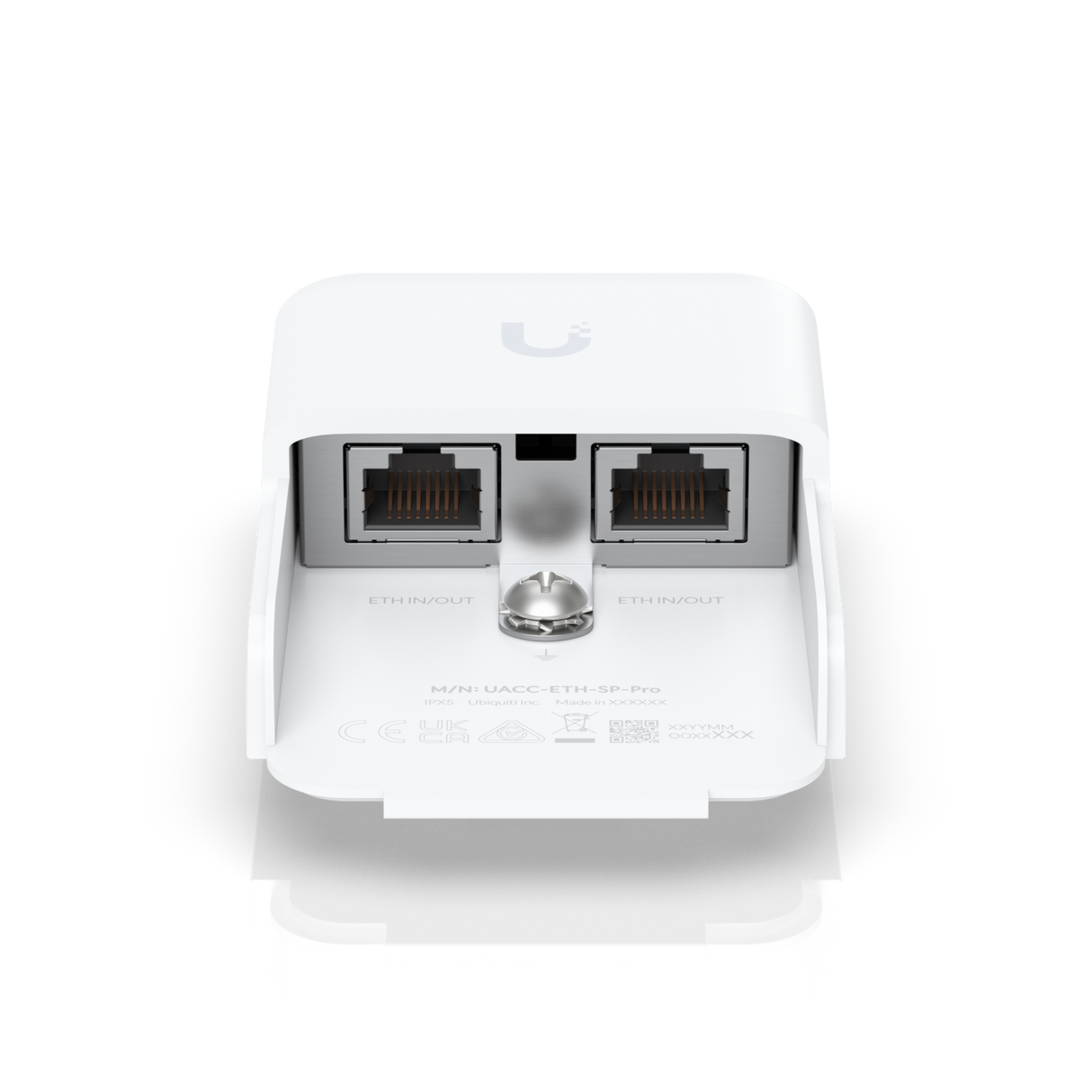

(2) Passive, surge-protected RJ45 connections
Quick and easy installation
Compatible with 10 GbE networks
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3") |
| Weight | 95 g (3.35 oz) |
| Enclosure Material | Polycarbonate |
| Weatherproofing | IPX5 |
Hardware
| Item | Specification |
|---|---|
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation Resistance | Max. 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ |
| ESD/EMP Protection | Absorbs transient current with surge response from 100V/s to 1kV/µs |
Environmental & Compliance
| Item | Specification |
|---|---|
| Ambient Operating Temperature | -30 to 65° C (-22 to 149° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Shock & Vibration Certification | ETSI300-019-1.4 Standard |
