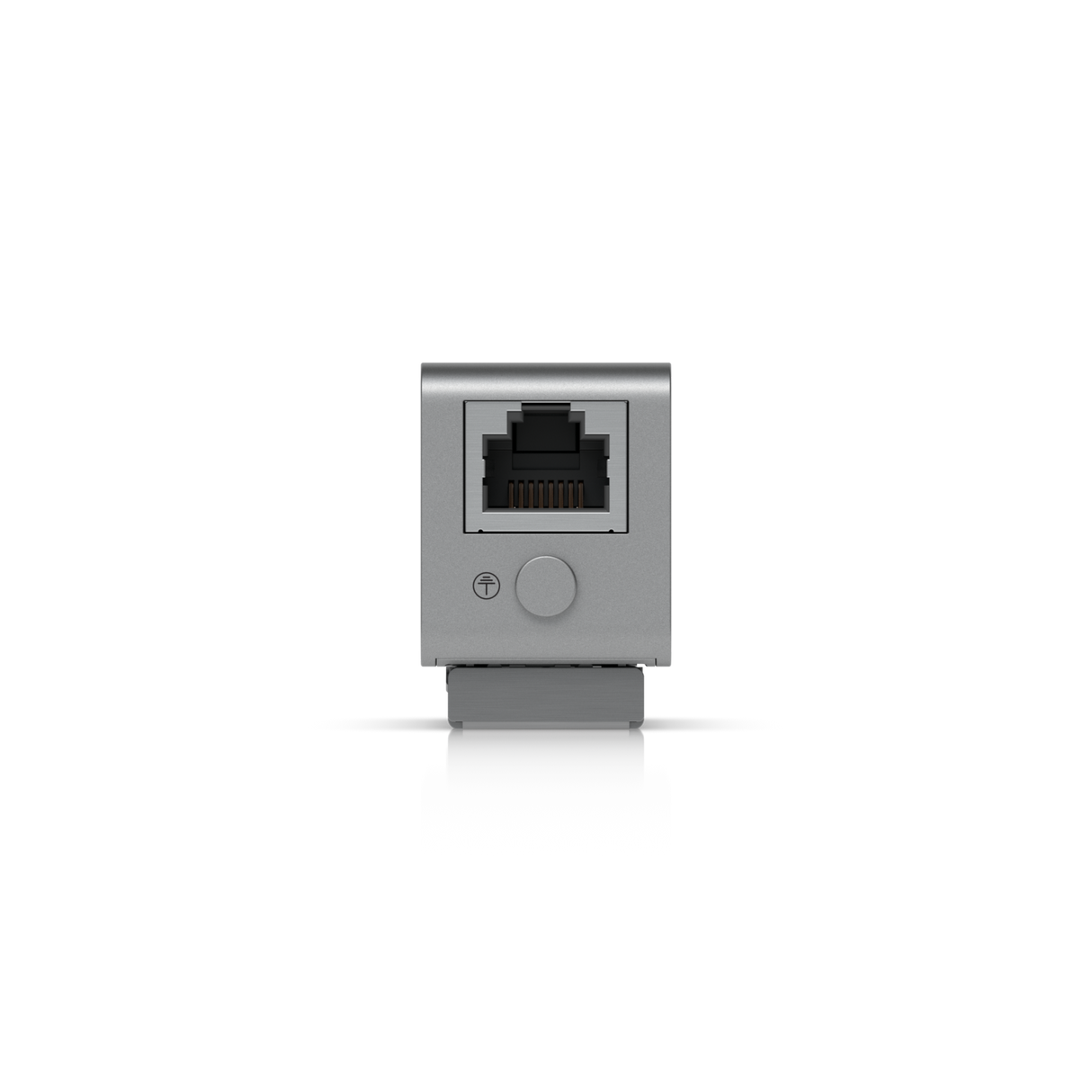

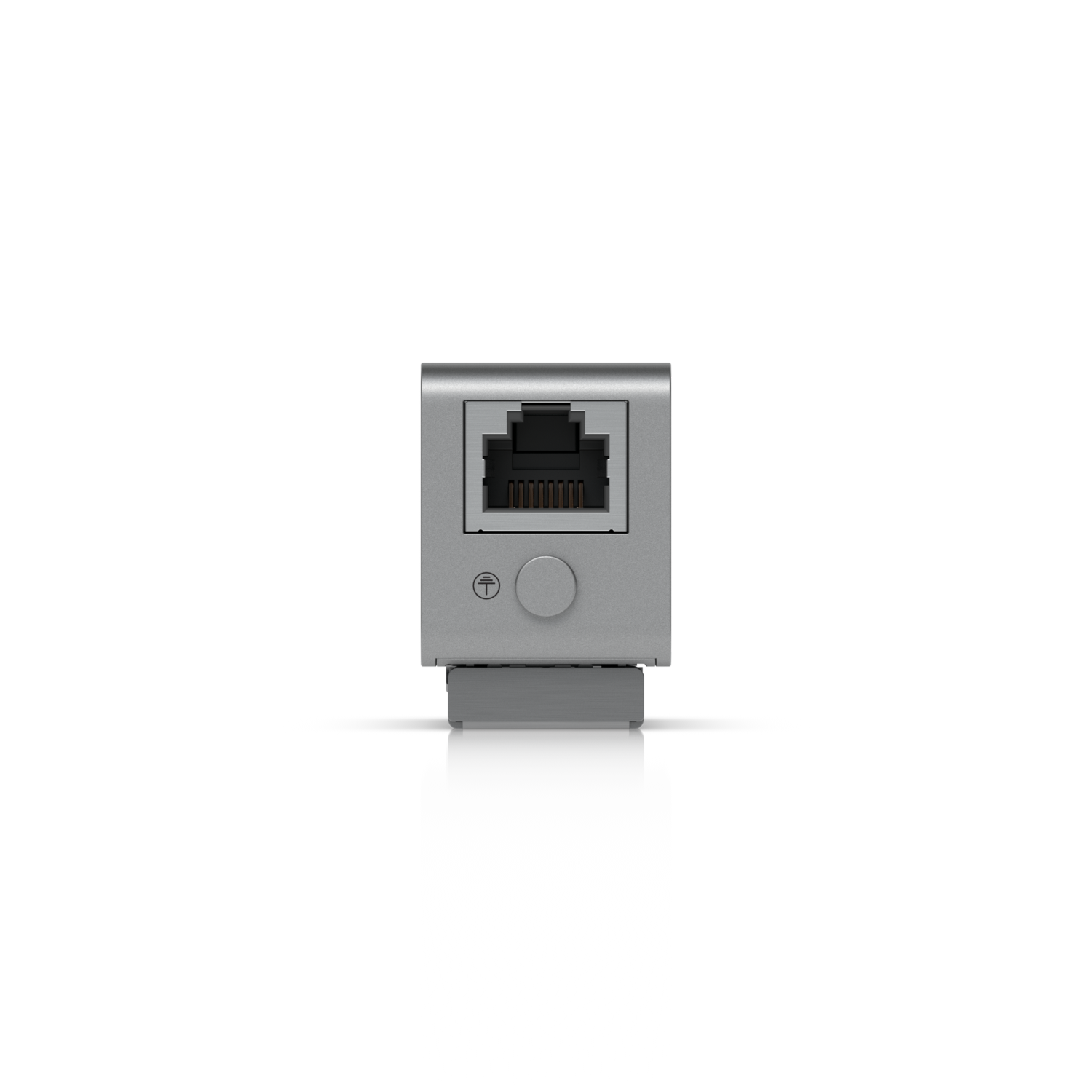

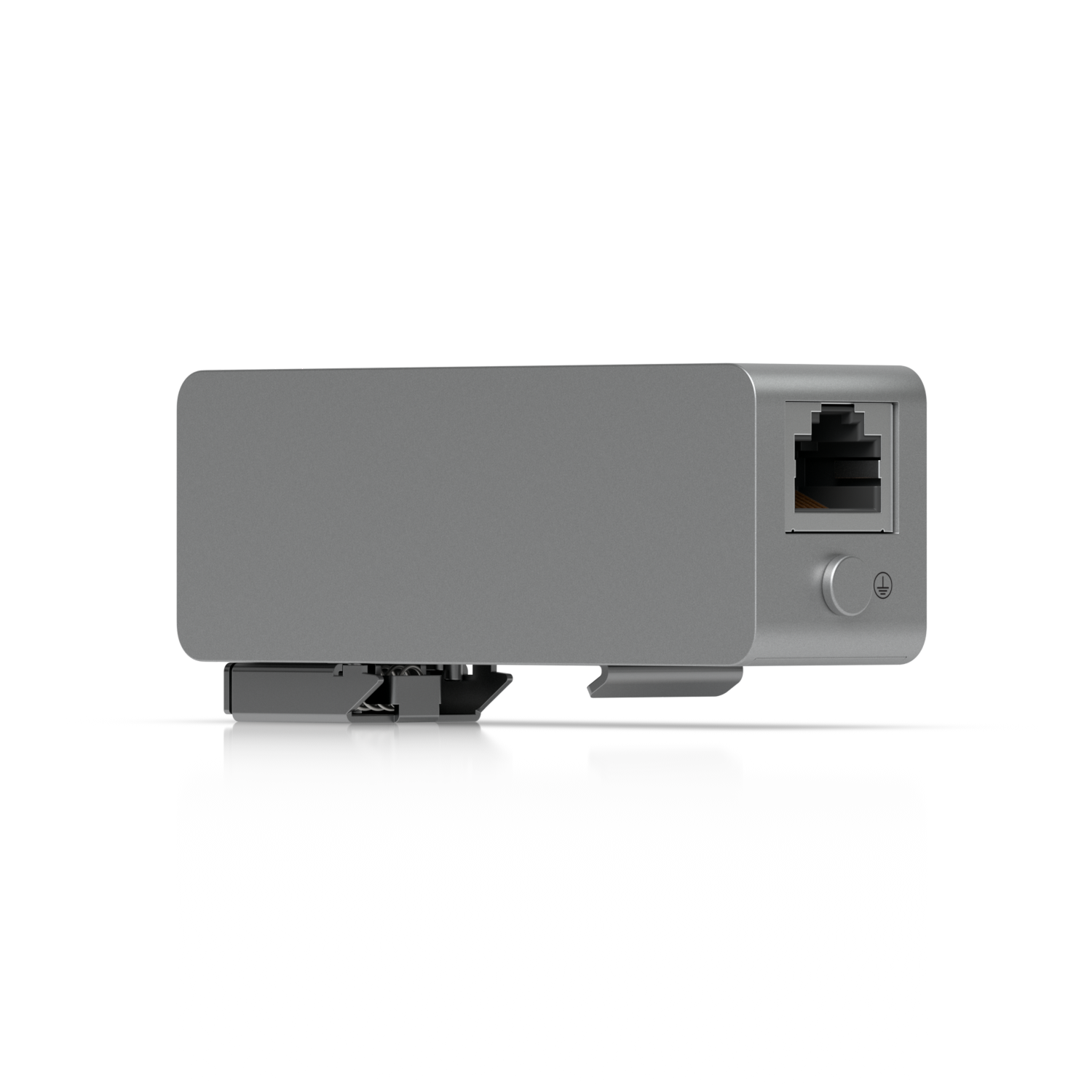

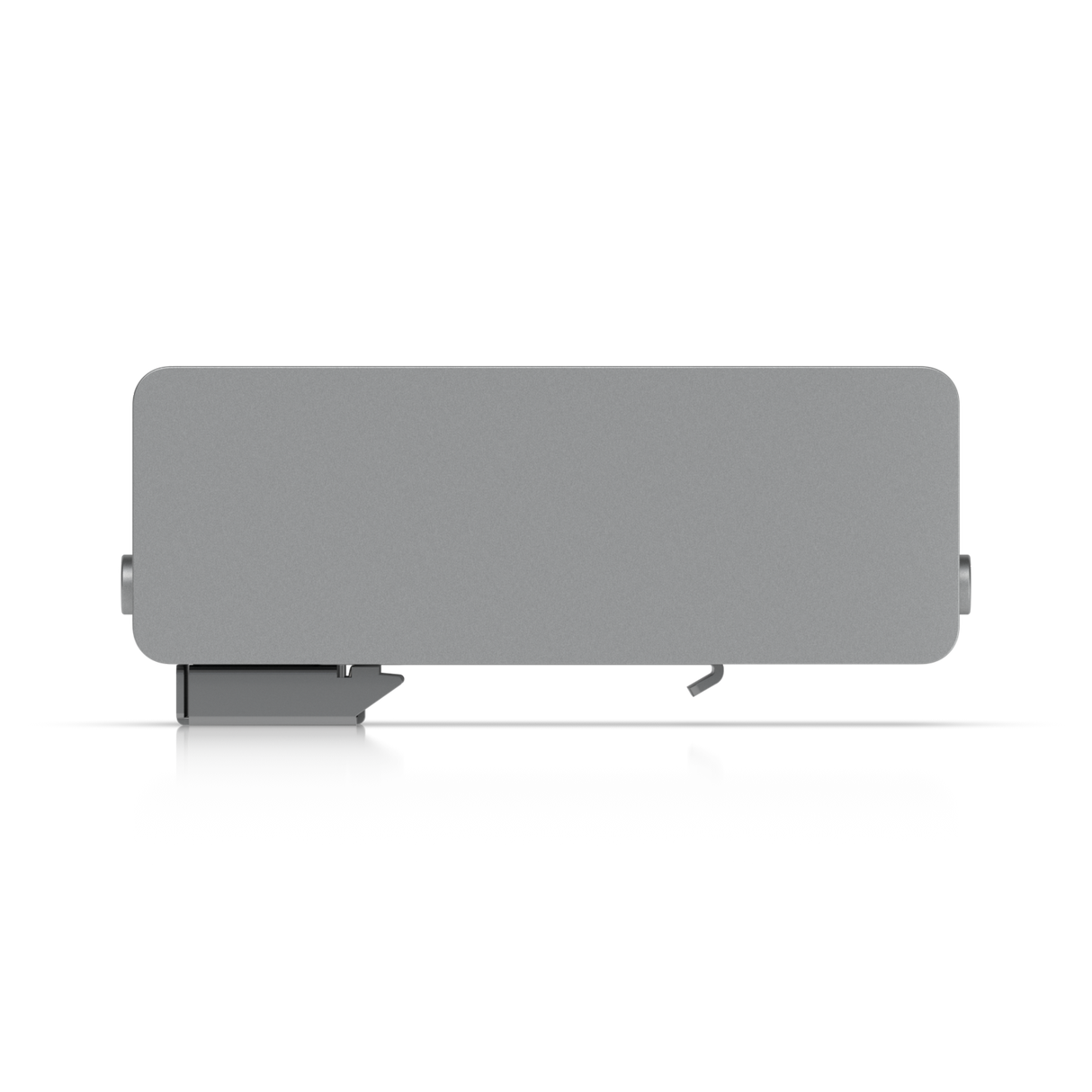

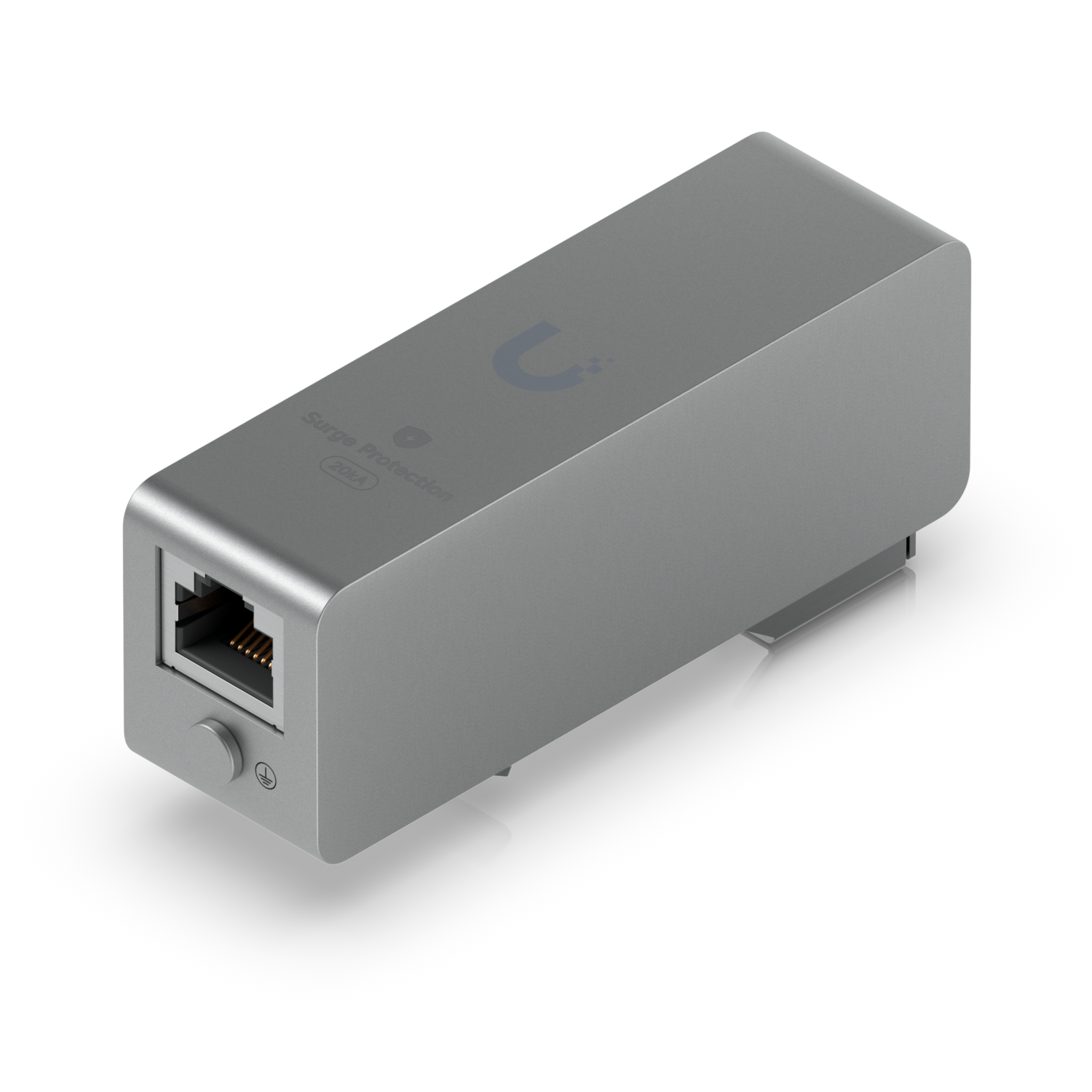

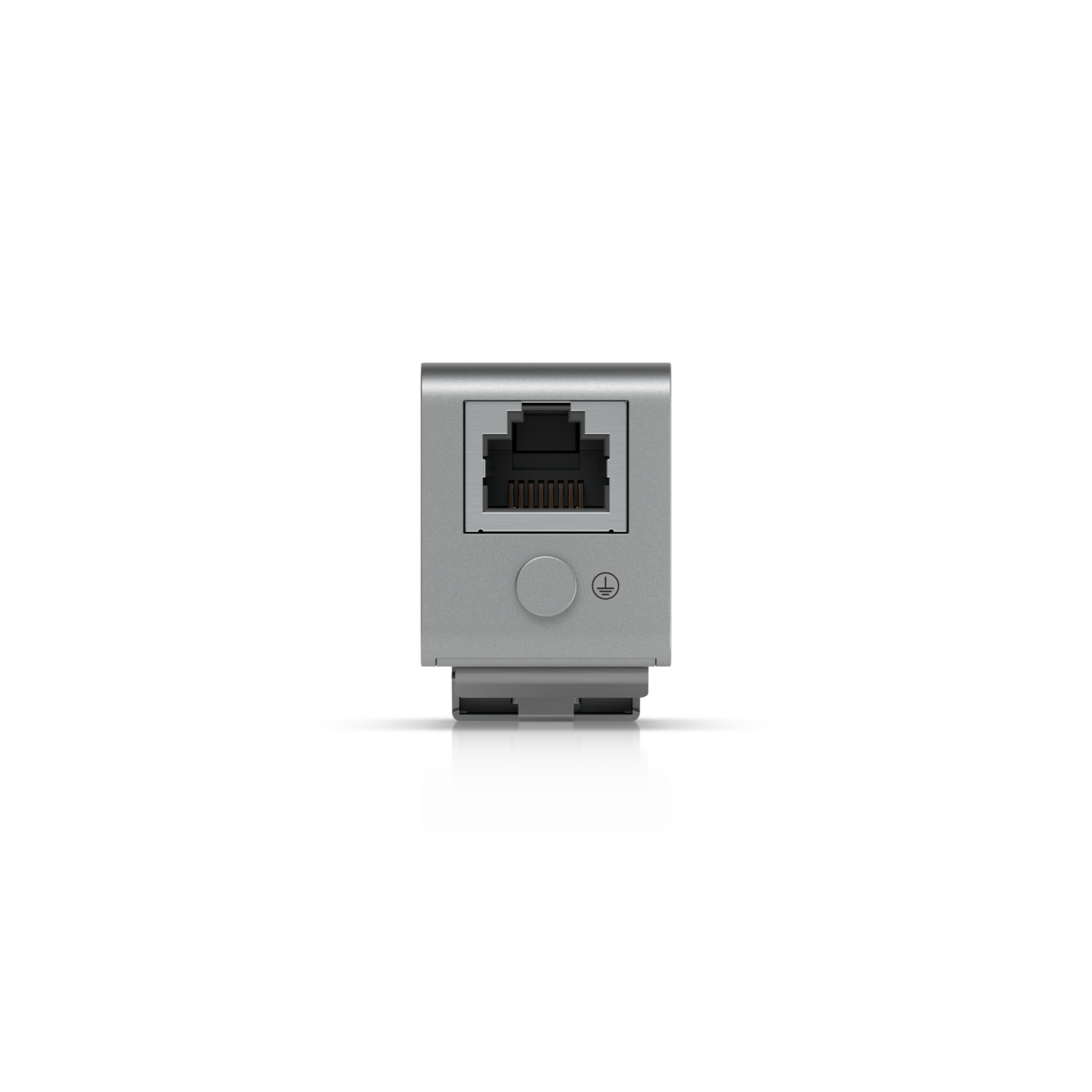

Ubiquiti UniFi Ethernet Surge Protection UACC-ETH-SP-DIN
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.

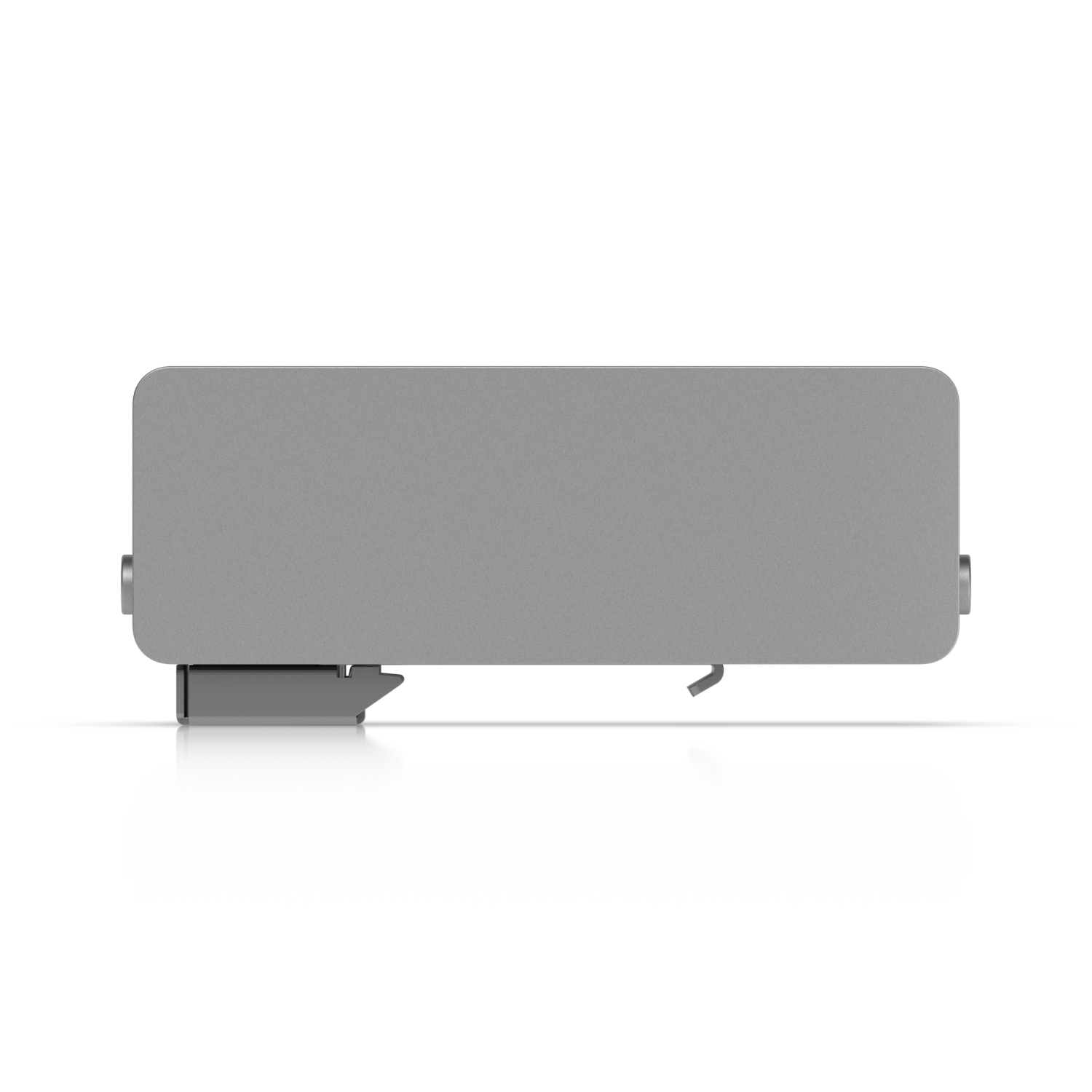

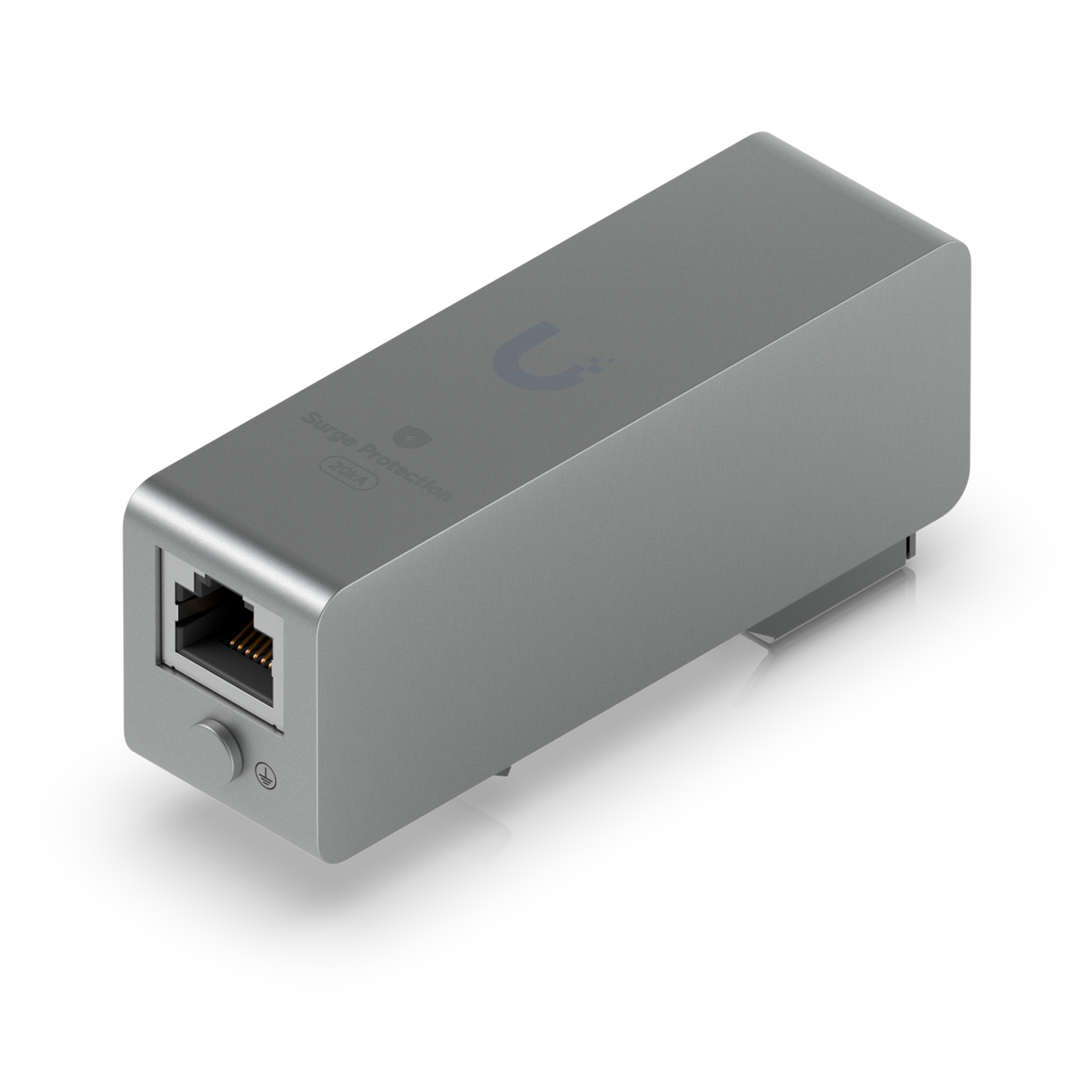

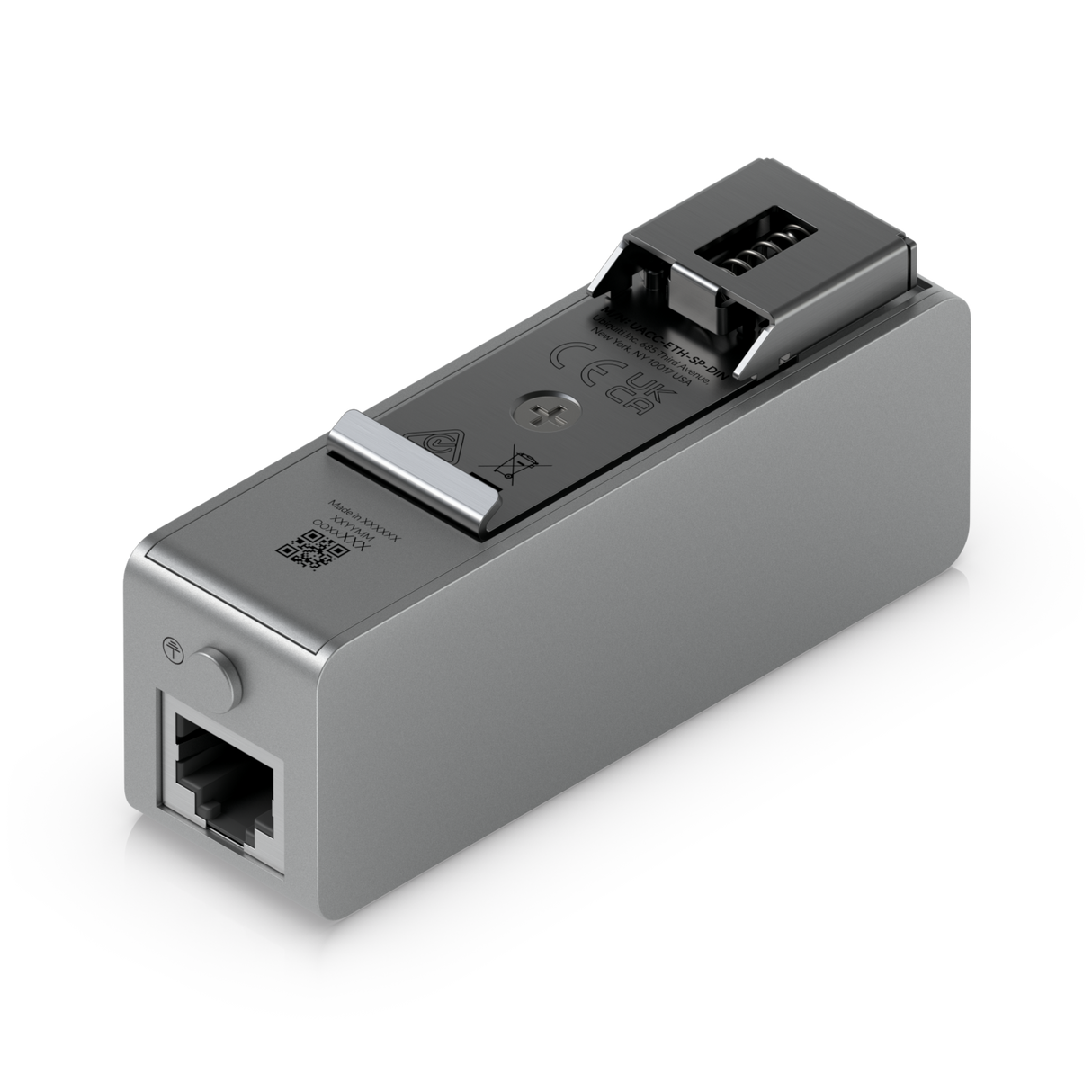

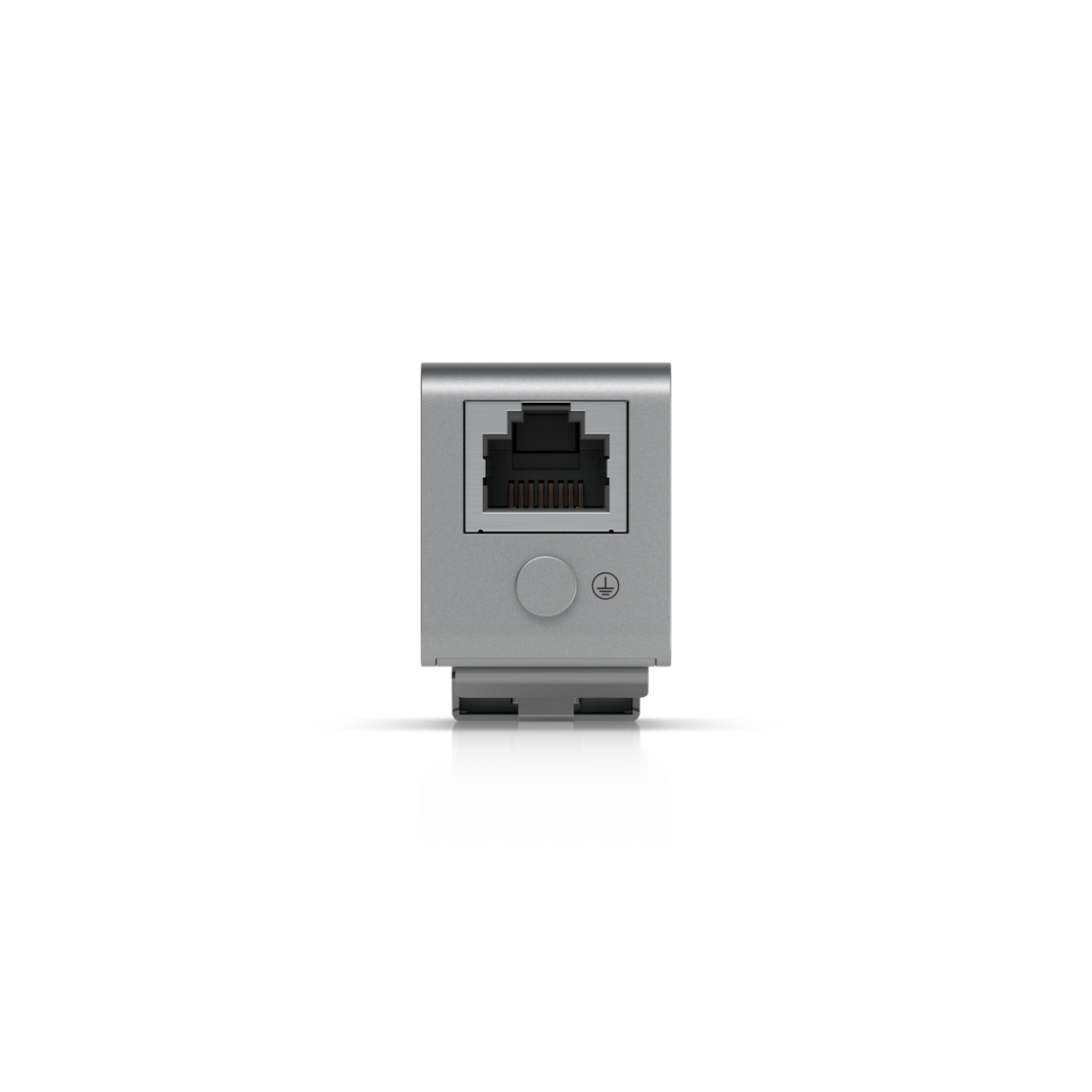

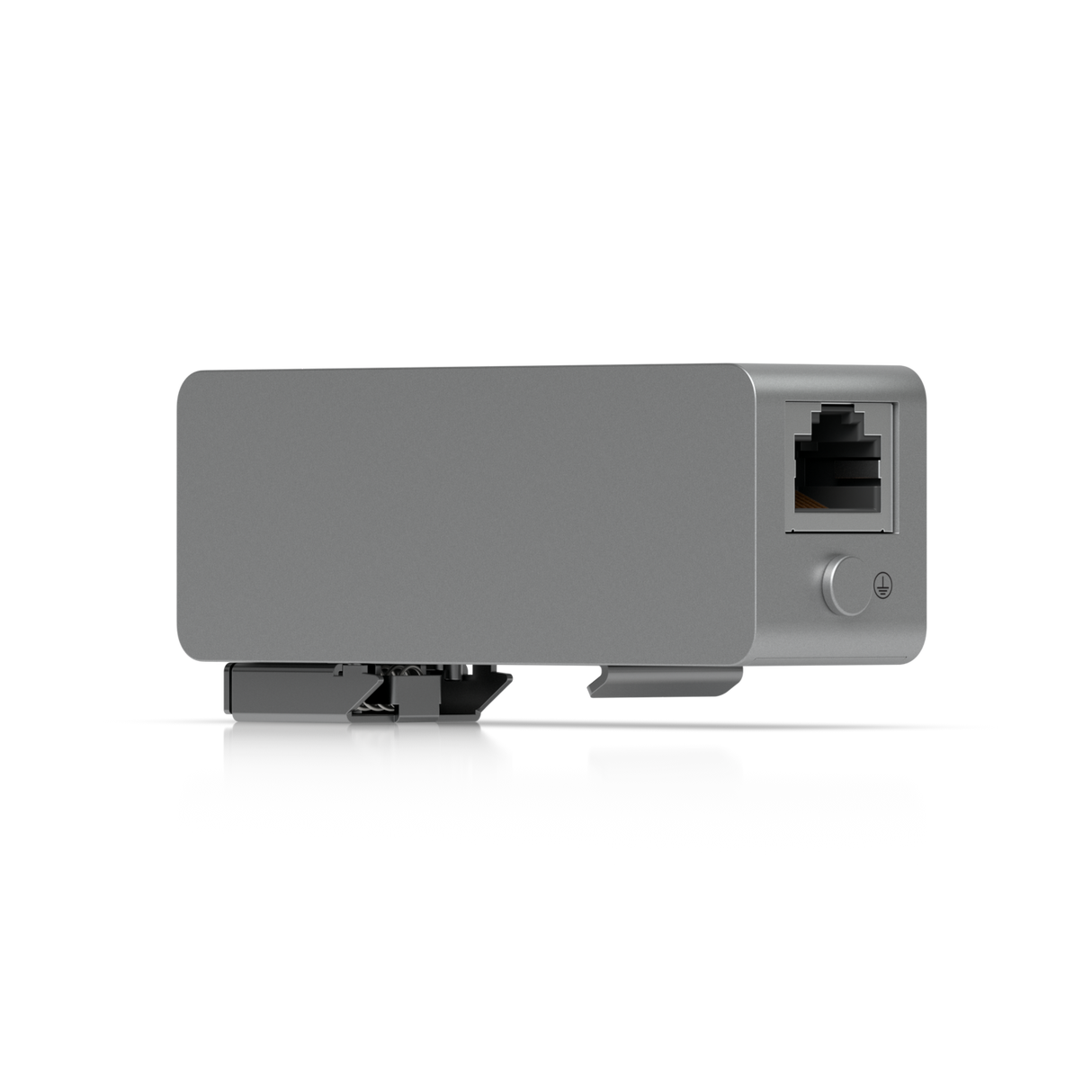

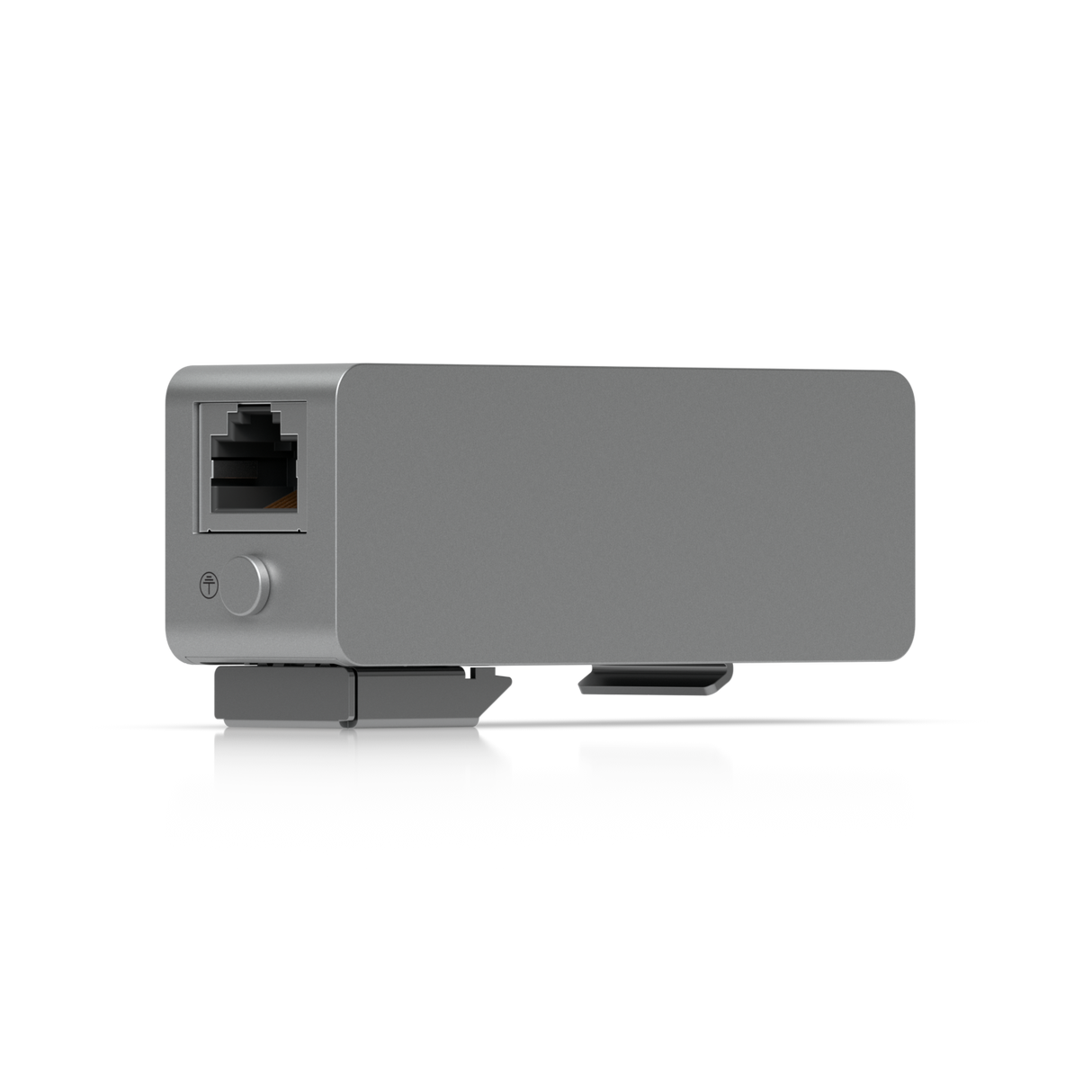

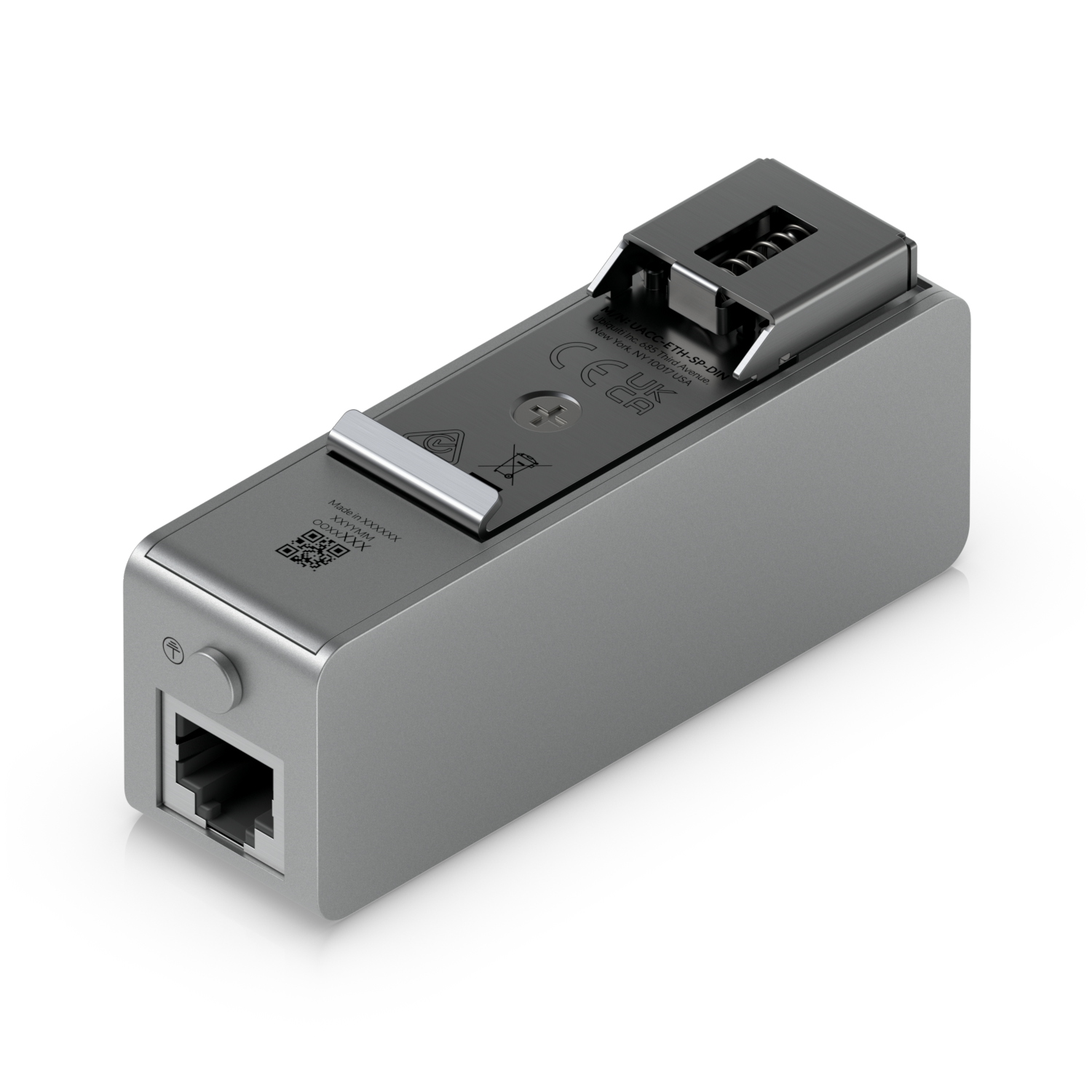

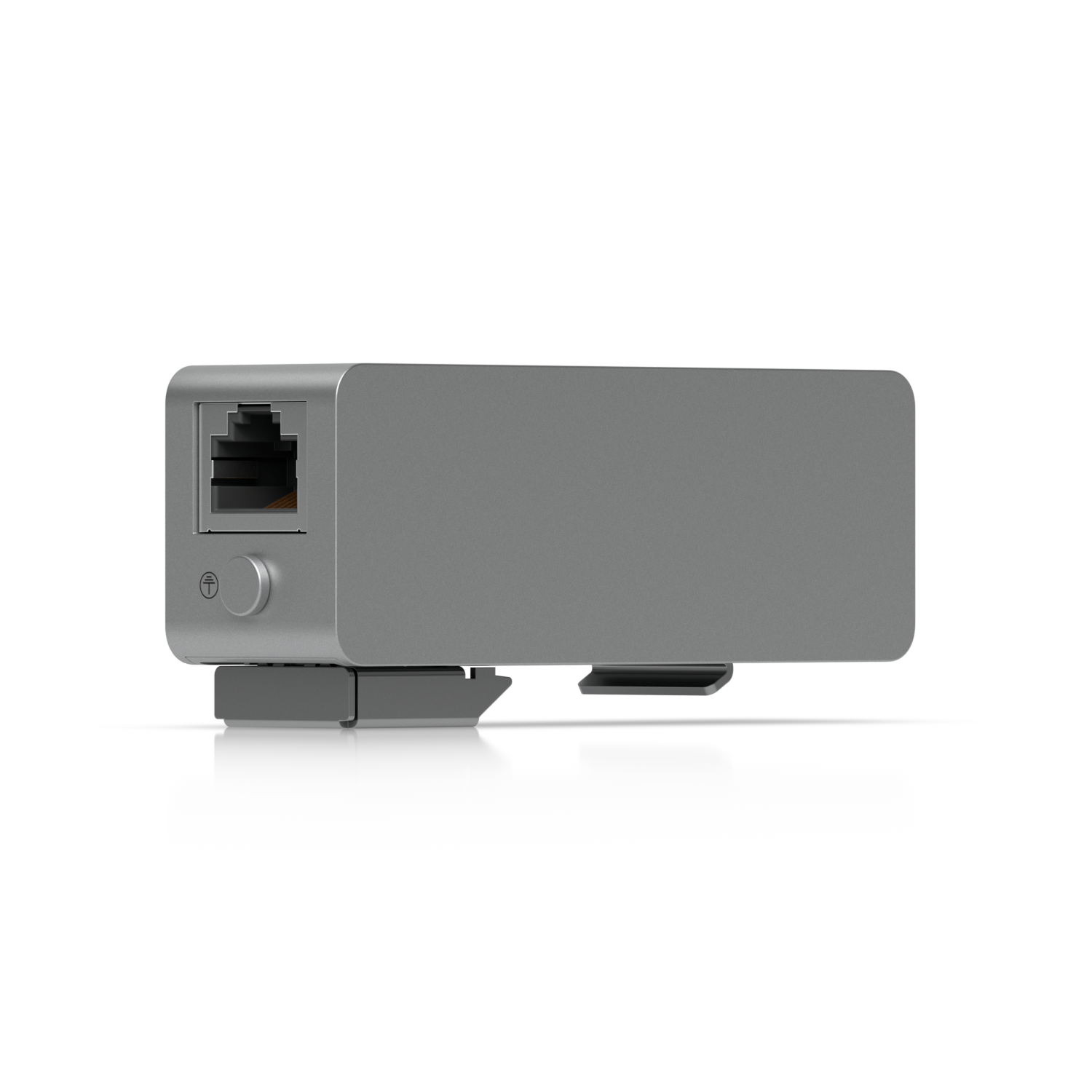

The Ubiquiti UniFi Ethernet Surge Protection UACC-ETH-SP-DIN is a bidirectional protection for up to 10 GbE, PoE++, and 20kA surge discharge for indoor installation.
Wall/DIN rail mount
Multiple grounding points
Technical Specifications
| Property | Value |
|---|---|
| Dimensions | 89 x 25.5 x 37.4 mm (3.5 x 1 x 1.5") |
| Weight | 74 g (2.6 oz) |
| Enclosure Material | Polycarbonate, SGCC steel |
Hardware
| Property | Value |
|---|---|
| Networking Interface | (2) RJ45 female connectors |
| DC Spark-Over Voltage | 90V @ 100V/s |
| Max. Impulse Spark-Over Voltage | 600V @ 1kV/µs |
| Discharge Current | 20kA |
| Insulation Resistance | Max. 1G ohm @ 50V |
| Max. Capacitance | 1.0 pF @ 1 MHz |
| Data Line Protection | Up to 10 Gbps |
| PoE Support | ✓ |
| ESD/EMP Protection | Absorbs transient current in response to surge voltages (100V/s–1kV/µs) |
Environmental
| Property | Value |
|---|---|
| Ambient Operating Temperature | -40° to +80° C (-40° to 176° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
