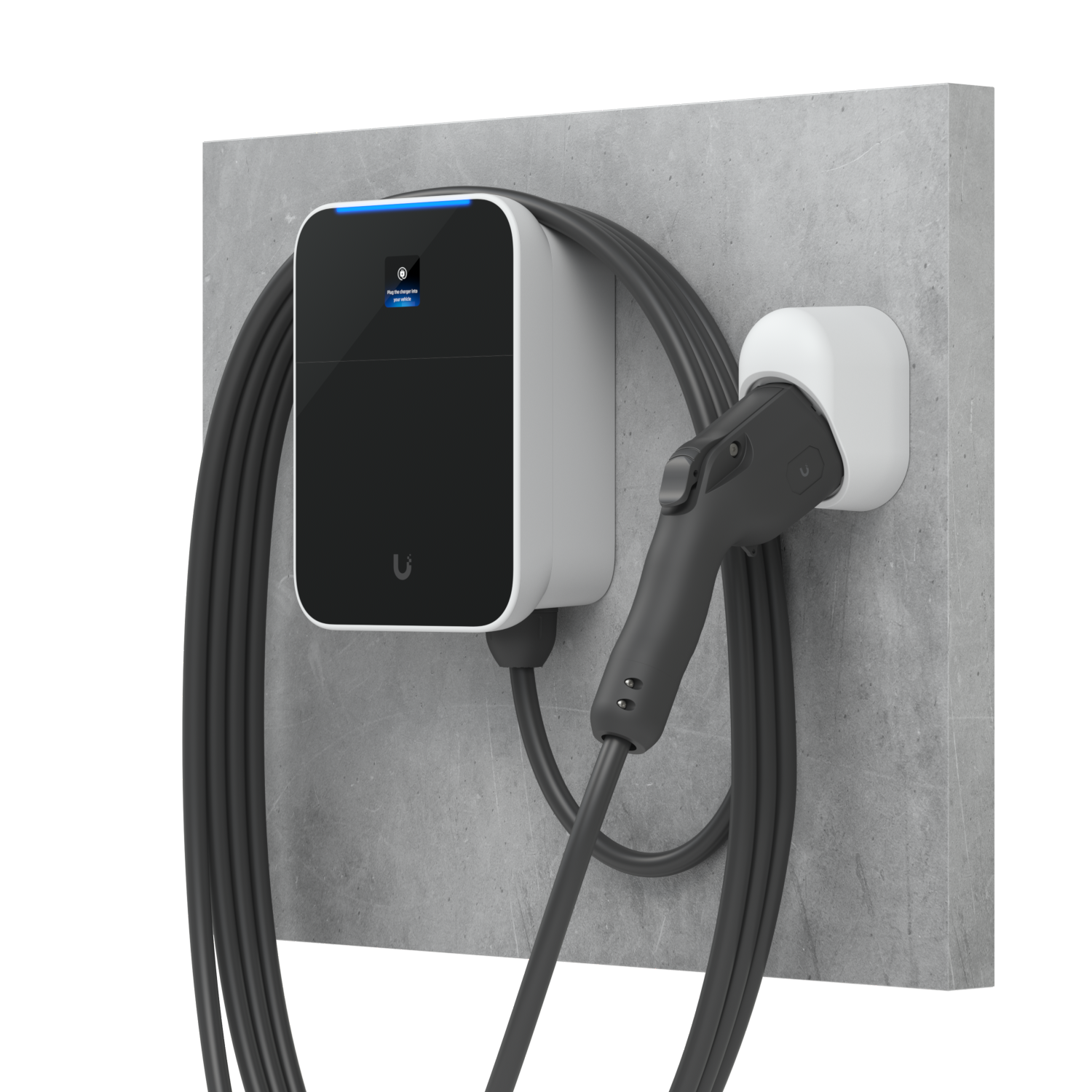

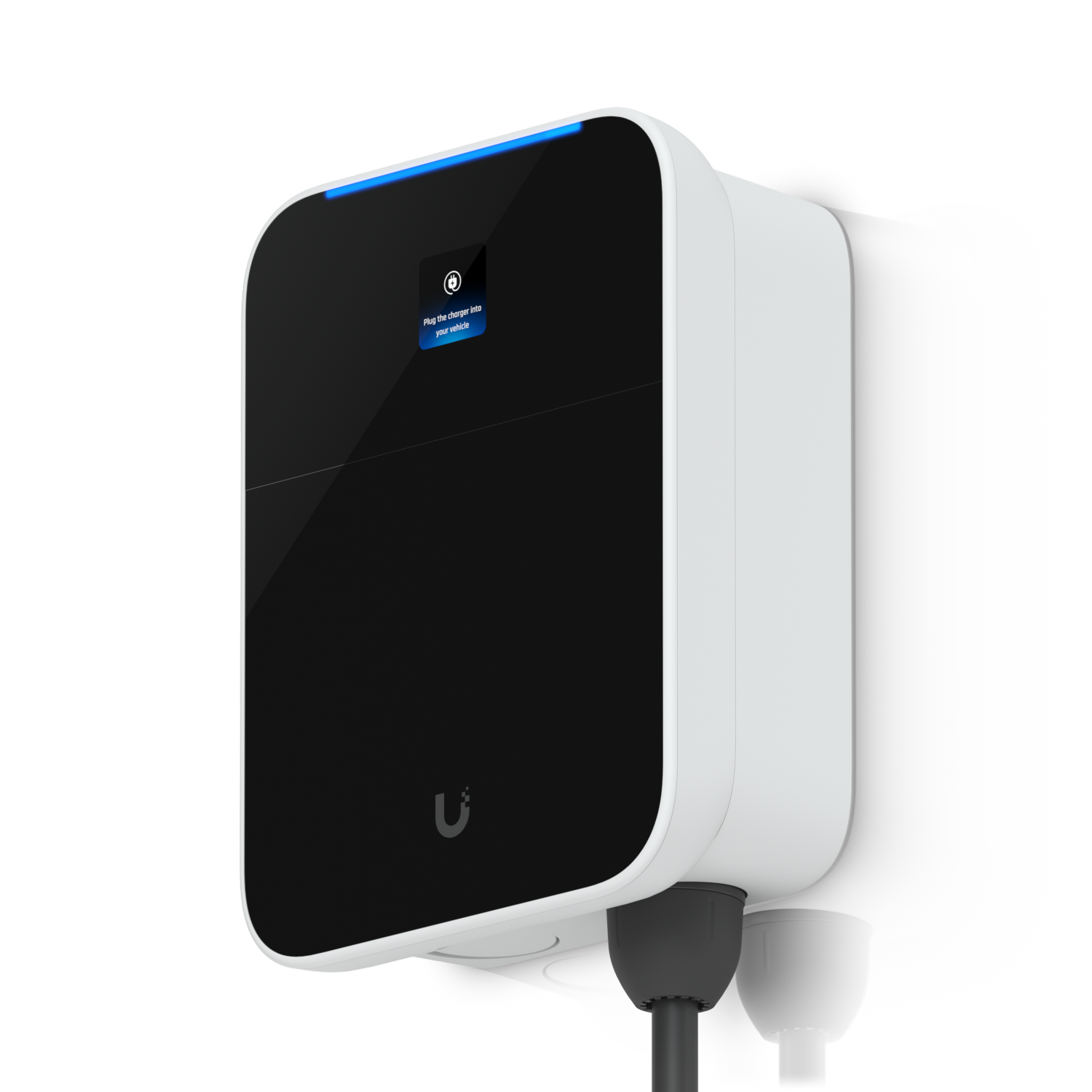

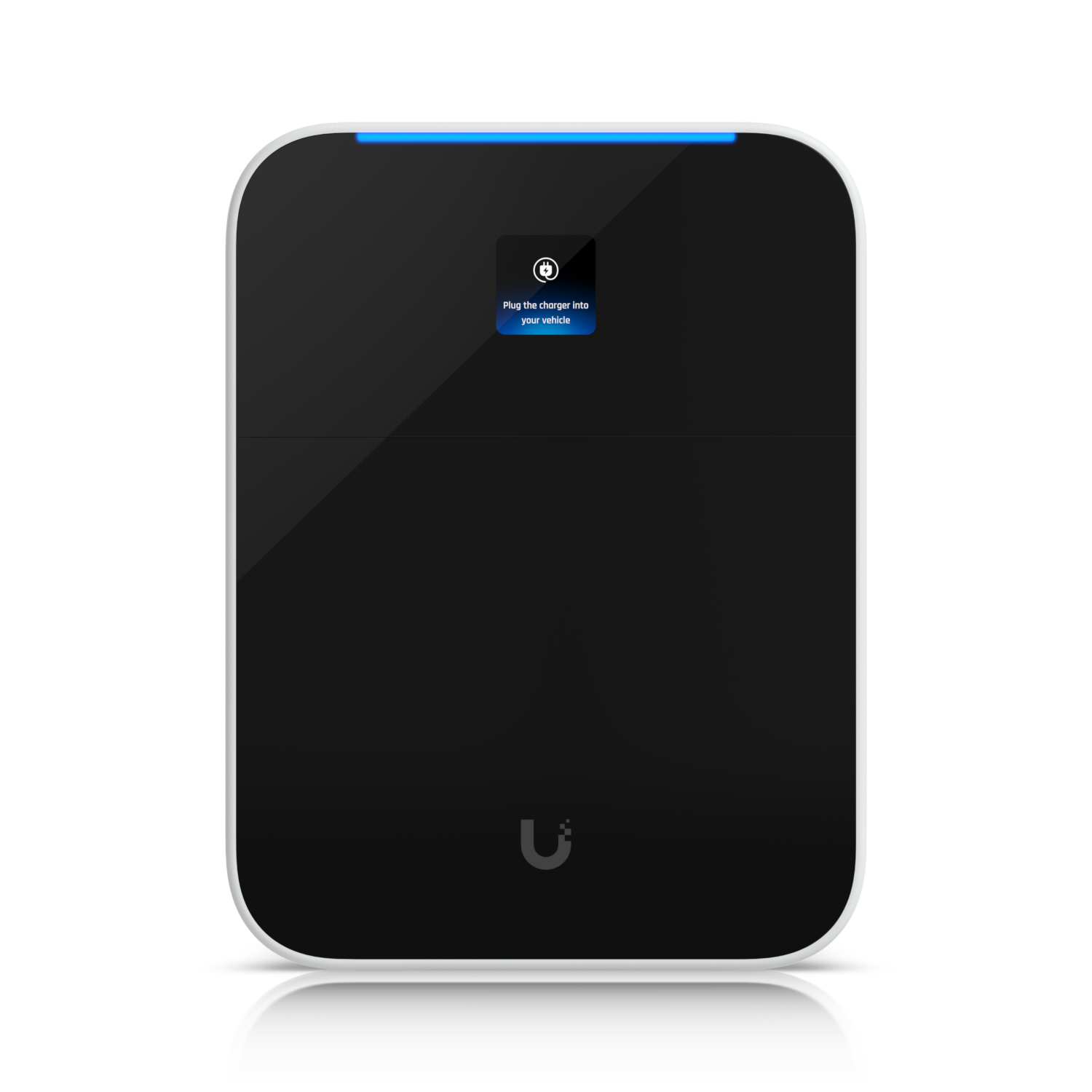

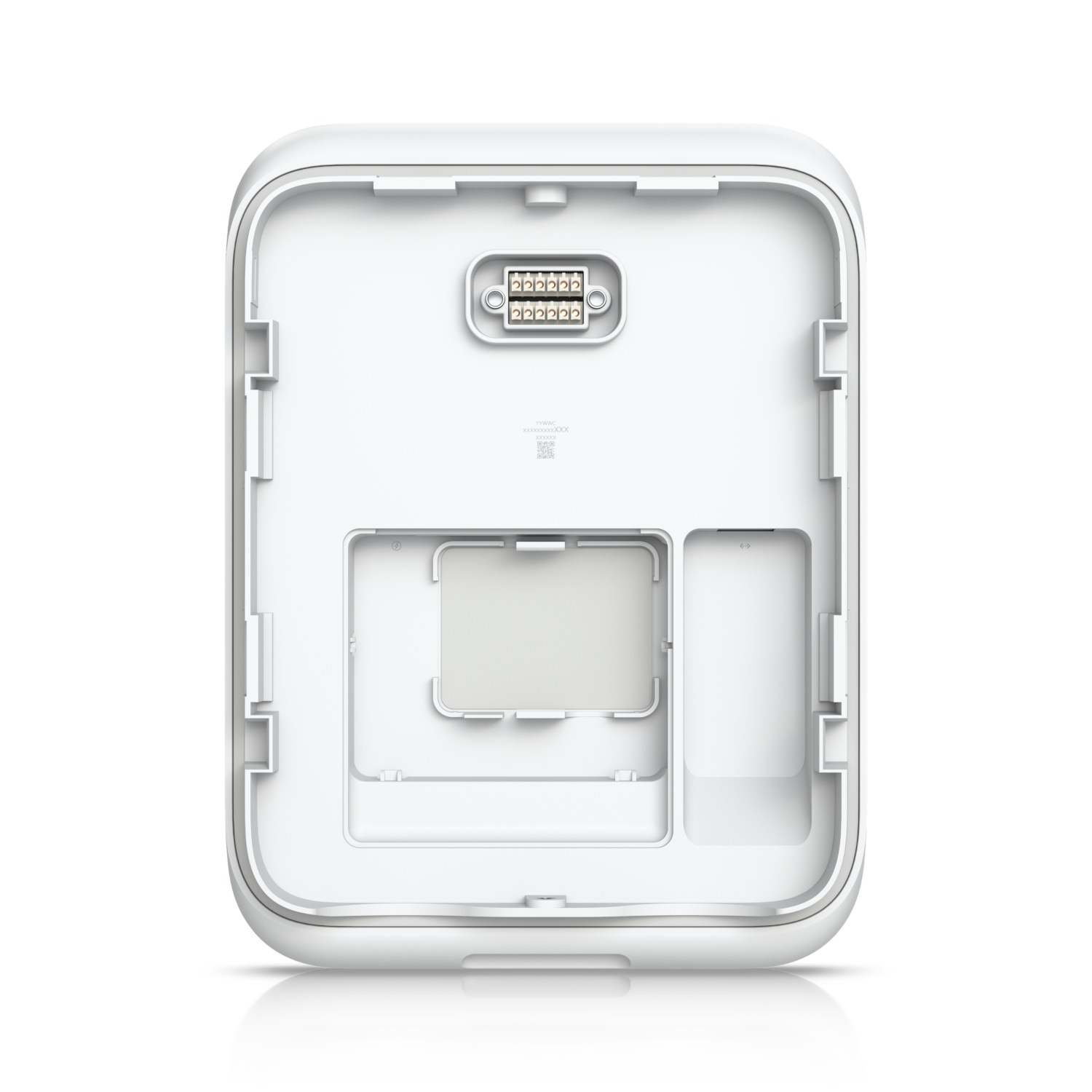

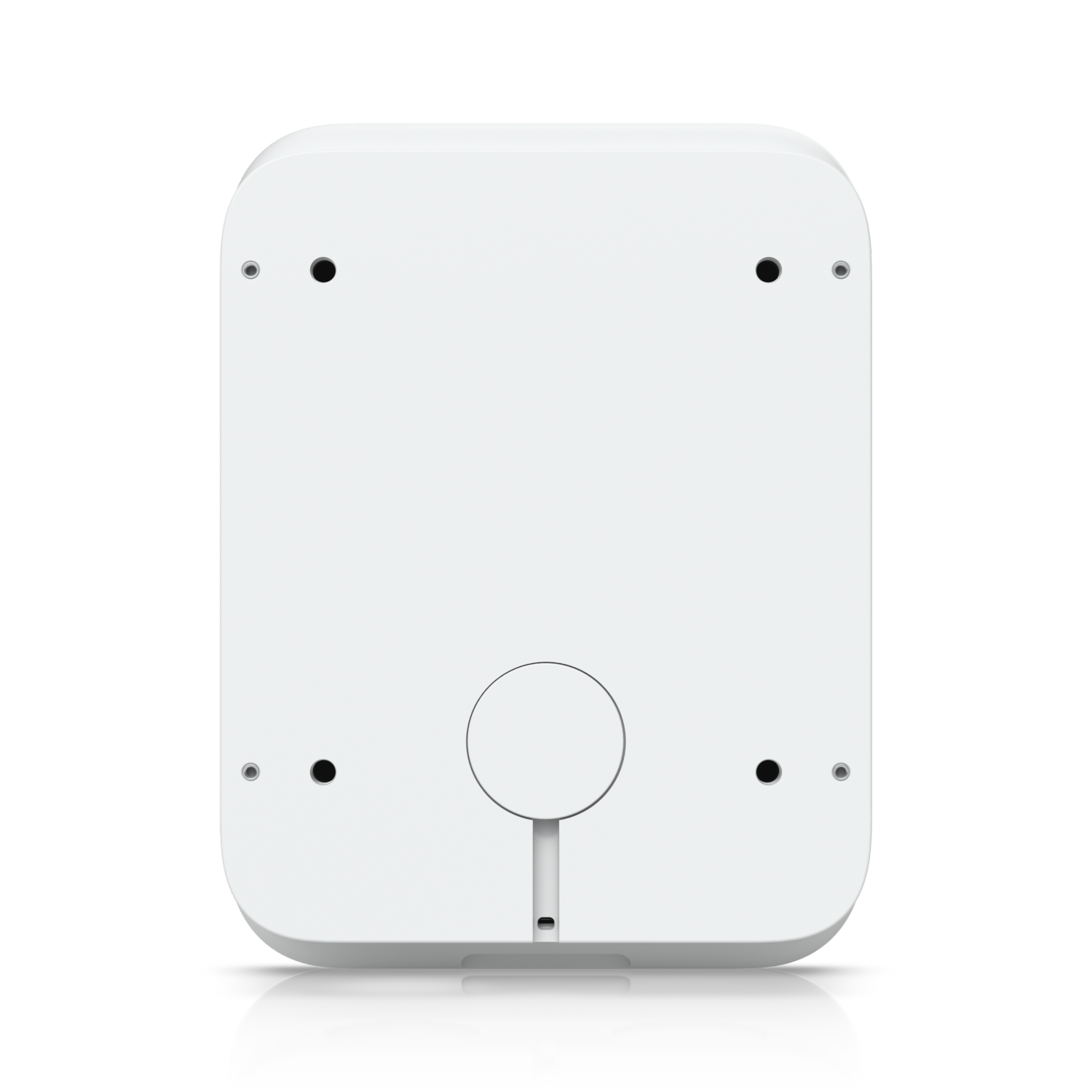

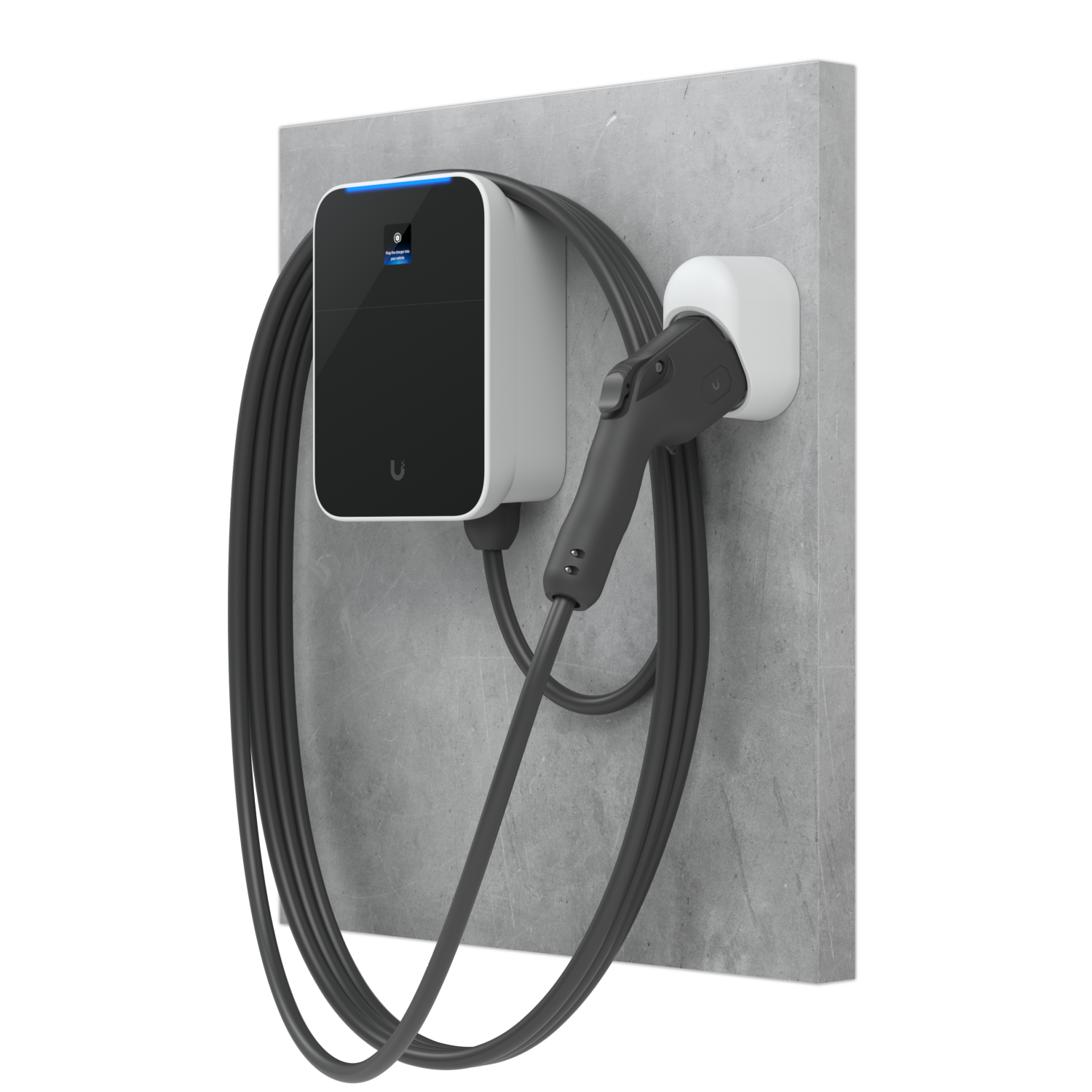

The Ubiquiti UniFi EV Station Lite UC-EV-Station-Lite is a weatherproof, 11 kW Level 2 electric vehicle charging station with flexible access control designed for scalable deployment.
11 kW max charging output with SAE J1772 charging plug
1.7" LCM display
Access control with UniFi Identity mobile app and NFC card*
Connected with UniFi WiFi Auto-Link or Ethernet
UL certified
Includes wall mount
*UniFi Access application, Access Hub and Access Reader required for NFC card registration. Requires UniFi OS 4.0.6 and later for UniFi Identity Enterprise.
Technical Specifications
| Mechanical | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 254.7 x 192.7 x 85 mm (10 x 7.6 x 3.3”) | ||||||||||||||||||||||||||||
| Weight | 5.9 kg (13 lb) | ||||||||||||||||||||||||||||
| Enclosure material | Polycarbonate | ||||||||||||||||||||||||||||
| Charging cable length | 7 m (23 ft) | ||||||||||||||||||||||||||||
| Mounting | Wall mount or stand | ||||||||||||||||||||||||||||
| Weatherproofing | Type 3R | ||||||||||||||||||||||||||||
| Charging outlet | SAE J1772 | ||||||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||||||
| Display size | 1.7" LCM display | ||||||||||||||||||||||||||||
| Resolution | 240 x 240 (1:1) | ||||||||||||||||||||||||||||
| Processor | Dual-core Arm® Cortex®-A53, 1 GHz | ||||||||||||||||||||||||||||
| Power input | 200–240V ~ 50A, 50/60Hz, 1φ | ||||||||||||||||||||||||||||
| Power output | 200–240V ~ 50A, 50/60Hz, 1φ | ||||||||||||||||||||||||||||
| Circuit breaker for charging output |
The circuit must be rated for 125% of the maximum load. Note. EV Station Lite can be wired to support higher amperages. Please consult your electrical code for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C and is compatible with wiring up to 16 mm 2 (6 AWG). |
||||||||||||||||||||||||||||
| Connectivity | (1) GbE RJ45 port (1) USB-C port Bluetooth® 5.0 WiFi |
||||||||||||||||||||||||||||
| Ambient operating temperature | -40 to 50° C (-40 to 122° F) | ||||||||||||||||||||||||||||
| Ambient operating humidity | 5 to 90% noncondensing | ||||||||||||||||||||||||||||
| Certifications | FCC, IC, UL | ||||||||||||||||||||||||||||
| Software | |||||||||||||||||||||||||||||
| Management application | UniFi Connect: Version 3.14.4 and later UniFi Connect iOS™ and Android™: Version 2.18 and later |
