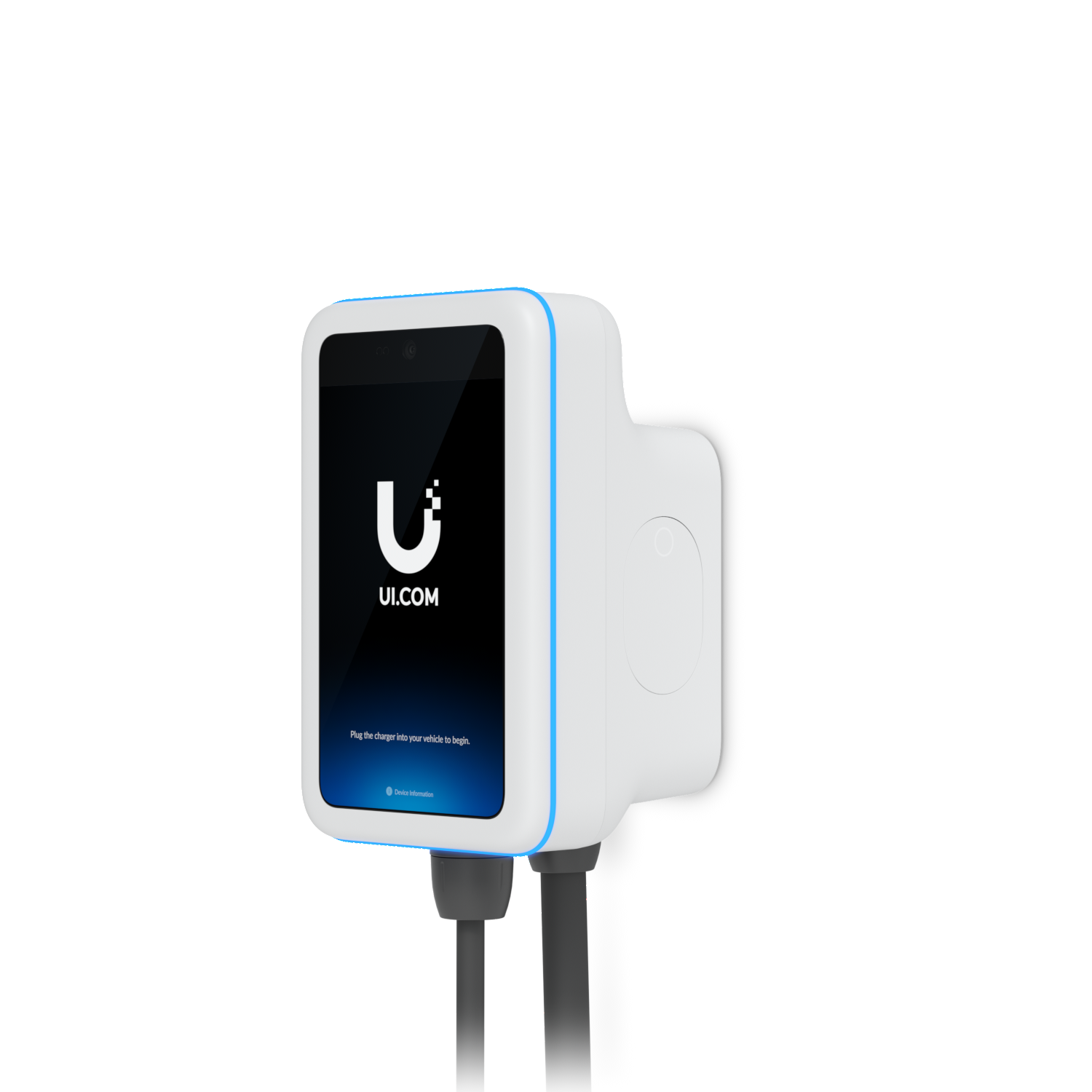

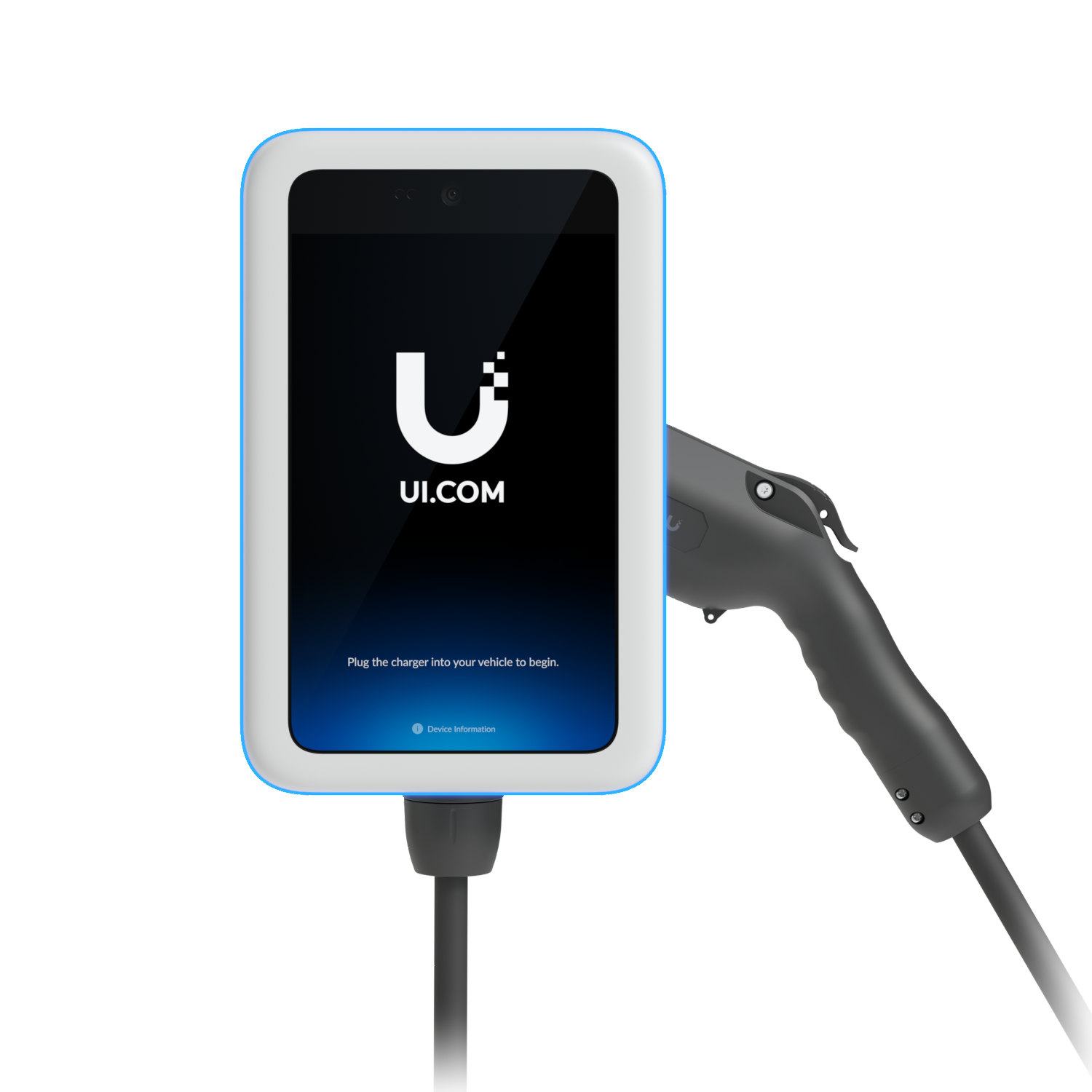

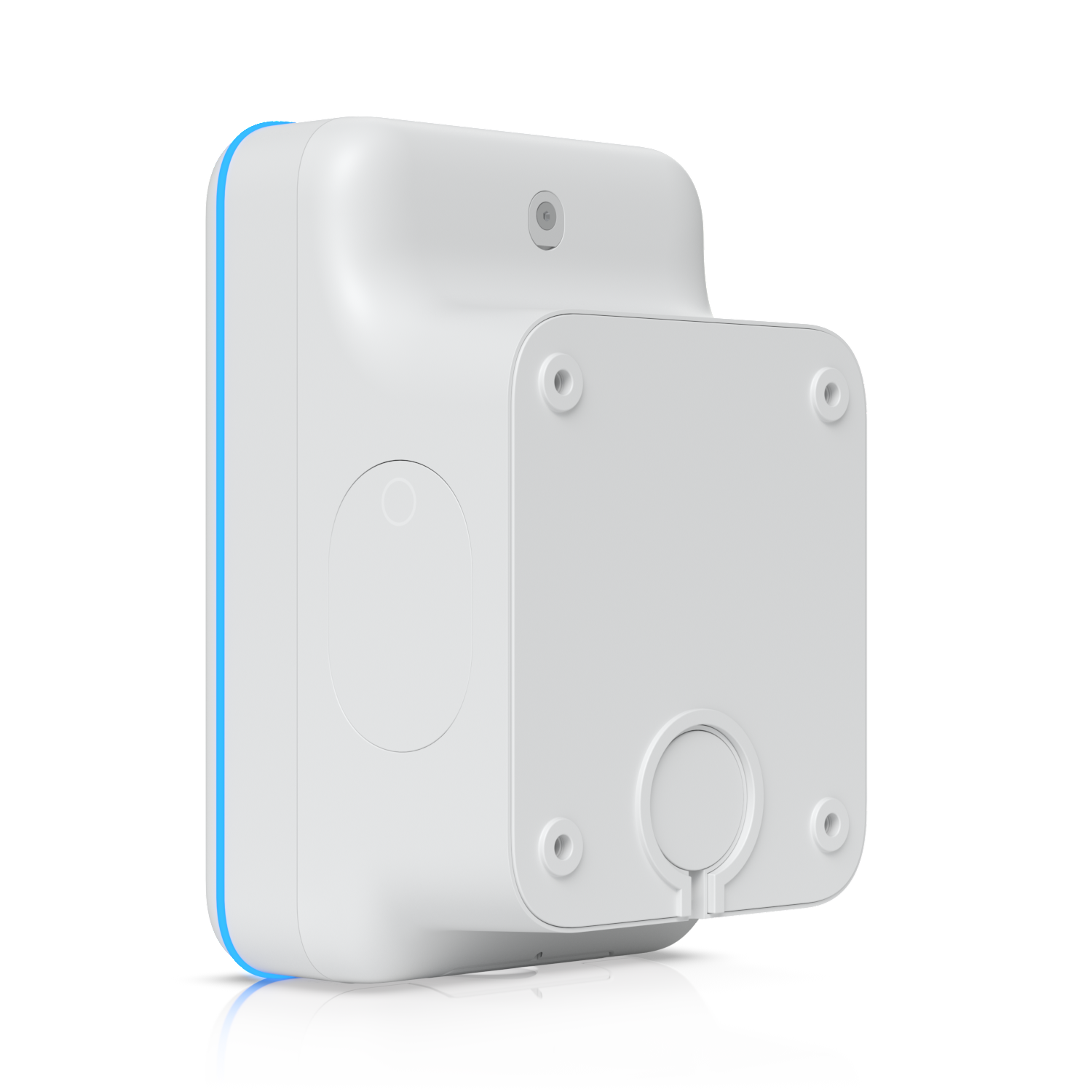

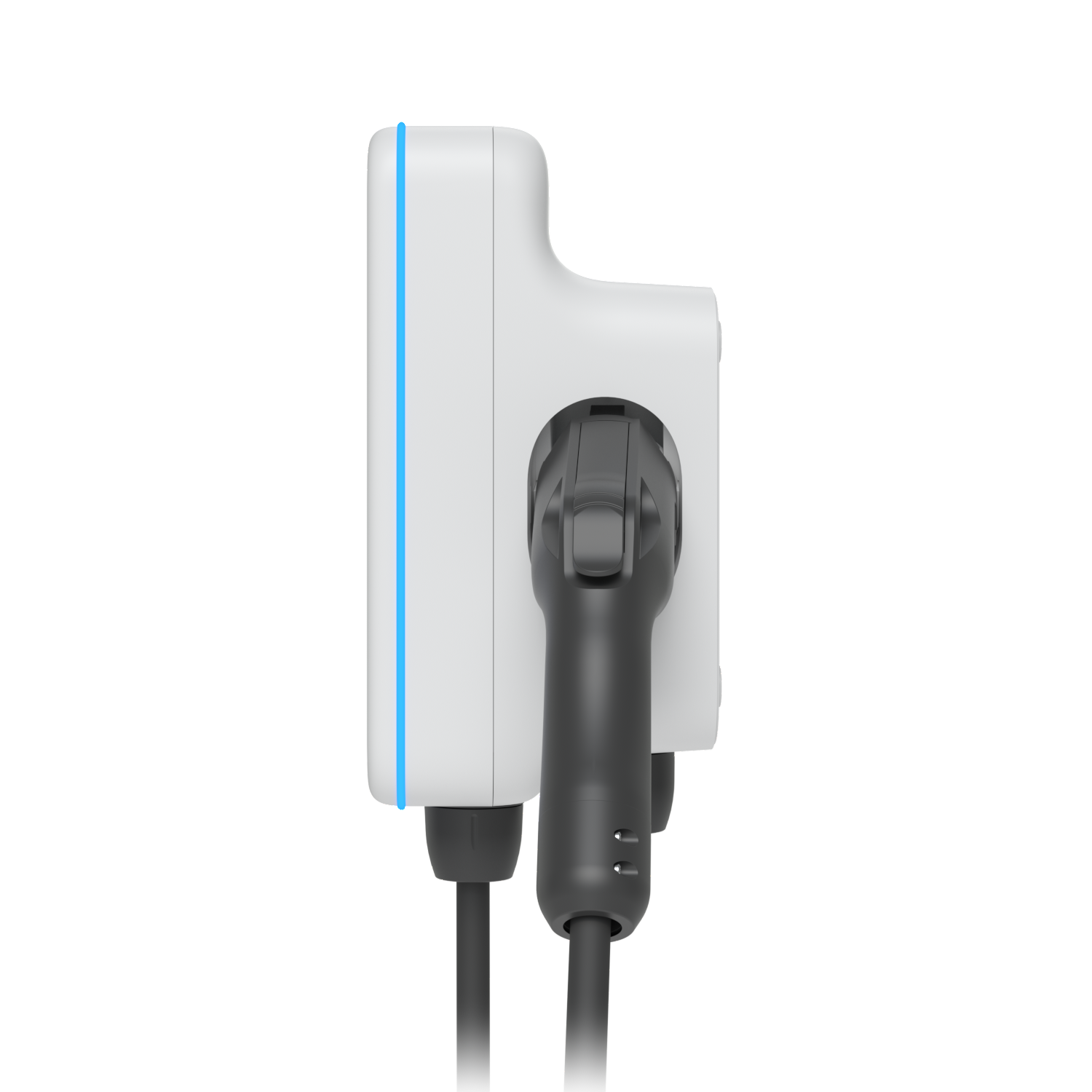

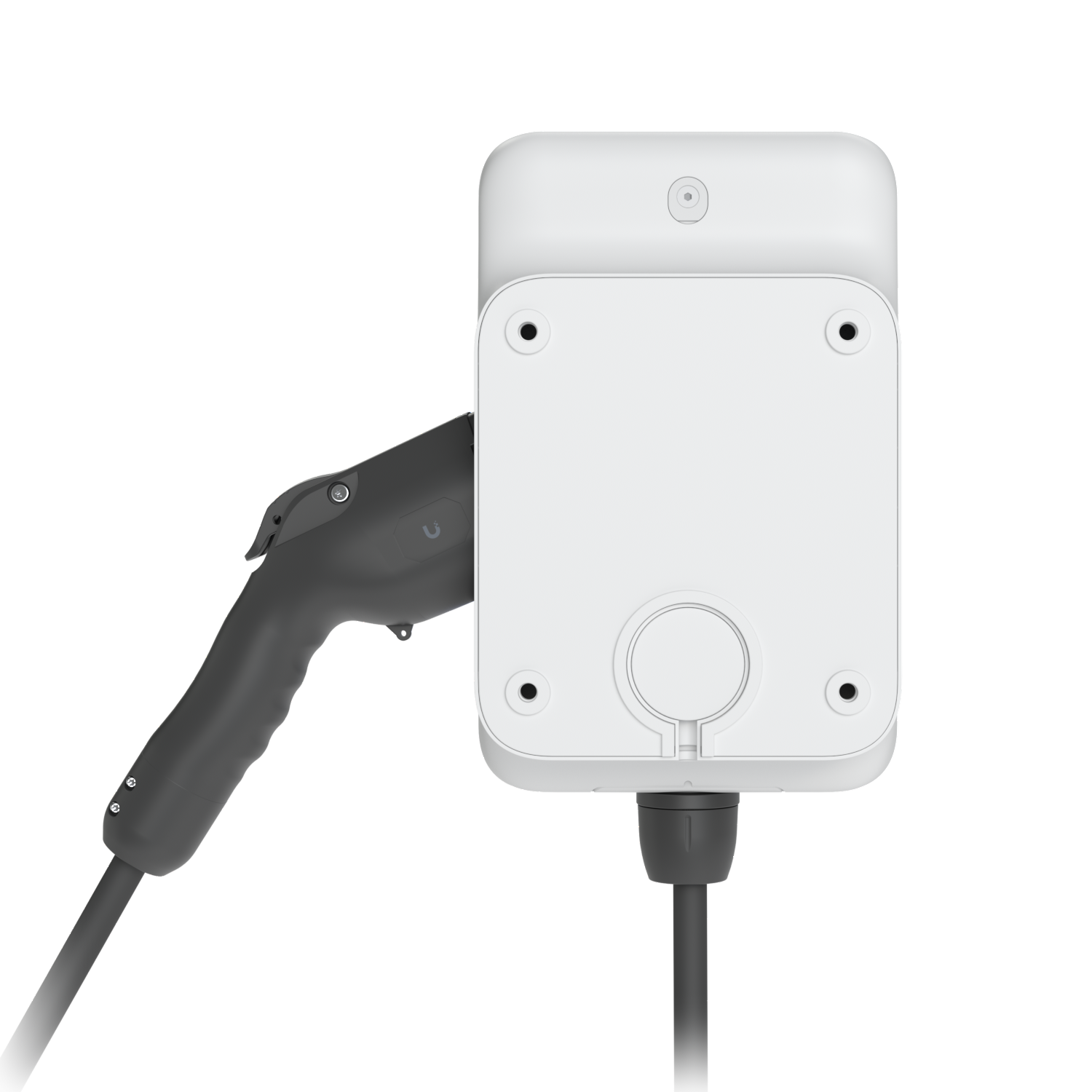

The Ubiquiti UniFi EV Station Pro UC-EV-Station-Pro is a weatherproof, 11 kW Level 2 electric vehicle charging station with an ultra-bright 10.1" touch display, flexible access control, and payment terminal accessory support.

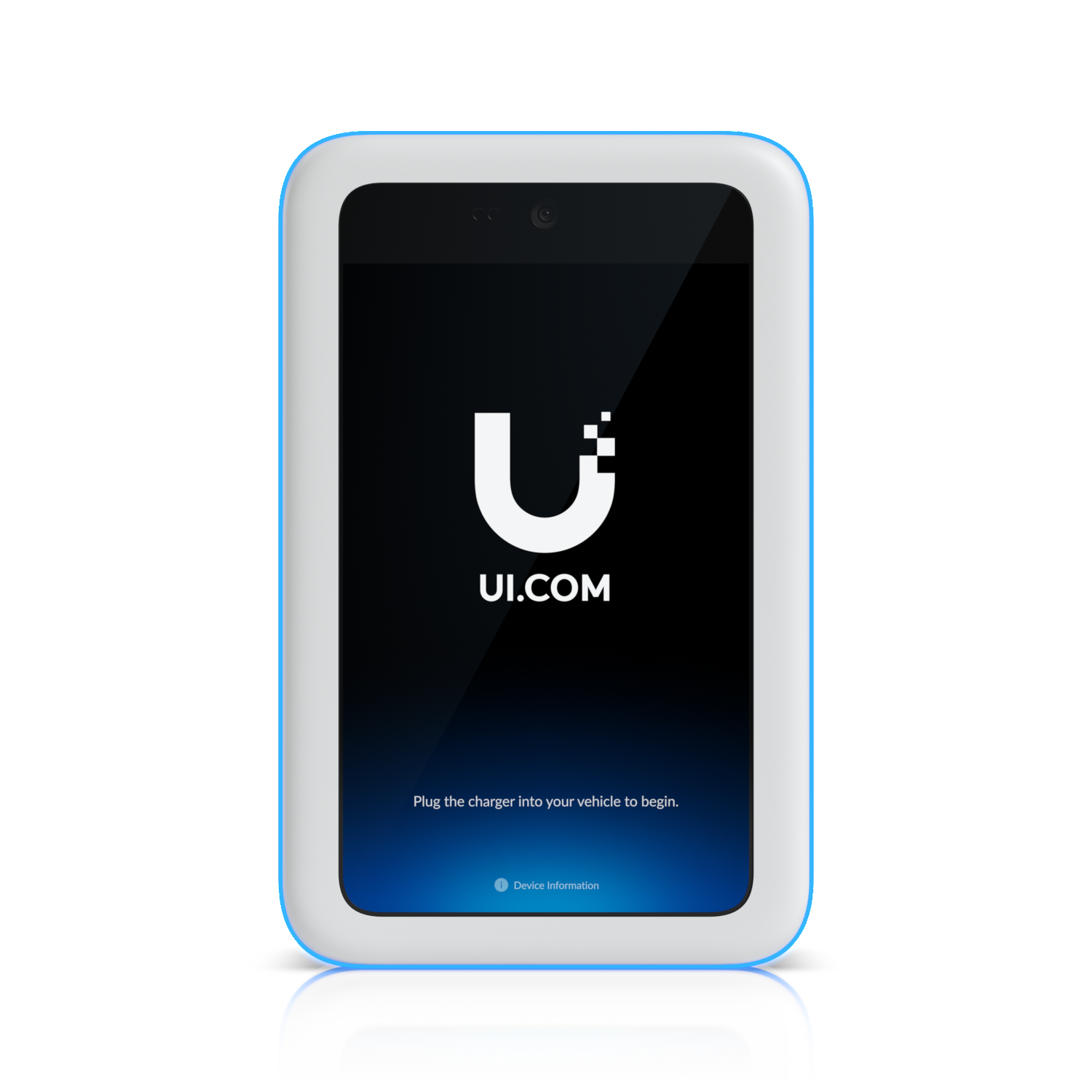

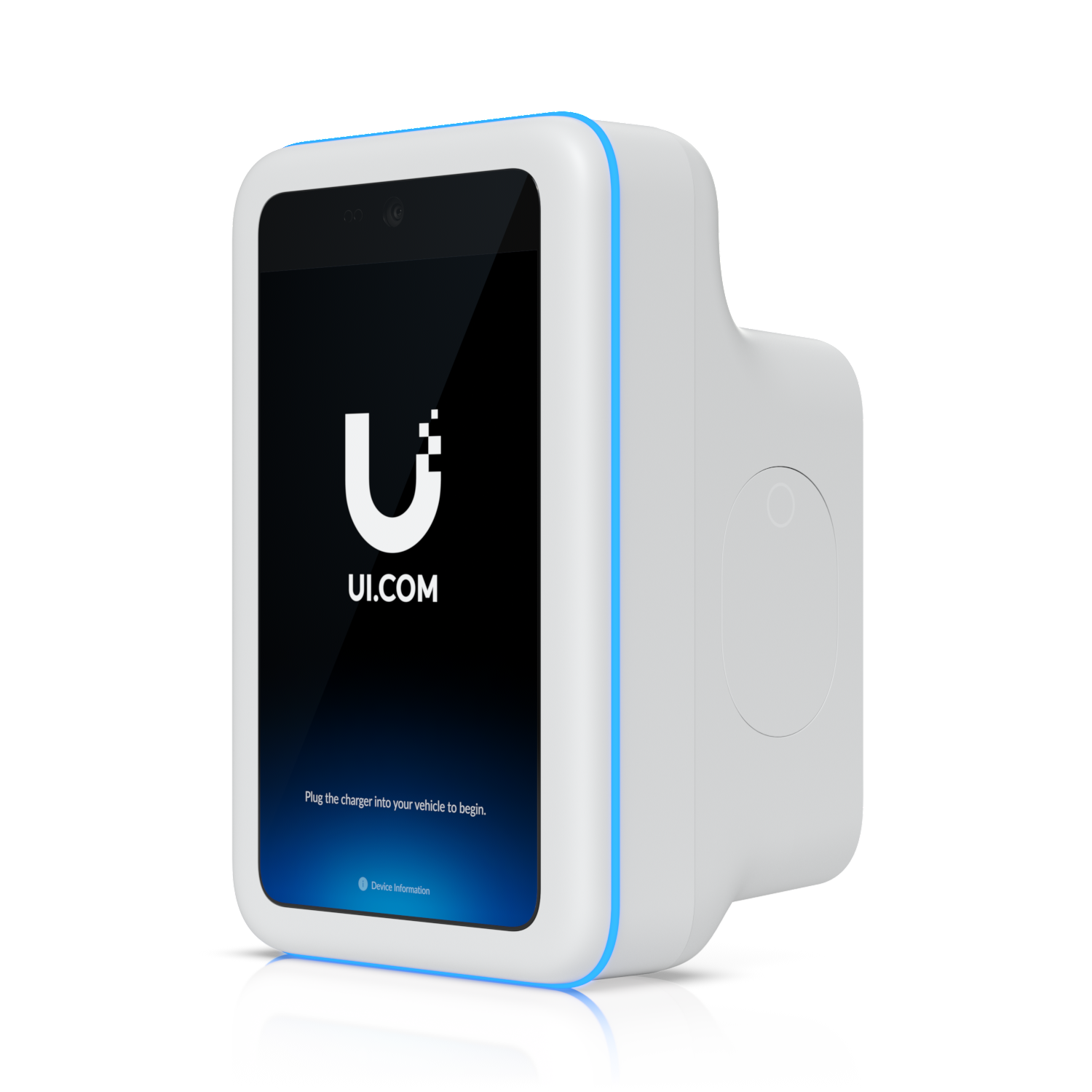

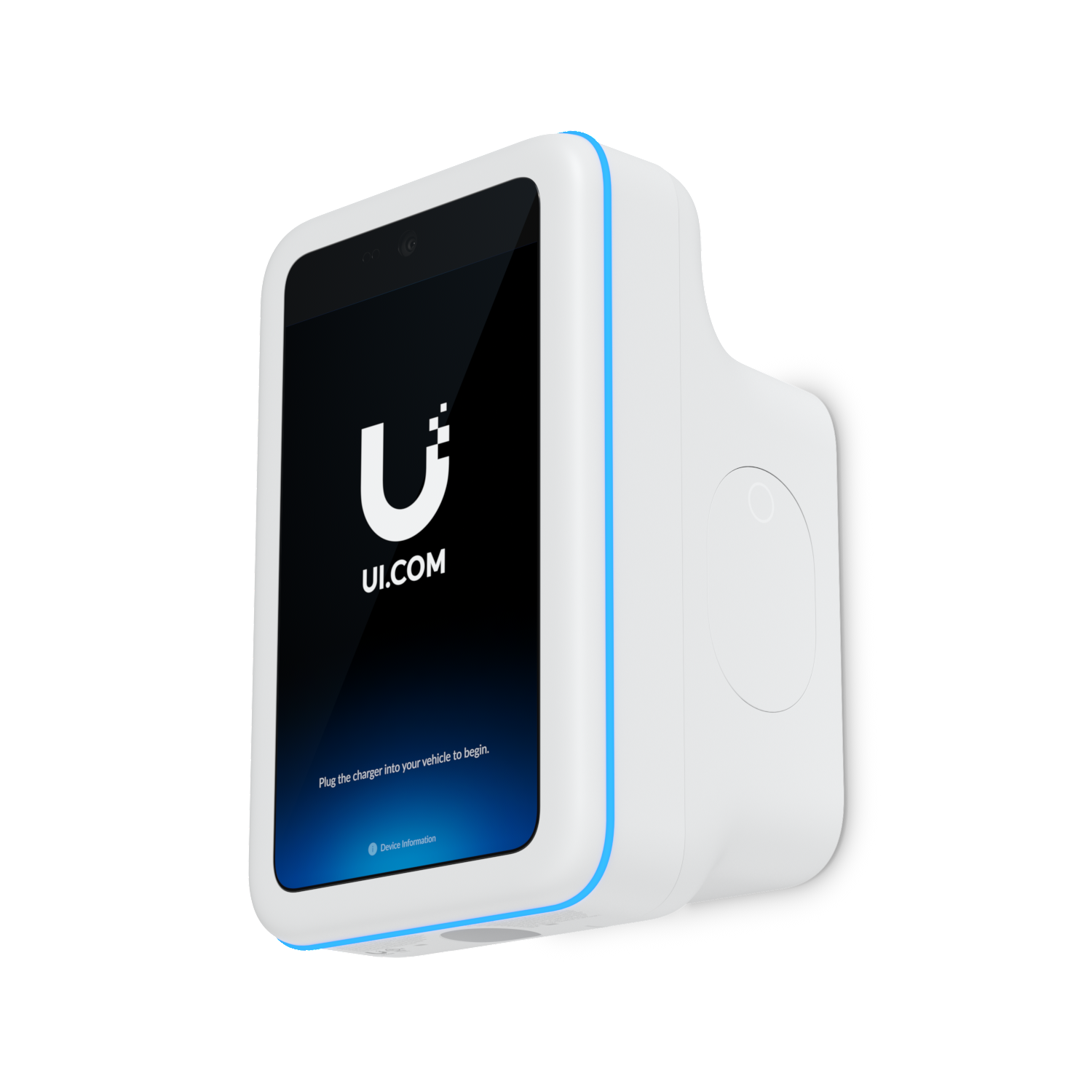

Ultra-bright 10.1" touch display
11 kW max charging output with SAE J1772 charging plug
Media content playback for digital signage applications
Access control with QR code scanning, UniFi Identity mobile app, and NFC card*
Payment terminal accessory support for payment processing**
Hardwire or use one of the included NEMA 14-50 and 6-50 cables for plug-in installation
Connected with UniFi WiFi Auto-Link** or Ethernet
UL certified

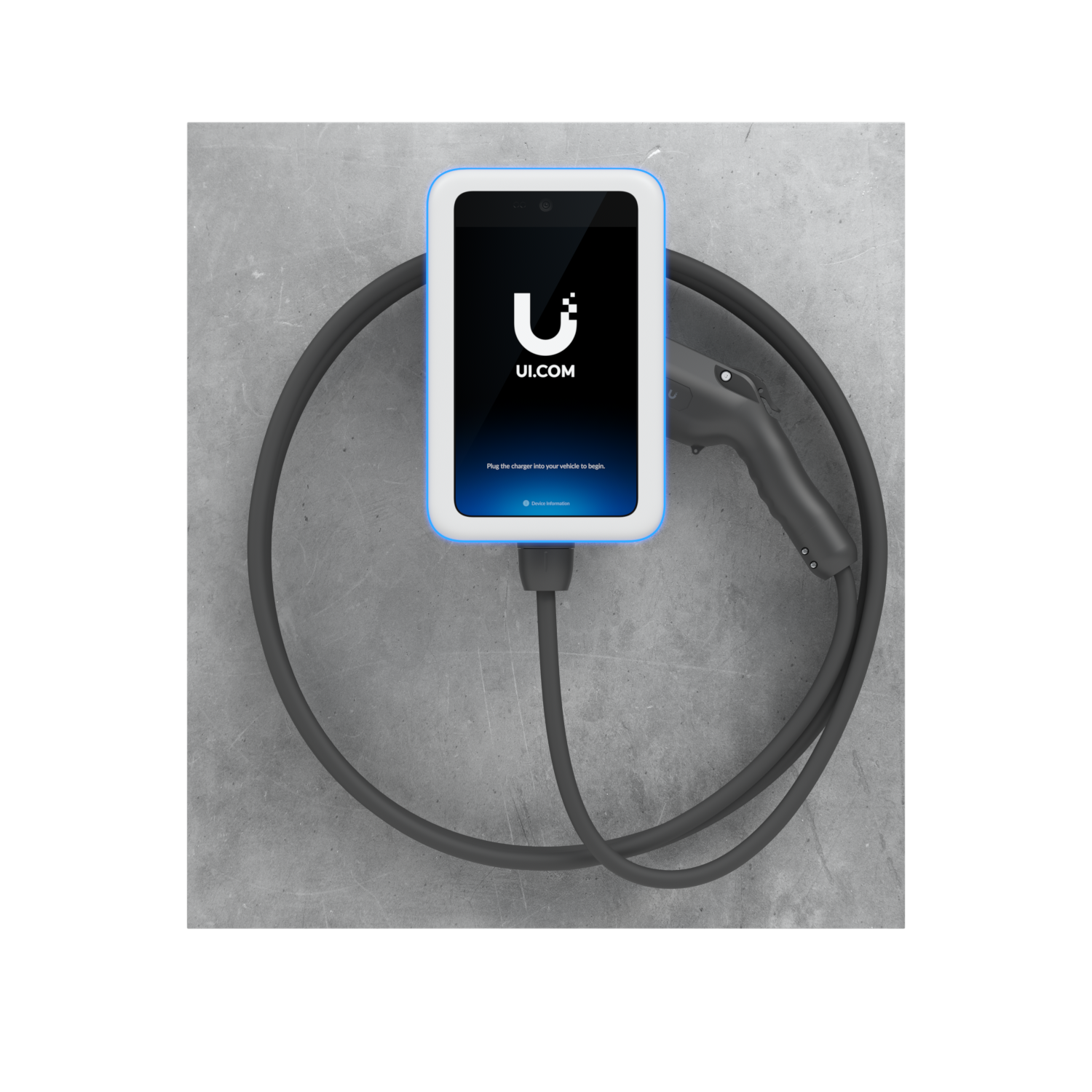

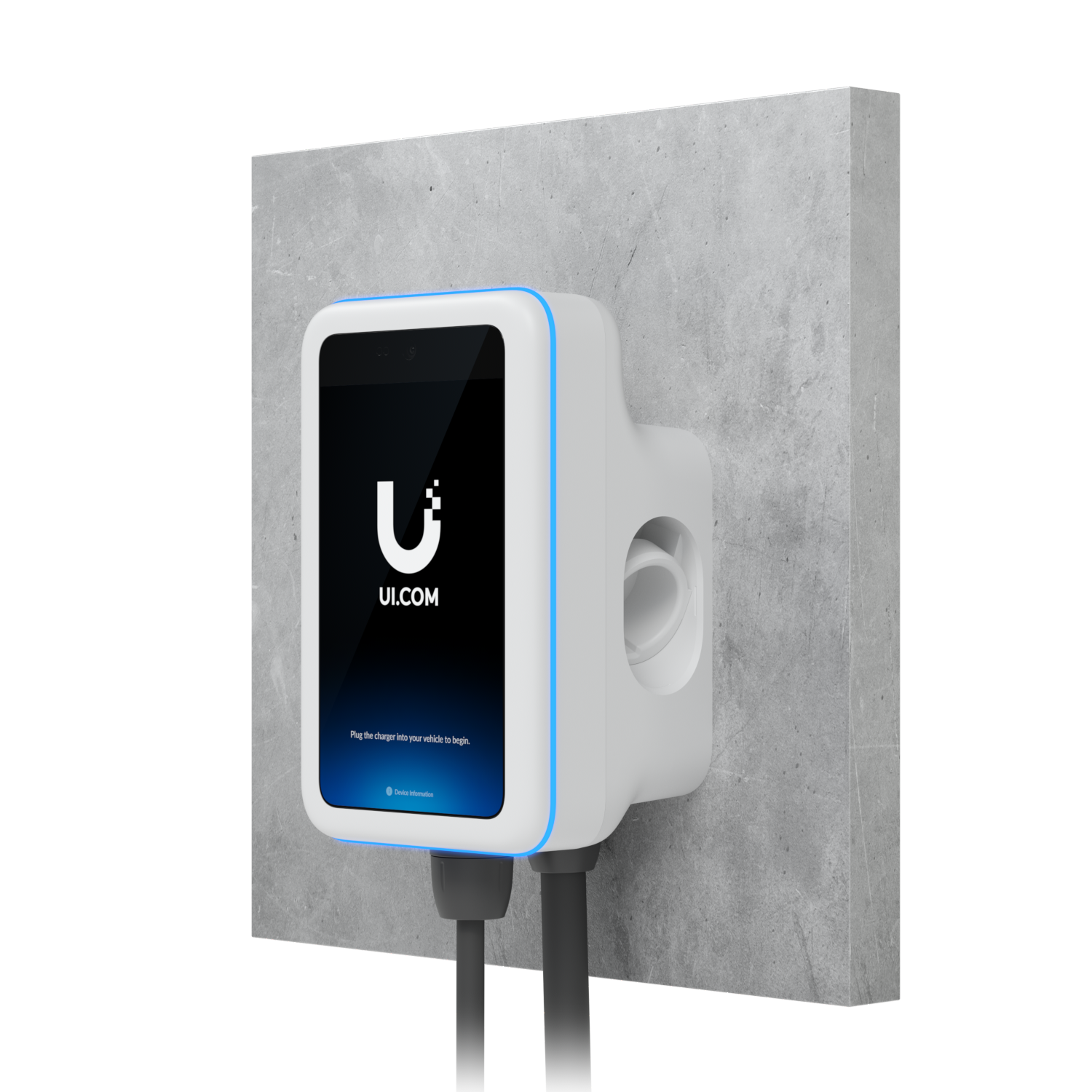

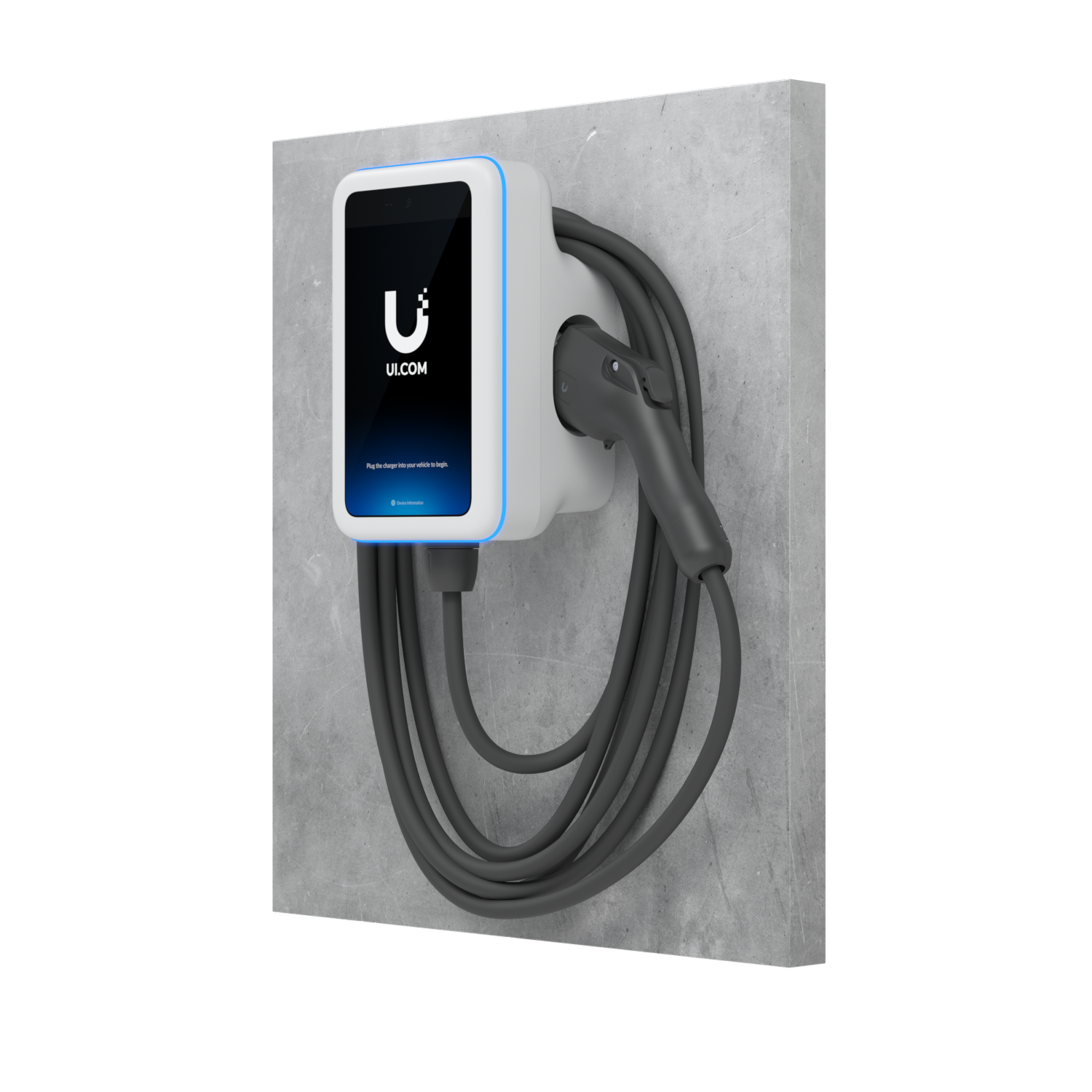

Includes wall mount
*UniFi Access must be running on the same console as UniFi Connect with a Control Hub and Access Reader adopted for NFC card registration.
**Payment Terminal and UniFi WiFi Auto-Link supported with EV Station Pro version 1.2.25 and later. Third-party WiFi configuration is not supported.
Technical Specifications
| Mechanical | |||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensions | 280 x 178 x 143 mm (11 x 7 x 5.6”) | ||||||||||||||||||||||||||||
| Weight | With wall mount/charging gun/power cord: 8.1 kg (17.9 lb) | ||||||||||||||||||||||||||||
| Enclosure material | Front modules: plastic Middle module: aluminum, plastic |
||||||||||||||||||||||||||||
| Mount material | Plastic | ||||||||||||||||||||||||||||
| Charging cable length | 7 m (23 ft) | ||||||||||||||||||||||||||||
| Weatherproofing | Type 3R | ||||||||||||||||||||||||||||
| Charging outlet | SAE J1772 | ||||||||||||||||||||||||||||
| Hardware | |||||||||||||||||||||||||||||
| Display size | 257 mm (10.1") diagonal | ||||||||||||||||||||||||||||
| Resolution | 800 x 1280 (10:16) | ||||||||||||||||||||||||||||
| Display luminance | 800 nits (typical) | ||||||||||||||||||||||||||||
| Touch screen technology | Capacitive multi-touch | ||||||||||||||||||||||||||||
| Processor | Octa-core Arm® Cortex®-A53, 2.2 GHz | ||||||||||||||||||||||||||||
| Memory | Storage: 32GB RAM: 3GB |
||||||||||||||||||||||||||||
| Power input | 200–240V ~ 50A, 50/60Hz, 1φ | ||||||||||||||||||||||||||||
| Power output | 200–240V ~ 50A, 50/60Hz, 1φ | ||||||||||||||||||||||||||||
| Circuit breaker for charging output |
Note. EV Station Pro can be wired to support higher amperages. Please consult your electrical code for breaker and wire sizing requirements. The field-wiring terminal is rated up to 105° C and is compatible with wiring up to 16 mm 2 (6 AWG). |
||||||||||||||||||||||||||||

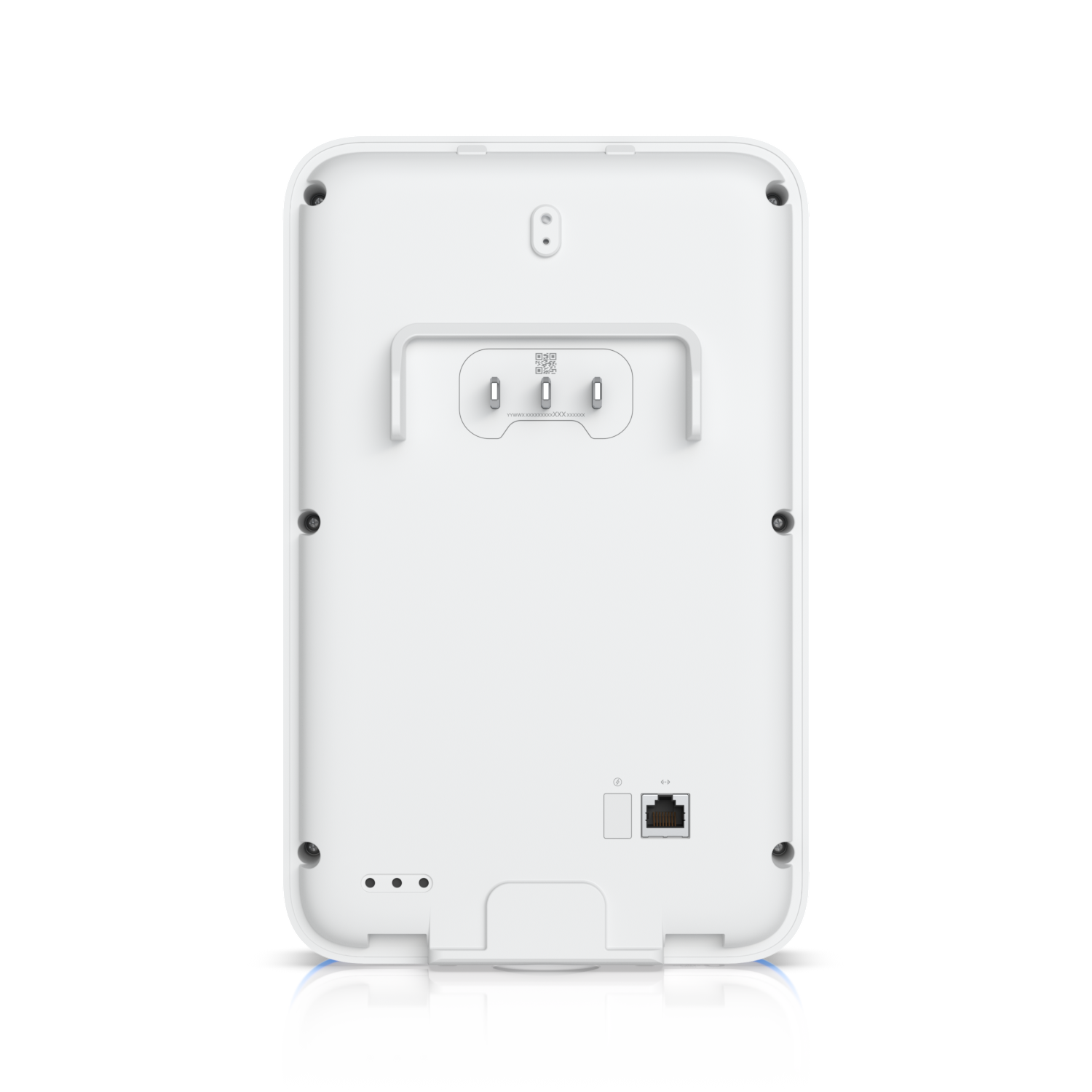

| Connectivity | (1) GbE RJ45 port (1) USB-C port for payment terminal accessory Bluetooth® 4.2 |
||||||||||||||||||||||||||||
| Sensors | ALS + PS (ambient light sensor + proximity sensor) | ||||||||||||||||||||||||||||
| Embedded front camera | 8 MP | ||||||||||||||||||||||||||||
| WiFi standards | 802.11 a/b/g/n/ac | ||||||||||||||||||||||||||||
| Mounting | Wall mount and stand | ||||||||||||||||||||||||||||
| Ambient operating temperature | -40 to 50° C (-40 to 122° F) | ||||||||||||||||||||||||||||
| Ambient operating humidity | 5 to 90% noncondensing | ||||||||||||||||||||||||||||
| Certifications | FCC, IC, UL | ||||||||||||||||||||||||||||
| Software | |||||||||||||||||||||||||||||
| Management application | UniFi Connect: Version 3.2.4 and later UniFi Connect iOS™ and Android™: Version 2.2.1 and later |
