Ubiquiti  |  SKU: UA-G3-SK-GATE

Ubiquiti UniFi G3 Gate Starter Kit UA-G3-SK-GATE

$799.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

Please contact us for availability.

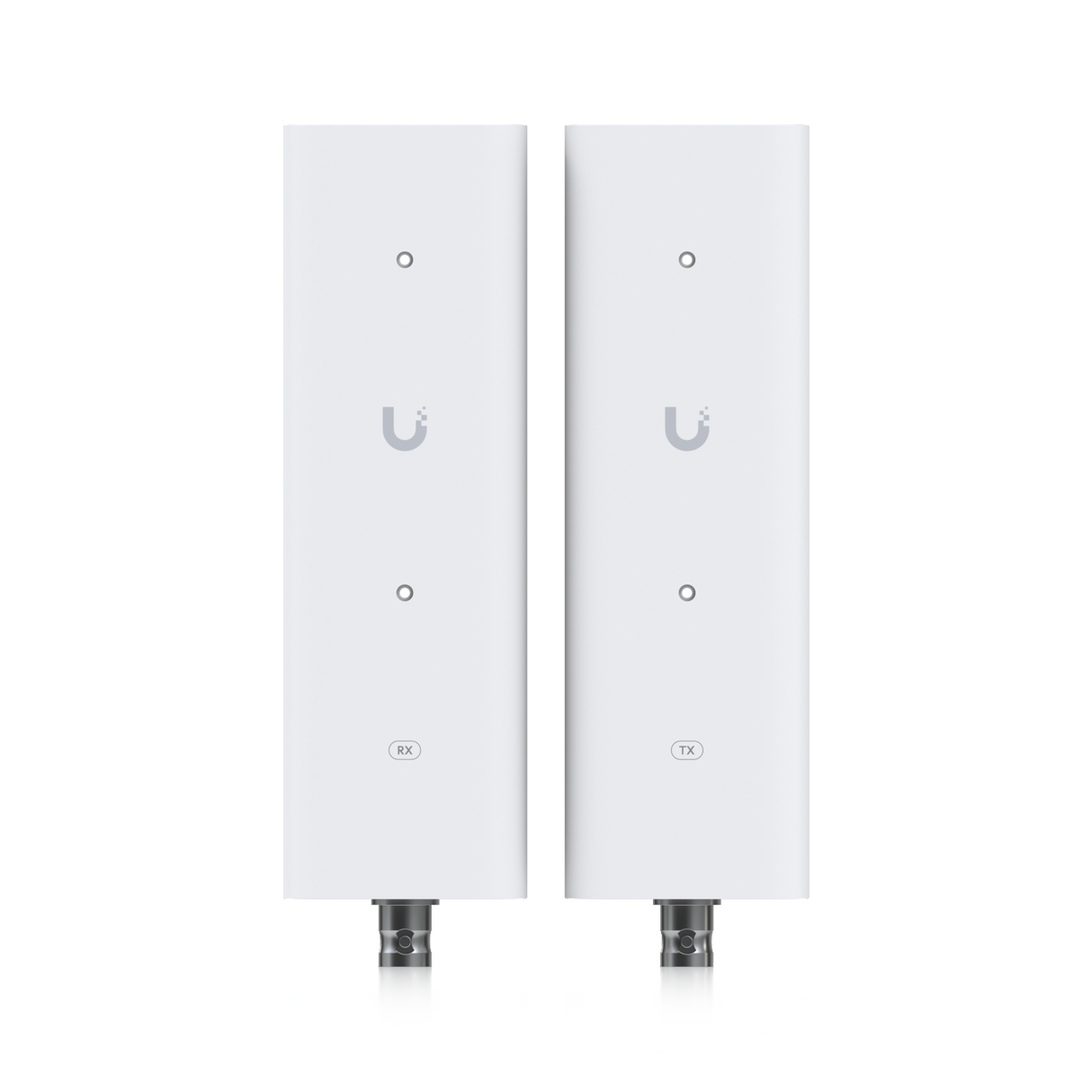

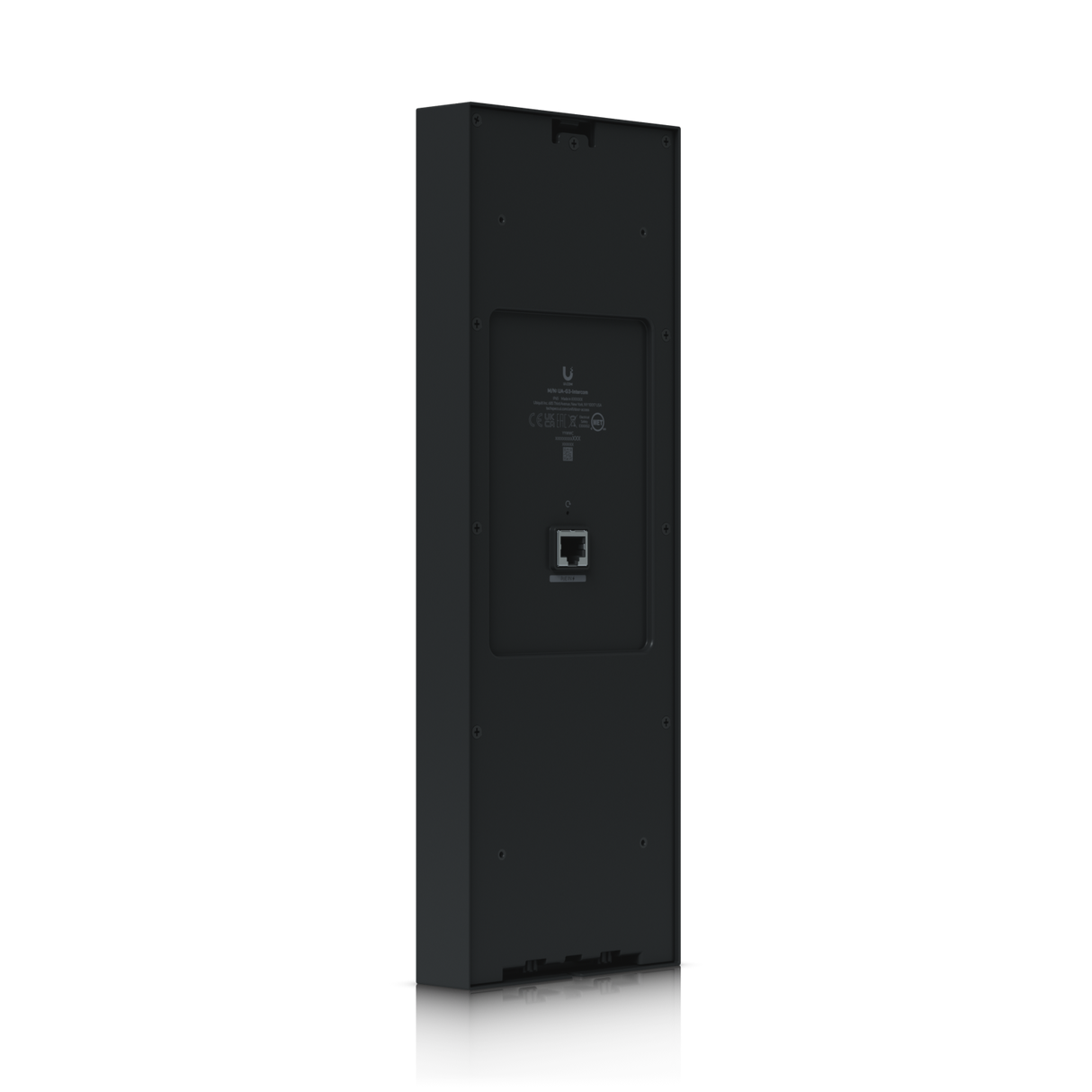

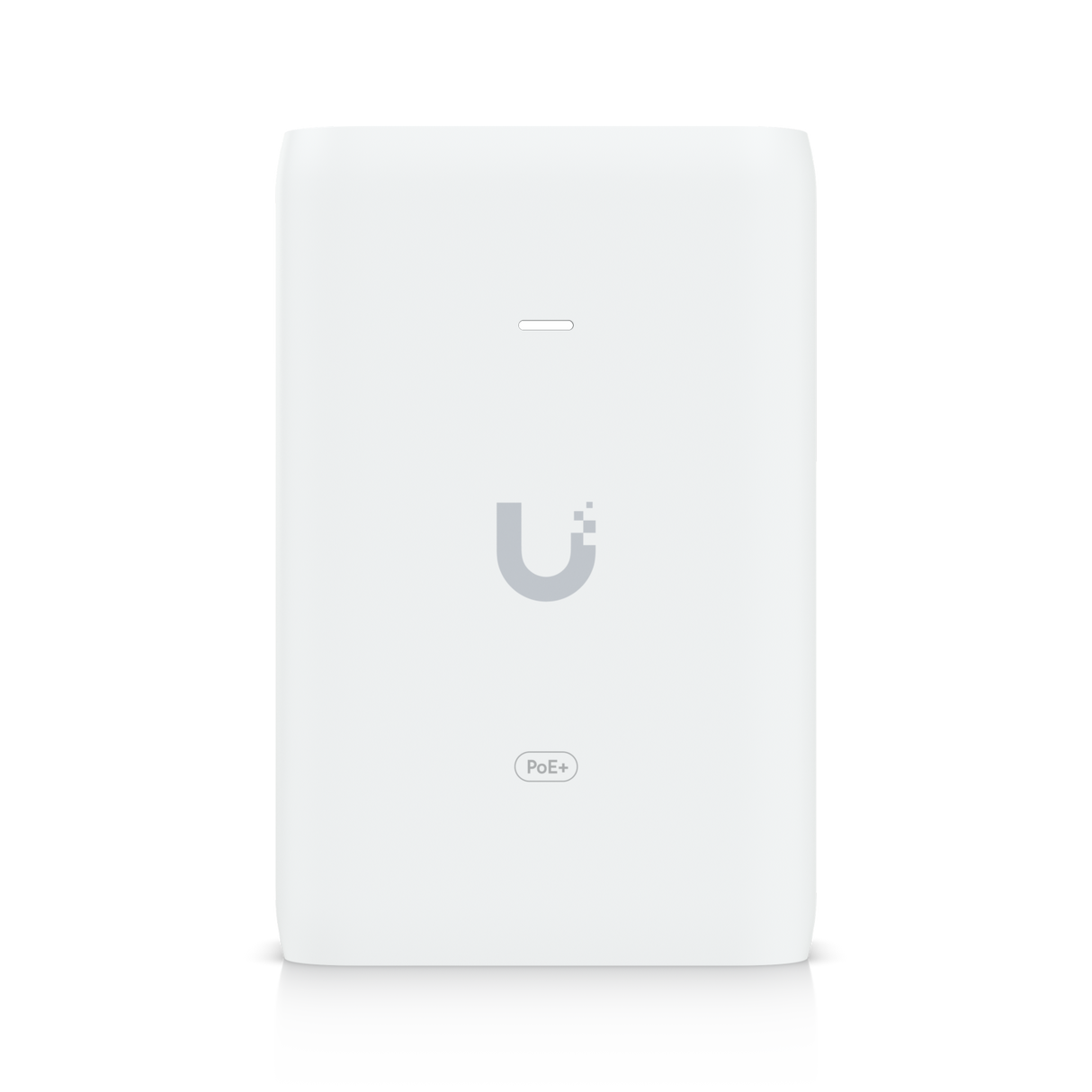

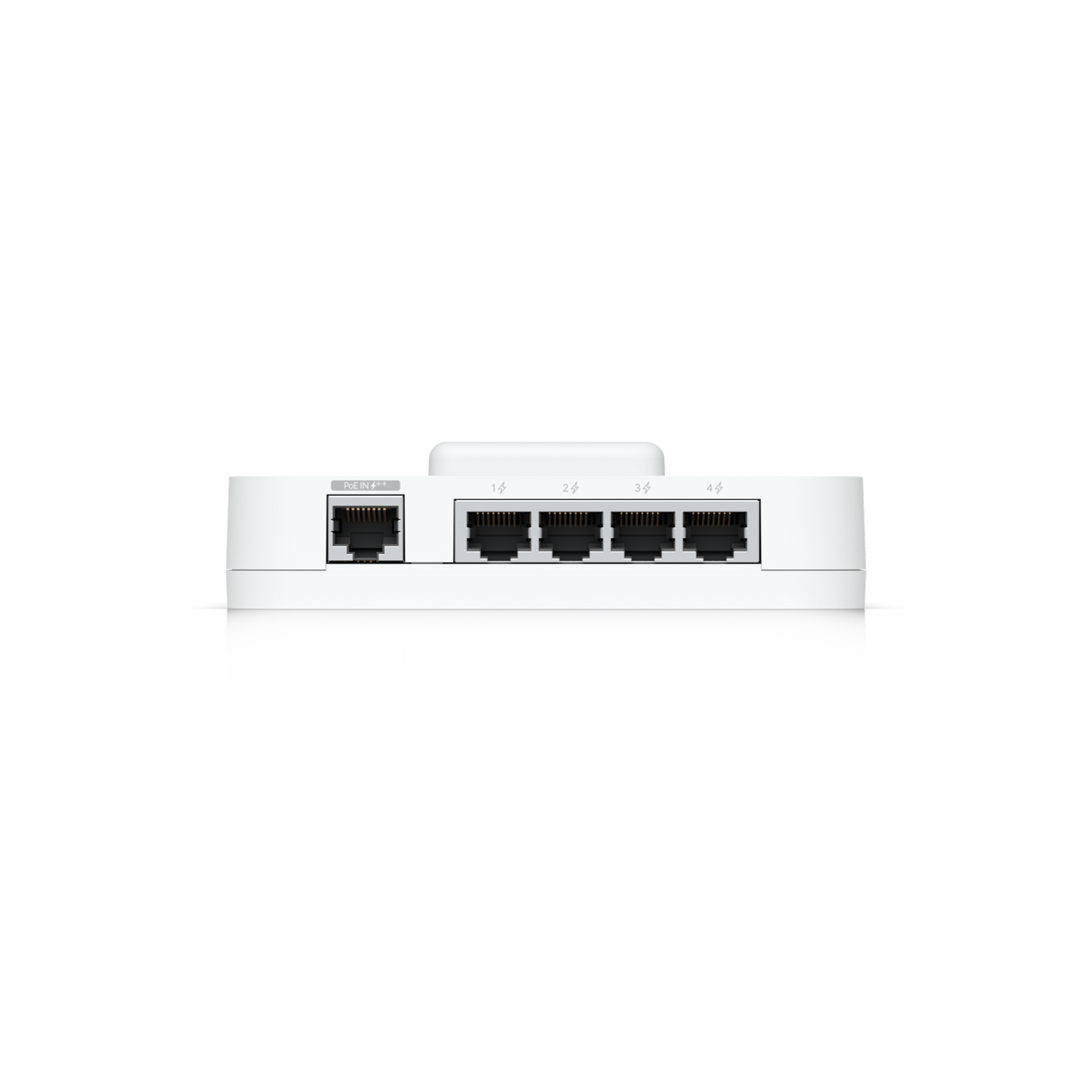

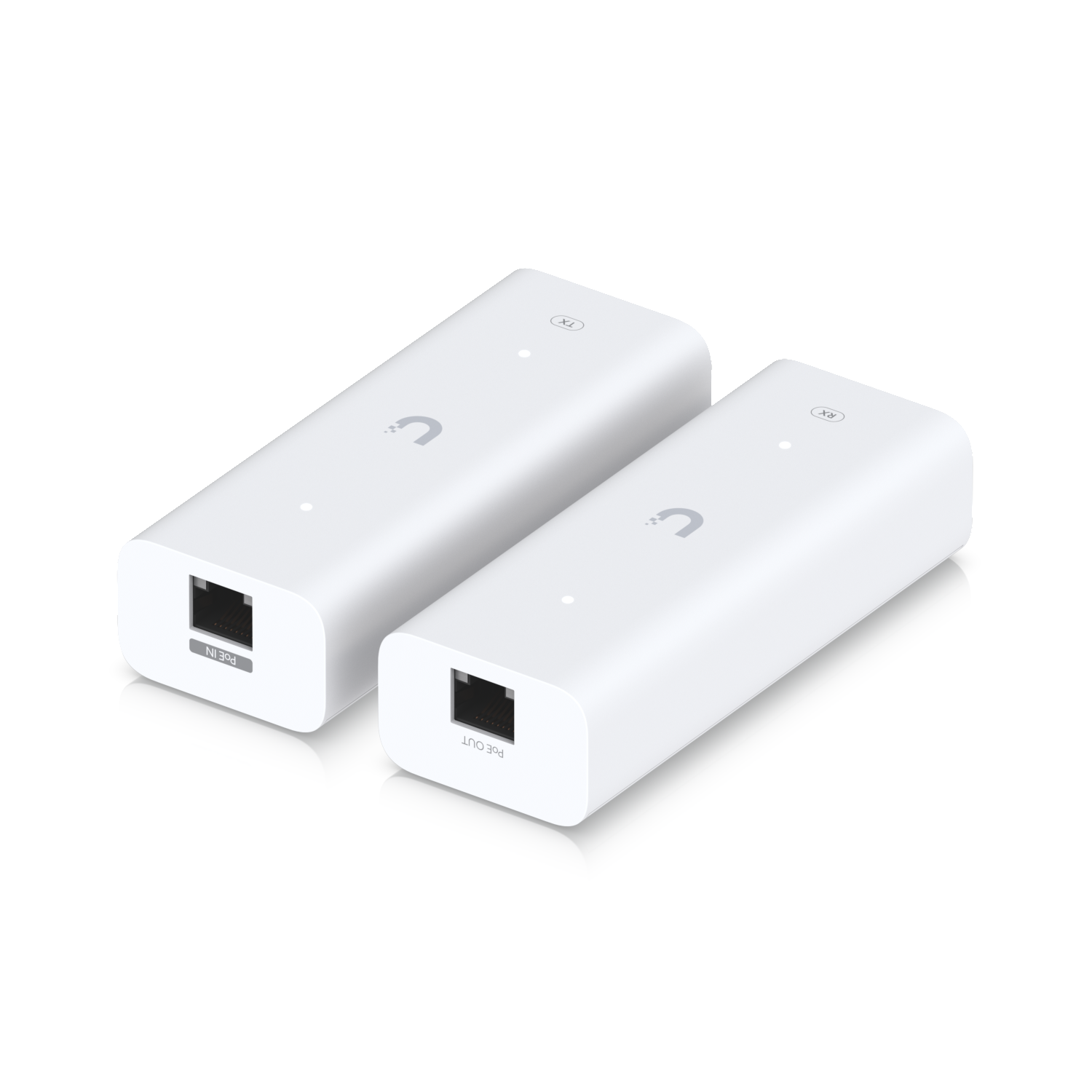

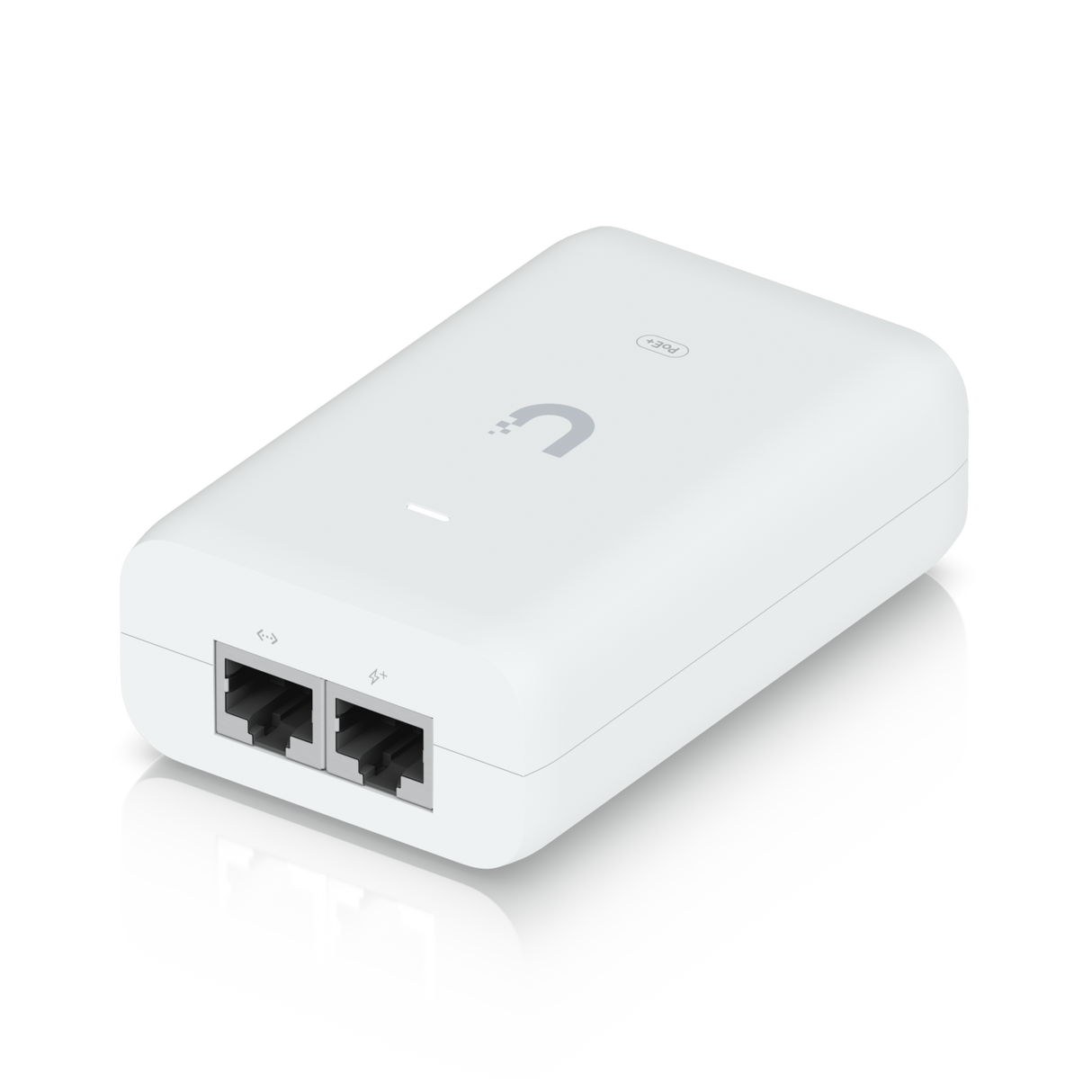

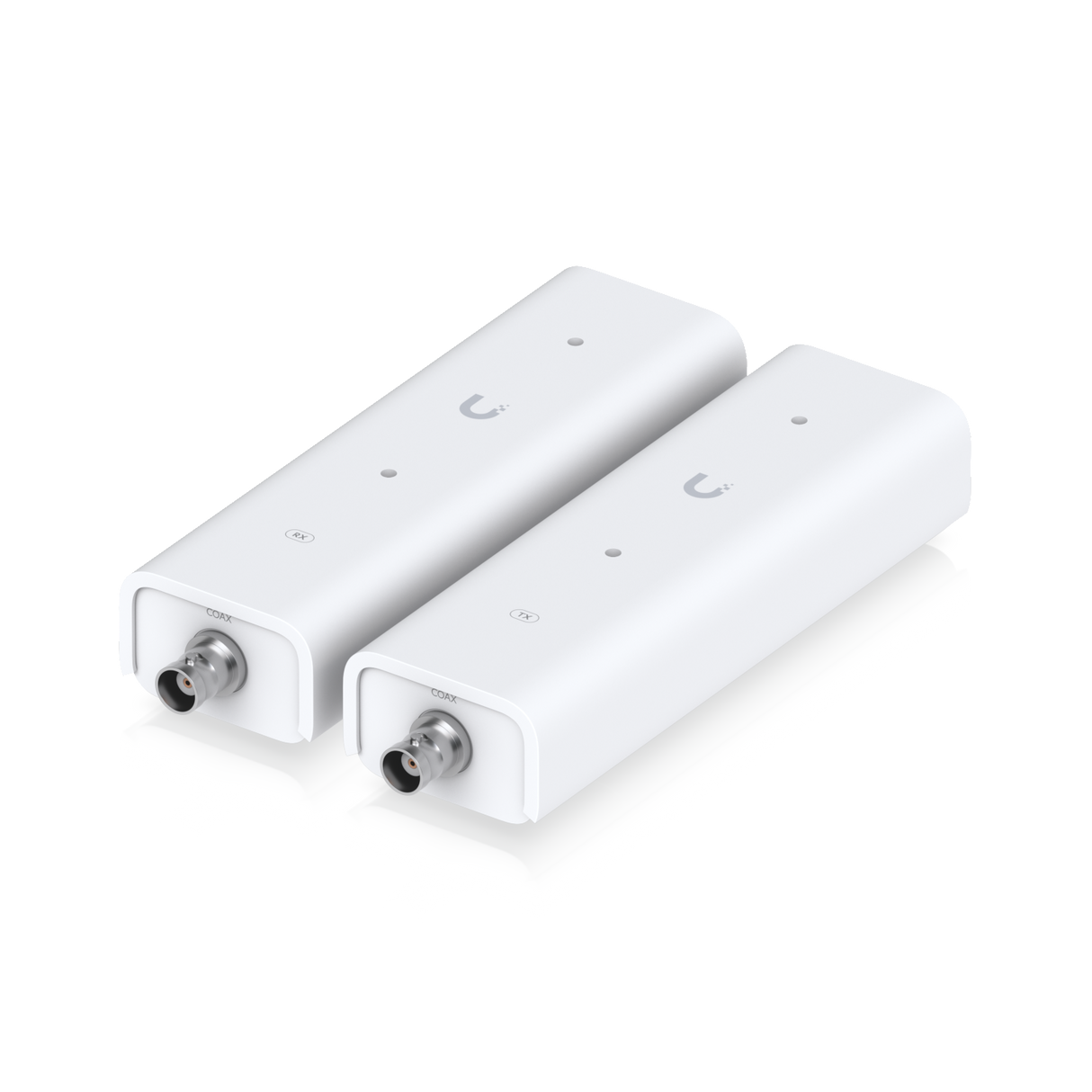

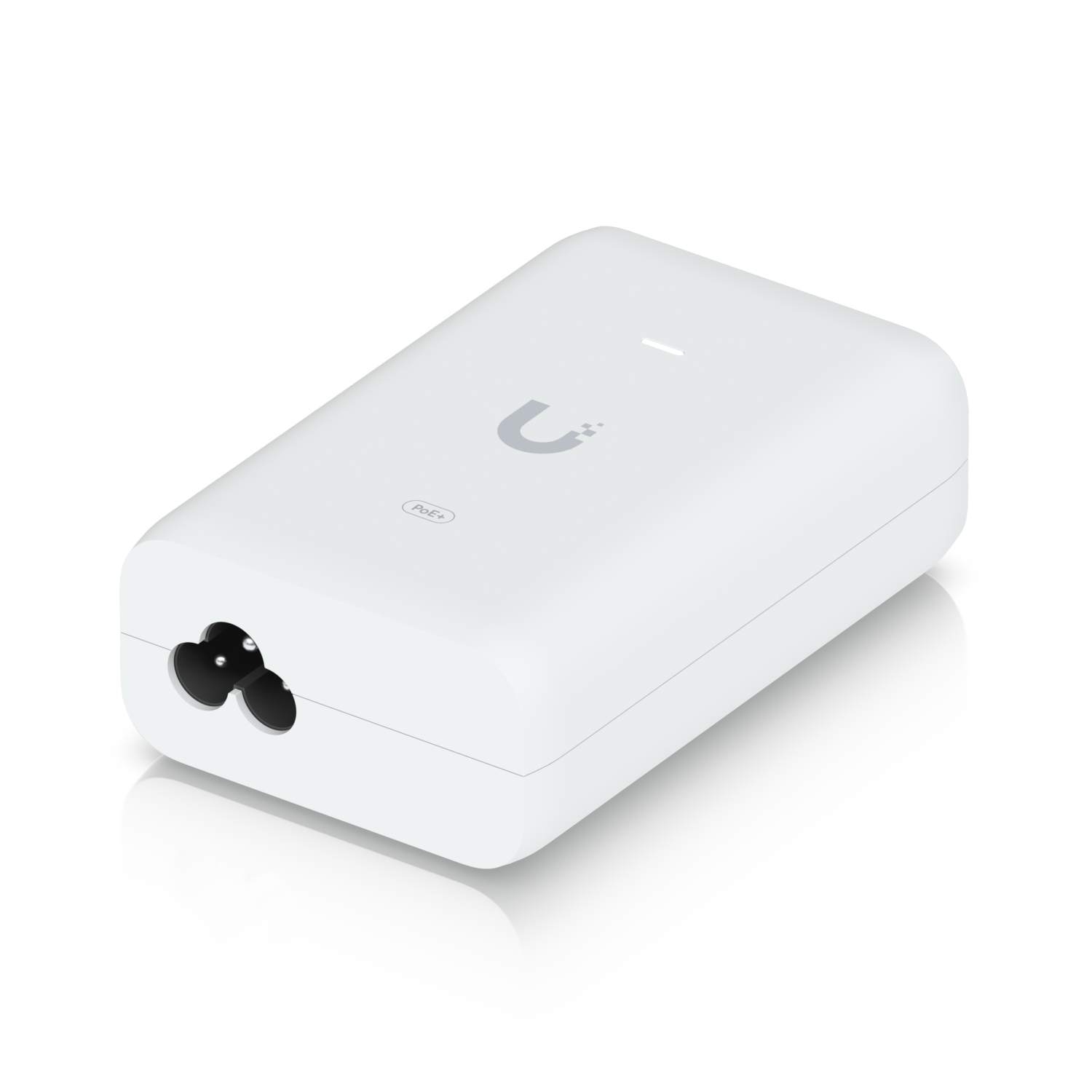

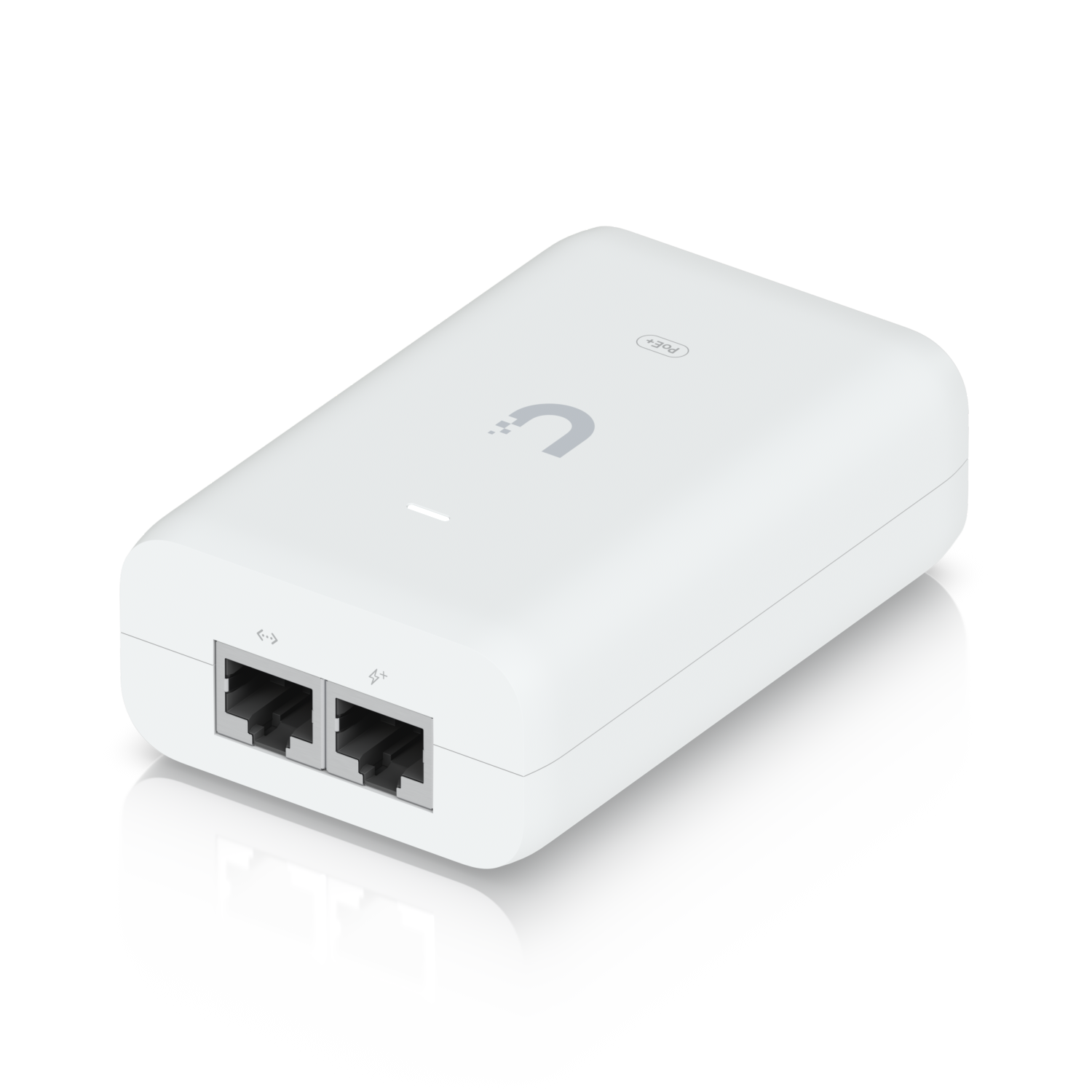

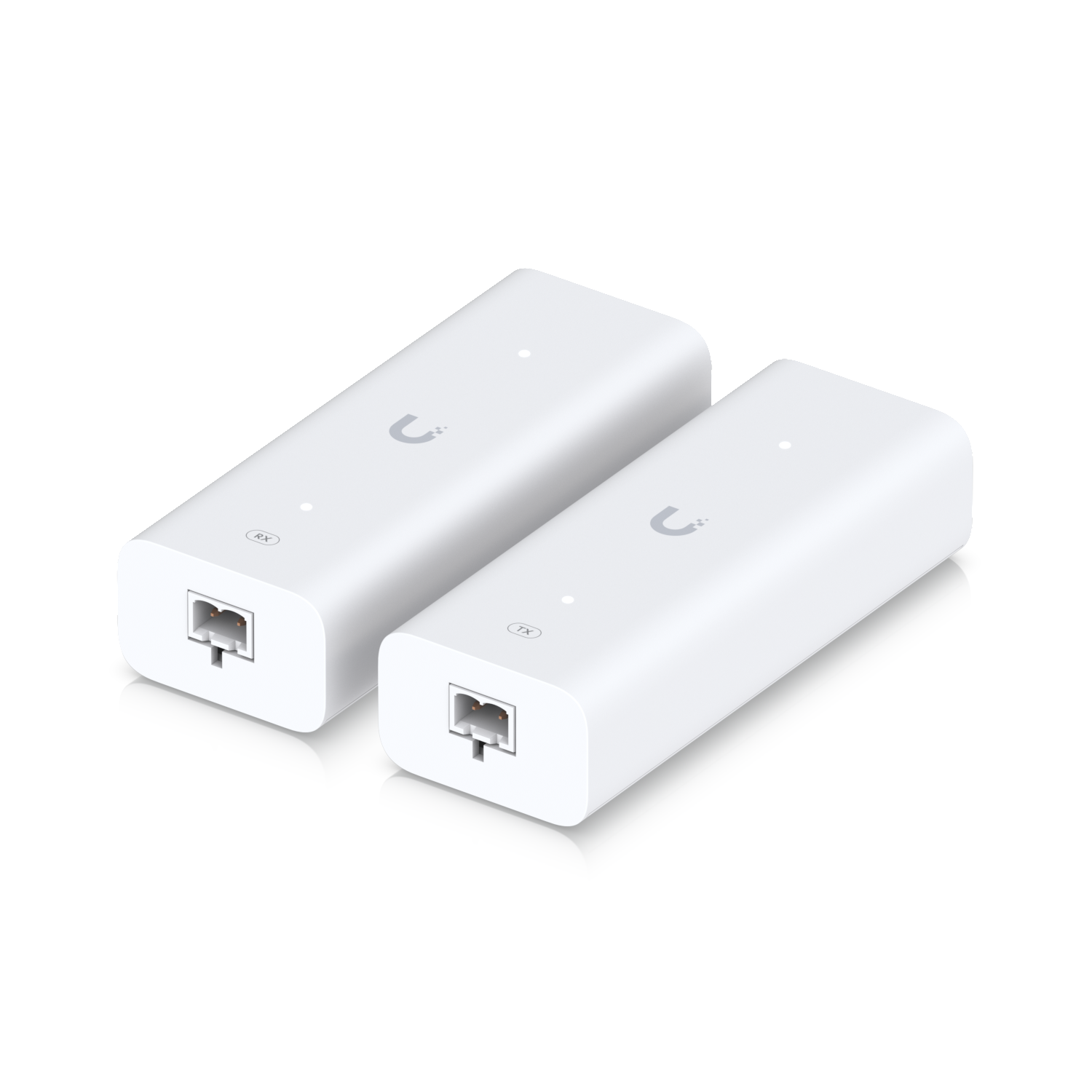

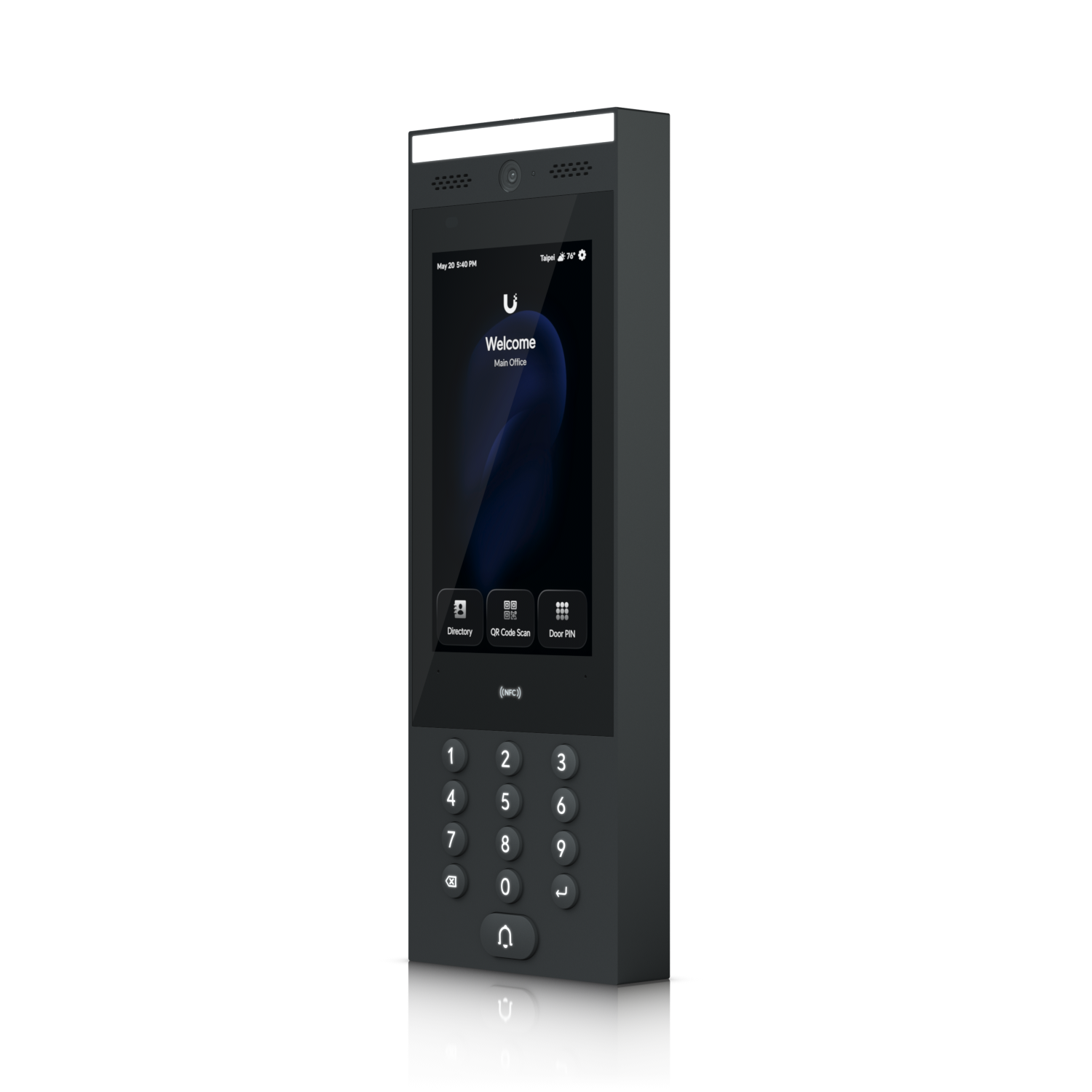

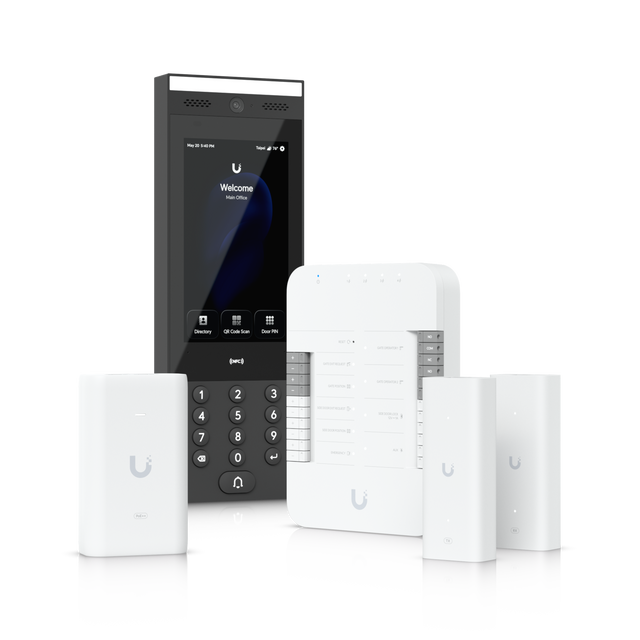

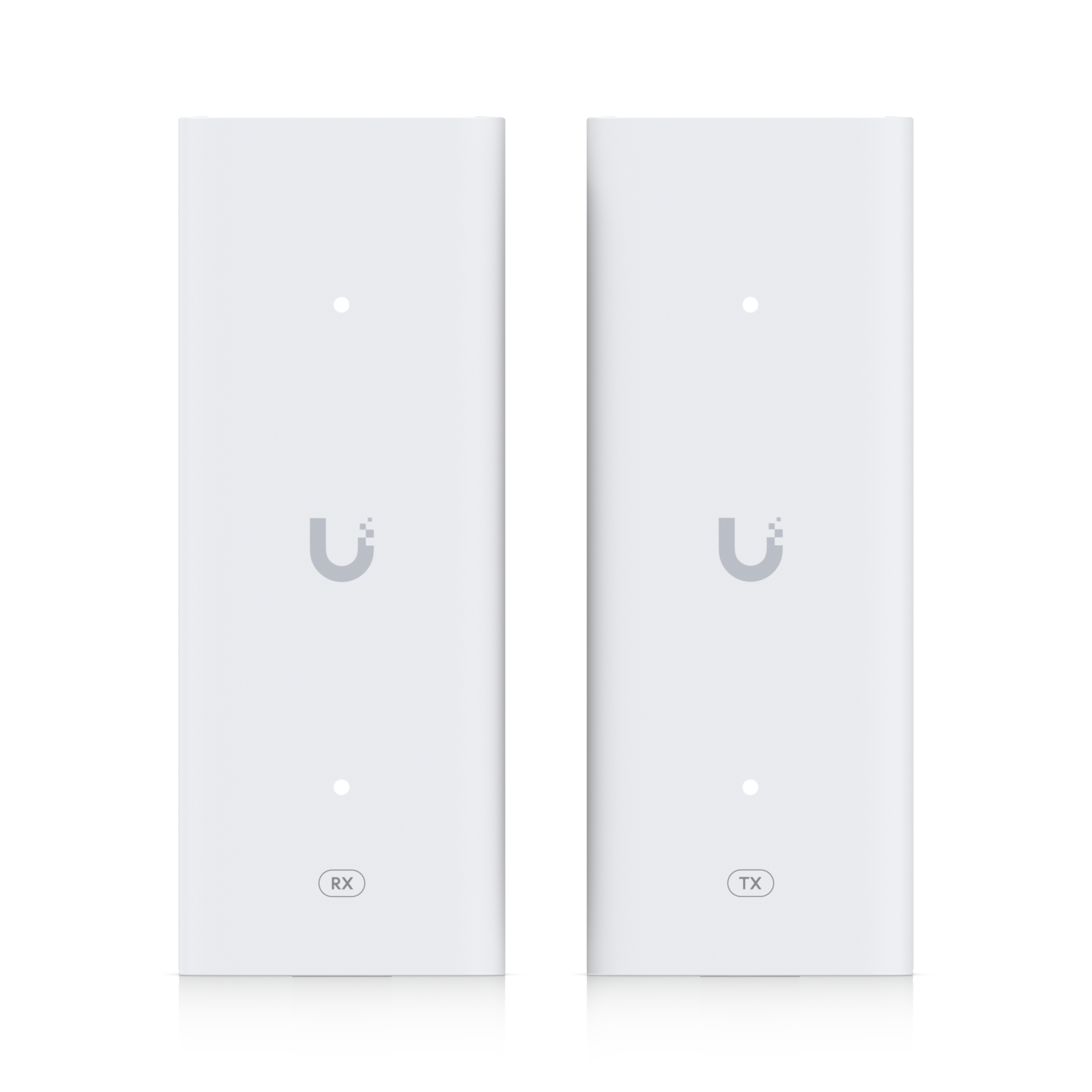

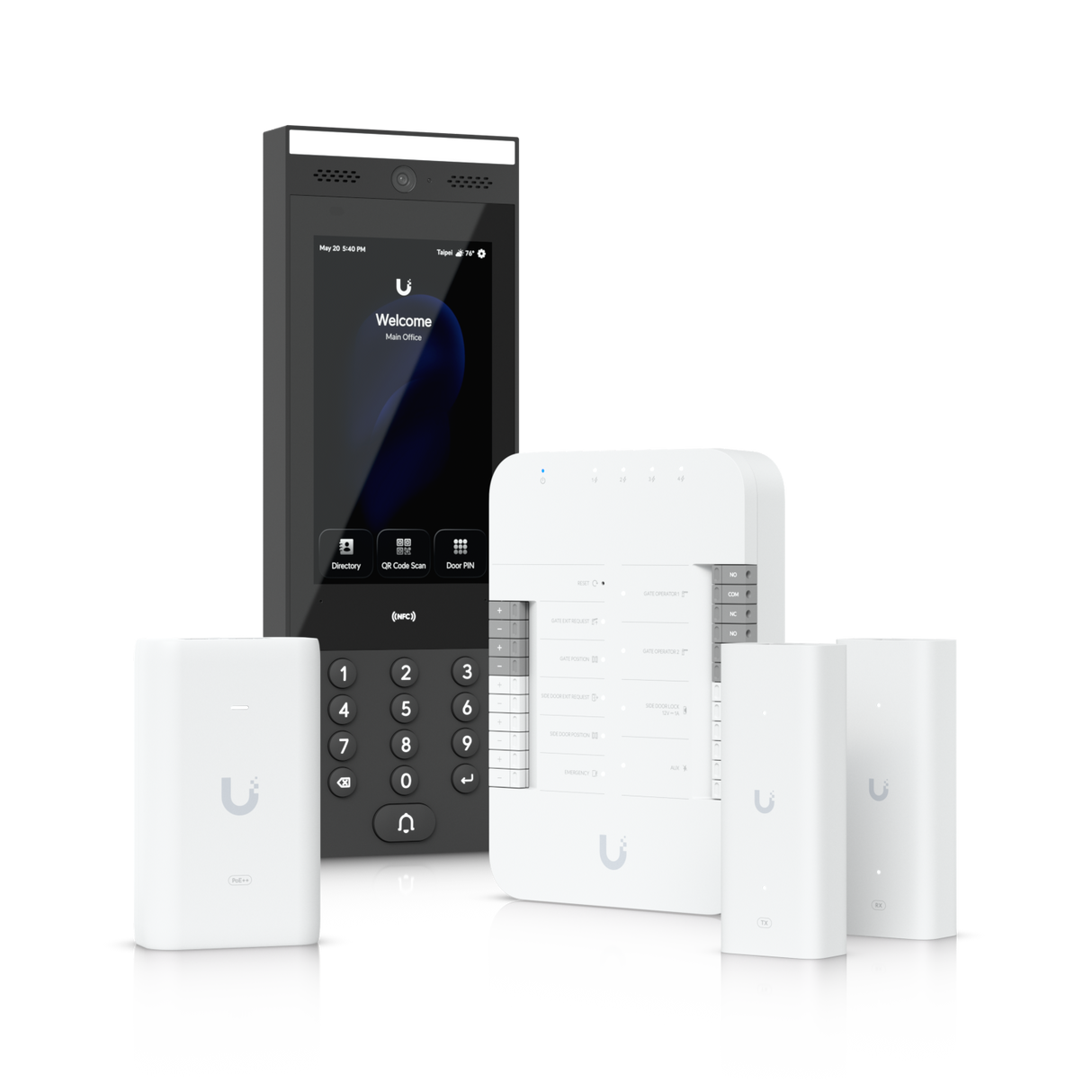

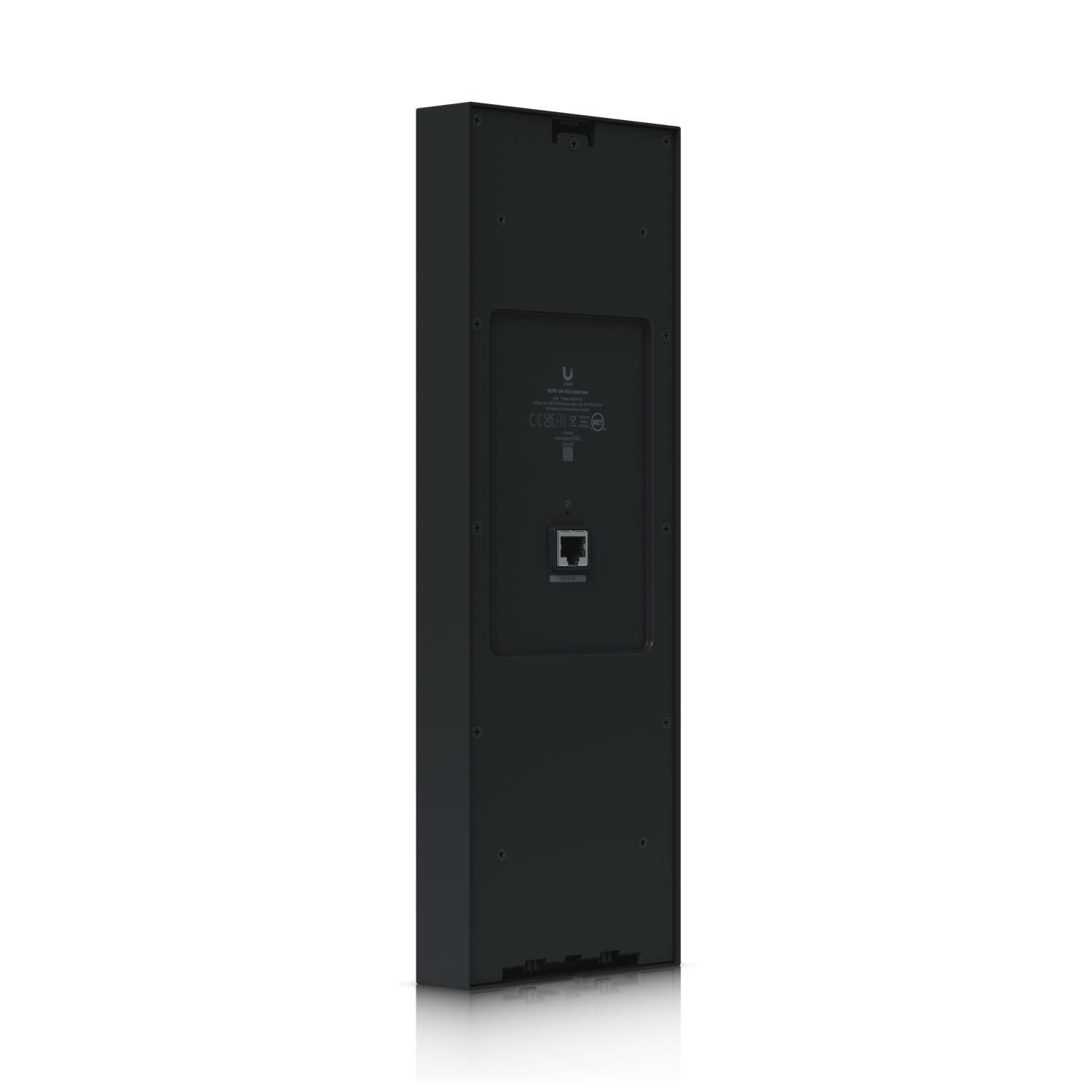

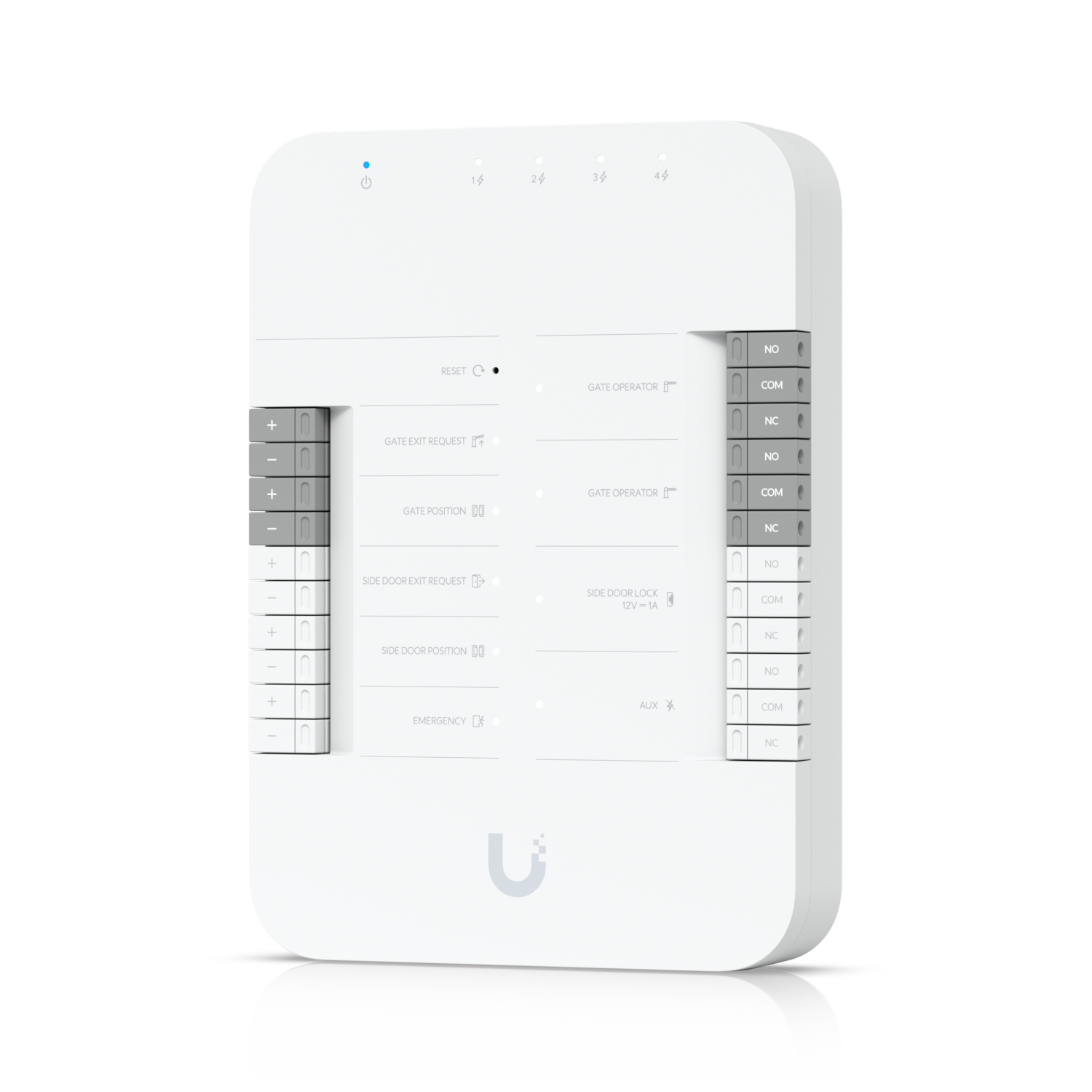

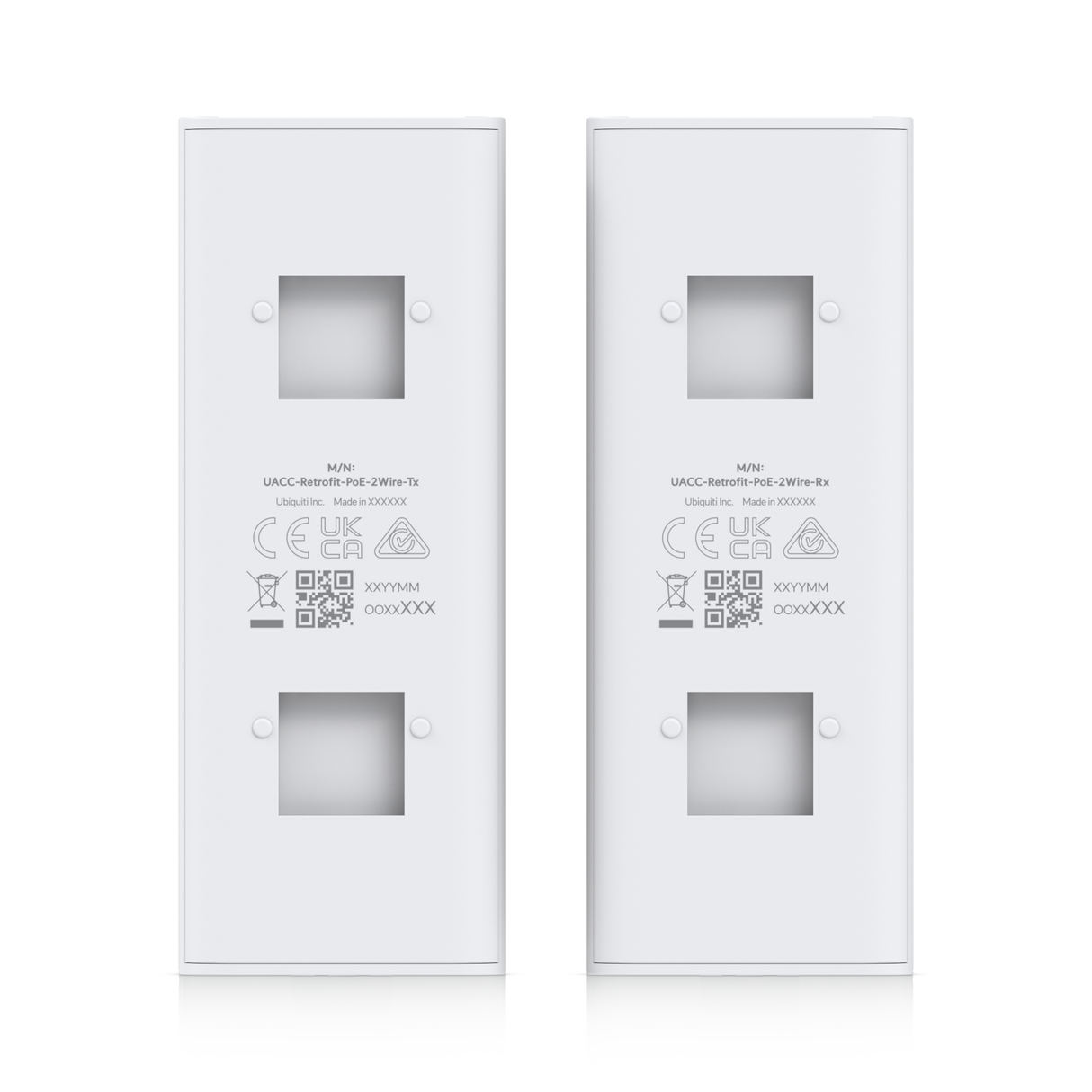

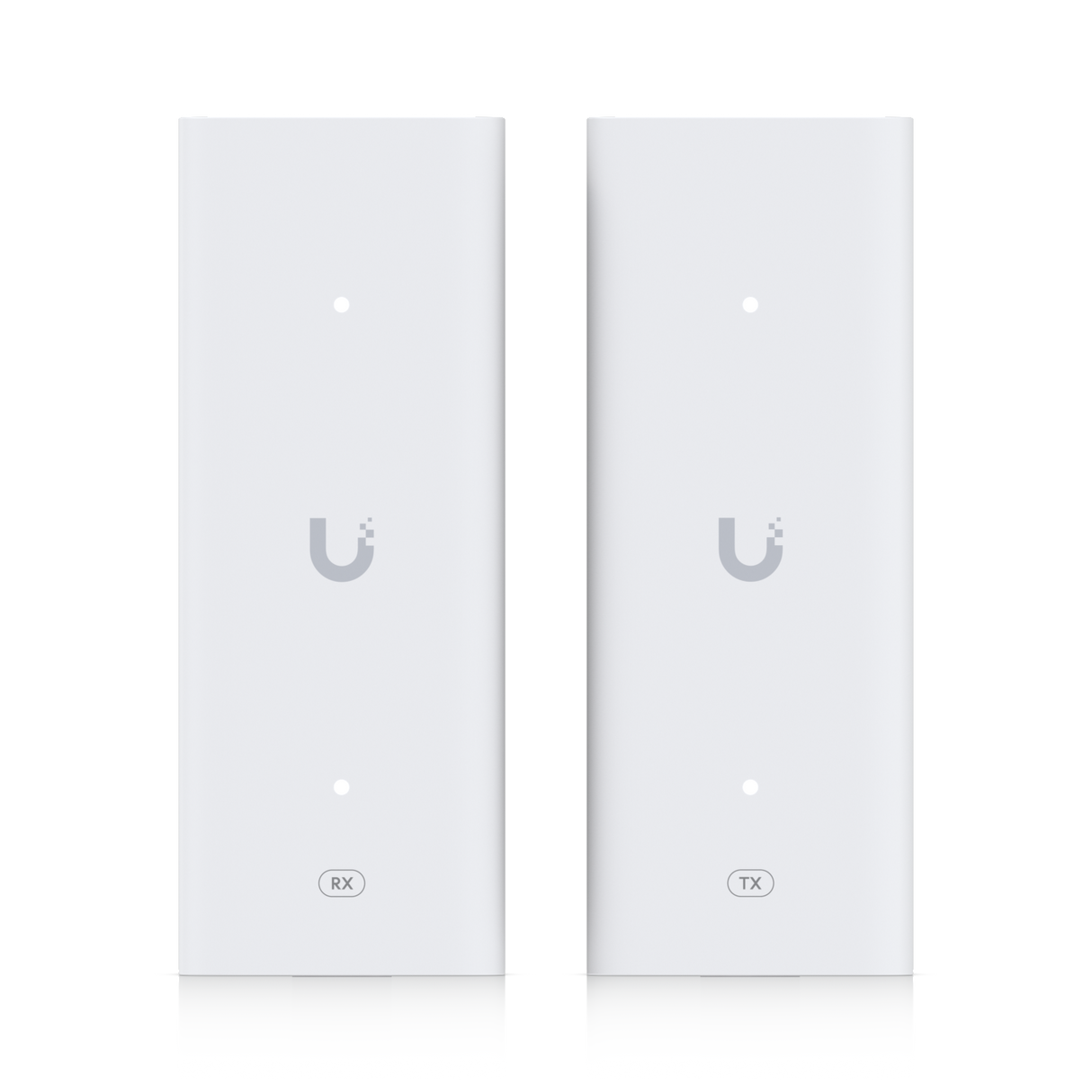

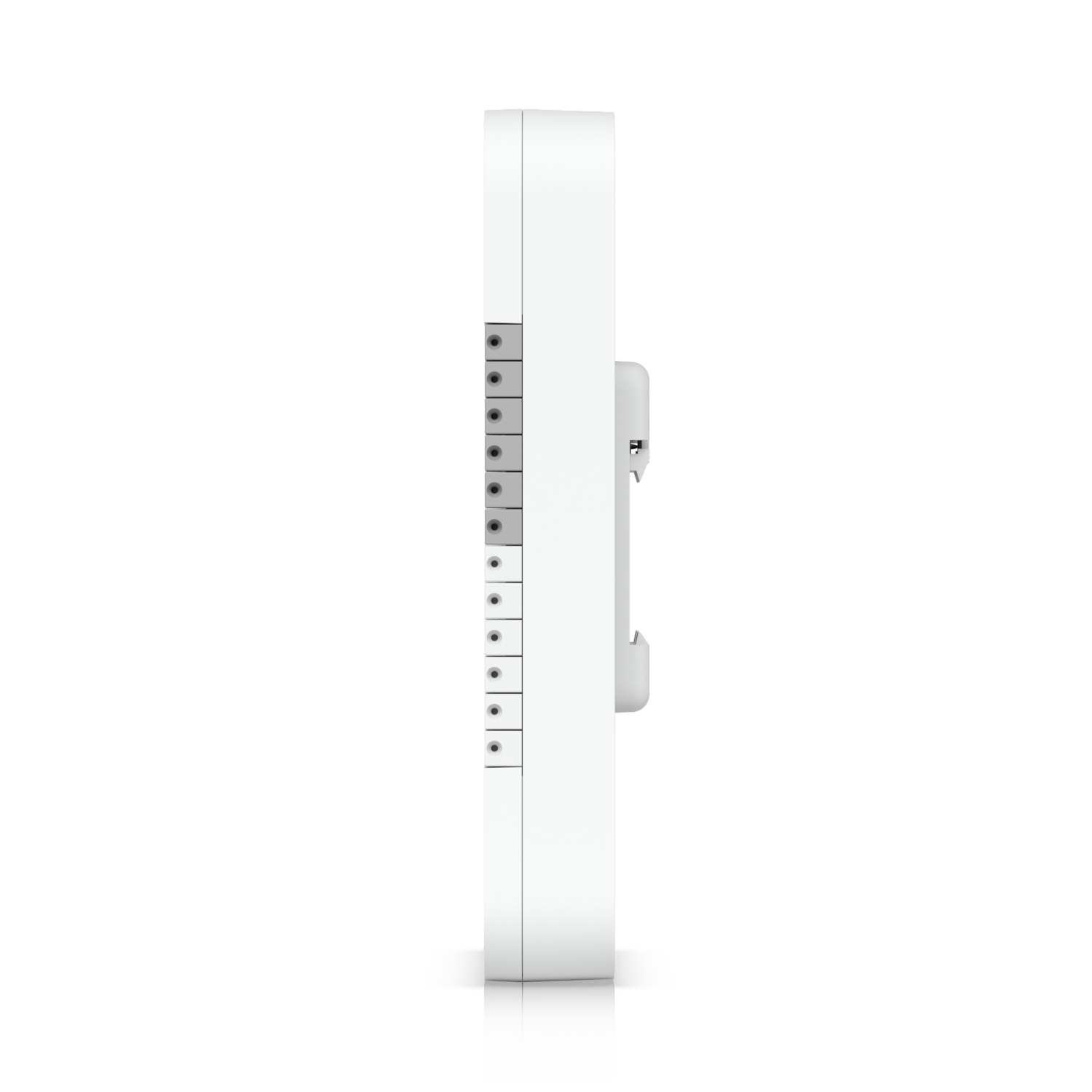

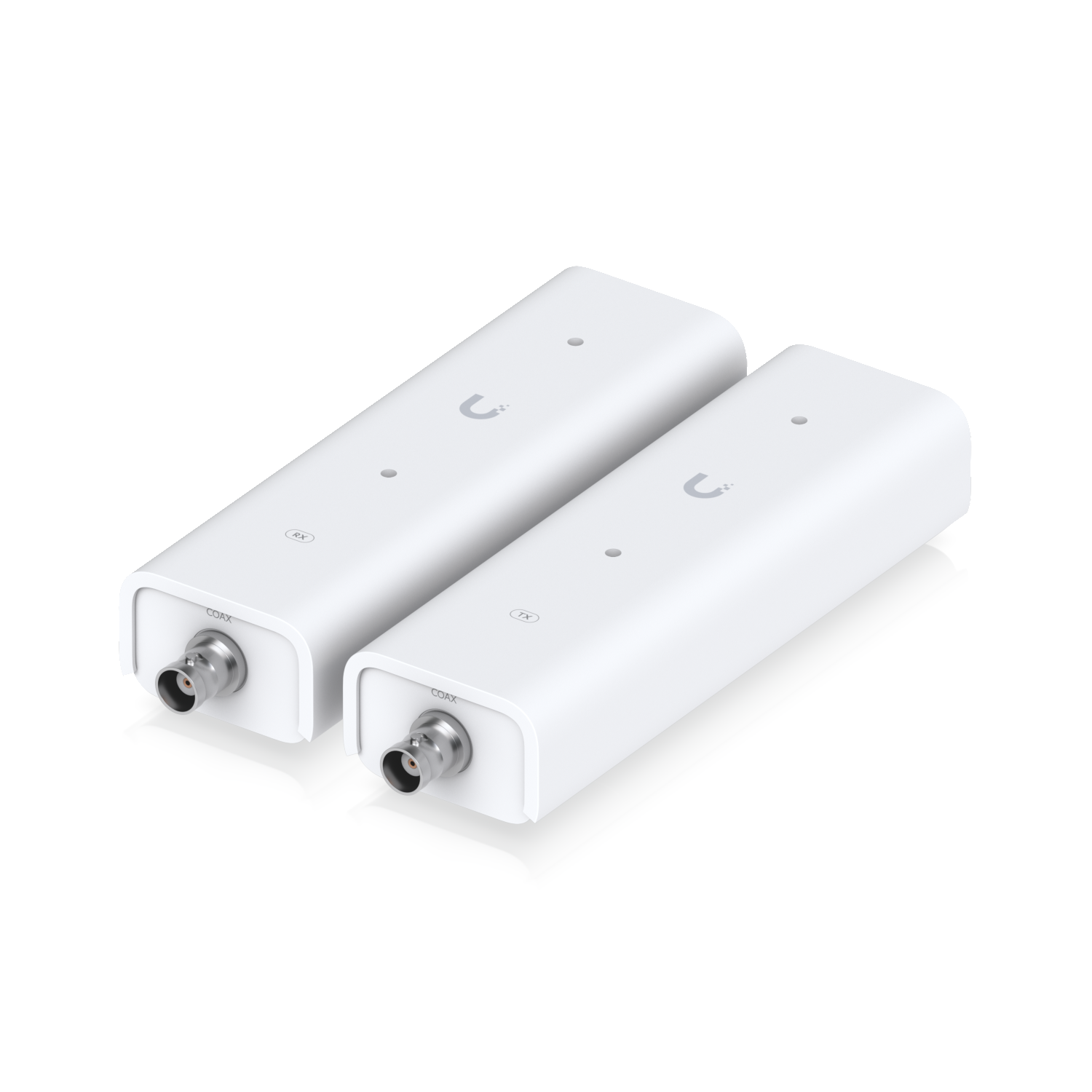

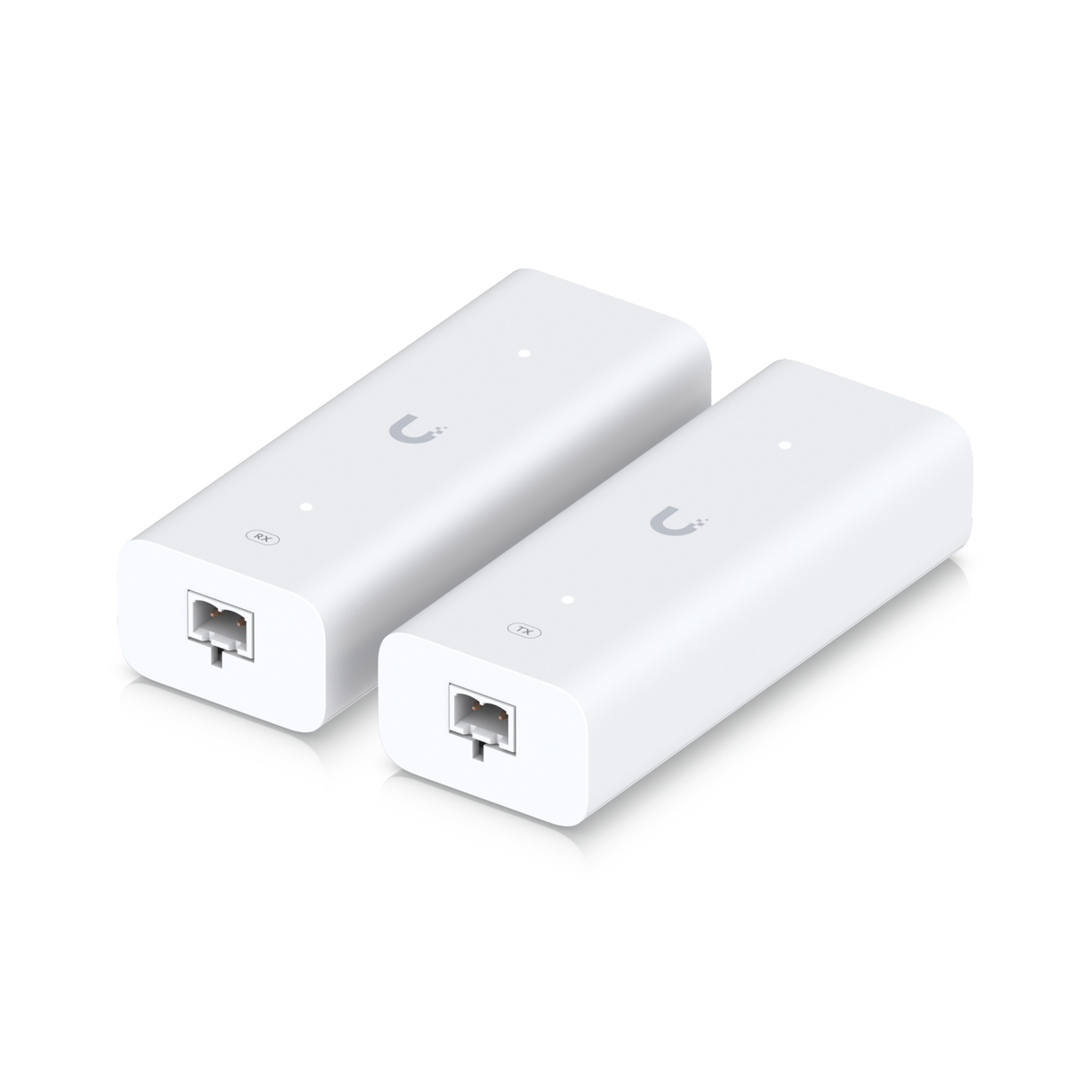

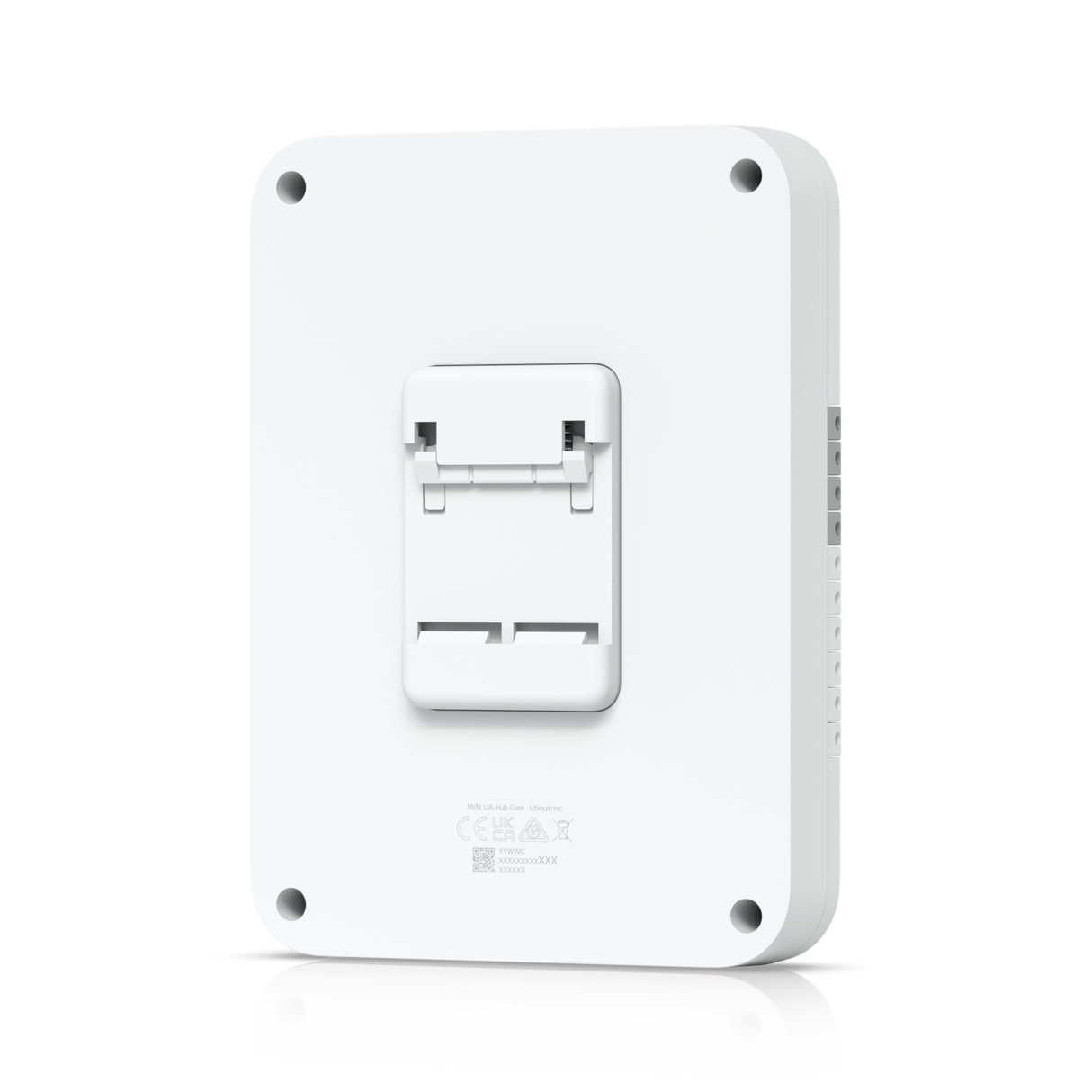

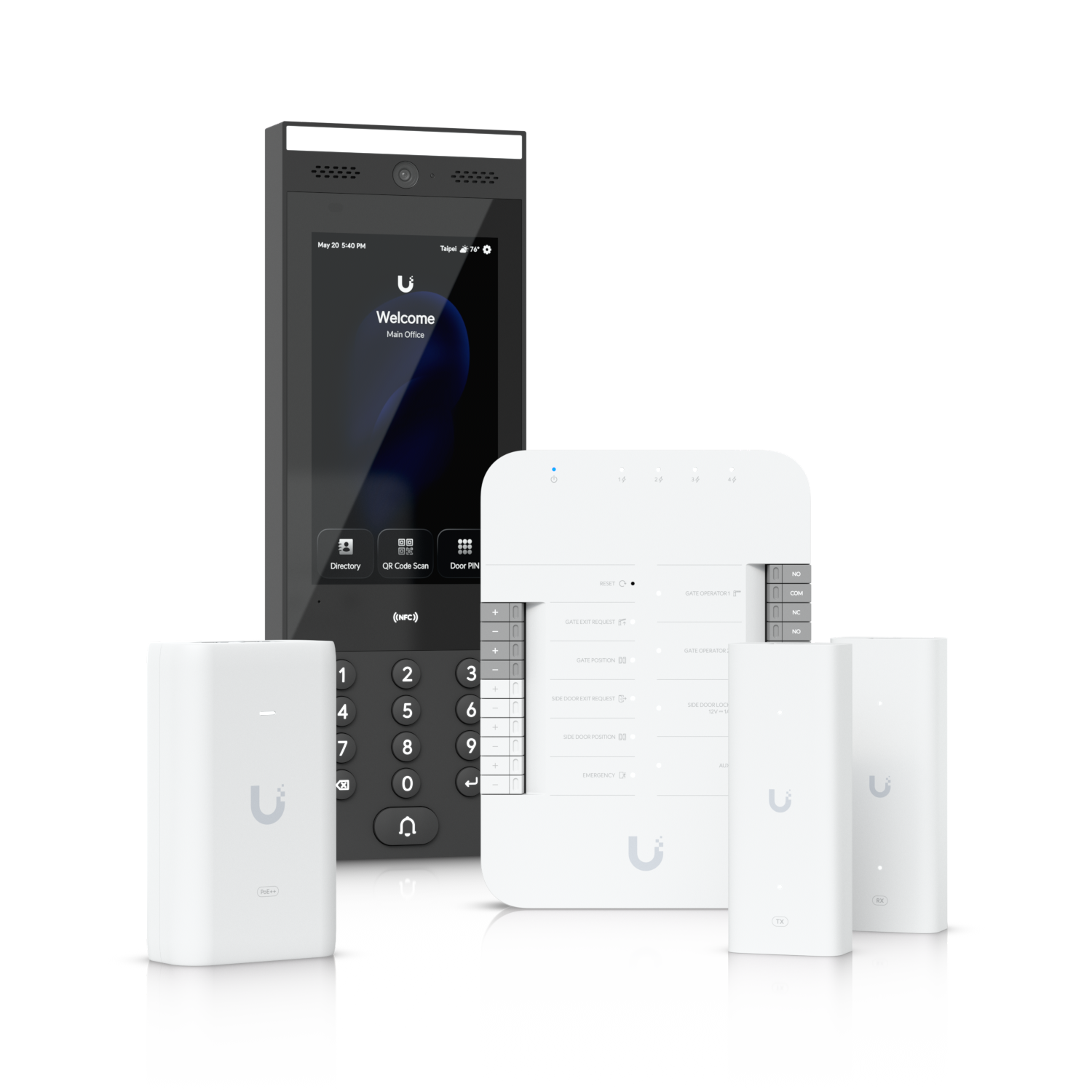

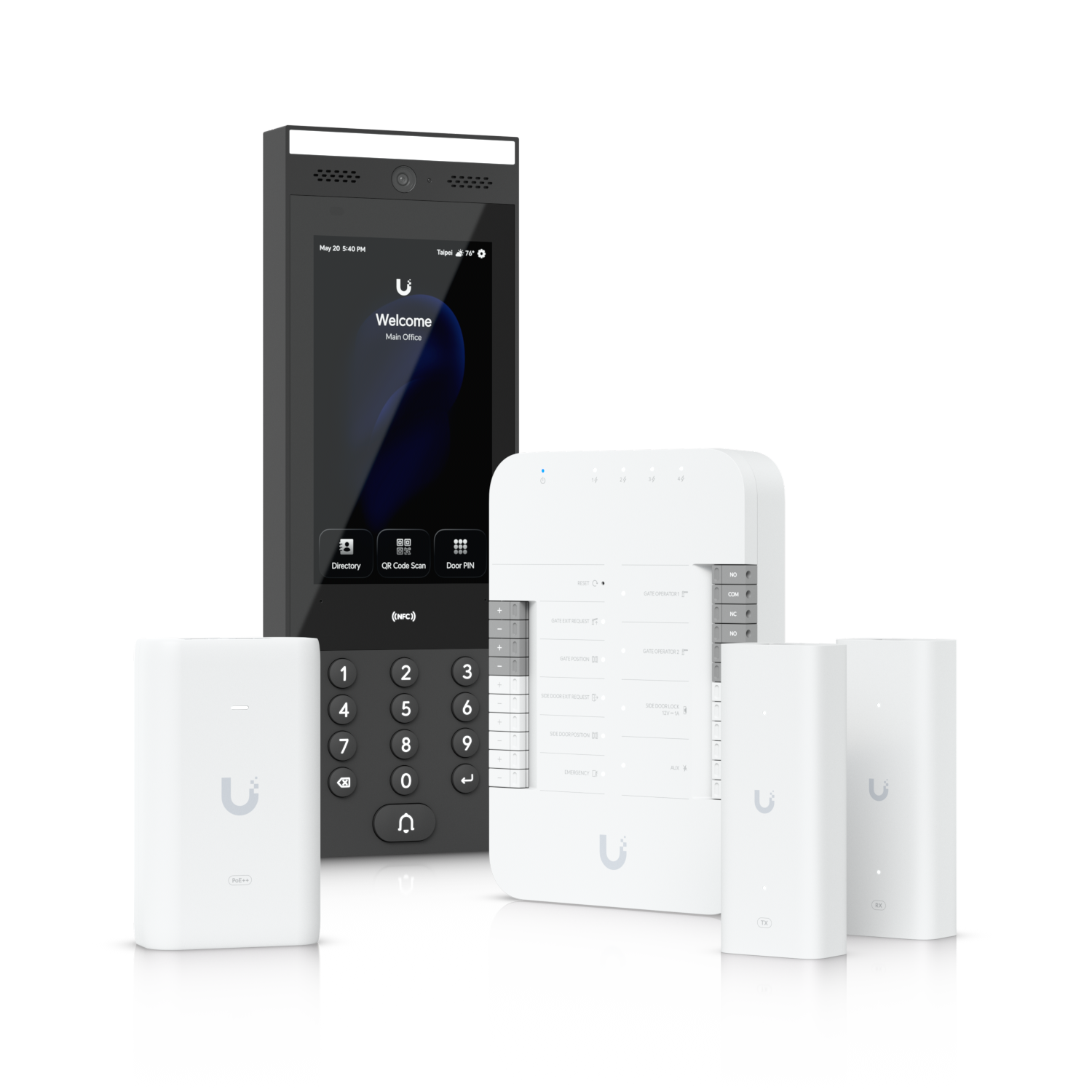

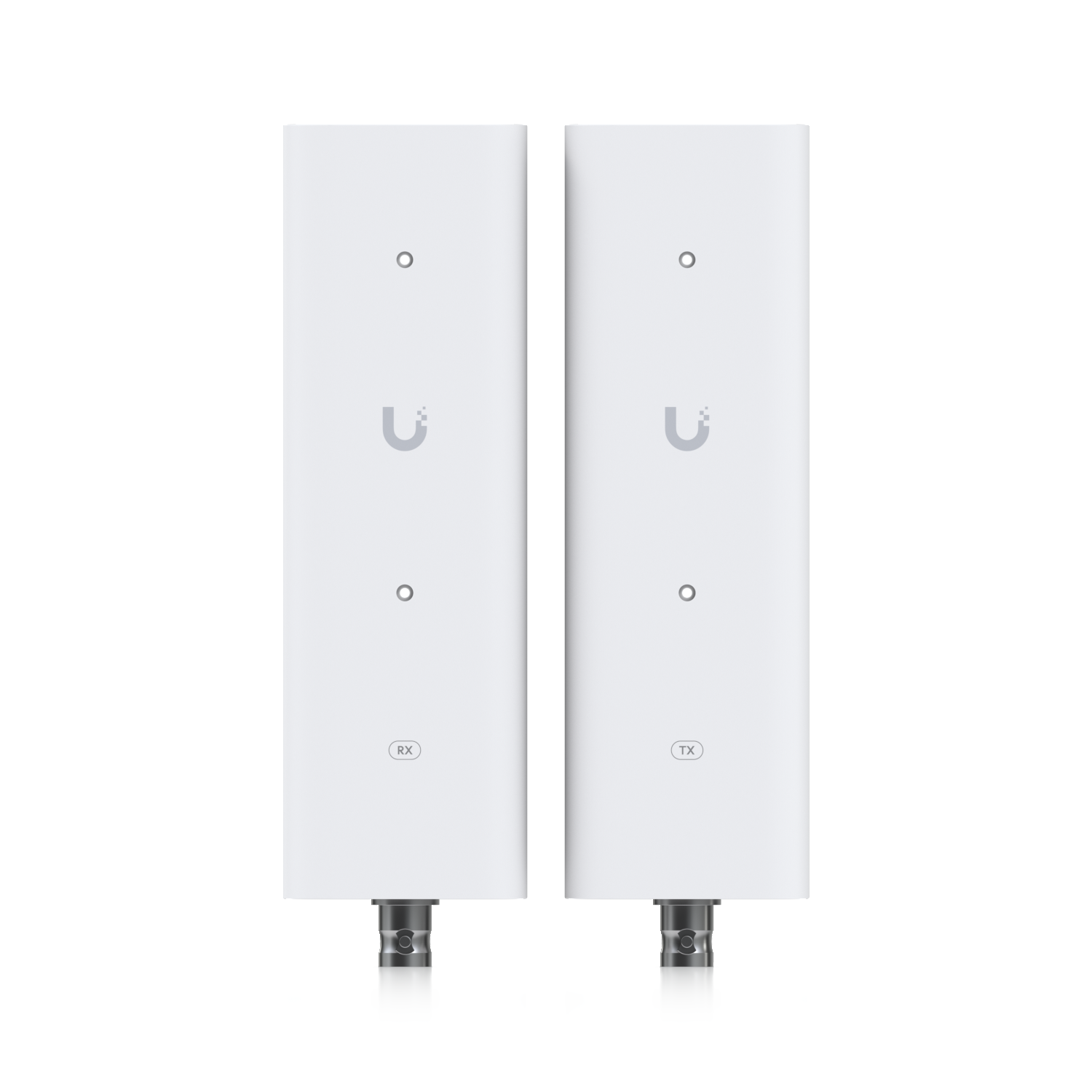

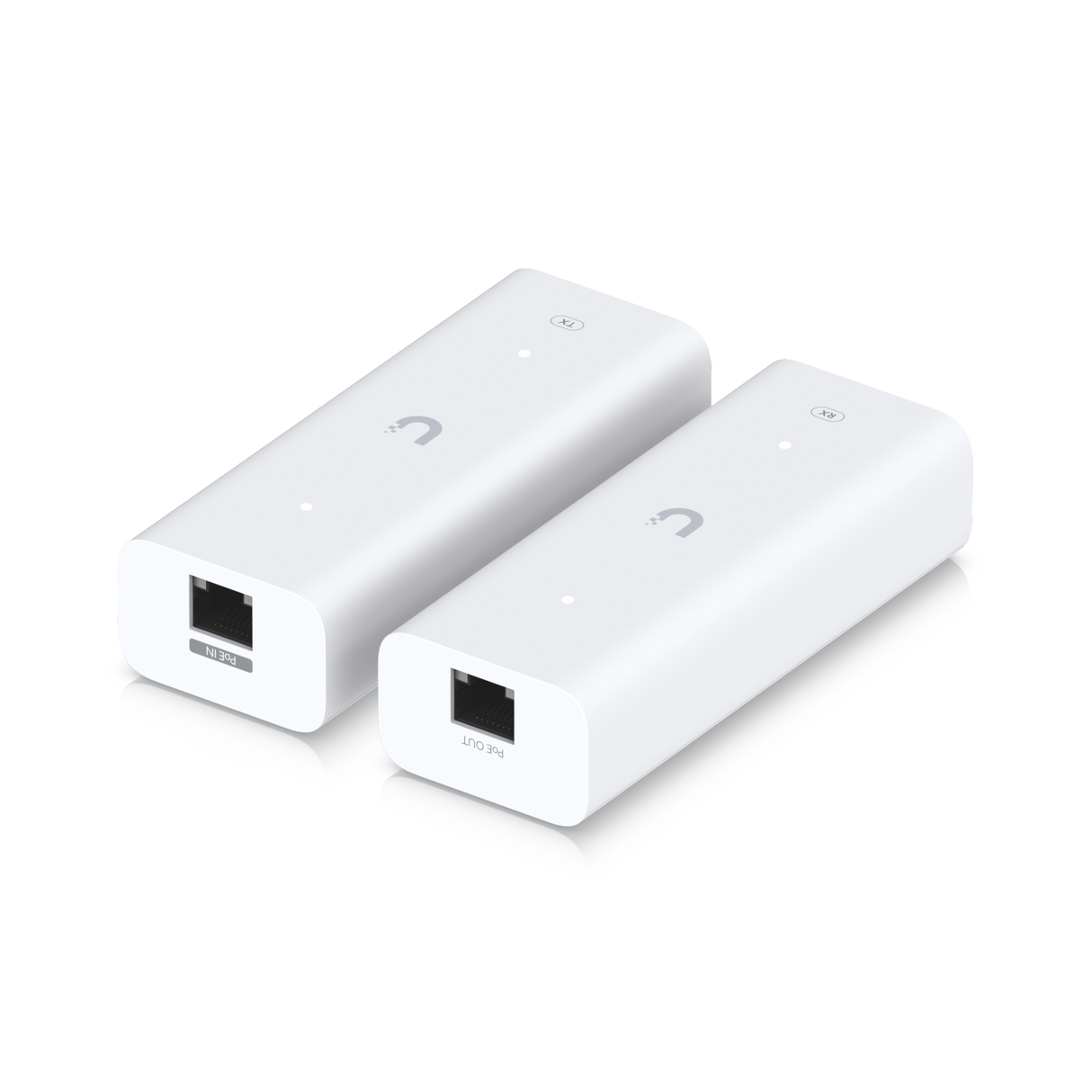

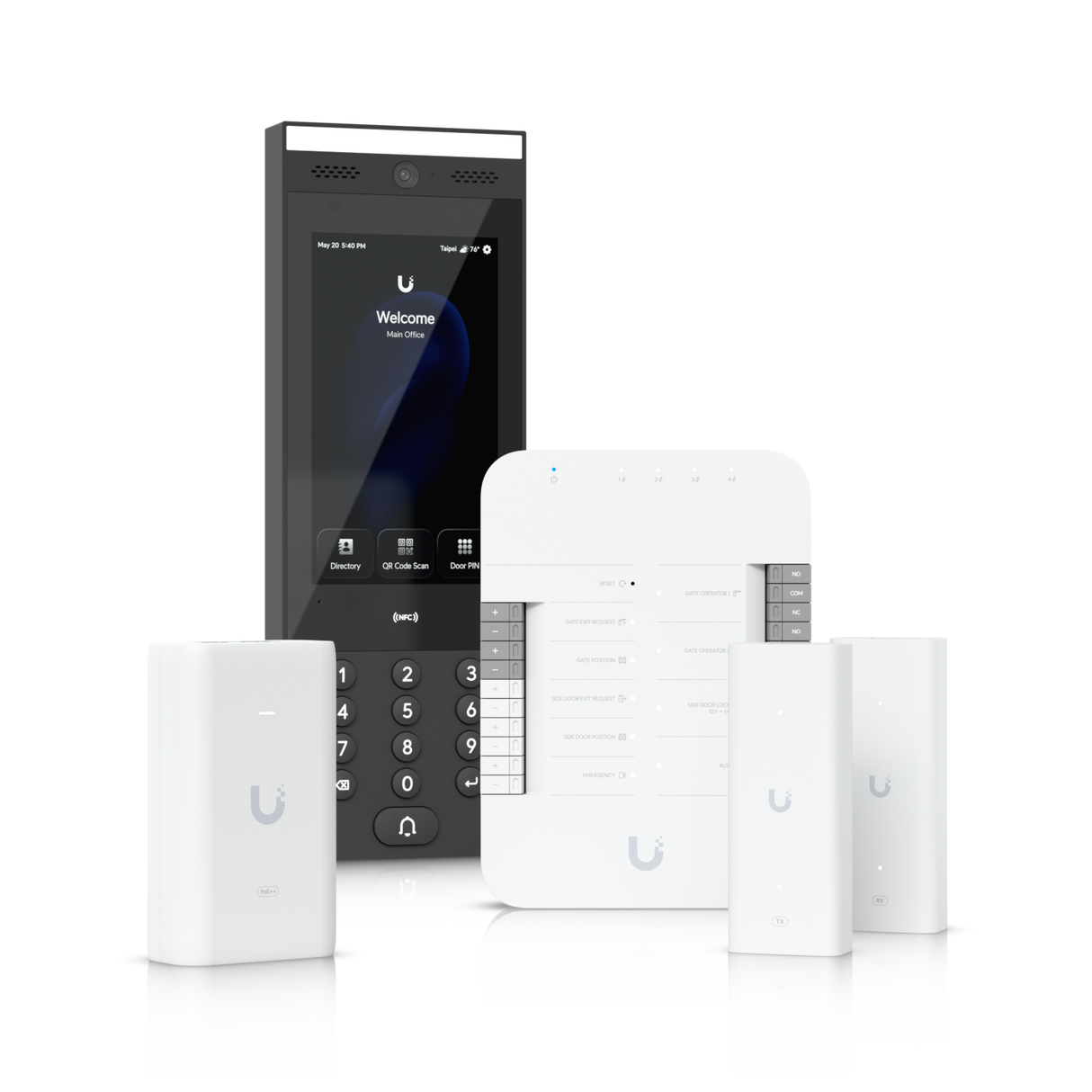

The Ubiquiti UniFi G3 Gate Starter Kit UA-G3-SK-GATE is a starter kit with a Gate Hub, G3 Intercom, PoE++ adapter, and PoE++ over twisted pair extender for access control at a single gate with Touch Pass support.

Technical Specifications

Attribute Gate Hub G3 Intercom Retrofit Extender PoE++ Adapter
Dimensions 175 x 126 x 26 mm 324.8 x 113.7 x 28.3 mm 40 x 105 x 25 mm (PoE in/out), 43.5 x 138 x 30 mm (adapter) 106 x 63 x 34 mm
Weight 460 g (1 lb) 965 g (2.1 lb) + 445 g (bracket) 77 g (PoE in), 79 g (PoE out), 140 g (adapter) 210 g (7.4 oz)
Enclosure Material Polycarbonate Aluminum alloy, polycarbonate, glass Polycarbonate N/A
Mounting DIN-rail (Included) Wall mount, pedestal adapter (Included) N/A N/A
Power Method PoE++ PoE PoE++ Universal AC input, 100–240V AC
Networking Interface (5) 10/100/1000 Base-T (1) GbE RJ45 port (1) 10/100 MbE, (1) Homeplug AV Gigabit LAN port, RJ45
Max Power Consumption 22W (no PoE), 50W (with PoE) 13W 3W (without PoE output) 60W PoE+ per port
Weatherproofing Indoor only (with outdoor box) IP65 N/A N/A
NDAA Compliant ✓ ✓ ✓ ✓
Ambient Temperature (°C) -30 to 60°C -30 to 60°C (device), -25 to 60°C (display) -10 to 40°C 0 to 40°C
Ambient Humidity 5 to 90% 5 to 90% 5 to 90% 10 to 95%
Certifications CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 CE, FCC, IC CE, FCC, IC, UL, UKCA, KC, CCC, KC, RoHS
