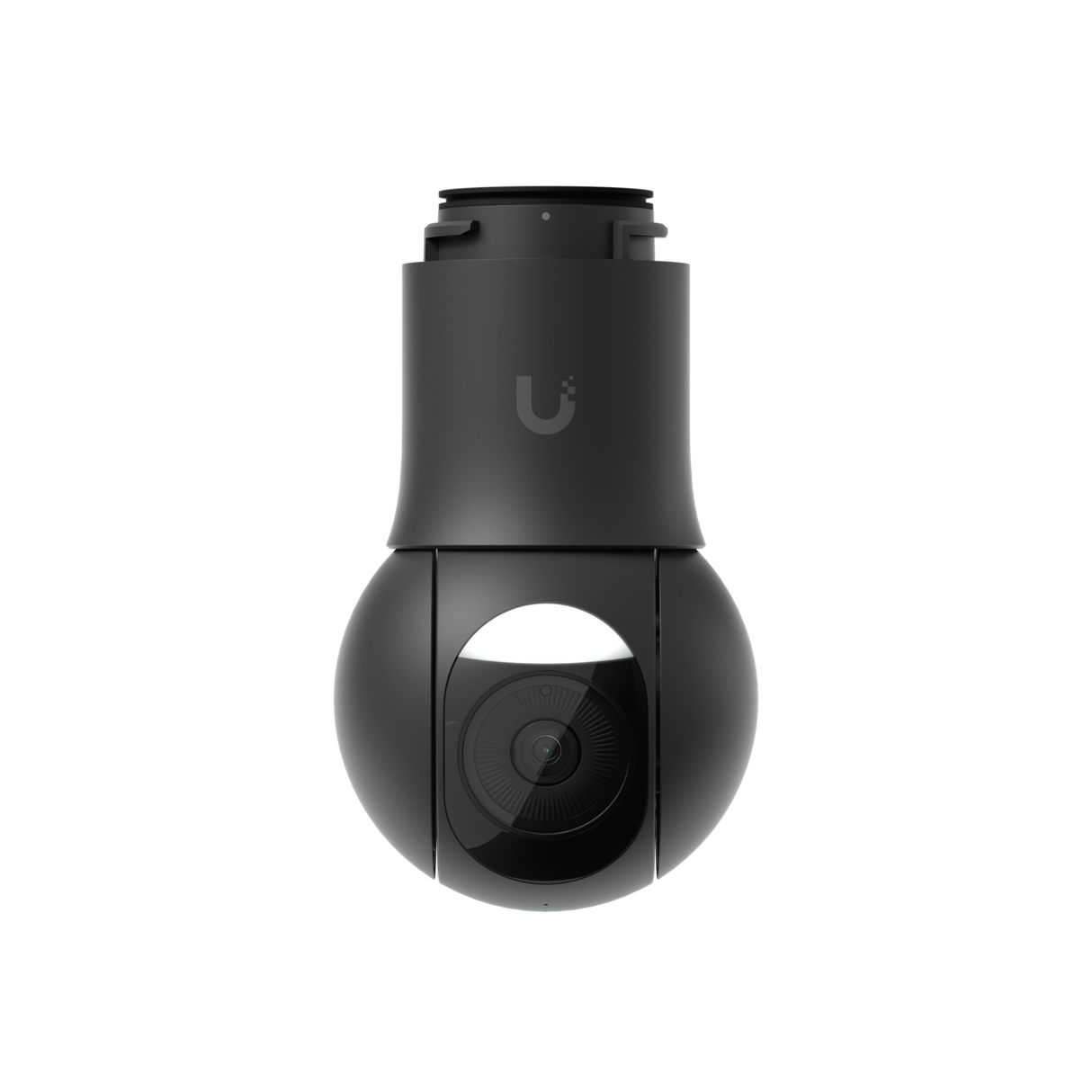

Ubiquiti UniFi G5 PTZ UVC-G5-PTZ-B
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.

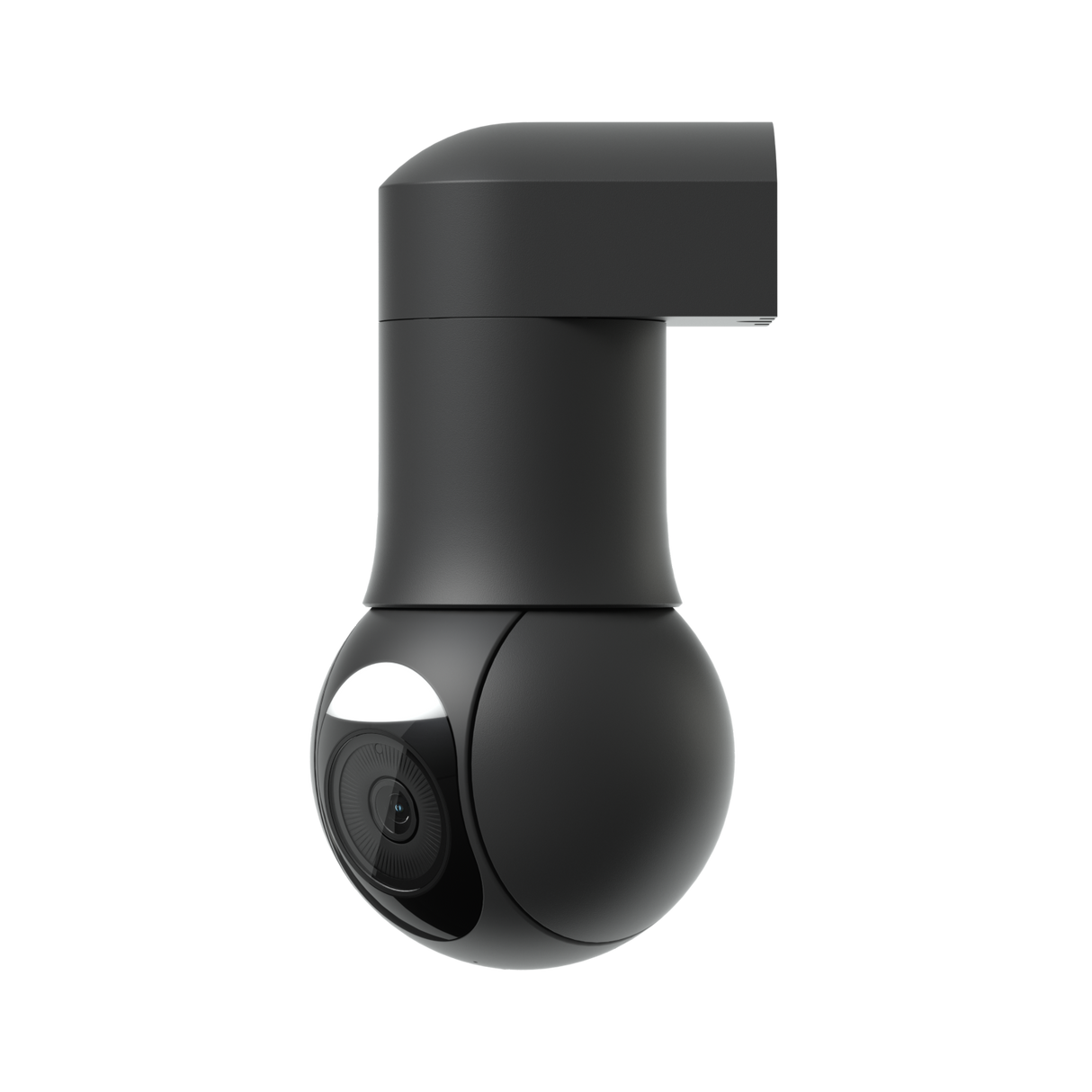

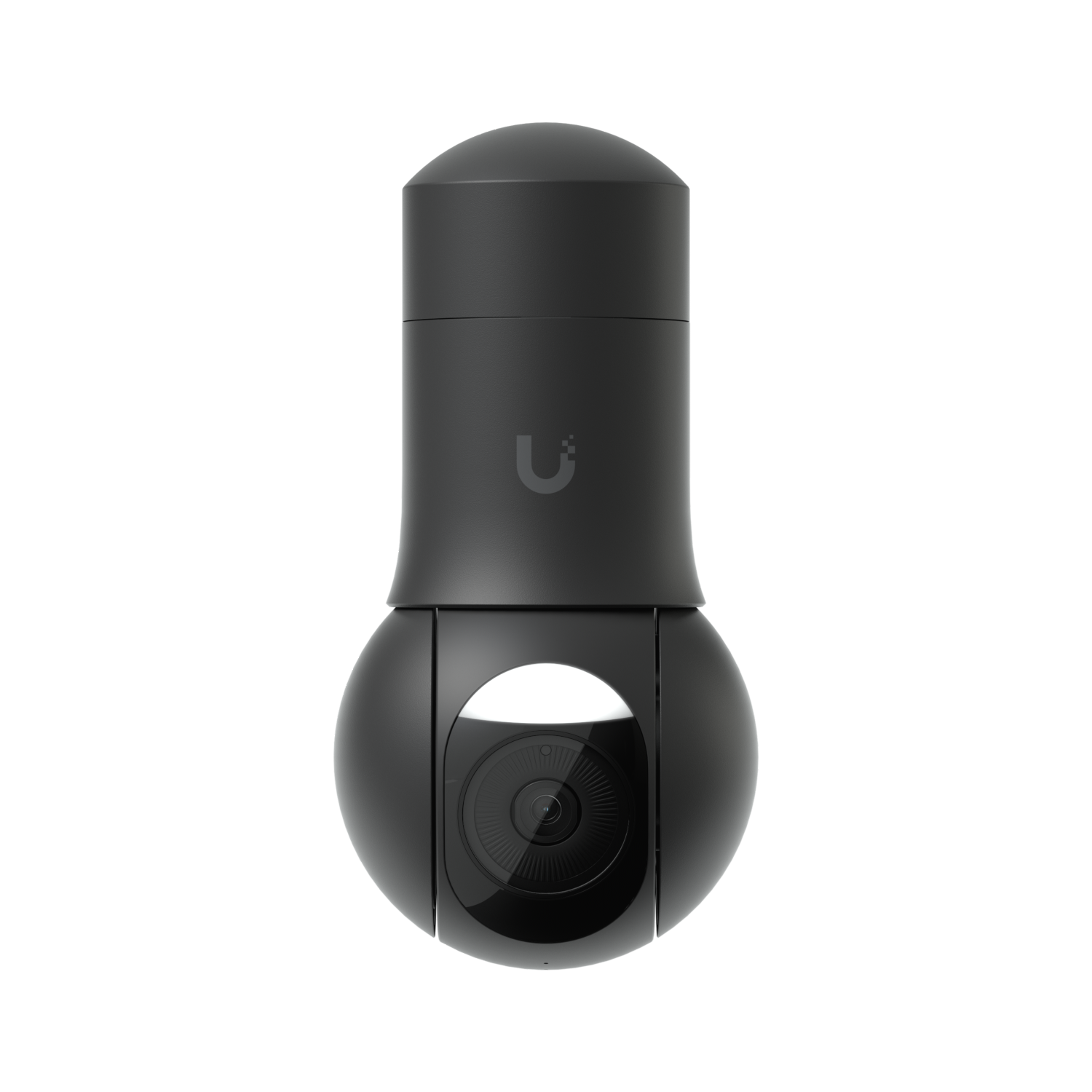

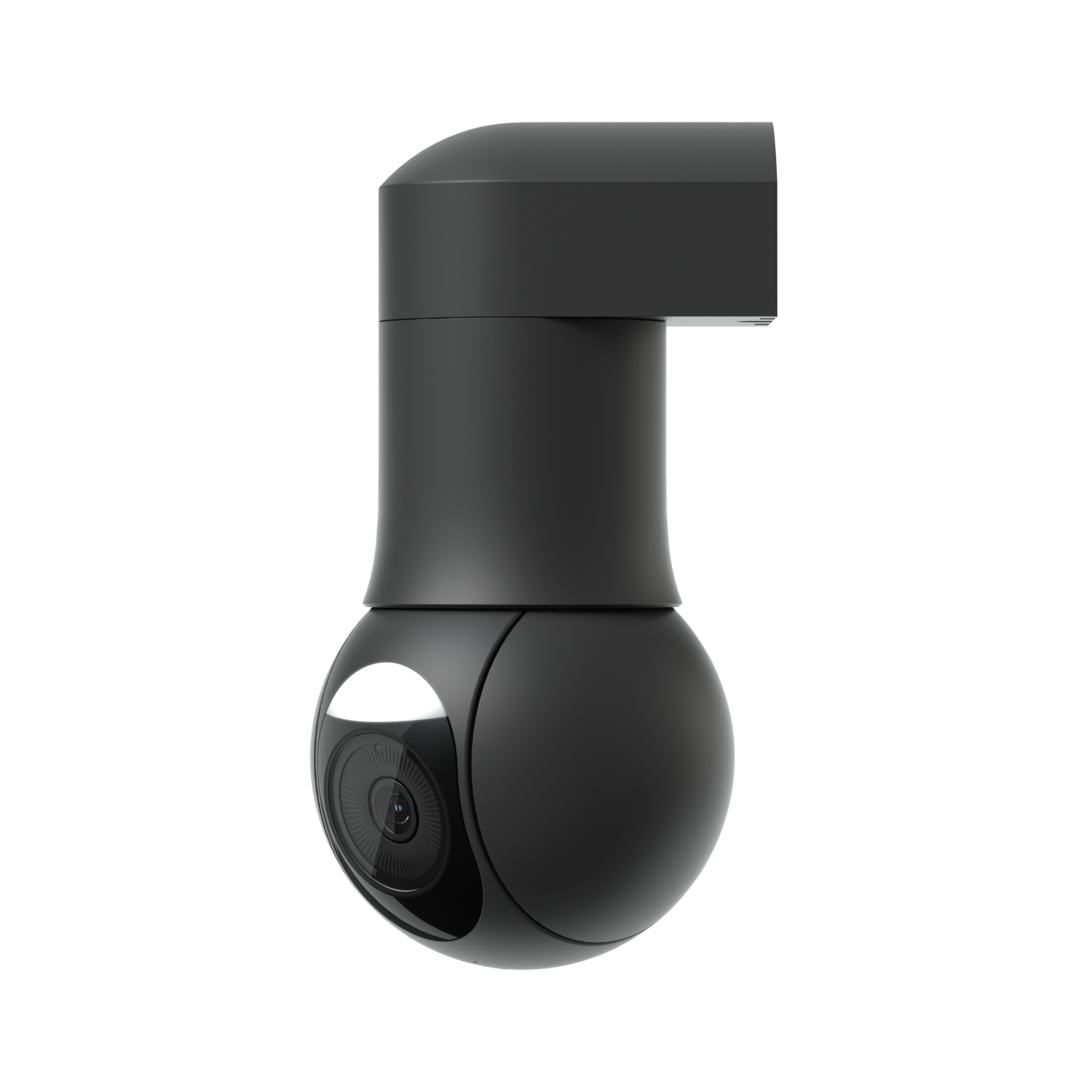

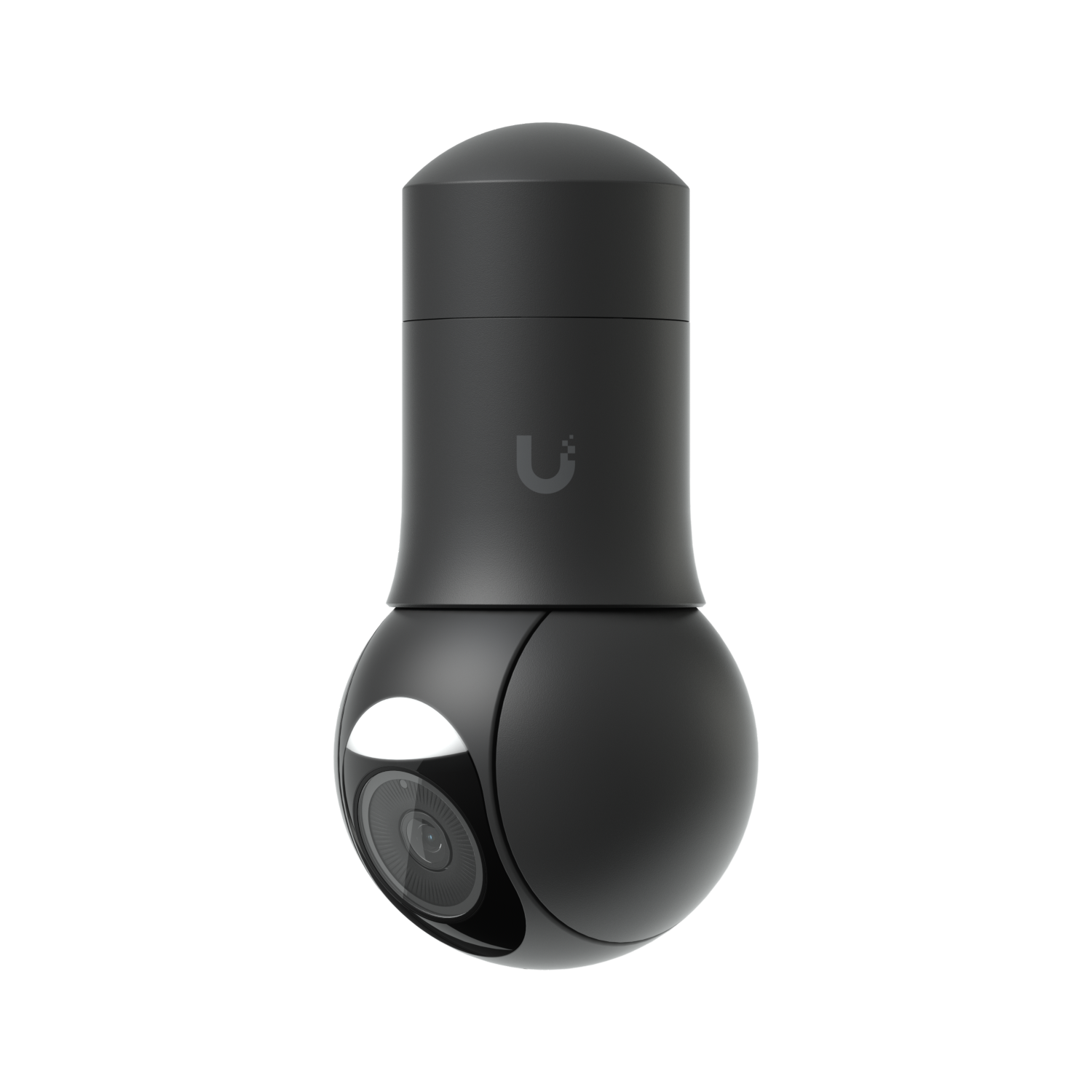

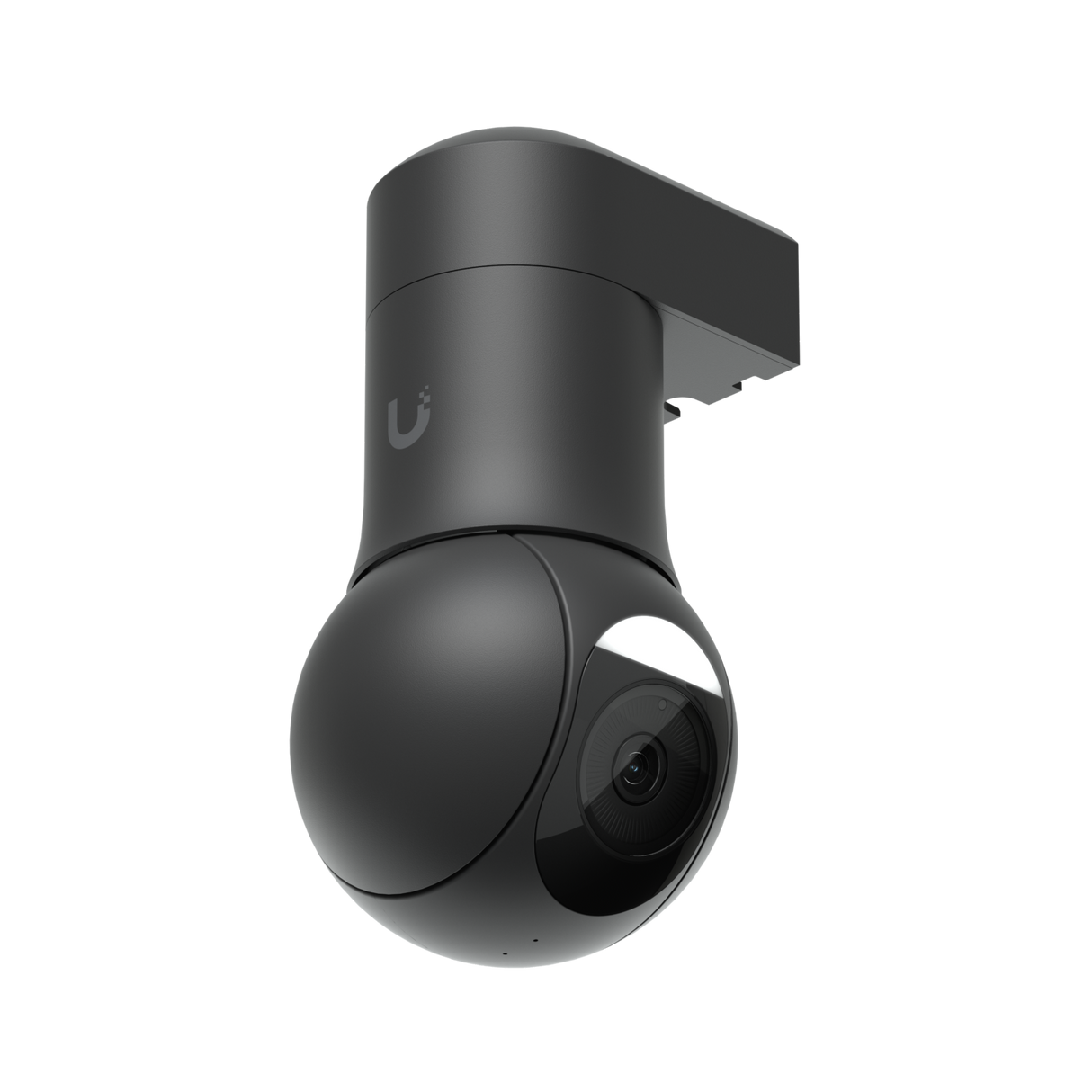

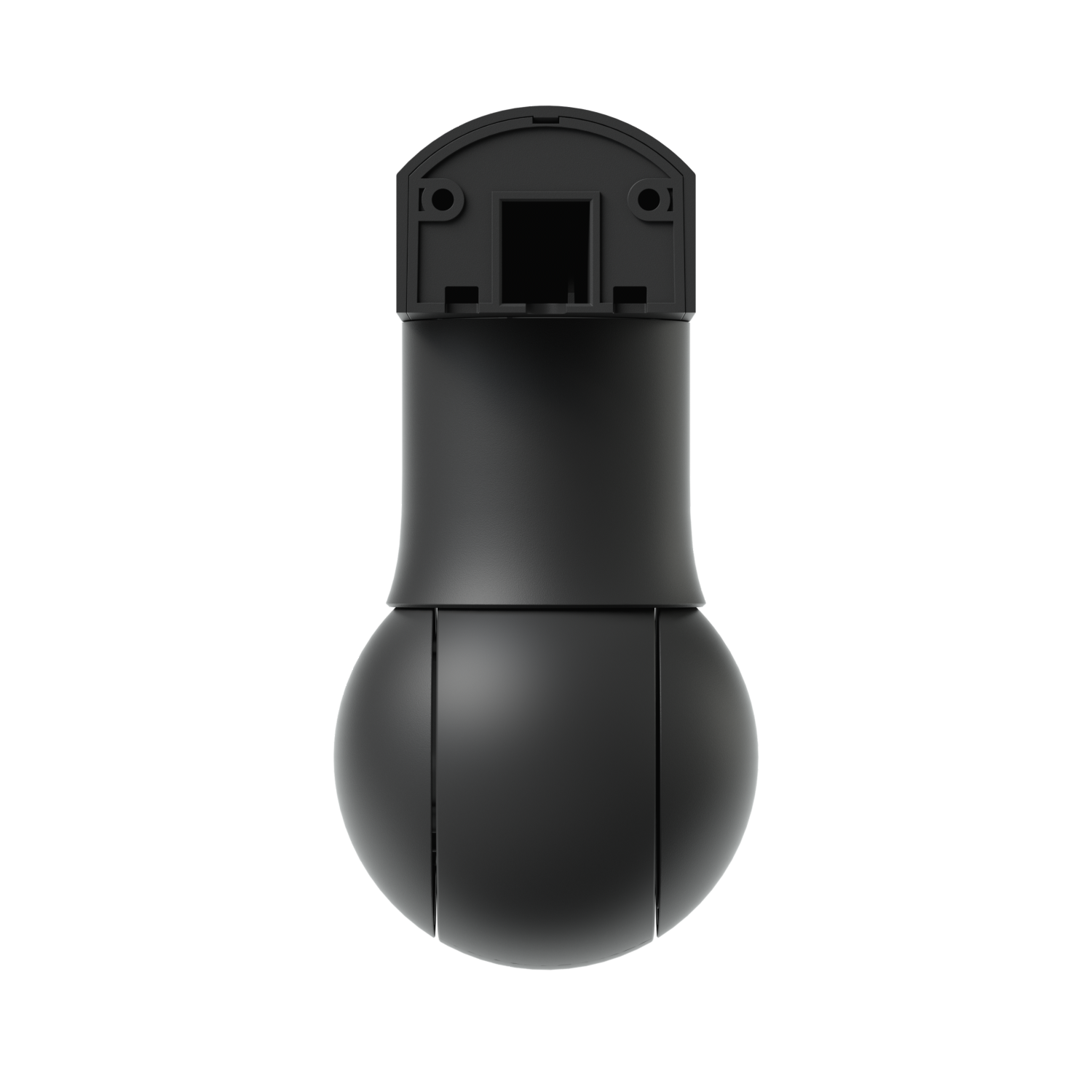

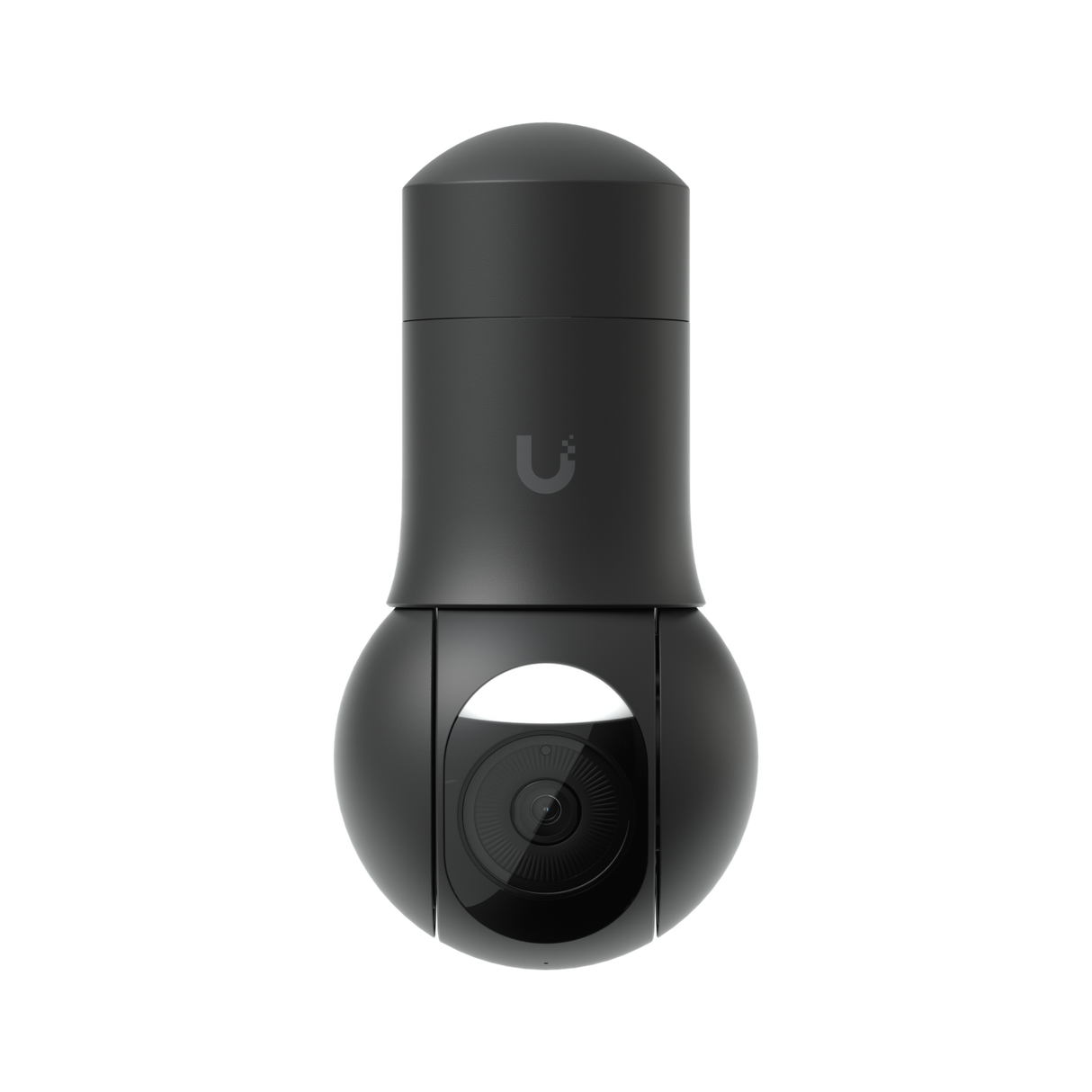

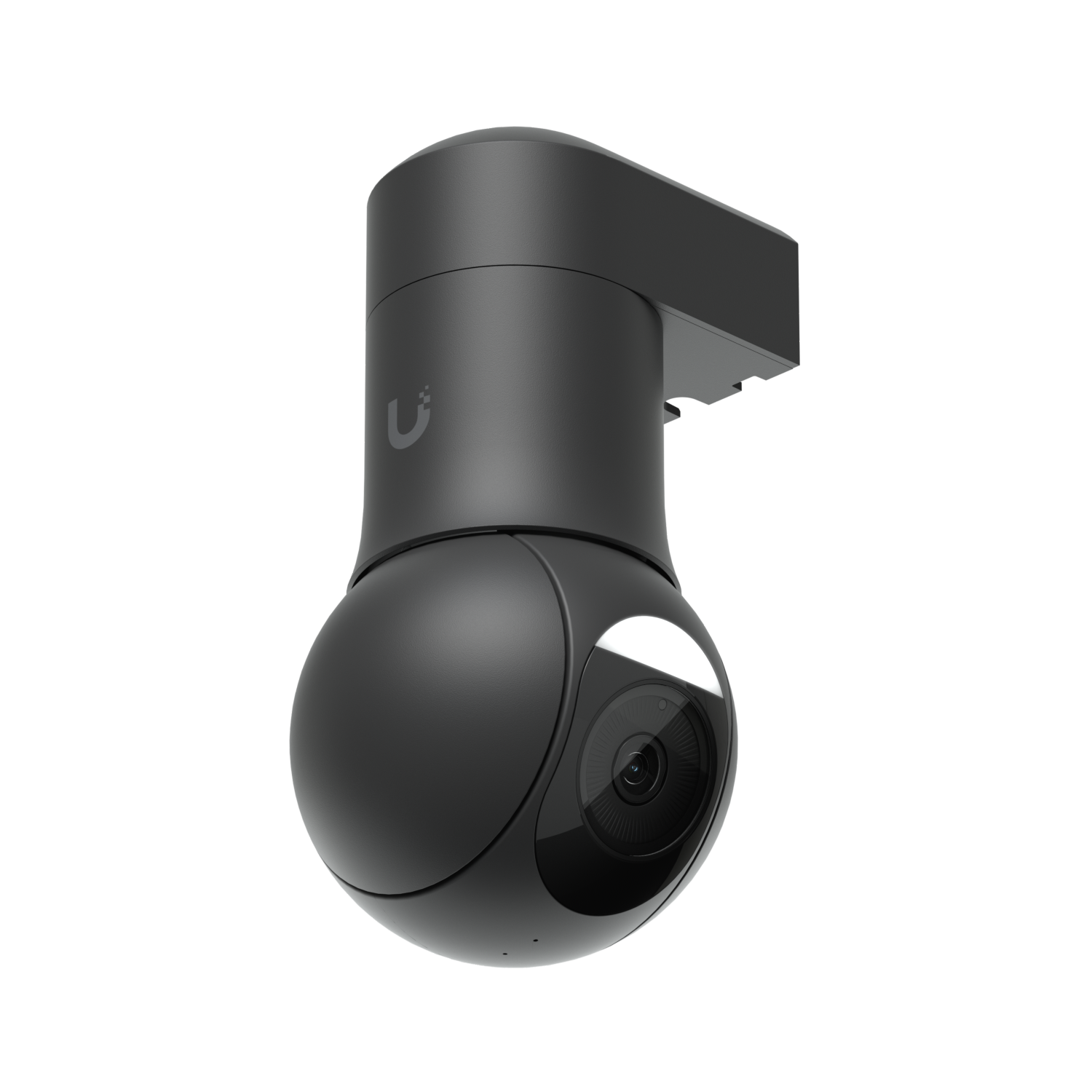

The Ubiquiti UniFi G5 PTZ UVC-G5-PTZ-B is a compact, all-weather camera with ultra-low latency pan-tilt-zoom control and versatile mounting options.
Technical Specifications
| Dimensions (Without Mount) | Ø90 x 152.5 mm (Ø3.5 x 6") |
| Dimensions (With Mount) | 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") |
| IR Night Vision | 20 m (65 ft) |
| Optical Zoom | 2K |
| Smart Detections | People, Vehicles, Animals |
| Resolution | 2K |
| Field of View (Wide) | H: 99.7°, V: 51.9°, D: 121° |
| Field of View (Tele) | H: 45.5°, V: 25.4°, D: 52.4° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | |

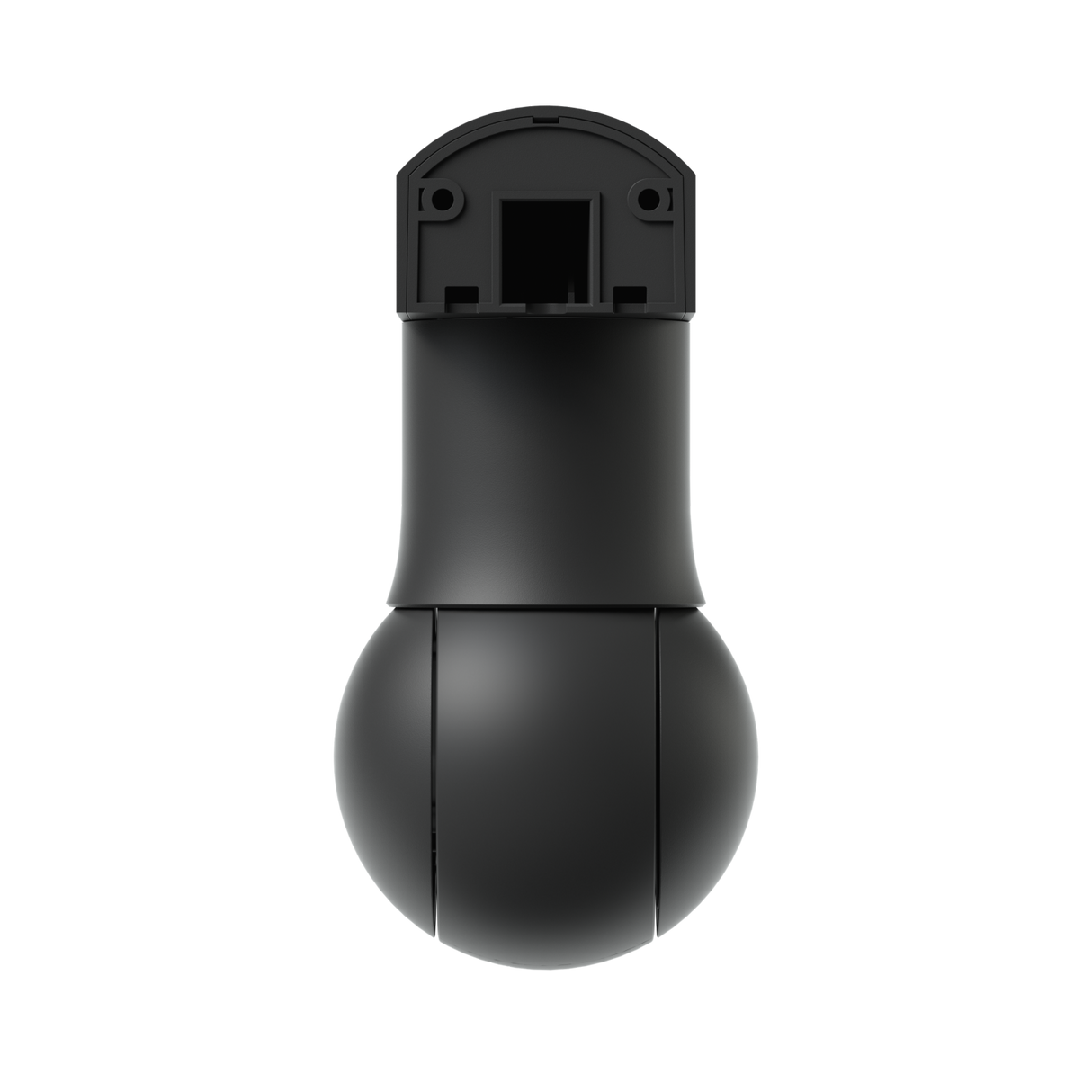

| Included Mounts | Wall mount, pole mount |
| Optional Mounts | Conduit adapter, surface, in-ceiling, pendant, corner mount |
| Performance | |

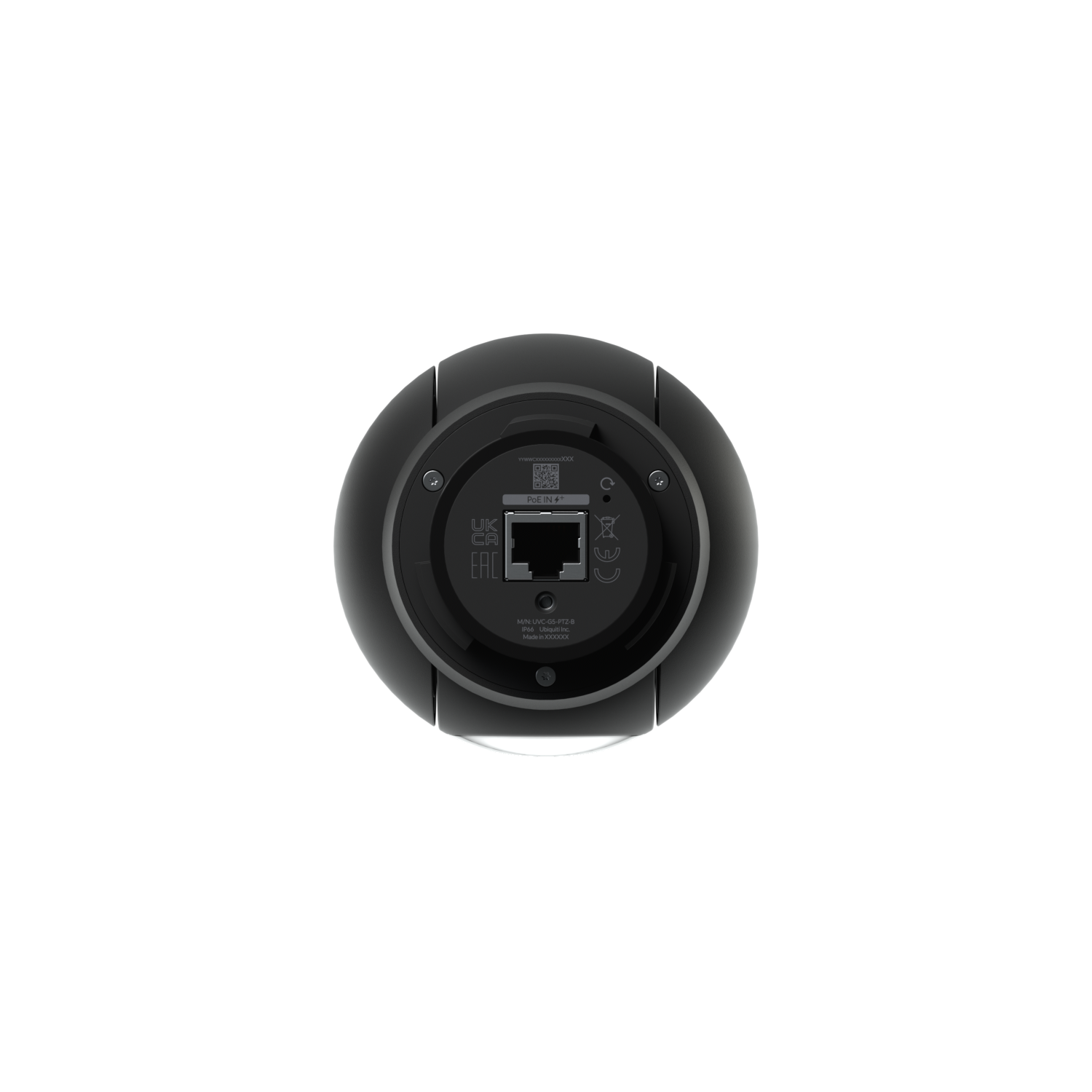

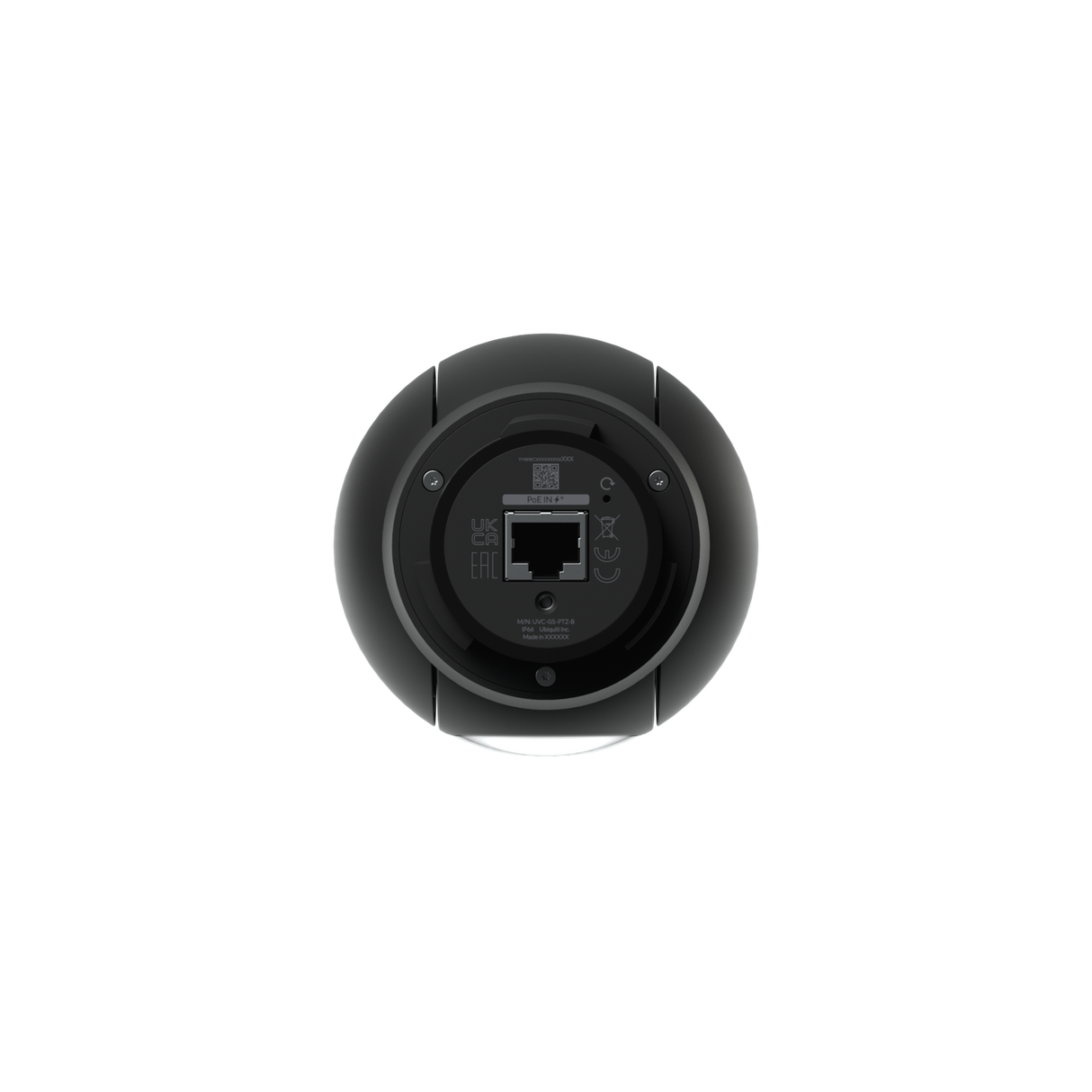

| Networking Interface | 10/100 MbE RJ45 port |
| Video | |
| Max. Frame Rate | 30 FPS |
| Resolution | 4MP (2688 x 1512, 16:9) |
| Optics | |
| Sensor | 5MP 1/2.7" CMOS |
| Lens | F 3.42–6.85 mm; ƒ/1.85–ƒ/2.4 |
| Night Mode | Built-in IR & white LED illumination with IR cut filter |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 37—57V DC |
| Power Method | PoE+ |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | |
| Without Mount | 580 g (1.3 lb) |
| With Mount | 650 g (1.4 lb) |
| Materials | |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Wall Mount Material | Polycarbonate |
| Pole Mount Material | Aluminum alloy |
| Buttons | |
| Factory Reset | (1) Factory-reset button |
| Environmental Conditions | |
| Ambient Operating Temperature | -30 to 45º C (-22 to 113º F) |
| Ambient Operating Humidity | 0 to 90% noncondensing |
| Certifications | CE, FCC, IC |
