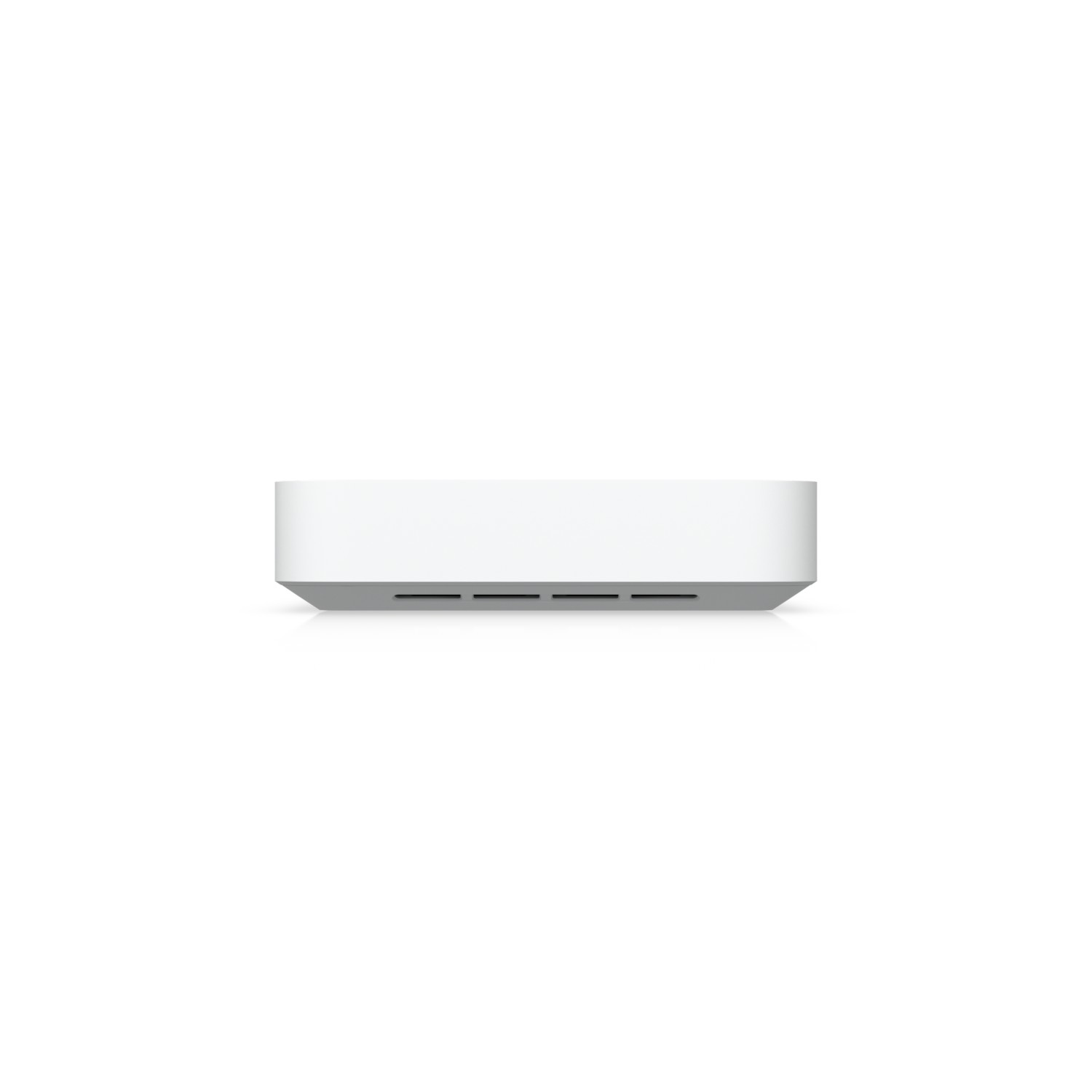

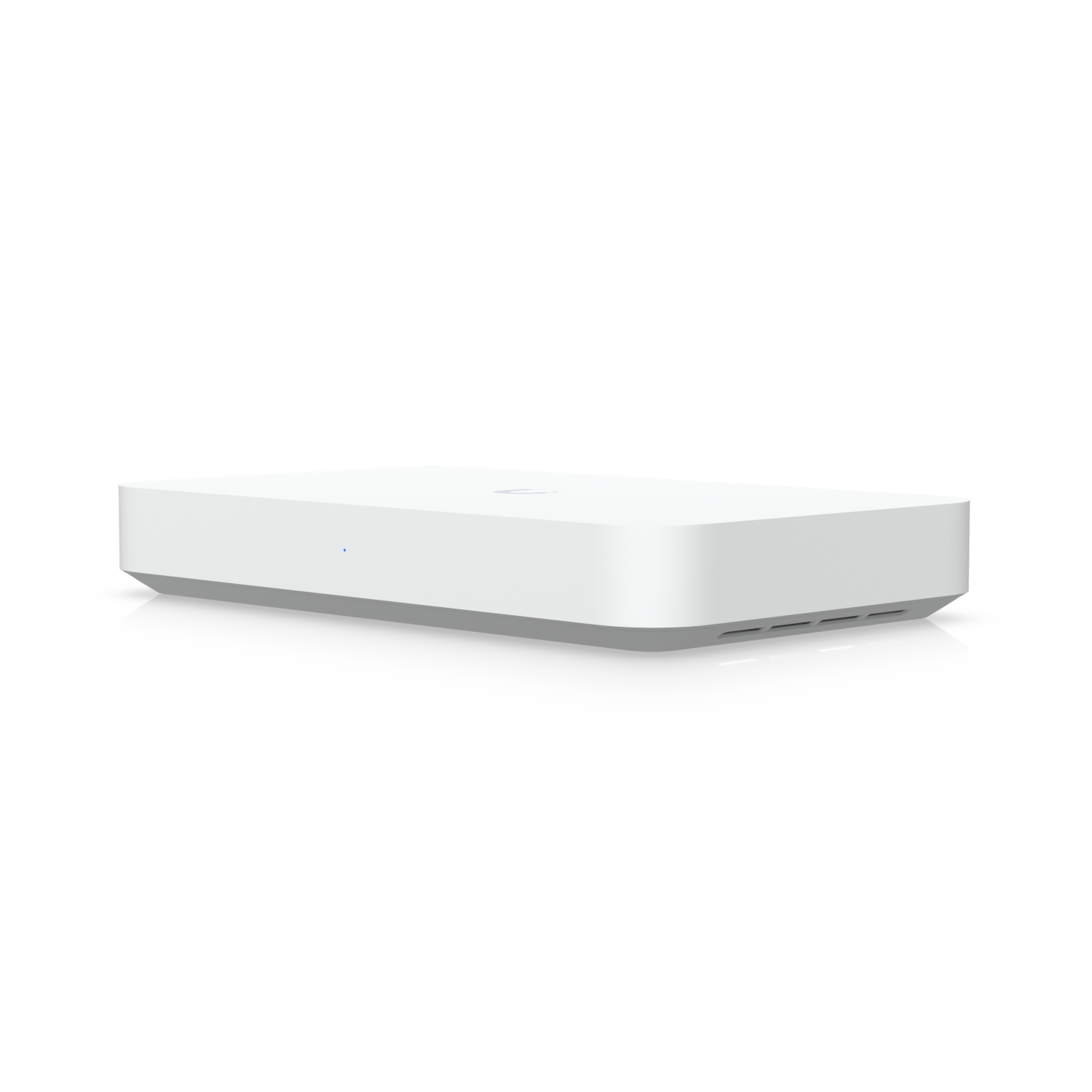

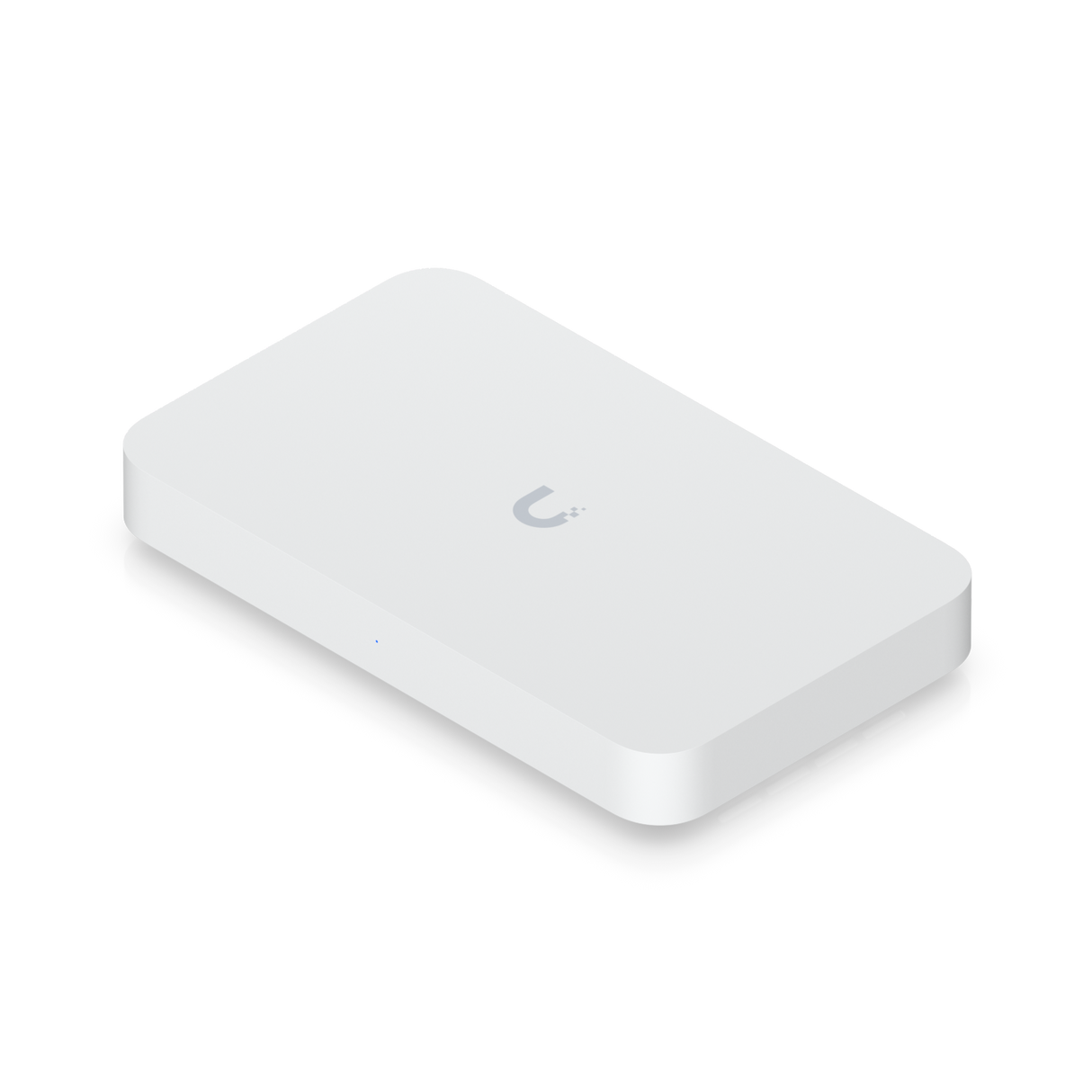

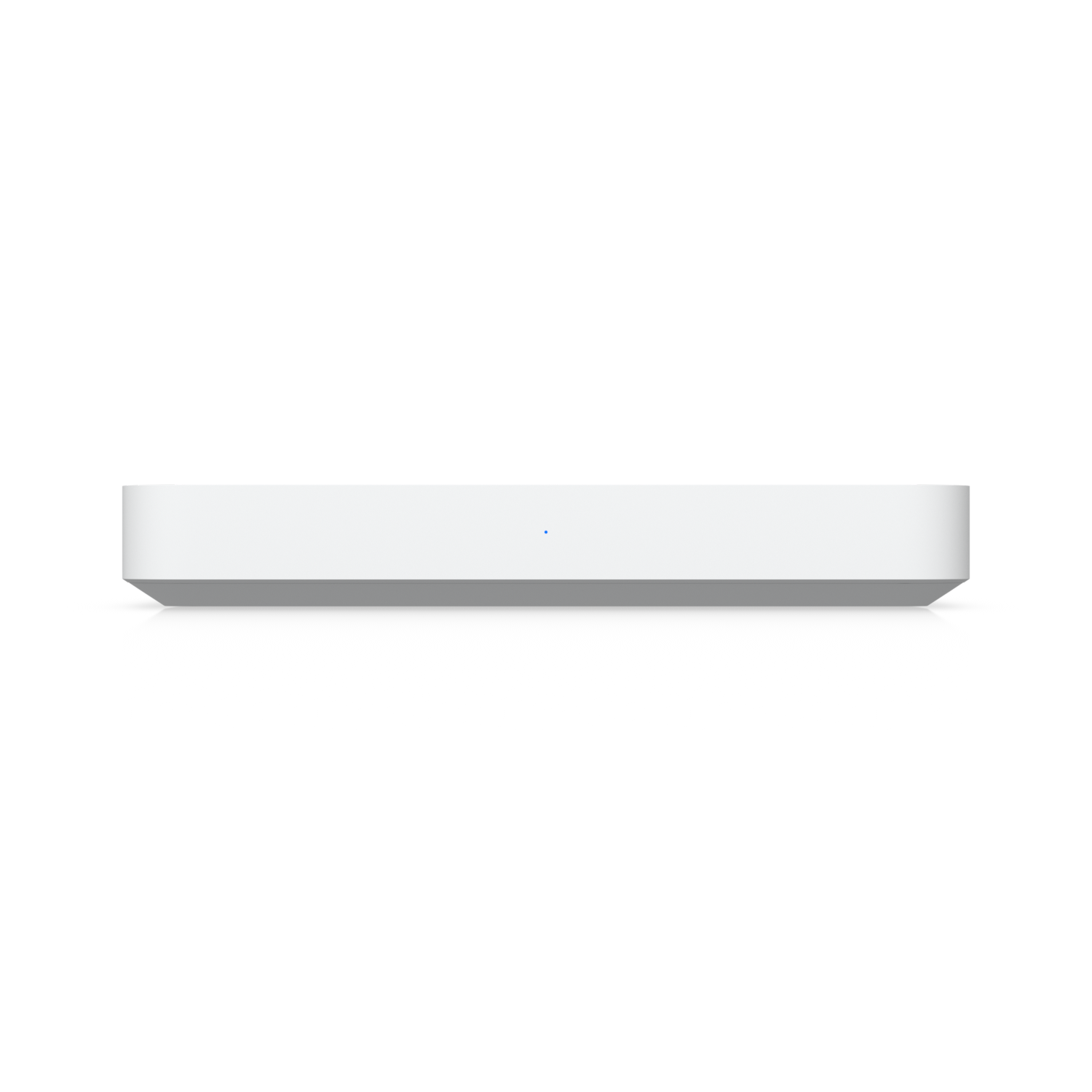

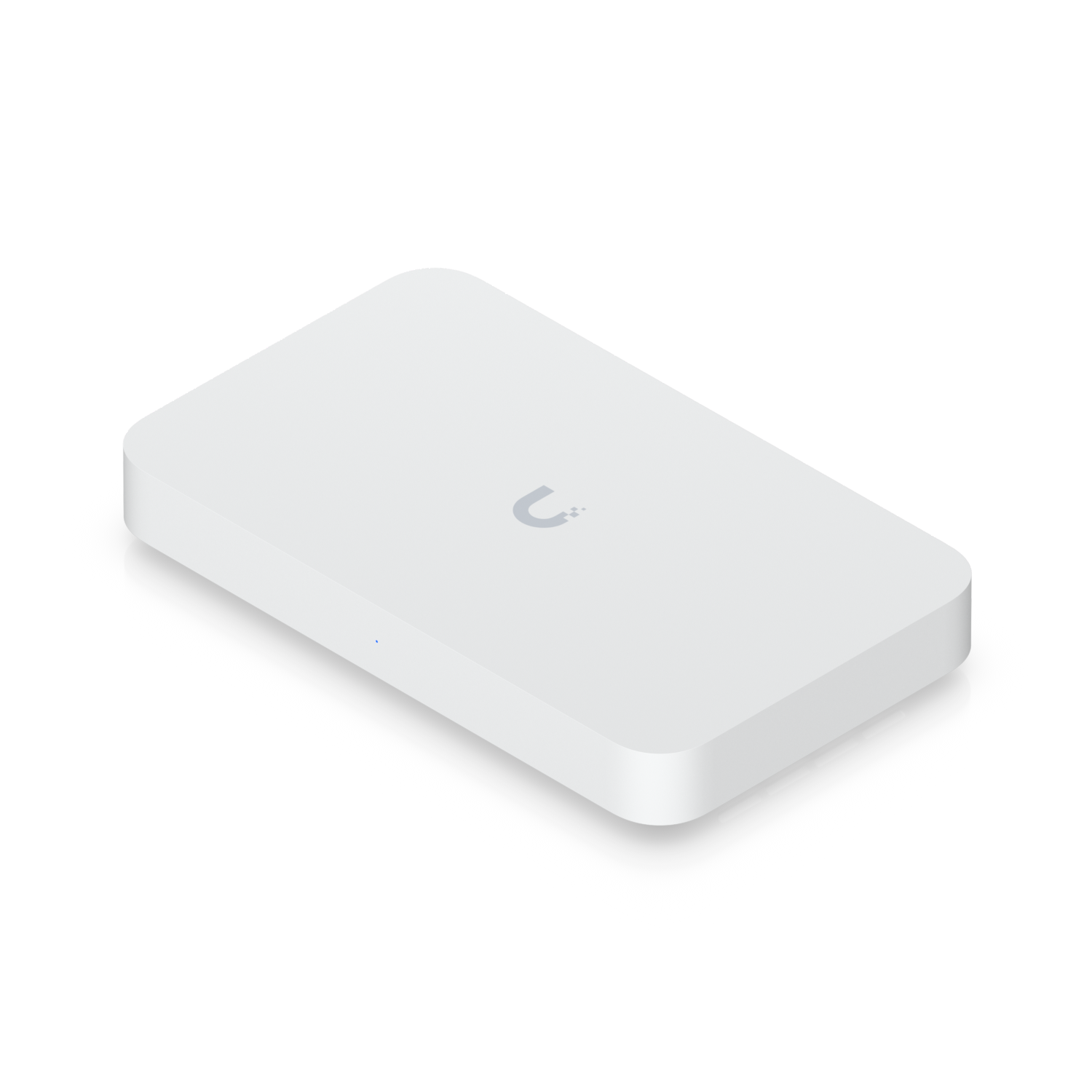

The Ubiquiti UniFi Gateway Fiber UXG-FIBER is a desktop 10G independent gateway with integrated 4-port 2.5 GbE switch.
Managed with a CloudKey, Official UniFi Hosting, or UniFi Network Server. This is NOT a UniFi Cloud Gateway, it is managed as described above. Please order model UCG-FIBER for Cloud Gateway functionality.
5 Gbps routing with IDS/IPS

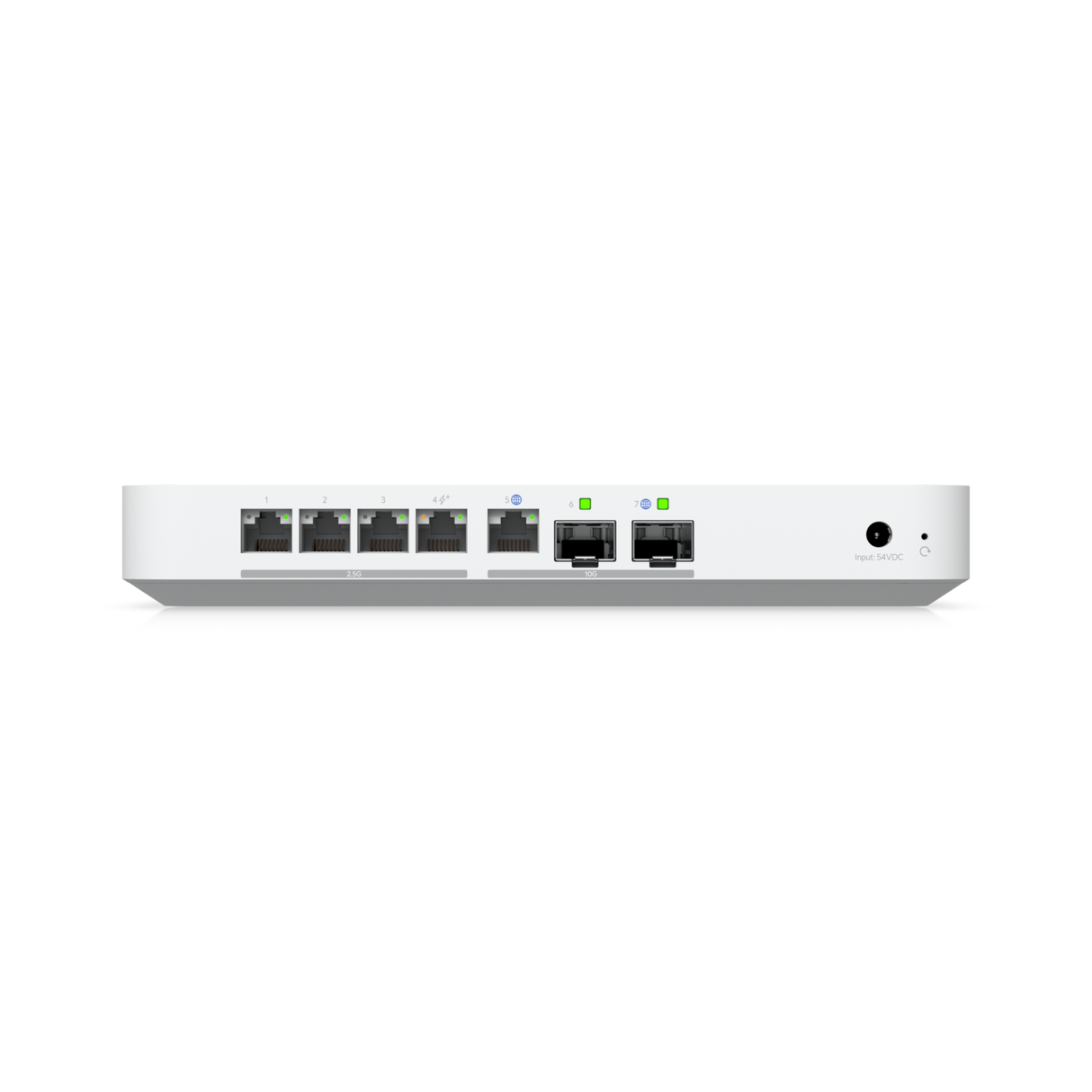

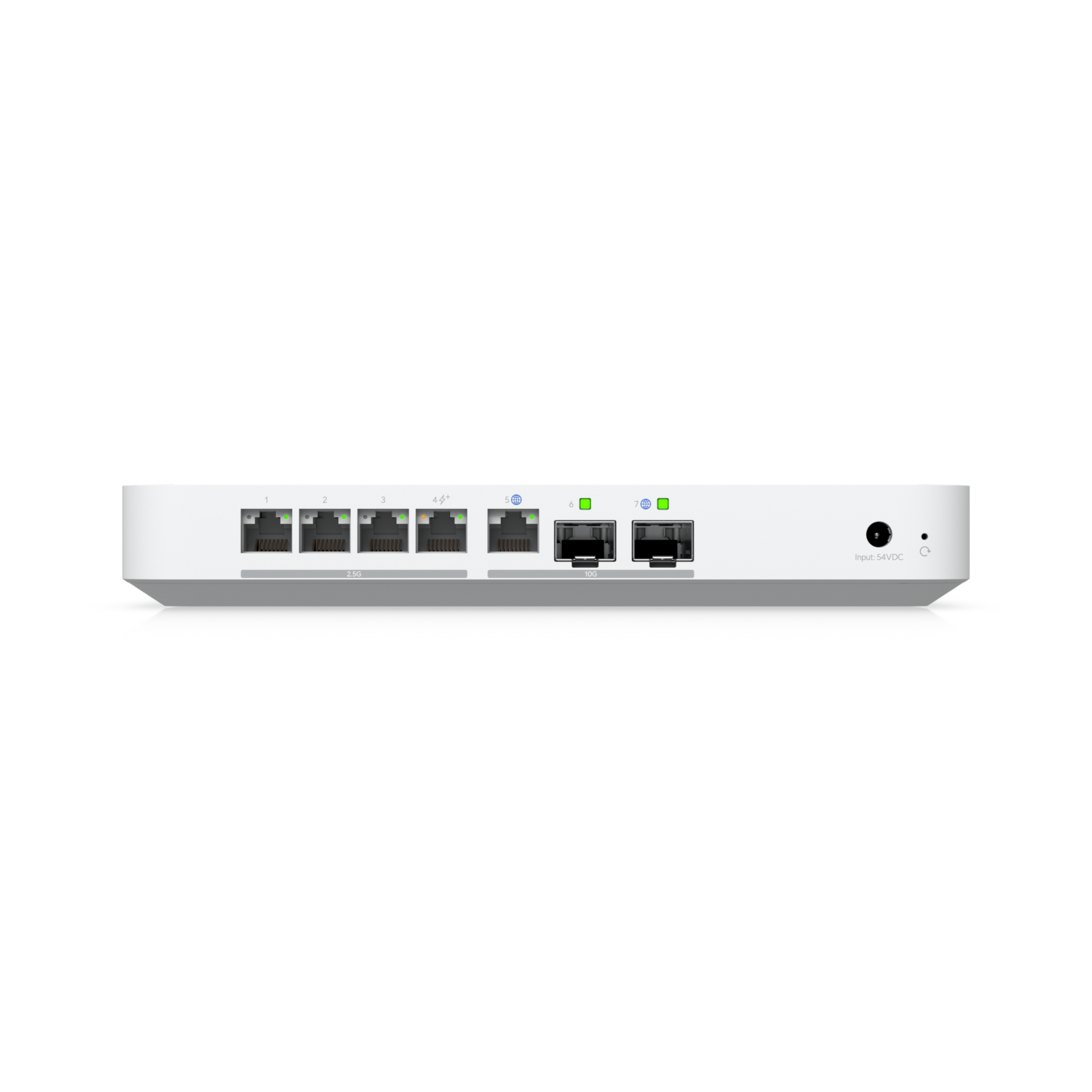

(1) 10G SFP+ and (1) 10 GbE RJ45 WAN port
(1) 10G SFP+ LAN port
Integrated 4-port switch with (1) PoE+ port
Technical Specifications
| Dimensions | 212.8 x 127.6 x 30 mm (8.4 x 5 x 1.2") |
| Default WAN Ports | (1) 10G SFP+ (1) 10 GbE RJ45 |
| LAN Ports | (1) 10G SFP+ (4) 2.5 GbE RJ45 |
| IDS/IPS Throughput | 5 Gbps |
| Form Factor | Compact desktop |
| Security | |
| Stateful Firewall | ✓ |
| Application-Aware Layer 7 Firewall | ✓ |
| DPI & Traffic Identification | ✓ |
| Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps) | ✓ |
| Content Filtering | ✓ |
| Intrusion Prevention (IPS/IDS) | ✓ |
| Ad Blocking | ✓ |
| IDS/IPS Signatures | 55,000+ (With CyberSecure) |
| VPN & SD-WAN | |
| License-Free SD-WAN | ✓ |
| Site-to-Site VPN | Site Magic ✓ |
| IPsec | ✓ |
| OpenVPN (Server & Client) | ✓ |
| VPN Server (Teleport Zero-Configuration VPN) | ✓ |
| WireGuard (Server & Client) | ✓ |
| L2TP | ✓ |
| Networking | |
| Multi-WAN Load Balancing | ✓ |
| Dynamic Routing (OSPF) | ✓ |
| Advanced QoS | ✓ |
| Multicast DNS (mDNS) | ✓ |
| Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT) | ✓ |
| Integrated RADIUS Server | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Additional Internet Failover with UniFi LTE Backup | ✓ |
| Internet Quality and Outage Reporting | ✓ |
| MAC Address Table Size | 4,000 |
| Hardware | |
| PoE Budget | 30W |
| Max. PoE Wattage per Port by PSE | PoE+ 30W |
| Voltage Range PoE Mode | 50—57V |
| Max. Power Consumption | 25W (Excluding PoE output) |
| Power Method | DC jack (54V DC/1.1A) |
| Power Supply | 54V DC/1.1A (Adapter included) |
| Supported Voltage Range | 100—240V AC |
| Processor | Quad-core ARM® Cortex®-A73 at 2.2 GHz |
| System Memory | 2 GB |
| Weight | 605 g (1.3 lb) |
| Enclosure Material | Polycarbonate |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet ✓ SFP+ ✓ System ✓ |
| ESD/EMP Protection | Air: ± 8kV, Contact: ± 4kV |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Button | (1) Factory-reset |
