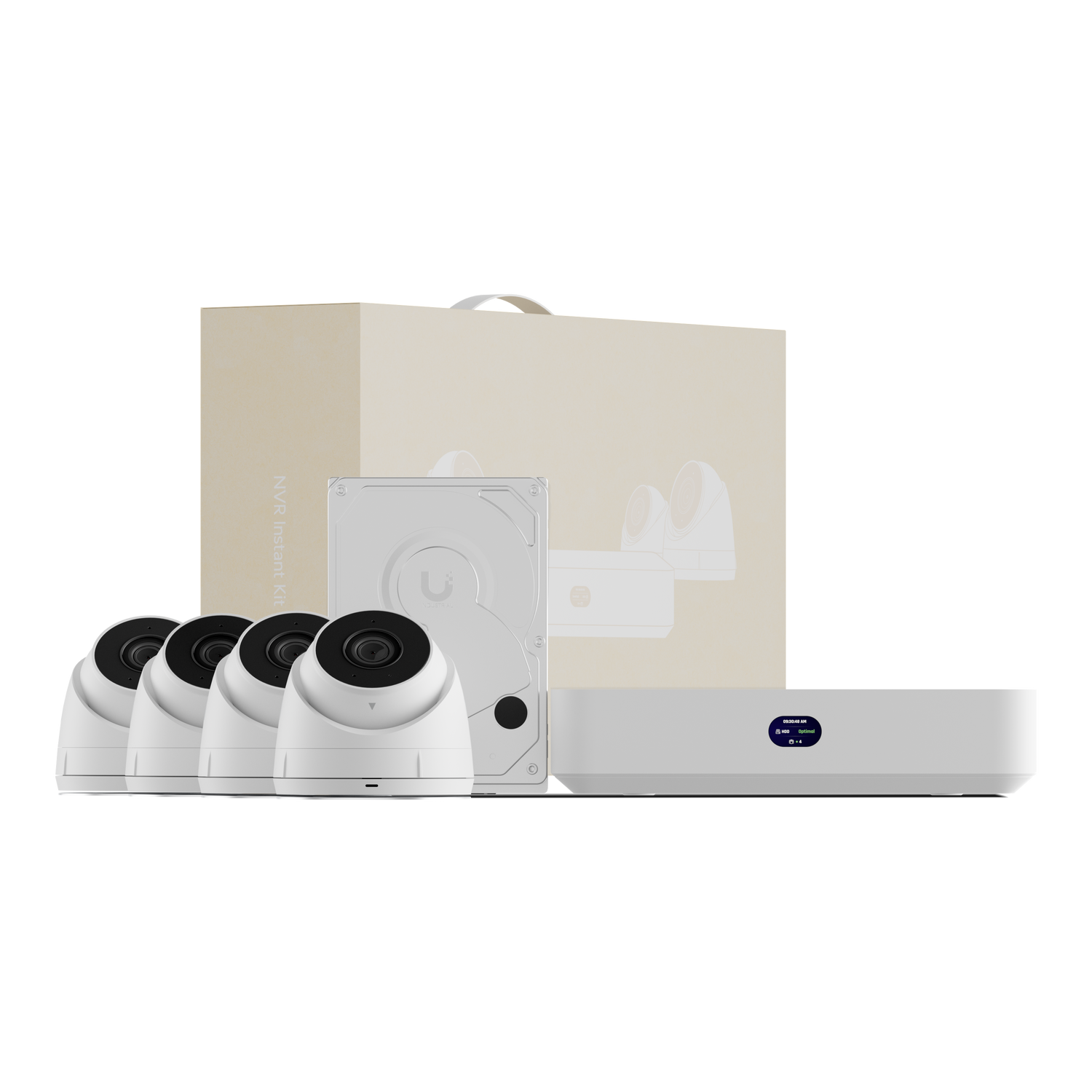

The Ubiquiti UniFi Network Video Recorder Instant Kit UNVR-INSTANT-KIT is a compact UniFi Protect NVR Kit, includes (1) UniFi Protect NVR Instant with (4) G5 Turret Ultra cameras and (1) 1TB HDD, delivering an all-in-one solution for fast and effortless setup.
Note. Requires connection to a Gateway or Layer 3 switch.
Technical Specifications

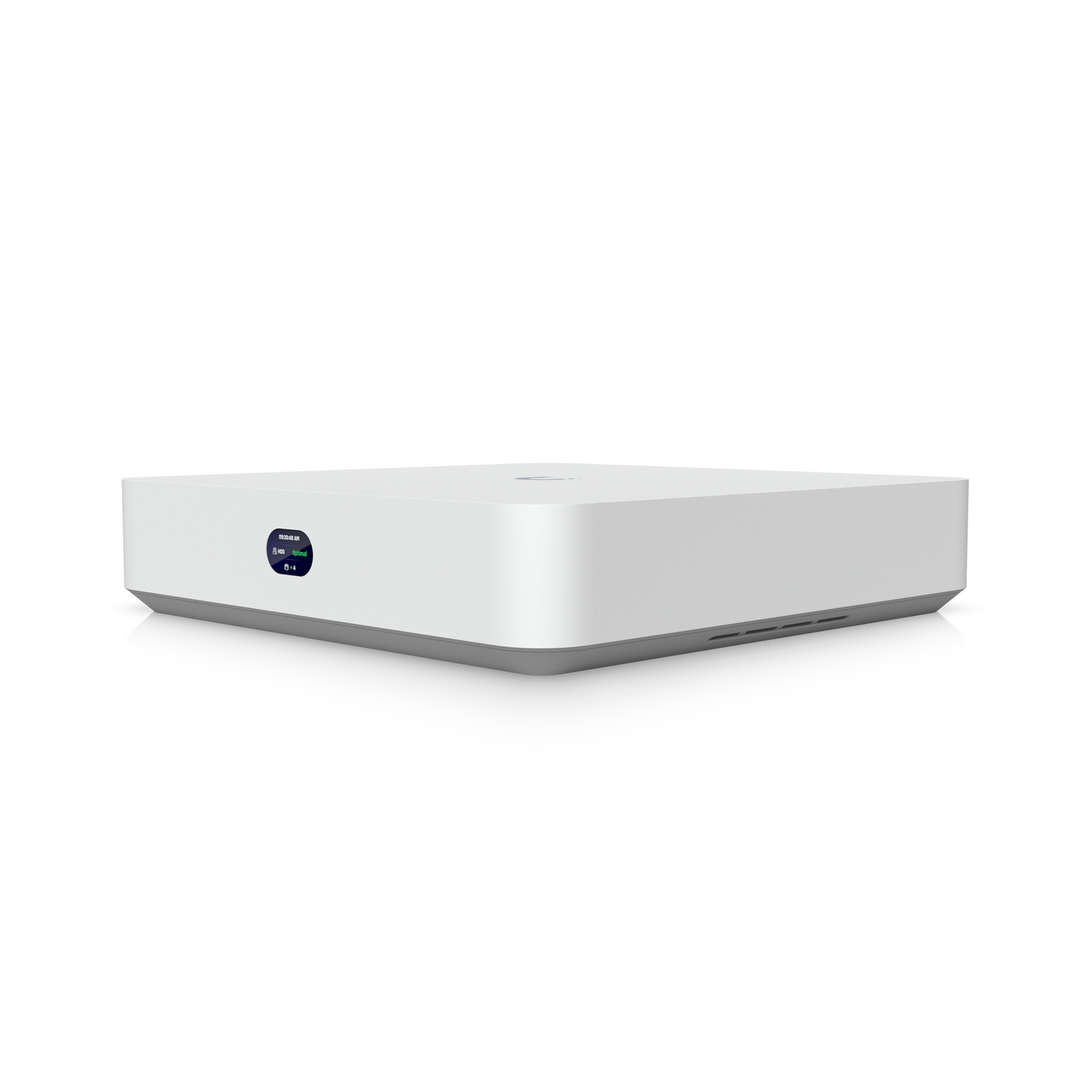

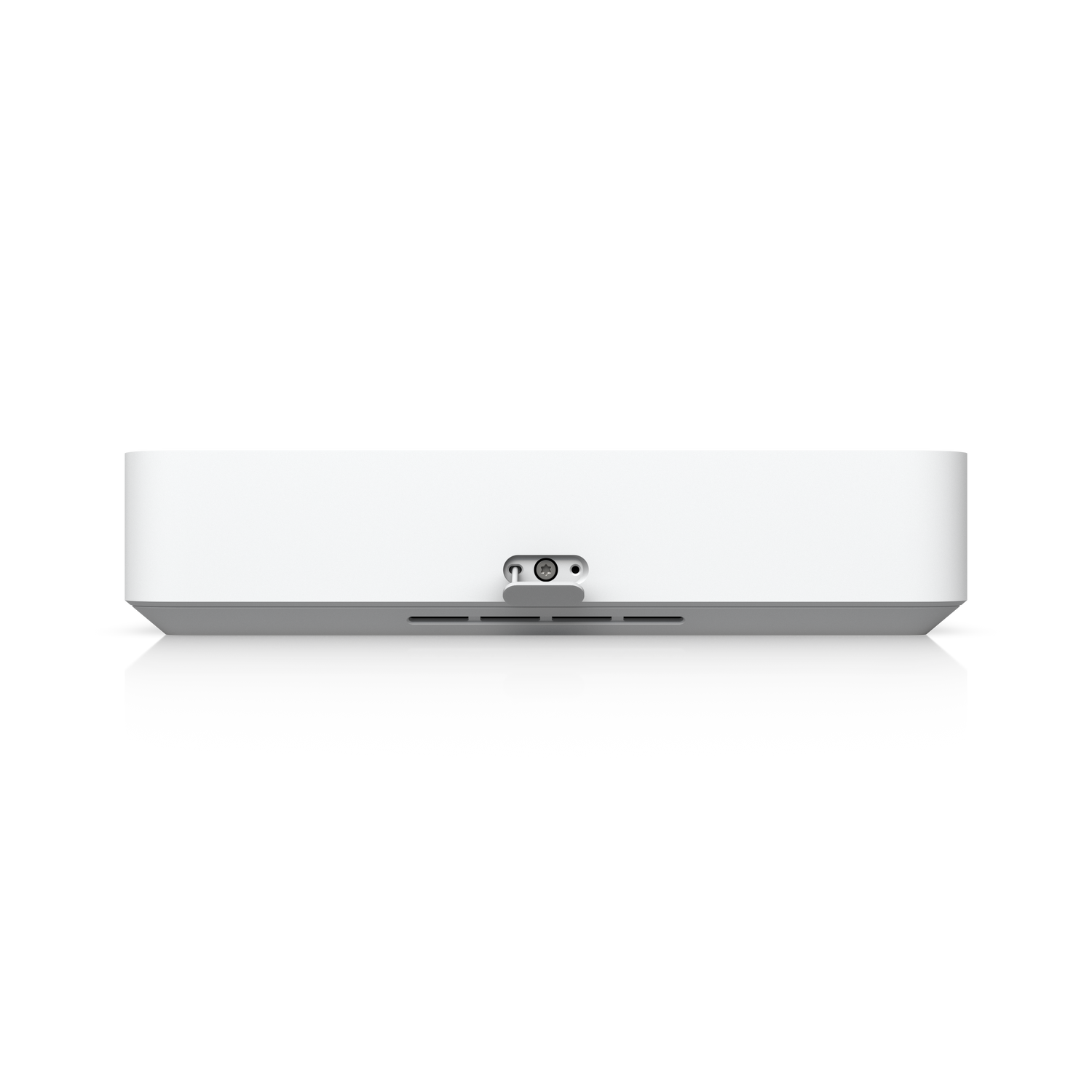

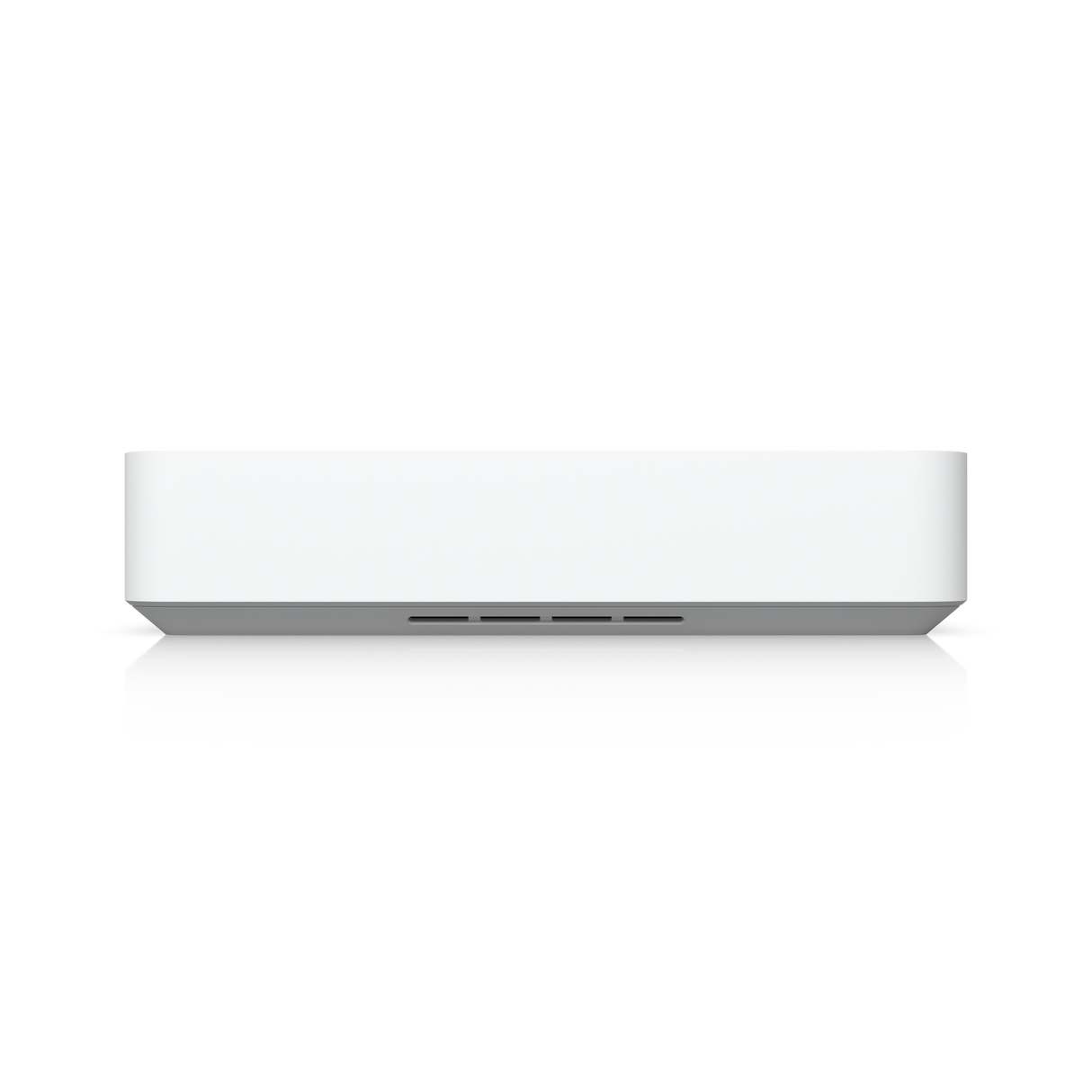

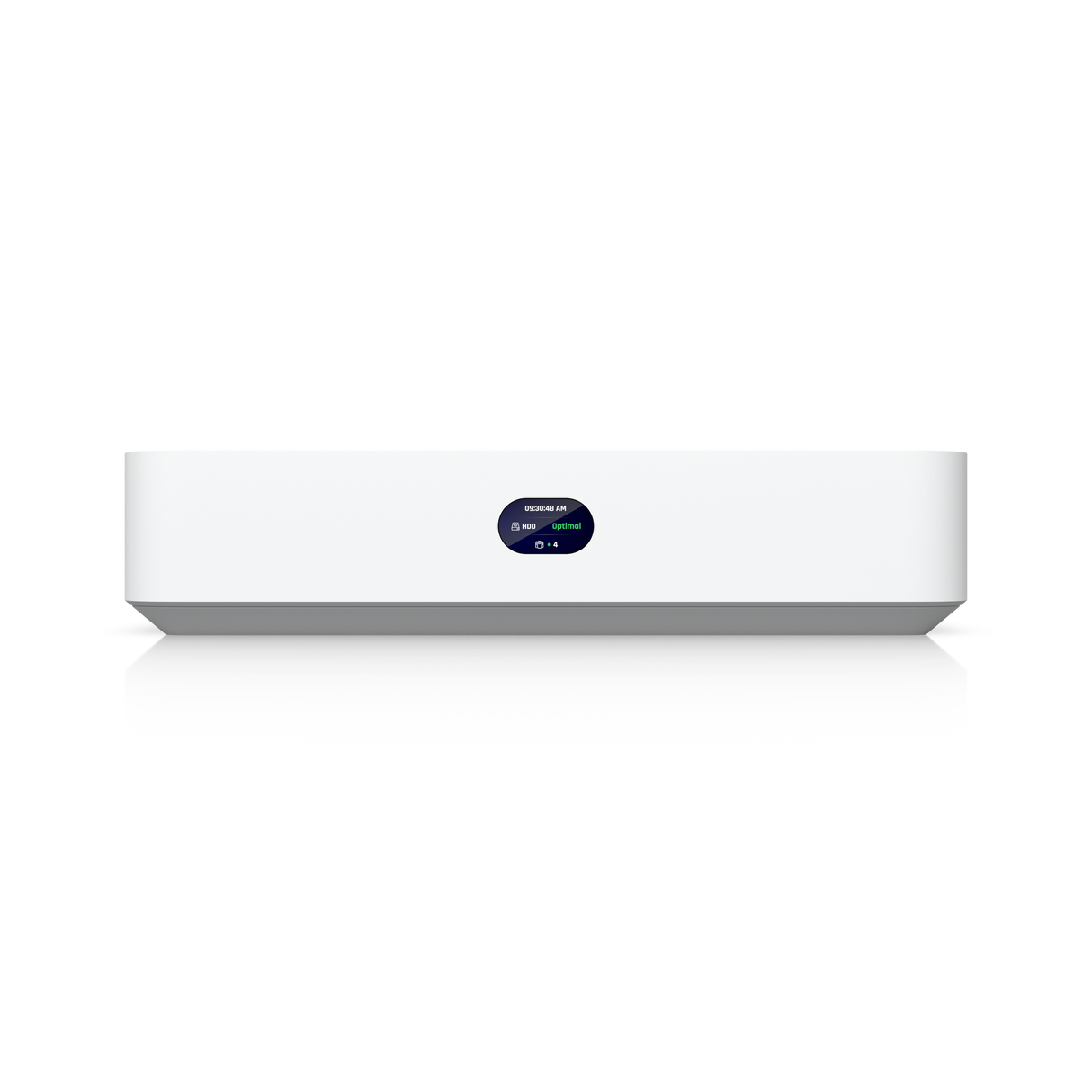

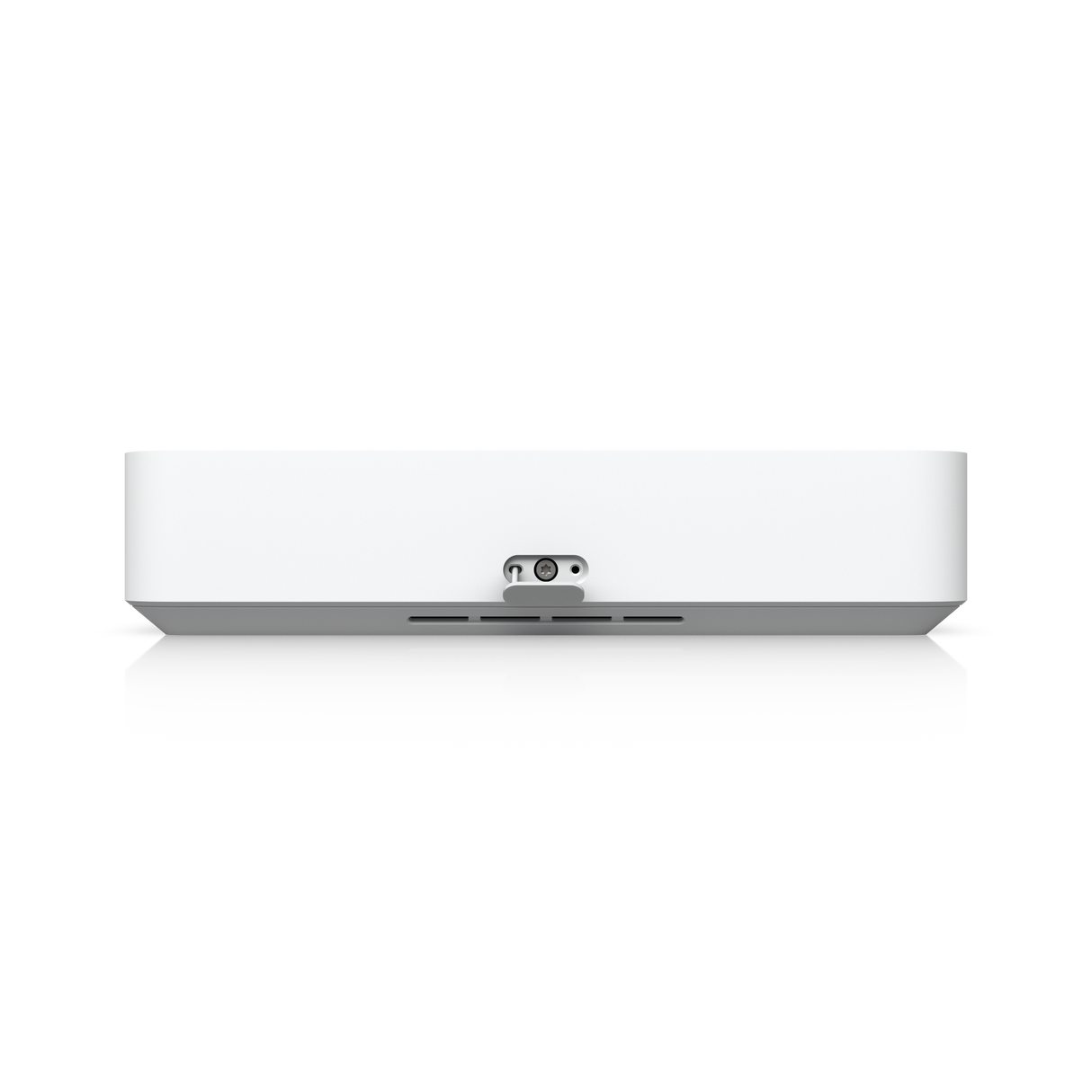

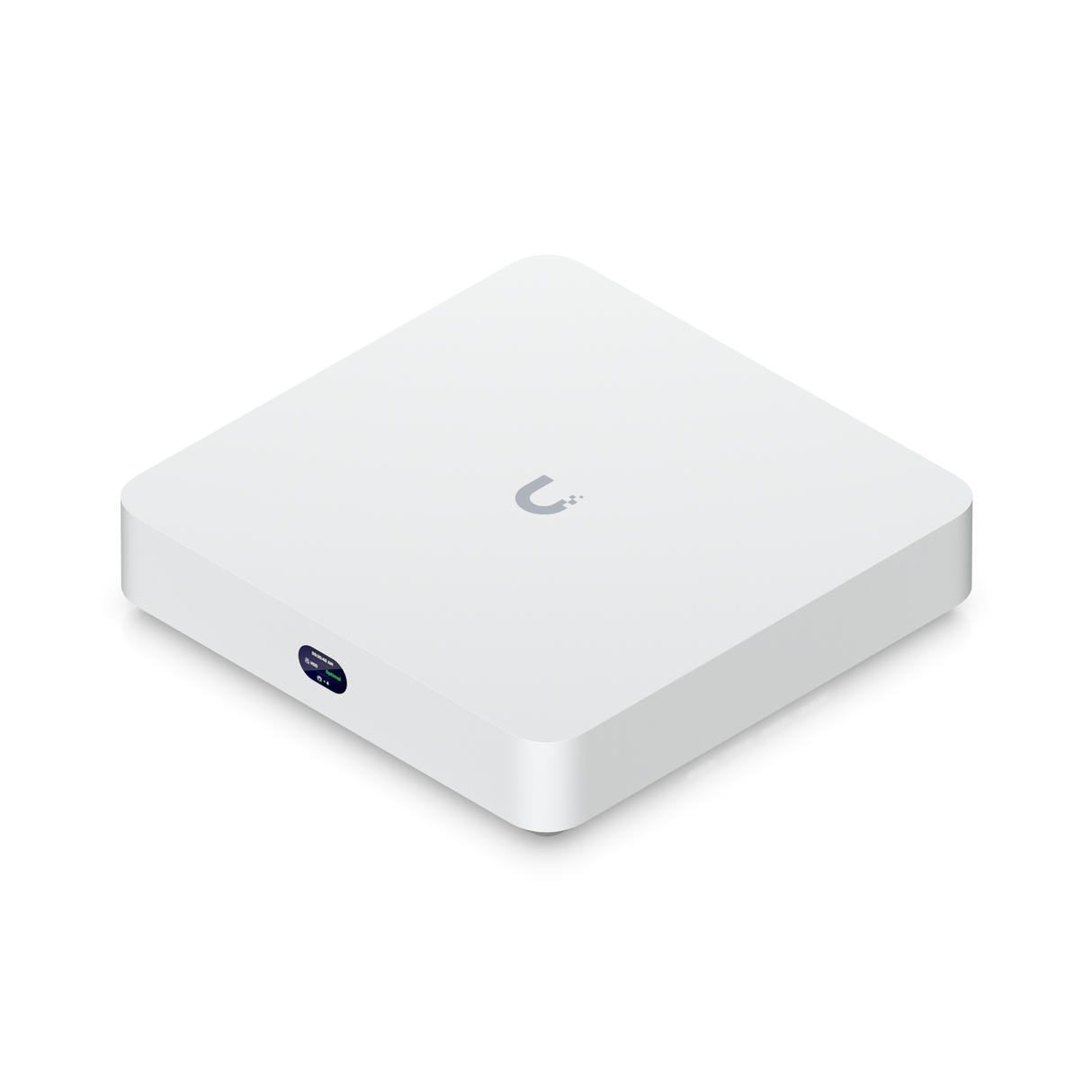

Network Video Recorder Instant
| Category | Specification |
|---|---|
| Dimensions & Form | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9")Form Factor: Compact Desktop |
| UniFi Application Suite | Protect ✓Access ✓ |
| Camera Support | (15) HD(8) 2K(6) 4K |
| Access Hub Support | Up to 50 |

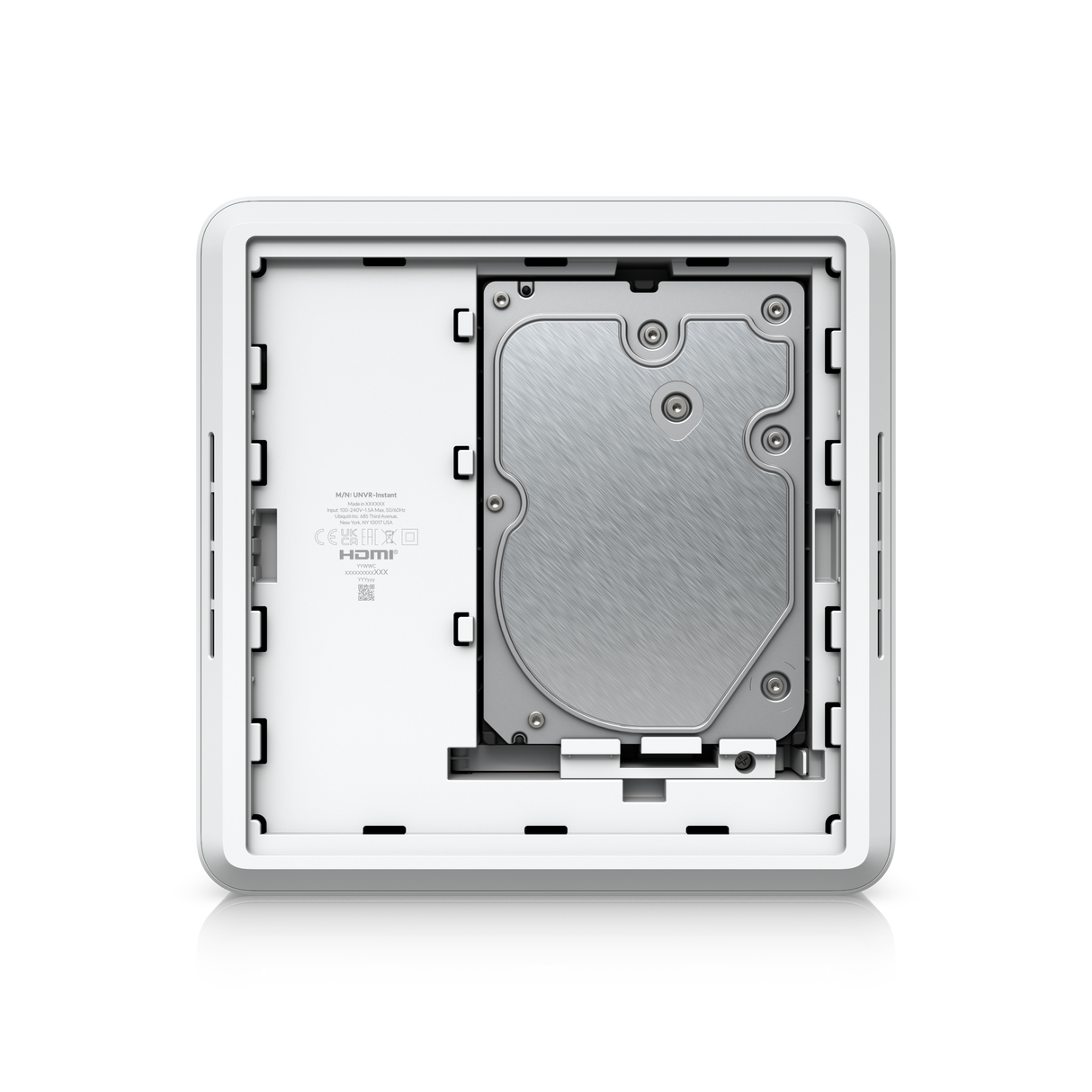

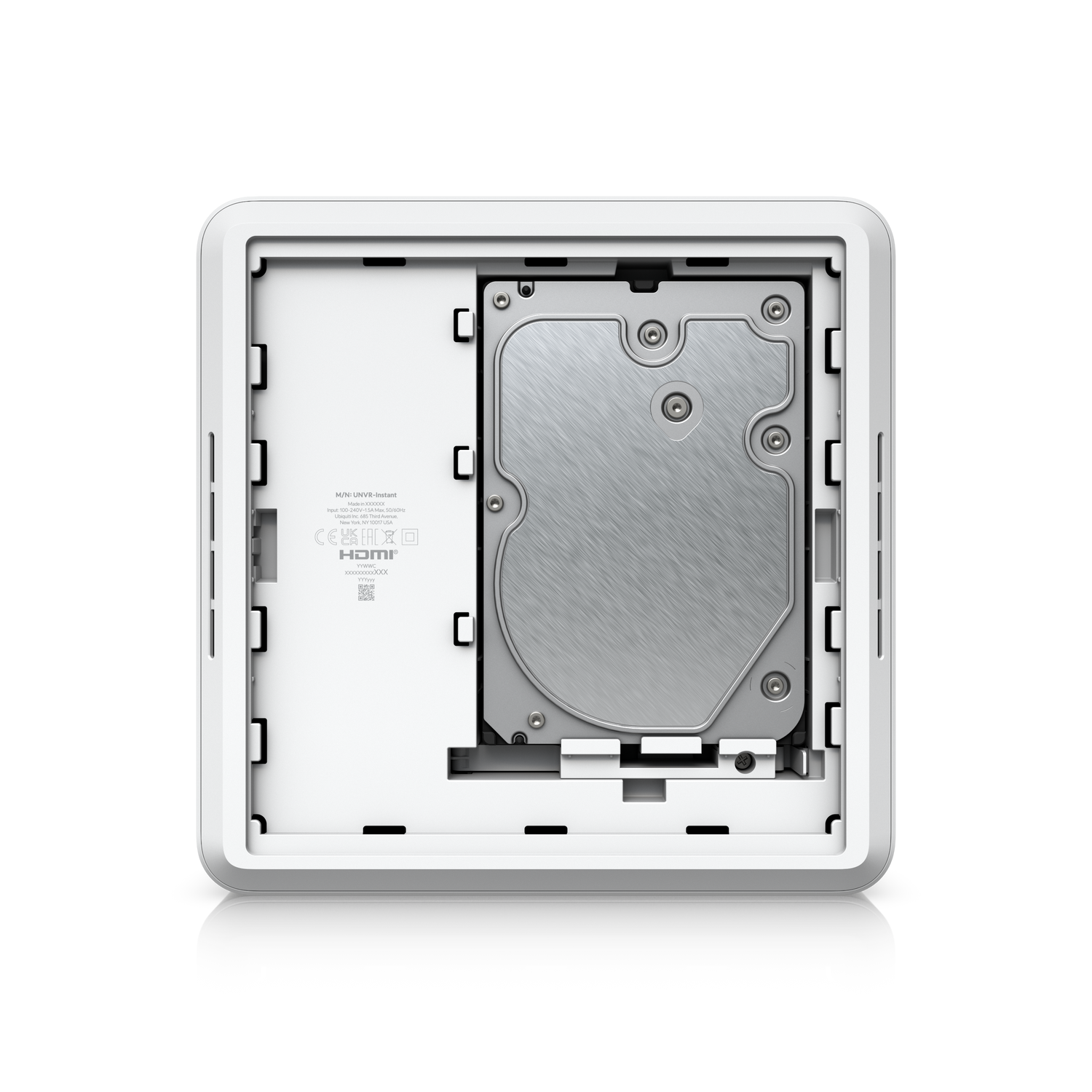

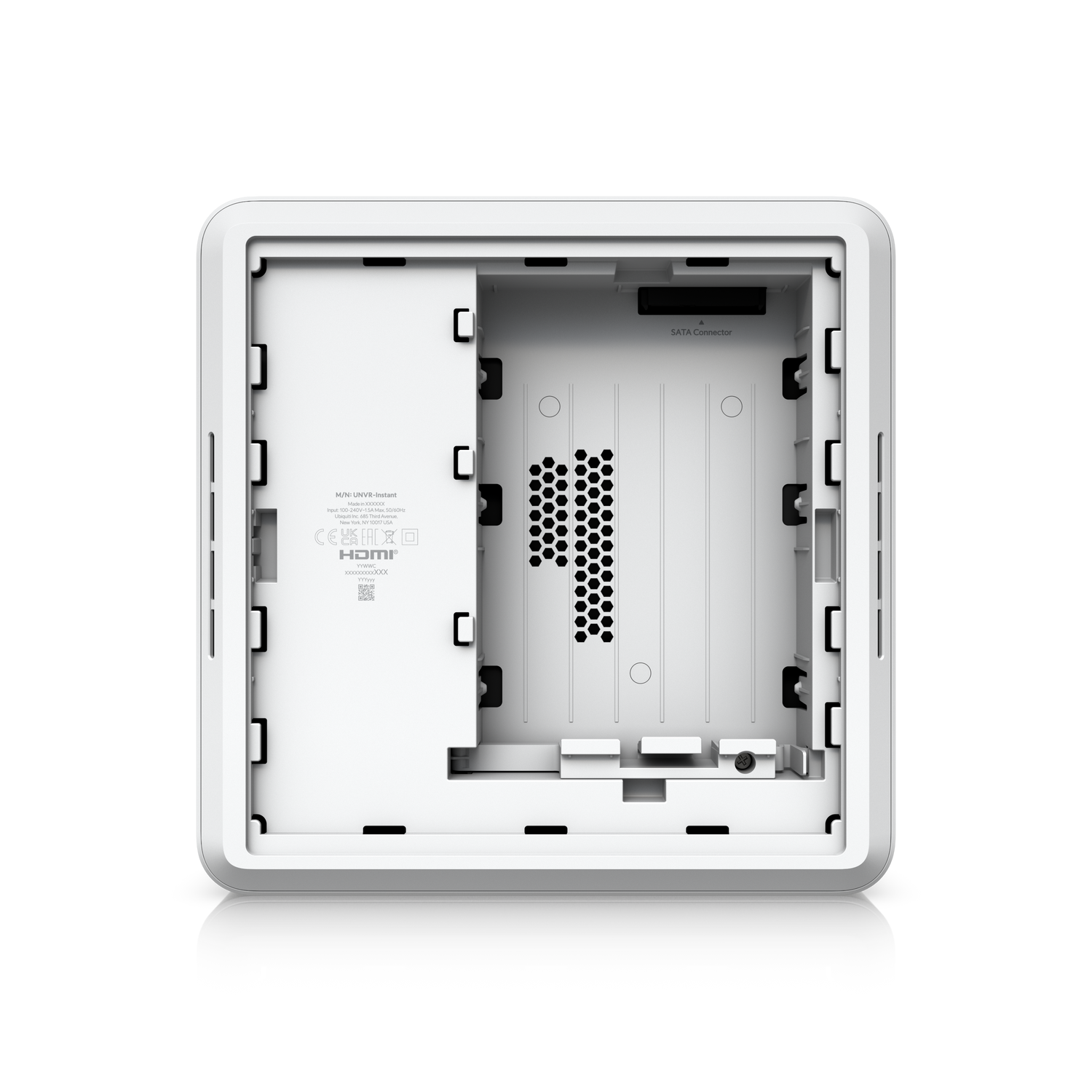

| Storage | (1) 3.5" drive bayData Protection ✓Vantage Point ✓ |

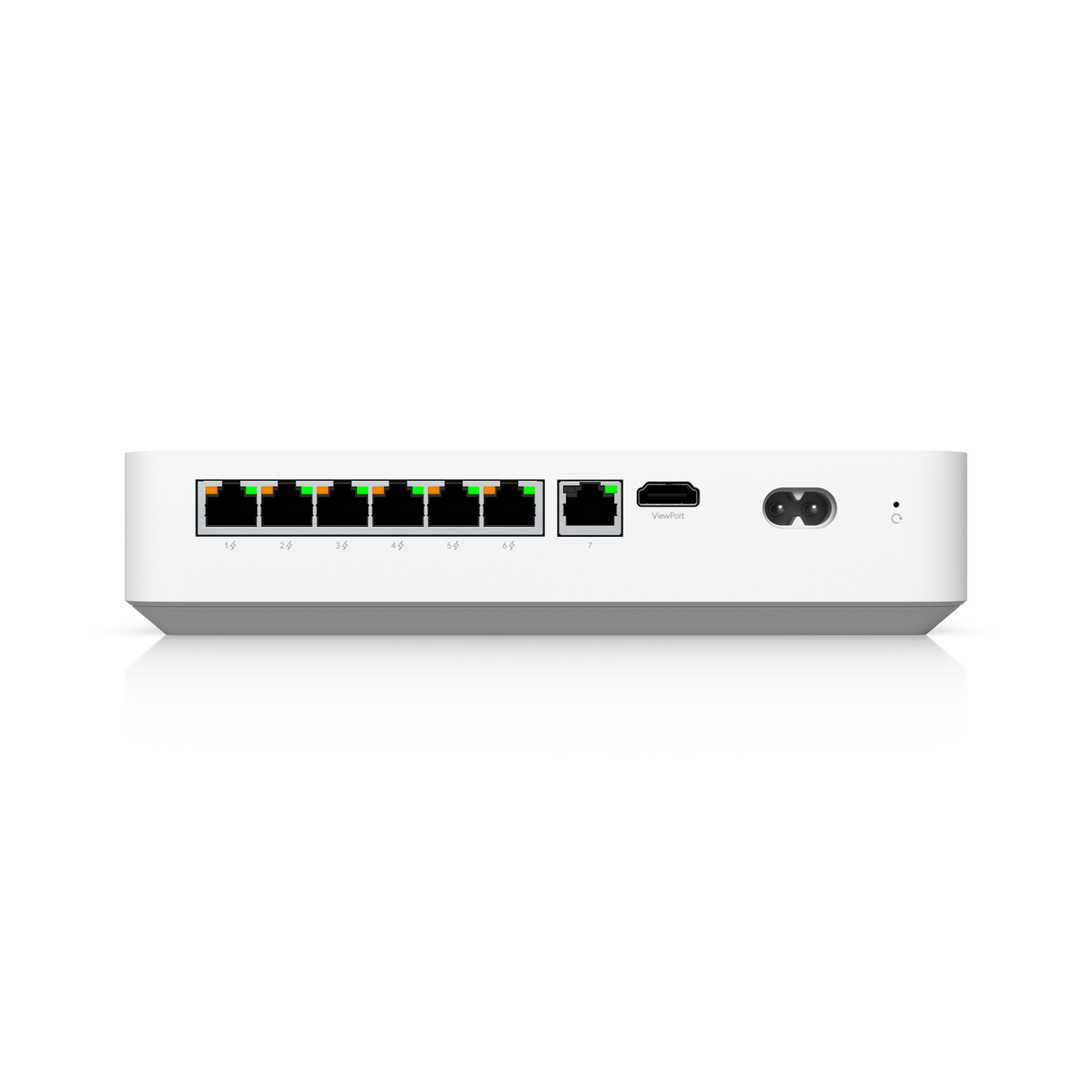

| Networking Interface | (1) GbE RJ45 uplink port(6) GbE PoE RJ45 downlink ports(1) HDMI port (Viewport) |
| Mounting | Wall, Din rail mount (Included) |
| Door Access Support | ✓ |
| Hardware | (1) 3.5" HDD supportMax Power Budget for Drives: 11WMax Power Consumption: 9W |
| Power | Universal AC input 100–240VAC, 1.5A Max, 50/60 HzAC/DC Internal 60WPoE Budget: 40W |
| PoE Power Per Port | Max 15.4W per port (PoE) |
| PoE Voltage Range | 44–57V |
| Processor & Memory | Quad-core ARM® Cortex®-A55 @ 1.7 GHz4 GB RAM |
| Interfaces | Management: EthernetBluetooth: ✓Display: 1.14" screen |
| Enclosure & Build | Weight: 1.04 kg (2.3 lb)Material: Polycarbonate |
| LED Indicators | Ethernet ✓PoE ✓ |
| Environmental | Operating Temp: 0 to 40°C (32 to 104°F)Humidity: 5 to 95% noncondensing |
| Compliance | NDAA Compliant ✓Certifications: FCC, IC, CE, Electrical Safety |

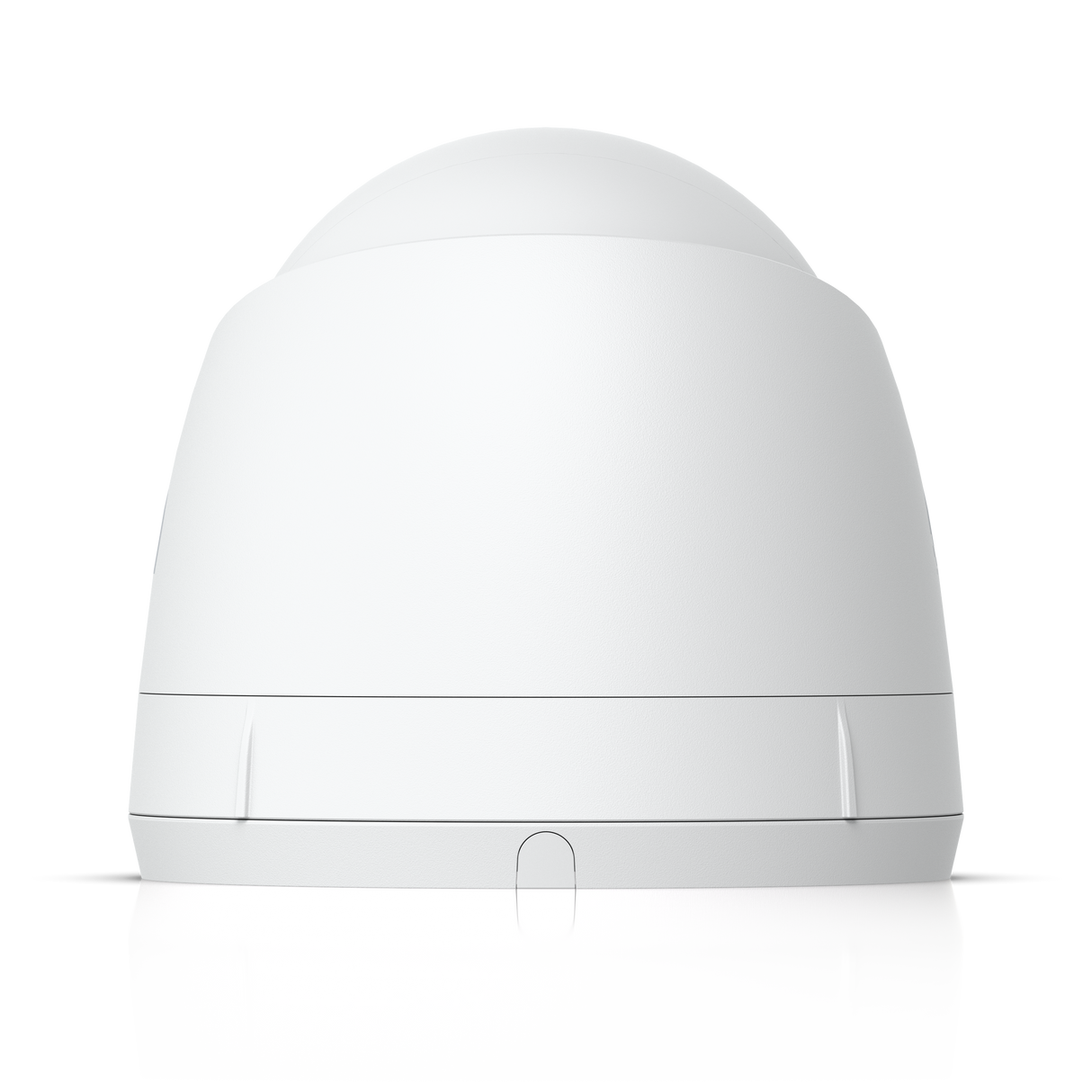

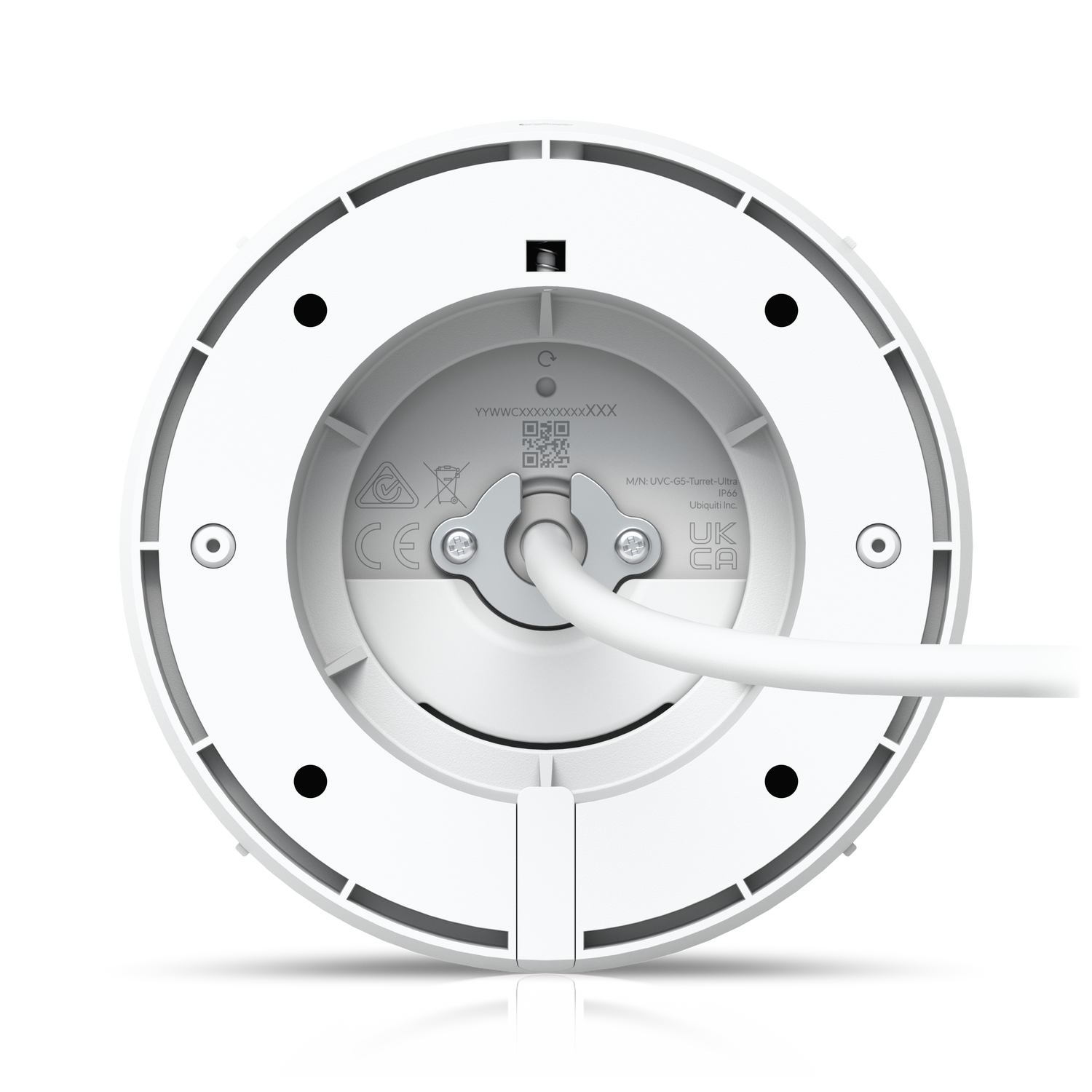

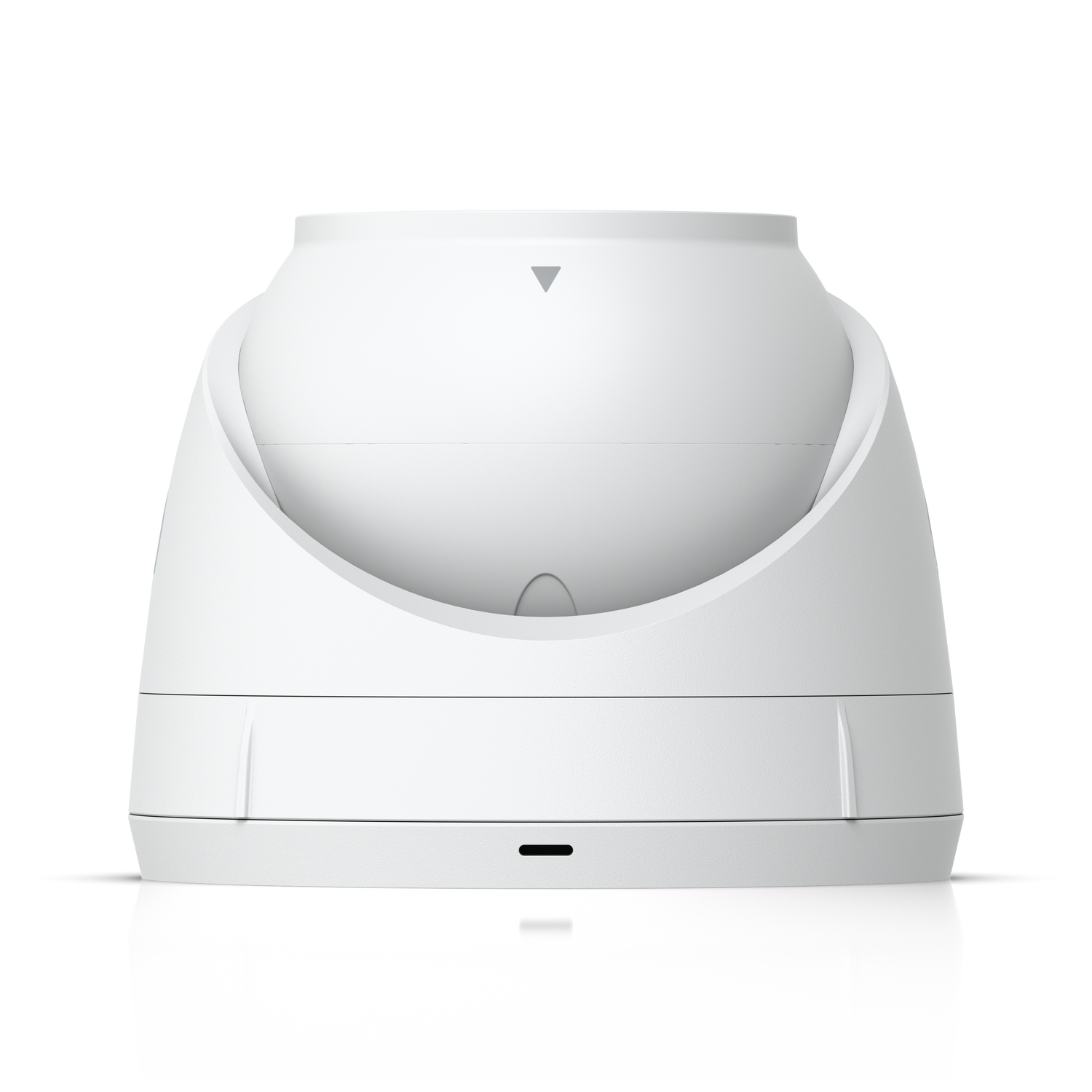

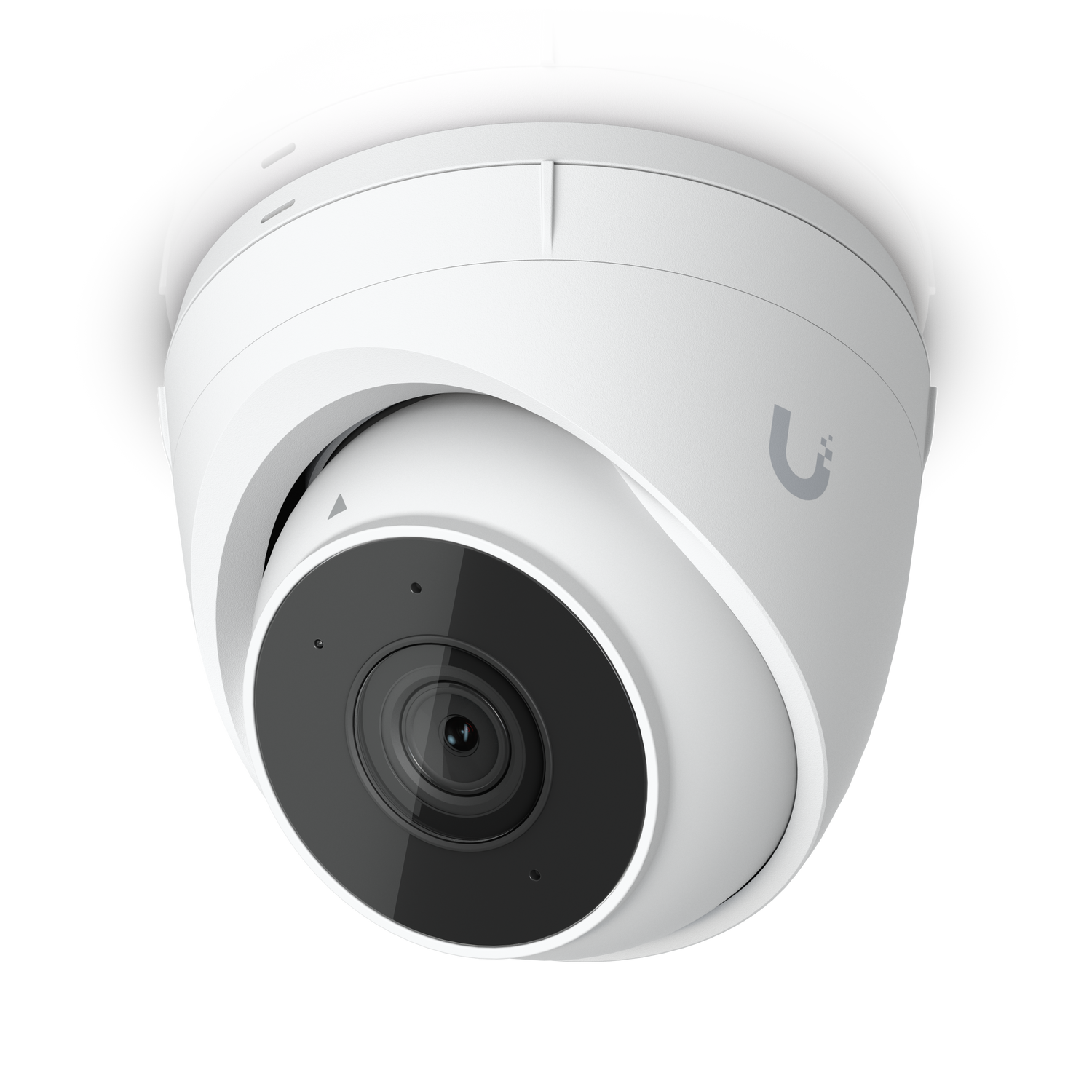

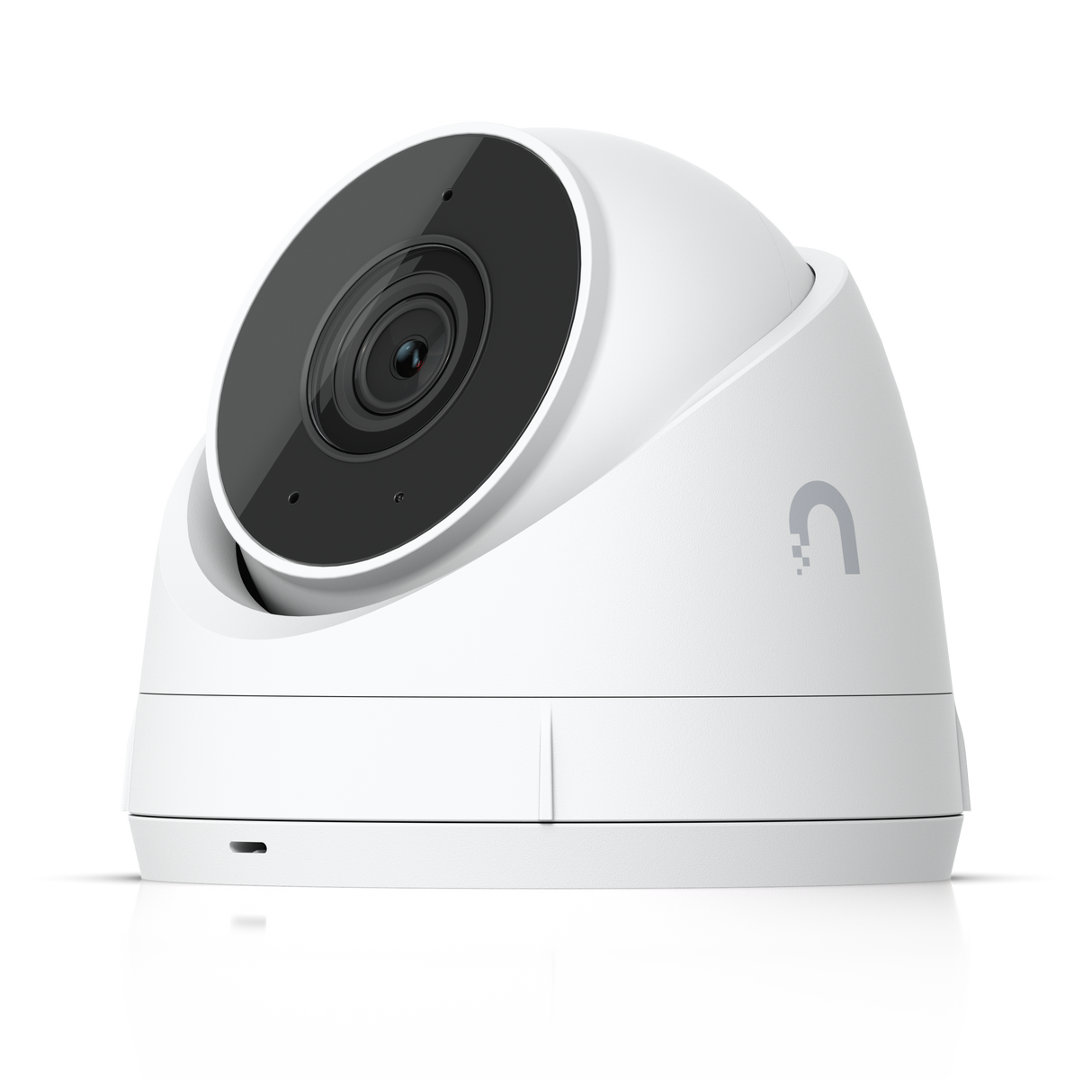

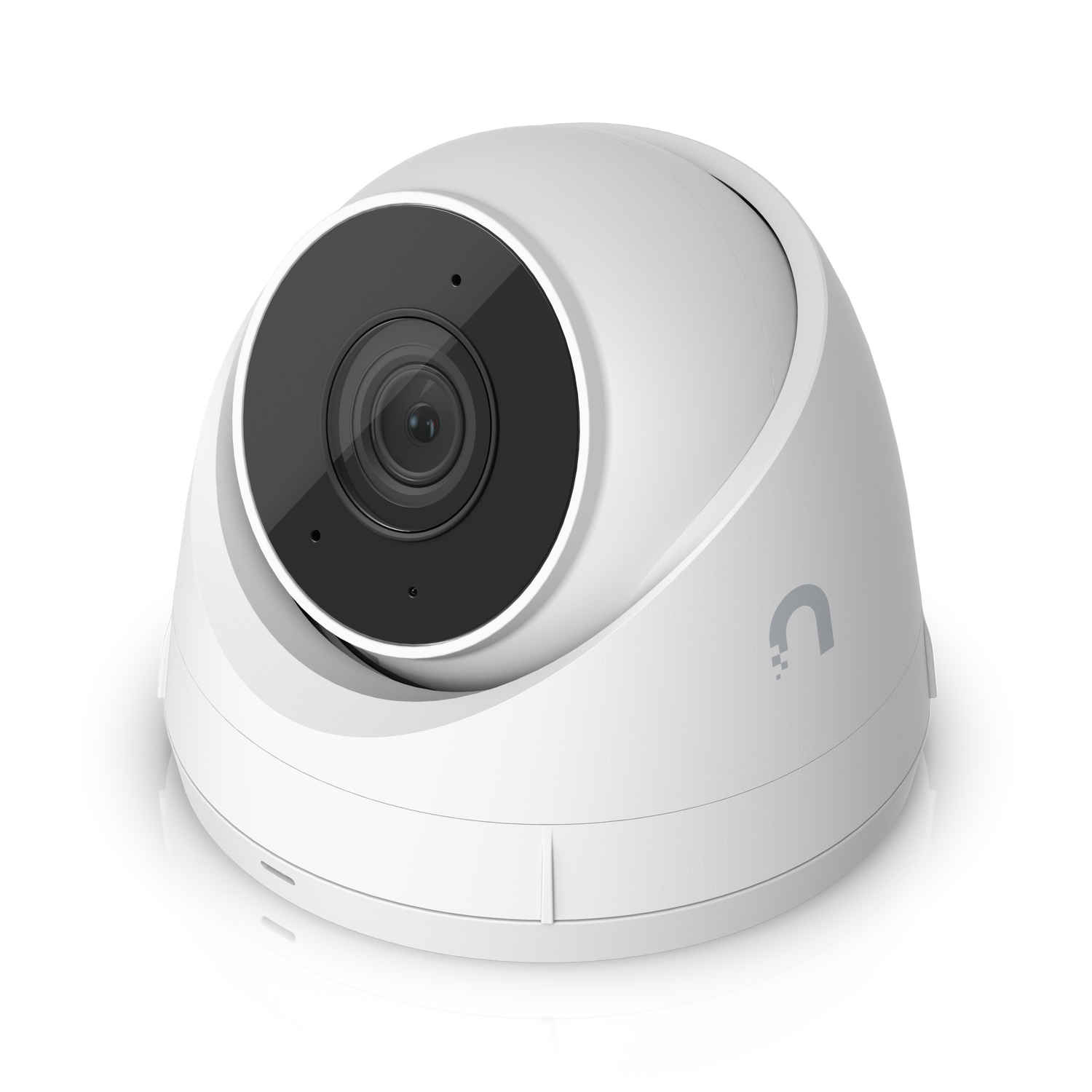

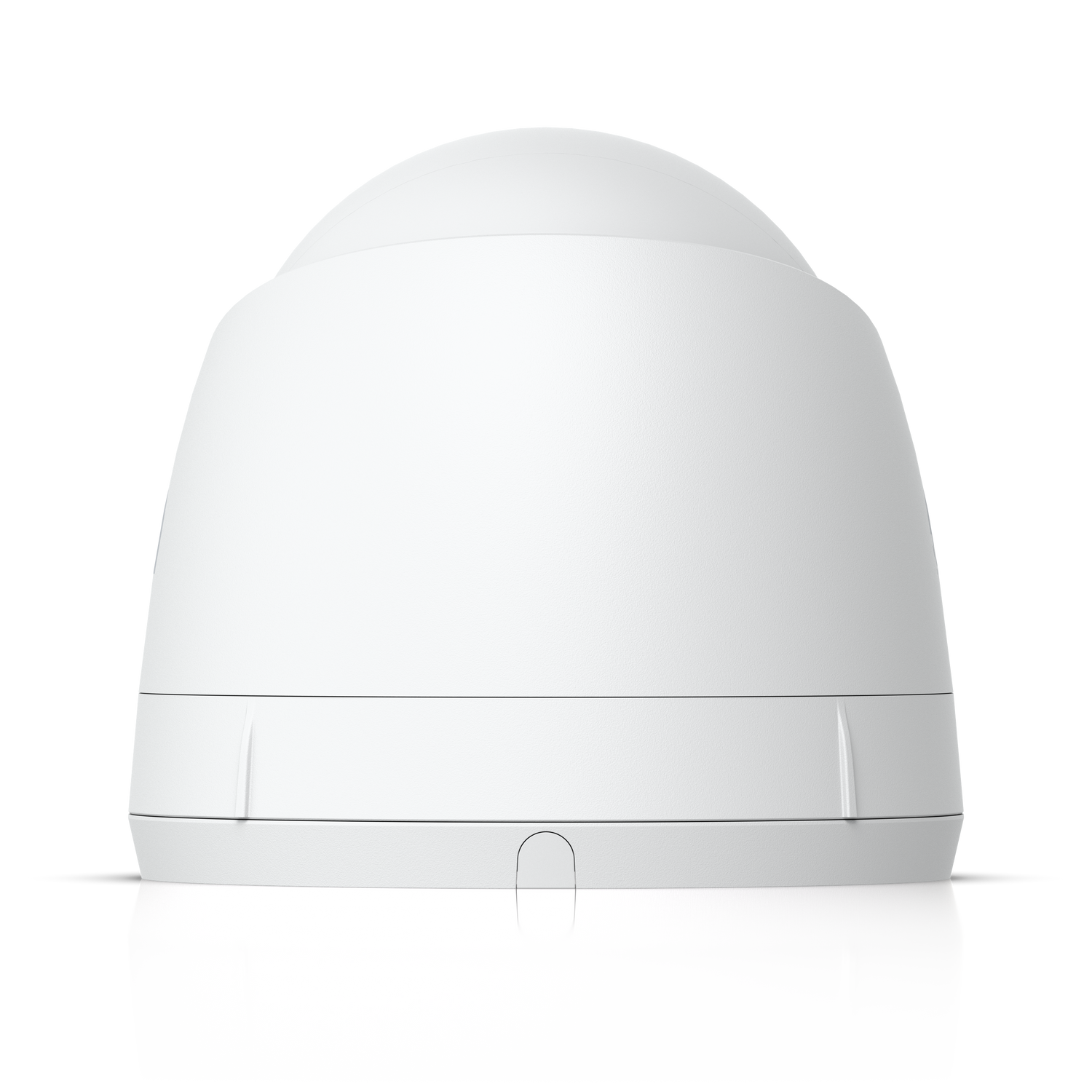

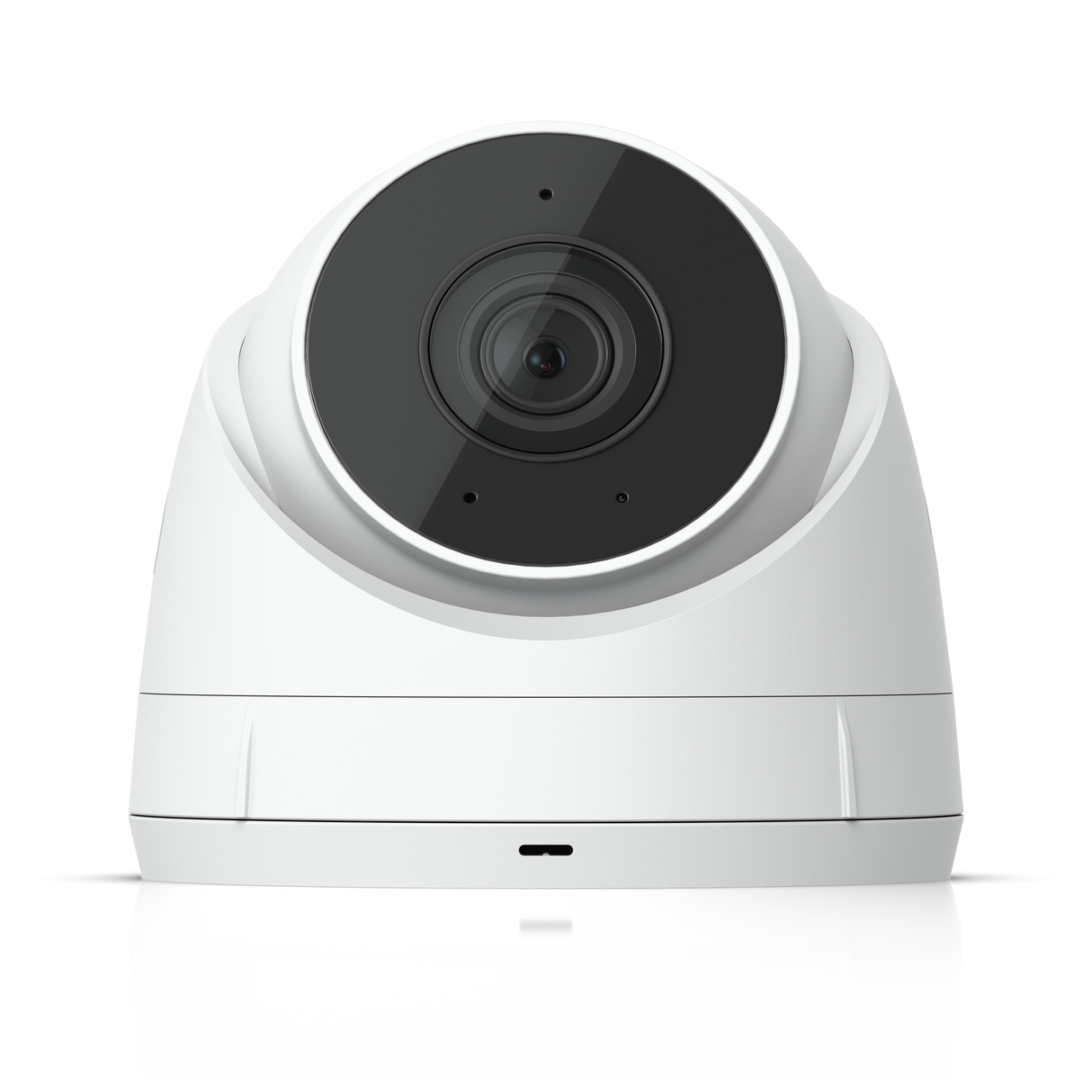

G5 Turret Ultra
| Category | Specification |
|---|---|
| Dimensions & Form | Ø90 x 71.2 mm (Ø3.5 x 2.8")Mounting: Wall, ceiling (Included); Optional: Junction box, arm mount |
| IR Night Vision | 30 m (98 ft) |
| Smart Detection | ✓ (People, Vehicles, Animals) |
| Resolution | 2K (4MP 2688 x 1512, 16:9) |
| Field of View | H: 102.4°, V: 54.9°, D: 120.6° |
| Audio | Microphone |
| Weather & Tamper | IP66IK04 |
| Networking | 10/100 MbE RJ45 port |
| Video & Optics | Image Settings: Color, brightness, sharpness, contrast, white balance, exposure, 2DNR, 3DNR, NR by motion, masking, text overlayMax Frame Rate: 30 FPSSensor: 1/2.4" CMOSLens: Fixed focal lengthNight Mode: Built-in IR LED & IR cut filter |
| Power & Performance | Max Power: 4WVoltage Range: 37–57V DCPower Method: PoE |
| Processor | Dual-core Arm® Cortex®-A7 |
| Weight & Material | Weight: 330 g (11.6 oz)Enclosure: Aluminum alloy, UV-stabilized polycarbonateMount: Polycarbonate |
| Cable Specs | Type: RJ45Diameter: 5 mm (0.2")Length: 30 cm (1 ft)Jacket Material: Thermoplastic elastomer, polycarbonate, silicone rubberJacket Enclosure: Ø20 x 70.6 mm (0.8 x 2.8") |
| Other | Factory-reset Button: ✓ |
| Environmental | Operating Temp: -30 to 50°C (-22 to 122°F)Humidity: 0 to 90% noncondensing |
| Compliance | NDAA Compliant ✓Certifications: CE, FCC, IC |

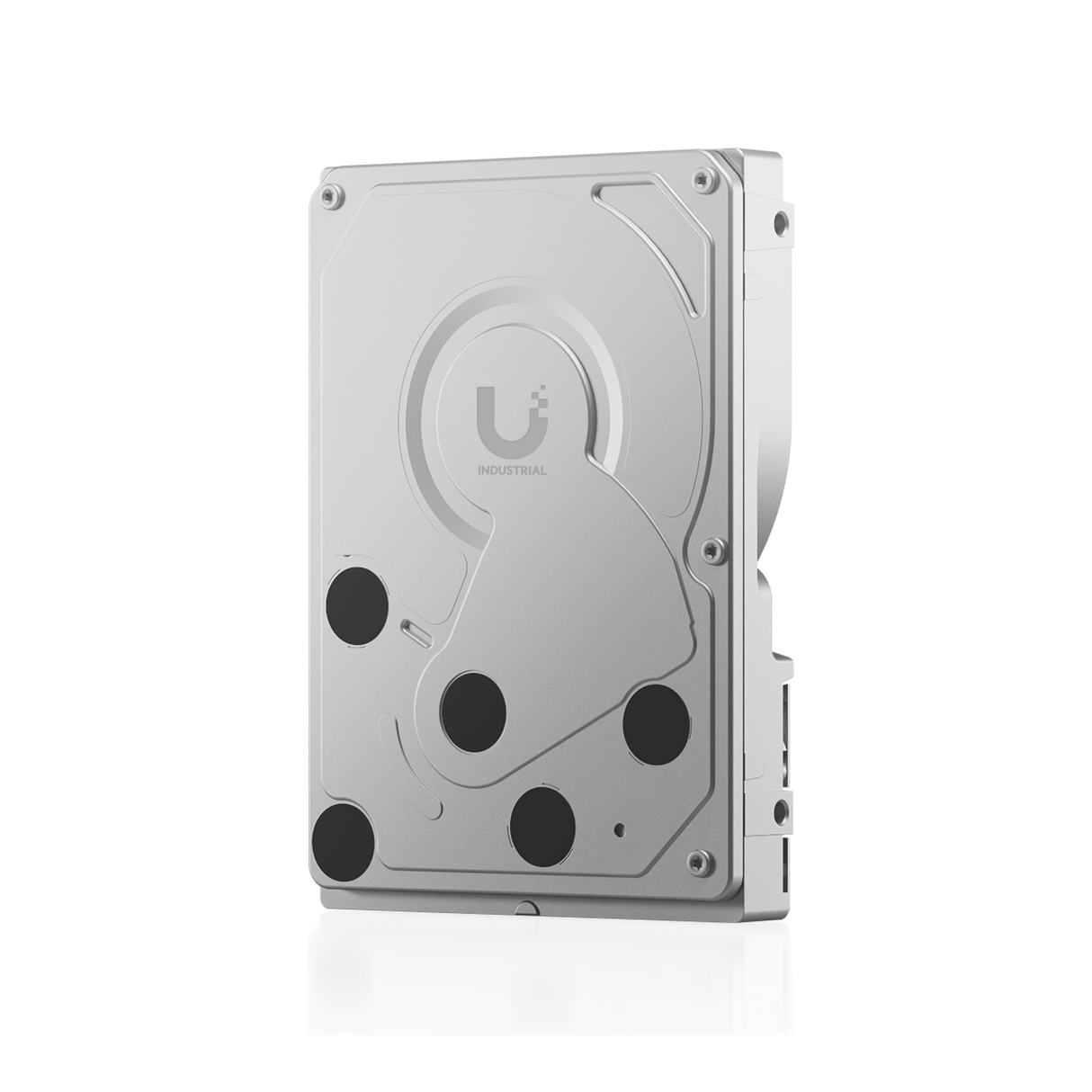

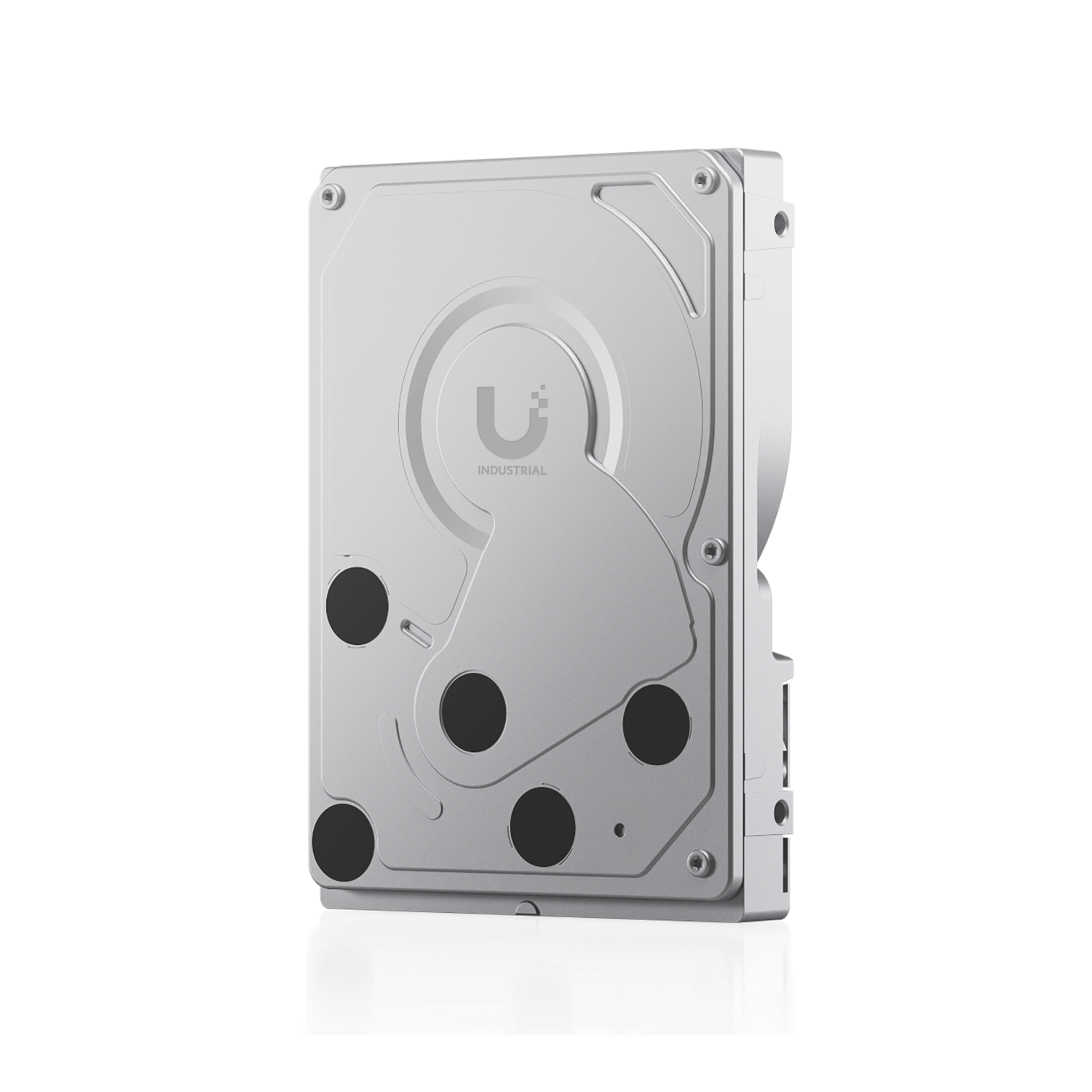

HDD
| Category | Specification |
|---|---|
| Dimensions | 147 x 101.6 x 26.1 mm (5.75 x 4 x 1") |
| Form Factor | 3.5-inch |
| Weight | 0.45 kg (0.99 lb) |
| Storage Capacity | 1 TB |
| Power Method | 5V / 12V input |
| Interface | SATA 6 Gb/s |
| Performance | Rotation Speed: 5400 RPMWorkload Rating: 180 TB/yearMTBF: 1,000,000 hours |
| Environmental | Operating Temp: 0 to 65°C (32 to 149°F)Humidity: 5 to 95% noncondensing |
| Compliance | NDAA Compliant ✓Certifications: FCC, CE, TUV, RCM, KC, BSMI |
