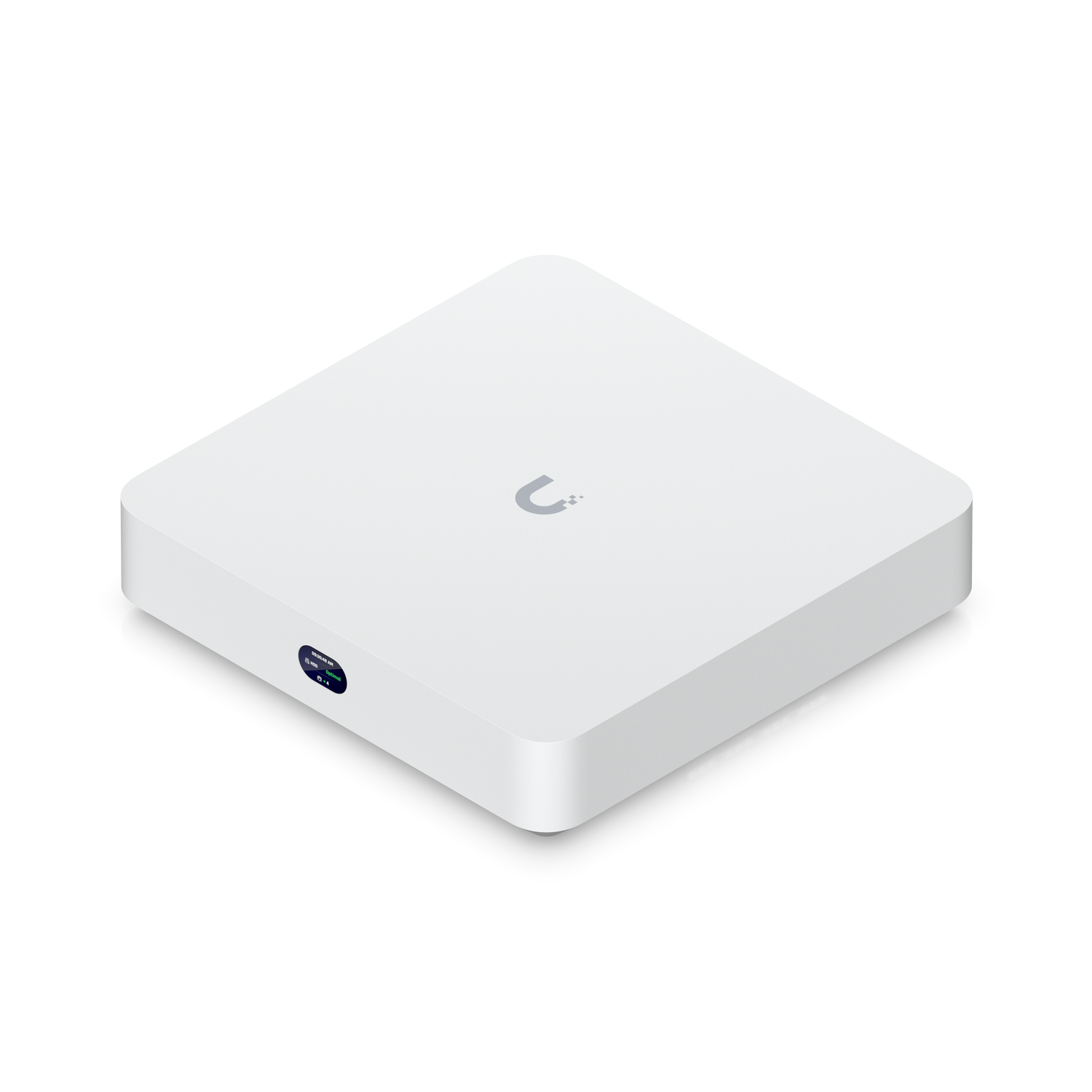

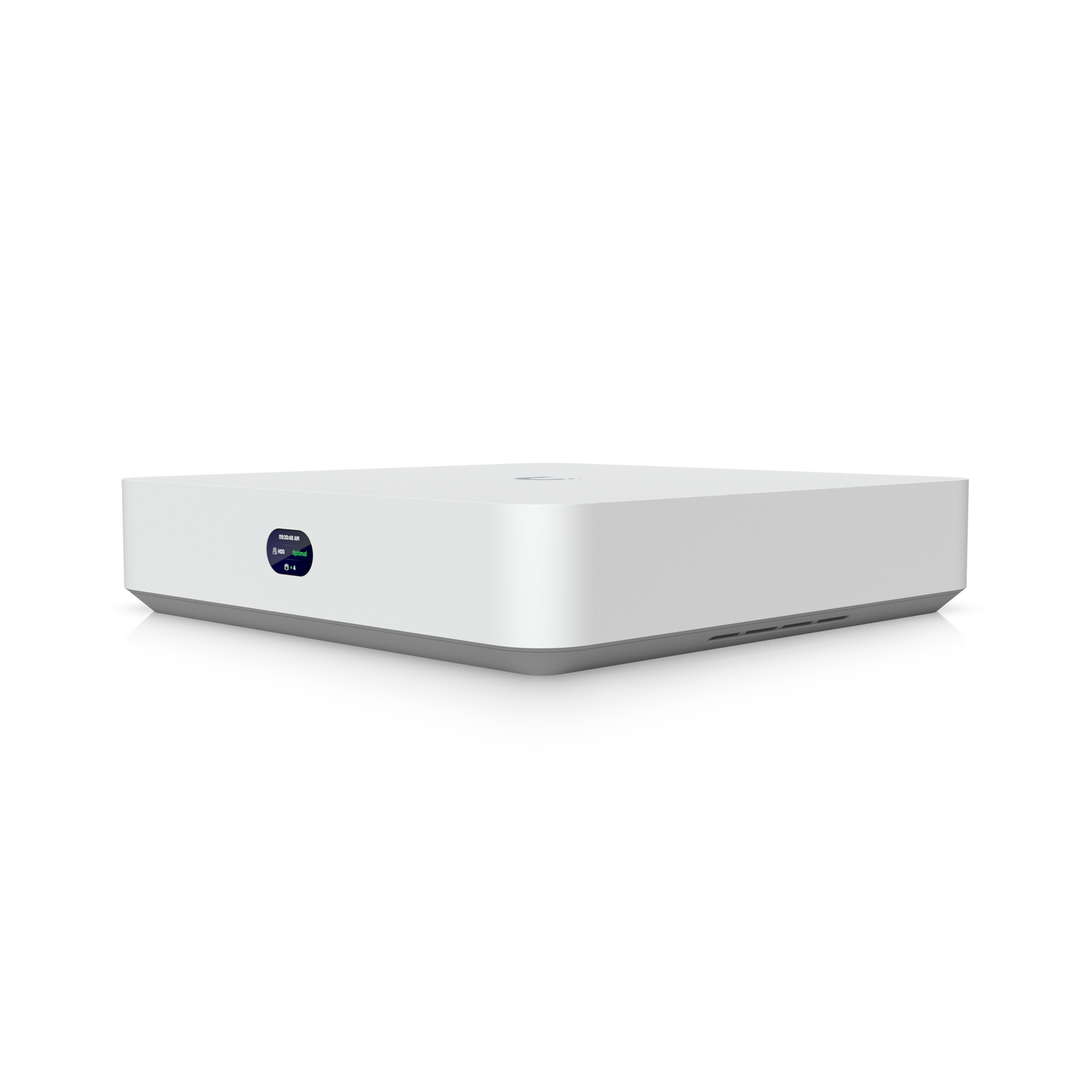

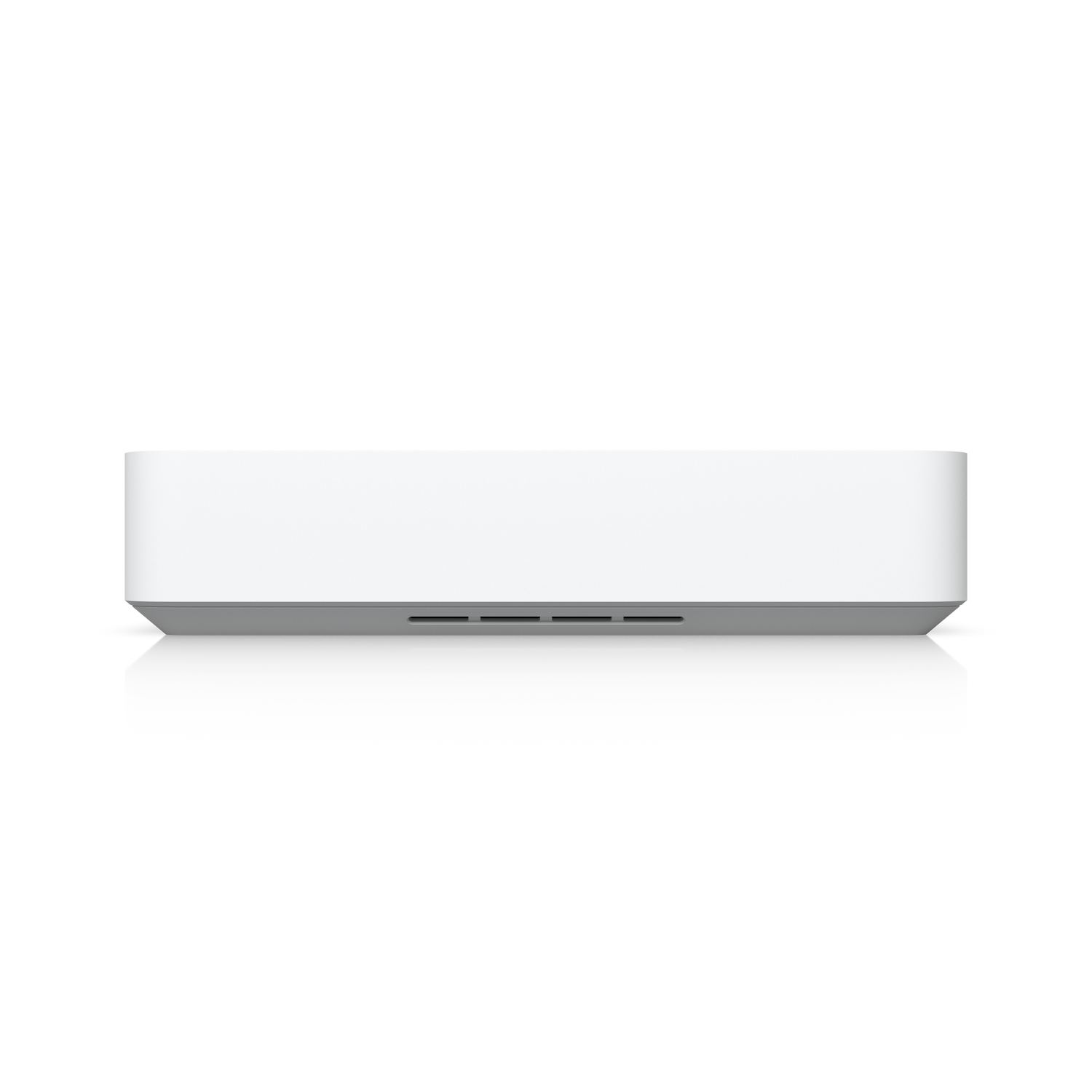

The Ubiquiti UniFi Network Video Recorder Instant UNVR-INSTANT is a compact UniFi Protect NVR with 3.5" HDD support, featuring an integrated 6-port PoE switch, integrated HDMI View Port, and a capacity for (6) 4K cameras or (15) Full HD cameras.
Note. Requires connection to a Gateway or Layer 3 switch.
Technical Specifications
| Category | Specification |
|---|---|
| Overview | |
| Dimensions | 220 x 220 x 47 mm (8.7 x 8.7 x 1.9") |
| UniFi Application Suite | Protect ✓Access ✓ |
| Managed Cameras | (15) HD(8) 2K(6) 4K |
| Managed Access Hubs | 50 |

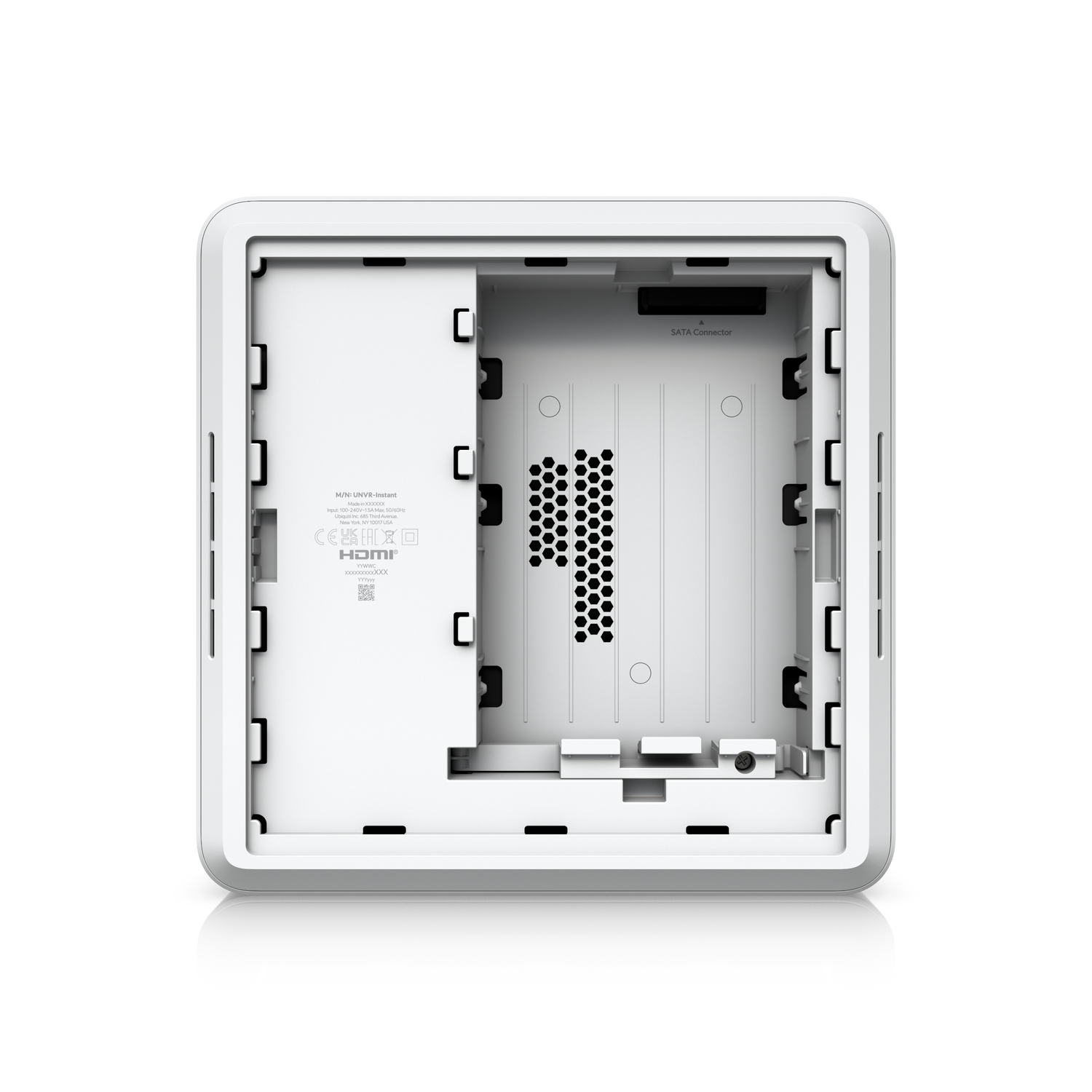

| Storage Capacity | (1) 3.5" drive bay |
| Data Protection | ✓ |
| Vantage Point | ✓ |

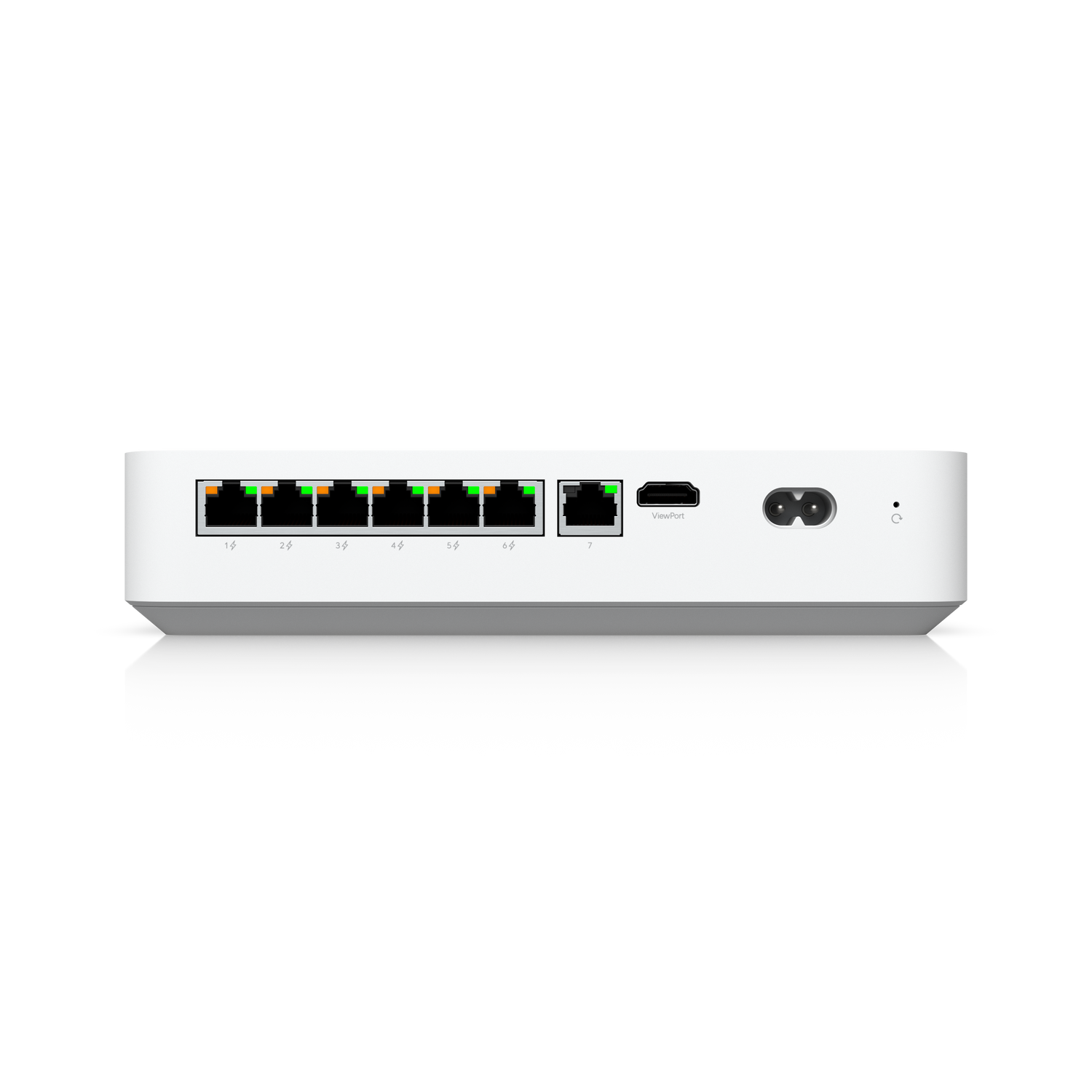

| Networking Interface | (1) GbE RJ45 uplink port (6) GbE PoE RJ45 downlink ports (1) HDMI port (Viewport) |
| Form Factor | Compact Desktop |
| Mounting | Wall, DIN rail mount (Included) |
| Door Access Support | ✓ |
| Hardware | |
|---|---|

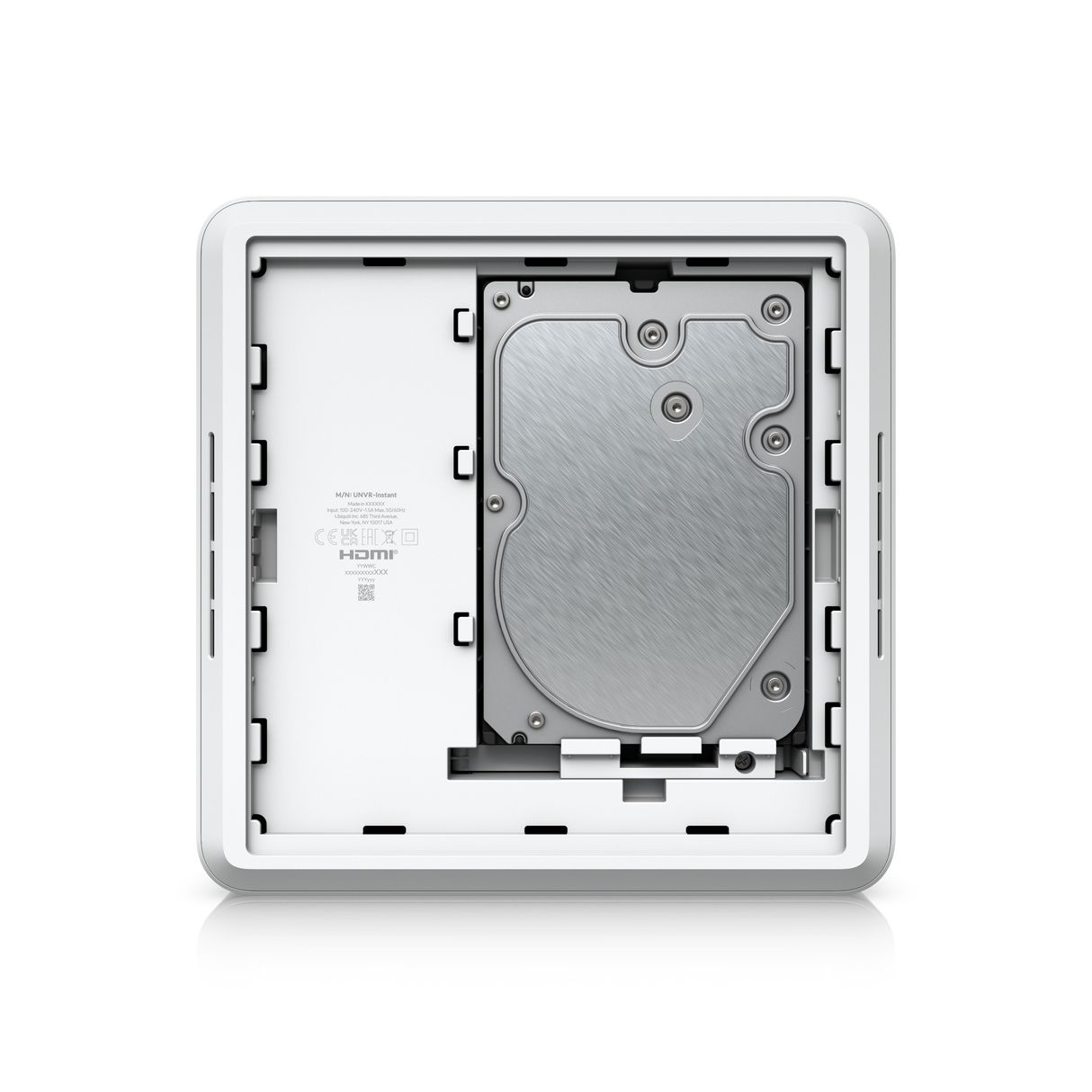

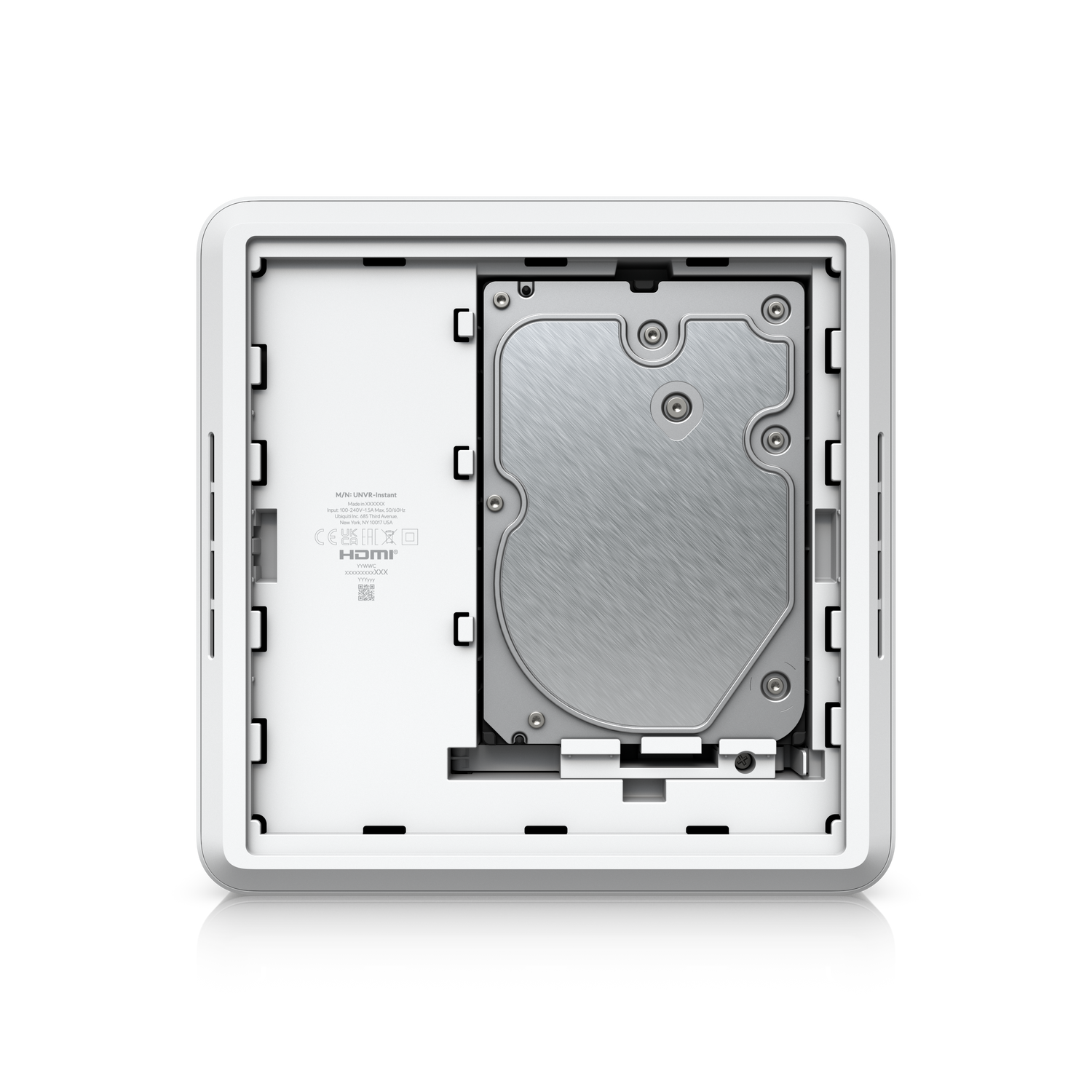

| Hard Drive Capacity | (1) 3.5" HDD support |
| Max. Power Budget for Drives | 11W |
| Max. Power Consumption | 9W |
| Power Method | Universal AC input (100–240V AC, 1.5A Max, 50/60 Hz) |
| Power Supply | AC/DC, Internal, 60W |
| PoE Budget | 40W |
| Max. PoE Power per Port | 15.4W (PoE) |
| Voltage Range (PoE Mode) | 44–57V |
| Processor | Quad-core ARM® Cortex®-A55 at 1.7 GHz |
| Memory | 4 GB |
| Management | Ethernet |
| Bluetooth | ✓ |

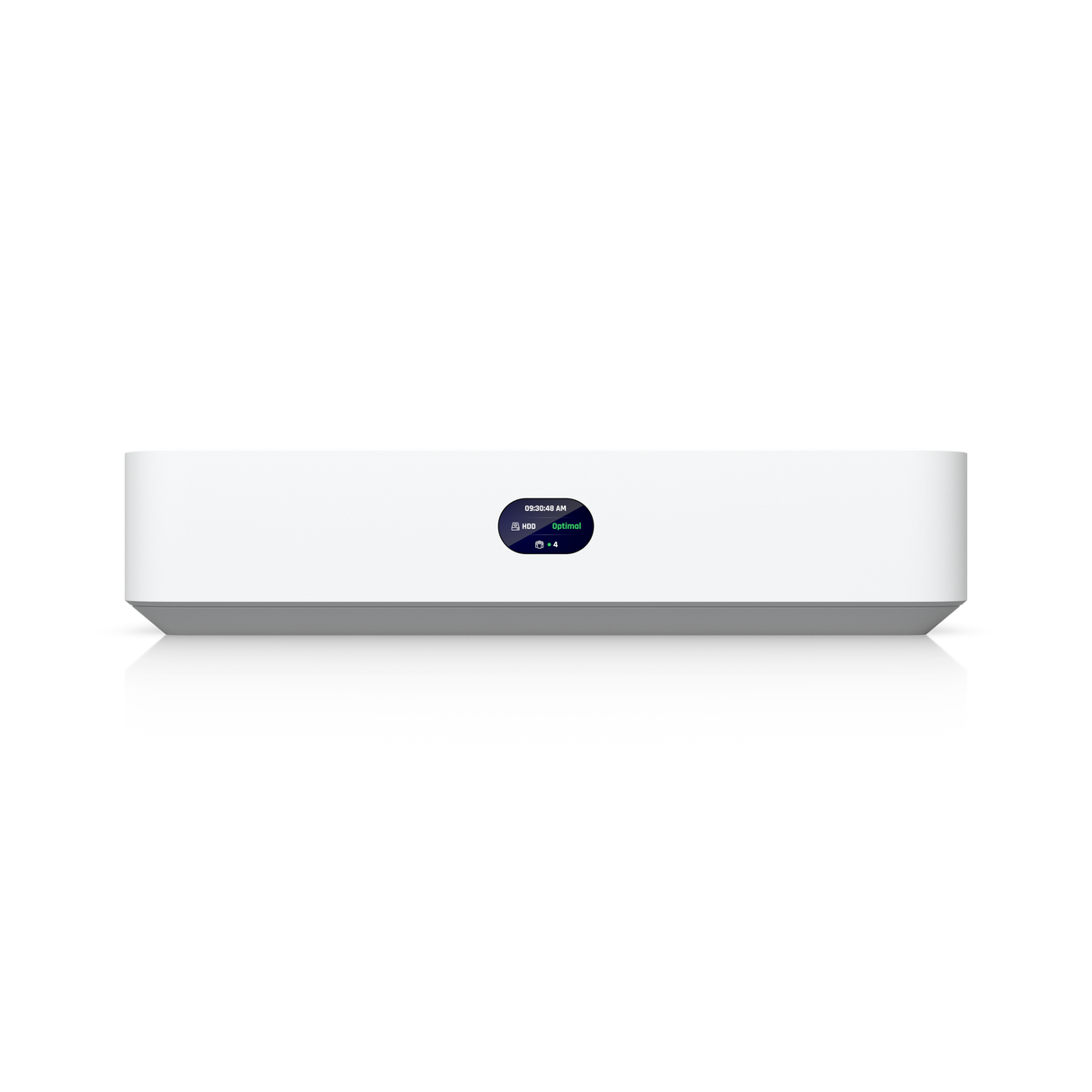

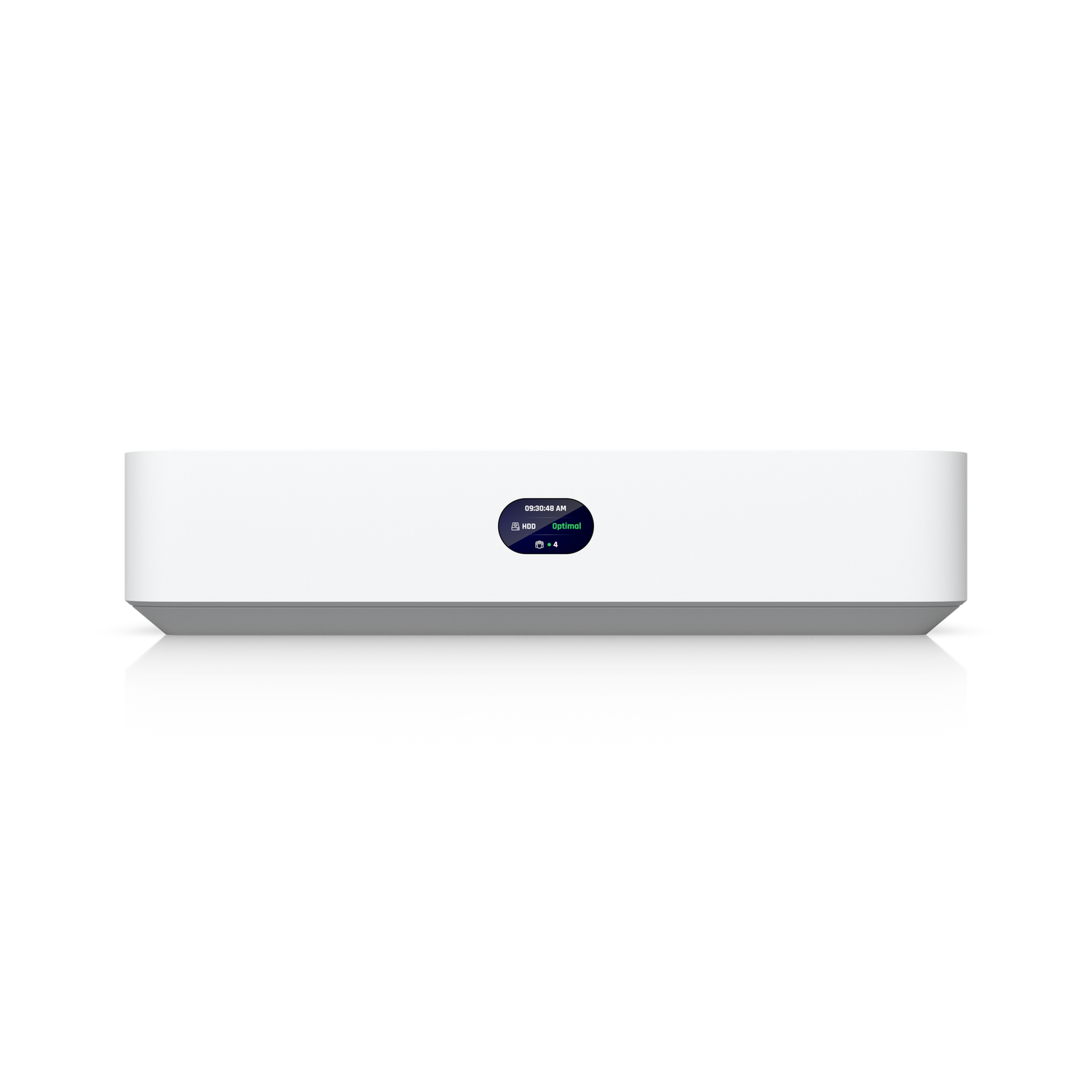

| Display | 1.14" screen |
| Weight | 1.04 kg (2.3 lb) |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| LEDs | Ethernet ✓PoE ✓ |
| Ambient Operating Temp | 0 to 40°C (32 to 104°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE, Electrical Safety |
