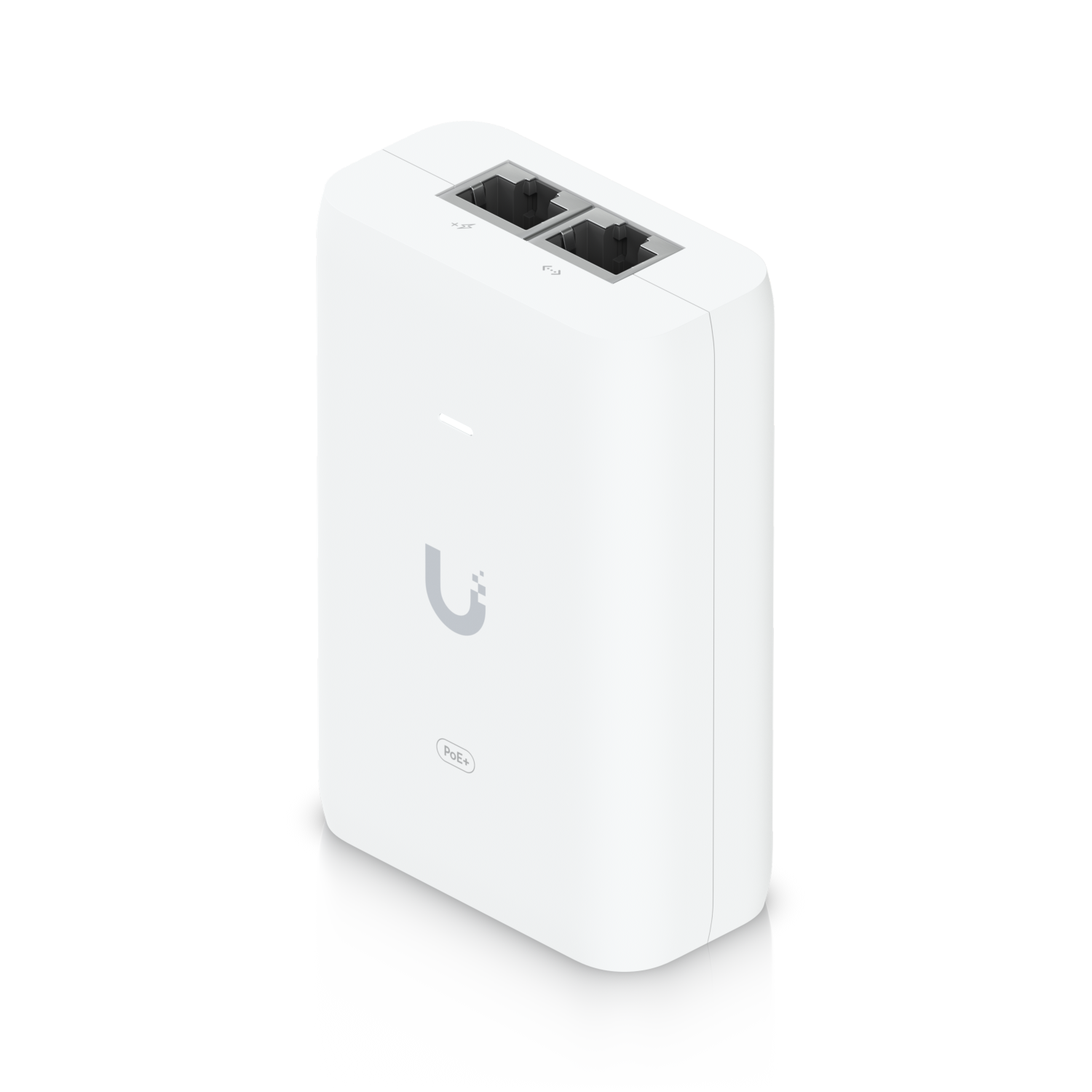

The Ubiquiti UniFi PoE+ Adapter (30W) U-POE-at is an adapter that can power UniFi PoE+ devices with wireless mesh applications, or offload PoE switch power dependencies.
Delivers up to 30W of PoE+
Additional power drives devices such as U6 LR, U6 Enterprise, Camera DSLR, and other PoE+ devices
Surge, peak pulse, and overcurrent protection

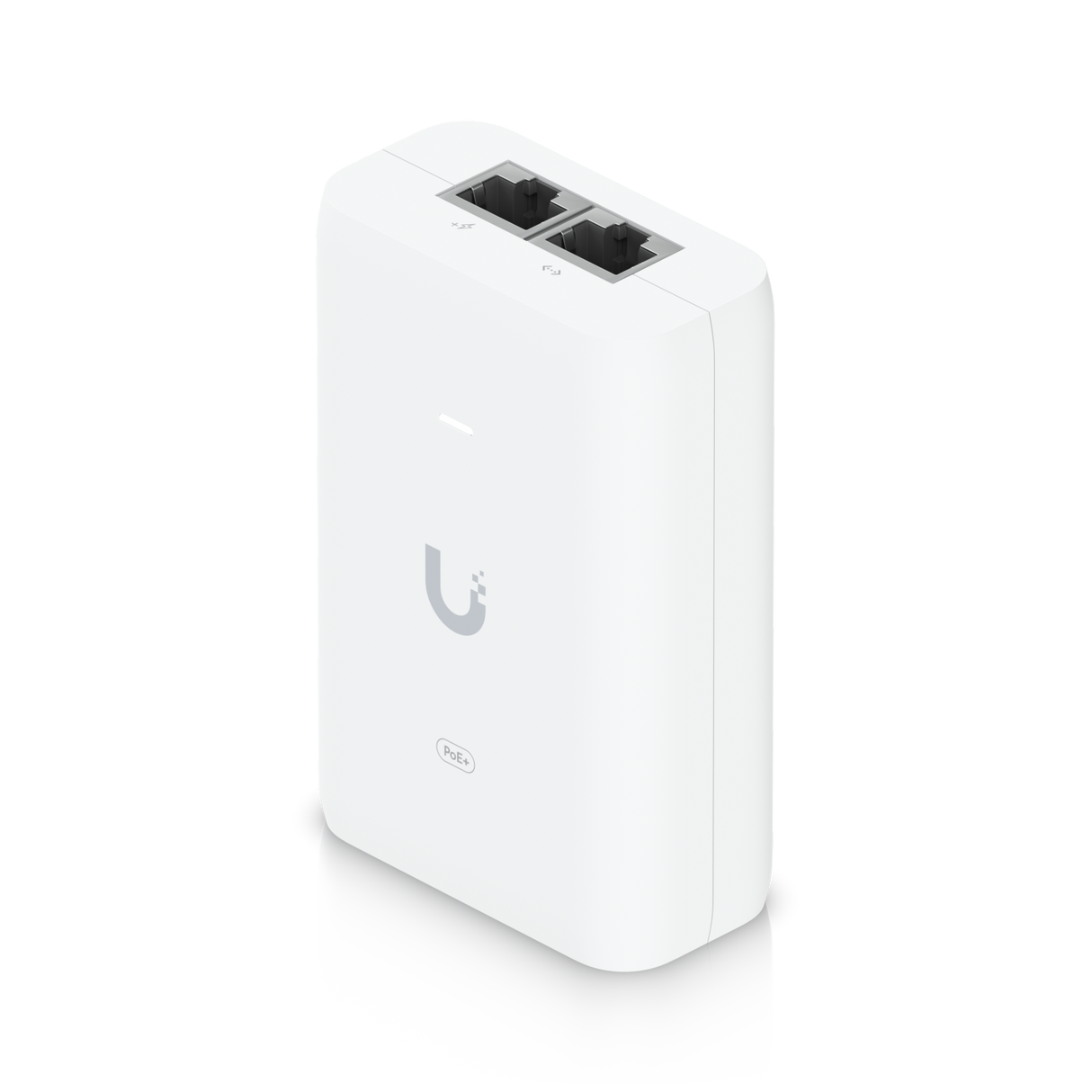

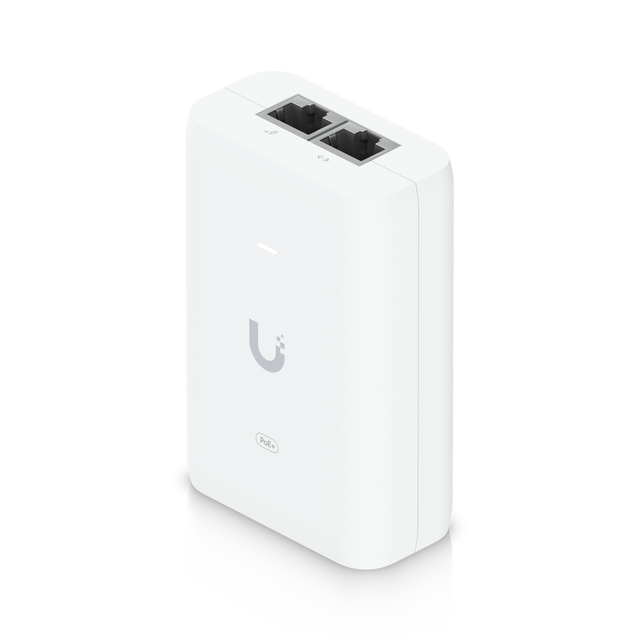

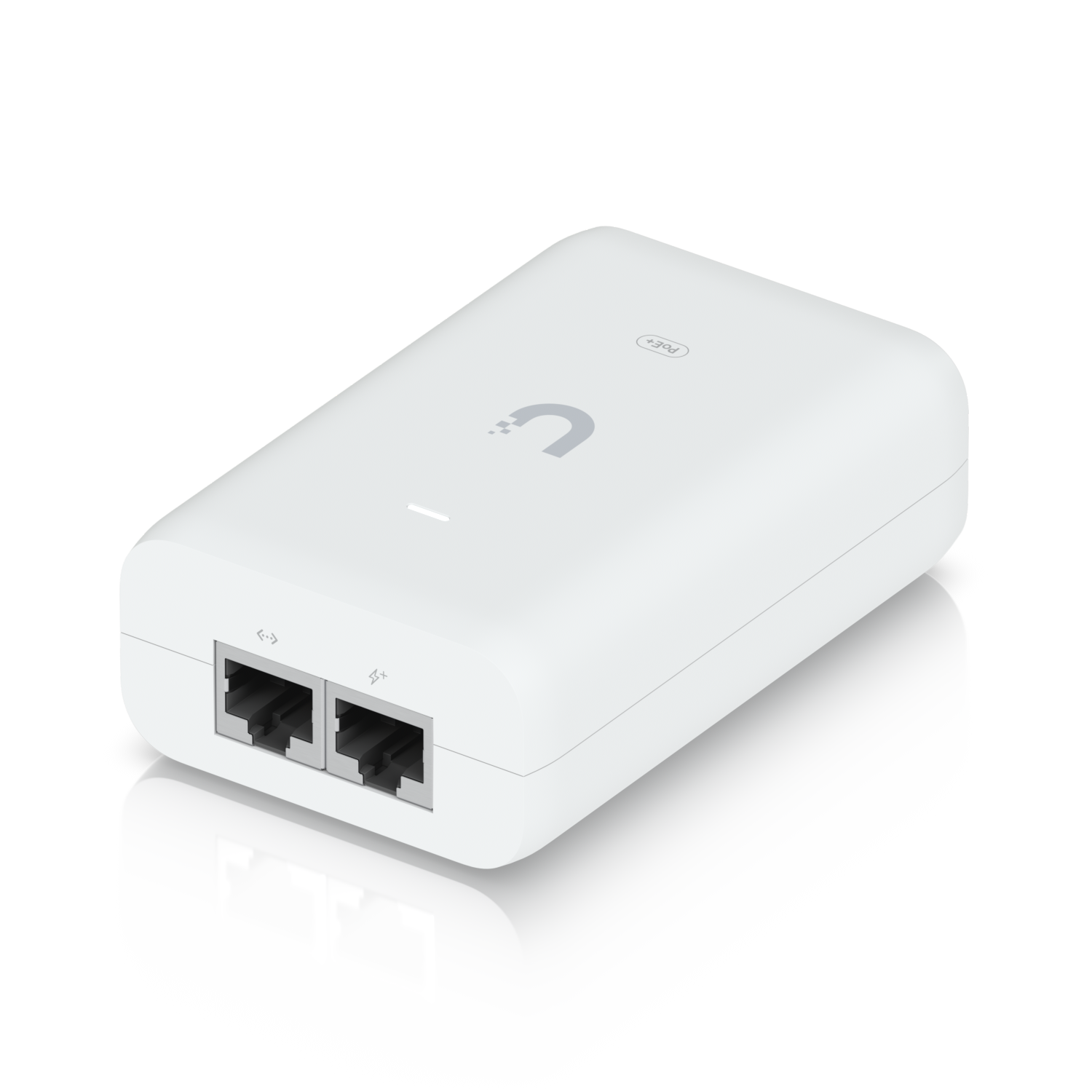

Contains RJ45 data input, AC cable with earth ground, and PoE+ output

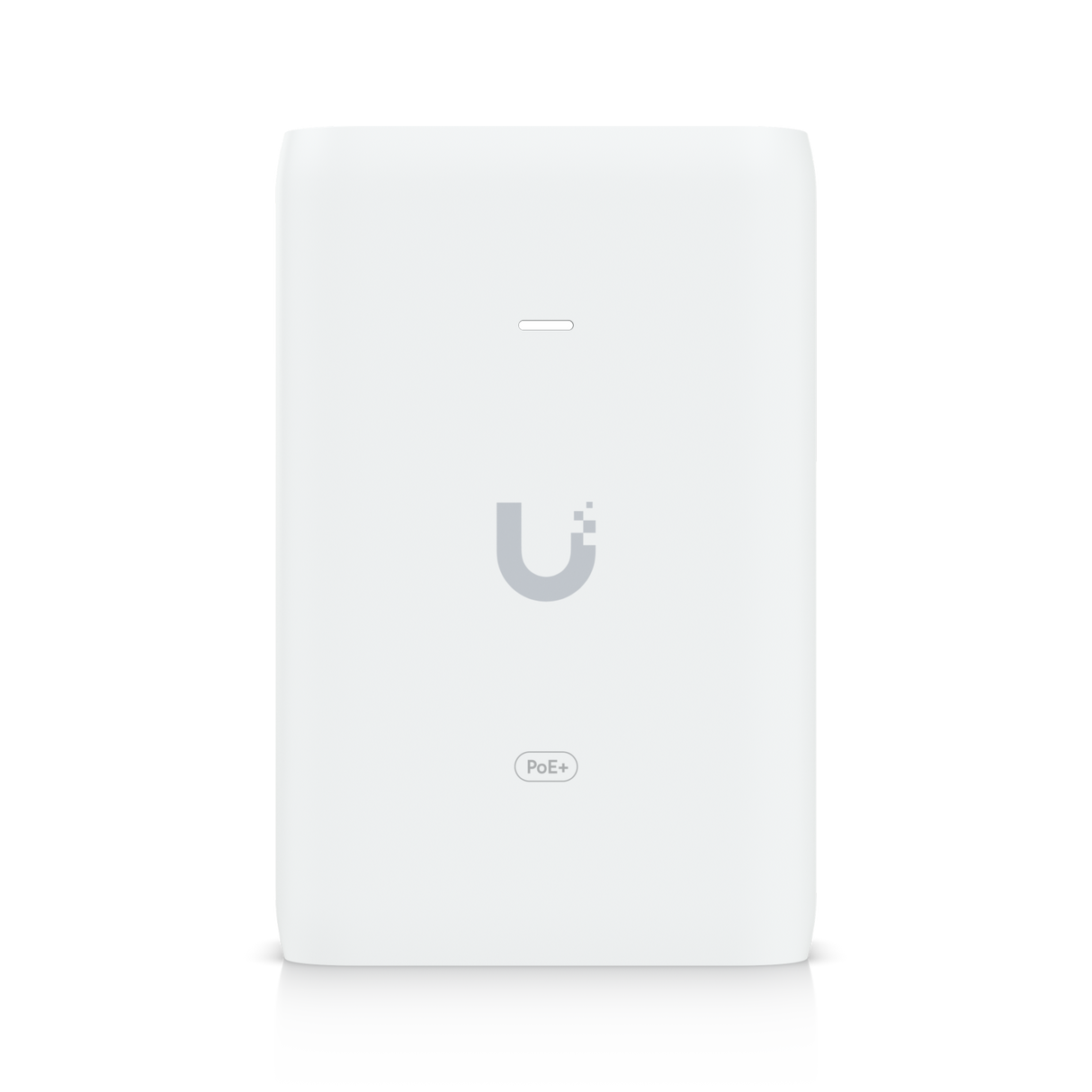

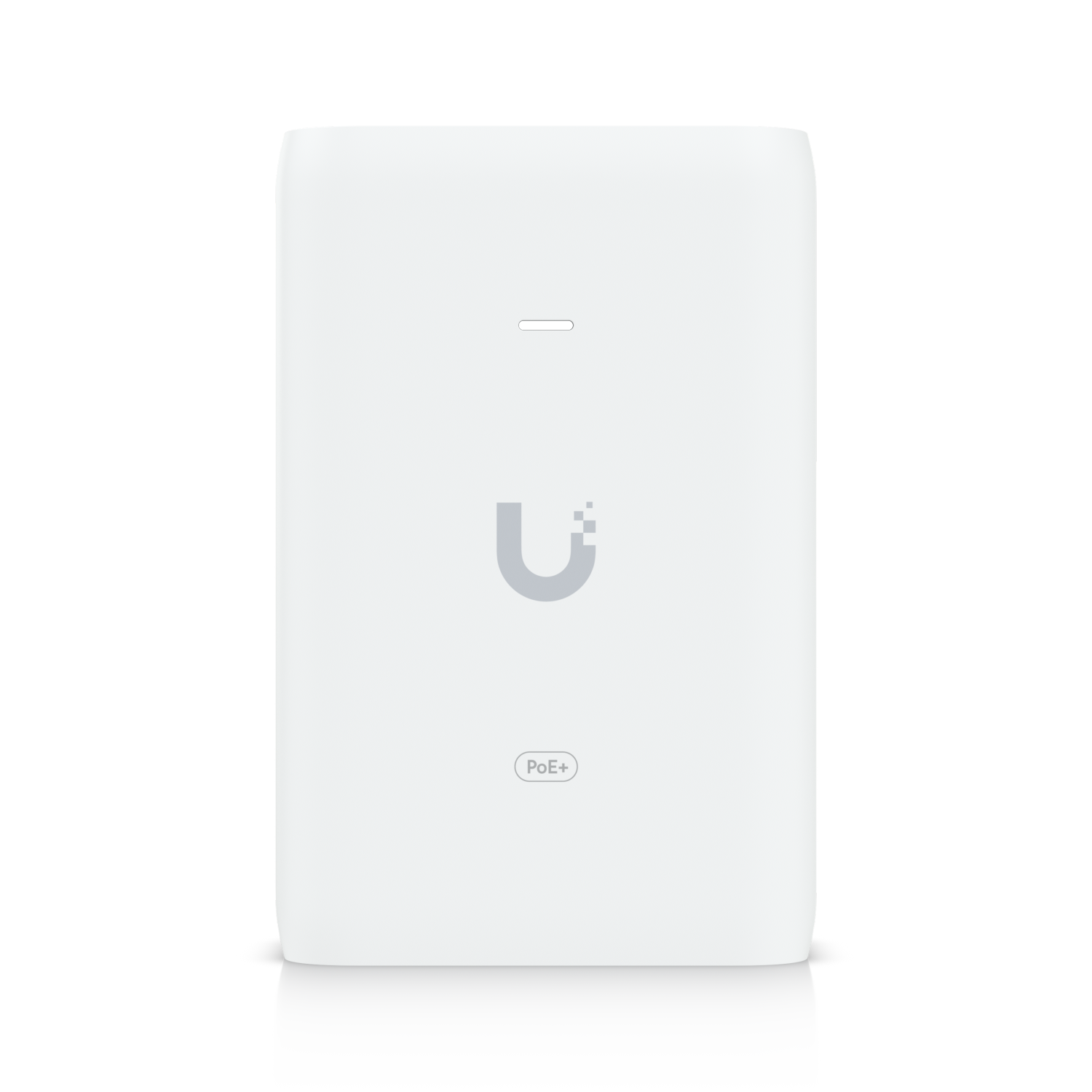

LED indicator for status monitoring
Compatibility
U7-Pro
U7-Pro-Wall
U7-Outdoor
U6-Enterprise
U6-LR
U6-Enterprise-IW
U6-IW
UTP-TouchMax
UVC-AI-DSLR
UVC-AI-Pro
Technical Specifications
| Model | U-POE-at |
| Dimensions | 93 x 62 x 35 mm (3.66 x 2.44 x 1.38") |
| Weight | 156 g (5.5 oz) |
| Output voltage | 48V DC @ 0.65A |
| LAN activity indicator | No |
| Gigabit LAN port | Yes |
| Remote reset capability | No |
| Reset button | No |
| Rated voltage | 100—240V AC @ 50/60Hz |
| Input current | 0.75A Max. |
| Inrush current | <100A peak at 26_ |
| Efficiency | 87% |
| Output ripple | 1% max. |
| Switching frequency | 70 kHz max. |
| Line regulation | ≤ 3% |
| Load regulation | ≤ 5% |
| 2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
| 4-pair powering | No |

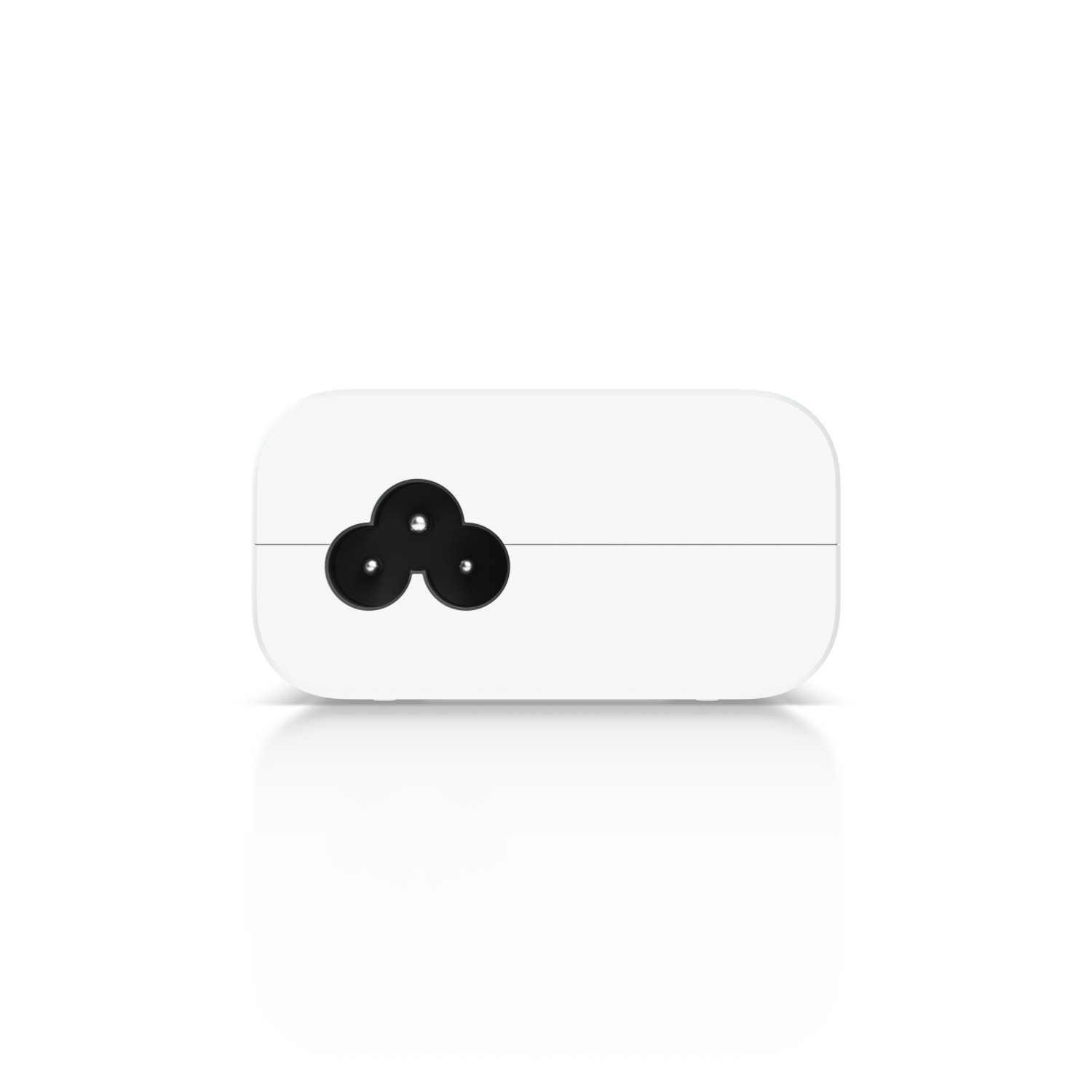

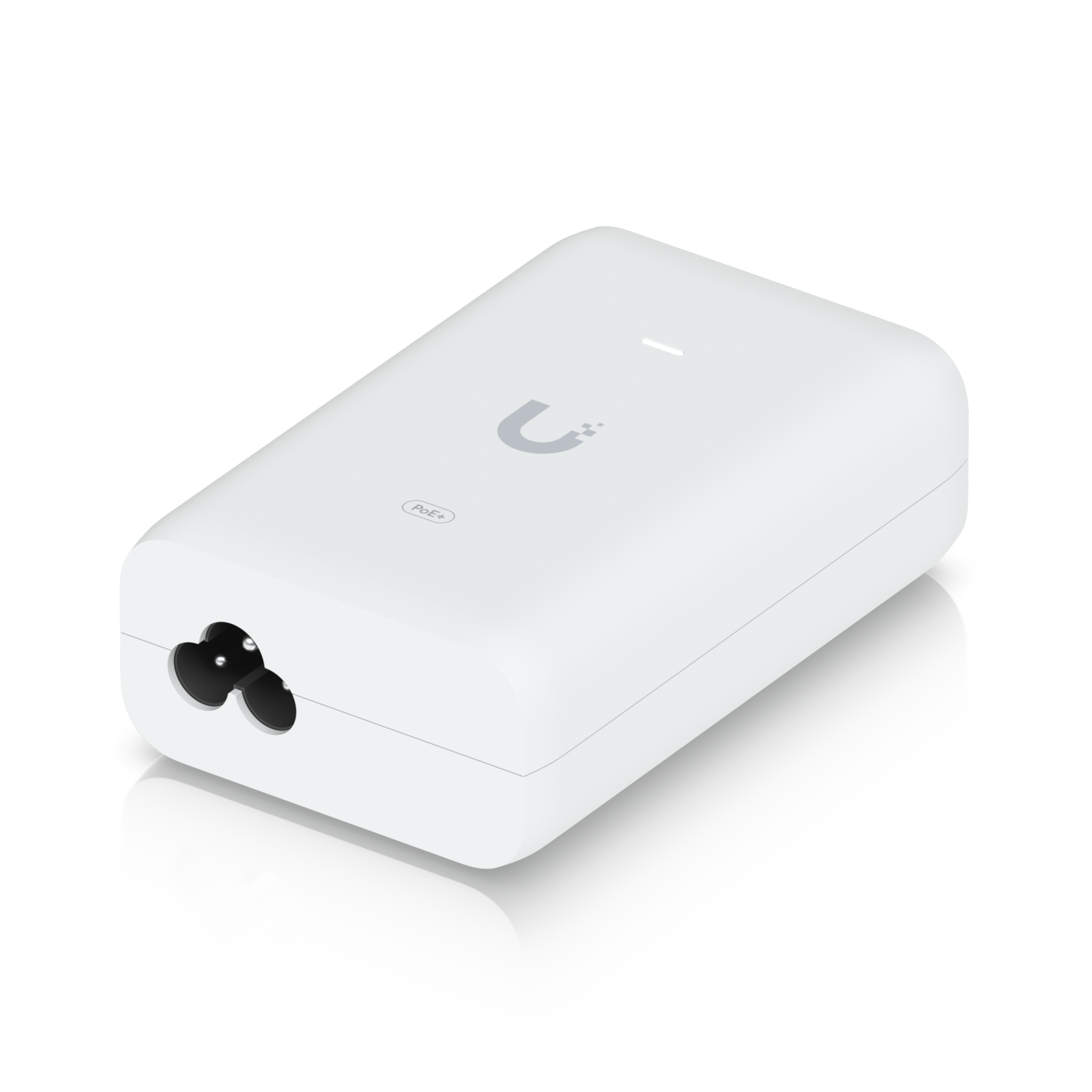

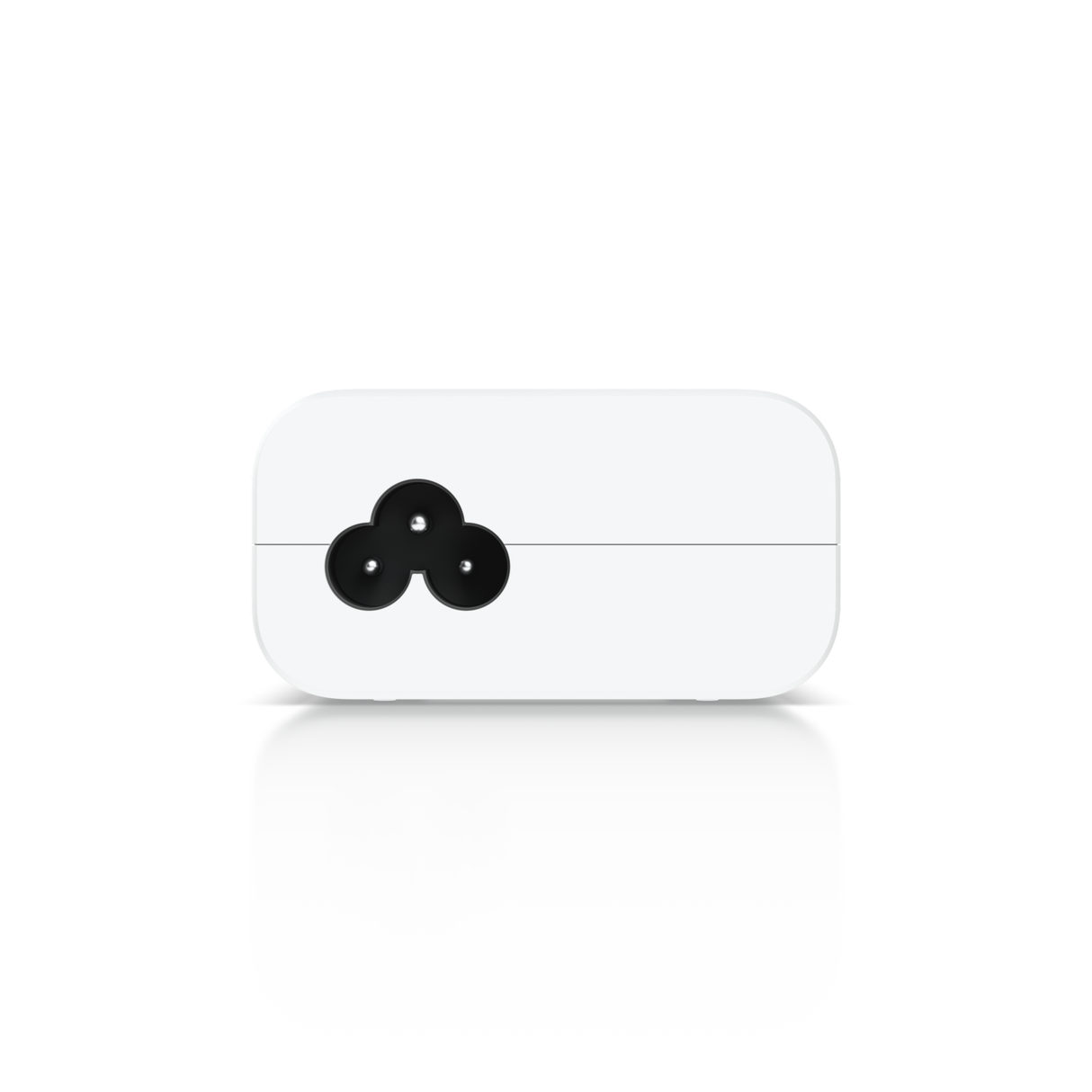

| AC connector | IEC-320 C6 |

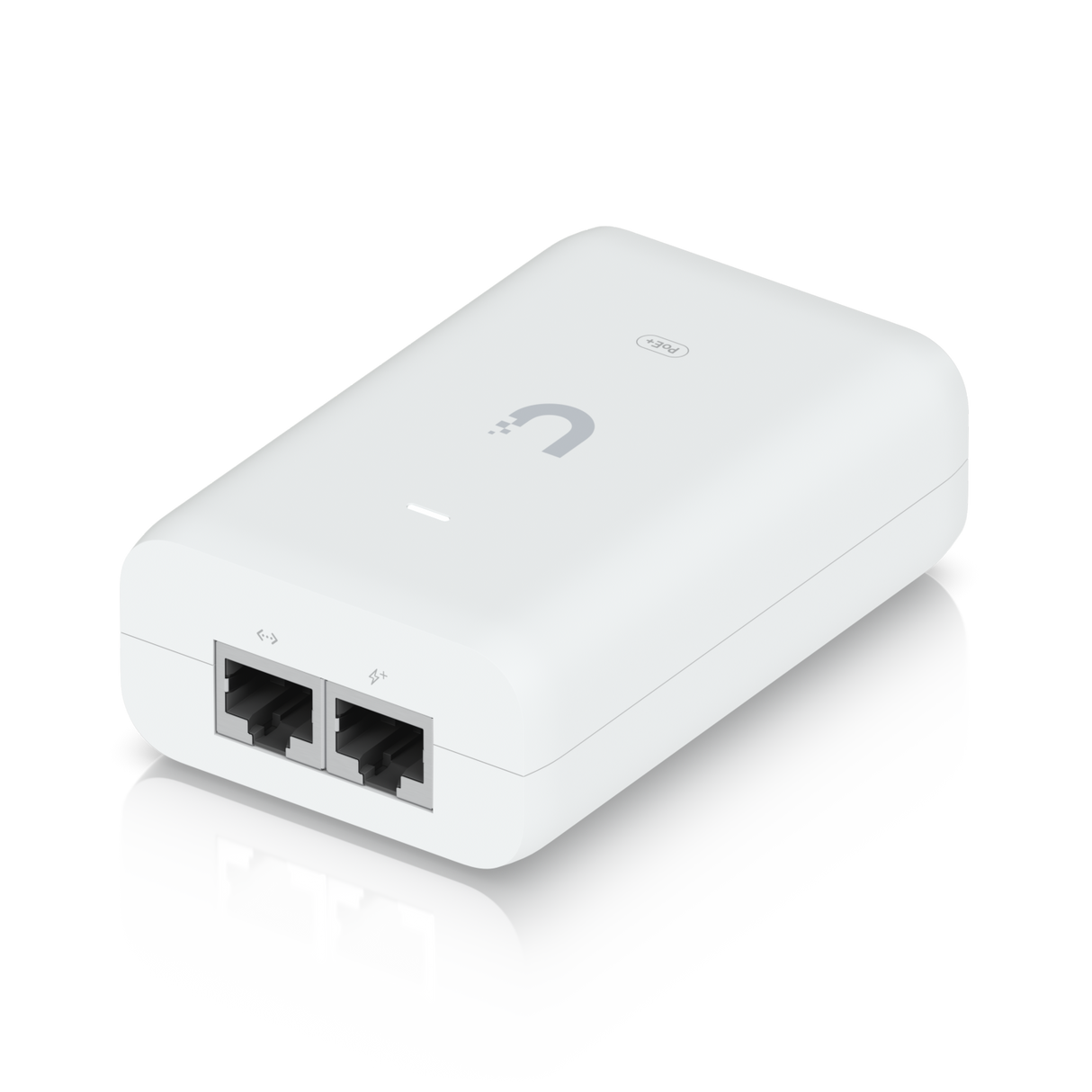

| Data In / PoE | RJ45 shielded socket |
| Surge protection | Difference and common mode |
| Clamping protection | 11V data, 60V power |
| Max. surge discharge | 1500A (8/20 μs) power |
| Peak pulse current | 36A (10/1000 μs) data |
| Shunt capacitance | <5 pF data |
| Response time | <1 ns |
| Ambient operating temperature | 0 to 40° C (32 to 104° F) |
| Storage temperature | -30 to 70°C (-22 to 158° F) |
| Ambient operating humidity | 10 to 95% noncondensing |

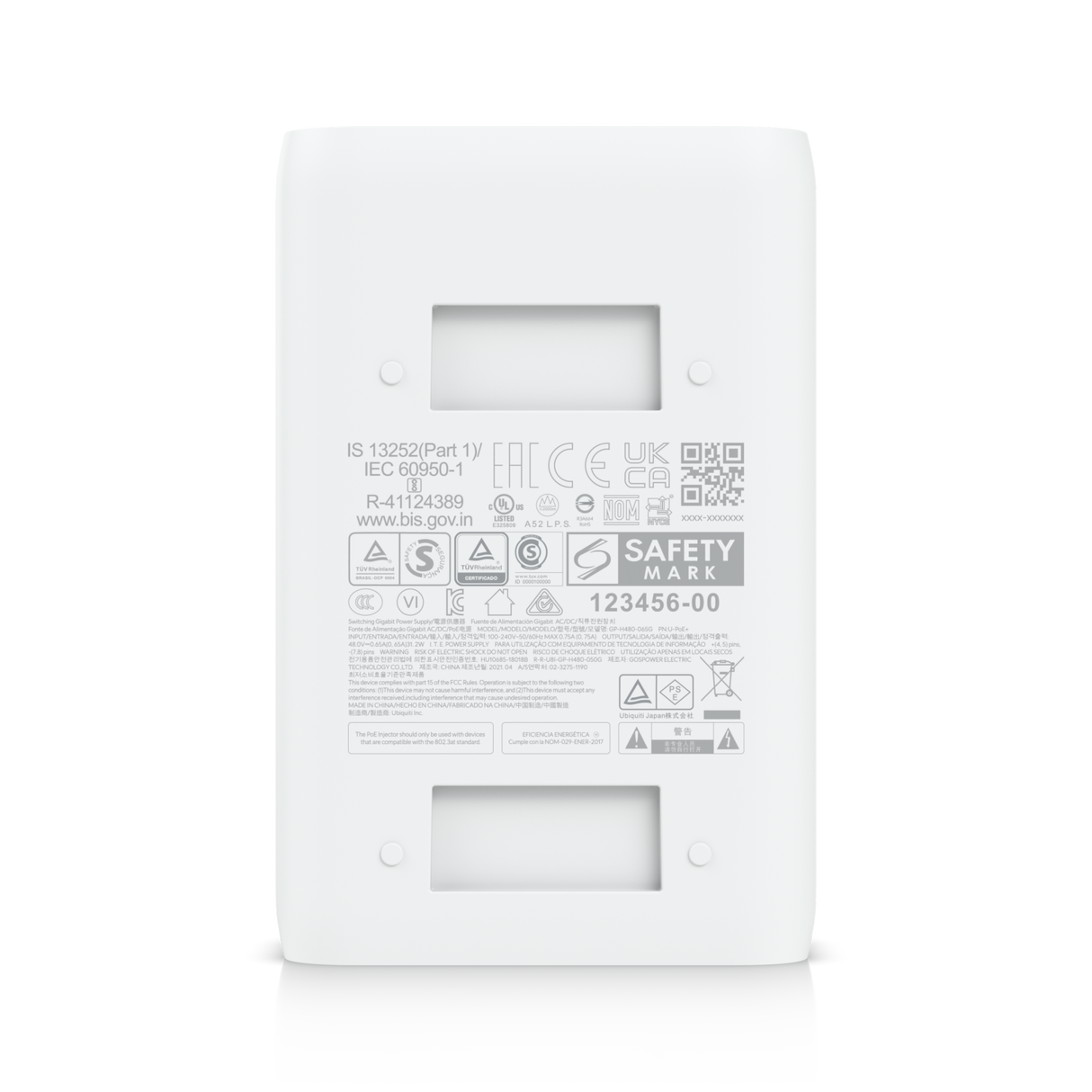

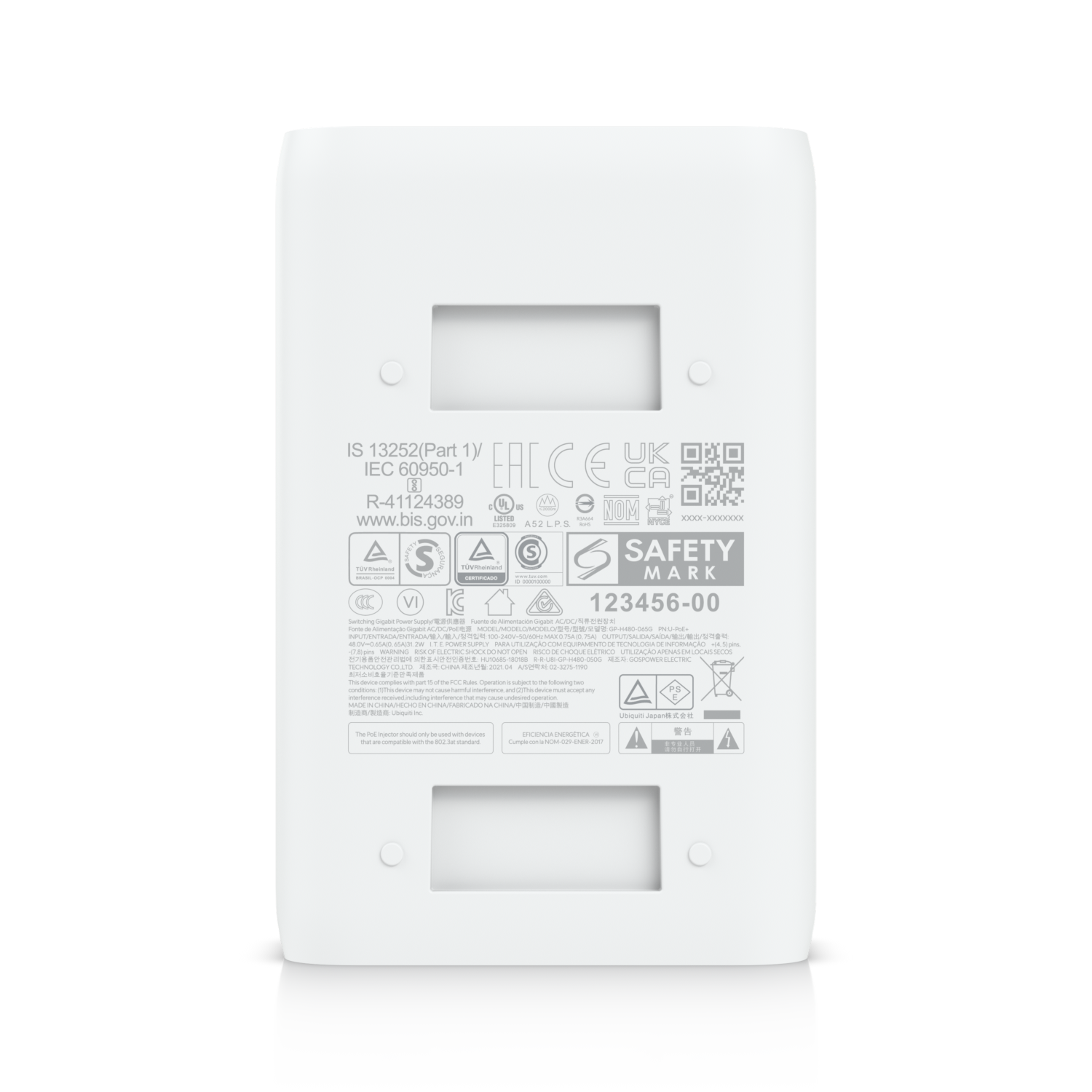

| Certifications | CE, FCC, IC, UL |
