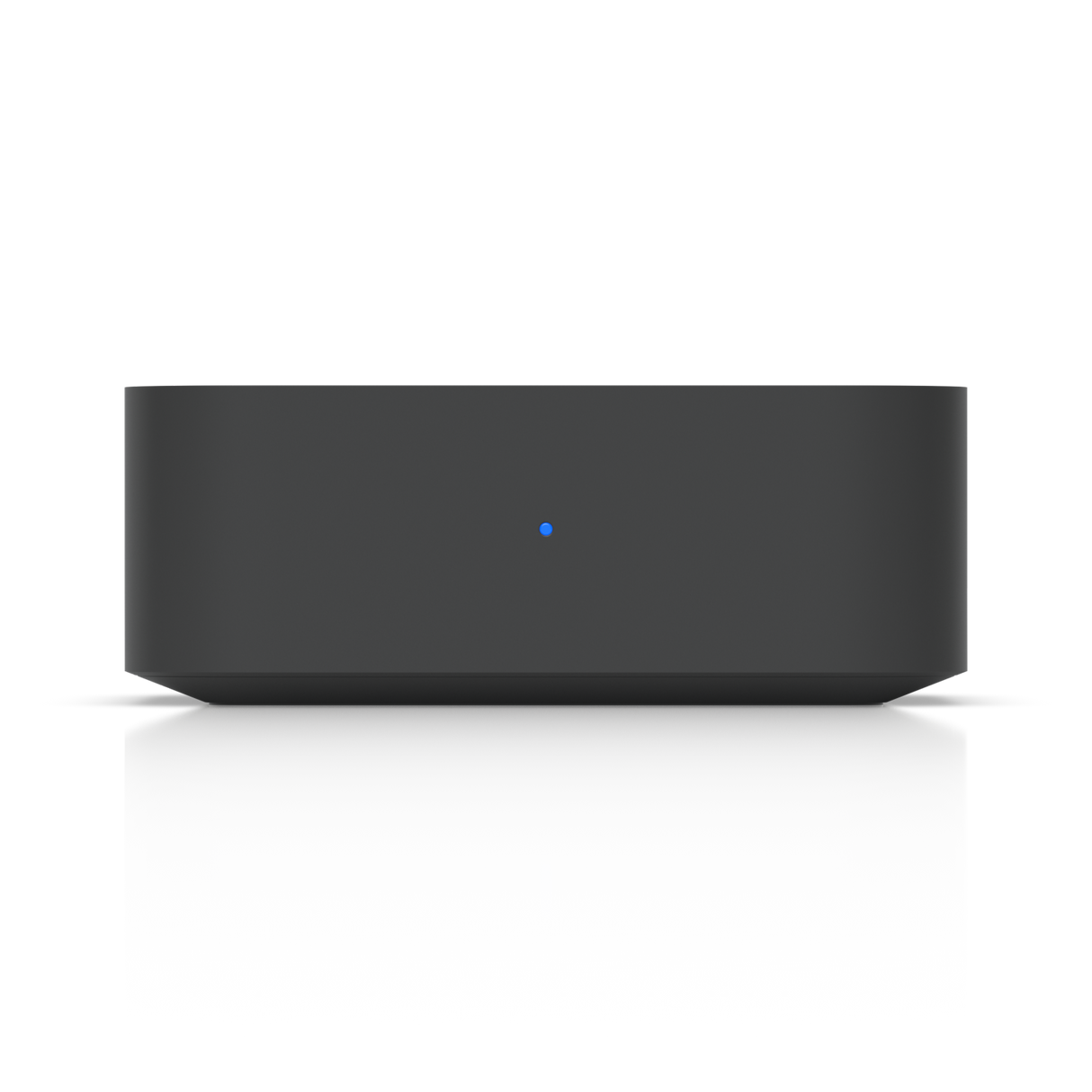

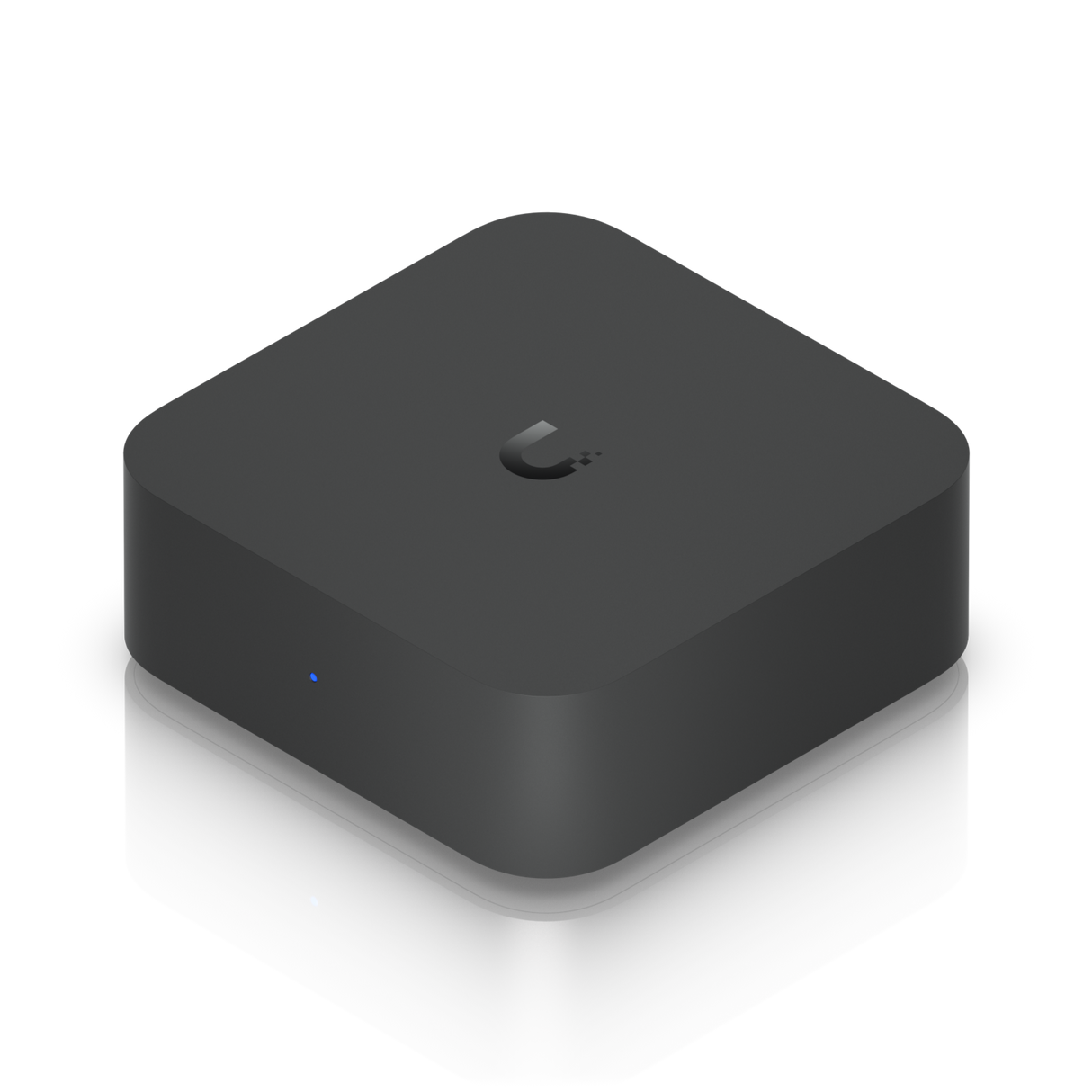

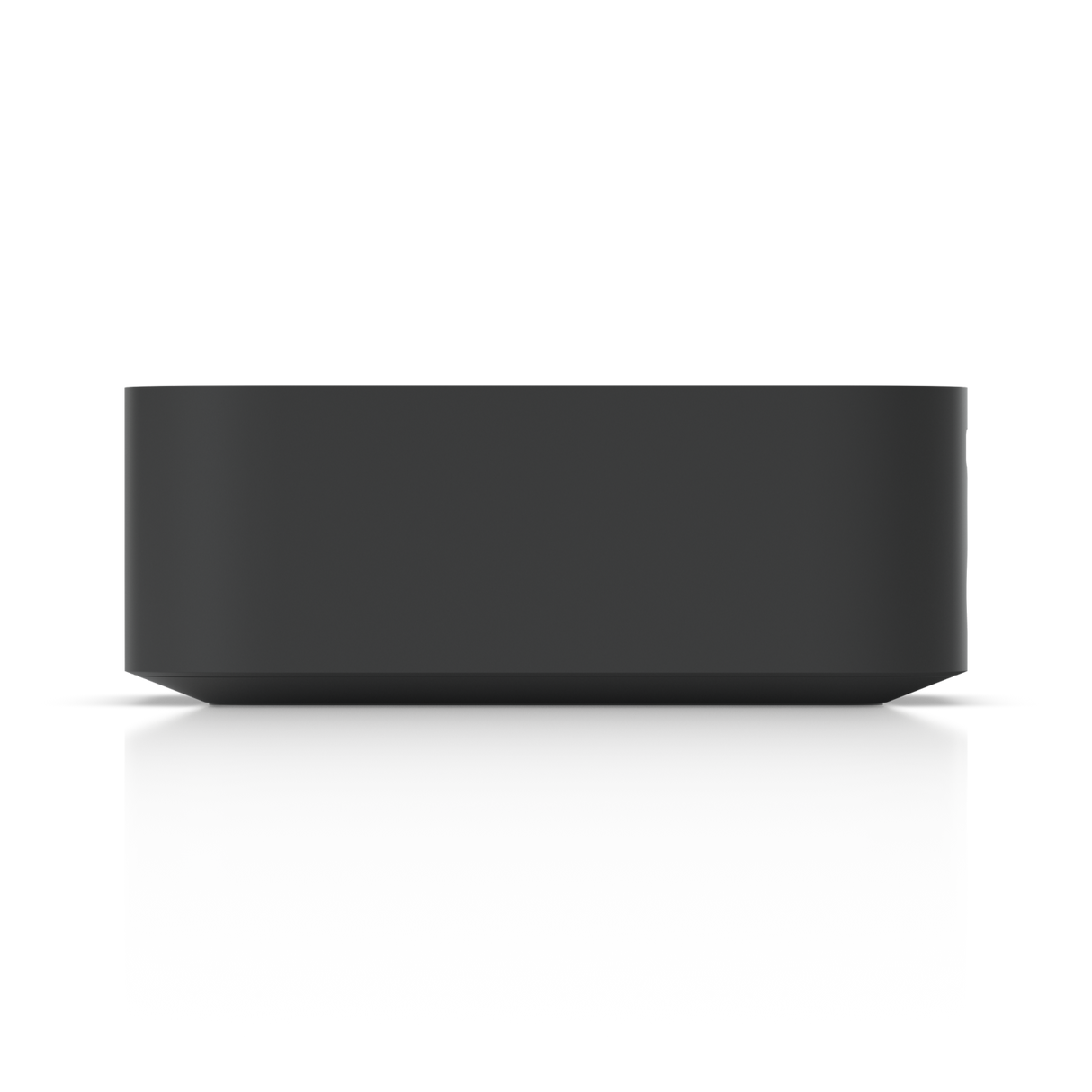

Ubiquiti UniFi PoE Audio Port UPL-PORT-B
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
Please contact us for availability.

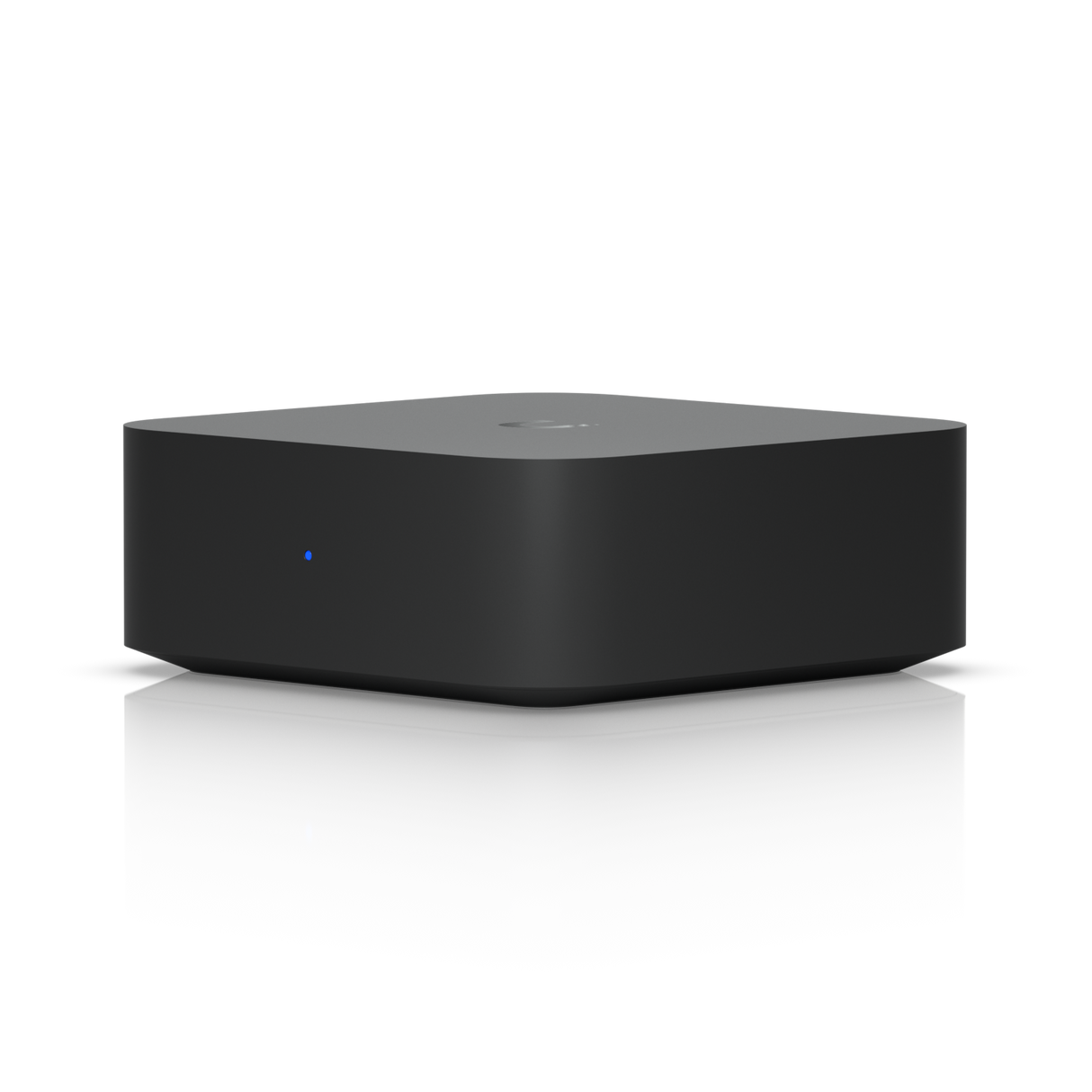

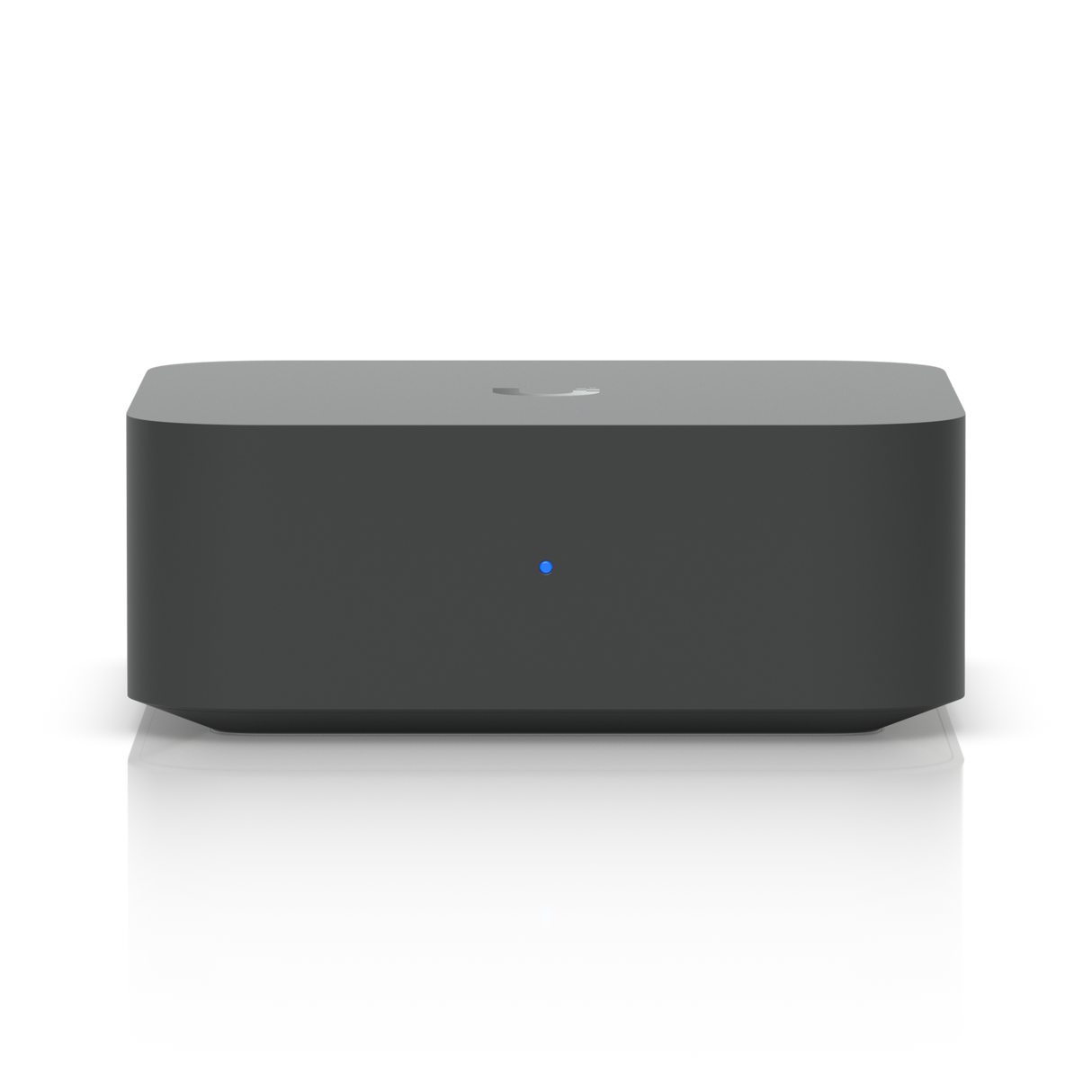

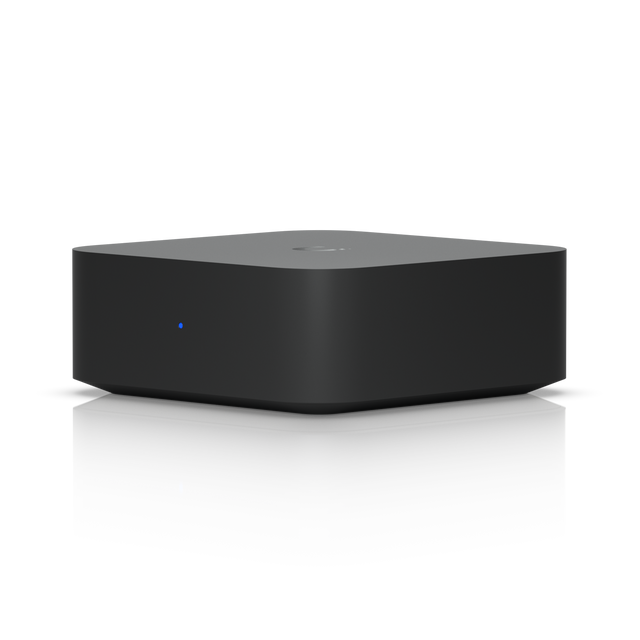

The Ubiquiti UniFi PoE Audio Port UPL-PORT-B is a digital audio streamer with an ultra-compact, versatile design and an intuitive control system, supporting multiple music streaming services and scalable multi-zone installations.
Note. EU version comes with EU power plug only.
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 109 x 109 x 40.5 mm (4.3 x 4.3 x 1.6") |
| Weight | 250 g (8.5 oz) |
| Enclosure Material | Polycarbonate |
| Mounting | Compact Desktop |
| Available Colors | Black, White |
Audio
| Item | Specification |
|---|---|
| Output | Mono / Stereo sound |
| Surround Format | PCM |
| Zone Support | Up to 32 PowerAmps and PoE Audio Ports |

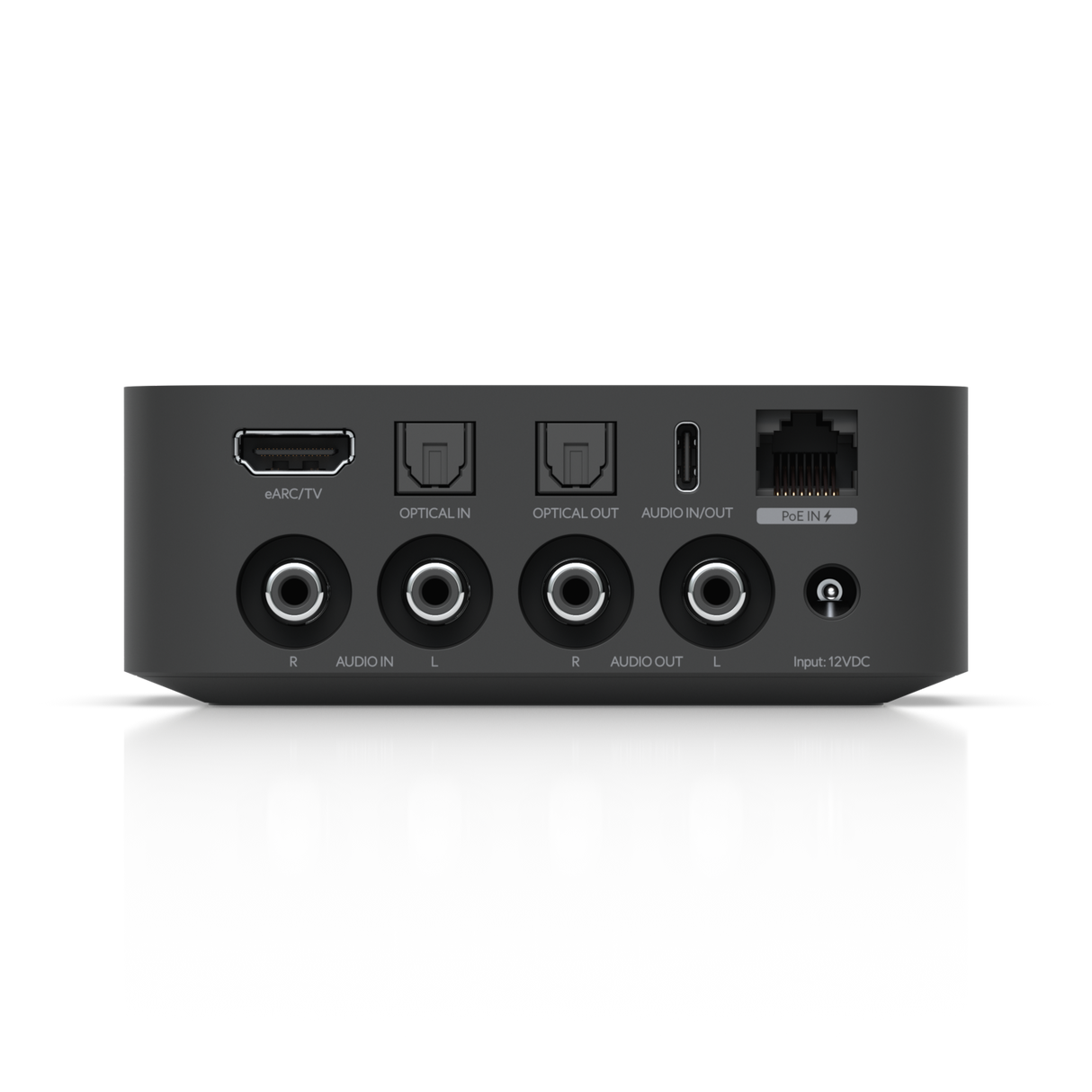

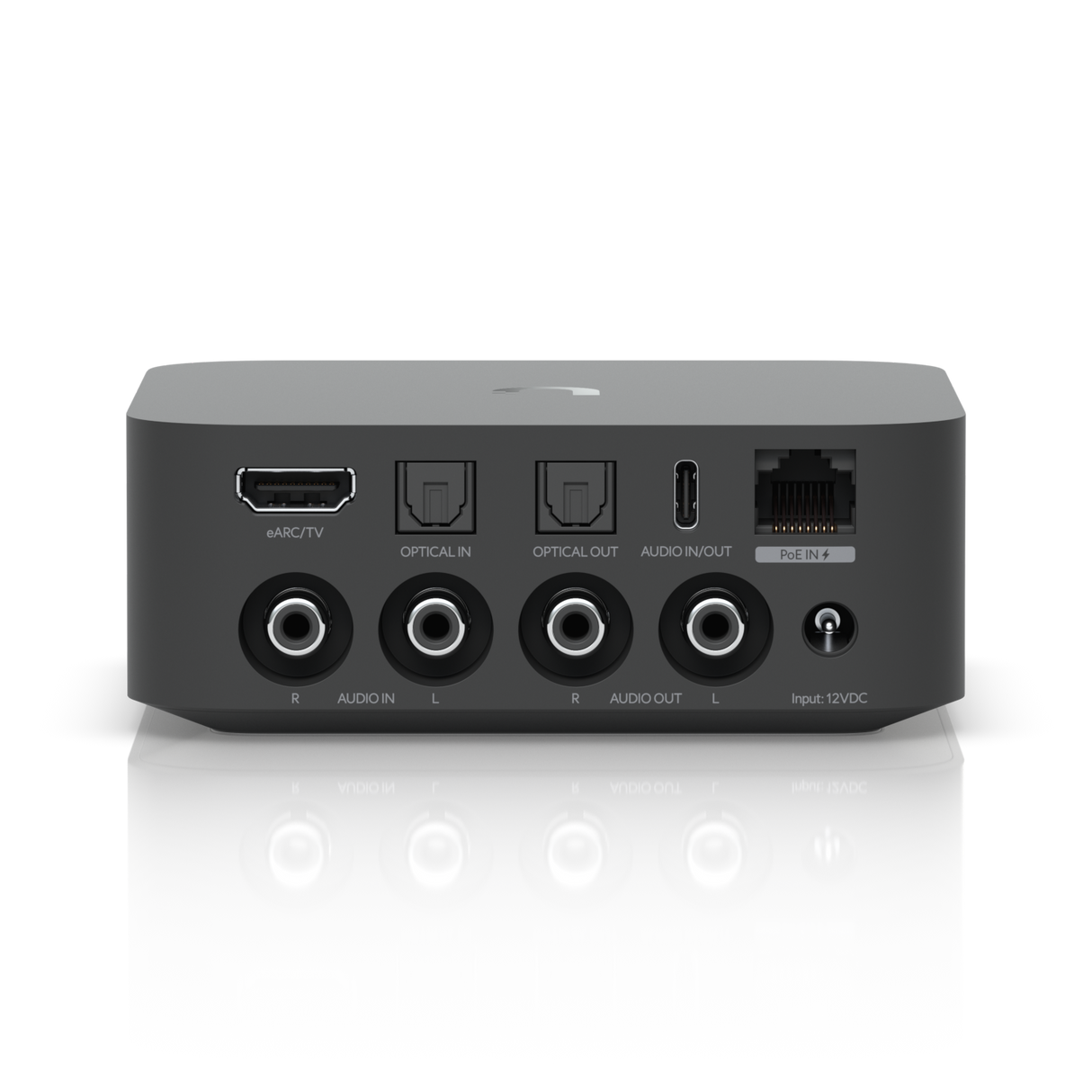

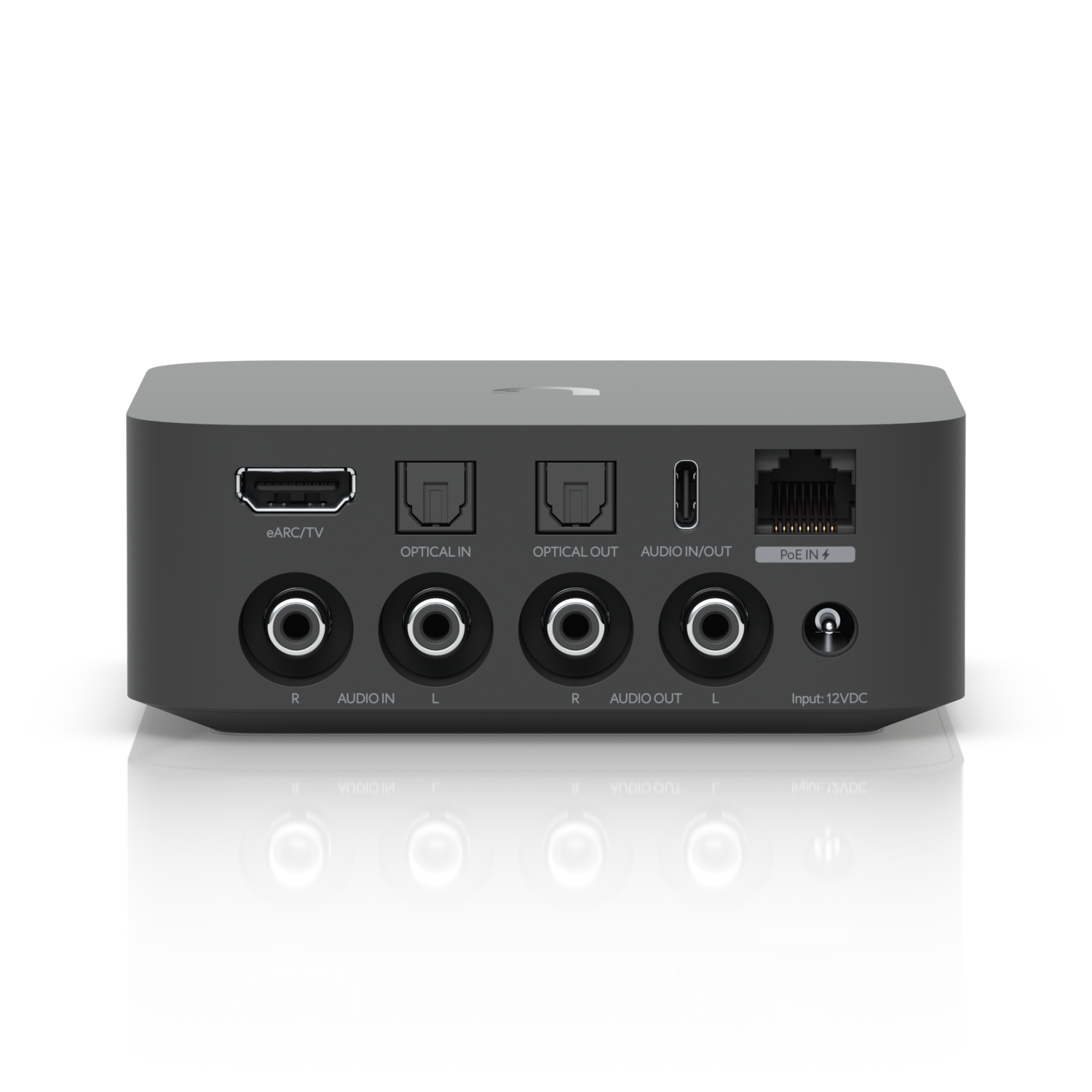

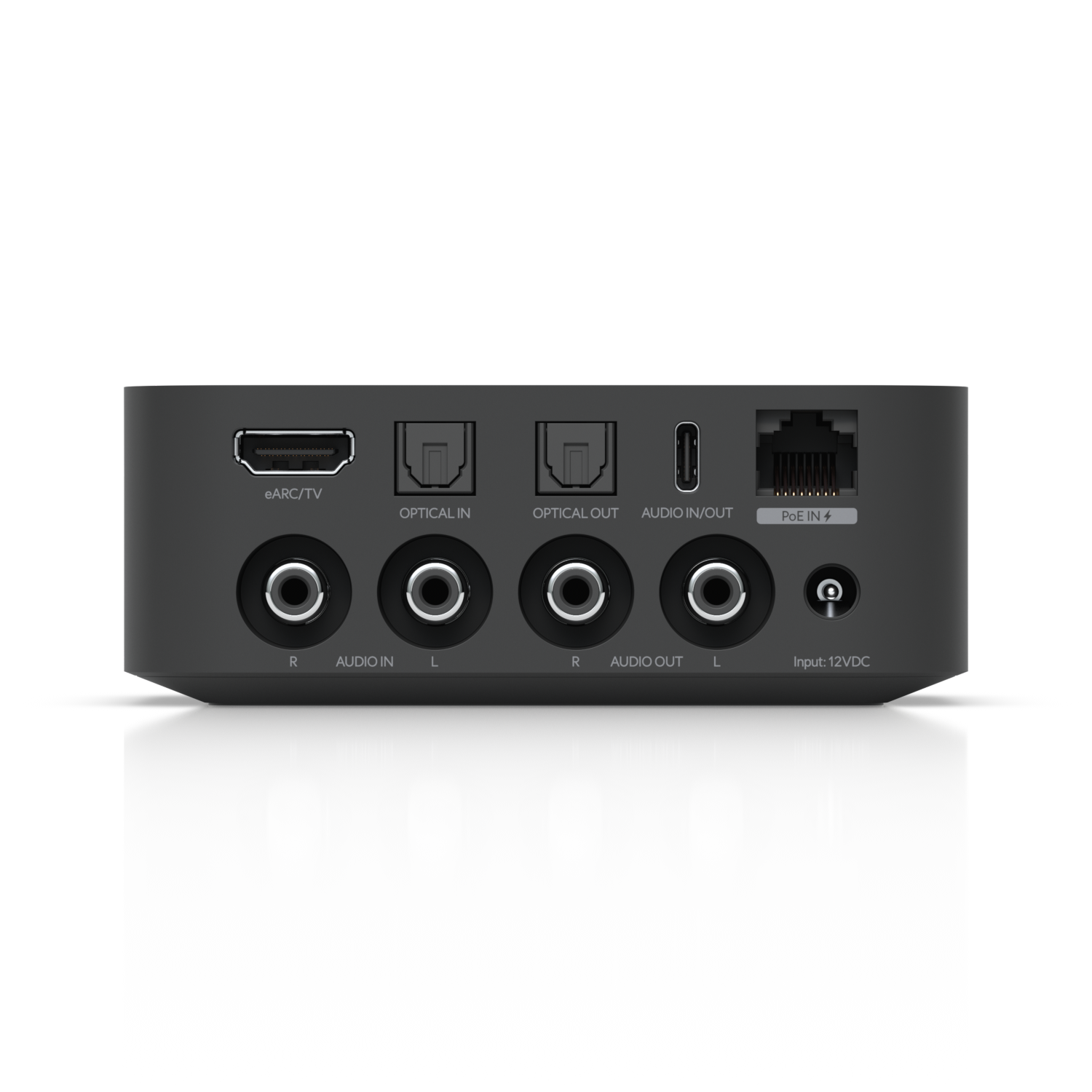

| Audio Inputs | (2) RCA analog inputs L/R (1) HDMI eARC input (1) Optical In (1) USB-C versatile port |
| Audio Outputs | (2) RCA analog outputs L/R (1) Optical Out (1) USB-C versatile port |
| Streaming Services | AirPlay, Spotify Connect, Soundtrack Your Brand |
Hardware
| Item | Specification |
|---|---|
| Networking Interface | (1) 10/100 MbE RJ45 port |
| WiFi Standards | 802.11 a/b/g/n/ac/ax |
| WiFi Bands & Bandwidth | 2.4 GHz (BW 20/40 MHz), 5 GHz (BW 20/40/80 MHz) |
| Power Method | (1) AC/DC adapter, 12V DC (Included) (1) PoE |
| Max. Power Consumption | 10W |
| Button | (1) Factory-reset |
Environmental & Compliance
| Item | Specification |
|---|---|
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | FCC, IC, CE |
Software
| Item | Specification |
|---|---|
| UniFi Application Suite | UniFi Play |
| Mobile App Requirements | UniFi Play iOS™ and Android™, Version 1.8.0 and later |
