Ubiquiti UniFi Pro XG 10 PoE USW-PRO-XG-10-POE
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
Please contact us for availability.
Pre-Order - Orders for this product are currently expected to ship 6/18

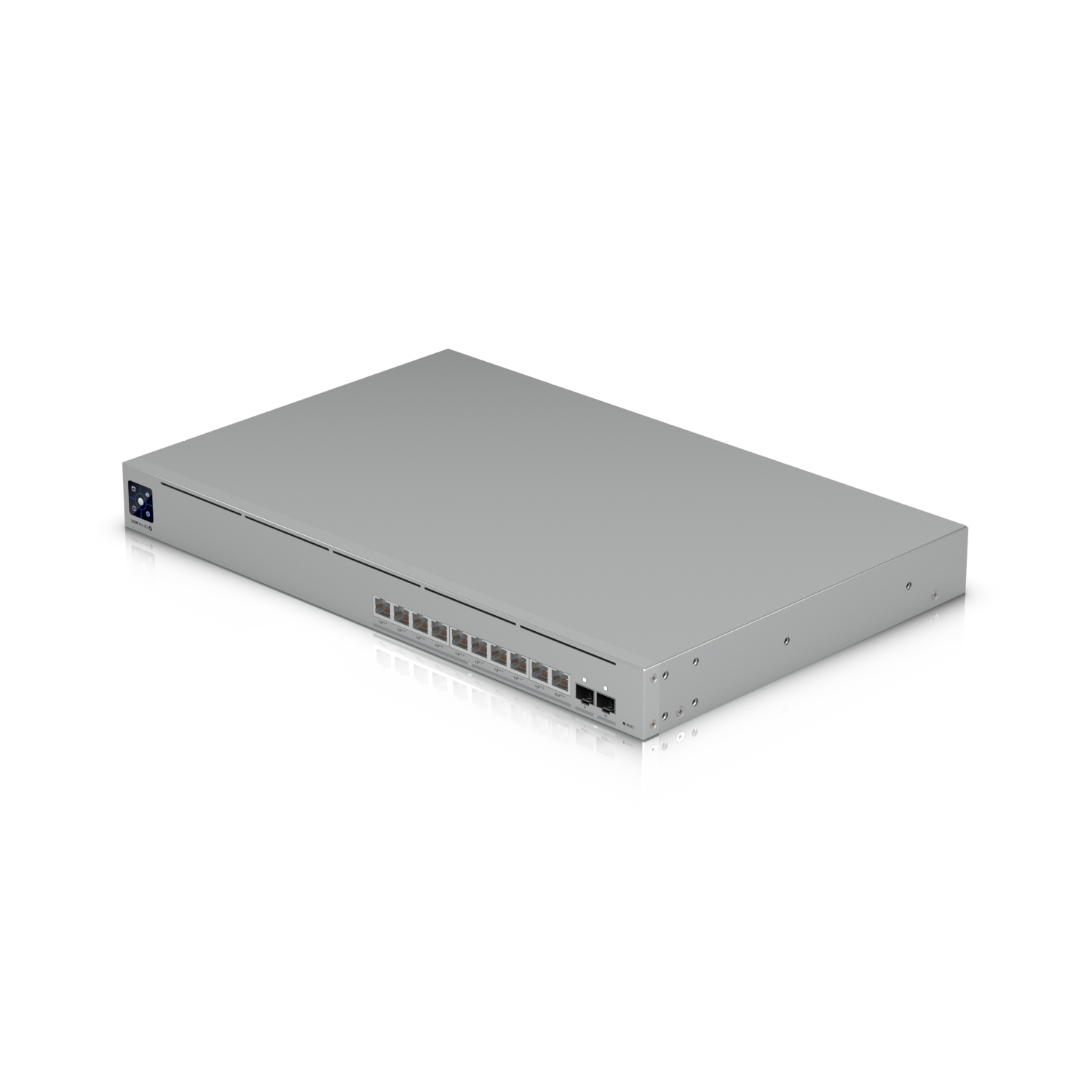

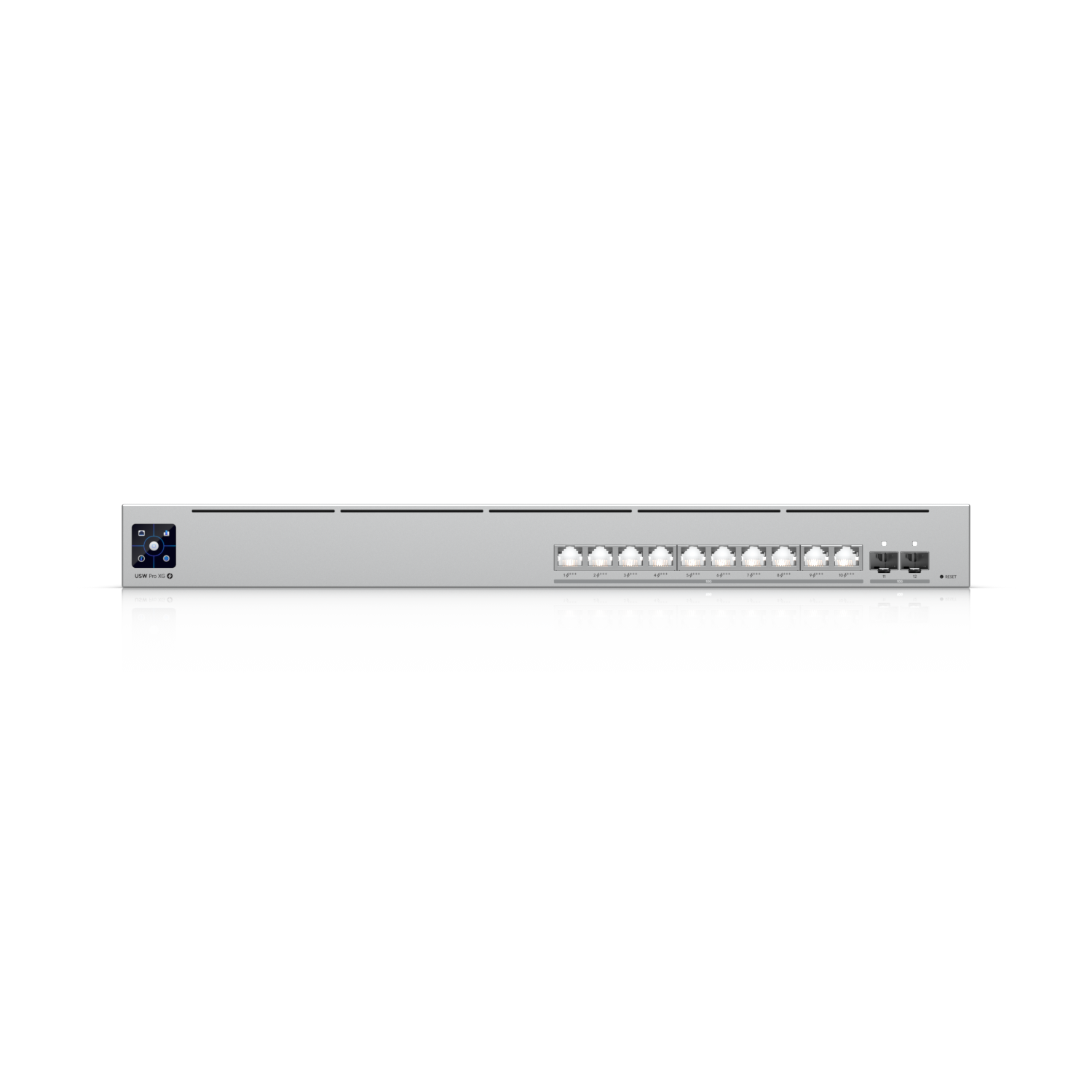

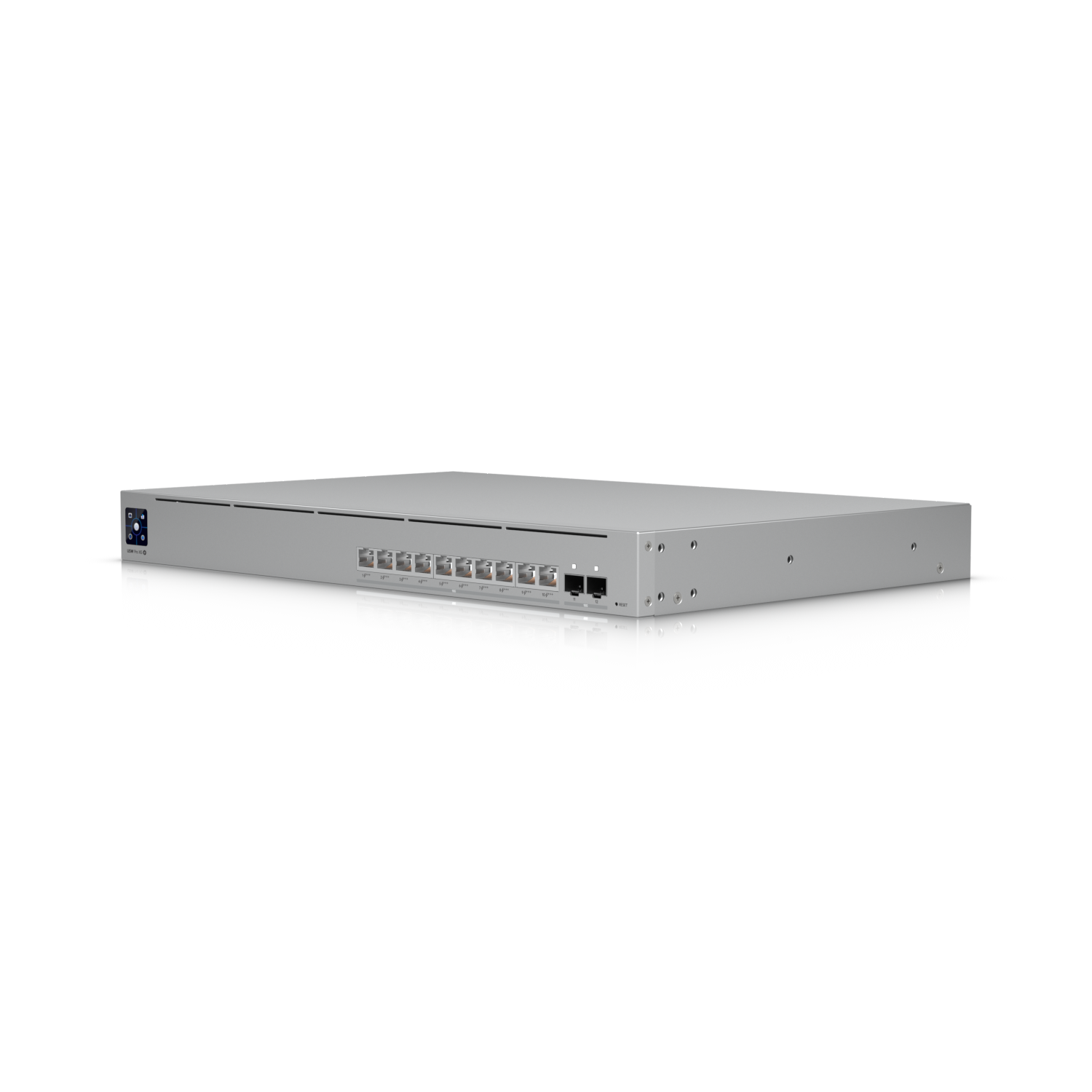

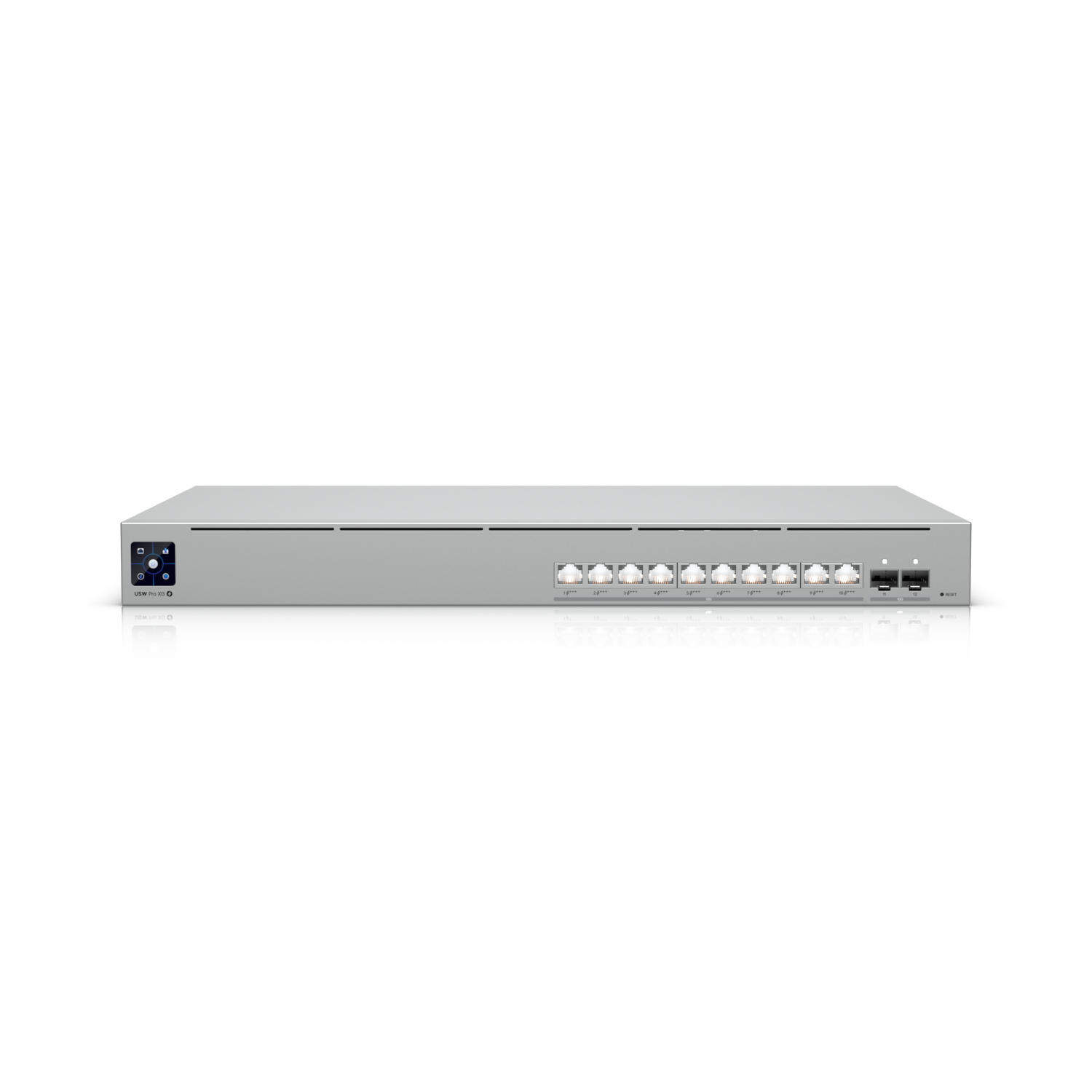

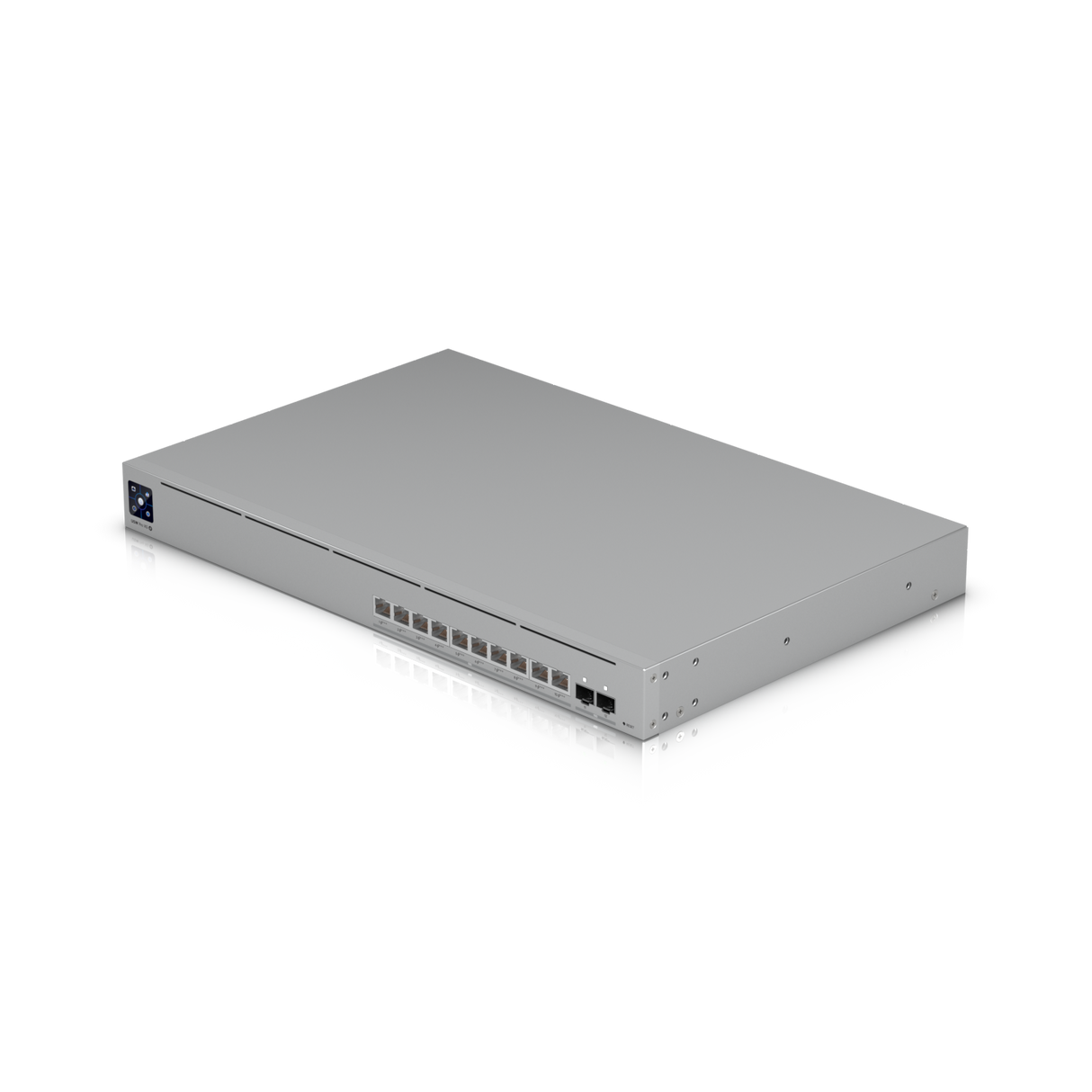

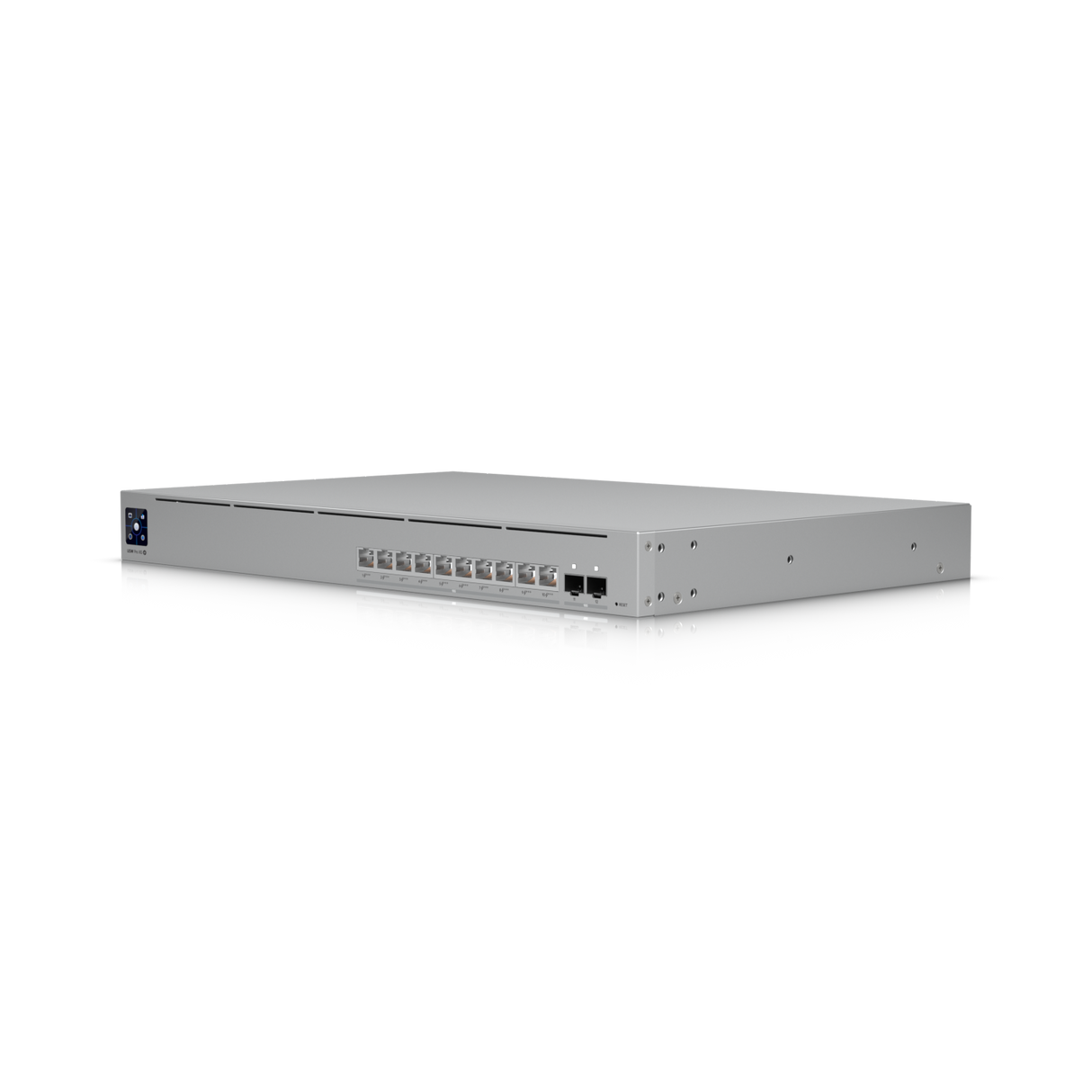

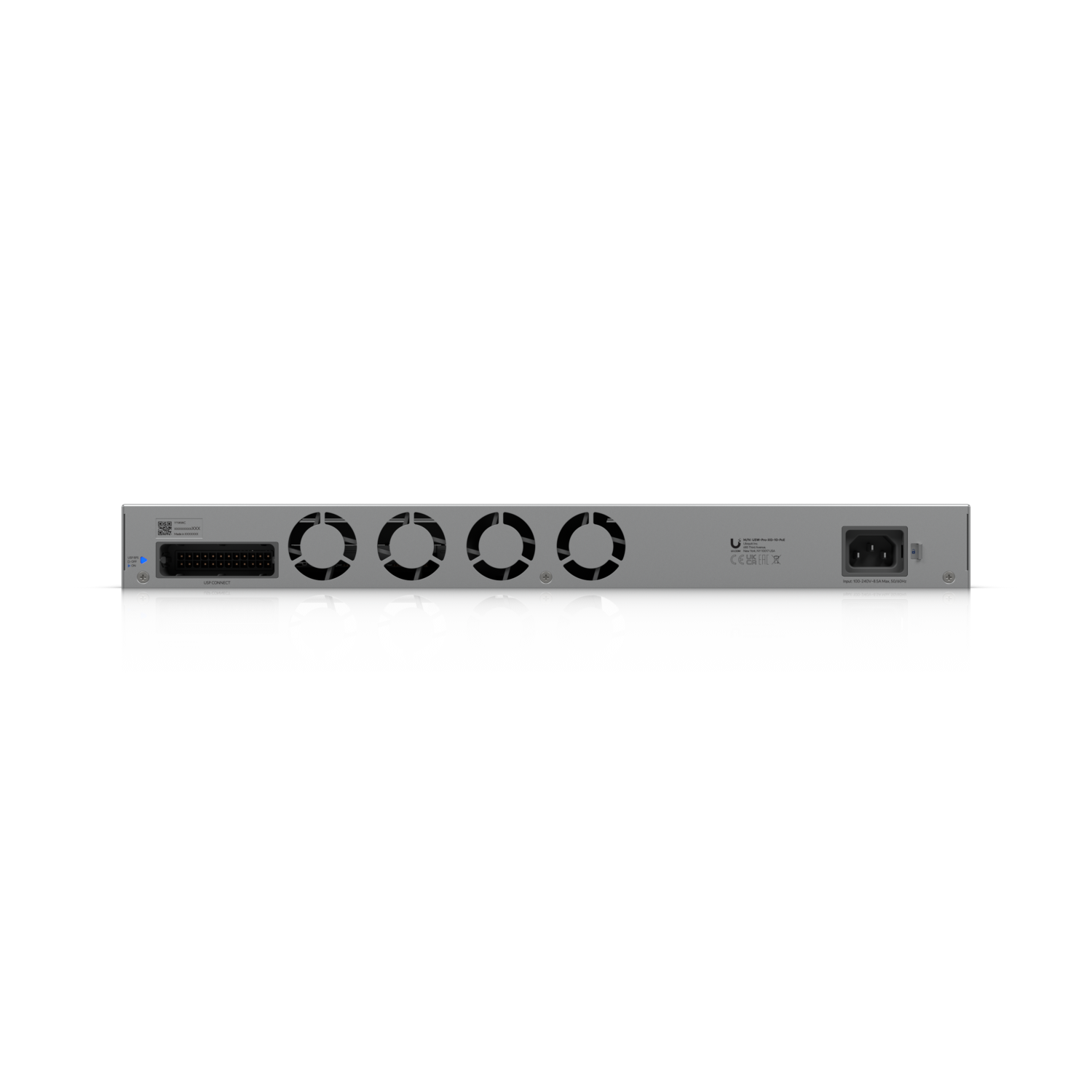

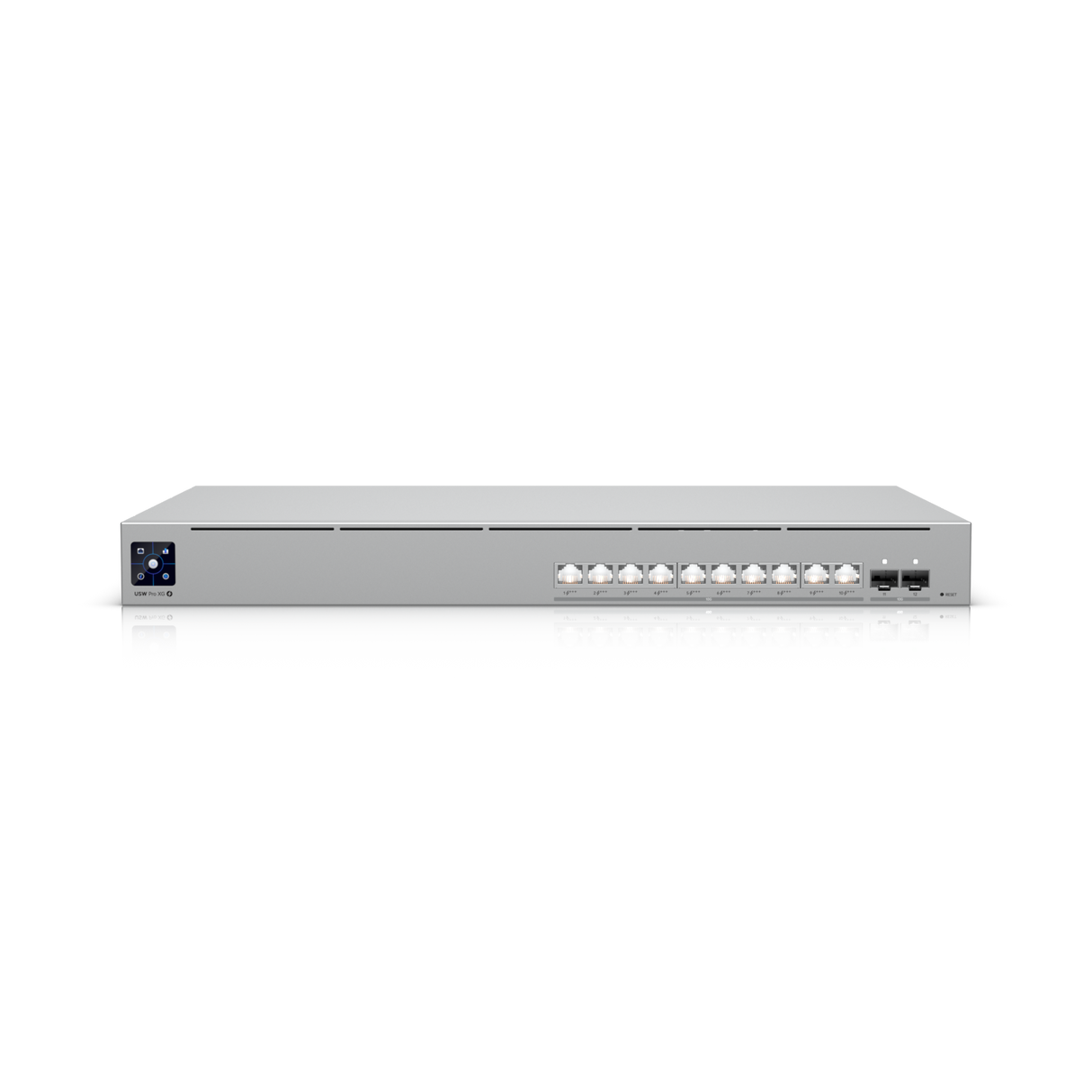

The Ubiquiti UniFi Pro XG 10 PoE usw-pro-xg-10-poe is a 1U, professional-grade 10-port, Layer 3 Etherlighting™ PoE+++ switch with (10) 10 GbE and (2) 10G SFP+ ports.
Technical Specifications
| Category | Feature | Specification |
|---|---|---|
| Overview | Dimensions | 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Port Layout – 10 GbE RJ45 | 10 (All PoE+++) (10G/5G/2.5G/1G/100M) | |
| Port Layout – 10G SFP+ | 2 (10G/1G) | |
| Max. PoE Output | Up to PoE+++ | |
| Total PoE Availability | 400W | |
| Redundancy | DC Power Backup | |
| Layer 3 | ✓ | |
| Form Factor | Rack mount (1U) | |
| Etherlighting™ | ✓ | |
| Performance | Switching Capacity | 240 Gbps |
| Total Non-Blocking Throughput | 120 Gbps | |
| Forwarding Rate | 179 Mpps | |
| Supported VLANs | 1,000 | |
| MAC Address Table Size | 32,000 | |
| L3 Table – ARP Entries | 12,000 | |
| L3 Table – IPv4 Routes | 12,000 | |
| Packet Buffer Size | 2 MB | |
| Layer 3 Features | DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ | |
| Inter-VLAN Routing (Local Networks) | ✓ | |
| Static Routing (Local Networks) | ✓ | |
| Layer 2 Features | LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ | |
| QoS (DSCP) | ✓ | |
| Pro AV Profiles (Play, Dante, Q-SYS, etc.) | ✓ | |
| Advanced IGMP Configuration | ✓ | |
| IGMP Snooping | ✓ | |
| 802.1X Control | ✓ | |
| MAC-Based ACLs & Device Isolation | ✓ | |
| DHCP Snooping & Guarding | ✓ | |
| Egress Rate Limit | ✓ | |
| Flow Control | ✓ | |
| Storm Control | ✓ | |
| Multicast & Broadcast Rate Limiting | ✓ | |
| MAC Address Blocking | ✓ | |
| IP-Based ACLs & Network Isolation | ✓ | |
| MAC-Based Port Restriction | ✓ | |
| Port Isolation | ✓ | |
| Port Mirroring | ✓ | |
| Jumbo Frames | ✓ | |
| LLDP-MED | ✓ | |
| Voice VLAN | ✓ | |
| Loop Protection | ✓ | |
| Hardware | PoE Ports (PoE+++) | 10 |
| Max PoE Wattage per Port | PoE: 15.4WPoE+: 30WPoE++: 60WPoE+++: 90W | |
| Max Power Consumption | 65W (Excluding PoE output)520W (Including PoE output) | |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz(1) USP RPS DC input | |
| Power Input Method | AC input | |
| Power Supply | AC/DC, internal, 550W | |
| Supported Voltage Range | 100–240V AC | |
| Management Ethernet | AR | |
| Weight | 4.6 kg (10.14 lb) without brackets4.7 kg (10.36 lb) with brackets | |
| Enclosure Material | SGCC steel | |
| Mount Material | SGCC steel | |
| LCM Display | 1.3" touchscreen | |
| ESD/EMP Protection | Air: ±30kV, Contact: ±30kV | |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) | |
| Ambient Operating Humidity | 10 to 90% noncondensing | |
| Etherlighting™ – Ethernet | ✓ | |
| Etherlighting™ – SFP+ | ✓ | |
| LEDs – RPS | ✓ | |
| LEDs – System | ✓ | |
| Certifications | CE, FCC, IC | |
| NDAA Compliant | ✓ |
