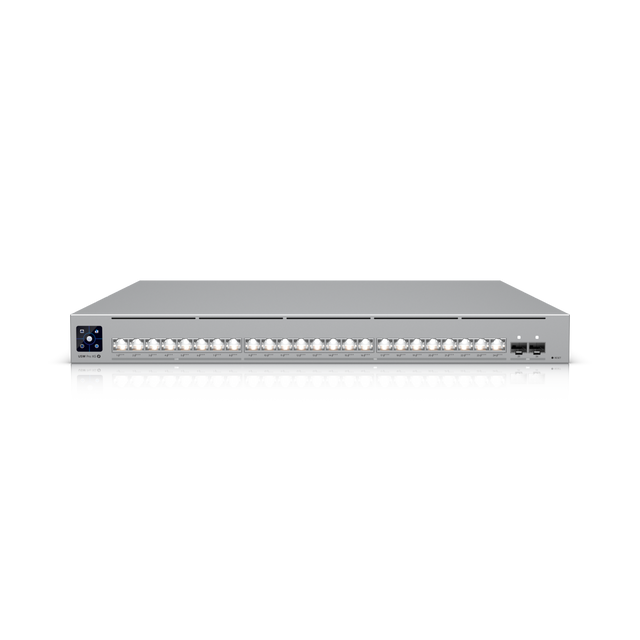

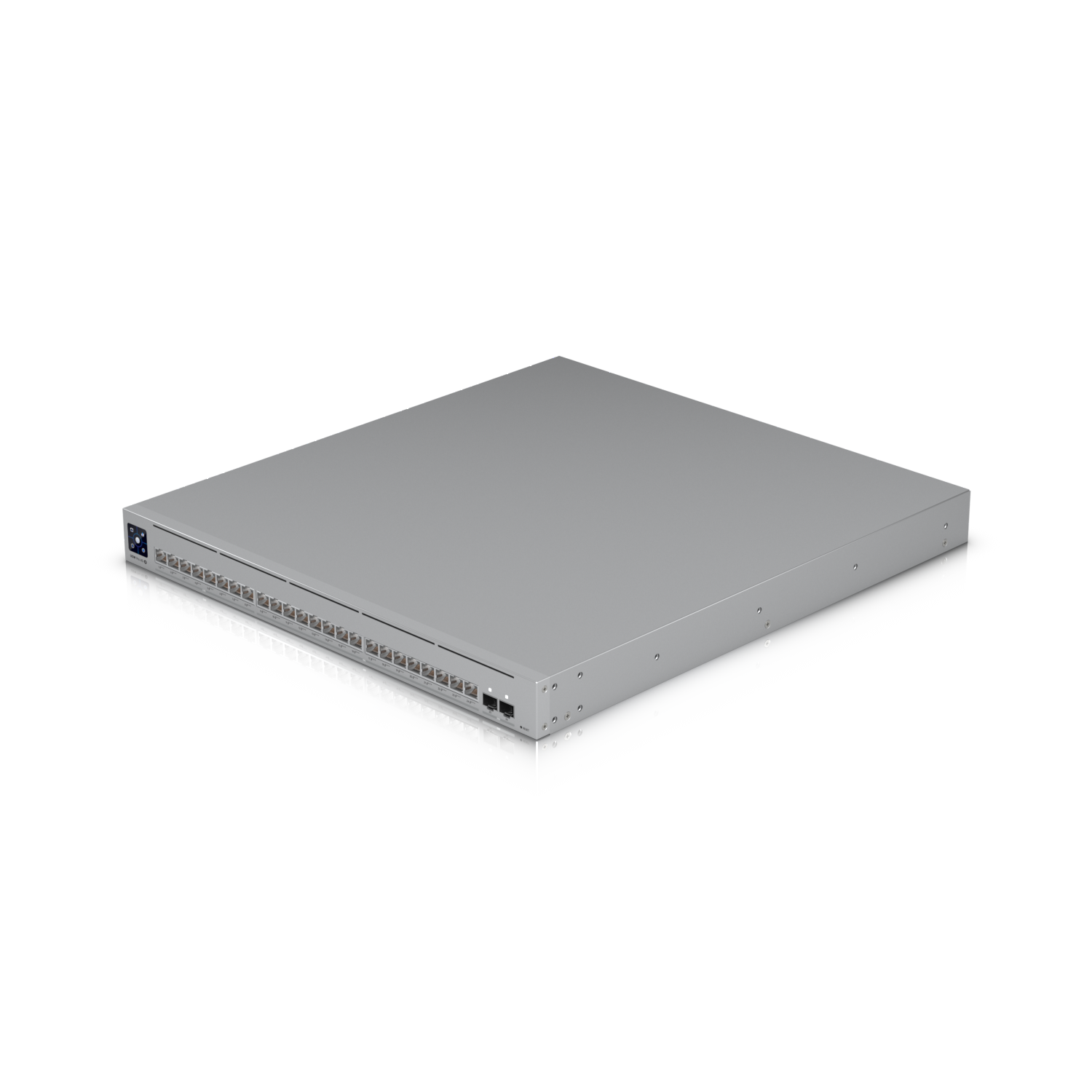

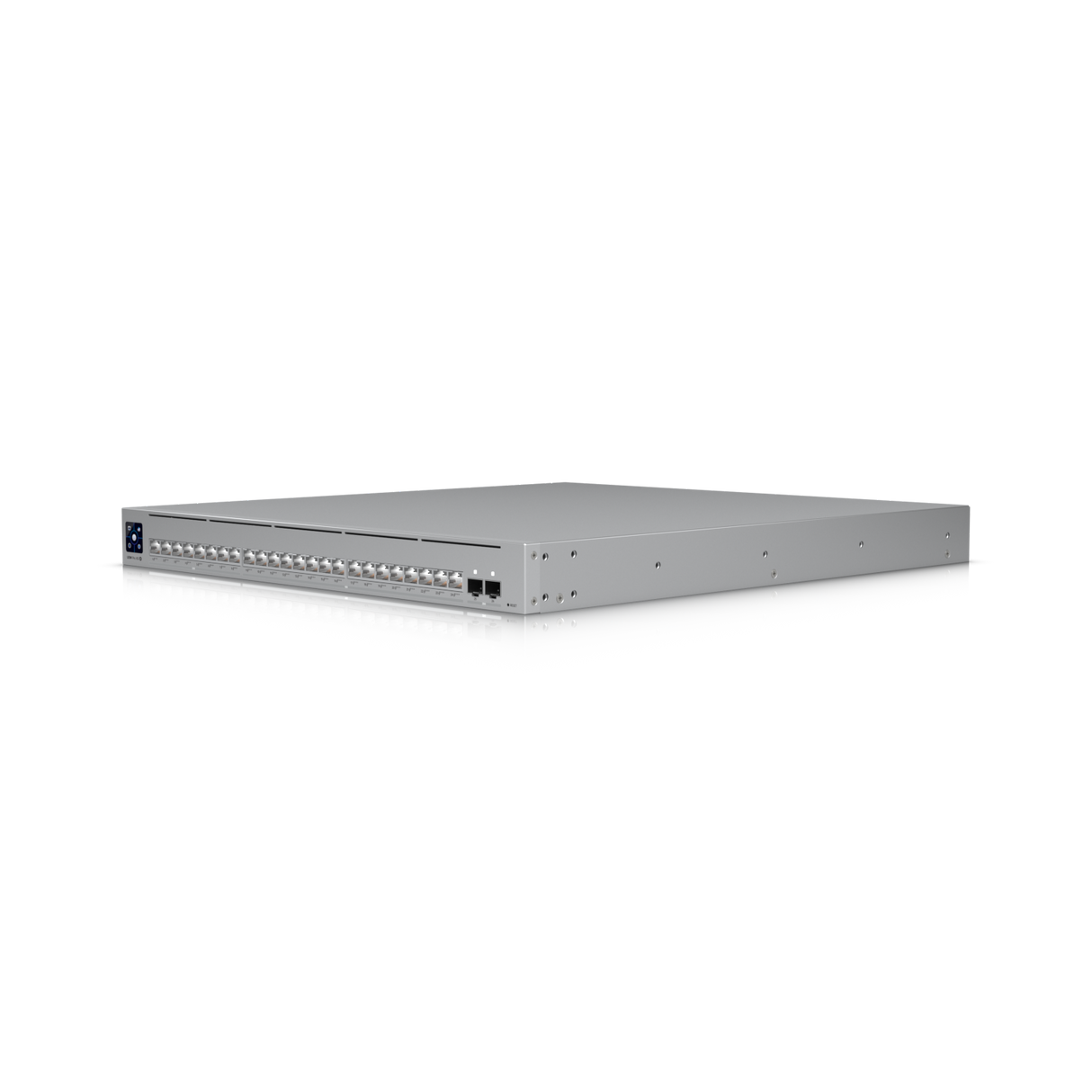

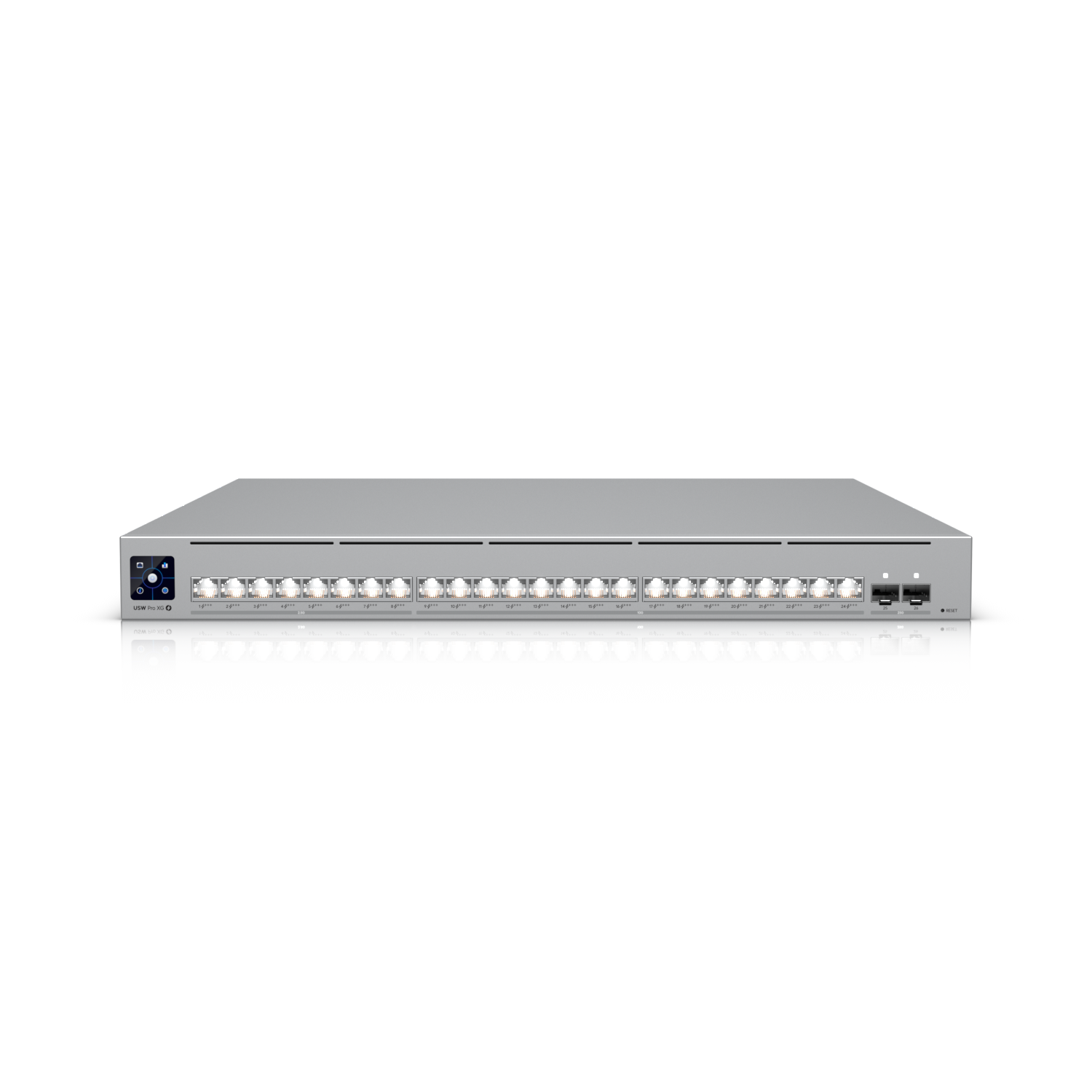

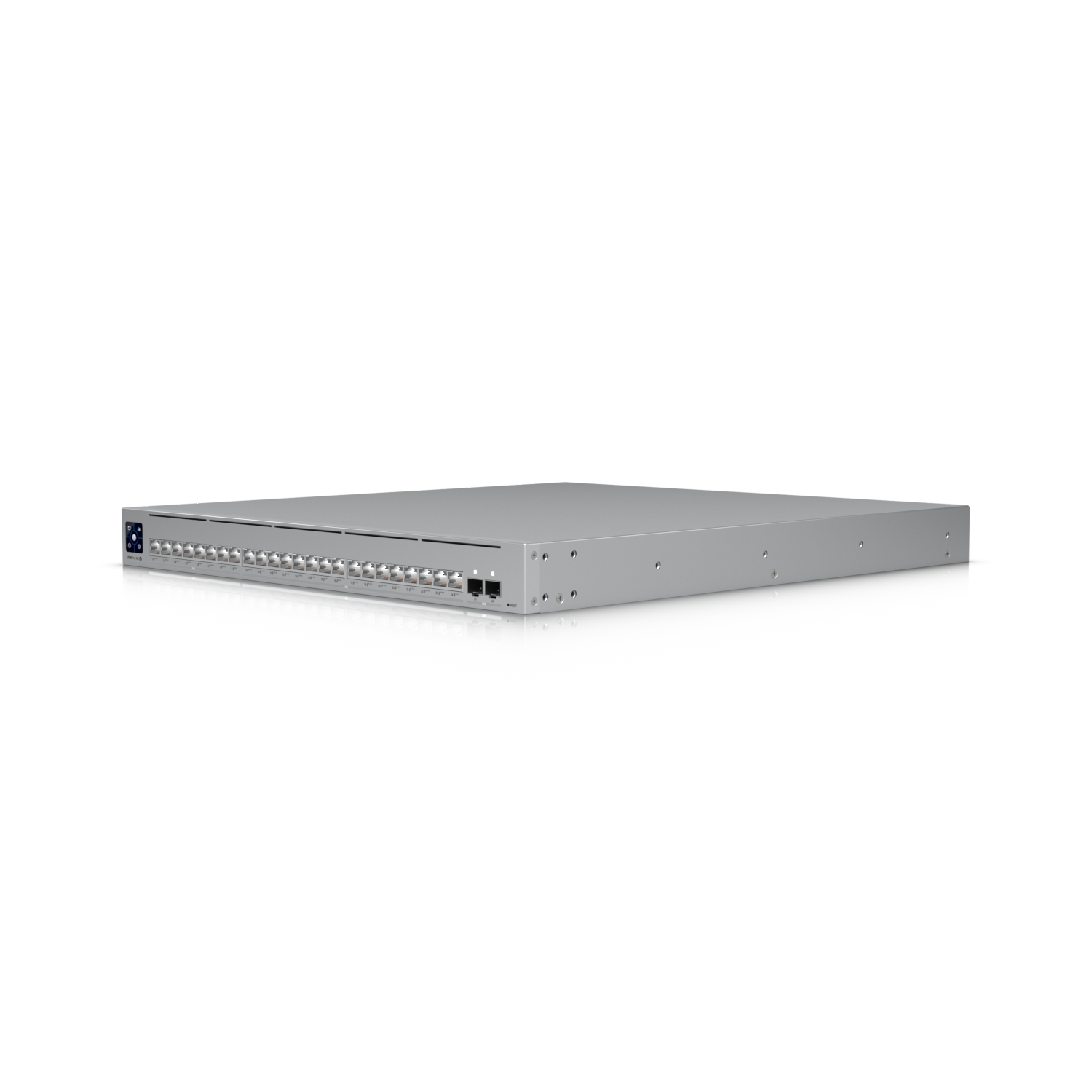

The Ubiquiti UniFi Pro XG 24 PoE usw-pro-xg-24-poe is a professional-grade, 24-port Layer 3 Etherlighting™ PoE+++ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Technical Specifications
| Category | Feature | Specification |
|---|---|---|
| Overview | Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout – 2.5 GbE RJ45 | 8 (All PoE+++) (2.5G/1G/100M/10M) | |
| Port Layout – 10 GbE RJ45 | 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) | |
| Port Layout – 25G SFP28 | 2 (25G/10G/1G) | |
| Max. PoE Output | Up to PoE+++ | |
| Total PoE Availability | 720W | |
| Redundancy | DC Power Backup | |
| Layer 3 | ✓ | |

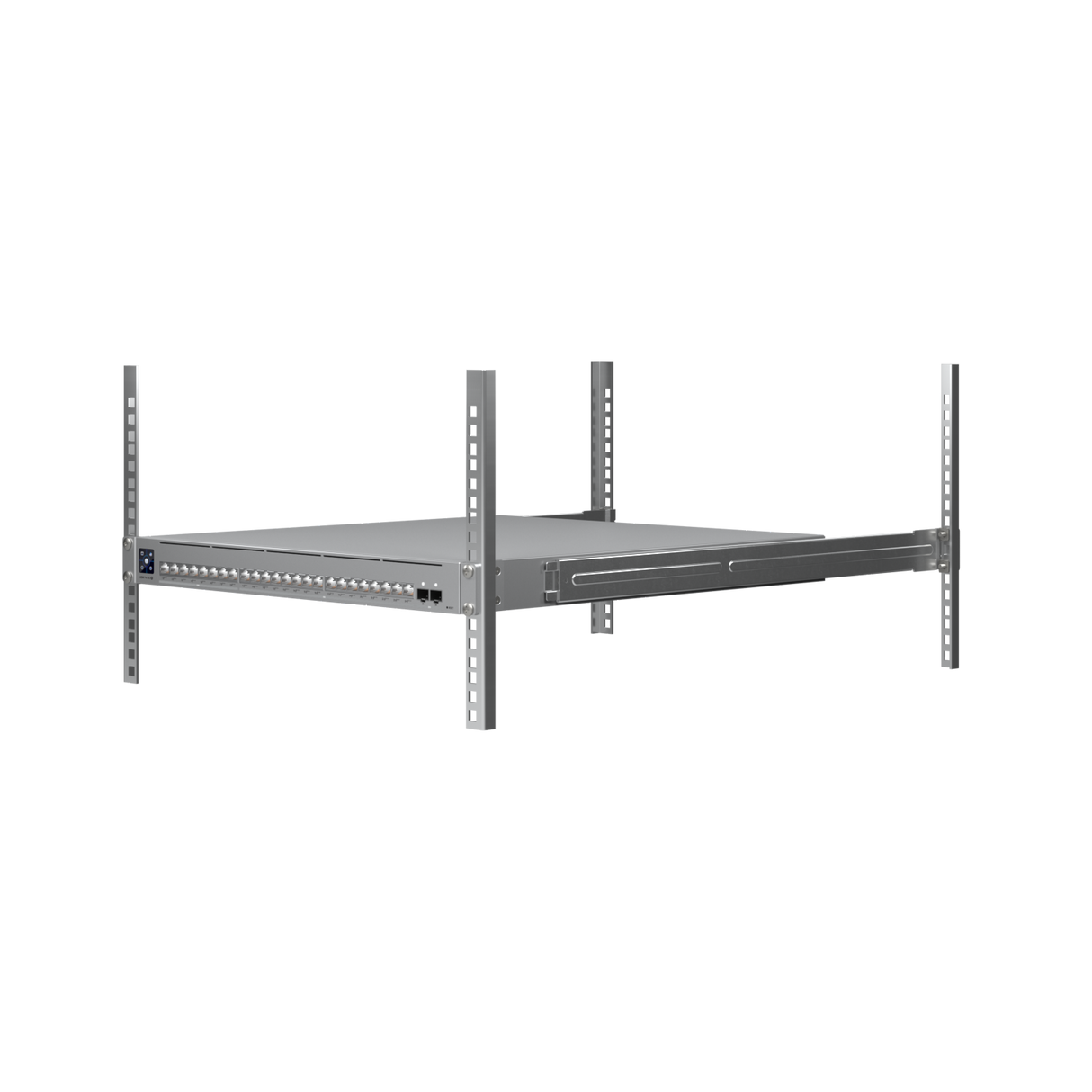

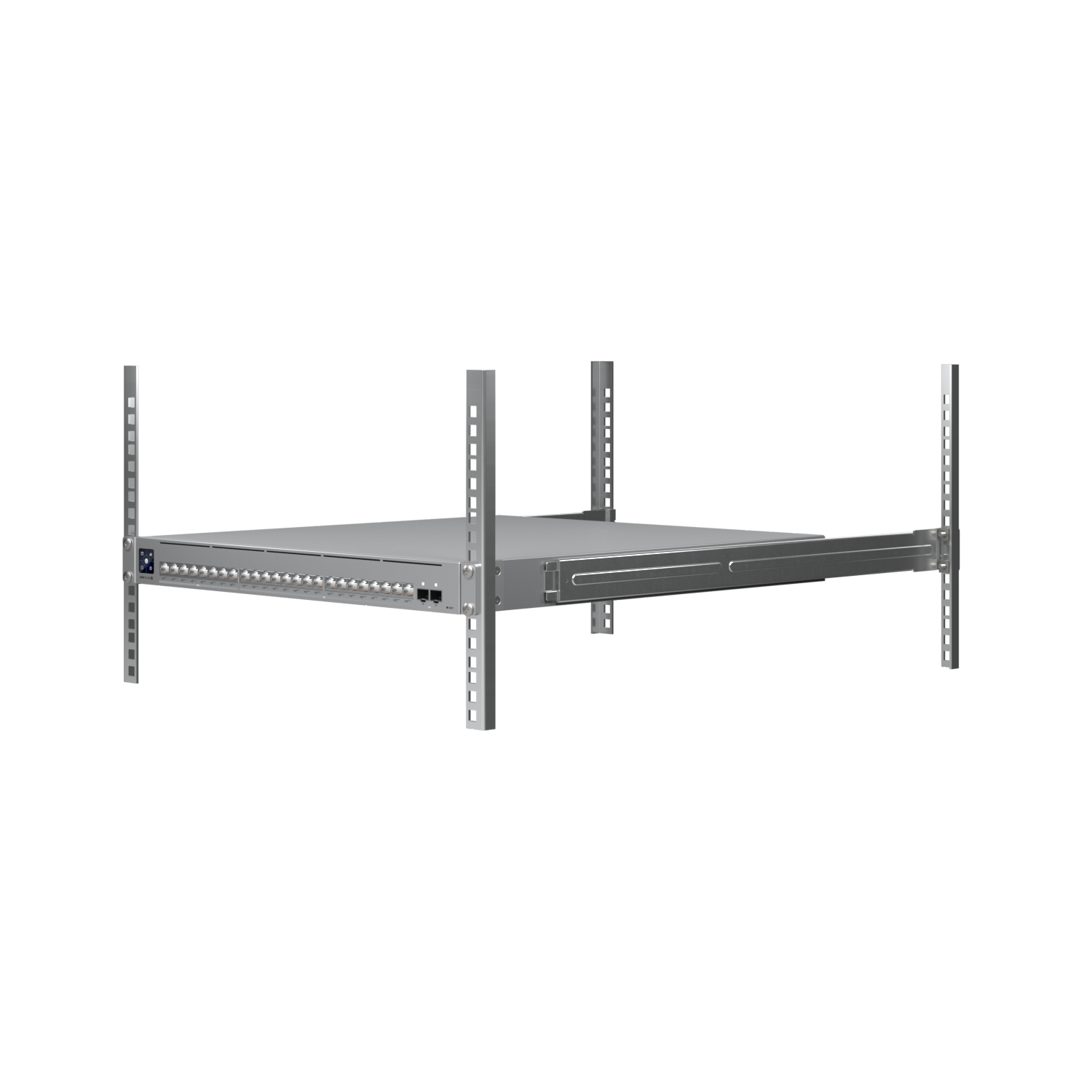

| Form Factor | Rack mount (1U) | |
| Etherlighting™ | ✓ | |
| Performance | Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps | |
| Forwarding Rate | 342 Mpps | |
| Supported VLANs | 1,000 | |
| MAC Address Table Size | 128,000 | |
| L3 Table – ARP Entries | 128,000 | |
| L3 Table – IPv4 Routes | 256,000 | |
| Packet Buffer Size | 8 MB | |
| Layer 3 Features | DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ | |
| Inter-VLAN Routing (Local Networks) | ✓ | |
| Static Routing (Local Networks) | ✓ | |
| Layer 2 Features | LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ | |
| QoS (DSCP) | ✓ | |
| Pro AV Profiles (Play, Dante, Q-SYS, etc.) | ✓ | |
| Advanced IGMP Configuration | ✓ | |
| IGMP Snooping | ✓ | |
| 802.1X Control | ✓ | |
| MAC-Based ACLs & Device Isolation | ✓ | |
| DHCP Snooping & Guarding | ✓ | |
| Egress Rate Limit | ✓ | |
| Flow Control | ✓ | |
| Storm Control | ✓ | |
| Multicast & Broadcast Rate Limiting | ✓ | |
| MAC Address Blocking | ✓ | |
| IP-Based ACLs & Network Isolation | ✓ | |
| MAC-Based Port Restriction | ✓ | |
| Port Isolation | ✓ | |
| Port Mirroring | ✓ | |
| Jumbo Frames | ✓ | |
| LLDP-MED | ✓ | |
| Voice VLAN | ✓ | |
| Loop Protection | ✓ | |
| Hardware | PoE Ports (PoE+++) | 24 |
| Max PoE Wattage per Port | PoE: 15.4WPoE+: 30WPoE++: 60WPoE+++: 90W | |
| Max Power Consumption | 150W (Excluding PoE Output)870W (Including PoE Output) | |

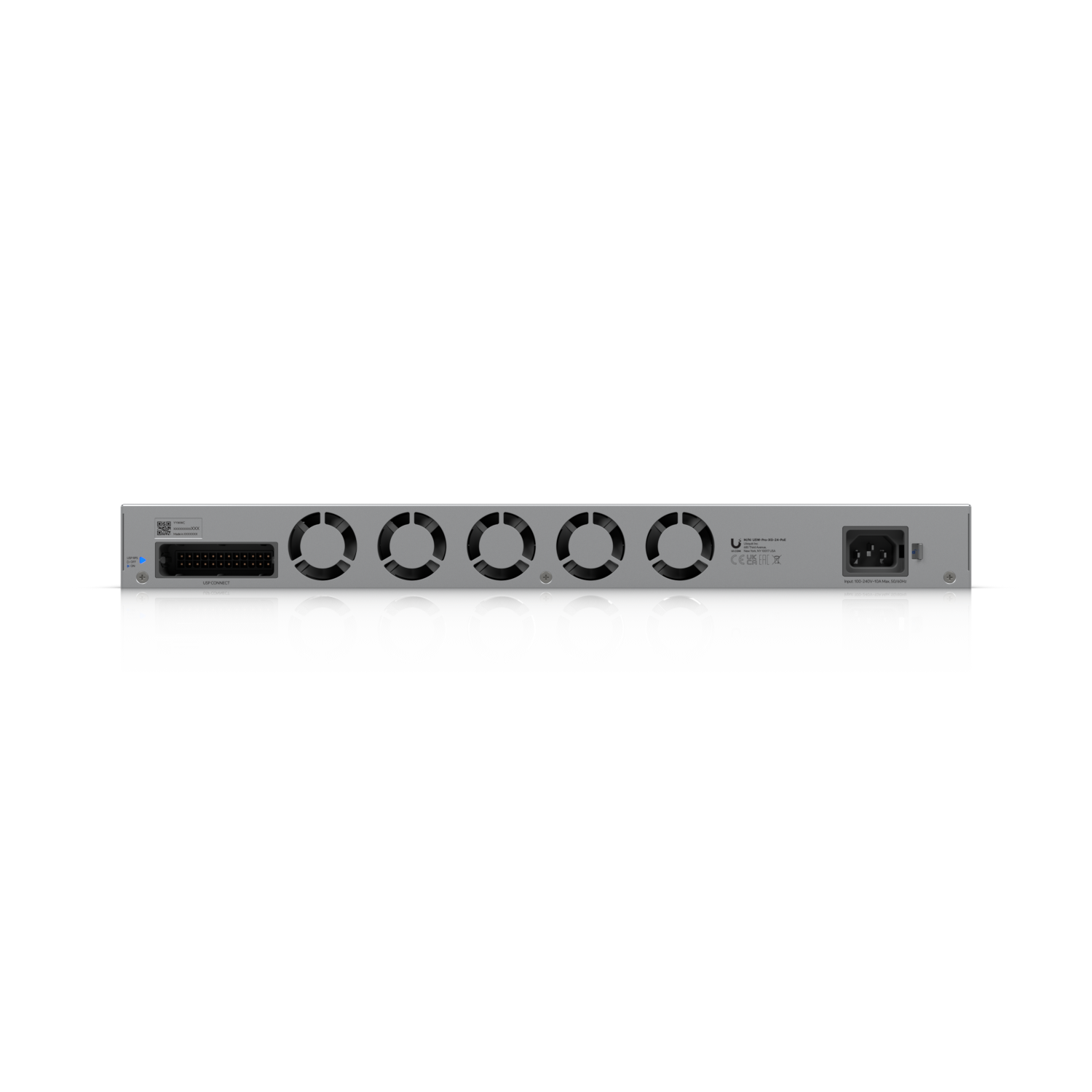

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz(1) USP RPS DC input | |
| Power Input Method | AC input | |
| Power Supply | AC/DC, internal, 870W | |
| Supported Voltage Range | 100–240V AC | |
| Management Ethernet | AR | |
| Weight | 7.9 kg (17.4 lb) without brackets8 kg (17.6 lb) with brackets | |
| Enclosure & Mount Material | SGCC steel | |
| LCM Display | 1.3" touchscreen | |
| ESD/EMP Protection | Air: ±30kV, Contact: ±20kV | |
| Ambient Operating Temp | -5 to 40° C (23 to 104° F) | |
| Ambient Operating Humidity | 10 to 90% noncondensing | |
| Etherlighting™ – Ethernet | ✓ | |
| Etherlighting™ – SFP28 | ✓ | |
| LEDs – RPS | ✓ | |
| Certifications | CE, FCC, IC | |
| NDAA Compliant | ✓ |
