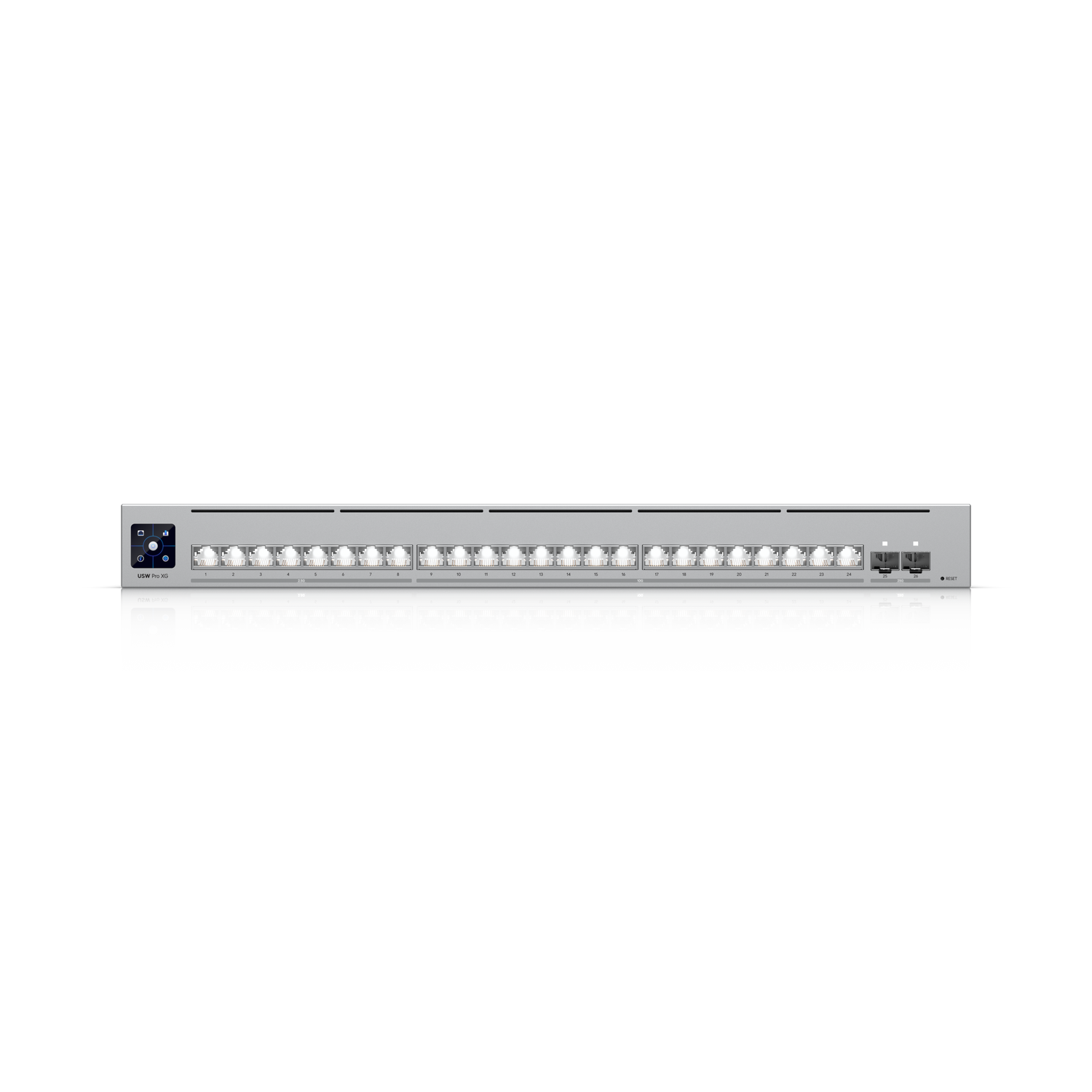

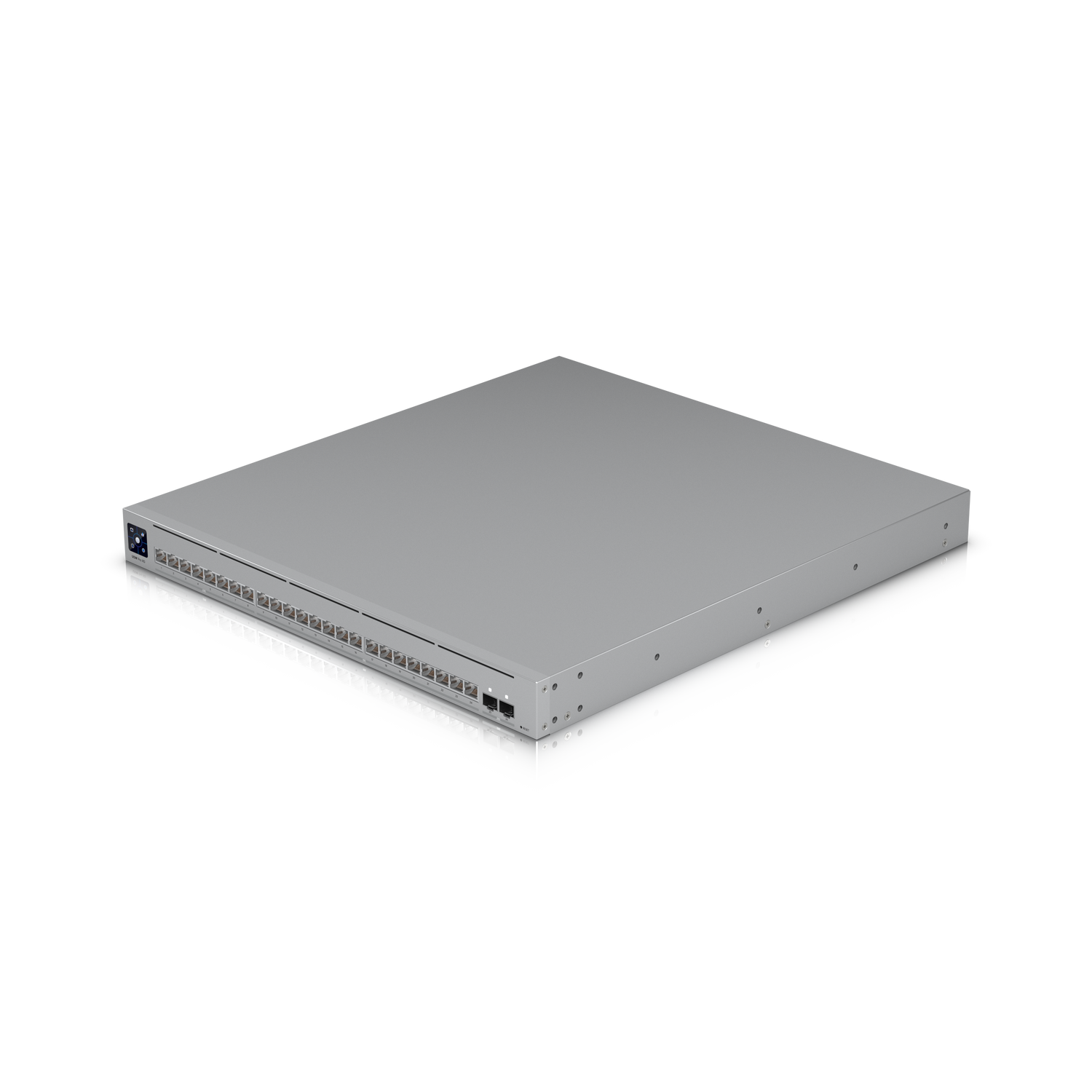

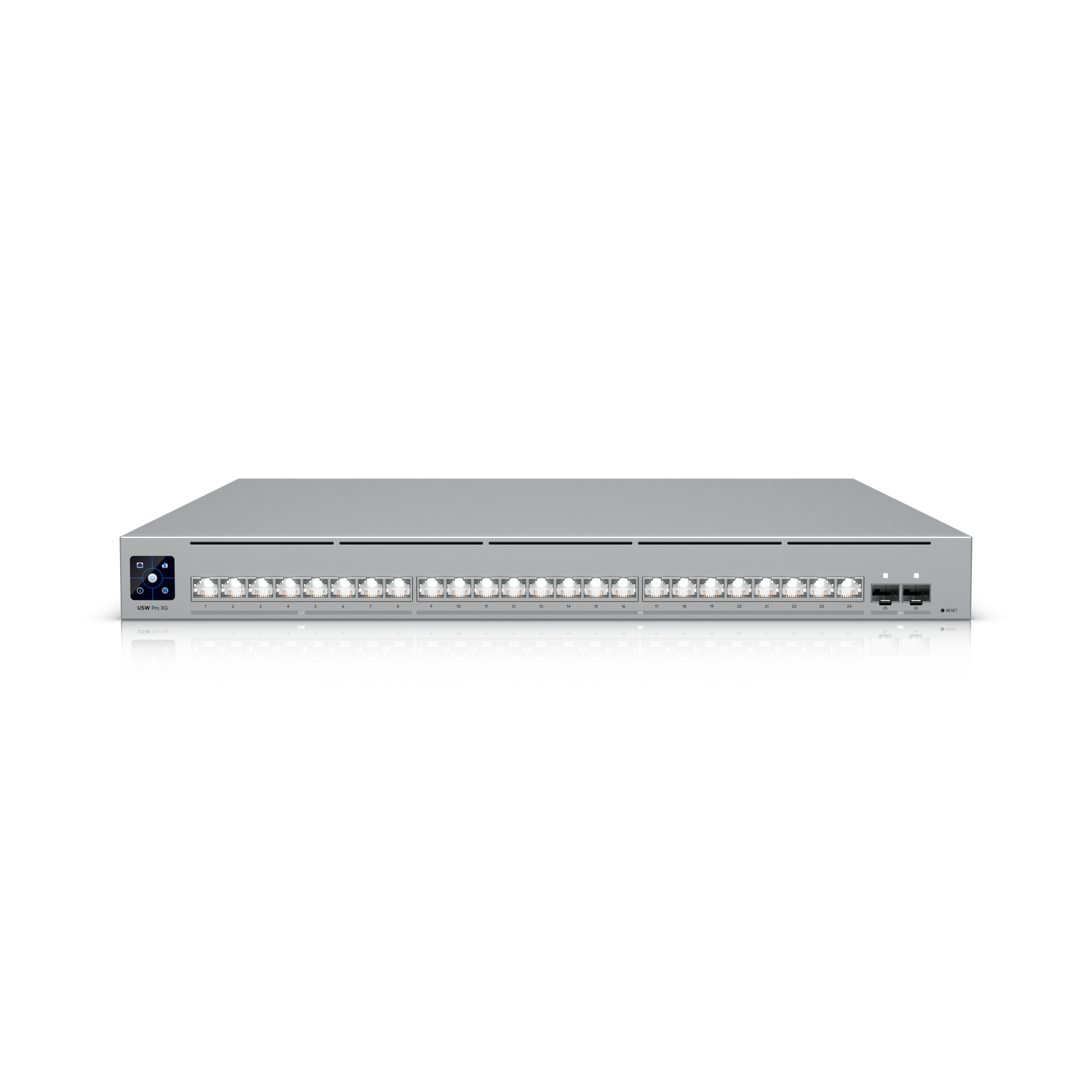

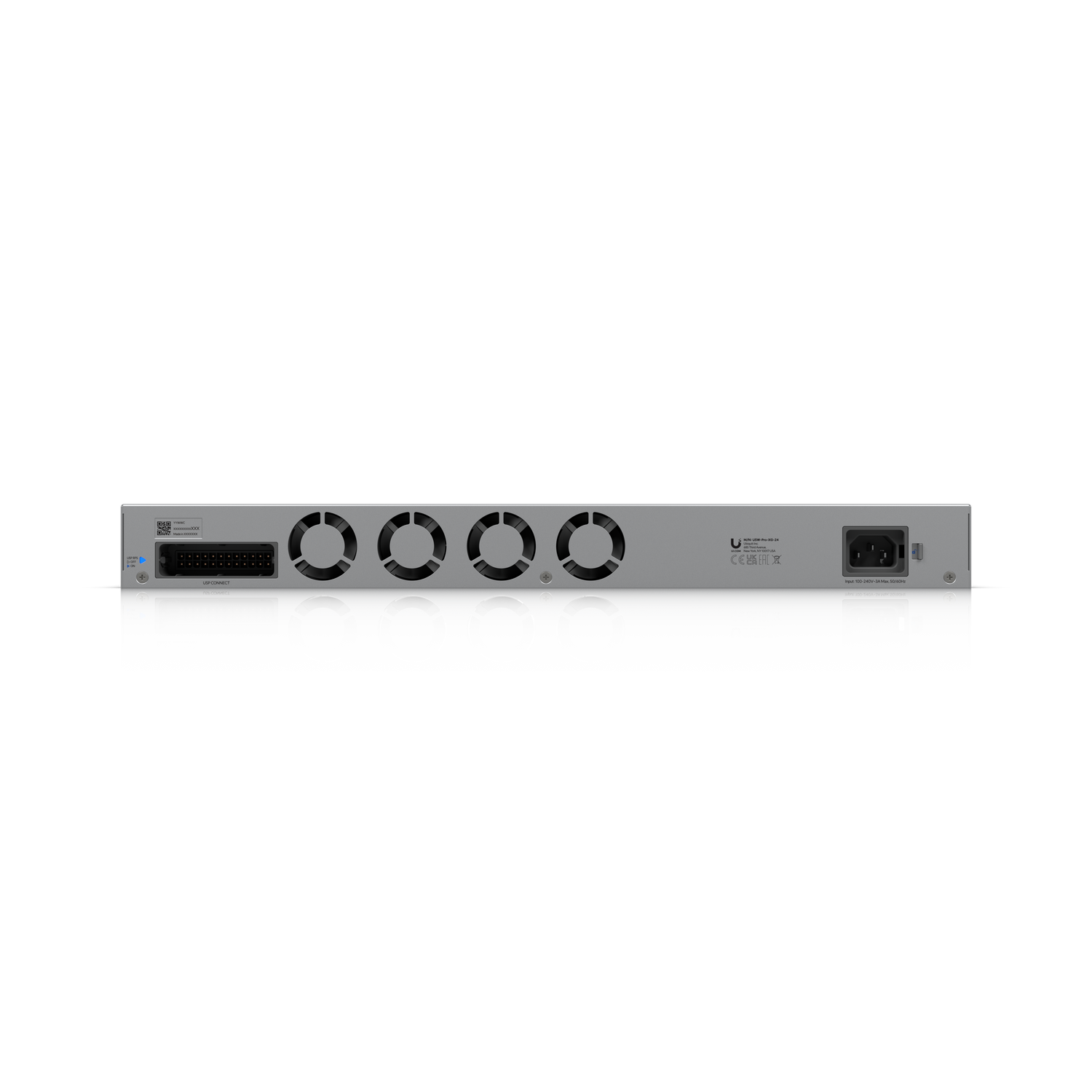

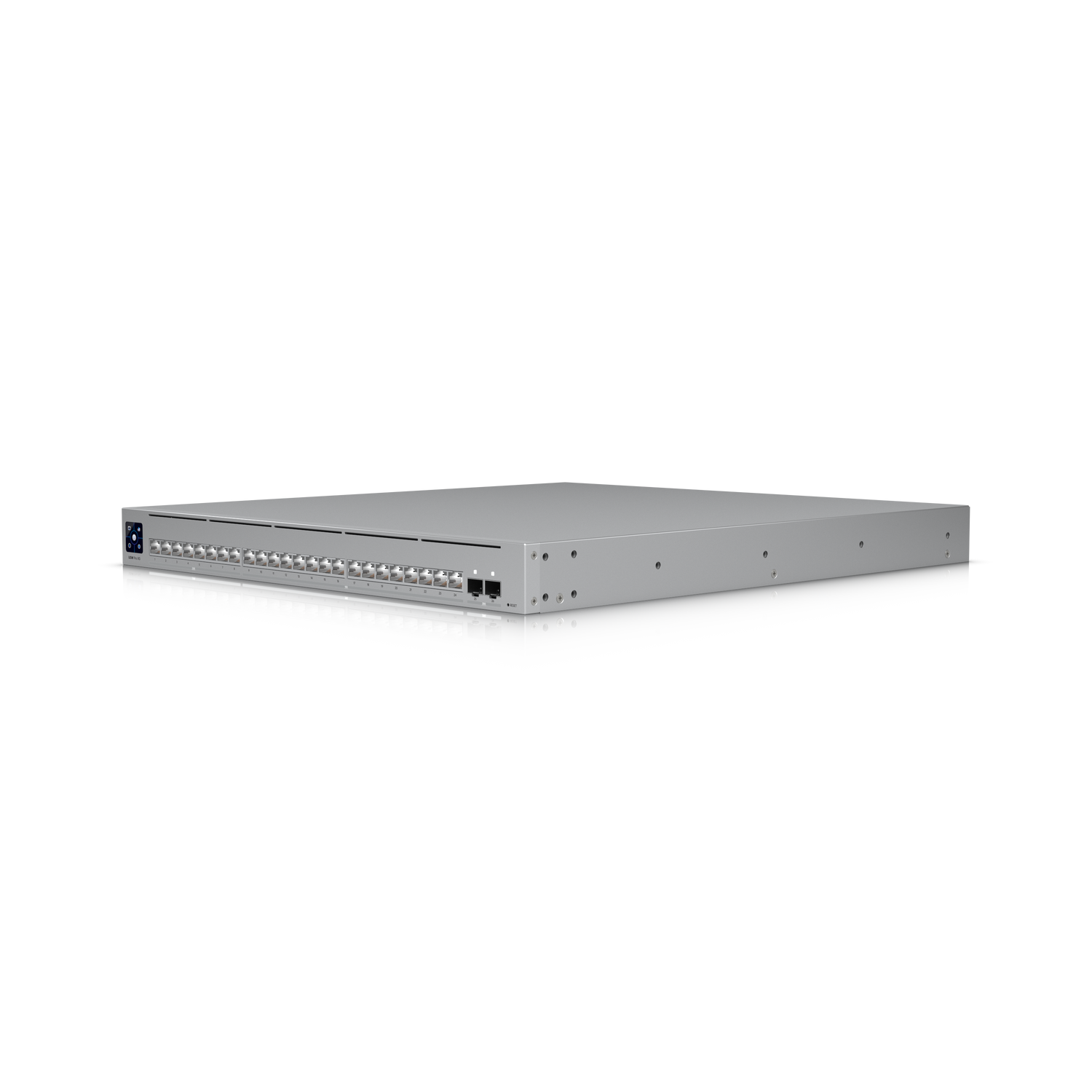

The Ubiquiti UniFi Pro XG 24 USW-PRO-XG-24 is a professional-grade, 24-port Layer 3 Etherlighting™ switch with (16) 10 GbE, (8) 2.5 GbE, and (2) 25G SFP28 ports.
Technical Specifications
| Item | Specification |
|---|---|
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Form Factor | Rack mount (1U) |
| Port Layout | - 2.5 GbE RJ45: 8 ports (2.5G/1G/100M/10M) - 10 GbE RJ45: 16 ports (10G/5G/2.5G/1G/100M/10M) - 25G SFP28: 2 ports (25G/10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 Support | ✓ |
| Etherlighting™ | ✓ |
Performance
| Item | Specification |
|---|---|
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size – ARP Entries | 128,000 |
| L3 Table Size – IPv4 Routes | 256,000 |
| Packet Buffer Size | 8 MB |
| Access Lists (IPv4 / MAC) | 256 / 256 |
Layer 3 Features
| Feature | Supported |
|---|---|
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local) | ✓ |
| Static Routing (Local) | ✓ |
Layer 2 Features
| Feature | ✓ |
|---|---|
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
Hardware
| Item | Specification |
|---|---|
| Max. Power Consumption | 150W |
| Power Method | - (1) Universal input, 100–240V AC, 50/60 Hz - (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 200W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet, AR |
| LCM Display | 1.3" touchscreen |
| Weight (Without Brackets) | 7.2 kg (15.9 lb) |
| Weight (With Brackets) | 7.3 kg (16.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |

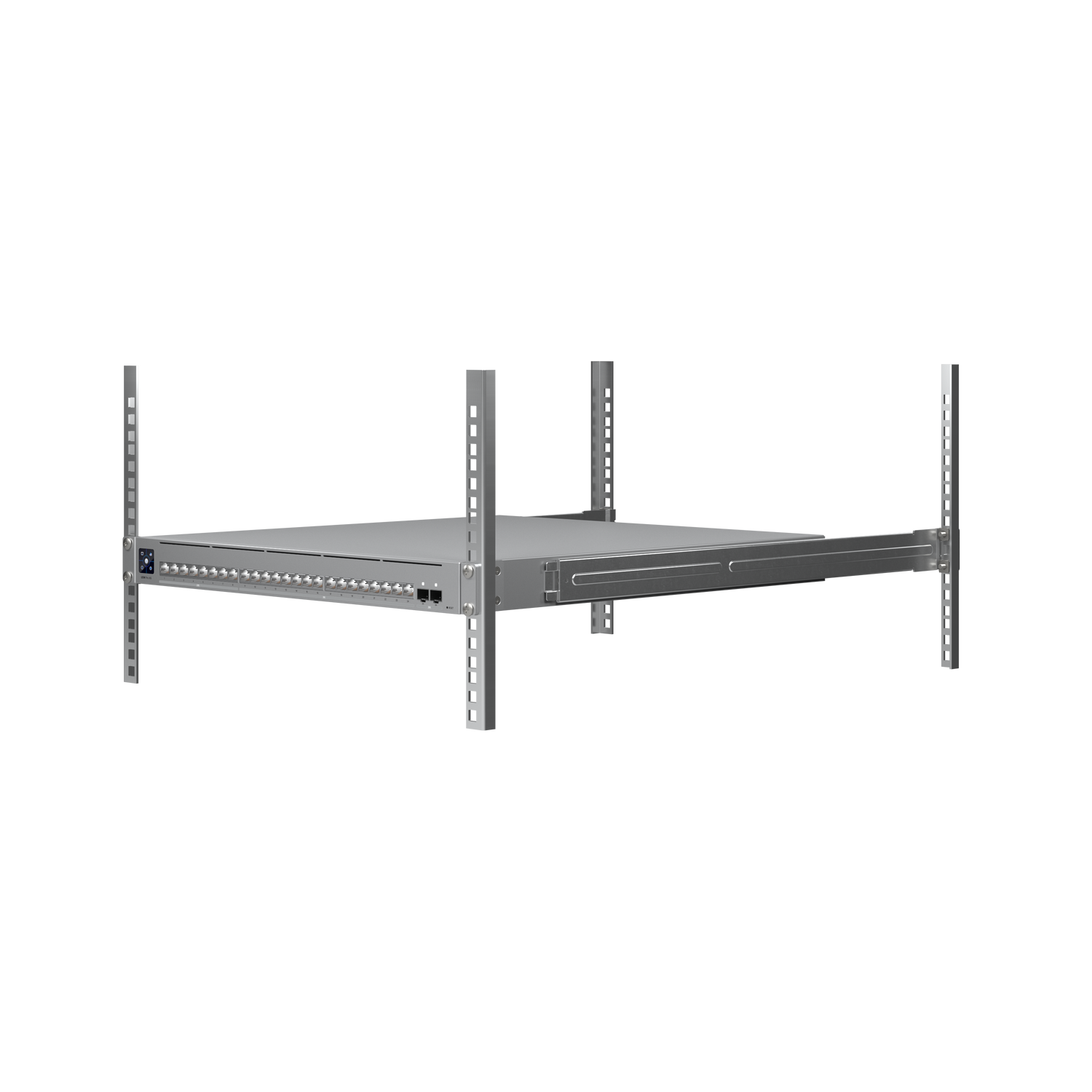

| Supported Rack Depth | 482.6 mm (19") four-post racks (600–1,066 mm / 23.6–42”) |
| ESD Protection | Air: ±30kV, Contact: ±20kV |
| Etherlighting™ Indicators | ✓ Ethernet, ✓ SFP28 |
| LEDs | RPS: ✓ |
Environmental & Compliance
| Item | Specification |
|---|---|
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
Software
| Item | Specification |
|---|---|
| Application Requirements | UniFi Network Version 9.0.114 and later |
