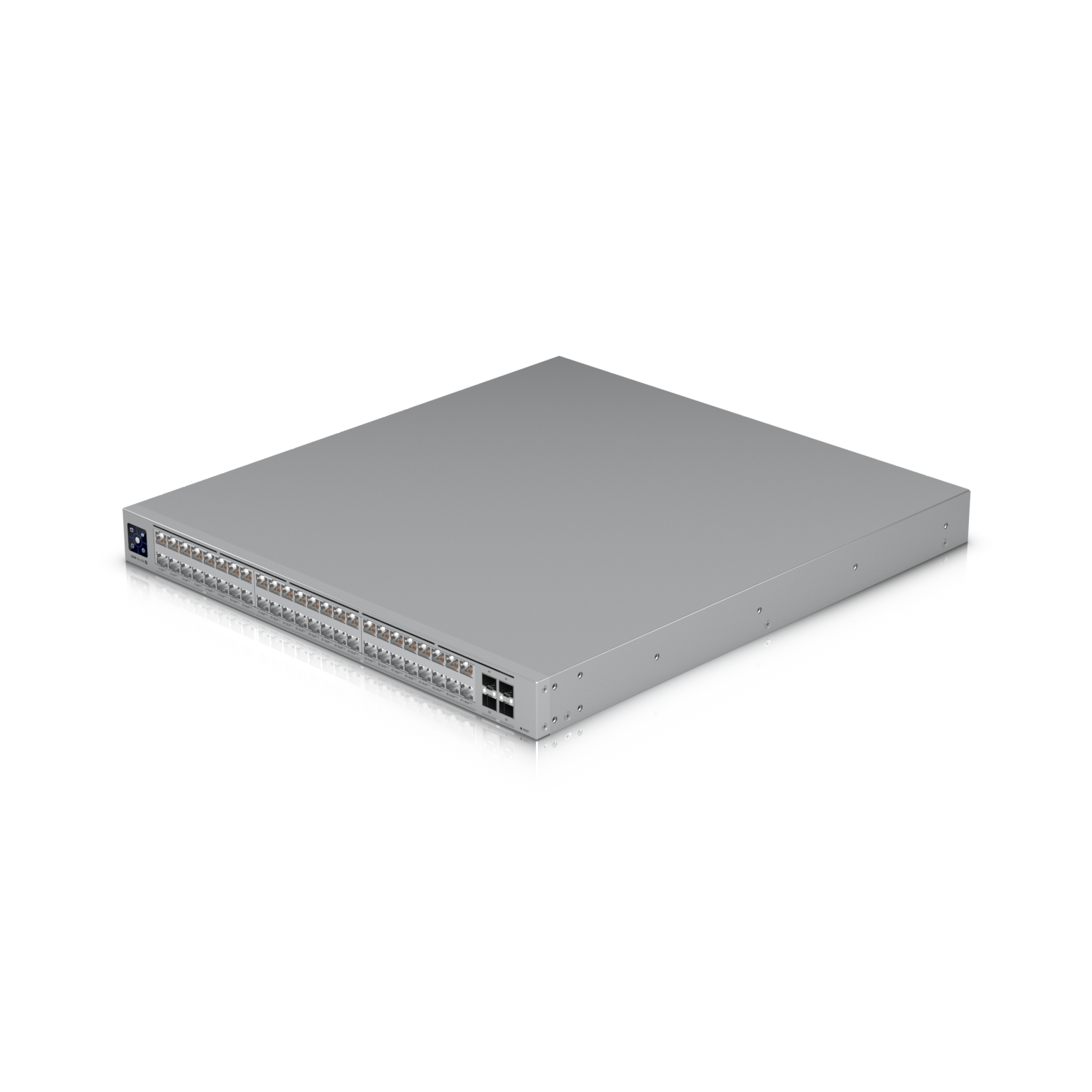

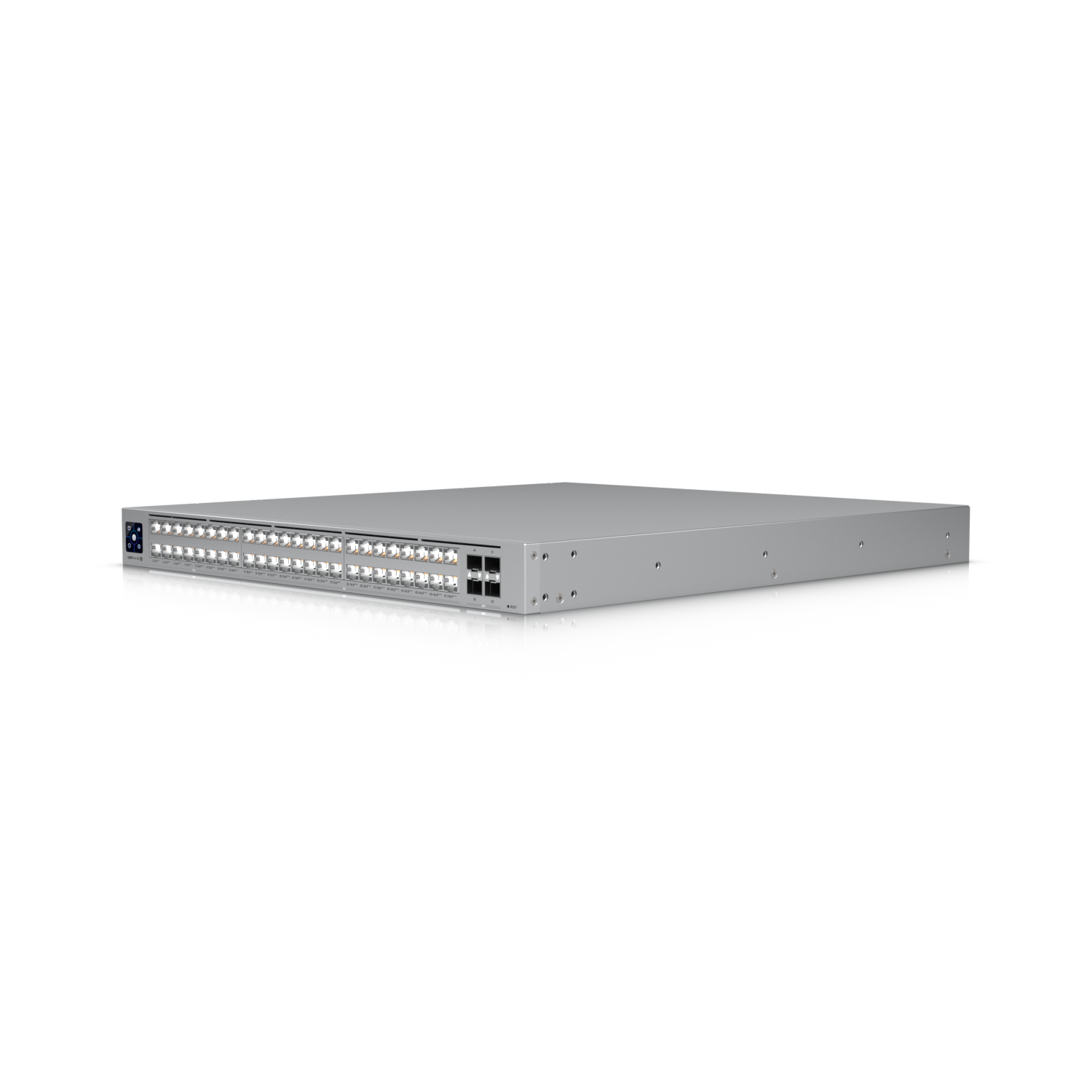

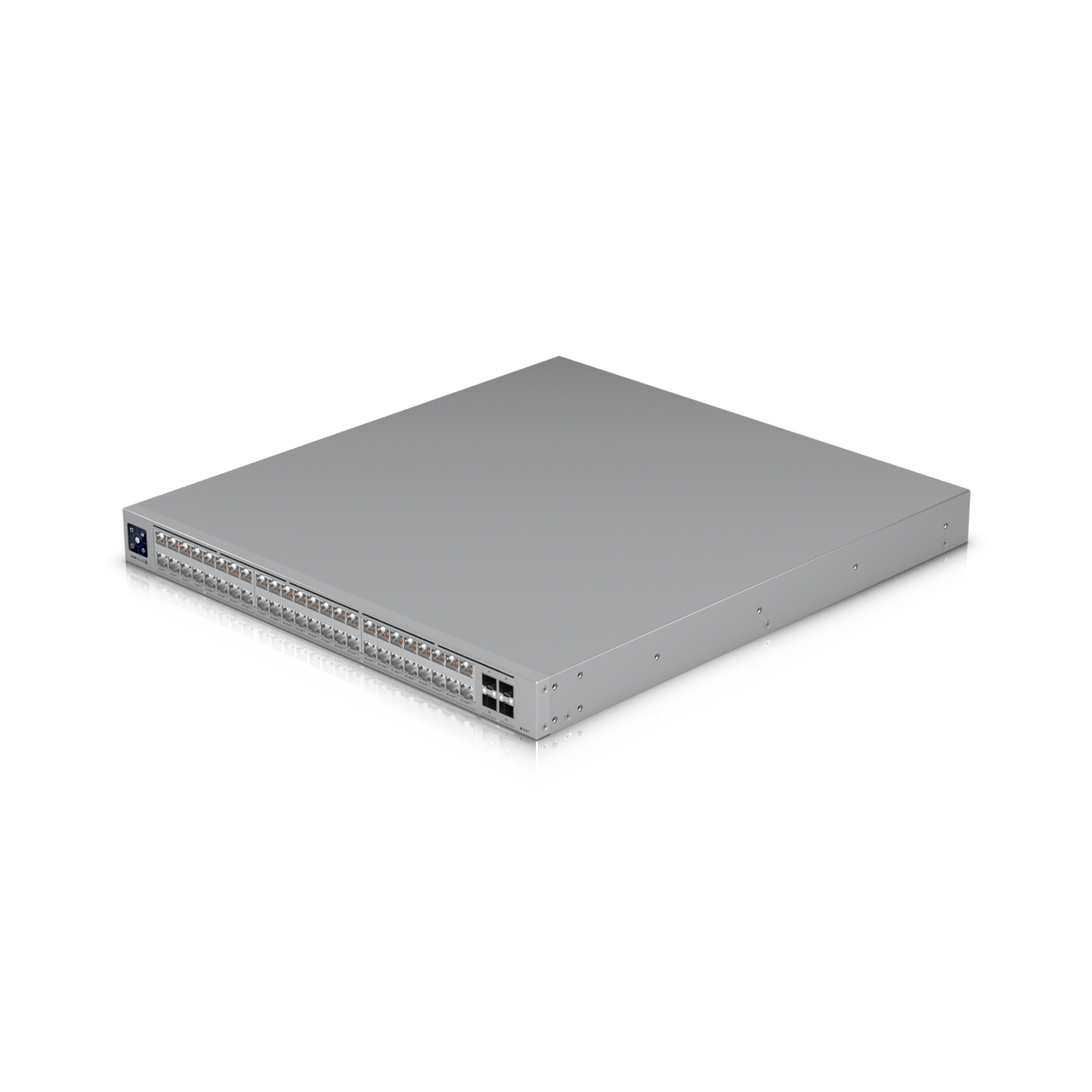

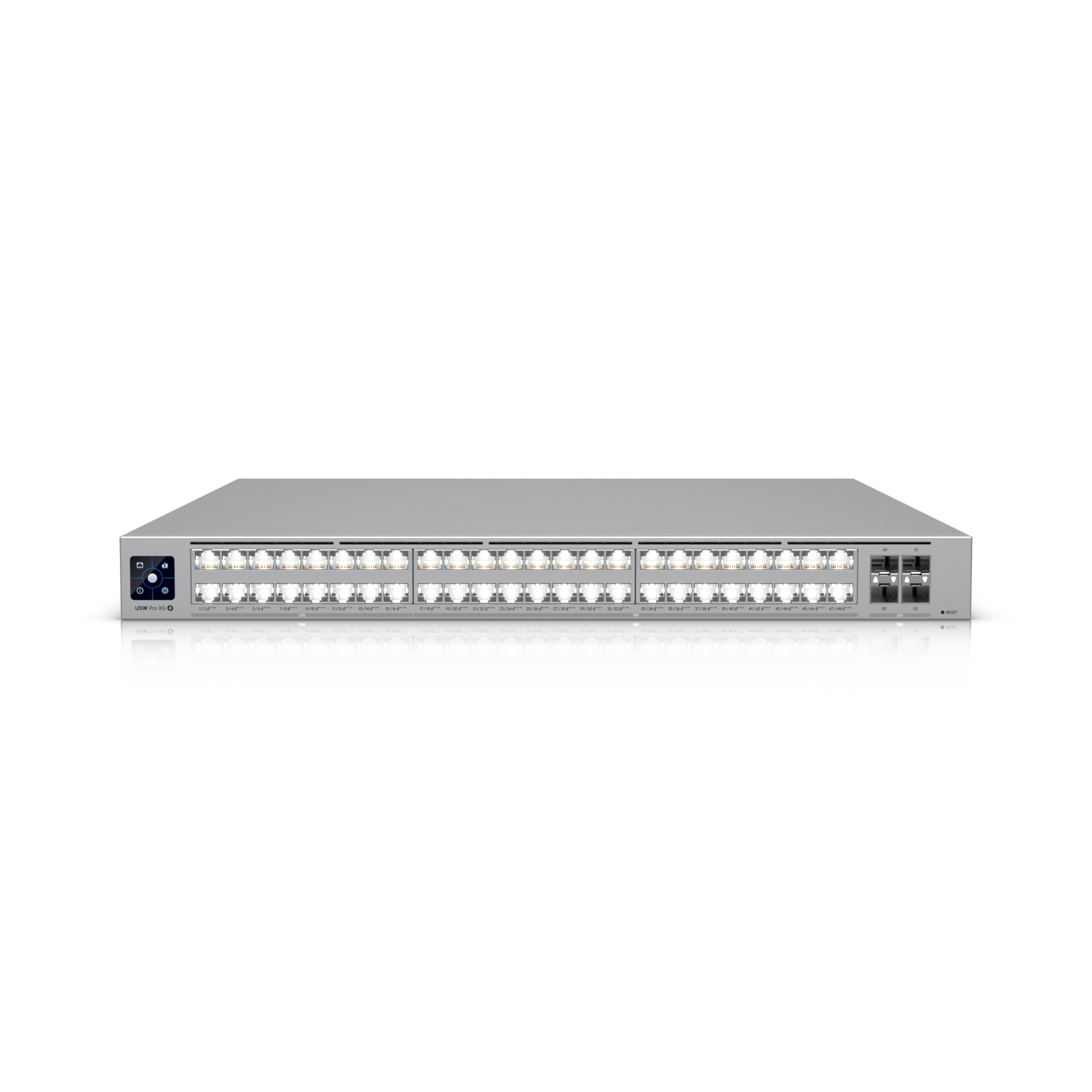

The Ubiquiti UniFi Pro XG 48 PoE usw-pro-xg-48-poe is a professional-grade, 48-port Layer 3 Etherlighting™ PoE+++ switch with (32) 10 GbE, (16) 2.5 GbE PoE, and (4) 25G SFP28 ports.
Technical Specifications
Overview
| Feature | Specification |
|---|---|
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| Port Layout | |
| 2.5 GbE RJ45 | 16 (All PoE+++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 32 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 | 4 (25G/10G/1G) |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC: 1080W100-120V AC: 972W |
| Redundancy | DC Power Backup |
| Layer 3 | ✓ |

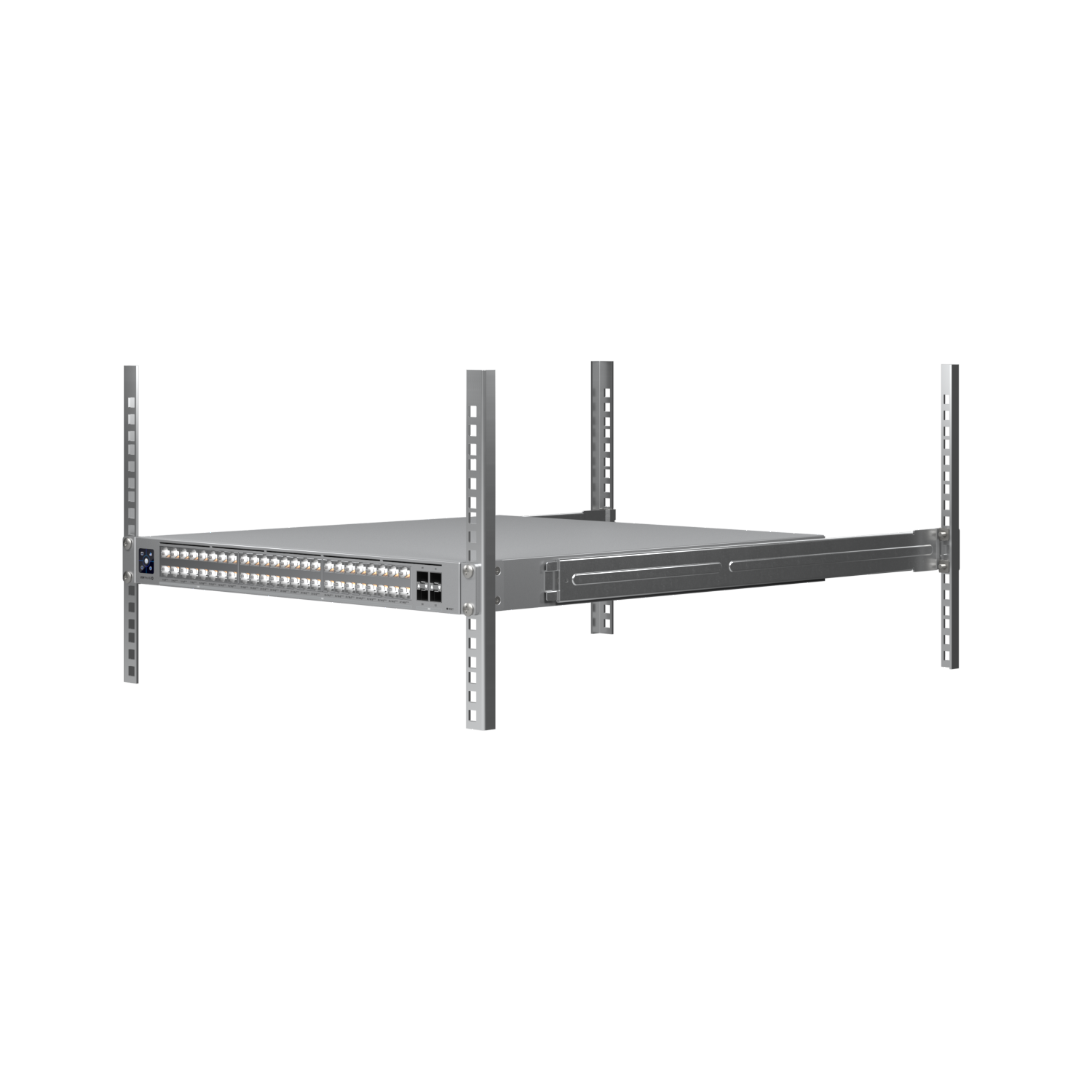

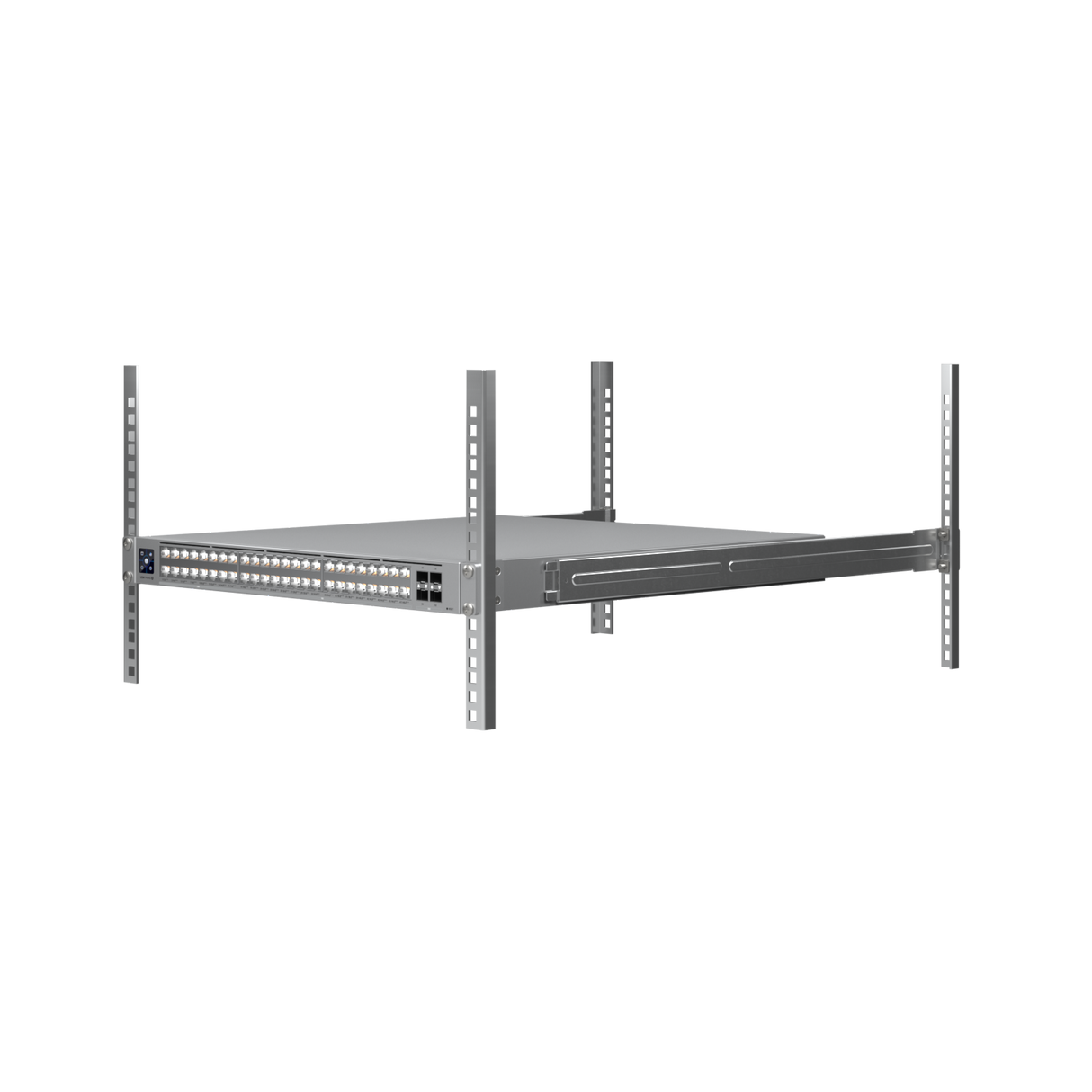

| Form Factor | Rack mount (1U) |
| Etherlighting™ | ✓ |
Performance
| Feature | Specification |
|---|---|
| Switching Capacity | 920 Gbps |
| Total Non-Blocking Throughput | 460 Gbps |
| Forwarding Rate | 684 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | |
| - ARP Entries | 128,000 |
| - IPv4 Routes | 256,000 |
| Packet Buffer Size | 8 MB |
Layer 3 Features
| Feature | Supported |
|---|---|
| DHCP Server (Local Networks) | ✓ |
| DHCP Relay | ✓ |
| Inter-VLAN Routing (Local Networks) | ✓ |
| Static Routing (Local Networks) | ✓ |
Layer 2 Features
| Feature | Supported |
|---|---|
| LACP Port Aggregation | ✓ |
| STP & RSTP | ✓ |
| QoS (DSCP) | ✓ |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, etc.) | ✓ |
| Advanced IGMP Configuration | ✓ |
| IGMP Snooping | ✓ |
| 802.1X Control | ✓ |
| MAC-Based ACLs & Device Isolation | ✓ |
| DHCP Snooping & Guarding | ✓ |
| Egress Rate Limit | ✓ |
| Flow Control | ✓ |
| Storm Control | ✓ |
| Multicast & Broadcast Rate Limiting | ✓ |
| MAC Address Blocking | ✓ |
| IP-Based ACLs & Network Isolation | ✓ |
| MAC-Based Port Restriction | ✓ |
| Port Isolation | ✓ |
| Port Mirroring | ✓ |
| Jumbo Frames | ✓ |
| LLDP-MED | ✓ |
| Voice VLAN | ✓ |
| Loop Protection | ✓ |
Hardware
| Feature | Specification |
|---|---|
| PoE Ports | PoE+++ 48 |
| Max. PoE Wattage per Port by PSE | PoE: 15.4WPoE+: 30WPoE++: 60WPoE+++: 90W |
| Max. Power Consumption | 200W (Excluding PoE Output)200-240V: 1,280W100-120V: 1,172W (Including PoE Output) |

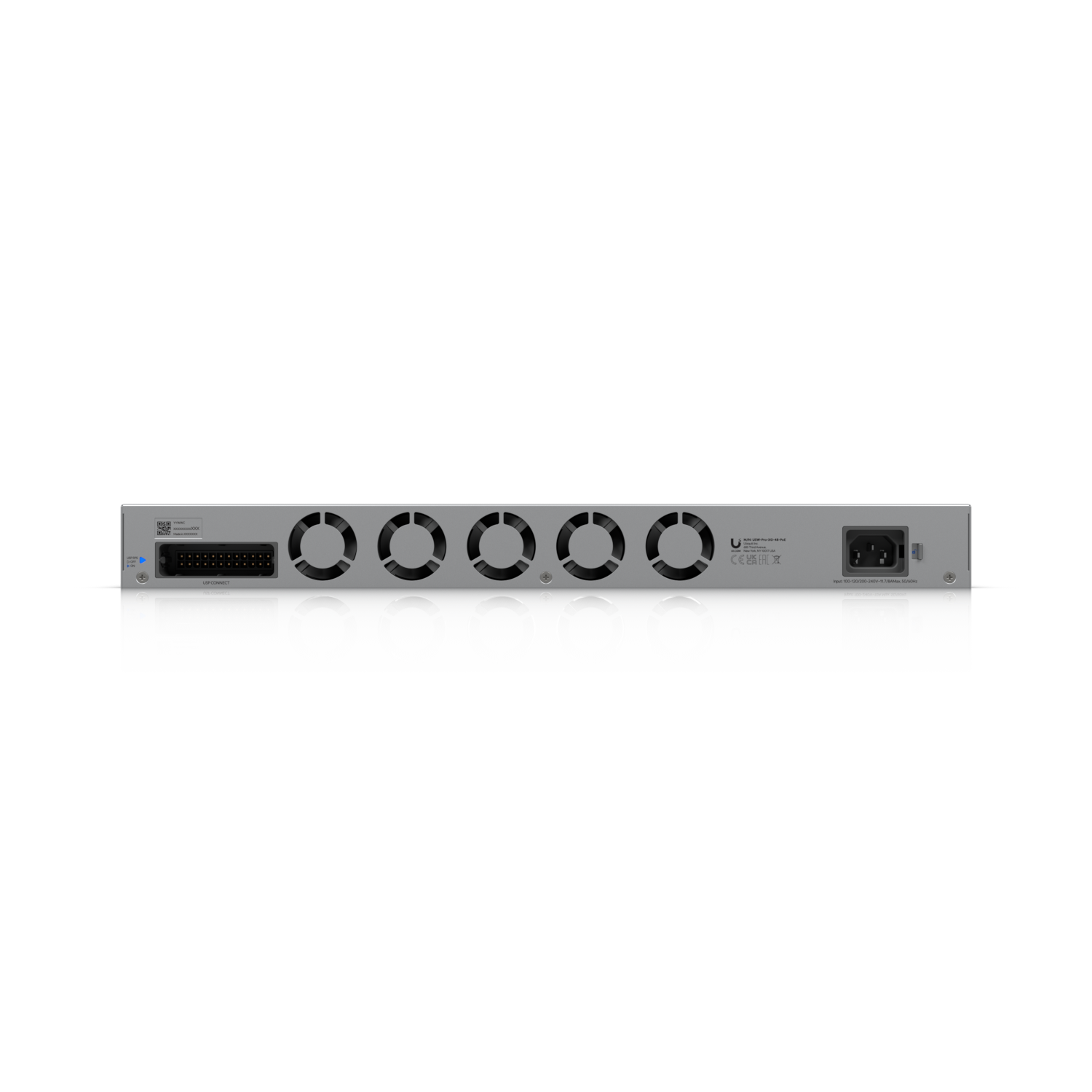

| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz(1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 1,350W |
| Supported Voltage Range | 100–240V AC |
| Management Ethernet | AR |
| Weight | Without brackets: 8.7 kg (15.4 lb)With brackets: 8.8 kg (15.7 lb) |
| Enclosure & Mount Material | SGCC steel |
| LCM Display | 1.3" touchscreen |
| ESD/EMP Protection | Air: ±30kV, Contact: ±20kV |
| Ambient Operating Temp | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |

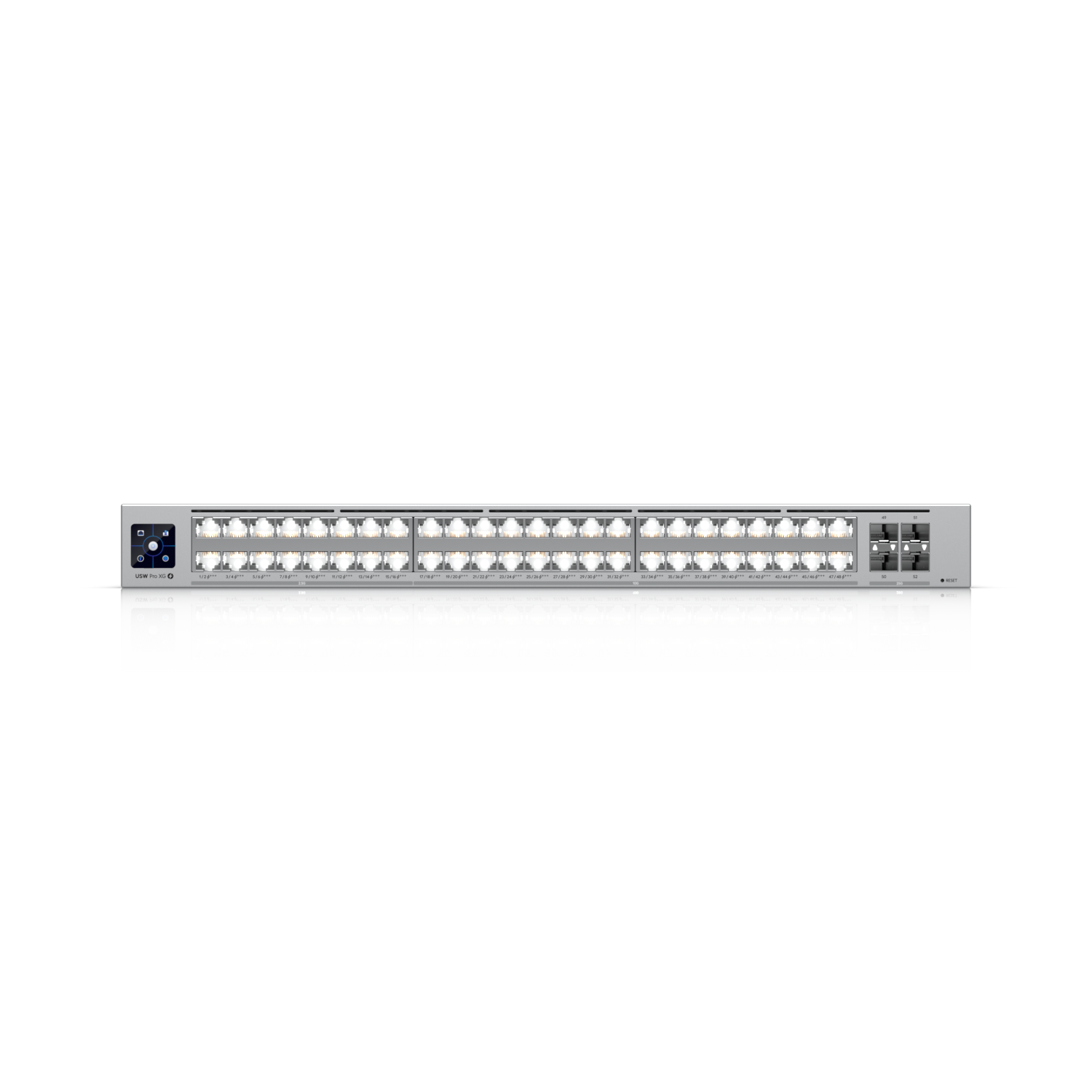

| Etherlighting™ | Ethernet: ✓SFP28: ✓ |
| LEDs – RPS | ✓ |
| Certifications | CE, FCC, IC |
| NDAA Compliant | ✓ |
Software
| Feature | Requirement |
|---|---|
| Application Requirements | UniFi Network Version 9.1.120 and later |
