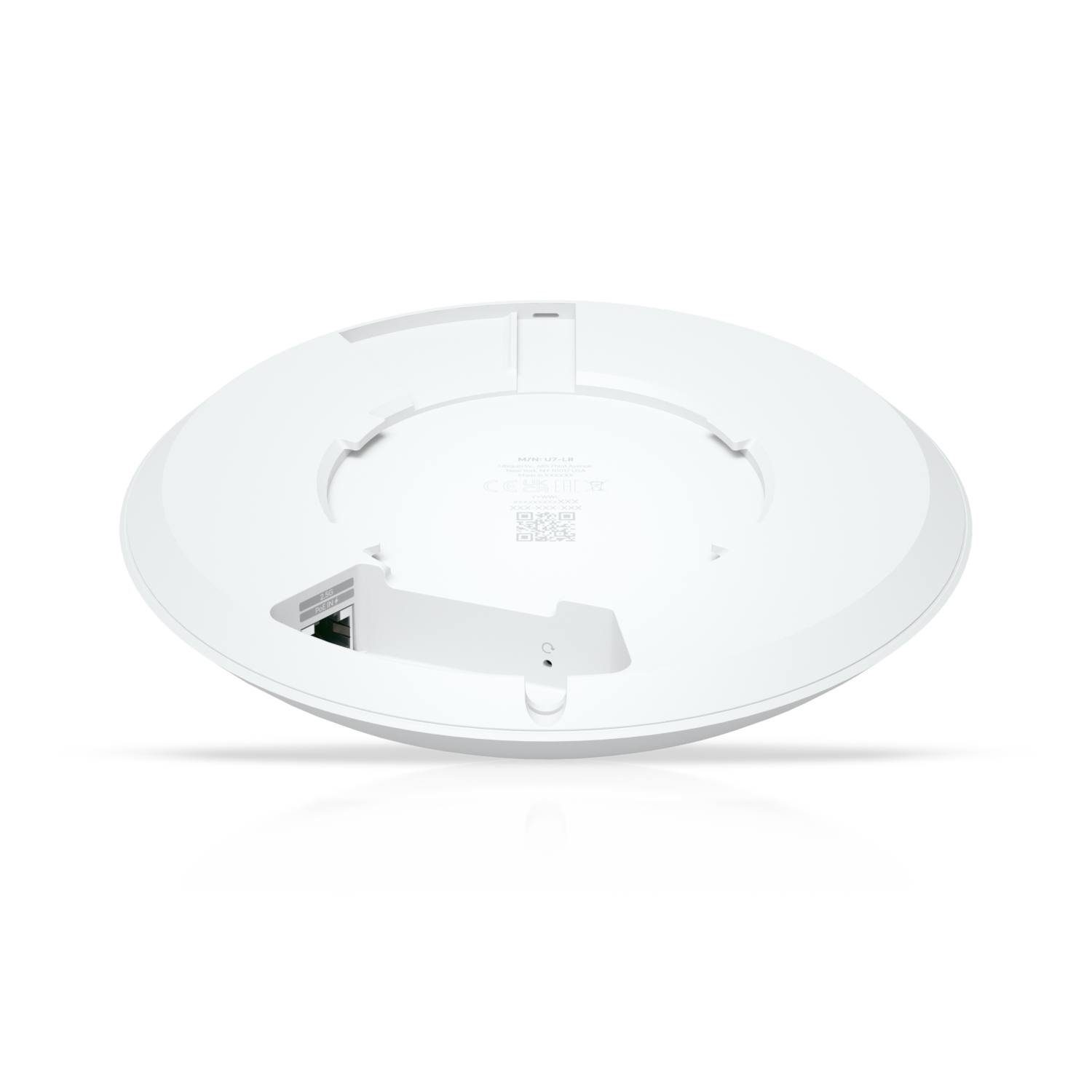

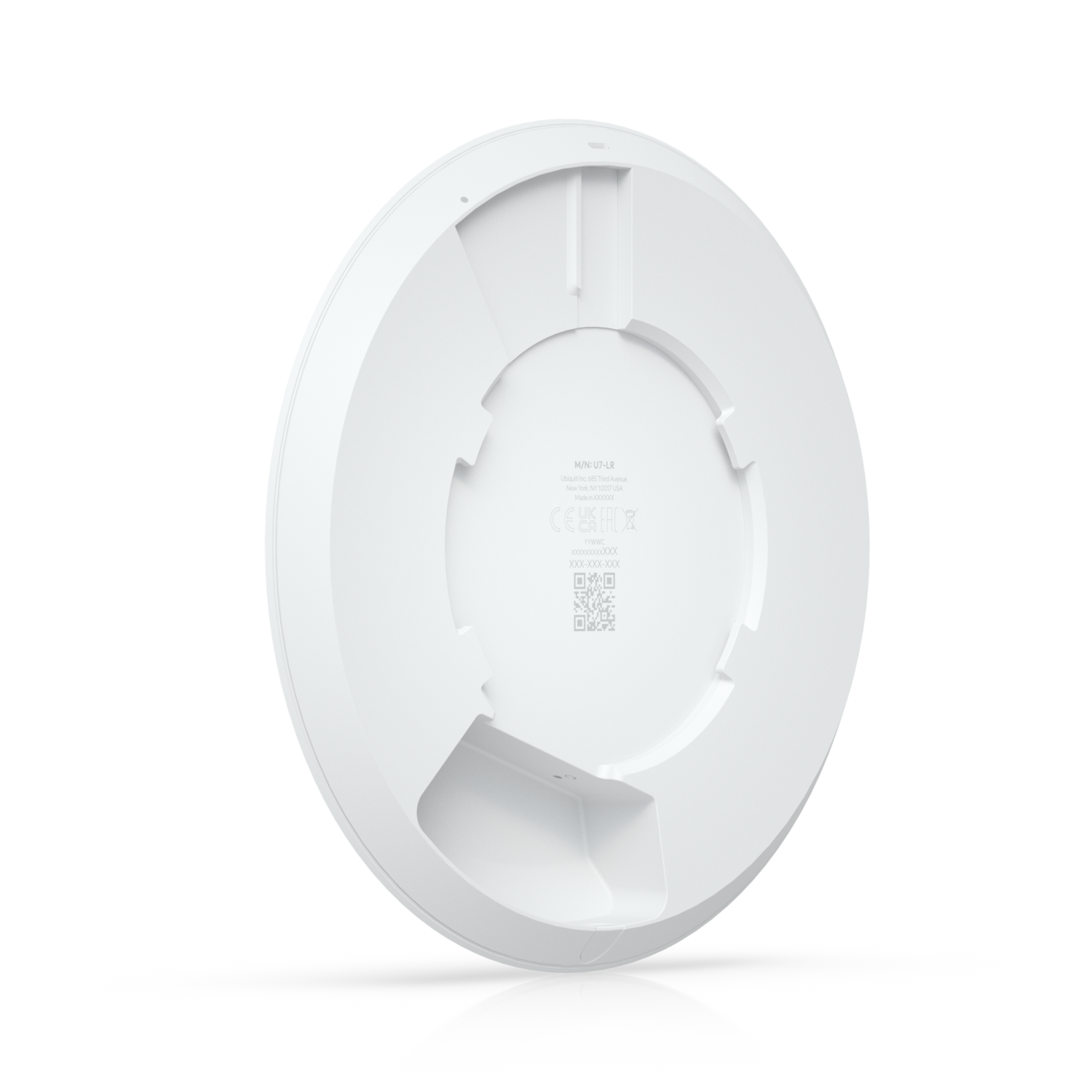

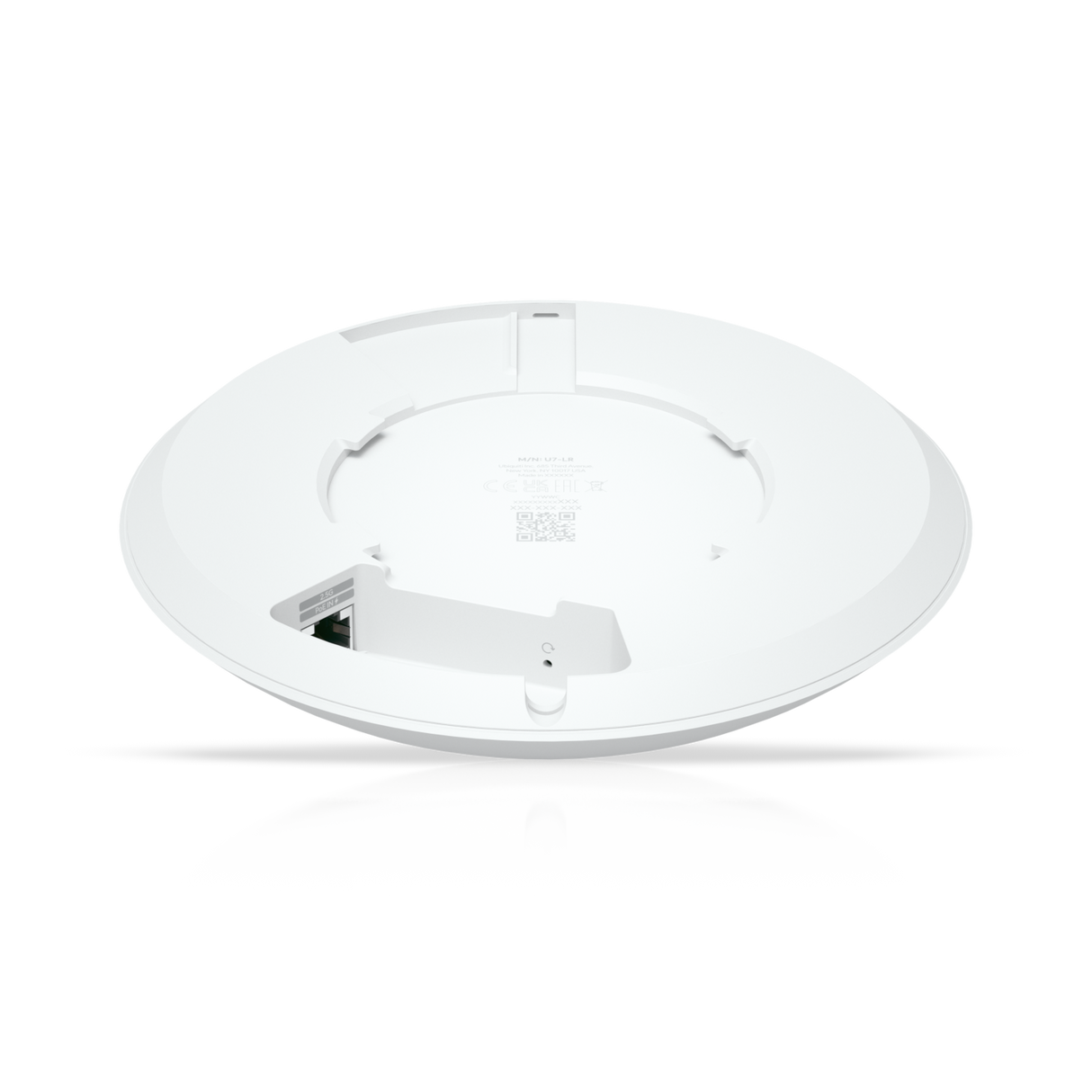

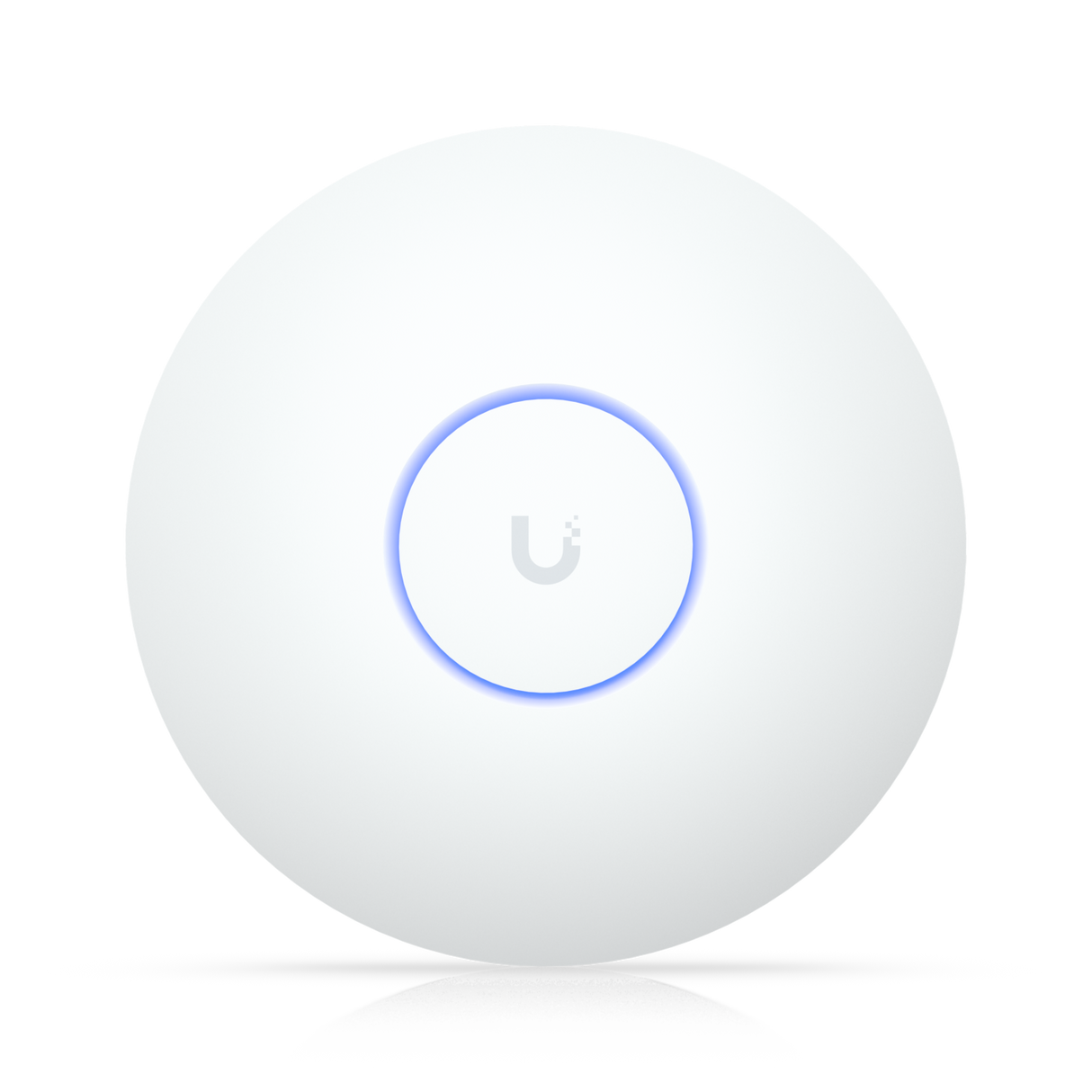

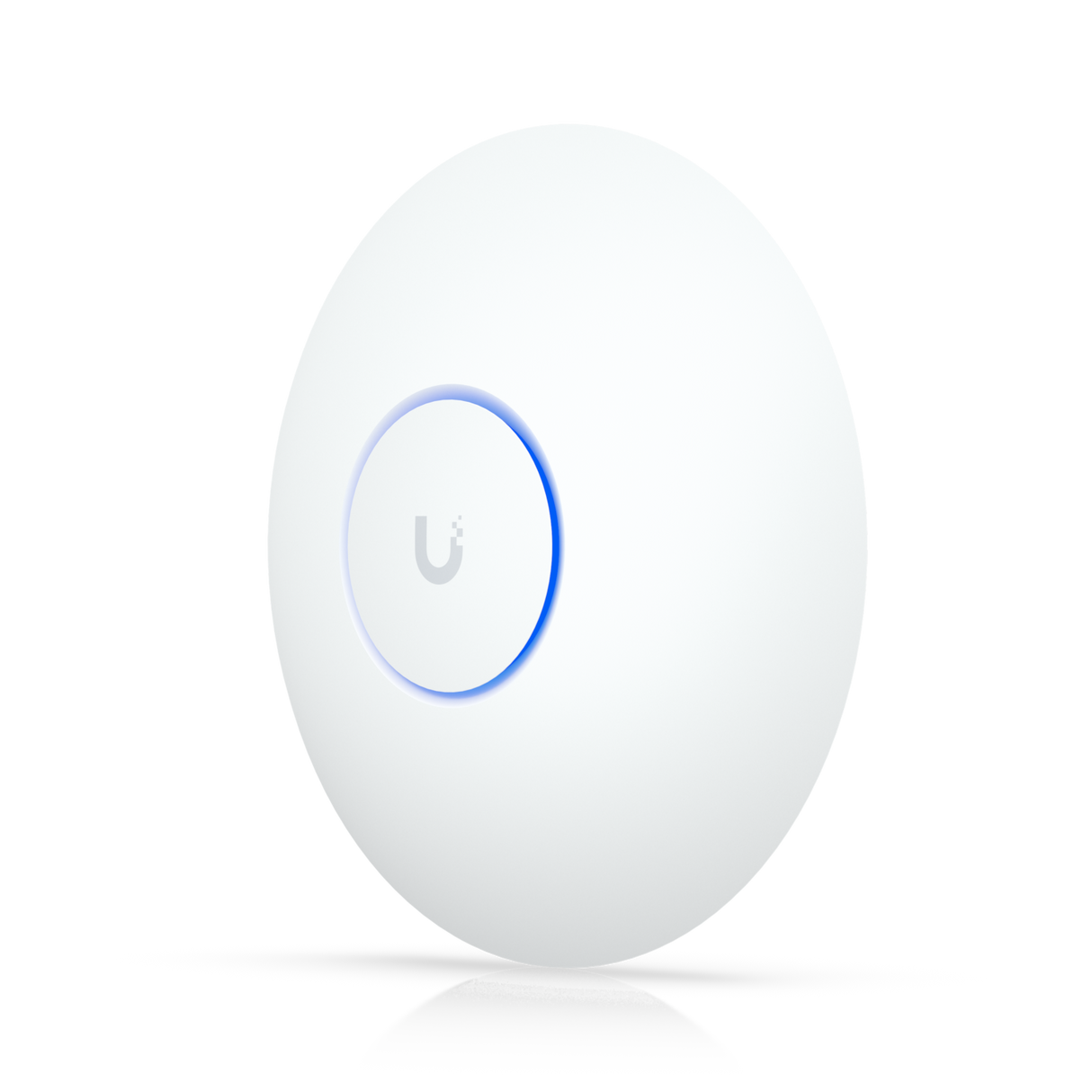

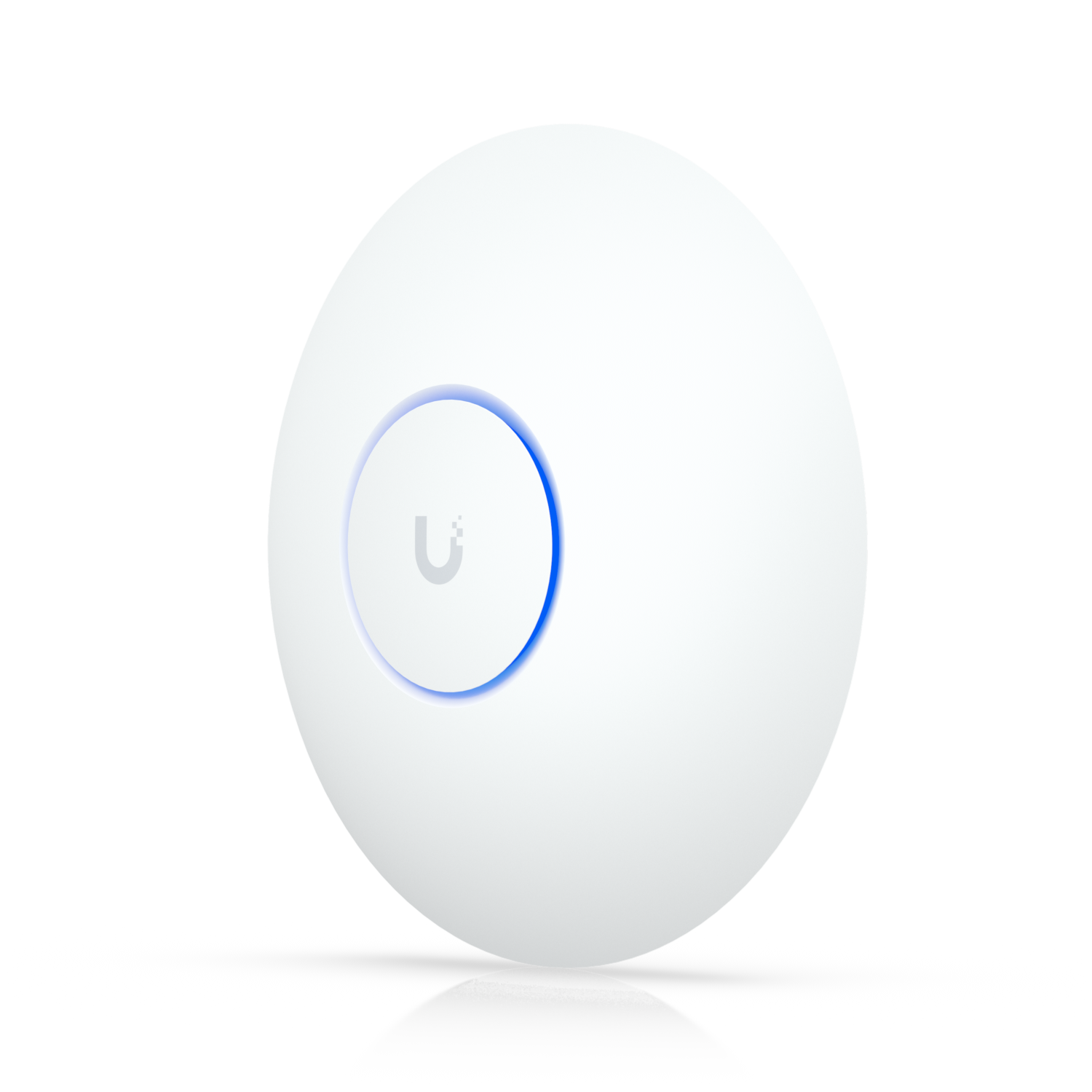

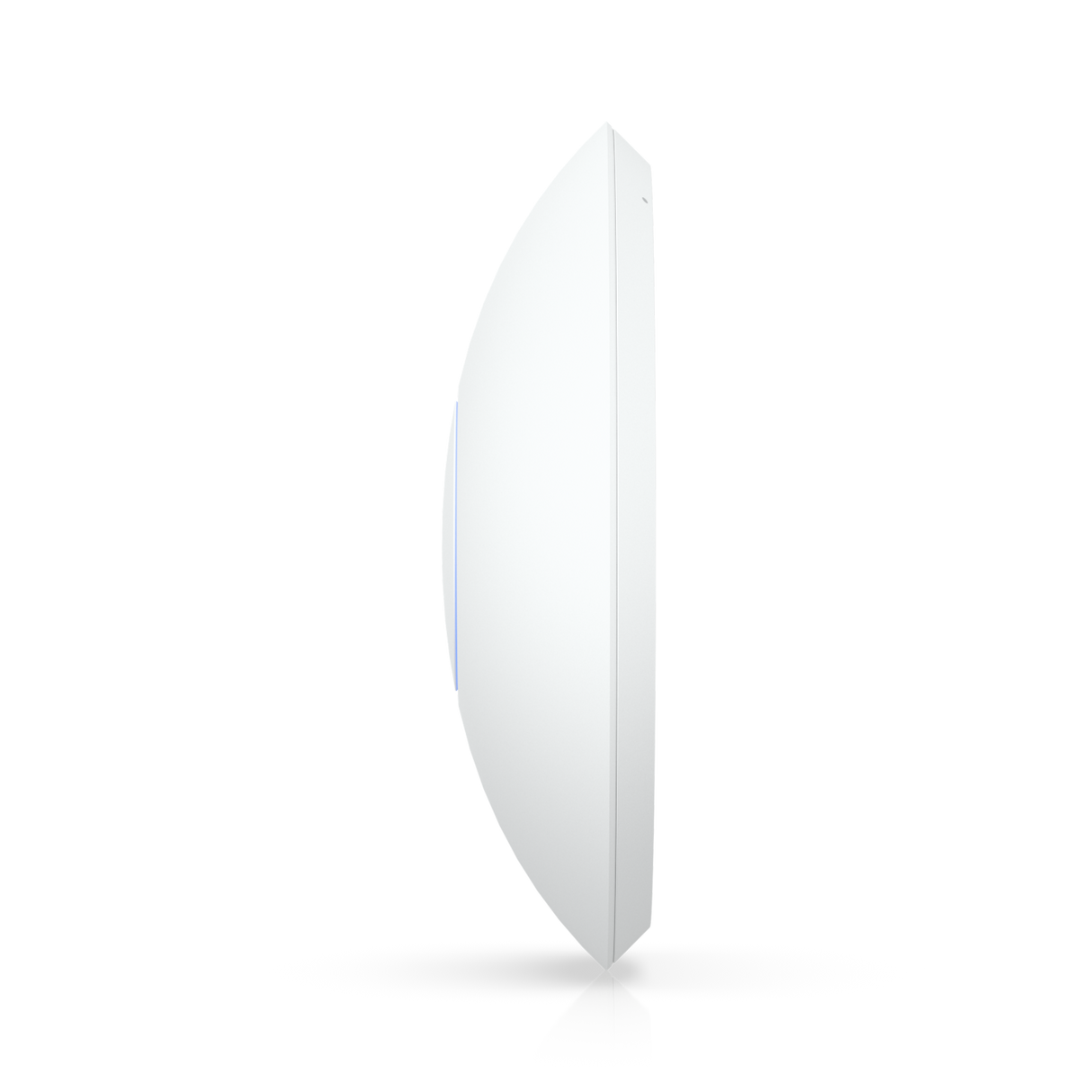

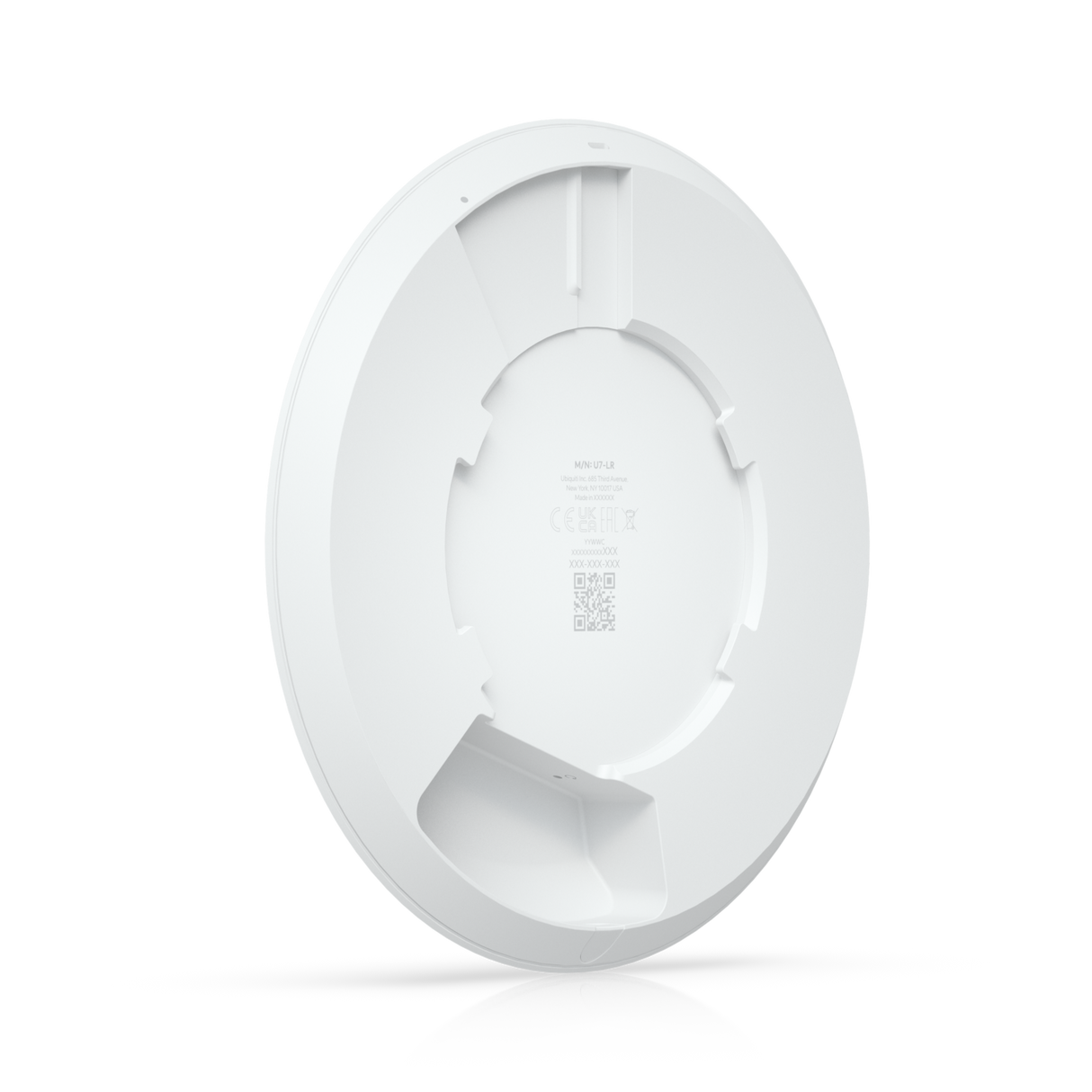

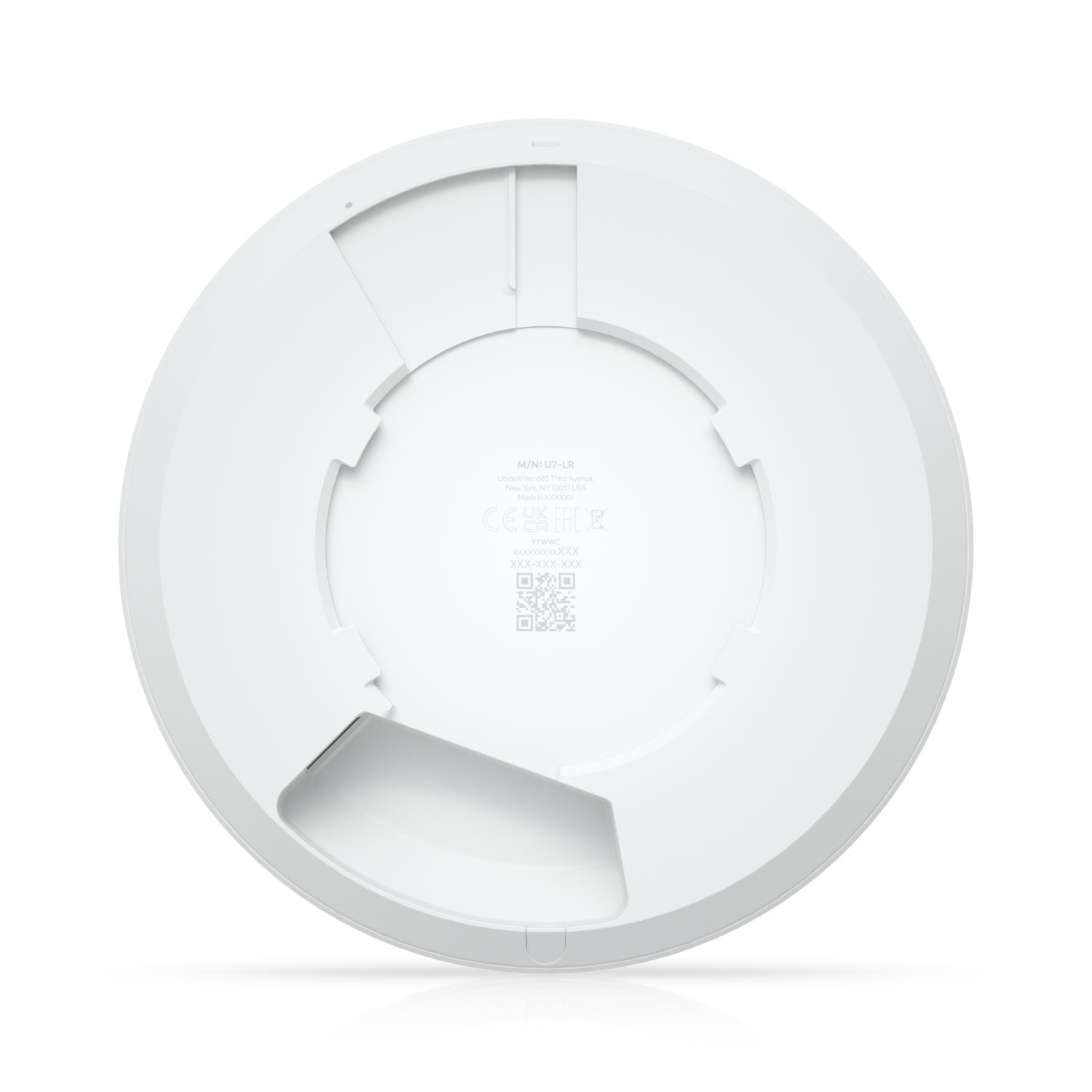

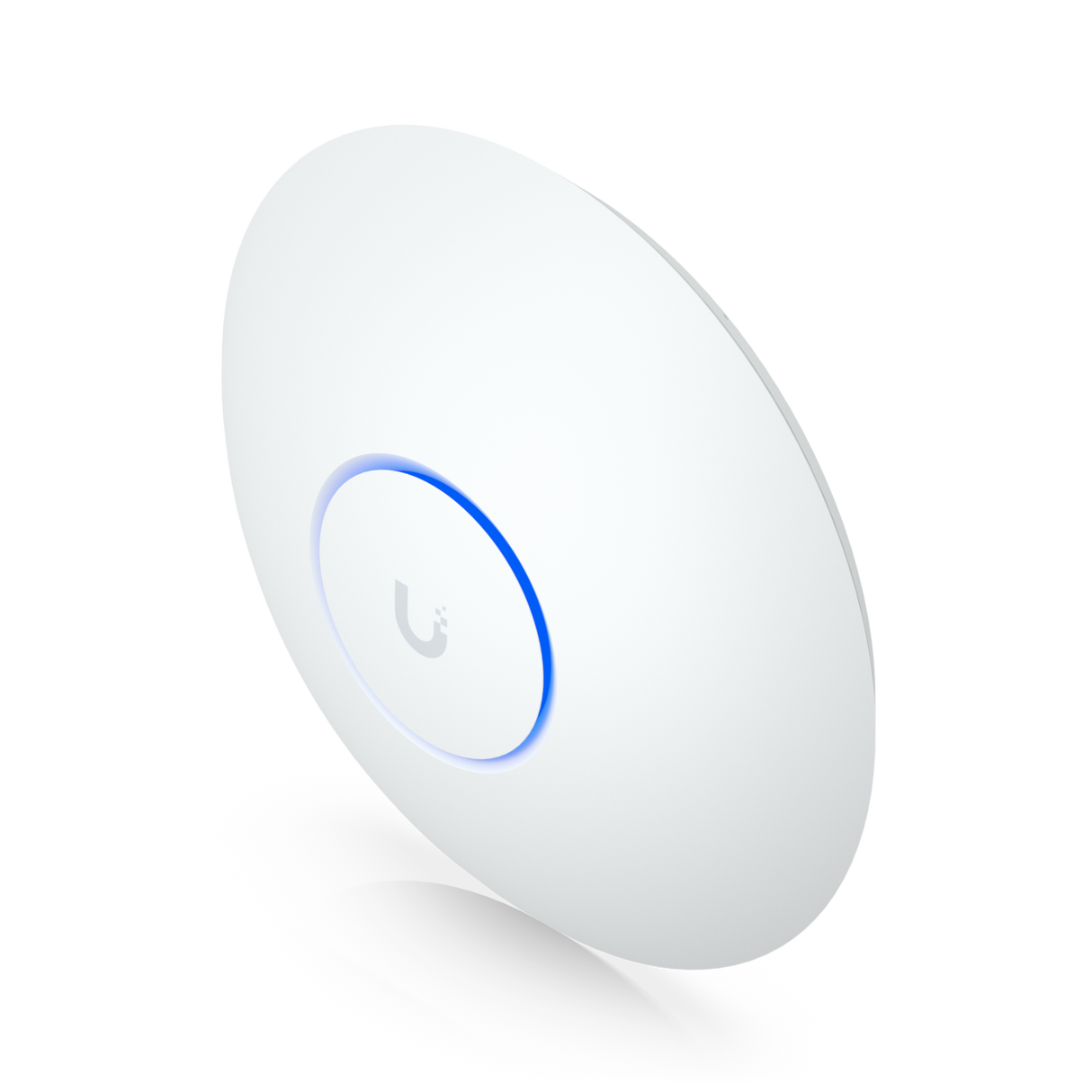

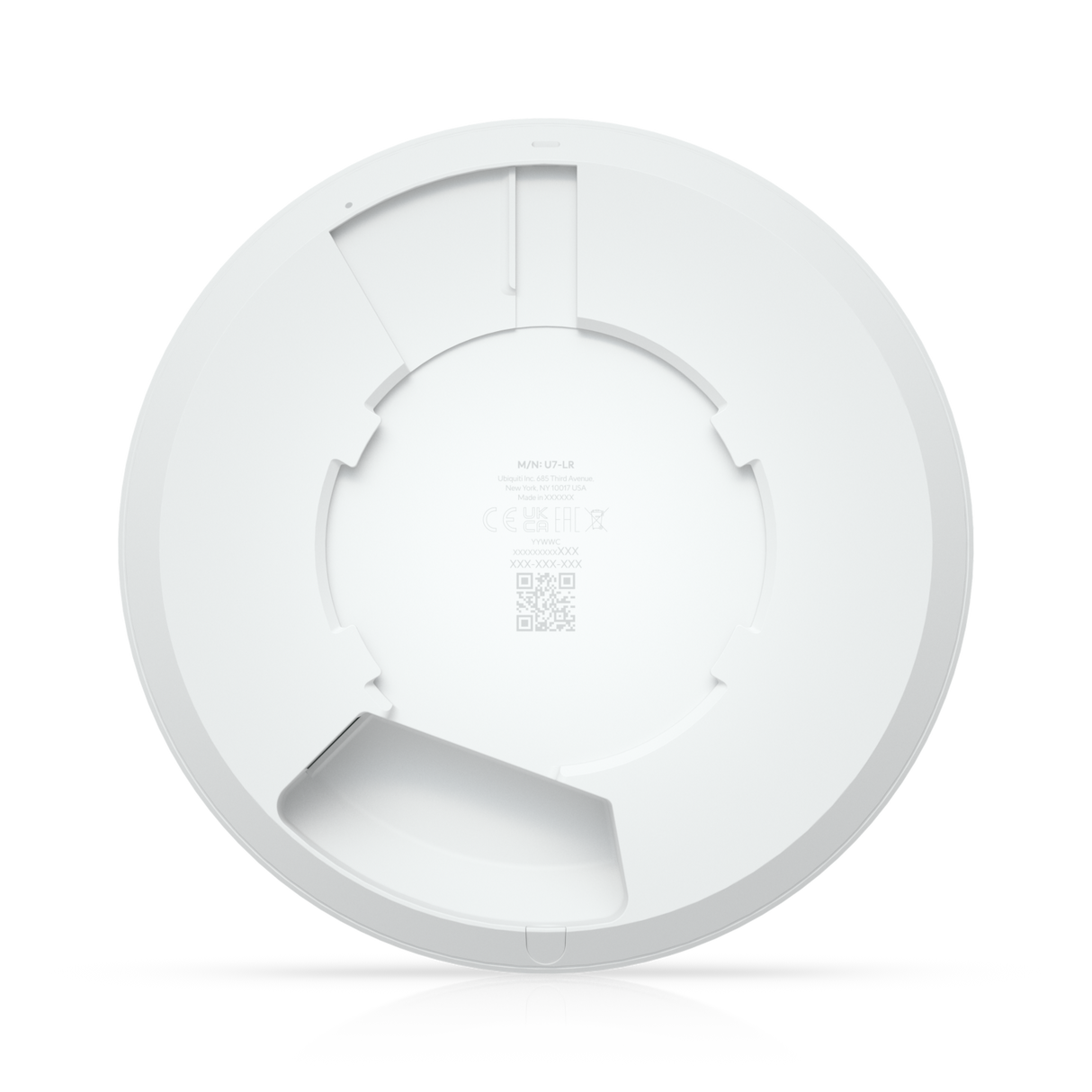

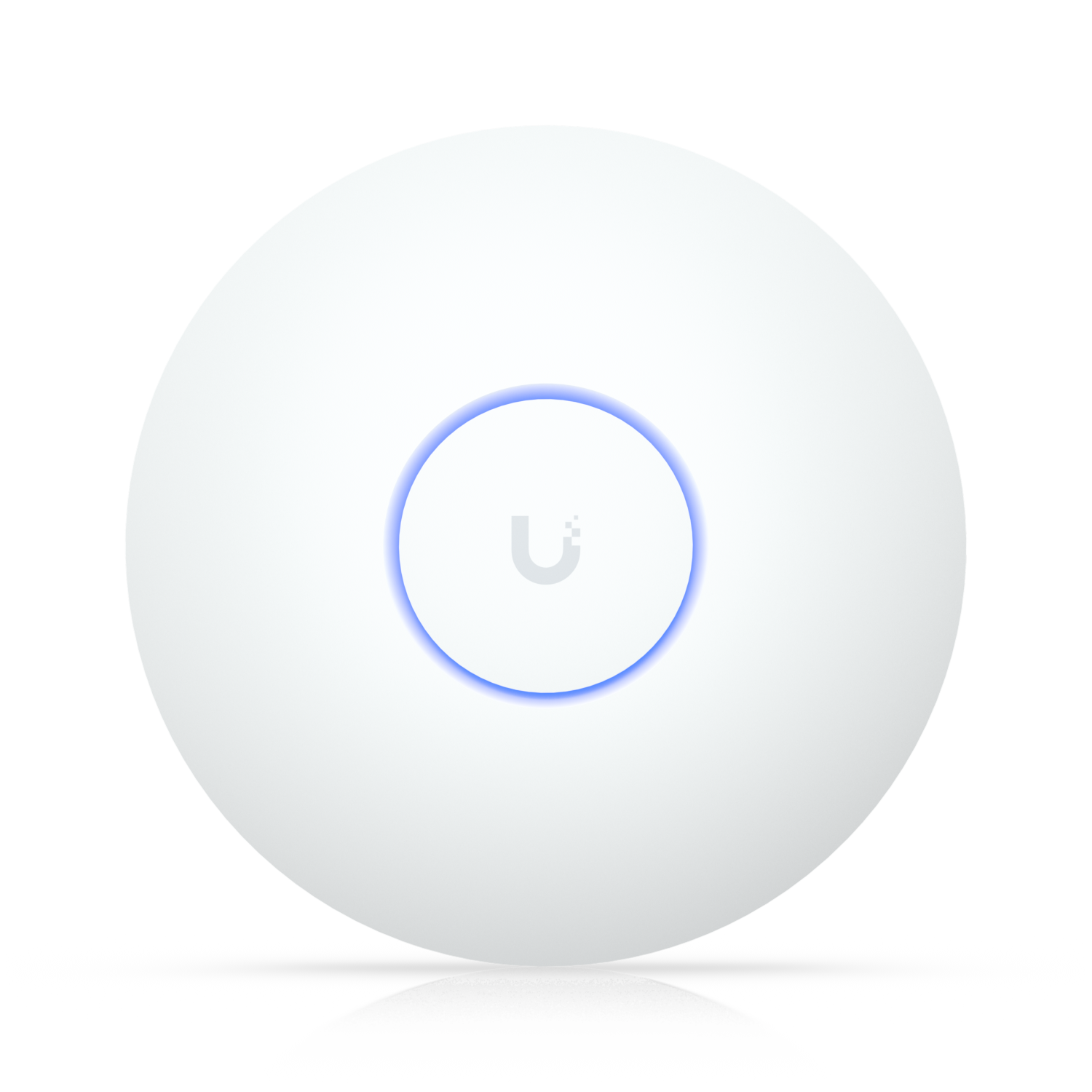

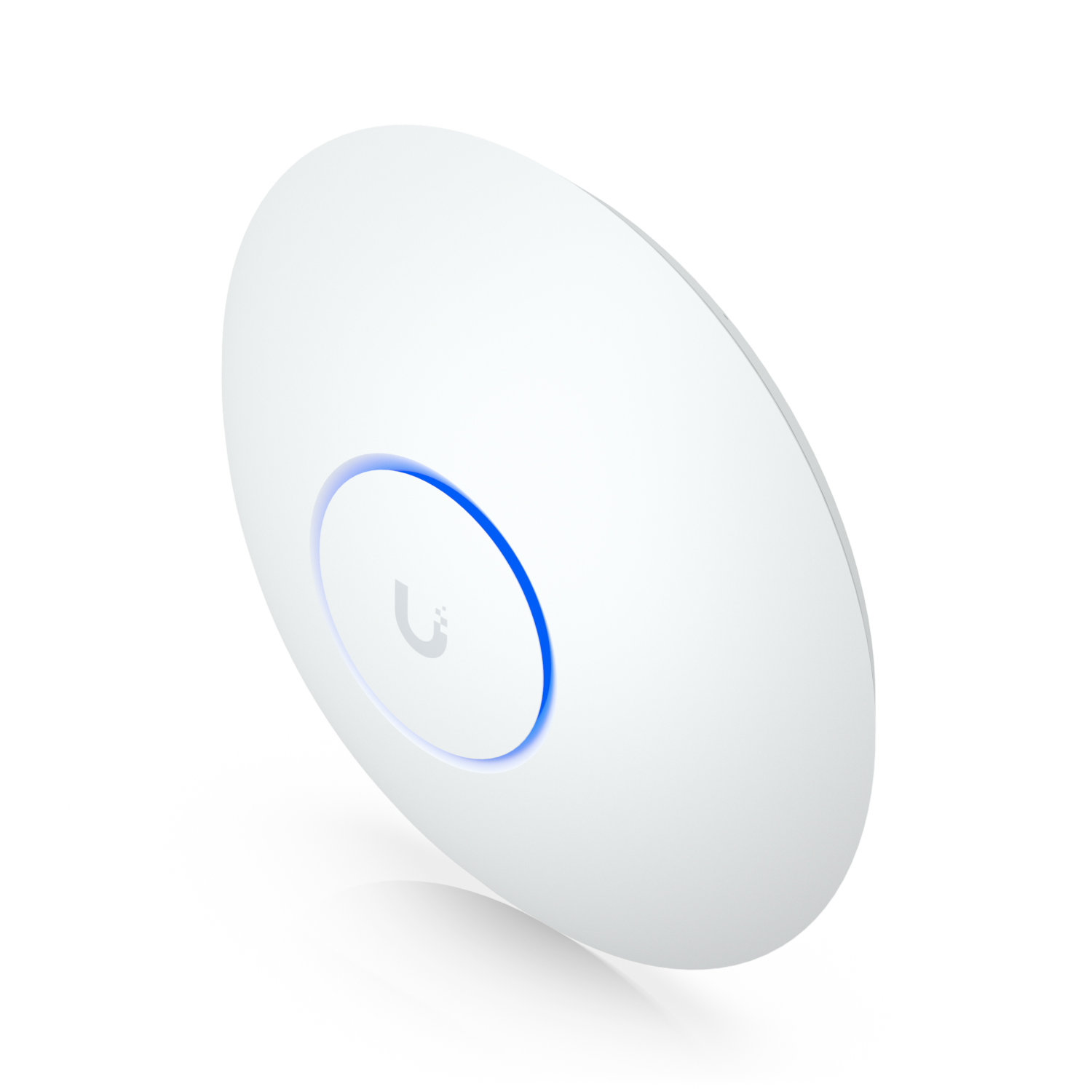

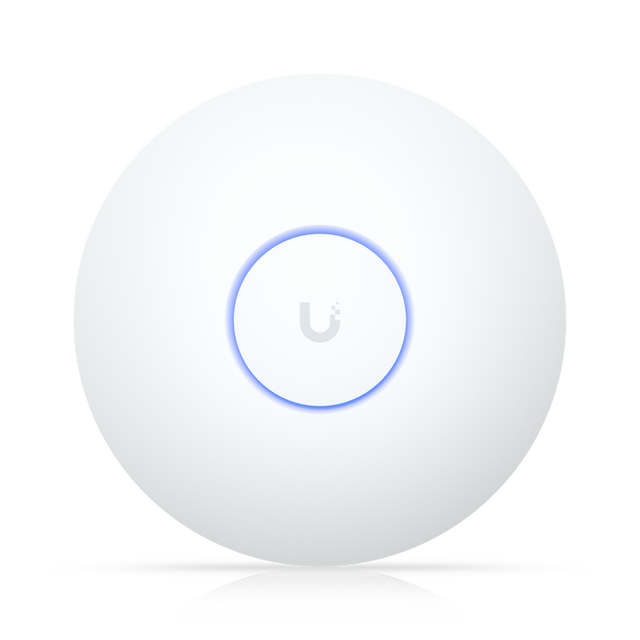

The Ubiquiti UniFi U7 Long-Range U7-LR is a compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.
Technical Specifications
| Category | Specification |
|---|---|
| Overview | |
| Dimensions | Ø175.7 x 43 mm (Ø6.9 x 1.7") |
| WiFi Standard | WiFi 7 (compatible with WiFi 6 and WiFi 5 devices) |
| Spatial Streams | 5 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | Ceiling, Wall (Plastic Mounting Plate included) |
| Power Method | PoE |
| Performance | |
| MIMO - 5 GHz | 3 x 3 (DL/UL MU-MIMO) |
| MIMO - 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate - 5 GHz | 4.3 Gbps (BW160) |
| Max. Data Rate - 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain - 5 GHz | 6 dBi |
| Antenna Gain - 2.4 GHz | 4 dBi |
| Max. TX Power - 5 GHz | 27 dBm |
| Max. TX Power - 2.4 GHz | 26 dBm |
| Supported Data Rates | |
| WiFi 7 (802.11be) | 7.3 Mbps to 4.3 Gbps (MCS0–MCS13, NSS1/2/3, EHT 20/40/80/160) |
| WiFi 6 (802.11ax) | 7.3 Mbps to 3.6 Gbps (MCS0–MCS11, NSS1/2/3, HE 20/40/80/160) |
| WiFi 5 (802.11ac) | 6.5 Mbps to 2.6 Gbps (MCS0–MCS9, NSS1/2/3, VHT 20/40/80/160) |
| WiFi 4 (802.11n) | 6.5 Mbps to 450 Mbps (MCS0–MCS23, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k RRM | ✓ |
| Advanced Radio Management | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | ✓ |
| Custom Branding Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic VLAN Assignment | ✓ |
| Hardware | |
| Max. Power Consumption | 14W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 2.5 GbE RJ45 port |
| Weight | 448 g (15.8 oz) |
| Management | Ethernet |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Polycarbonate, galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz) |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50°C (-22 to 122°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Software | |
| UniFi Network Requirement | Version 9.1.120 and later |
| Mobile App Support | iOS™ v10.20.2+, Android™ v10.21.7+ |
