Ubiquiti UniFi U7 Pro XGS U7-PRO-XGS
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
Please contact us for availability.
Pre-Order - Orders for this product are currently expected to ship 4/7

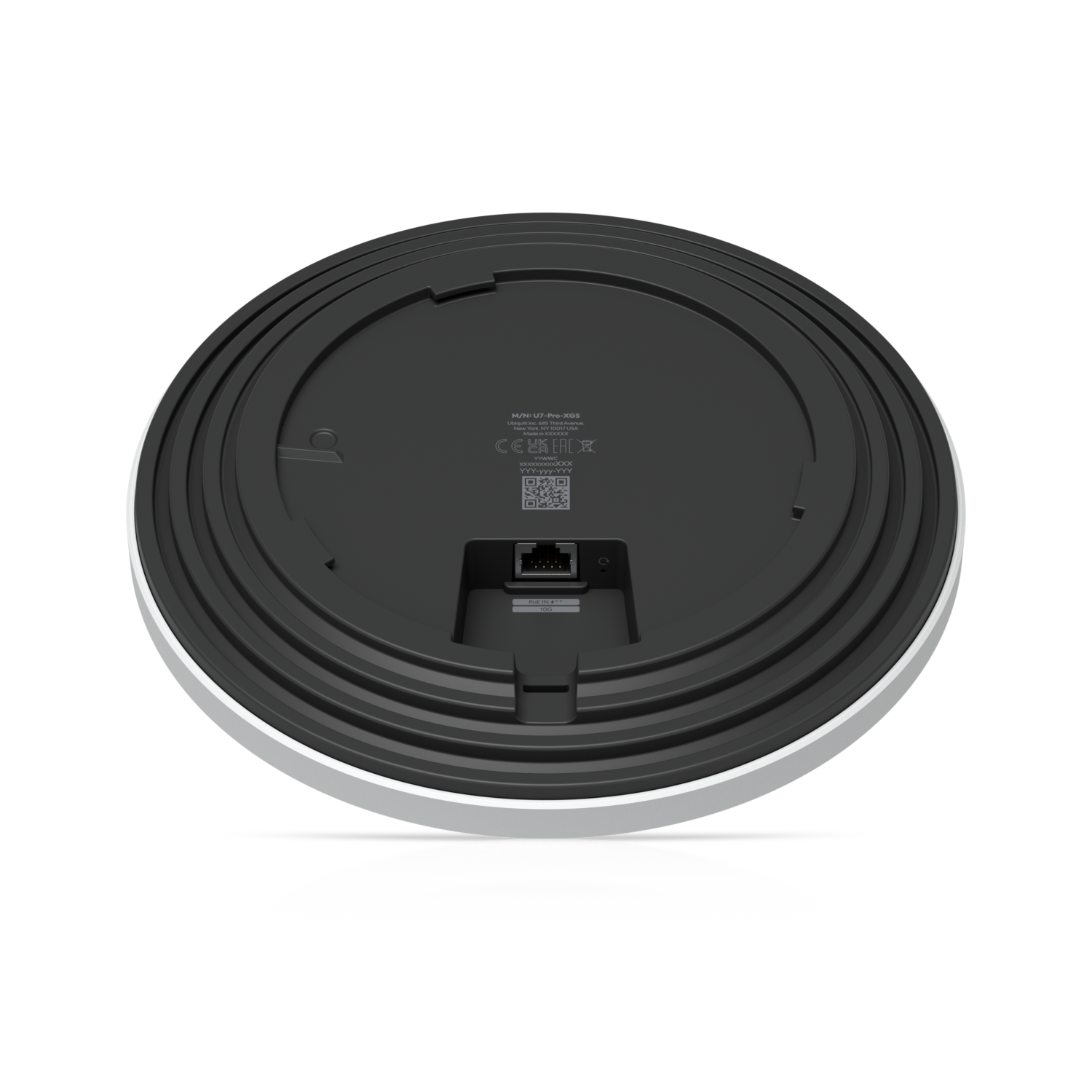

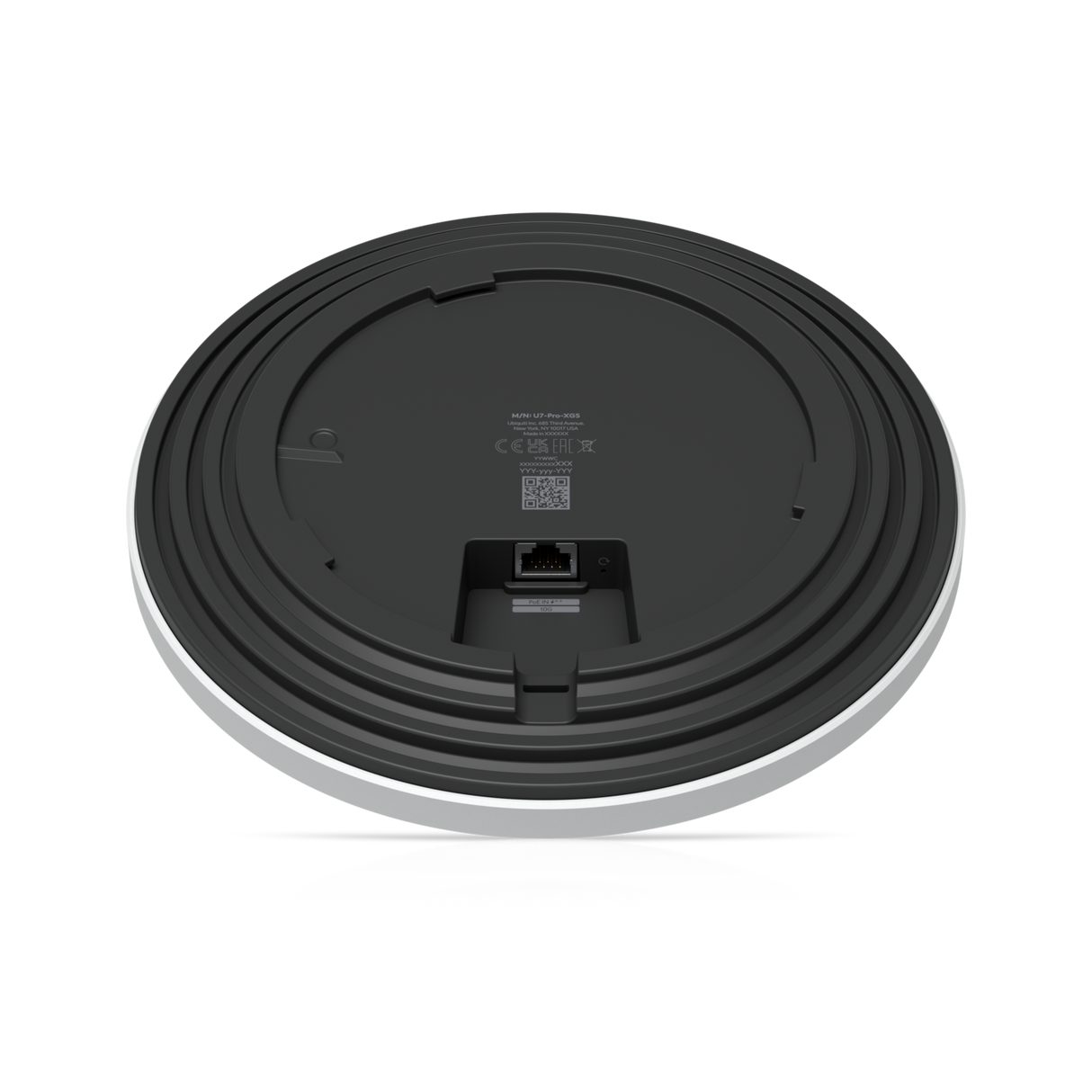

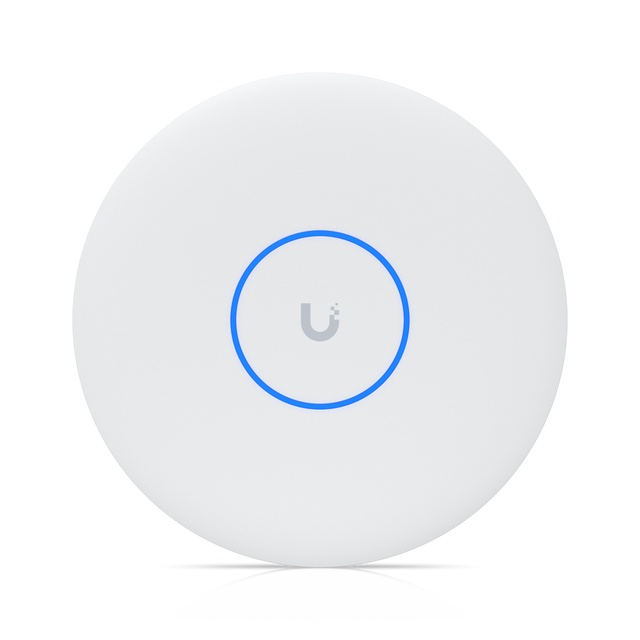

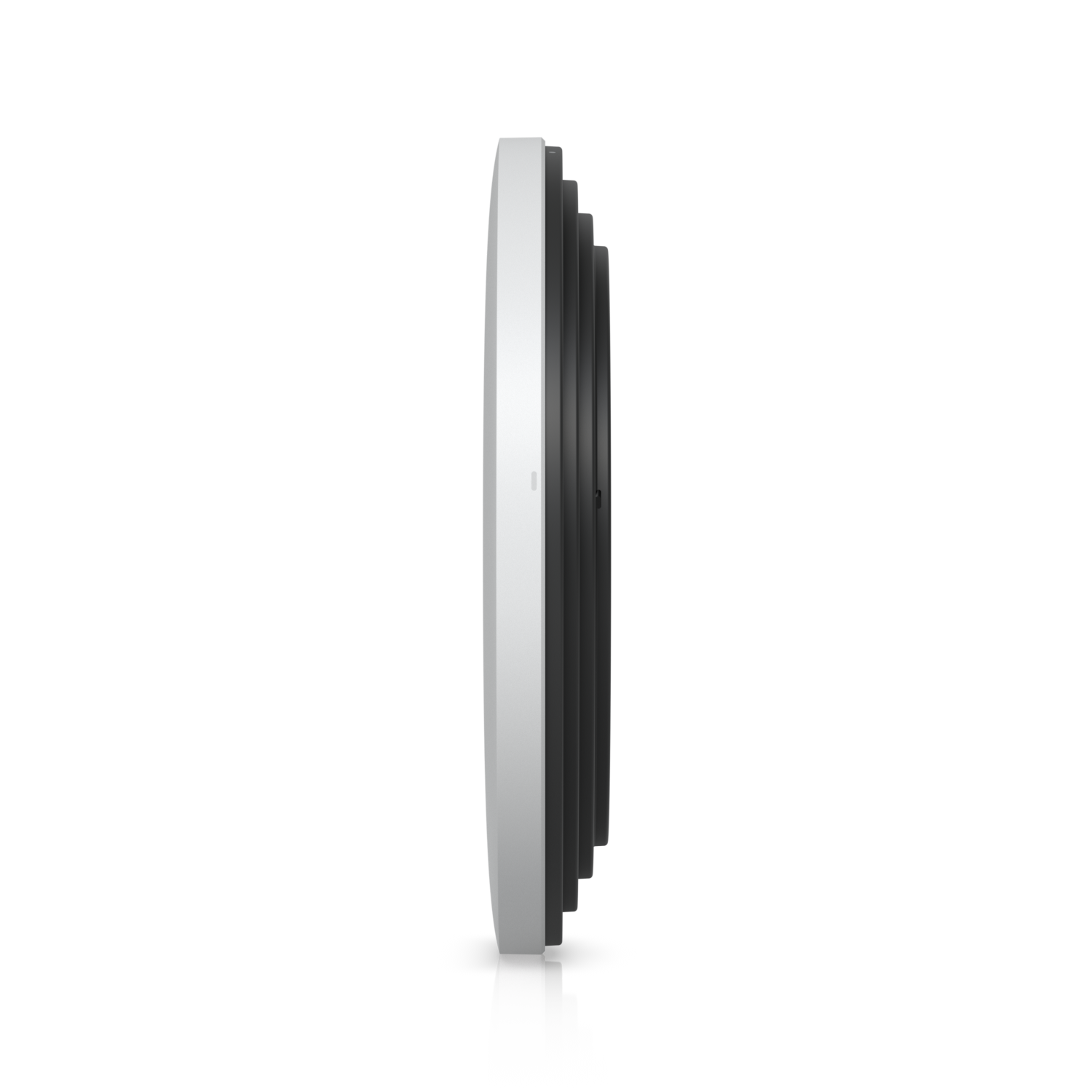

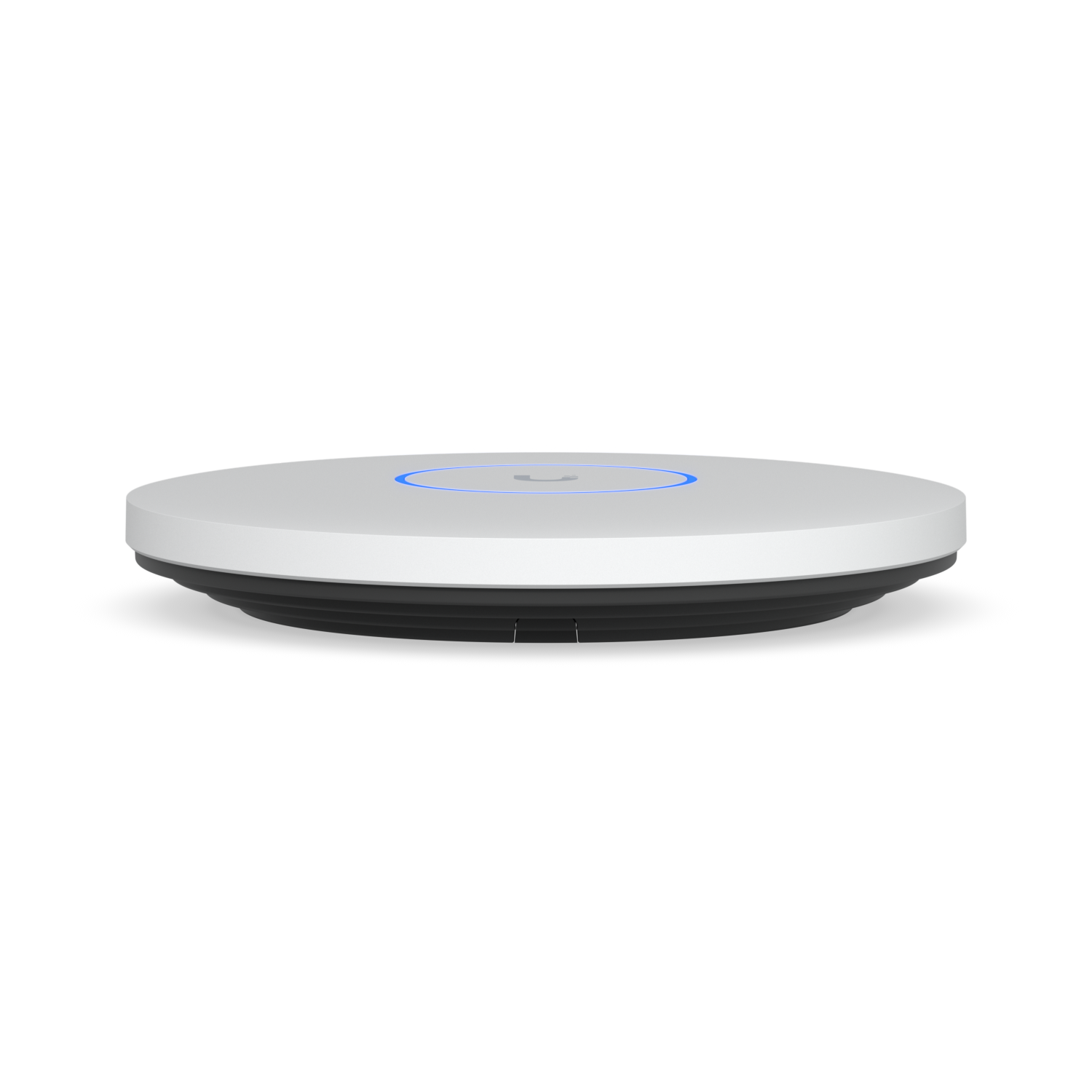

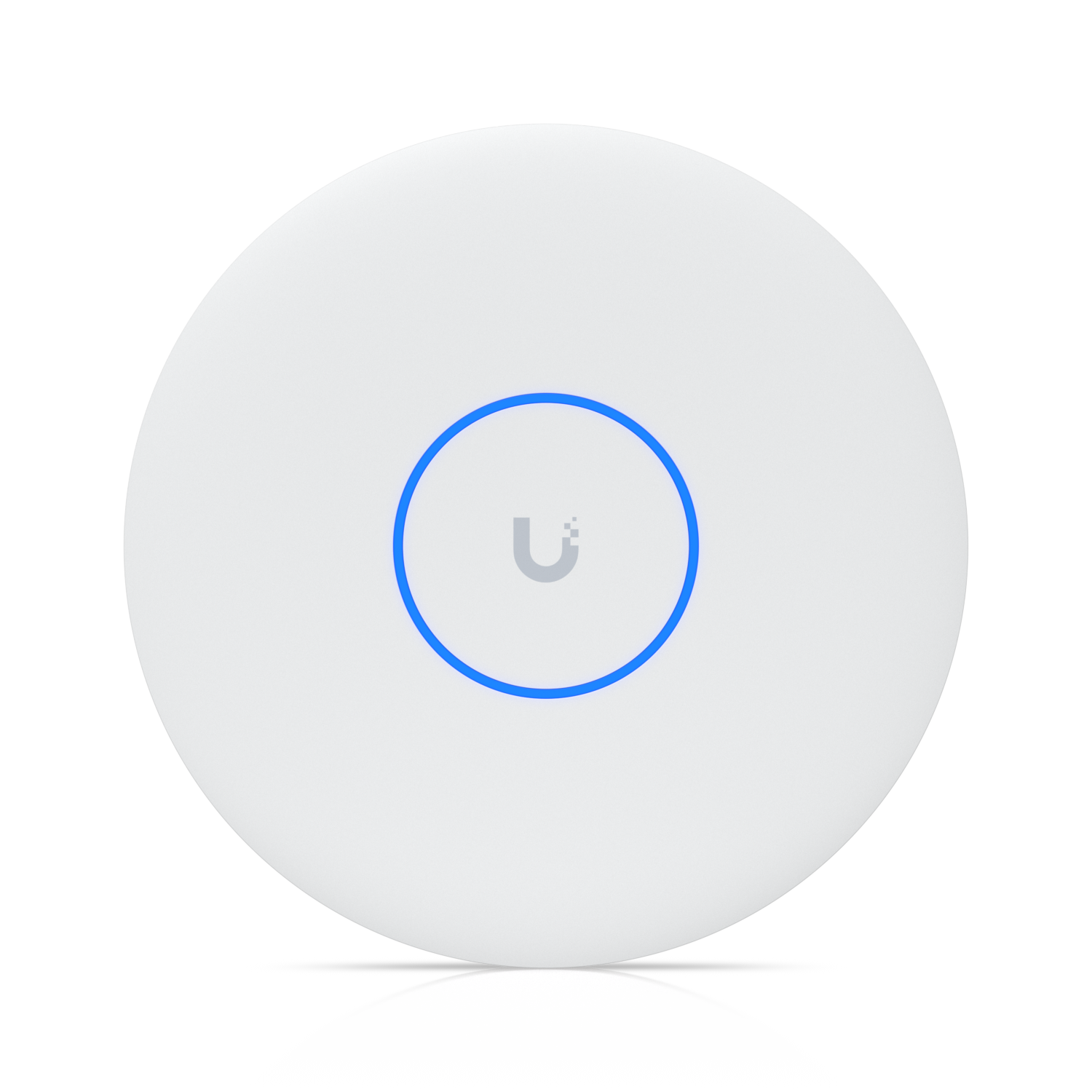

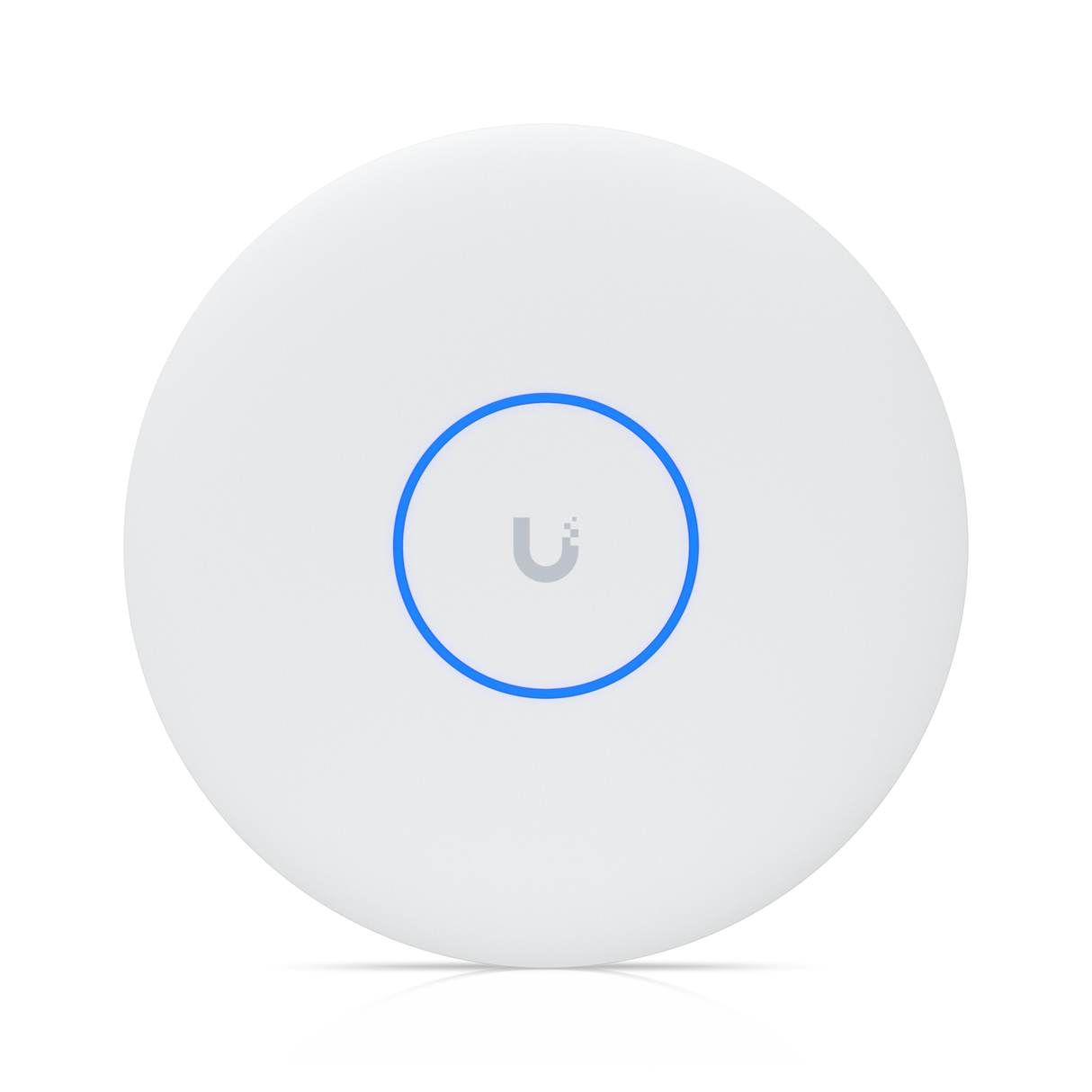

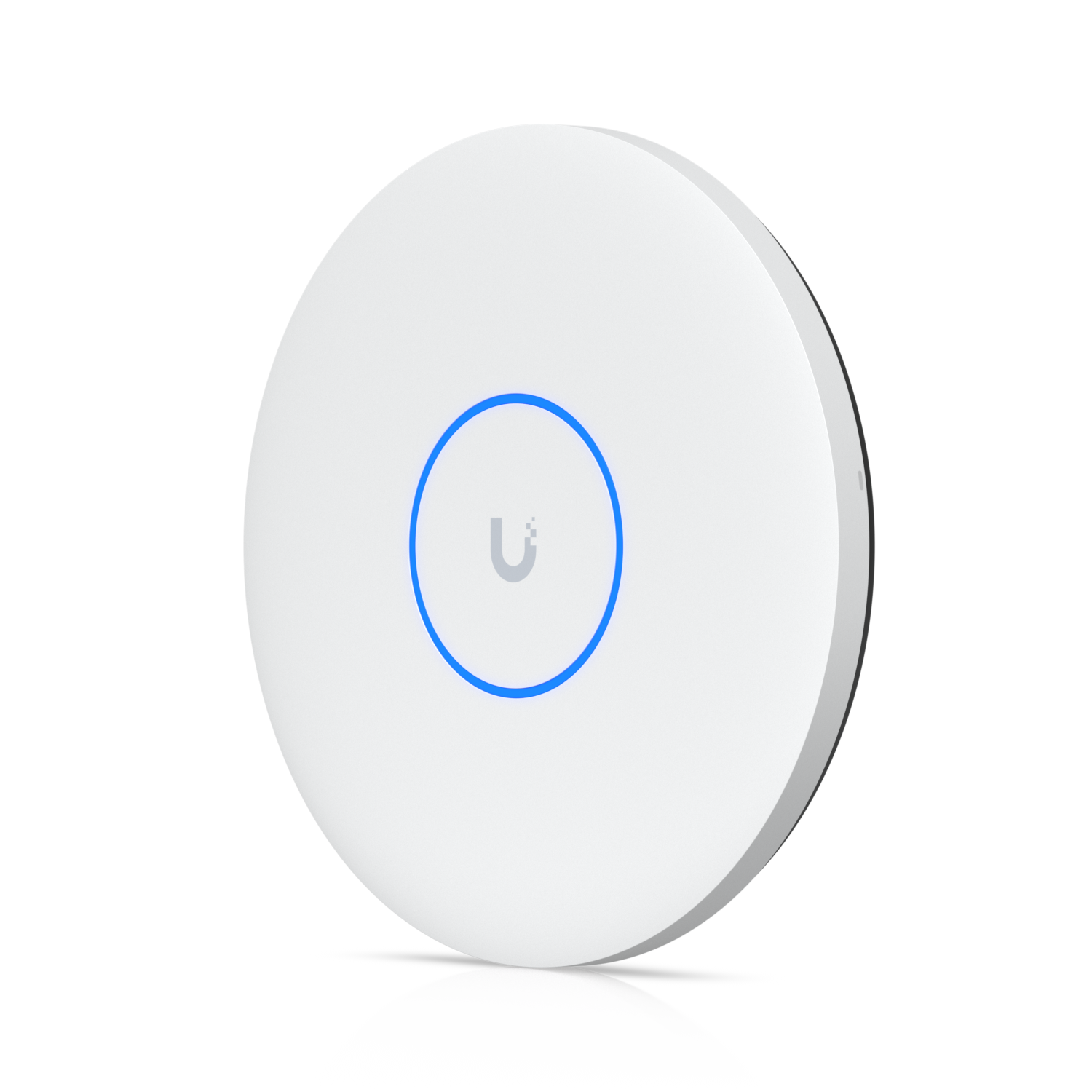

The Ubiquiti UniFi U7 Pro XGS U7-PRO-XGS is a ceiling-mounted 8-stream WiFi 7 AP with dedicated spectral scanning radio and 10/5/2.5/1 GbE support.
Technical Specifications
| Dimensions | Ø215 x 32.5 mm (Ø8.5 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 8 |
| Coverage Area | 160 m² (1,750 ft²) |
| Max. Client Count | 500+ |
| Uplink | 10 GbE |
| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE++ |
| Performance | |
| MIMO | |
| 6 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | |
| 6 GHz | 5.8 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| Antenna Gain | |
| 6 GHz | 6 dBi |
| 5 GHz | 6 dBi |
| 2.4 GHz | 4 dBi |
| Max. TX Power | |
| 6 GHz | 24 dBm |
| 5 GHz | 29 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | |
| 802.11be (WiFi 7) | 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) |
| 5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) | |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
| Features | |
| Wireless Meshing | ✓ |
| Band Steering | ✓ |
| 802.11v BSS Transition Management | ✓ |
| 802.11r Fast Roaming | ✓ |
| 802.11k Radio Resource Management (RRM) | ✓ |
| Zero-Wait DFS | ✓ |
| Advanced Radio Management | ✓ |
| Real-Time Spectral Analysis | ✓ |
| Passpoint (Hotspot 2.0) | ✓ |
| Captive Hotspot Portal | |
| Custom Branding Landing Page | ✓ |
| Voucher Authentication | ✓ |
| Payment-Based Authentication | ✓ |
| External Portal Server Support | ✓ |
| Password Authentication | ✓ |
| Guest Network Isolation | ✓ |
| Private Pre-Shared Key (PPSK) | ✓ |
| WiFi Speed Limiting | ✓ |
| Client Device Isolation | ✓ |
| WiFi Schedules | ✓ |
| RADIUS over TLS (RadSec) | ✓ |
| Dynamic RADIUS-assigned VLAN | ✓ |
| Hardware | |
| Max. Power Consumption | 29W |
| Supported Voltage Range | 42.5—57V DC |
| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 800 g (1.8 lb) |
| Management | Ethernet |
| Materials | |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| Certifications | CE, FCC, IC |
| Environmental Conditions | |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
