Ubiquiti  |  SKU: UX7

Ubiquiti UniFi UniFi Express 7 UX7

$199.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

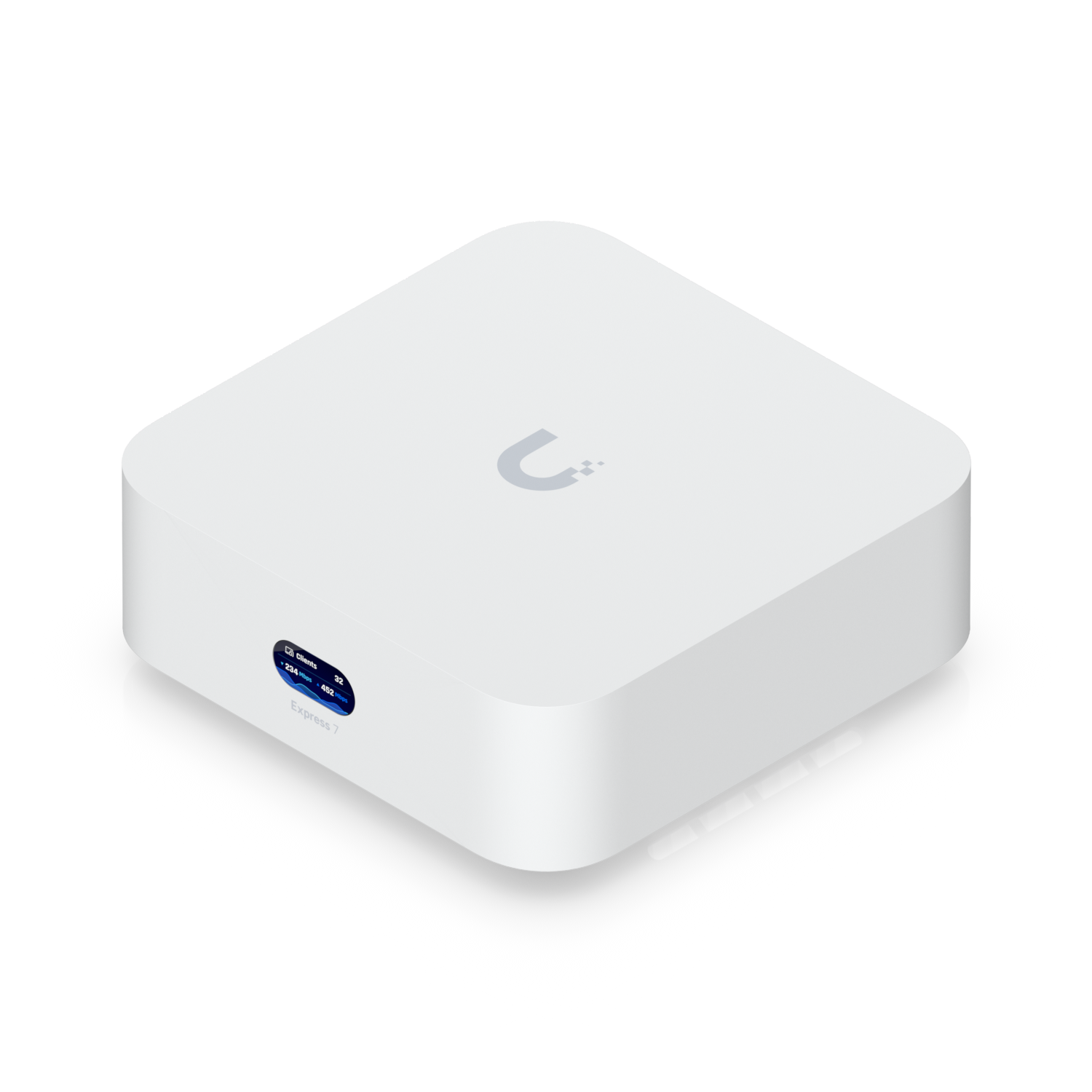

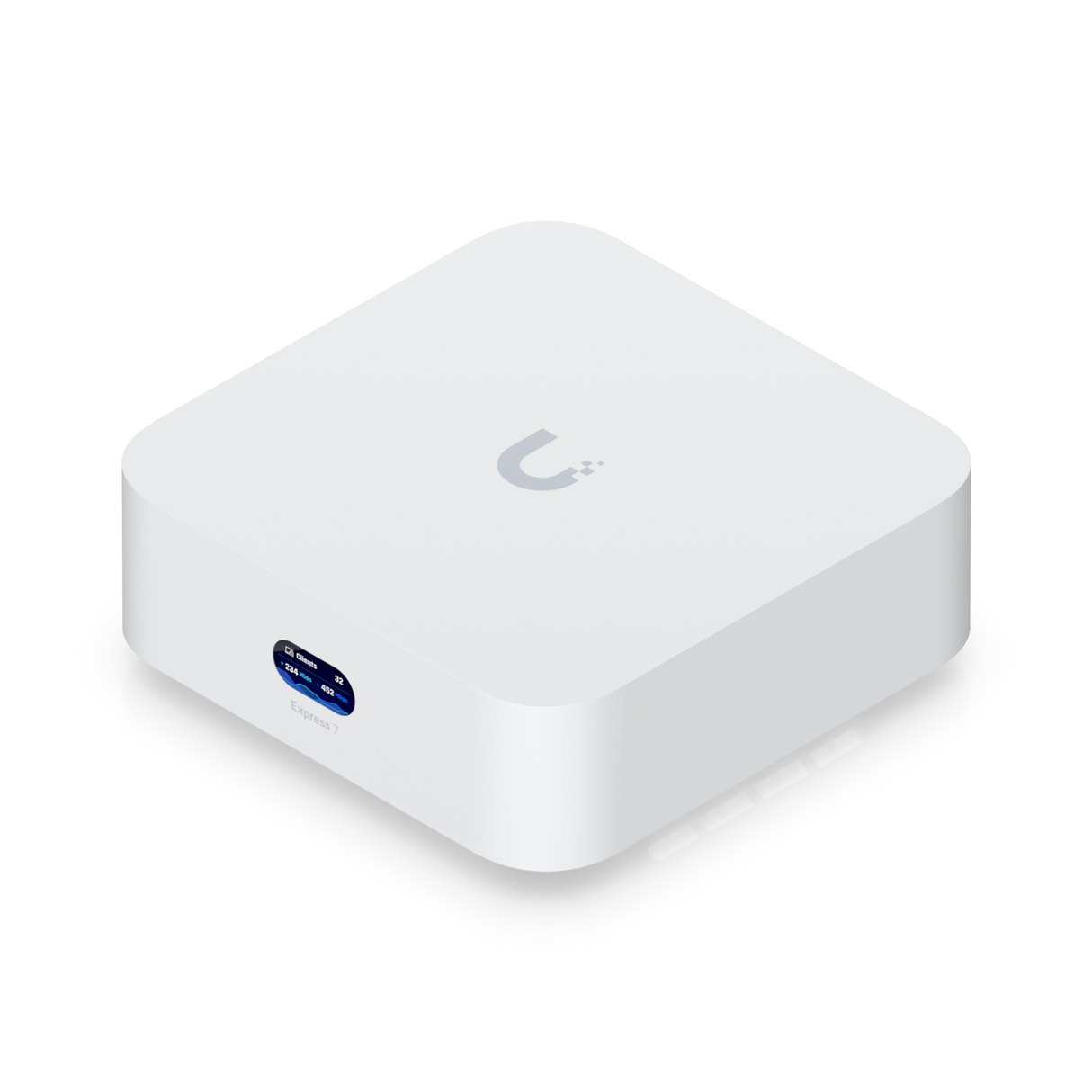

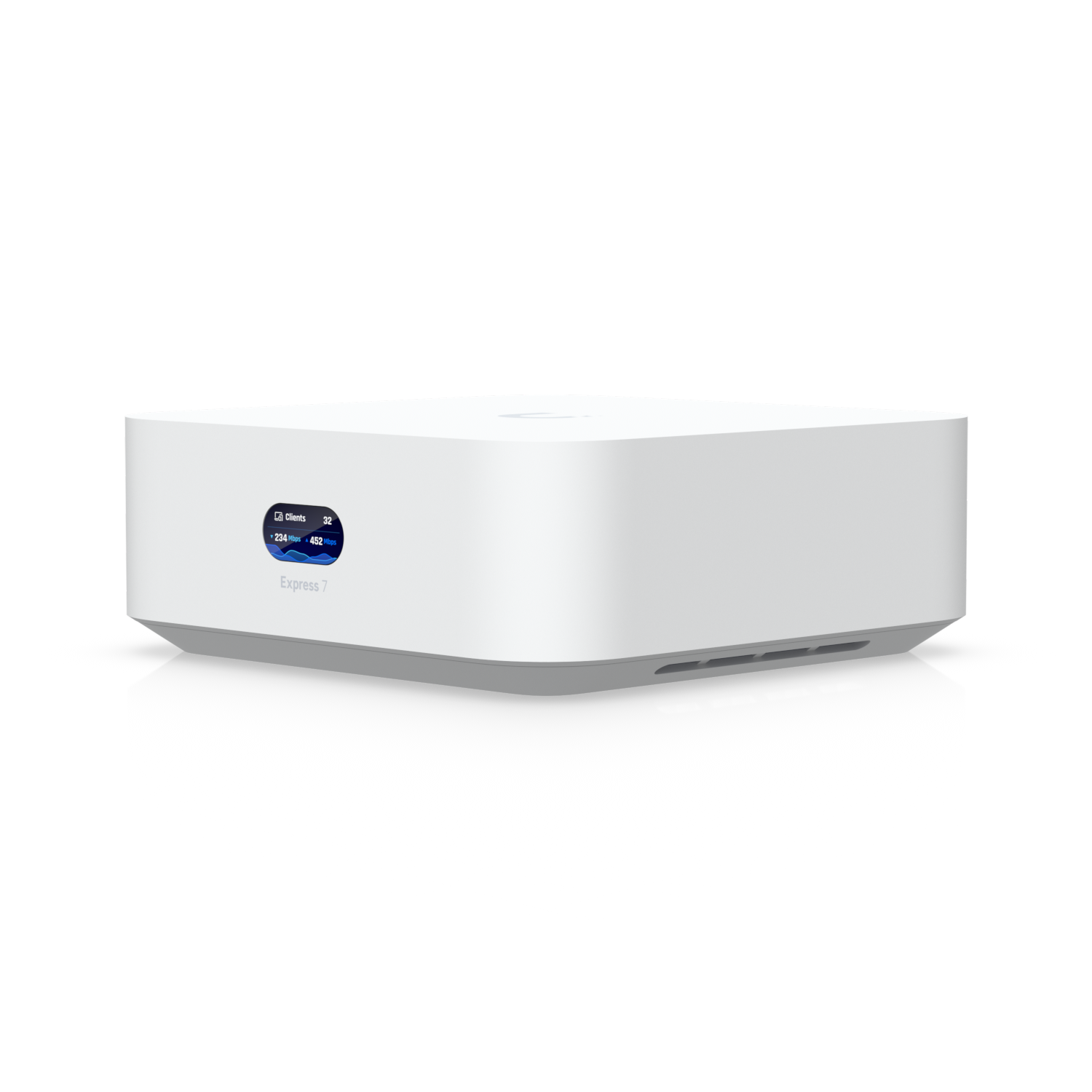

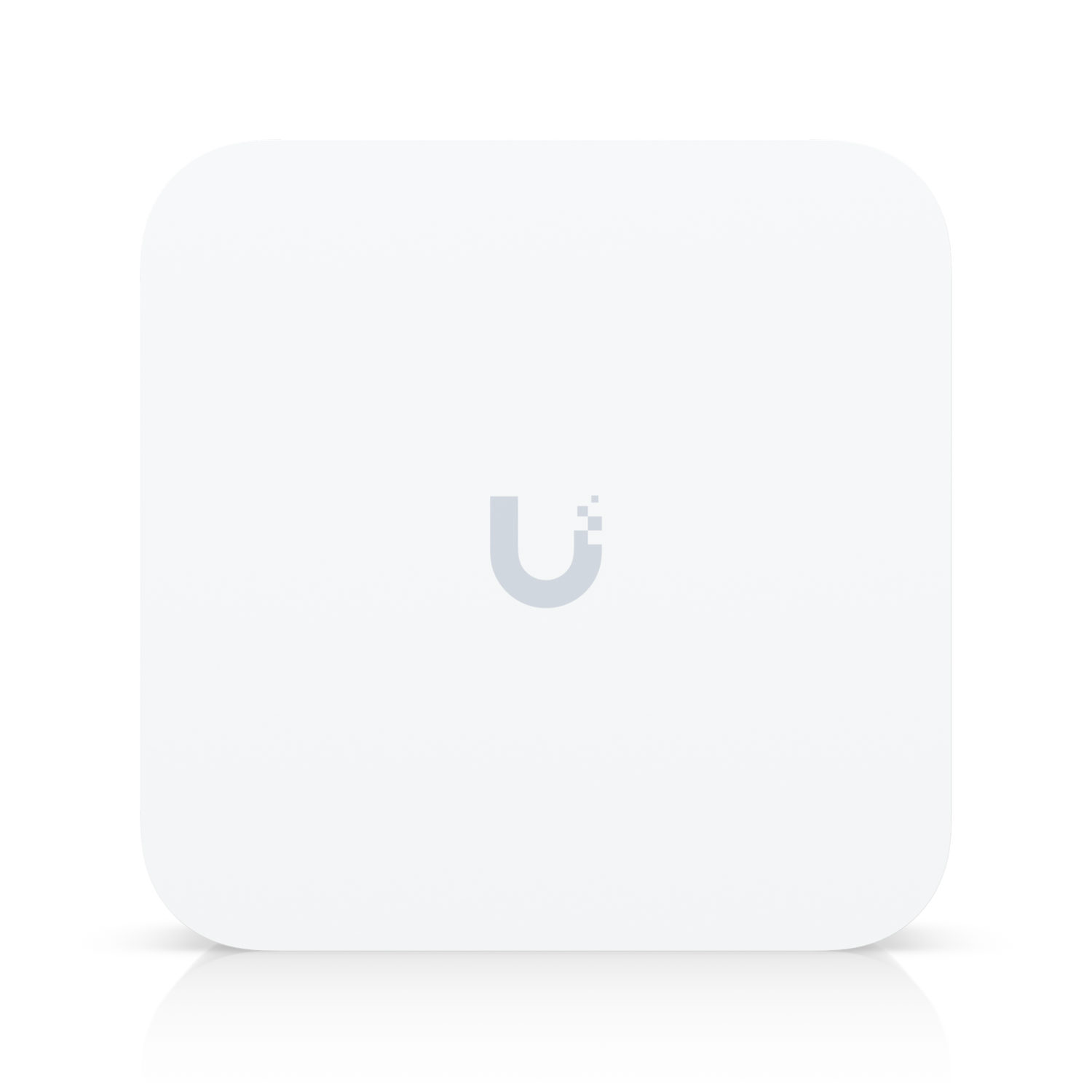

The UniFi Express UX7 is a Mesh-scalable, super-compact 10G UniFi Network Cloud Gateway with integrated WiFi 7 and multi-gigabit firewall security features.

Technical Specifications & Features

Category Specification
Dimensions 117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')
UniFi Application Suite
Network Yes
Managed UniFi Devices 30
Simultaneous Users Connected 300

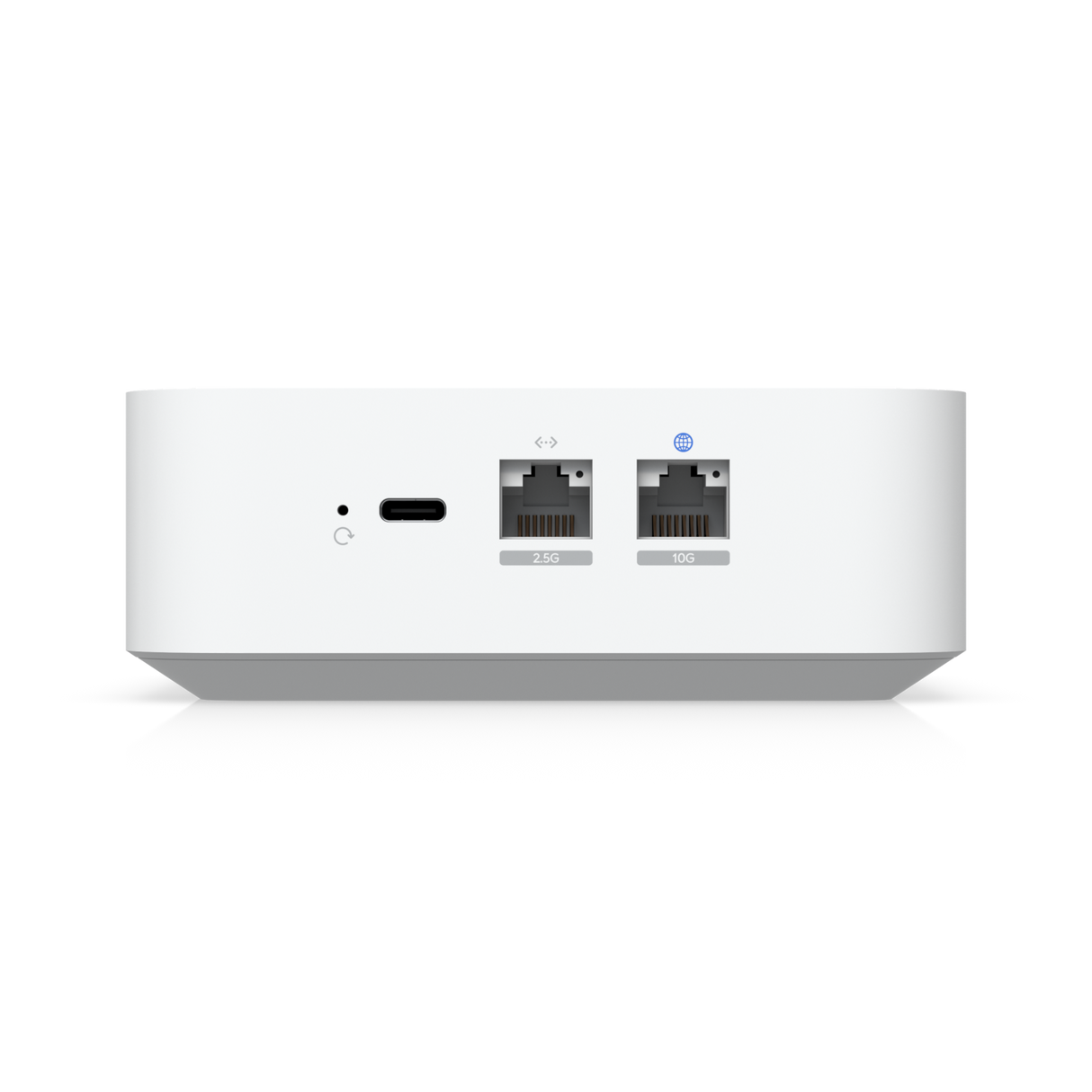

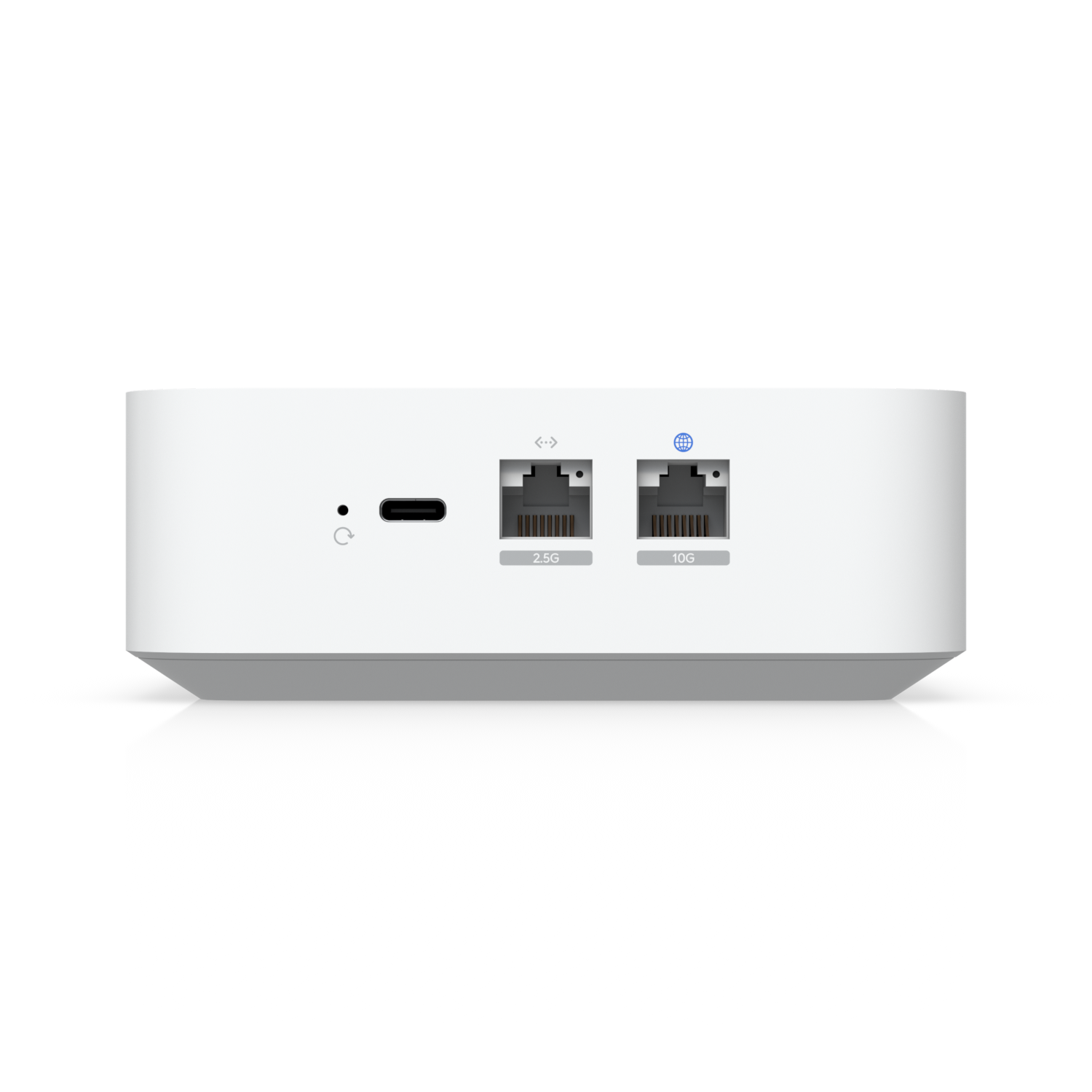

Default WAN Ports (1) 10 GbE RJ45
LAN Ports (1) 2.5 GbE RJ45
IDS/IPS Throughput 2.3 Gbps
Form Factor Compact desktop
Security
Stateful Firewall Yes
Application-Aware Layer 7 Firewall Yes
DPI & Traffic Identification Yes
Zone-Based Firewall Advanced Filtering Yes
Content Filtering Yes
Intrusion Prevention (IPS/IDS) Yes
Ad Blocking Yes
IDS/IPS Signatures 20,000+ with CyberSecure
VLAN/Subnet-based Traffic Segmentation Yes
VPN & SD-WAN
License-Free SD-WAN Yes
Site-to-Site VPN (Site Magic) Yes
IPsec Yes
OpenVPN Yes
VPN Server Identity Endpoint One-Click VPN, Teleport Zero-Configuration VPN
WireGuard Yes
L2TP Yes
VPN Client OpenVPN, WireGuard
Networking
Dynamic Routing (OSPF) Yes
Advanced QoS Yes
Multicast DNS (mDNS) Yes
Advanced NAT Yes
Integrated RADIUS Server Yes
RADIUS over TLS (RadSec) Yes
Additional Internet Failover with UniFi LTE Backup Yes
Internet Quality and Outage Reporting Yes
Policy-based WAN and VPN Routing Yes
Customizable DHCP Server Yes
IPv6 ISP Support Yes
IGMP Proxy Yes
Integrated WiFi
WiFi Standard 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)
Throughput
6 GHz 5.7 Gbps
5 GHz 4.3 Gbps
2.4 GHz 688 Mbps
Hardware
Max. Power Consumption 22W
Power Method USB type C (5V DC/5A)

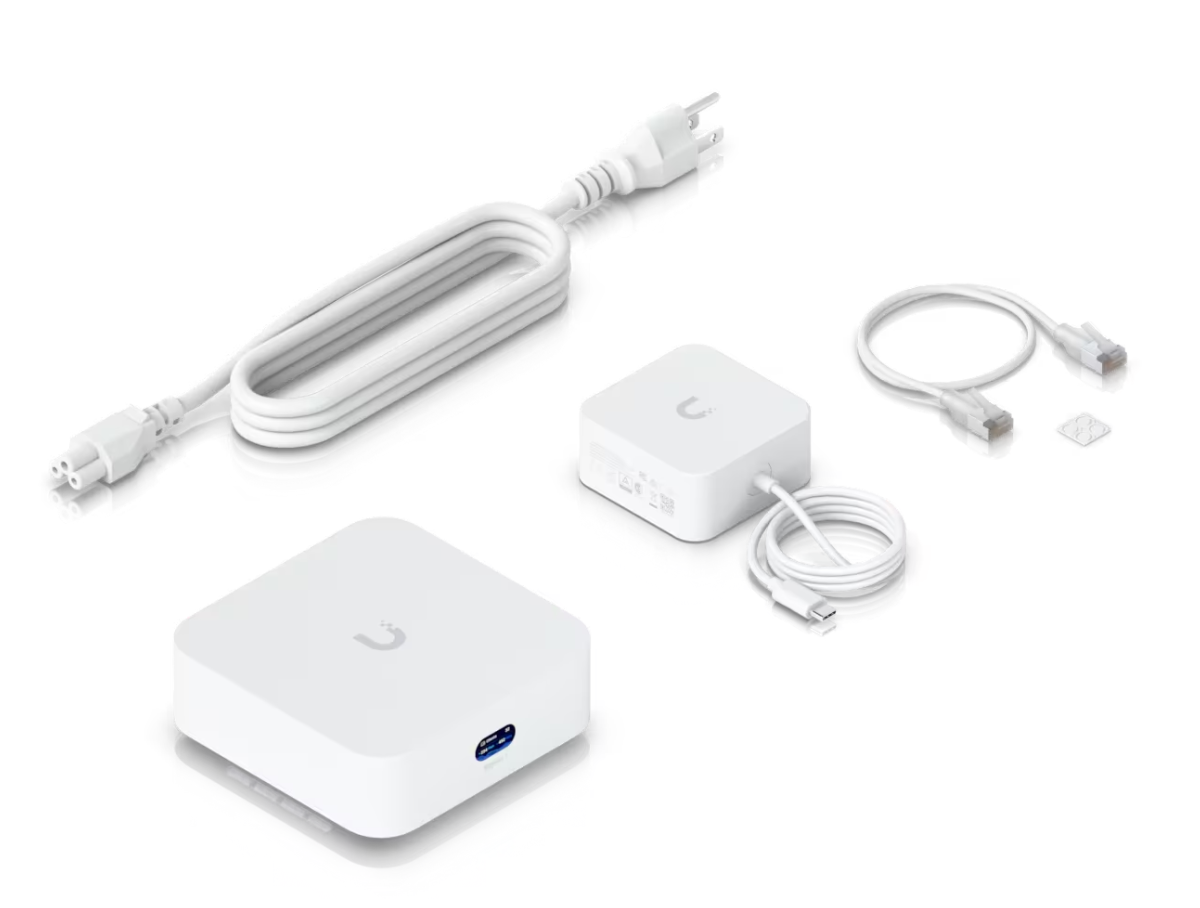

Power Supply USB type C (5V DC/5A) (Adapter included)
Max. TX Power
6 GHz 24 dBm
5 GHz 26 dBm
2.4 GHz 23 dBm
Supported Voltage Range 100-240V AC
Processor Quad-core ARM® Cortex®-A53 at 1.5 GHz
System Memory 3 GB
Weight 422 g (14.9 oz)
Enclosure Material Polycarbonate

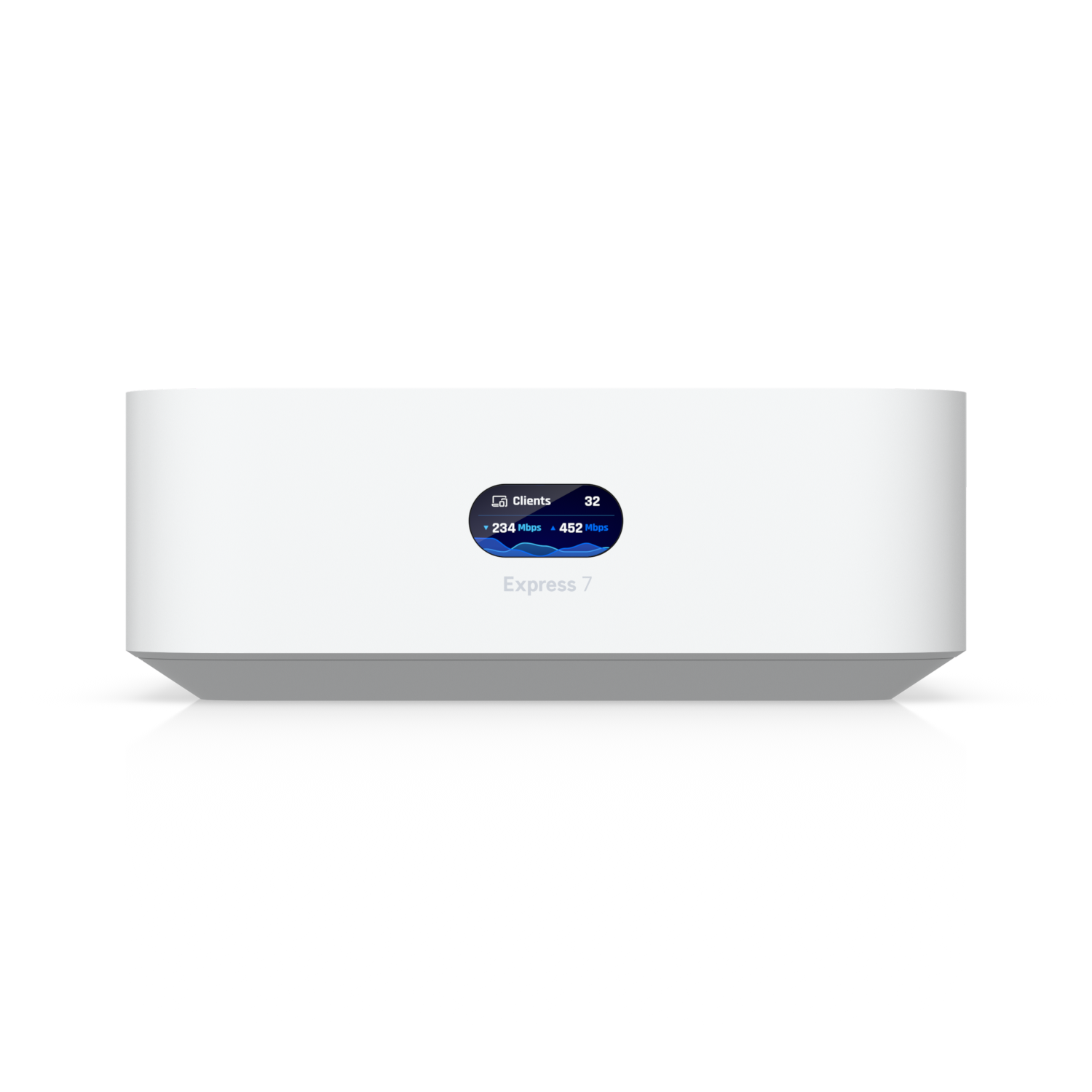

LCM Display 0.96" status display
Management
Ethernet Yes
Bluetooth Yes
Software
VLAN 802.1Q
Guest Traffic Isolation Yes
Application Requirements UniFi Network Version 9.0.108 and later
