Ubiquiti UniFi Switch Enterprise 48 PoE USW-Enterprise-48-PoE (720W)
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com
Please see our Shipping Policy for more information.
In-Stock.

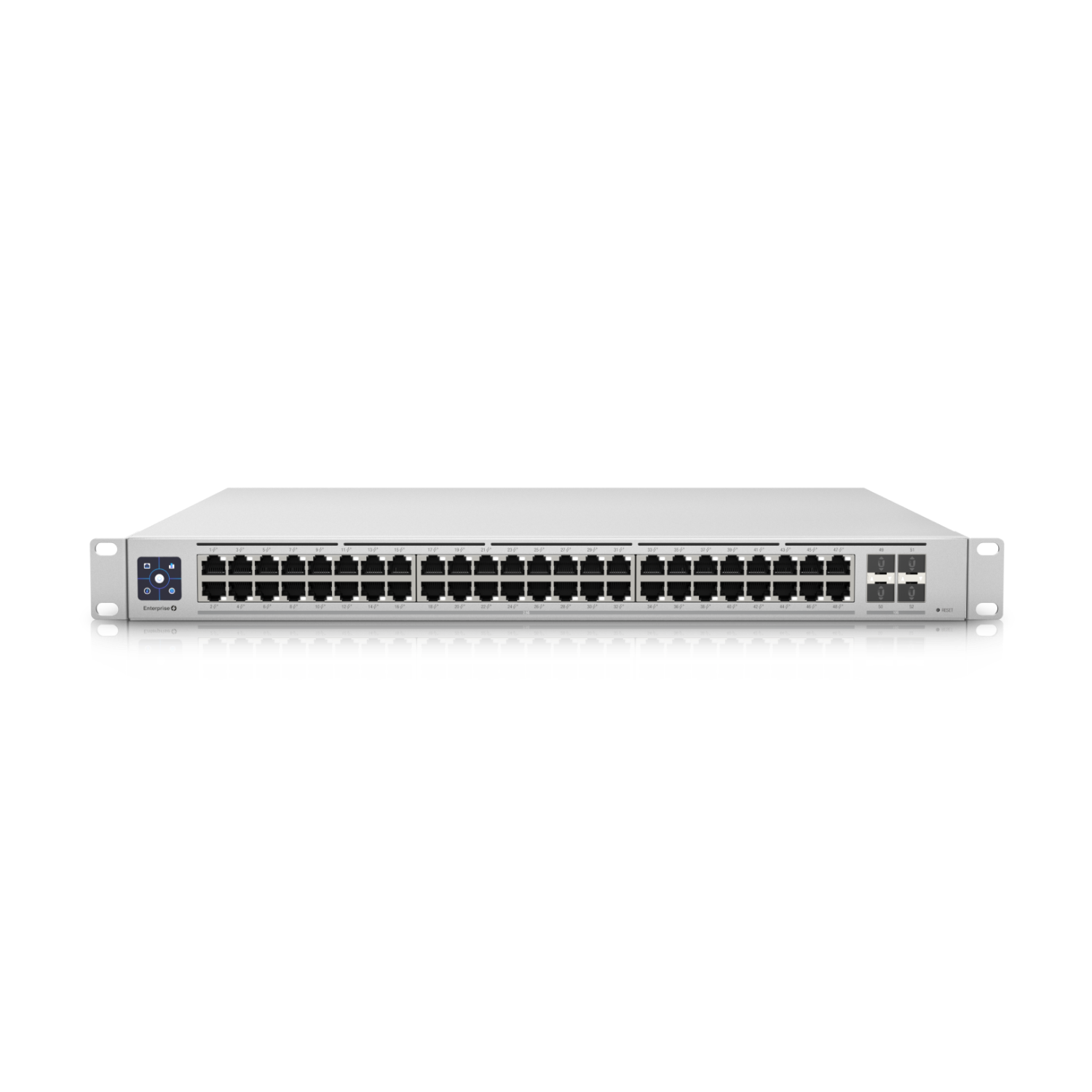

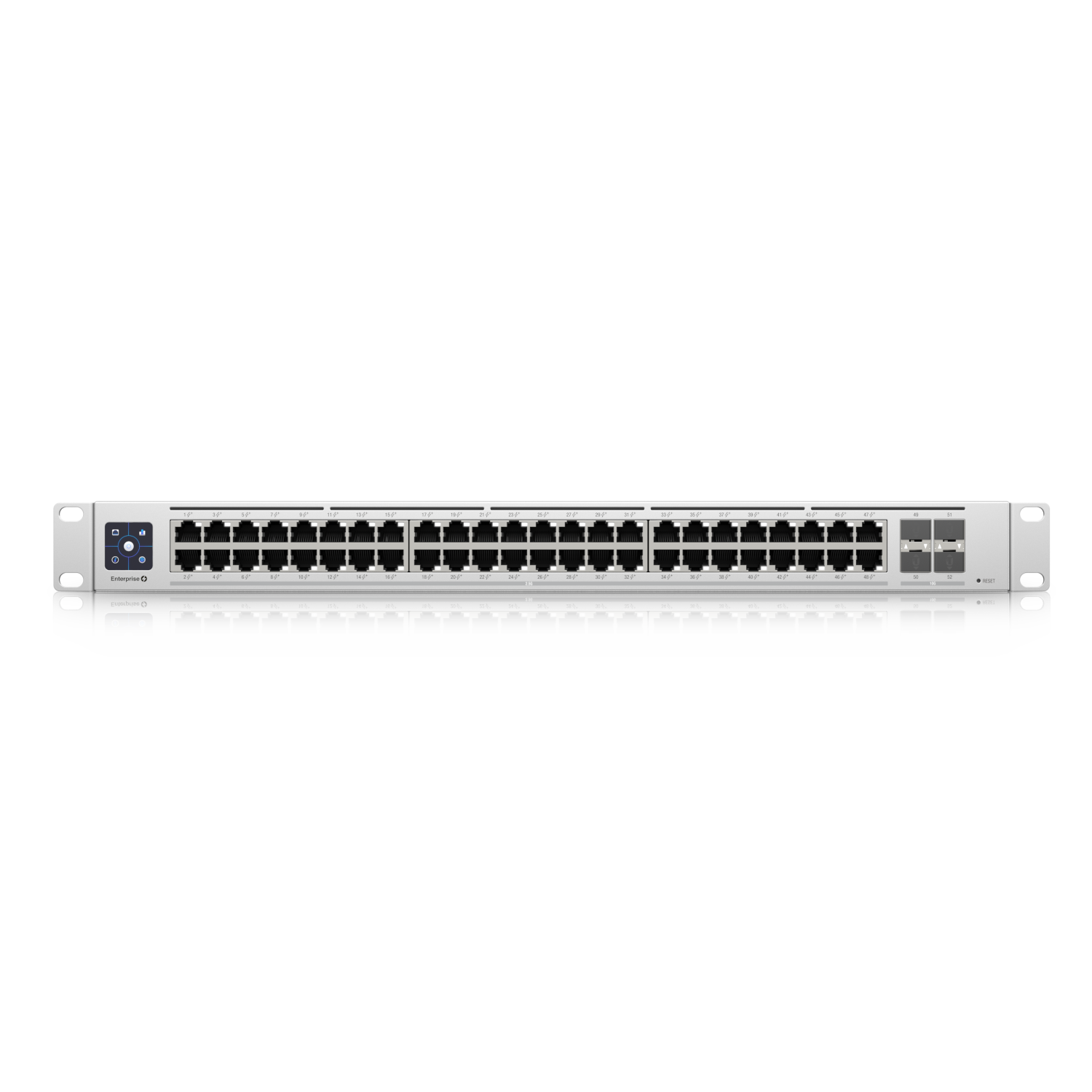

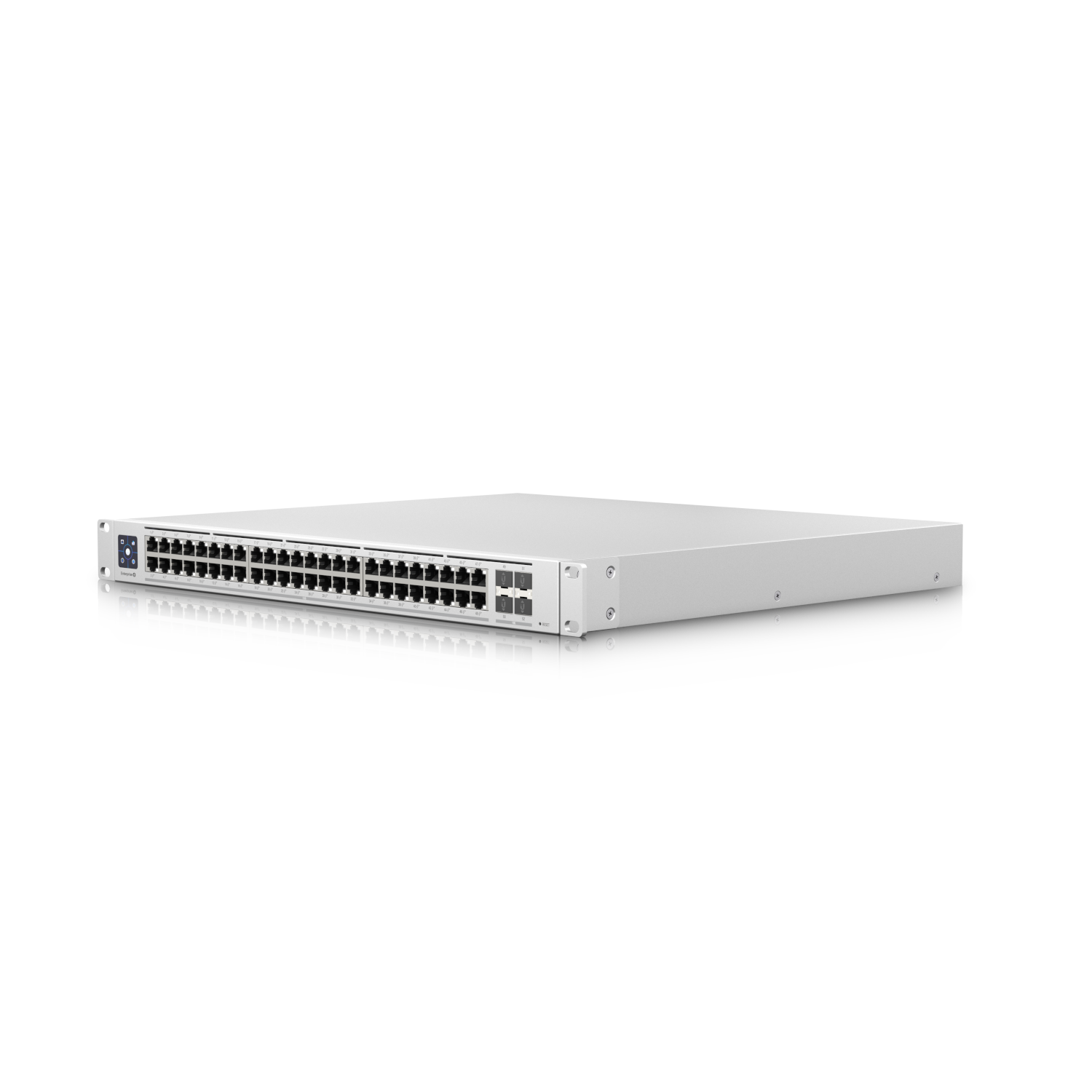

The Ubiquiti UniFi Switch Enterprise 48 PoE USW-Enterprise-48-PoE (720W) is a 48-port, Layer 3 switch with 2.5 GbE PoE+ output.
(48) 2.5 GbE PoE+ ports
(4) 10G SFP+ ports
720W total PoE availability
DC power backup-ready
Layer 3 switching
Technical Specifications
| Mechanical | |
|---|---|
| Dimensions | 442 x 400 x 44 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (48) 2.5 GbE RJ45 ports (4) 1/10G SFP+ ports |
| PoE interface | (48) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 160 Gbps |
| Switching capacity | 320 Gbps |
| Forwarding rate | 238.095 Mpps |
| Power method | (1) Universal input, 100—240V AC, 10A Max., 50/60 Hz (1) USP-RPS DC input, 52V DC, 13.84A; 11.5V DC, 13A |
| Power supply | AC/DC, internal, 100—240V, 10A Max. |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 150W (Excluding PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port by PSE | PoE+: 34.2W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| Services | SMB Layer 3 PoE GbE Switch |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| LCM display | (1) 1.3" color touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| LEDs | |
| System | Status |
| Ethernet | Link/activity |
| SFP+ | Link/activity |
| Application Requirements | |
| UniFi Network | Version 6.2.26 and later |
