Ubiquiti  |  SKU: USW-PRO-48-POE

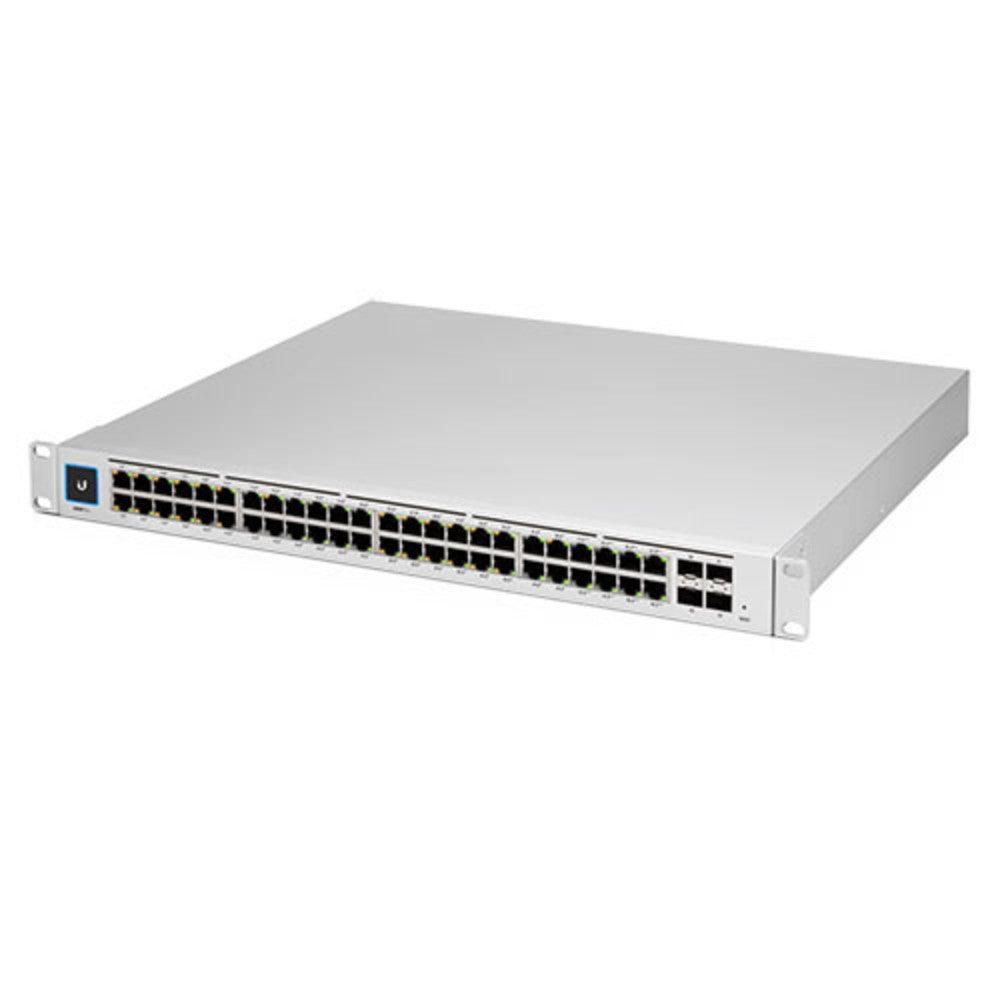

Ubiquiti UniFi Pro 48-Port PoE Switch USW-PRO-48-POE

$1,049.00

Delivery and Shipping

The cost of shipping your order is determined at checkout, factoring in the speed of delivery you select, as well as the size and weight of the items you've chosen. Please note, our daily cutoff time for same day shipping is 12PM Eastern Standard Time. If you need rush or same-day processing after these cutoff times, please contact us as same-day shipping may still be possible. You can reach us by phone at 781-272-0967 or by email at frontdesk@c3aero.com

Please see our Shipping Policy for more information.

Back Order

The Switch USW-PRO-48-POE is a 48-port, Layer 3 switch capable of high-power PoE++ output with (8) PoE++ ports and (40) PoE+ ports. PoE++ ports are capable of powering Switch Flex and UniFi Access Hub devices for UniFi Access.

USW-PRO-48-POE Technical Specifications:

Mechanical

Dimensions

442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7")

Weight

Without mounting brackets: 6.2 kg (13.8 lb)
With mounting brackets: 6.3 kg (14 lb)

Enclosure material

SGCC steel

Hardware

Management interface

Ethernet In-Band

Networking interface

(48) GbE RJ45 ports
(4) 1/10G SFP+ ports

PoE interface

(40) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(8) 60W PoE++; PoE/PoE+ (Pins 1, 2+; 3, 6-) / PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput

88 Gbps

Switching capacity

176 Gbps

Forwarding rate

130.944 Mpps

Power method

Universal input, 100—240V AC, 50/60 Hz
USP RPS DC input, 52V DC, 11.54A / 11.5V DC, 5.22A

Power supply

AC/DC, internal, 660W

Supported voltage range

100—240V AC

Max. power consumption

60W (Excluding PoE output)

Total available PoE

600W

Max. PoE wattage per port by PSE

PoE+: 32W
PoE++: 64W

Voltage range PoE mode

PoE: 44—57V
PoE+: 50—57V

ESD/EMP protection

Air: ± 16kV, contact: ± 12kV

LCM display

(1) 1.3" touchscreen

Button

Factory reset

Shock and vibration

ETSI300-019-1.4 Standard

Operating temperature

-5 to 40° C (23 to 104° F)

Operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

LEDs

System

Status

Ethernet

PoE
Speed/link/activity

SFP+

Link/activity

RPS

Status

Application Requirements

UniFi Network

Version 5.10.5 and later



The Ubiquiti UniFi® Pro Switch 48-Port PoE USW-PRO-48-POE is a configurable Gigabit Layer2 and Layer3 switch with auto-sensing 802.3at PoE+ and 802.3bt PoE++. Forty PoE+ and eight PoE++ RJ45 ethernet ports have total 600W PoE budget, and four SFP+ ports offer 10Gbps uplink options. The USW-PRO-48-POE has Near-silent cooling and a 1.3" touch LCM.
